Network Security Appliances

NETWORK SECURITY

SonicWALL NSA E7500

SonicWALL NSA E7500 Getting Started Guide

EFT DRAFT

SonicWALL NSA E7500 Getting Started Guide

SonicWALL EARLY FIELD TRIAL DRAFT

The SonicWALL NSA E7500 is a high-performance, multi-service gigabit network security platform that protects users and critical network resources from dynamic network threats and attacks. The SonicWALL NSA E7500 is easy to deploy. It integrates SonicWALL’s Security Services for comprehensive Unified Threat Management, including:

• Intrusion Prevention Service

• Gateway Anti-Virus

• Anti-Spyware

• Client-Enforced Anti-Virus

• Content Filtering Service

This Getting Started Guide provides instructions for basic installation and configuration of the SonicWALL NSA E7500 running SonicOS Enhanced. After you complete this guide, computers on your Local Area Network (LAN) will have secure Internet access.

SonicWALL NSA E7500 Getting Started Guide Page 1

SonicWALL EFT DRAFT

Document Contents

This document contains the following sections:

Completing Pre-Configuration Tasks - page 3

Connecting for Initial Setup - page 17

Initial Configuration - page 21

Registering Your SonicWALL - page 27

Appendix

Appendix A: Configuring DHCP IP Addressing - page 31 Appendix B: Troubleshooting Internet Connectivity - page 32 Appendix C: Safety Instructions and Regulatory Information - page 33

Page 2

EFT DRAFT

Completing Pre-Configuration Tasks

In this Section:

This section provides pre-configuration information. Review this section before setting up your SonicWALL NSA E7500.

• System Requirements, on page 4

• Check Package Contents, on page 5

• Obtain Configuration Information, on page 6

• Obtain Internet Service Provider (ISP) Information, on page 7

• The Front Panel, on page 8

• The Back Panel, on page 9

• Front Bezel Control Features, on page 10

SonicWALL NSA E7500 Getting Started Guide Page 3

SonicWALL EFT DRAFT

System Requirements

Before you begin the setup process, check to ensure that you have:

• A computer to use as a management station for initial configuration of the SonicWALL NSA E7500

• A Web browser supporting Java and HTTP uploads. Internet Explorer 6.0 or higher, Netscape Navigator 7.2 or higher, or Opera 8.54 or higher are required.

• An Internet connection

Page 4 System Requirements

EFT DRAFT

Check Package Contents

Any Items Missing?

SonicWALL NSA E7500

Ethernet cable

Standard power cord (2)

Release Notes

SonicWALL Resource CD

Getting Started Guide

Rack Mount**

Rail Kit**

DB9 -> RJ45 (CLI) Cable**



.ETWORK3ECURITY!PPLIANCE

If any items are missing from your package, please contact SonicW ALL support.

A listing of the most current support options is available online at:

<http://www.sonicwall.com/us/

support.html>

*The included power cord is intended f or use in North America only. For European Union (EU) customers, a power cord is not included.

**Items not included in content graphic.

3ONIC/32ELEASE.OTES

%

#ONTENTS



#/-02%(%.3)6%).4%2.%43%#52





X

3ONIC7!,,

2ESOURCE#$

)49

3ONIC7!,,

'ETTING3TARTED'UIDE



SonicWALL NSA E7500 Getting Started Guide Page 5

SonicWALL EFT DRAFT

Obtain Configuration Information

Please record and keep for future reference the fo llowing setup information:

Registration Information

Serial Number:

Authentication Code:

Networking Information

LAN IP Address:

Subnet Mask:

Ethernet WAN IP Address:

. . .

Record the serial number found on the botto m panel of your SonicWALL appliance.

Record the authentication code found on the bottom p anel of your SonicWAL L appliance.

Select a static IP address for your SonicW A LL appliance that is within the range of your local subnet. If you are unsure, you can use the default IP addr ess (192.168.168.168).

Record the subnet mask for the local subnet where you are installing your SonicWALL appliance.

Select a static IP address for your Etherne t W AN. This

setting only applies if you are already using an ISP that assigns a static IP address.

Administrator Information

Admin Name:

Admin Password:

Page 6 Obtain Configuration Informati on

Select an administrator account name. (default is admin)

Select an administrator password. (default is password)

EFT DRAFT

Obtain Internet Service Provider (ISP) Information

Record the following information about your current Internet service:

If You connect using Please record

DHCP No Internet connection information is usually

required:

Static IP IP Address:

Subnet Mask: . . . Default Gateway

(Router IP Address): Primary DNS: . . . Secondary DNS (optional):

. . .

Note: If you are not using one of the network configurations above, refer to

the SonicOS Enhanced Administrator’s Guide. You can locate this guide on your SonicWALL Resource CD.

SonicWALL NSA E7500 Getting Started Guide Page 7

SonicWALL EFT DRAFT

The Front Panel

Network Security Appliance

E7500

Feature Description LCD Screen Displays the front panel bezel interface, which can be used to

display status information, make certain configuration changes, restart the appliance, or boot the appliance in Safe Mode.

Control Buttons Used to navigate the front panel bezel interface. Console Port Used to access the SonicOS Command Line Interface (CLI)

via the DB9 -> RJ45 cable.

USB Ports (2) Future extension. Power LED (2) Indicates the SonicWALL NSA E7500 is powered on. Test LED Flickering: Indicates the appliance is initializing.

Steady blinking: Indicates the appliance is in safe mode. Solid: Indicates that the appliance is in test mode.

Alarm LED Indicates an alarm condition. HD LED Future extension. HA Port High availability failover port. X0-X7 Gigabit Ethernet ports. Bypass Status LED Indicates that default LAN and WAN interfaces (X0 and X1

respectively) are directly connected.

Page 8 The Front Panel

The Back Panel

EFT DRAFT

I o

Feature Description Expansion Bay Future extension. Fans (2) The SonicWALL NSA E7500 includes two fans for system

temperature control.

Power Supply (2) The SonicWALL NSA E7500 includes two power supplies for

redundant AC power and added reliability.

SonicWALL NSA E7500 Getting Started Guide Page 9

SonicWALL EFT DRAFT

Front Bezel Control Features

The SonicWALL Network Security Appliance series is equipped with a front panel bezel interface that allows an administrator to customize certain aspects of the appliance or simply monitor its status without having to log into it through a separate terminal.

.ETWORK3ECURITY!PPLIANCE

Feature Description LCD Screen Displays the front panel bezel interface, which can be used to

display status information, perform basic configurations, restart the appliance, or boot the appliance in Safe Mode.

Control Buttons Used to navigate the front panel bezel interface.

Note: Using the Front Bezel to configure any aspect of the SonicWALL NSA

E7500 means the Setup Wizard will not automatically launch upon login. To manually launch the Setup Wizard, see If the SonicWALL Setup Wizard Does Not Appear, on page 24.

Page 10 Front Bezel Control Features

EFT DRAFT

Front Bezel Controls

The front bezel uses four buttons arranged in an Up, Down, Left, and Right configuration for navigation. The Up and Down buttons are used to select options and move up and down lists. The Right button confirms choices and enters menus. The Left button cancels changes and returns to the previous menu. The Left button can also set the appliance to Screen-Saver Mode if press from the Main Menu.

Main Menu

Upon booting the LCD display will initially show th e Main Menu. The menu is made up of four options:

•Status>

•Configure>

•Restart>

• Safe Mode>

Use the Up and Down button to select the option you wish to enter and click the Right button to enter it.

SonicWALL NSA E7500 Getting Started Guide Page 11

SonicWALL EFT DRAFT

Status

This option allows you to view specific aspects of the appliance. Once selected, the LCD will display the Status List. This list is navigated using the Up and

Down buttons.

• SonicWALL E7500

• Serial #:

• Firmware Version:

•Rom Vers:

• FireWall Name:

• Date:

•Time:

•Uptime:

•CPU (1s):

• CPU (10s):

• CPU (avg):

• Connections:

• X0 Zone:

•X0 IP:

•X0 Subnet:

•X0 Tx:

•X0 Rx:

• X1 Zone:

• X1 Mode:

•X1 IP:

•X1 Subnet:

• X1 Gateway:

• X1 DNS1:

• X1 DNS2:

• X1 DNS3:

•X1 Tx:

•X1 Rx:

Page 12 Front Bezel Control Features

EFT DRAFT

The X1 DNS1-3 entries will only be displayed if they have been set from the Configure menu. If their value is still 0.0.0.0 (default value), they will not appear in the Status List.

Configure

This option allows you to configure specific aspect of the appliance. Once selected, the LCD will display a PIN request.

Note: Default PIN is 76642. PIN number can be changed from the

System > Administration page.

All numbers are inputted using the 4 buttons. Select the individual digit field using the Left and Right button and select the desired number using the Up and Down Button. Digits increase incrementally from 0 to 9. Press the Right button to confirm your PIN and enter the Configuration Menu.

The appliance will remember the PIN number and allow the user to navigate in and out of the Configuration Menu. However, once the appliance enters ScreenSaver Mode, whether from the sixty second time out or from pressing th e Left button from the Main Menu, the PIN number will be forgotten and will have to be inputted again to access the Configuration Menu.

SonicWALL NSA E7500 Getting Started Guide Page 13

SonicWALL EFT DRAFT

Configuration Options

Configurable options include:

•X0 IP>

• X0 Subnet>

•X1 Mode>

•X1 IP>

• X1 Subnet>

• X1 Gateway>

• X1 DNS1>

• X1 DNS2>

• X1 DNS3>

•Set Defaults>

The X1 Mode can be set to S tatic (default) or to DHCP. The Set Defaults option will reset the appliance to default factory settings. If

selected it will prompt for confirmation twice before restoring defaults. If an option is selected but not modified, the appliance display a message

stating that no changes were made and will return the user to the edit value screen. If a change was made, it will prompt the user for confirmation before effecting the change.

Page 14 Front Bezel Control Features

EFT DRAFT

Restart

This option allows you to safely restart without resorting to power cycling the appliance. Once selected, the LCD will display a confirmation prompt. Select Y for Yes and press the Right button to confirm. The appliance will reboot.

Safe Mode

This option will set the appliance to safe mode. Once selected, the LCD will display a confirmation prompt. Select Y for Yes and press the Right button to confirm. The appliance will change to safe mode.

Note: While in safe mode, the Front Bezel interface relinquishes

control to the safe mode process.

Screen-Saver

If no button is pressed for over sixty seconds, or if the Left button is pressed from the Main Menu, the appliance will enter Screen-Saver Mode. In this mode, the Status List will cycle, every entry being displayed for a few seconds.

If the Up or Down button is pressed while in Screen-Saver mode, the appliance will display adjacent status entry.

To exit Screen-Saver mode , press the Right button.

SonicWALL NSA E7500 Getting Started Guide Page 15

SonicWALL EFT DRAFT

Page 16 Front Bezel Control Features

EFT DRAFT

Connecting for Initial Setup

In this Section:

This section provides initial configuration instructions for connecting your sonicWALL NSA E7500.

• Connecting the WAN Port to the Intern et, on page 18

• Connecting the LAN Port to Your Management Station, on page 18

• Applying Power to the SonicWALL NSA E7500, on page 19

SonicWALL NSA E7500 Getting Started Guide Page 17

SonicWALL EFT DRAFT

Connecting the WAN Port to the Internet

1. Connect one end of an Ethernet cable to your Internet connection, such as a DSL modem, cable modem, or router.

2. Connect the other end of the cable to the X1 (WAN) port on your SonicWALL NSA E7500.

6RQLF:$//16$(

.ETWORK3ECURITY!PPLIANCE

;

0DQDJHPHQW

6WDWLRQ

%

,QWHUQHW

;

Connecting the LAN Port to Your Management Station

1. Connect one end of the provided red Crossover cable to the computer you are using to manage the SonicWALL NSA E7500.

2. Connect the other end of the cable to the X0 port on your SonicWALL NSA E7500.

The Link LED above the X0 (LAN) port will light up in green, amber, or yellow link throughput speed, indicating an active conne ction.

Note: The Link LED is color-coded to indicate connection speed:

• Amber indicates 1 Gbps

• Green indicates 100 Mbps

• Unlit while the right (activity) LED is illuminated indicates 10 Mbps

Page 18 Connecting the WAN Port to the Internet

EFT DRAFT

Applying Power to the SonicWALL NSA E7500

1. Plug both of the power cords into an appropriate power outlet. The SonicWALL NSA E7500 includes two power supplies for redundant AC power and added reliability.

To p ow er source 1

To p ow er source 2

I o

2. Turn on both power switches on the rear of the appliance next to the power cords.

Note: The SonicWALL NSA E7500 uses a variable-speed cooling fan

that adjusts its speed based on the temperature of the appliance.

SonicWALL NSA E7500 Getting Started Guide Page 19

SonicWALL EFT DRAFT

The Power LEDs on the front panel lights up green when you plug in the SonicWALL NSA E7500. The Alarm LED might light up and the Test LED will light up and may blink while the appliance performs a series of diagnostic tests. When the Power LEDs are lit and the T e st LED is

no longer lit, the SonicWALL NSA E7500 is ready for configuration (this typically occurs within 90 seconds of applying power).

If the Test or Alarm LEDs remain lit after the SonicWALL NSA E7500 has booted, restart the SonicWALL NSA E7500.

Alert: To disconnect power, remove both power cords from the unit.

Page 20 Applying Power to the SonicWALL NSA E7500

EFT DRAFT

Initial Configuration

In this Section:

This section provides instructions to login and configure your SonicWALL NSA E7500 using the SonicWALL Setup Wizard.

• Accessing the Management Interface, on page 22

• If the SonicWALL Setup Wizard Does Not Appear, on page 24

• Testing Your Connection, on page 26

Tip: Before completing this section, fill out the information in Obtain

Configuration Information, on page 6 and Obtain Internet Service Provider (ISP) Information, on page 7. You will need to enter this information during the Setup Wizard.

SonicWALL NSA E7500 Getting Started Guide Page 21

SonicWALL EFT DRAFT

Accessing the Management Interface

The computer you use to manage the SonicWALL NSA E7500 must be set up to accept a dynamic IP address, or have an unused IP address on the

192.168.168.x/24 subnet, such as 192.168.168.20. For instructions on configuring your IP address, see Appendix A: Configuring DHCP IP Addressing, on page 31.

To access the SonicOS Enhanced Web-based management interface:

1. Start your Web browser .

Note: Disable pop-up blocking software or add the management IP

address http://192.168.168.168 to your pop-up blockers allow list.

2. Enter http://192.168.168.168 (the default LAN management IP address) in the Location or Address field.

3. The SonicW ALL Set up Wizard launches and guides you through the configuration and setup of your SonicWALL NSA E7500.

The Setup Wizard displays upon initial loading of the SonicWALL NSA E7500 management interface.

Page 22 Accessing the Management Interface

EFT DRAFT

4. Follow the on-screen prompts to complete the Setup Wizard . The wizard may ask you for the information you recorded in prior sections:

• Obtain Configuration Information, on page 6

• Obtain Internet Service Provider (ISP) Information, on page 7 Refer to these sections to complete the wizard.

5. Depending on the changes made during your setup configuration, the SonicWALL may restart.

SonicWALL NSA E7500 Getting Started Guide Page 23

SonicWALL EFT DRAFT

If the SonicWALL Setup Wizard Does Not Appear

If you cannot connect to the SonicWALL NSA E7500 or the Set up Wizard does not display, verify the following configurations:

• Did you correctly enter the SonicWALL NSA E7500 management IP address in your Web browser?

• Are the Local Area Connection settings on your computer set to use DHCP or set to a static IP address on the 192.168.168.x/24 subnet? For instructions on changing your Local Area Connection settings, see Appendix A: Configuring DHCP IP Addressing, on page 31.

• Do you have the Ethernet cable connected to your computer and to the X0 (LAN) port on your SonicWALL NSA E7500?

• Is the connector clip on your network cable properly seated in the port of the security appliance?

• Some browsers may not launch the Setup Wizard automatically. In this case:

• Log into SonicWALL NSA E7500 using “admin” as the user name

and “password” as the password.

• Click the Wizards button on the System > Status page.

• Select Setup Wizard and click next to launch the Setup Wizard.

• Some pop-up blockers may prevent the launch of the Setup Wizard. You can temporarily disable your pop-up blocker, or add the management IP address of your SonicWALL (192.168.168.168 by default) to your pop-up blocker's allow list.

Page 24 If the SonicWALL Setup Wizard Does Not Appear

EFT DRAFT

Connecting The SonicWALL NSA E7500 to your Network

6RQLF:$//16$(

,QWHUQHW

;

;

;

3ONIC0OINT

;

'0==RQH

:/$1=RQH

/$1=RQH

The SonicWALL NSA E7500 can act as a local DHCP server. It will only attempt to do so if it does not detect existing DHCP servers to avoid disruptions. The ports can be configured to accept various zones. In the above example, the zones are:

•X1: WAN

• X0: LAN

•X2: WLAN

•X7: DMZ

Refer to the Administrator’s Guide for advanced configuration deployments.

SonicWALL NSA E7500 Getting Started Guide Page 25

SonicWALL EFT DRAFT

Testing Your Connection

1. After you exit the Setup Wizard, the login page reappears. Log back into the Management Interface and verify your IP and WAN connection.

2. Open another Web browser and navigate to: <http://www.sonicwall.com>. If you can view the SonicWALL home page, you have configured your

SonicWALL NSA E7500 correctly.

3. If you cannot view the SonicWALL home page, renew your management station DHCP address.

4. If you still cannot view a Web page, try one of these solutions:

Restart your Management Station

Your management station may need to restart to accept new network settings from the DHCP server in the SonicWALL security appliance.

Restart your Internet Router

Your Internet router may need to restart to communicate with the DHCP Client in the SonicWALL security appliance.

For additional troubleshooting, see Appendix B: Troubleshooting Internet Connectivity, on page 32.

Page 26 Testing Your Connection

EFT DRAFT

Registering Your SonicWALL

In this Section:

This section provides instructions for registering your SonicWALL NSA E7500.

• Before Y ou Register, on page 28

• Registering Your SonicWALL NSA E7500, on page 29

Once you have established your Internet connection, it is recommended you register your SonicWALL security appliance at mySonicW ALL.com. Registering your SonicWALL security appliance provides the following benefits:

• Activate 30-day FREE trials of SonicWALL security services

• Access SonicOS firmware updates

• Get SonicWALL technical support

SonicWALL NSA E7500 Getting Started Guide Page 27

SonicWALL EFT DRAFT

Before You Register

Make sure the DNS and Time settings on your SonicWALL NSA E7500 are correct when you register the device. Configure Time settings in the System >

Time page. Configure DNS settings in the Edit Interface window from the Network > Interfaces page.

You need a Mysonicwall.com account to register the SonicWALL NSA E7500. You can create a new Mysonicwall.com account directly from the SonicWALL management interface.

If you already have a Mysonicwall.com account, go to Registering Your SonicWALL NSA E7500, on page 29 to register your appliance.

Note: Mysonicwall.com registration information is not sold or shared

with any other company.

Page 28 Before You Register

EFT DRAFT

Registering Your SonicWALL NSA E7500

1. If you are not logged into the SonicWALL NSA E7500 management interface, log in with the username admin and the administrative password you set in the Setup Wizard.

2. If the System > St atus page is not displaying in the management interface, click System in the left-navigation menu, and then click Status.

3. On the System > Status page, in the Security Services section, click the

link. The Mysonicwall.com Login page is displayed.

4. Enter your Mysonicwall.com account username and password in the User Name and Password fields, then click Submit.

5. The next several pages inform you about the free trials available to you for SonicWALL’s Security Services:

• Intrusion Prevention Service - protects your network with signatures

for more than 1800 Trojan, worm and application layer attacks

• Gateway Anti-Virus - protects all hosts behind your SonicWALL from

viruses using deep packet inspection to detect and prevent viruses before they can reach hosts on your network

• Anti-Spyware - protects computers on your network from spy-ware

• Network Anti-Virus - protects hosts on your network from viruses by

enforcing the use client-based Anti Virus software

• Premium Content Filtering Service - protects your network and

enhances productivity by limiting access to offensive web sites

Click Continue on each page.

SonicWALL NSA E7500 Getting Started Guide Page 29

SonicWALL EFT DRAFT

6. At the top of the Product Survey page, Enter a “friendly name” for your SonicWALL content security appliance in the Friendly Name field. The friendly name allows you to easily identify your SonicWALL content security appliance in your Mysonicwall.com account.

7. Please complete the Product Survey. SonicWALL uses this information to further tailor services to fit your needs. Click Submit.

8. When the Mysonicwall.com server has finished processing your registration, you will see a page informing you that your SonicWALL NSA E7500 appliance is registered. Click Continue, and the System > Licenses page is displayed showing you all your activated services.

Congratulations

Your SonicWALL NSA E7500 is now fully operational.

Page 30 Congratulations

EFT DRAFT

Appendix A: Configuring DHCP IP Addressing

Complete the following section based on your operating system in order to configure your management computer to obtain an IP address automatically (using DHCP addressing):

Windows Vista

1. From the Start menu, right-click Network and select Properties.

2. In the Tasks menu, click Manage network connections, the Network Connections windows displays.

3. Right-click on your Local Area Connection and select Properties.

4. In the list, double-click Internet Protocol Version 4 (TCP/IP).

5. Select Obtain an IP address automatically and Obtain a DNS address automatically.

6. Click OK, and then click OK again for the settings to take effect.

Windows XP

1. From the Start menu, highlight Connect To and then select Show All Connections.

2. Right-click on your Local Area Connection and select Properties.

3. In the list, double-click Internet Protocol (TCP/IP).

4. Select Obtain an IP address automatically and Obtain a DNS address automatically.

5. Click OK, and then click OK again for the settings to take effect.

Windows 2000

1. From your Windows Start menu, select Settings.

2. Open Network and Dial-up Connections.

3. Click Properties.

4. Highlight Internet Protocol (TCP/IP) and click Properties.

5. Select Obtain an IP address automatically and Obtain a DNS address automatically.

6. Click OK for the settings to take effect.

SonicWALL NSA E7500 Getting Started Guide Page 31

SonicWALL EFT DRAFT

Appendix B: Troubleshooting Internet Connectivity

Refer to this section for help in connecting to the Internet.

• Did you open a new browser window to launch the Web site? Try closing out all browser windows and launching the browser again.

• Is your computer set to accept DHCP addressing or, if using static IP addressing, is your IP address set to a range within the SonicWALL’s LAN subnet?

• Has your IP address renewed from the setting changes? Manually refresh them or reboot your computer. Refer to the Renewing your IP address section for additional information.

• Is your SonicWALL WAN port connected to your Internet source and showing (link/act, 10/100) activity?

• Verify that the network settings you recorded on page 6 of this guide are correct.

• Did you enter your network information from page 6 of this guide correctly in the Setup Wizard?

Renewing your IP Address

1. In the Windows interface, select Start > Run.

2. Enter “cmd” in the Open field and click the OK button.

3. At the prompt, type the command “ipconfig /release” and press Enter on the keyboard.

4. At the prompt, type the command “ipconfig /renew” and press Enter on the keyboard.

For further help troubleshooting Internet connectivity, please refer to the SonicOS Enhanced Administrator’s Guide

Page 32 Appendix B: Troubleshooting Internet Connectivity

EFT DRAFT

Appendix C: Safety Instructions and Regulatory Information

Regulatory Model/T ype Product Name

1RK11-04e E7500

Rack Mounting the SonicWALL

The above SonicWA LL appliances are designed to be mounted in a standard 19-inch rack mount cabinet . The following conditions are required for proper inst allation:

• Use the mounting hardware recommended by the rack manufacturer and ensure that the rack is adequate for the application.

• Four mounting screws, compatible with the rack design, must be used and hand tightened to ensure secure installation. Choose a mounting location where all four mounting holes line up with those of the mounting bars of the 19-inch rack mount cabinet.

• Mount in a location away from direct sunlight and sources of heat. A maximum ambient temperature of 104º F (40º C) is recommended.

• Route cables away from power lines, fluorescent lighting fixtures, and sources of noise such as radios, transmitters and broadband amplifiers.

• The included power cord is intended for use in North America only. For European Union (EU) customers, a power cord is not included.

• Ensure that no water or excessive moisture can enter the unit.

• Allow unrestricted airflow around the unit and through the vents on the side of the unit. A minimum of 1 inch (25.44mm) clearance is recommended.

• Mount the SonicWALL appliances evenly in the rack in order to prevent a hazardous condition caused by uneven mechanical loading.

• Consideration must be given to the connection of the equipment to the supply circuit and the effect of overloading the circuits has minimal impact on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings must be used when addressing this concern.

• Reliable grounding of rack-mounted equipment must be maintained. Particular attention must be given to power supply connections other than direct connections to the branch circuits such as power strips.

Lithium Battery Warning

The Lithium Battery used in the SonicWALL I nternet security appliance may not be replaced by the user . The SonicWALL must be return ed to a SonicWALL aut horized service center for replacement with the same or equivalent type recommended by the manufacturer . I f, for any reason, the battery or SonicWALL Inte rnet security appliance must be disposed of, do so following the battery manufacturer's instructions.

Cable Connections

All Ethernet and RS232 (Console) cables are designed for intra-bu ilding connection to other equipment. Do not connect these port s directly to communication wiring or other wiring that exits the building where the SonicWAL L is located.

SonicWALL NSA E7500 Getting Started Guide Page 33

SonicWALL EFT DRAFT

Weitere Hinweise zur Montage

Die oben genannten SonicW ALL-Modelle sind für eine Mont age in einem standardmäßigen 19-Zo ll-Rack konzipiert. Für eine ordnungsgemäße Montage müssen d ie folgenden

• Vergewissern Sie sich, dass das Rack für die Anwendung geeignet ist, und verwenden Sie das vom Rack-Hersteller empfohlene Montagezubehör.

• Verwenden Sie für eine sichere Montage vier passende Befestigungsschrauben, und ziehen Sie diese mit der Hand an. Montieren Sie das Gerät so, dass sich die Anordnung der Montagelöcher mit den Löchern der Träger im 19-Zoll-Rack deckt.

• Wählen Sie für die Montage einen Ort, der keinem direkten Sonnenlicht ausgesetzt ist und sich nicht in der Nähe von Wärmequellen befindet. Die Umgebungstemp eratur darf nicht mehr als 40 °C betragen.

• Führen Sie die Kabel nicht entlang von Stromleitu ngen, Leuchtstoffröhren und Störquellen wie Funksendern oder Breitbandverstärkern.

• Das eingeschlossene Netzkabel ist für Gebrauch in Nordamerikas nur vorgehabt. Für Europaïsche Union (EU) Kunden, ist ein Netzkabel nicht eingeschlossen .

• Stellen Sie sicher, dass das Gerät vor Wasser und hoher Luftfeuchtigkeit geschützt ist.

• Stellen Sie sicher, dass die Luft um das Gerät herum zirkulier en kann und die Lüftungsschlitze an der Seite des Gehäuses frei sind. Hier ist ein Belüftungsabstand von mindestens 26 mm einzuhalten.

• Bringen Sie die SonicWALL gerade im Rack an, um mögliche Gefahren durch ungleiche mechanische Belastung zu vermeiden.

• Prüfen Sie den Anschluss des Geräts an die Stromversorgung, damit der Überstromschutz sowie die elektrische Leitu ng nicht von einer eventuellen Überlastung der Stromversorgung beeinflusst werden. Prüfen Sie da bei sorgfältig die Angaben auf dem Aufkleber des Geräts.

• Vergewissern Sie sich, dass das Gerät sicher im Rack befestigt ist. Insbesondere muss auf nicht direkte Anschlüsse an Stromquellen geachtet werden wie z. B. bei Verwendung von Mehrfachsteckdosen.

Hinweis zur Lithiumbatterie

Die in der Internet Security appliance von SonicWALL verwendete Lithiumbatterie darf nicht vom Benutzer ausgetauscht werden. Zum Austauschen der Batterie muss die SonicWALL in ein von SonicWALL autorisier tes Service-Center gebracht werden. Dort wird die Batterie durch denselben oder entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt. Beachten Sie bei einer Entsorgung der Batterie oder der SonicWALL Internet Security appliance die diesbezüglichen Anweisungen des Herstellers.

Kabelverbindungen

Alle Ethernet- und RS232-CKabel eignen sich für die V erbindung von Geräten in Innenräumen. Schließen Sie an die Anschlüsse der SonicWALL ke ine Kabel an, die aus dem Gebäude herausgeführt werden, in dem sich das Gerät befindet.

Page 34 Appendix C: Safety Instructions and Regulator y Information

EFT DRAFT

FCC Part 15 Class A Notice

NOTE: This equipment was tested and found to comply with the limi ts for a Class A d igita l device, pursuant to Part 15 of the FCC Rules. These limit s are designed to p rovide reasonable protection against harmful interference when the eq uipment is operated in a commercial environment. This equipment generates, uses, an d can rad iate radio frequen cy energy. And if not installed and used in accordance with the instruction manual, t he device may cause ha rmful interference to radio communications. Opera tion of this equipment in a resident ial area is likely to cause harmful interference in which case the user is require d to correct the inte rference at his own expense.

Complies with EN 55022 Class A and CISPR22 Class A. Caution: Modifying this equipment or using th is equipment for pu rposes not shown in this

manual without the written consent of So nicW ALL, Inc. cou ld void the user’s authority to operate this equipment.

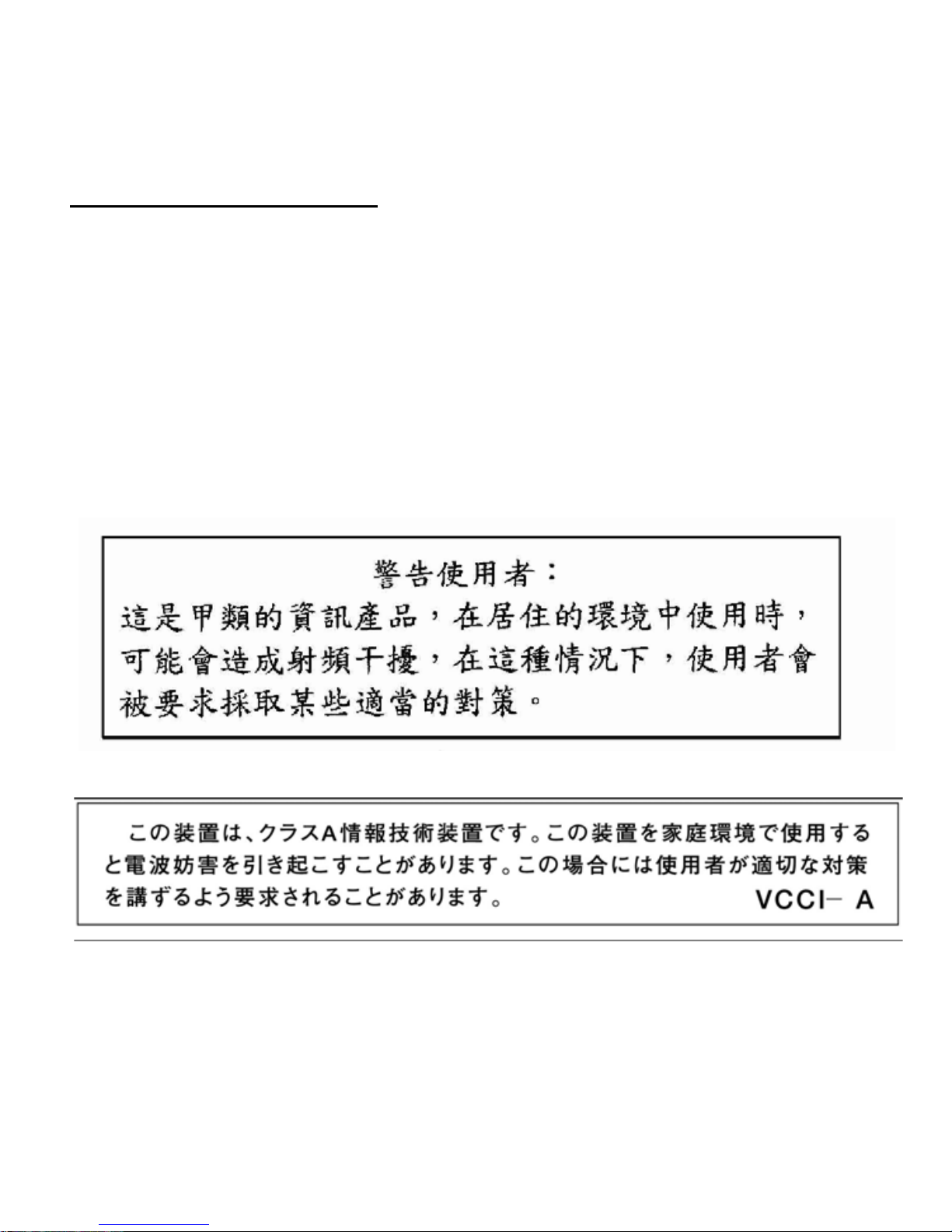

BMSI Statement

VCCI Statement

SonicWALL NSA E7500 Getting Started Guide Page 35

SonicWALL EFT DRAFT

Canadian Radio Frequency Emissions Statement

This Class A digital apparatus co mplies with Canadian ICES-0 03. Cet appareil numérique de la classe A est co nforme à toutes la nor me NMB-003 du Canada.

CISPR 22 (EN 55022) Class A

Warning: This is a class A product. In a domes tic environment, this product may cause rad io interference in which case the user may be requ ired to ta ke adequate measures.

Declaration of Conformity

Application of council D irective 8 9/336/EE C (EMC) an d 72/23/EEC (LVD) St andar ds to which co nformity i s declared EN 55022 (1998) +A2 Class A EN 55024 (1998) +A2 EN 61000-3-2 (2000) +A2 EN 61000-3-3 (1995) +A1 EN 60950-1 (2001) +A1 1

National Deviations: AR, AT, AU, BE, BR, CA, CH, CN, CZ, DE, DK, FI, FR, GB, GR, HU, IL, IN, IT, JP , KE, KR, MY, NL, NO, PL, SE, SG , S I, SK, US

Regulatory Information for Korea

Ministry of Information and Telecommunication Certification Number

All products with country code “” (blank) and “A” are made in t he USA. All products with country code “B” are made in China. All products with country code "C" or "D" are made in Taiwan R.O.C. All certificates held by NetSonic, Inc.

Page 36 Appendix C: Safety Instructions and Regulator y Information

EFT DRAFT

in whole or part, without the written consent of the manufacturer, except in the normal use of the software to make a backup copy . The same proprietary and copyright notices must be affixed to any permitted copies as were affixed to the original. This exception does not allow copies to be made for others, whether or not sold, but all of the material purchased (with all backup copies) can be sold, given, or loaned to another person. Under the law, copying includes translating into another language or format.

Specifications and descriptions subject to change without notice.

Trademarks

SonicWALL is a registered trademark of SonicWALL, Inc. Microsoft Windows 98, Windows Vista, Windows 2000, Windows XP, Windows Server

2003, Internet Explorer, and Active Directory are trademarks or registered trademarks of Microsoft Corporation.

Netscape is a registered trademark of Netscape Communications Corporation in the U.S. and other countries. Netscape Navigator and Netscape Communicator are also trademarks of Netscape Communications Corporation and may be registered outside the U.S.

Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the U.S. and/or other countries.

Firefox is a trademark of the Mozilla Foundation. Other product and company names mentioned herein may be trademarks and/or

registered trademarks of their respective companies and are the sole property of their respective manufacturers.

SonicWALL NSA E7500 Getting Started Guide Page 37

SonicWALL EFT DRAFT

Page 38 Trademarks

EFT DRAFT

SonicWALL NSA E7500 Getting Started Guide Page 39

SonicWALL EFT DRAFT

Notes

Page 40 Notes

EFT DRAFT

SonicWALL NSA E7500 Getting Started Guide Page 41

SonicWALL, Inc.

1143 Borregas Avenue

Sunnyvale CA 94089-1306 F +1 408.745.9300

T +1 408.745.9600

www.sonicwall.com

PN: 232-001050-50 Rev 00

©2007SonicWALL,Inc. isaregisteredtrademarkof SonicWALL,Inc.Otherproductnamesmentionedhereinmaybetrademarksand/orregisteredtrademarks of their respective companies. Specications and descriptions subject to change without notice.

SonicWALL NSA E7500 Getting Started Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
