PROTECTION AT THE SPEED OF BUSINESS™

NSA E7500 Getting Started Guide

NSA_E7500_GSG.book Page 1 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 1

SonicWALL NSA E7500 Getting Started Guide

This Getting Started Guide provides instructions for basic installation and configuration of the SonicWALL Network Security Appliance (NSA) E7500 running SonicOS Enhanced. After you complete this guide, computers on your Local Area Network (LAN) will have secure Internet access.

Document Contents

This document contains the following sections:

Pre-Configuration Tasks - page 3

Registering Your Appliance - page 13 Deployment Scenarios - page 19

Additional Deployment Configuration - page 41

Support and Training Options - page 53 Rack Mounting Instructions - page 61

Product Safety and Regulatory Information - page 67

NSA_E7500_GSG.book Page 1 Monday, June 22, 2009 3:58 PM

Page 2 SonicWALL NSA E7500

SonicWALL NSA E7500

Note: Always observe proper safety and regulatory guidelines when removing administrator-serviceable parts from the SonicWALL

NSA E7500. Proper guidelines can be found in the Product Safety and Regulatory Information section, on page 67 of this guide.

) O

%

.ETWORK3ECURITY!PPLIANCE

&RONT

"ACK

5RACKMOUNTABLE XXIN XXCM LBSKG

&ORM&ACTOR $IMENSIONS

7EIGHT

NSA_E7500_GSG.book Page 2 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 3

Pre-Configuration Tasks

In this Section:

This section provides pre-configuration information. Review this section before setting up your SonicWALL NSA E7500.

• Check Package Contents - page 4

•

Obtain Configuration Information - page 5

•

The Front Panel - page 6

•

The Back Panel - page 7

•

Front Bezel Control Features - page 8

•

Front Bezel Configuration Example - page 12

NSA_E7500_GSG.book Page 3 Monday, June 22, 2009 3:58 PM

Page 4 Check Package Contents

Check Package Contents

Before setting up your SonicWALL NSA E7500, verify that your package contains the following parts:

SonicWALL NSA E7500 DB9 -> RJ45 (CLI) Cable Standard Power Cord (2)* Rack Kit Ethernet Cable Red Crossover Cable

Global Support Service Guide

Getting Started Guide Thank You Card

999

Any Items Missing?

If any items are missing from your package, please contact SonicWALL support.

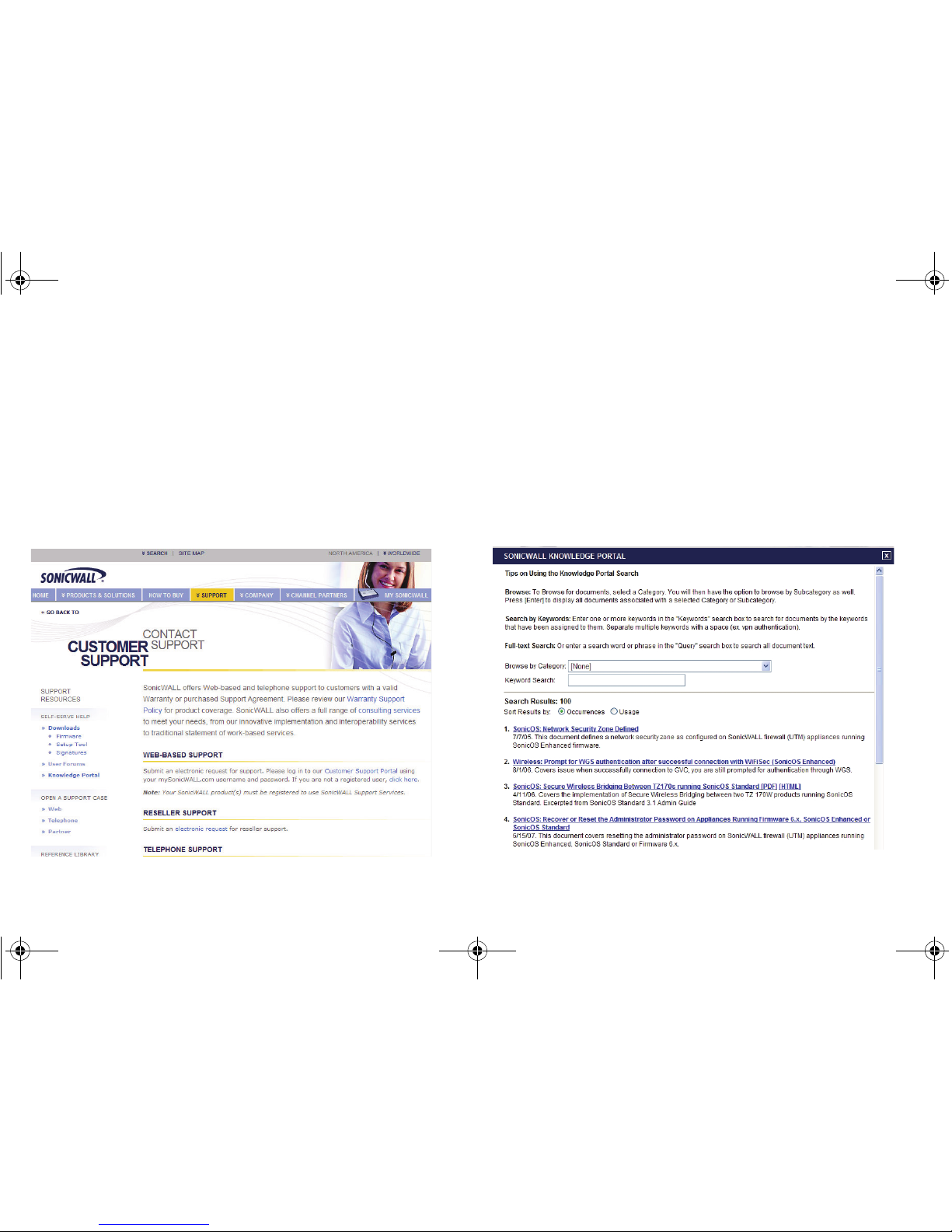

A listing of the most current support options is available online at:

<http://www.sonicwall.com/us/support.html>

*The included power cord is intended for use in North America only. The power cord is for AC mains installation only. Field conversion DC power cable is different. See page 78 for more details. For European Union (EU) customers, a power cord is not included.

E7500

Network Security Appliance

(x2)

5 6

NSA_E7500_GSG.book Page 4 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 5

Obtain Configuration Information

Please record and keep for future reference the following setup information:

Registration Information

Networking Information

Administrator Information

Obtain Internet Service Provider (ISP) Information

Record the following information about your current Internet service:

Note: If you are not using one of the network configurations

above, refer to the SonicOS Enhanced Administrator’s Guide <http://www.sonicwall.com/us/support.html>.

Serial Number:

Record the serial number found on the bottom panel of your SonicWALL appliance.

Authentication Code:

Record the authentication code found on the bottom panel of your SonicWALL appliance.

LAN IP Address:

. . .

Select a static IP address for your SonicWALL appliance that is within the range of your local subnet. If you are unsure, you can use the default IP address (192.168.168.168).

Subnet Mask:

. . .

Record the subnet mask for the local subnet where you are installing your SonicWALL appliance.

Ethernet WAN IP Address:

. . .

Select a static IP address for your Ethernet WAN. This setting only applies

if you are already using an ISP that assigns a static IP address.

Admin Name:

Select an administrator account name. (default is admin)

Admin Password:

Select an administrator password. (default is password)

If You connect using

Please record

DHCP No information is usually required: Some providers

ma y requir e a H ost name:

Static IP IP Address:

. . .

Subnet Mask: . . .

Default Gateway: . . .

Primary DNS: . . .

DNS 2 (optional): . . .

DNS 3 (optional): . . .

NSA_E7500_GSG.book Page 5 Monday, June 22, 2009 3:58 PM

Page 6 The Front Panel

The Front Panel

Icon Feature Description

LCD Screen Displays the front panel bezel interface which can be used to display status information, make

certain configuration changes, restart the appliance or boot the appliance in SafeMode.

Control Buttons Used to navigate the front panel bezel interface.

Console Port Used to access the SonicOS Command Line Interface (CLI) via the DB9 -> RJ45 cable.

USB Ports (2) Future extension.

Reset Button Press and hold the button for a few seconds to manually reset the appliance.

LED (from left to right) Power LED (2): Indicates the SonicWALL NSA E7500 is powered on. Blue: Indicates power

supplies are operating correctly. Yellow: Indicates an unconnected power supply or failure. Test LED: Flickering: Indicates the appliance is initializing. Steady blinking: Indicates the

appliance is in SafeMode. Solid: Indicates that the appliance is in test mode. Alarm LED: Indicates an alarm condition. HD LED: Future extension.

HA Port High Availability port.

X4-X7 (SFP ports) Small form-factor pluggable interface accommodating transceivers designed to support high speed

communications standards such as Gigabit Ethernet.

X0-X3 (Copper) Gigabit Ethernet ports.

Bypass Status LED Future extension. Please check Release Notes for future availability.

%

.ETWORK3ECURITY!PPLIANCE

! #

( )

*

NSA_E7500_GSG.book Page 6 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 7

The Back Panel

Icon Feature Description

Expansion Bay Future extension.

Fans (2) The SonicWALL NSA E7500 includes two fans for system temperature control.

Power Supply (2) As shipped from the factory, the SonicWALL NSA E7500 includes two power supplies for redundant

AC power and added reliability. A field conversion is available to convert to DC mains. DC power supplies use different input connector and power cables. See page 78 for more details.

)

NSA_E7500_GSG.book Page 7 Monday, June 22, 2009 3:58 PM

Page 8 Front Bezel Control Features

Front Bezel Control Features

The SonicWALL Network Security Appliance E-Class is equipped with a front panel bezel interface that allows an administrator to customize certain aspects of the appliance or simply monitor its status without having to log into it through a separate terminal.

Note: Using the front bezel for configuration purposes prior to

completing initial setup will bypass the Setup Wizard’s automatic launch at startup.

LCD Control Buttons

The LCD interface is controlled by a D-pad, consisting of four buttons: up, down, left, right. The table below describes the functions of the buttons:

Icon Feature Description

LCD Screen

Displays the front panel bezel interface which can be used to display status information, perform basic configurations, restart the appliance or boot the appliance in SafeMode.

Control Buttons

Up, Down, Left and Right buttons,

used to navigate the LCD menu system.

.ETWORK3ECURITY!PPLIANCE

"! $

Icon Button Navigation Features

Up/Down

Selects options and navigates up and down lists.

Left

Cancels changes and returns to the previous menu.

Right

Confirms choices and enters menus. Also sets the appliance to screen-saver mode when used from the main menu.

NSA_E7500_GSG.book Page 8 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 9

Main Menu

Upon booting the LCD display will initially show the Main Menu. The menu is made up of four options:

Use the Up and Down button to select the menu you wish to enter and click the Right button to enter it.

Status

The Status menu allows you to view specific aspects of the appliance. Once selected, the LCD displays the Status List. This list is navigated using the Up and Down buttons. Status options available include:

• Appliance serial number

• Firmware / ROM versions

• Appliance name

• Date and Time

•Uptime

• CPU statistical readings

• Current number of connections

• Interface (X0, X1) network settings

• Interface (X0, X1) data transfer statistics

The X1 DNS1-3 entries will only be displayed if they have been set from the Configure menu. If their value is still 0.0.0.0 (default value), they will not appear in the Status List.

Contains basic status values including system resources, connections and port configuration values.

Allows configuration of basic system values including X0 (LAN) and X1 (WAN) port configuration. Requires system pin for access, default: 76642.

Provides the ability to restart the appliance. Requires system pin for access.

Provides the ability to restart and boot the appliance into SafeMode. Requires system pin for access.

NSA_E7500_GSG.book Page 9 Monday, June 22, 2009 3:58 PM

Page 10 Front Bezel Control Features

Configure

The Configure Menu allows you to configure specific aspects of the appliance. Once selected, the LCD will display a PIN request.

Note: The Default PIN is 76642. This number spells SONIC

on a phone keypad. The PIN number can be changed from the System > Administration page.

All numbers are inputted using the 4 buttons. Select the individual digit field using the Left and Right button and select the desired number using the Up and Down Button. Digits increase incrementally from 0 to 9. Press the Right button to confirm your PIN and enter the Configuration Menu.

The appliance allows the user to navigate in and out of the Configuration Menu without having to re-enter the PIN. However, once the appliance enters Screen-Saver Mode, whether from the 6 second time out or from pressing the Left button from the Main Menu, the PIN number must be re-entered again to access the Configuration Menu.

After entering a new value for a setting in the configuration menu, you are asked if you want to commit changes. Using the 4-way D-pad, press the Right button for yes or the Left button for no.

If you choose yes, the screen notifies you that the settings are updated.

NSA_E7500_GSG.book Page 10 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 11

Configuration Options

This option allows you to configure network port settings for the appliance. Once selected, the LCD displays a list of configurable options. Status options available include:

• X0 IP and subnet

• X1 Mode

• X1 IP and subnet

• X1 Gateway

• X1 DNS settings (3 available)

• Restore defaults

The X1 Mode can be set to Static (default option) or to DHCP. If DHCP is selected, manual configuration options are not shown for X1 IP, subnet, gateway and DNS.

The Restore Defaults option will reset the appliance to default factory settings. If selected it will prompt for confirmation twice before restoring defaults.

If an option is selected but not modified, the appliance will display a message stating that no changes were made and will return the user to the edit value screen. If a change was made, it will prompt the user for confirmation before effecting the change.

Restart

This option allows you to safely restart without resorting to power cycling the appliance. Once selected, the LCD will display a confirmation prompt. Select Y for yes and press the Right button to confirm. The appliance will reboot.

SafeMode

This option will set the appliance to SafeMode. Once selected, the LCD will display a confirmation prompt. Select Y for yes and press the Right button to confirm. The appliance will change to SafeMode. Once SafeMode is enabled, the SonicWALL NSA E7500 must be controlled from the Web management interface.

Screen-Saver

If no button is pressed for over 60 seconds, or if the Left button is pressed from the Main Menu, the appliance will enter ScreenSaver mode. In this mode, the Status List will cycle, displaying every entry for a few seconds.

If the Up or Down button is pressed while in Screen-Saver mode, the appliance will display the adjacent status entry.

To exit Screen-Saver mode, press the Right button.

NSA_E7500_GSG.book Page 11 Monday, June 22, 2009 3:58 PM

Page 12 Front Bezel Configuration Example

Front Bezel Configuration Example

LAN IP Configuration

The SonicWALL NSA E7500 is assigned the default LAN IP of

192.168.168.168. Complete the following steps to change it to

192.168.168.10.

1. Press Right to exit screen-saver mode if not at the root menu.

2. Press Down to select the Configuration entry.

3. Press Right to enter Configuration Mode.

4. Input PIN (76642 by default; SONIC on a phone keypad.)

a. Press Up or Down until the cursor displays 7,

press Right.

b. Press Up or Down until the cursor displays 6,

press Right.

c. Press Up or Down until the cursor displays 6,

press Right.

d. Press Up or Down until the cursor displays 4,

press Right.

e. Press Up or Down until the cursor displays 2,

press Right.

f. Press Right.

5. Press Down until X1 IP is selected (four times).

6. Press Right to configure X1 IP.

7. Edit X1 IP: a. Press Right ten times to select the tenth digit.

b. Press UP or Down until the cursor displays 0. c. Press Right once to select the next digit. d. Press UP or Down until the cursor displays 1. e. Press Right once to select the next digit. f. Press Up or Down until the cursor displays 0.

g. Press Right to finish editing the X1 IP. h. Press Right again to confirm changes.

NSA_E7500_GSG.book Page 12 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 13

Registering Your Appliance

In this Section:

This section provides instructions for registering your SonicWALL NSA E7500.

• Before You Register - page 14

•

Creating a mysonicwall.com Account - page 15

•

Registering and Licensing Your Appliance on mysonicwall.com - page 15

•

Licensing Security Services and Software - page 16

•

Registering a Second Appliance as a Backup - page 18

Note: Registration is an important part of the setup process and is necessary in order to receive the benefits of SonicWALL security

services, firmware updates, and technical support.

NSA_E7500_GSG.book Page 13 Monday, June 22, 2009 3:58 PM

Page 14 Before You Register

Before You Register

You need a mysonicwall.com account to register the SonicWALL NSA E7500. You can create a new mysonicwall.com account on <http://www.sonicwall.com> or directly from the SonicWALL management interface. This section describes how to create an account by using the Web site.

You can use mysonicwall.com to register your SonicWALL appliance and activate or purchase licenses for Security Services, ViewPoint Reporting and other services, support, or software before you even connect your device. This allows you to prepare for your deployment before making any changes to your existing network.

For a High Availability configuration, you must use mysonicwall.com to associate a backup unit that can share the Security Services licenses with your primary SonicWALL.

Note: Your SonicWALL NSA E7500 does not need to be

powered on during account creation or during the mysonicwall.com registration and licensing process.

Note: After registering a new SonicWALL appliance on

mysonicwall.com, you must also register the appliance from the SonicOS management interface. This allows the unit to synchronize with the SonicWALL License Server and to share licenses with the associated appliance, if any. See

Accessing the Management

Interface - page 26.

NSA_E7500_GSG.book Page 14 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 15

Creating a mysonicwall.com Account

To create a mysonicwall.com account, perform the following steps:

1. In your browser, navigate to <http://www.sonicwall.com>.

2. In the login screen, click If you are not a registered user,

Click here

3. Complete the Registration form and then click Register.

4. Verify that the information is correct and then click Submit.

5. In the screen confirming that your account was created, click Continue.

Registering and Licensing Your Appliance on mysonicwall.com

This section contains the following subsections:

•

Product Registration - page 15

•

Licensing Security Services and Software - page 16

•

Registering a Second Appliance as a Backup -

page 18

• Registration Next Steps - page 18

Product Registration

You must register your SonicWALL security appliance on mysonicwall.com to enable full functionality.

1. Login to your mysonicwall.com account. If you do not have an account, you can create one at

<http://www.sonicwall.com>.

2. On the main page, in the Register A Product field, type the appliance serial number and then click Next.

3. On the My Products page, under Add New Product, type the friendly name for the appliance, select the Product Group if any, type the authentication code into the appropriate text boxes, and then click Register.

4. On the Product Survey page, fill in the requested information and then click Continue.

NSA_E7500_GSG.book Page 15 Monday, June 22, 2009 3:58 PM

Page 16 Registering and Licensing Your Appliance on mysonicwall.com

Licensing Security Services and Software

The Service Management - Associated Products page in mysonicwall.com lists security services, support options, and software such as ViewPoint that you can purchase or try with a free trial. For details, click the Info button. Your current licenses are indicated in the Status column with either a license key or an expiration date. You can purchase additional services now or at a later time.

The following products and services are available for the SonicWALL NSA E7500:

• Service Bundles:

• Client/Server Anti-Virus Suite

• Comprehensive Gateway Security Suite

• Gateway Services:

• Gateway AV / Anti-Spyware/Intrusion Prevention Service / Application Firewall

• Content Filtering: Premium Edition

• Stateful High Availability (HA) Upgrade

• Application Firewall

• Desktop and Server Software:

• Enforced Client Anti-Virus and Anti-Spyware

• Global VPN Client

• Global VPN Client Enterprise

• VPN Policy Upgrade (for site-to-site VPN)

• Global Management System

•ViewPoint

• Support Services:

• Dynamic Support 24x7

• Software and Firmware Updates

• Consulting Services:

• Implementation Service

• GMS Preventive Maintenance Service

NSA_E7500_GSG.book Page 16 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 17

To manage your licenses, perform the following tasks:

1. In the mysonicwall.com Service Management - Associated Products page, check the Applicable Services table for services that your SonicWALL appliance is already licensed for. Your initial purchase may have included security services or other software bundled with the appliance. These licenses are enabled on mysonicwall.com when the SonicWALL appliance is delivered to you.

2. If you purchased a service subscription or upgrade from a sales representative separately, you will have an Activation Key for the product. This key is emailed to you after online purchases, or is on the front of the certificate that was included with your purchase. Locate the product on the Services Management page and click Enter Key in that row.

3. In the Activate Service page, type or paste your key into the Activation Key field and then click Submit. Depending on the product, you will see an Expire date or a license key string in the Status column when you return to the Service Management page.

4. To license a product of service, do one of the following:

• To try a Free Trial of a service, click Try in the Service Management page. A 30-day free trial is immediately activated. The Status page displays relevant information including the activation status, expiration date, number of licenses, and links to installation instructions or other documentation. The Service Management page is also updated to show the status of the free trial.

• To purchase a product or service, click Buy Now.

5. In the Buy Service page, type the number of licenses you want in the Quantity column for either the 1 year, 2 year, or 3 year license row and then click Add to Cart.

6. In the Checkout page, follow the instructions to complete your purchase.

The mysonicwall.com server will generate a license key for the product. The key is added to the license keyset. You can use the license keyset to manually apply all active licenses to your SonicWALL appliance.

NSA_E7500_GSG.book Page 17 Monday, June 22, 2009 3:58 PM

Page 18 Registering and Licensing Your Appliance on mysonicwall.com

Registering a Second Appliance as a Backup

To ensure that your network stays protected if your SonicWALL appliance has an unexpected failure, you can associate a second SonicWALL with the first in a high availability (HA) pair. You can associate the two appliances as part of the registration process on mysonicwall.com. The second SonicWALL will automatically share the Security Services licenses of the primary appliance.

To register a second appliance and associate it with the primary, perform the following steps:

1. Login to your mysonicwall.com account.

2. On the main page, in the Register A Product field, type the appliance serial number and then click Next.

4. On the Product Survey page, fill in the requested information and then click Continue. The Create Association Page is displayed.

5. On the Create Association Page, click the radio button to select the primary unit for this association, and then click Continue. The screen only displays units that are not already associated with other appliances.

6. On the Service Management - Associated Products page, scroll down to the Associated Products section to verify that your product registered successfully. You should see the HA Primary unit listed in the Parent Product section, as well as a Status value of 0 in the Associated Products / Child Product Type section.

7. Although the Stateful High Availability Upgrade and all the Security Services licenses can be shared with the HA Primary unit, you must purchase a separate ViewPoint license for the backup unit. This will ensure that you do not miss any reporting data in the event of a failover. You must also purchase a separate support license for the backup unit. Under DESKTOP & SERVER SOFTWARE, click Buy Now for ViewPoint. Follow the instructions to complete the purchase.

To return to the Service Management - Associated Products page, click the serial number link for this appliance.

Registration Next Steps

Your SonicWALL NSA E7500 or E7500 HA Pair is now registered and licensed on mysonicwall.com. To complete the registration process in SonicOS and for more information, see:

•

Accessing the Management Interface - page 26

•

Activating Licenses in SonicOS - page 28

•

Enabling Security Services in SonicOS - page 48

•

Applying Security Services to Zones - page 48

NSA_E7500_GSG.book Page 18 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 19

Deployment Scenarios

In this Section:

This section provides detailed overviews of advanced deployment scenarios as well as configuration instructions for connecting your SonicWALL NSA E7500.

• Selecting a Deployment Scenario - page 20

•

Scenario A: NAT/Route Mode Gateway - page 21

•

Scenario B: State Sync Pair in NAT/Route Mode - page 22

•

Scenario C: L2 Bridge Mode - page 23

•

Initial Setup - page 24

•

Configuring a State Sync Pair in NAT/Route Mode - page 32

•

Click Register. - page 38

Tip: Before completing this section, fill out the information in Obtain Configuration Information - page 5. You will need to enter this

information during the Setup Wizard.

NSA_E7500_GSG.book Page 19 Monday, June 22, 2009 3:58 PM

Page 20 Selecting a Deployment Scenario

Selecting a Deployment Scenario

Before continuing, select a deployment scenario that best fits your network scheme. Reference the table below and the diagrams on the following pages for help in choosing a scenario.

Scenario A: NAT/Route Mode Gateway - page 21 Scenario B: State Sync Pair in NAT/Route Mode - page 22 Scenario C: L2 Bridge Mode - page 23

Current Gateway Configuration New Gateway Configuration Use Scenario

No gateway appliance Single SonicWALL NSA as a primary gateway.

A - NAT/Route Mode Gateway

Pair of SonicWALL NSA appliances for high availability.

B - NAT with State Sync Pair

Existing Internet gateway appliance SonicWALL NSA as replacement for an existing

gateway appliance.

A - NAT/Route Mode Gateway

SonicWALL NSA in addition to an existing gateway appliance.

C - L2 Bridge Mode

Existing SonicWALL gateway appliance SonicWALL NSA in addition to an existing

SonicWALL gateway appliance.

B - NAT with State Sync Pair

NetworkSecurityAppliance

SonicPoint

E7500

NetworkSecurityAppliance

SonicPoint

NSA_E7500_GSG.book Page 20 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 21

Scenario A: NAT/Route Mode Gateway

For new network installations or installations where the SonicWALL NSA E7500 is replacing the existing network gateway.

In this scenario, the SonicWALL NSA E7500 is configured in NAT/Route mode to operate as a single network gateway. Two Internet sources may be routed through the SonicWALL appliance for load balancing and failover purposes. Because only a single SonicWALL appliance is deployed, the added benefits of high availability with a stateful synchronized pair are not available.

To set up this scenario, follow the steps covered in the Initial

Setup section. If you have completed setup procedures in that

section, continue to the Additional Deployment Configuration section, on page 41 to complete the configuration.

NetworkSecurityAppliance

SonicPoint

SonicWALL NSA E-Class

Internet

ISP 1

NSA_E7500_GSG.book Page 21 Monday, June 22, 2009 3:58 PM

Page 22 Selecting a Deployment Scenario

Scenario B: State Sync Pair in NAT/Route Mode

For network installations with two SonicWALL NSA E-Series appliances configured as a stateful synchronized pair for redundant high-availability networking.

In this scenario, one SonicWALL NSA E7500 operates as the primary gateway device and the other SonicWALL NSA E7500 is in passive mode. All network connection information is synchronized between the two devices so that the backup appliance can seamlessly switch to active mode without dropping any connections if the primary device loses connectivity.

To set up this scenario, follow the steps covered in the Initial

Setup

and the Configuring a State Sync Pair in NAT/Route

Mode

- page 32 sections. If you have completed setup

procedures in those sections, continue to the Additional Deployment Configuration section, on page 41 to complete configuration.

E7500

NetworkSecurityAppliance

SonicWALL HA/Failover Pair

SonicWALL NSA E-Class 1

SonicWALL NSA E-Class 2

HA Link

Local Network

NSA_E7500_GSG.book Page 22 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 23

Scenario C: L2 Bridge Mode

For network installations where the SonicWALL NSA E7500 is running in tandem with an existing network gateway.

In this scenario, the original gateway is maintained. The SonicWALL NSA E7500 is integrated seamlessly into the existing network, providing the benefits of deep packet inspection and comprehensive security services on all network traffic.

L2 Bridge Mode employs a secure learning bridge architecture, enabling it to pass and inspect traffic types that cannot be handled by many other methods of transparent security appliance integration. Using L2 Bridge Mode, a SonicWALL security appliance can be non-disruptively added to any Ethernet network to provide in-line deep-packet inspection for all traversing IPv4 TCP and UDP traffic. L2 Bridge Mode can pass all traffic types, including IEEE 802.1q VLANs, Spanning Tree Protocol, multicast, broadcast and IPv6.

To set up this scenario, follow the steps covered in the Initial

Setup

and the Click Register. sections. If you have completed

setup procedures in those sections, continue to the Additional

Deployment Configuration section, on page 41 to complete

configuration.

SonicWALL NSA E-Class

SonicPoint

LAN Zone

Third Party Gateway

WLAN Zone

Internet or

LAN Segment 2

L2 Bridge Link

NSA_E7500_GSG.book Page 23 Monday, June 22, 2009 3:58 PM

Page 24 Initial Setup

Initial Setup

This section provides initial configuration instructions for connecting your SonicWALL NSA E7500. Follow these steps if you are setting up Scenario A, B, or C.

This section contains the following sub-sections:

•

System Requirements - page 24

•

Connecting the WAN Port - page 24

•

Connecting the LAN Port - page 25

•

Applying Power - page 25

•

Accessing the Management Interface - page 26

•

Using the Setup Wizard - page 26

•

Connecting to Your Network - page 27

•

Testing Your Connection - page 27

•

Activating Licenses in SonicOS - page 28

•

Upgrading Firmware on Your SonicWALL - page 29

System Requirements

Before you begin the setup process, check to verify that you have:

• An Internet connection

• A Web browser supporting Java Script and HTTP uploads

Connecting the WAN Port

1. Connect one end of an Ethernet cable to your Internet connection.

2. Connect the other end of the cable to the X1 (WAN ) port on your SonicWALL NSA E7500.

Accepted Browser

Browser Version Number

Internet Explorer 6.0 or higher

Firefox 2.0 or higher

Netscape 9.0 or higher

Opera 9.10 or higher for

Windows

Safari 2.0 or higher for MacOS

%

.ETWORK3ECURITY!PPLIANCE

0DQDJHPHQW

6WDWLRQ

6RQLF:$//16$(

;

;

,QWHUQHW

NSA_E7500_GSG.book Page 24 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 25

Connecting the LAN Port

1. Connect one end of the provided Ethernet cable to the computer you are using to manage the SonicWALL NSA E7500.

2. Connect the other end of the cable to the X0 port on your SonicWALL NSA E7500.

The Link LED above the X0 (LAN) port will light up in green or amber depending on the link throughput speed, indicating an active connection:

- Amber indicates 1 Gbps

- Green indicates 100 Mbps

- Unlit while the right (activity) LED is illuminated

indicates 10 Mbps

Applying Power

1. Plug the power cords into an appropriate power outlet.

2. Turn on both power switches on the rear of the appliance next to the power cords.

The Power LEDs on the front panel light up blue when you plug in the SonicWALL NSA E7500. The Alarm LED may light up and the Test LED will light up and may blink while the appliance performs a series of diagnostic tests.

When the Power LEDs are lit and the Test LED is no longer lit, the SonicWALL NSA E7500 is ready for configuration. This typically occurs within a few minutes of applying power to the appliance.

Alert: When disconnecting power, be sure to remove both

power cords from the unit.

Note: Only one power supply is required for the appliance to

operate.

Note: If the Test or Alarm LEDs remain lit after the

SonicWALL NSA E7500 has booted, restart the appliance by cycling power.

I o

To po wer source 1

To po wer source 2

NSA_E7500_GSG.book Page 25 Monday, June 22, 2009 3:58 PM

Page 26 Initial Setup

Accessing the Management Interface

The computer you use to manage the SonicWALL NSA E7500 must be set up to accept a dynamic IP address, or it must have an unused IP address on the 192.168.168.x/24 subnet, such as

192.168.168.20.

To access the SonicOS Enhanced Web-based management interface:

1. Start your Web browser.

Note: Disable pop-up blocking software or add the

management IP address http://192.168.168.168 to your pop-up blocker’s allow list.

2. Enter http://192.168.168.168 (the default LAN management IP address) in the Location or Address field.

3. The SonicWALL Setup Wizard launches and guides you through the configuration and setup of your SonicWALL NSA E7500.

The Setup Wizard launches upon initial loading of the SonicWALL NSA E7500 management interface.

4. Follow the on-screen prompts to complete the Setup Wizard.

Depending on the changes made during your setup configuration, the SonicWALL may restart.

Using the Setup Wizard

If you cannot connect to the SonicWALL NSA E7500 or the Setup Wizard does not display, verify the following configurations:

• Did you correctly enter the SonicWALL NSA E7500 management IP address in your Web browser?

• Are the Local Area Connection settings on your computer set to use DHCP or set to a static IP address on the

192.168.168.x/24 subnet?

• Do you have the Ethernet cable connected to your computer and to the X0 (LAN) port on your SonicWALL?

• Is the connector clip on your network cable properly seated in the port of the security appliance?

• Some browsers may not launch the Setup Wizard automatically. In this case:

• Log into SonicWALL NSA E7500 using “admin” as the

user name and “password” as the password.

• Click the Wizards button on the System > Status

page.

• Select Setup Wizard and click Next to launch the

Setup Wizard.

• Some pop-up blockers may prevent the launch of the

Setup Wizard. You can temporarily disable your popup blocker, or add the management IP address of your SonicWALL (192.168.168.168 by default) to your popup blocker's allow list.

NSA_E7500_GSG.book Page 26 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 27

Connecting to Your Network

The SonicWALL NSA E7500 ships with the internal DHCP server active on the LAN port. However, if a DHCP server is already active on your LAN, the SonicWALL will disable its own DHCP server to prevent conflicts.

As shown in the illustration on this page, ports X1 and X0 are preconfigured as WAN and LAN respectively. The remaining ports (X2-X7) can be configured to meet the needs of your network. In the graphical example on this page, the zones are: X1: WAN, X0: LAN, X2: WLAN, X7: DMZ.

Refer to the SonicOS Enhanced Administrator’s Guide for advanced configuration deployments.

Testing Your Connection

1. After you exit the Setup Wizard, the login page reappears.

Log back into the Management Interface and verify your IP and WAN connection.

2. Ping a site outside of your local network, such as:

<http://www.sonicwall.com>.

3. Open another Web browser and navigate to:

<http://www.sonicwall.com>.

If you can view the SonicWALL home page, you have configured your SonicWALL NSA E7500 correctly.

If you cannot view the SonicWALL home page, renew your management station DHCP address.

4. If you still cannot view a Web page, try one of these

solutions:

• Restart your Management Station to accept new network settings from the DHCP server in the SonicWALL security appliance.

• Restart your Internet Router to communicate with the DHCP Client in the SonicWALL security appliance.

SonicPoint

LAN Zone

SonicWALL NSA E7500

DMZ Zone

WLAN Zone

Internet

NSA_E7500_GSG.book Page 27 Monday, June 22, 2009 3:58 PM

Page 28 Initial Setup

Activating Licenses in SonicOS

After completing the registration process in SonicOS, you must perform the following tasks to activate your licenses and enable your licensed services from within the SonicOS user interface:

• Activate licenses

• Enable security services

• Apply services to network zones

This section describes how to activate your licenses. For instructions on how to enable security services and apply services to network zones, see the following sections:

•

Enabling Security Services in SonicOS - page 48

•

Applying Security Services to Zones - page 48

To activate licensed services in SonicOS, you can enter the license keyset manually, or you can synchronize all licenses at once with mysonicwall.com.

The Setup Wizard automatically synchronizes all licenses with mysonicwall.com if the appliance has Internet access during initial setup. If initial setup is already complete, you can synchronize licenses from the System > Licenses page.

Manual upgrade using the license keyset is useful when your appliance is not connected to the Internet. The license keyset includes all license keys for services or software enabled on mysonicwall.com. It is available on mysonicwall.com at the top of the Service Management page for your SonicWALL appliance.

To activate licenses in SonicOS:

1. Navigate to the System > Licenses page.

2. Under Manage Security Services Online do one of the following:

• Enter your mysonicwall.com credentials, then click the

Synchronize button to synchronize licenses with mysonicwall.com.

• Paste the license keyset into the Manual Upgrade

Keyset field.

3. Click Submit.

NSA_E7500_GSG.book Page 28 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 29

Upgrading Firmware on Your SonicWALL

The following procedures are for upgrading an existing SonicOS Enhanced image to a newer version:

•

Obtaining the Latest Firmware - page 29

•

Saving a Backup Copy of Your Preferences - page 29

•

Upgrading the Firmware - page 30

•

Using SafeMode to Upgrade Firmware - page 30

Obtaining the Latest Firmware

1. To obtain a new SonicOS Enhanced firmware image file for your SonicWALL security appliance, connect to your mysonicwall.com account at

<http://www.sonicwall.com>.

2. Copy the new SonicOS Enhanced image file to a convenient location on your management station.

Saving a Backup Copy of Your Preferences

Before beginning the update process, make a system backup of your SonicWALL security appliance configuration settings. The backup feature saves a copy of the current configuration settings on your SonicWALL security appliance, protecting all your existing settings in the event that it becomes necessary to return to a previous configuration state.

In addition to using the backup feature to save your current configuration state to the SonicWALL security appliance, you can export the configuration preferences file to a directory on your local management station. This file serves as an external backup of the configuration preferences, and can be imported back into the SonicWALL security appliance.

Perform the following procedures to save a backup of your configuration settings and export them to a file on your local management station:

1. On the System > Settings page, click Create Backup. Your configuration preferences are saved. The System Backup entry is displayed in the Firmware Management table.

2. To export your settings to a local file, click Export Settings. A popup window displays the name of the saved file.

NSA_E7500_GSG.book Page 29 Monday, June 22, 2009 3:58 PM

Page 30 Initial Setup

Upgrading the Firmware

Perform the following steps to upload new firmware to your SonicWALL appliance and use your current configuration settings upon startup.

Tip: The appliance must be properly registered before it can

be upgraded. Refer to Registering and Licensing

Your Appliance on mysonicwall.com

- page 15 for

more information.

1. Download the SonicOS Enhanced firmware image file from mysonicwall.com and save it to a location on your local computer.

2. On the System > Settings page, click Upload New Firmware.

3. Browse to the location where you saved the SonicOS Enhanced firmware image file, select the file and click the Upload button.

4. On the System > Settings page, click the Boot icon in the row for Uploaded Firmware or Uploaded Firmware with Factory Default Settings.

5. In the confirmation dialog box, click OK. The SonicWALL restarts and then displays the login page.

6. Enter your user name and password. Your new SonicOS Enhanced image version information is listed on the System > Settings page.

Using SafeMode to Upgrade Firmware

If you are unable to connect to the SonicWALL security appliance’s management interface, you can restart the SonicWALL security appliance in SafeMode. The SafeMode feature allows you to recover quickly from uncertain configuration states with a simplified management interface that includes the same settings available on the System > Settings page.

To use SafeMode to upgrade firmware on the SonicWALL security appliance, perform the following steps:

1. Connect your computer to the X0 port on the SonicWALL appliance and configure your IP address with an address on the 192.168.168.0/24 subnet, such as 192.168.168.20.

2. To configure the appliance in SafeMode, perform one of the following methods:

• Use a narrow, straight object, like a straightened paper

clip or a toothpick, to press and hold the reset button on the front of the security appliance for one second. The reset button is in a small hole next to the USB ports.

• Use the LCD control buttons on the front bezel to set

the appliance to SafeMode. Once selected, the LCD displays a confirmation prompt. Select Y and press the Right button to confirm. The SonicWALL security appliance changes to SafeMode.

The Test light starts blinking when the SonicWALL security appliance has rebooted into SafeMode.

NSA_E7500_GSG.book Page 30 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 31

3. Point the Web browser on your computer to

192.168.168.168. The SafeMode management interface displays.

4. If you have made any configuration changes to the security appliance, select the Create Backup On Next Boot checkbox to make a backup copy of your current settings. Your settings will be saved when the appliance restarts.

5. Click Upload New Firmware, and then browse to the location where you saved the SonicOS Enhanced firmware image, select the file and click the Upload button.

6. Select the boot icon in the row for one of the following:

• Uploaded Firmware - New!

Use this option to restart the appliance with your current configuration settings.

• Uploaded Firmware with Factory Defaults - New!

Use this option to restart the appliance with default configuration settings.

7. In the confirmation dialog box, click OK to proceed.

8. After successfully booting the firmware, the login screen is displayed. If you booted with factory default settings, enter the default user name and password (admin / password) to access the SonicWALL management interface.

If You Are Following Scenario...

Proceed to Section:

A - NAT/Route Mode

Gateway

Additional Deployment Configuration

- page 41

B - NAT with State Sync Pair

Configuring a State Sync Pair in NAT/Route Mode

- page 32

C - L2 Bridge Mode

Configuring L2 Bridge Mode -

page 38

NSA_E7500_GSG.book Page 31 Monday, June 22, 2009 3:58 PM

Page 32 Configuring a State Sync Pair in NAT/Route Mode

Configuring a State Sync Pair in NAT/Route Mode

This section provides instructions for configuring a pair of SonicWALL NSA E7500 appliances for high availability (HA). This section is relevant to administrators following deployment scenario B.

This section contains the following sub-sections:

• Initial High Availability Setup - page 32

•

Configuring High Availability - page 33

•

Configuring Advanced HA Settings - page 33

•

Synchronizing Settings - page 35

•

Adjusting High Availability Settings - page 36

•

Synchronizing Firmware - page 36

•

HA License Configuration Overview - page 37

• Associating Pre-Registered Appliances - page 38

Initial High Availability Setup

Before you begin the configuration of HA on the Primary SonicWALL security appliance, perform the following setup:

• On the bottom panel of the Backup SonicWALL security appliance, locate the serial number and write the number down. You need to enter this number in the High Availability > Settings page.

• Verify that the Primary SonicWALL and Backup SonicWALL security appliances are registered, running the same SonicOS Enhanced versions.

• Make sure the Primary SonicWALL and Backup SonicWALL security appliances’ LAN, WAN and other interfaces are properly configured for failover.

• Connect the HA ports on the Primary SonicWALL and Backup SonicWALL appliances with a CAT6-rated crossover cable (red crossover cable). The Primary and Backup SonicWALL security appliances must have a dedicated connection using the HA interface. SonicWALL recommends cross-connecting the two together using a CAT 6 crossover Ethernet cable, but a connection using a dedicated 100Mbps hub/switch is also valid.

• Power up the Primary SonicWALL security appliance, and then power up the Backup SonicWALL security appliance.

• Do not make any configuration changes to the Primary’s HA interface; the High Availability configuration in an upcoming step takes care of this issue. When done, disconnect the workstation.

%

.ETWORK3ECURITY!PPLIANCE

6RQLF

6RQLF:$//16$(&ODVV

/RFDO1HWZRUN

6RQLF:$//

+$)DLORYHU3DLU

,QWHUQHW

+$/LQN

NSA_E7500_GSG.book Page 32 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 33

Configuring High Availability

The first task in setting up HA after initial setup is configuring the High Availability > Settings page on the Primary SonicWALL security appliance. Once you configure HA on the Primary SonicWALL security appliance, it communicates the settings to the Backup SonicWALL security appliance.

To configure HA on the Primary SonicWALL, perform the following steps:

1. Navigate to the High Availability > Settings page.

2. Select the Enable High Availability checkbox.

3. Under SonicWALL Address Settings, type in the serial number for the Backup SonicWALL appliance.

You can find the serial number on the back of the SonicWALL security appliance, or in the System > Status screen of the backup unit. The serial number for the Primary SonicWALL is automatically populated.

4. Click Apply to retain these settings.

Configuring Advanced HA Settings

1. Navigate to the High Availability > Advanced page.

2. To configure Stateful HA, select Enable Stateful Synchronization. A dialog box is displayed with recommended settings for the Heartbeat Interval and Probe Interval fields. The settings it shows are minimum recommended values. Lower values may cause unnecessary failovers, especially when the SonicWALL is

under a heavy load. You can use higher values if your SonicWALL handles a lot of network traffic. Click OK.

3. To backup the firmware and settings when you upgrade the firmware version, select Generate/Overwrite Backup Firmware and Settings When Upgrading Firmware.

4. Select the Enable Virtual MAC checkbox. Virtual MAC allows the Primary and Backup appliances to share a single MAC address. This greatly simplifies the process of updating network ARP tables and caches when a failover occurs. Only the WAN switch that the two appliances are connected to needs to be notified. All outside devices will continue to route to the single shared MAC address.

5. Optionally adjust the Heartbeat Interval to control how often the two units communicate. The default is 5000 milliseconds; the minimum recommended value is 1000 milliseconds. Less than this may cause unnecessary failovers, especially when the SonicWALL is under a heavy load.

6. Set the Probe Level for the interval in seconds between communication with upstream or downstream systems. SonicWALL recommends that you set the interval for at least 5 seconds. You can set the Probe IP Address(es) on the High Availability > Monitoring screen.

7. Typically, SonicWALL recommends leaving the Failover

Trigger Level (missed heart beats), Election Delay Time (seconds), and Dynamic Route Hold-Down Time fields

to their default settings. These fields can be tuned later as necessary for your specific network environment.

-The Failover Trigger Level sets the number of

heartbeats that can be missed before failing over.

NSA_E7500_GSG.book Page 33 Monday, June 22, 2009 3:58 PM

Page 34 Configuring a State Sync Pair in NAT/Route Mode

-The Election Delay Time is the number of seconds allowed for internal processing between the two units in the HA pair before one of them takes the primary role.

-The Dynamic Route Hold-Down Time setting is used when a failover occurs on a HA pair that is using either RIP or OSPF dynamic routing. When a failover occurs, Dynamic Route Hold-Down Time is the number of seconds the newly-active appliance keeps the dynamic routes it had previously learned in its route table. During this time, the newly-active appliance relearns the dynamic routes in the network. When the Dynamic Route Hold-Down Time duration expires, it deletes the old routes and implements the new routes it has learned from RIP or OSPF. The default value is 45 seconds. In large or complex networks, a larger value may improve network stability during a failover.

8. Click the Include Certificates/Keys checkbox to have the appliances synchronize all certificates and keys.

9. Click Synchronize Settings to synchronize the settings between the Primary and Backup appliances.

10. Click Synchronize Firmware if you previously uploaded new firmware to your Primary unit while the Secondary unit was offline, and it is now online and ready to upgrade to the new firmware. Synchronize Firmware is typically used after taking your Secondary appliance offline while you test a new firmware version on the Primary unit before upgrading both units to it.

11. Click Apply to retain the settings on this screen.

NSA_E7500_GSG.book Page 34 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 35

Synchronizing Settings

Once you have configured the HA setting on the Primary SonicWALL security appliance, click the Synchronize Settings button. You should see a HA Peer Firewall has been updated message at the bottom of the management interface page. Also note that the management interface displays Logged Into: Primary SonicWALL Status: (green ball) Active in the upperright-hand corner.

By default, the Include Certificate/Keys setting is enabled. This specifies that Certificates, CRLs and associated settings (such as CRL auto-import URLs and OCSP settings) are synchronized between the Primary and Backup units. When Local Certificates are copied to the Backup unit, the associated Private Keys are also copied. Because the connection between the Primary and Backup units is typically protected, this is generally not a security concern.

Tip: A compromise between the convenience of

synchronizing Certificates and the added security of not synchronizing Certificates is to temporarily enable the Include Certificate/Keys setting and manually synchronize the settings, and then disable Include Certificate/Keys.

To verify that Primary and Backup SonicWALL security appliances are functioning correctly, wait a few minutes, then power off the Primary SonicWALL device. The Backup SonicWALL security appliance should quickly take over.

From your management workstation, test connectivity through the Backup SonicWALL by accessing a site on the public Internet – note that the Backup SonicWALL, when active, assumes the complete identity of the Primary, including its IP addresses and Ethernet MAC addresses.

Log into the Backup SonicWALL’s unique LAN IP address. The management interface should now display Logged Into: Backup SonicWALL Status: (green ball) Active in the upperright-hand corner.

Now, power the Primary SonicWALL back on, wait a few minutes, then log back into the management interface. If stateful synchronization is enabled (automatically disabling preempt mode), the management GUI should still display

Logged Into: Backup SonicWALL Status: (green ball) Active in the upper-right-hand corner.

If you are using the Monitor Interfaces feature, experiment with disconnecting each monitored link to ensure correct configuration.

NSA_E7500_GSG.book Page 35 Monday, June 22, 2009 3:58 PM

Page 36 Configuring a State Sync Pair in NAT/Route Mode

Adjusting High Availability Settings

On the High Availability > Settings page, there are four user- configurable timers that can be adjusted to suit your network’s needs:

• Heartbeat Interval (seconds) – This timer is the length of time between status checks. By default this timer is set to 5 seconds; using a longer interval will result in the SonicWALL taking more time to detect when/if failures have occurred.

• Failover Trigger Level (missed heart beats) – This timer is the number of heartbeats the SonicWALL will miss before failing over. By default, this time is set to 5 missed heart beats.This timer is linked to the Heartbeat Interval timer – for example, if you set the Heartbeat Interval to 10 seconds, and the Failover Trigger Level timer to 5, it will be 50 seconds before the SonicWALL fails over.

• Probe Interval – This timer controls the path monitoring speed. Path monitoring sends pings to specified IP addresses to monitor that the network critical path is still reachable. The default is 20 seconds, and the allowed range is from 5 to 255 seconds.

• Election Delay Time – This timer can be used to specify an amount of time the SonicWALL will wait to consider an interface up and stable, and is useful when dealing with switch ports that have a spanning-tree delay set.

Synchronizing Firmware

Checking the Synchronize Firmware Upload and Reboot checkbox allows the Primary and Backup SonicWALL security appliances in HA mode to have firmware uploaded on both devices at once, in staggered sequence to ensure security is always maintained. During the firmware upload and reboot, you are notified via a message dialog box that the firmware is loaded on the Backup SonicWALL security appliance, and then the Primary SonicWALL security appliance. You initiate this process by clicking on the Synchronize Firmware button.

NSA_E7500_GSG.book Page 36 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 37

HA License Configuration Overview

You can configure HA license synchronization by associating two SonicWALL security appliances as HA Primary and HA Secondary on mysonicwall.com. Note that the Backup appliance of your HA pair is referred to as the HA Secondary unit on mysonicwall.com.

You must purchase a single set of security services licenses for the HA Primary appliance. To use Stateful HA, you must first activate the Stateful High Availability Upgrade license for the primary unit in SonicOS. This is automatic if your appliance is connected to the Internet. See

Registering and Licensing

Your Appliance on mysonicwall.com

- page 15.

License synchronization is used during HA so that the Backup appliance can maintain the same level of network protection provided before the failover. To enable HA, you can use the SonicOS UI to configure your two appliances as a HA pair in Active/Idle mode.

mysonicwall.com provides several methods of associating the two appliances. You can start by registering a new appliance, and then choosing an already-registered unit to associate it with. You can associate two units that are both already registered. Or, you can select a registered unit and then add a new appliance with which to associate it.

Note: After registering new SonicWALL appliances on

mysonicwall.com, you must also register each appliance from the SonicOS management interface by clicking the registration link on the System > Status page. This allows each unit to synchronize with the SonicWALL license server and share licenses with the associated appliance.

NSA_E7500_GSG.book Page 37 Monday, June 22, 2009 3:58 PM

Page 38 Configuring a State Sync Pair in NAT/Route Mode

Associating Pre-Registered Appliances

To associate two already-registered SonicWALL security appliances so that they can use HA license synchronization, perform the following steps:

1. Login to mysonicwall.com.

2. In the left navigation bar, click My Products.

3. On the My Products page, under Registered Products, scroll down to find the appliance that you want to use as the parent, or primary, unit. Click the product name or serial number.

4. On the Service Management - Associated Products page, scroll down to the Associated Products section.

5. Under Associated Products, click HA Secondary.

6. On the My Product - Associated Products page, in the text boxes under Associate New Products, type the serial number and the friendly name of the appliance that you want to associate as the child/secondary/backup unit.

7. Select the group from the Product Group drop-down list. The product group setting specifies the mysonicwall users who can upgrade or modify the appliance.

8. Click Register.

Configuring L2 Bridge Mode

This section provides instructions to configure the SonicWALL NSA E7500 appliance in tandem with an existing Internet gateway device. This section is relevant to users following deployment scenario C.

This section contains the following sub-sections:

•

Connection Overview - page 39

•

Configuring the Primary Bridge Interface - page 39

•

Configuring the Secondary Bridge Interface - page 39

If You Are Following Scenario...

Proceed to Section:

B - NAT with State Sync Pair

Additional Deployment Configuration

- page 41

NSA_E7500_GSG.book Page 38 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 39

Connection Overview

Connect the X1 port on your SonicWALL NSA E7500 to the LAN port on your existing Internet gateway device. Then connect the X0 port on your SonicWALL to your LAN.

Configuring the Primary Bridge Interface

The primary bridge interface is your existing Internet gateway device. The only step involved in setting up your primary bridge interface is to ensure that the WAN interface is configured for a static IP address. You will need this static IP address when configuring the secondary bridge.

Note: The primary bridge interface must have a static IP

assignment.

Configuring the Secondary Bridge Interface

Complete the following steps to configure the SonicWALL appliance:

1. Navigate to the Network > Interfaces page from the navigation panel.

2. Click the Configure icon in the right column of the X0 (LAN) interface.

3. In the IP Assignment drop-down, select Layer 2 Bridged Mode.

4. In the Bridged to drop-down, select the X1 interface.

5. Configure management options (HTTP, HTTPS, Ping, SNMP, SSH, User logins, or HTTP redirects).

%

6RQLF:$//16$(&ODVV

1HWZRUN*DWHZD\

/%ULGJH/LQN

1HWZRUN5HVRXUFHV

;

/$1

;

)NTERNETOR

,!.3EGMENT

NSA_E7500_GSG.book Page 39 Monday, June 22, 2009 3:58 PM

Page 40 Configuring a State Sync Pair in NAT/Route Mode

Note: Do not enable Never route traffic on the bridge-pair

unless your network topology requires that all packets entering the L2 Bridge remain on the L2 Bridge segments. You may optionally enable the Block all non-IPv4 traffic setting to prevent the L2 bridge from passing non-IPv4 traffic.

If You Are Following Scenario...

Proceed to Section:

C - L2 Bridge Mode

Additional Deployment Configuration

- page 41

NSA_E7500_GSG.book Page 40 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 41

Additional Deployment Configuration

In this Section:

This section provides basic configuration information to begin building network security policies for your deployment. This section also contains several SonicOS diagnostic tools and a deployment configuration reference checklist.

• An Introduction to Zones and Interfaces - page 42

•

Creating Network Access Rules - page 42

•

Creating a NAT Policy - page 45

• Enabling Security Services in SonicOS - page 48

•

Applying Security Services to Zones - page 48

•

Troubleshooting Diagnostic Tools - page 49

NSA_E7500_GSG.book Page 41 Monday, June 22, 2009 3:58 PM

Page 42 An Introduction to Zones and Interfaces

An Introduction to Zones and Interfaces

Zones split a network infrastructure into logical areas, each with its own set of usage rules, security services, and policies. Most networks include multiple definitions for zones, including those for trusted, untrusted, public, encrypted, and wireless traffic.

Some basic (default) zone types include:

WAN - Untrusted resources outside your local network

LAN - Trusted local network resources

WLAN - Local wireless network resources originating from

SonicWALL wireless enabled appliances such as SonicPoints.

DMZ - Local network assets that must be accessible from the WAN zone (such as Web and FTP servers)

VPN - Trusted endpoints in an otherwise untrusted zone, such as the WAN

The security features and settings configured for the zones are enforced by binding a zone to one or more physical interfaces (such as, X0, X1, or X2) on the SonicWALL UTM appliance.

The X1 and X0 interfaces are preconfigured as WAN and LAN respectively. The remaining ports can be configured to meet the needs of your network, either by using basic zone types (WAN, LAN, WLAN, DMZ, VPN) or configuring a custom zone type to fit your network requirements (for example: Gaming Console Zone, Wireless Printer Zone, Wireless Ticket Scanner Zone).

Creating Network Access Rules

A Zone is a logical grouping of one or more interfaces designed to make management, such as the definition and application of access rules, a simpler and more intuitive process than following a strict physical interface scheme.

By default, the SonicWALL security appliance’s stateful packet inspection allows all communication from the LAN to the Internet, and blocks all traffic from the Internet to the LAN. The following behaviors are defined by the “Default” stateful inspection packet access rule enabled in the SonicWALL security appliance:

Originating Zone Destination Zone Action

LAN, WLAN WAN, DMZ

Allow

DMZ WAN

Allow

WAN DMZ

Deny

WAN and DMZ LAN or WLAN

Deny

NSA_E7500_GSG.book Page 42 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 43

To create an access rule:

1. On the Firewall > Access Rules page in the matrix view, click the arrow connecting the two zones that need a rule.

2. On the Access Rules page, click Add.

The access rules are sorted from the most specific at the top to the least specific at the bottom of the table. At the bottom of the table is the Any rule.

3. In the Add Rule page in the General tab, select Allow | Deny | Discard from the Action list to permit or block IP traffic.

NSA_E7500_GSG.book Page 43 Monday, June 22, 2009 3:58 PM

Page 44 Creating Network Access Rules

• Select the from and to zones from the From Zone and To Zone menus.

• Select the service or group of services affected by the access rule from the Service list. If the service is not listed, you must define the service in the Add Service window. Select Create New Service or Create New

Group to display the Add Service window or Add Service Group window.

• Select the source of the traffic affected by the access rule from the Source list. Selecting Create New Network displays the Add Address Object window.

• Select the destination of the traffic affected by the access rule from the Destination list. Selecting

Create New Network displays the Add Address Object window.

• From the Users Allowed menu, add the user or user group affected by the access rule.

• Select a schedule from the Schedule menu. The default schedule is Always on.

• Enter any comments to help identify the access rule in the Comments field.

4. Click on the Advanced tab.

• If you would like for the access rule to timeout after a different period of TCP inactivity, set the amount of time, in minutes, in the TCP Connection Inactivity Timeout (minutes) field. The default value is 60 minutes.

• If you would like for the access rule to timeout after a different period of UDP inactivity, set the amount of time, in minutes, in the UDP Connection Inactivity Timeout (minutes) field. The default value is 30 minutes.

• Specify the number of connections allowed as a percent of maximum number of connections allowed by the SonicWALL security appliance in the Number

of connections allowed (% of maximum connections) field.

• Select Create a reflexive rule if you want to create a matching access rule to this one in the opposite direction--from your destination zone or address object to your source zone or address object.

NSA_E7500_GSG.book Page 44 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 45

5. Click on the QoS tab if you want to apply DSCP or 802.1p Quality of Service coloring/marking to traffic governed by this rule. See the SonicOS Enhanced Administrator’s Guide for more information on managing QoS marking in access rules.

6. Click OK to add the rule.

Creating a NAT Policy

The Network Address Translation (NAT) engine in SonicOS Enhanced allows users to define granular NAT policies for their incoming and outgoing traffic. By default, the SonicWALL security appliance has a preconfigured NAT policy to allow all systems connected to the LAN interface to perform Many-toOne NAT using the IP address of the WAN interface, and a policy to not perform NAT when traffic crosses between the other interfaces.

You can create multiple NAT policies on a SonicWALL running SonicOS Enhanced for the same object – for instance, you can specify that an internal server use one IP address when accessing Telnet servers, and to use a totally different IP address for all other protocols. Because the NAT engine in SonicOS Enhanced supports inbound port forwarding, it is possible to hide multiple internal servers off the WAN IP address of the SonicWALL security appliance. The more granular the NAT Policy, the more precedence it takes.

Before configuring NAT Policies, you must create all Address Objects associated with the policy. For instance, if you are creating a One-to-One NAT policy, first create Address Objects for your public and private IP addresses.

Address Objects are one of four object classes (Address, User, Service and Schedule) in SonicOS Enhanced. These Address Objects allow for entities to be defined one time, and to be reused in multiple referential instances throughout the SonicOS interface. For example, take an internal Web server with an IP address of 67.115.118.80. Rather than repeatedly typing in the IP address when constructing Access Rules or NAT Policies, Address Objects allow you to create a single entity called “My Web Server” as a Host Address Object with an IP address of

67.115.118.80. This Address Object, “My Web Server”, can then be easily and efficiently selected from a drop-down menu in any configuration screen that employs Address Objects as a defining criterion.

Since there are multiple types of network address expressions, there are currently the following Address Objects types:

• Host – Host Address Objects define a single host by its IP address.

• Range – Range Address Objects define a range of contiguous IP addresses.

• Network – Network Address Objects are like Range objects in that they comprise multiple hosts, but rather than being bound by specified upper and lower range delimiters, the boundaries are defined by a valid netmask.

NSA_E7500_GSG.book Page 45 Monday, June 22, 2009 3:58 PM

Page 46 Creating a NAT Policy

• MAC Address – MAC Address Objects allow for the identification of a host by its hardware address or MAC (Media Access Control) address.

• FQDN Address – FQDN Address Objects allow for the identification of a host by its Fully Qualified Domain Names (FQDN), such as www.sonicwall.com.

SonicOS Enhanced provides a number of Default Address Objects that cannot be modified or deleted. You can use the Default Address Objects when creating a NAT policy, or you can create custom Address Objects to use. All Address Objects are available in the drop-down lists when creating a NAT policy.

Configuring Address Objects

The Network > Address Objects page allows you to create and manage your Address Objects. You can view Address Objects in the following ways using the View Style menu:

• All Address Objects - displays all configured Address Objects.

• Custom Address Objects - displays Address Objects with custom properties.

• Default Address Objects - displays Address Objects configured by default on the SonicWALL security appliance.

To add an Address Object:

1. Navigate to the Network > Address Objects page.

2. Below the Address Objects table, click Add.

3. In the Add Address Object dialog box, enter a name for the Address Object in the Name field.

4. Select the zone to assign to the Address Object from the Zone Assignment drop-down list.

5. Select Host, Range, Network, MAC, or FQDN from the Typ e menu.

- If you selected Host, enter the IP address in the IP

Address field.

- If you selected Range, enter the starting and ending IP

addresses in the Starting IP Address and Ending IP Address fields.

- If you selected Network, enter the network IP address

and netmask in the Network and Netmask fields.

- If you selected MAC, enter the MAC address and

netmask in the Network and MAC Address field.

- If you selected FQDN, enter the domain name for the

individual site or range of sites (with a wildcard) in the FQDN field.

6. Click OK.

NSA_E7500_GSG.book Page 46 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 47

Configuring NAT Policies

NAT policies allow you to control Network Address Translation based on matching combinations of Source IP address, Destination IP address and Destination Services. Policy-based NAT allows you to deploy different types of NAT simultaneously. The following NAT configurations are available in SonicOS Enhanced:

• Many-to-One NAT Policy

• Many-to-Many NAT Policy

• One-to-One NAT Policy for Outbound Traffic

• One-to-One NAT Policy for Inbound Traffic (Reflexive)

• One-to-Many NAT Load Balancing

• Inbound Port Address Translation via One-to-One NAT Policy

• Inbound Port Address Translation via WAN IP Address

This section describes how to configure a One-to-One NAT policy. One-to-One is the most common NAT policy used to route traffic to an internal server, such as a Web Server. Most of the time, this means that incoming requests from external IPs are translated from the IP address of the SonicWALL security appliance WAN port to the IP address of the internal web server.

For other NAT configurations, see the SonicOS Enhanced Administrator’s Guide.

An example configuration illustrates the use of the fields in the Add NAT Policy procedure. To add a One-to-One NAT policy that allows all Internet traffic to be routed through a public IP address, two policies are needed: one for the outbound traffic, and one for the inbound traffic. To add both parts of a One-toOne NAT policy, perform the following steps:

1. Navigate to the Network > NAT Policies page. Click Add. The Add NAT Policy dialog box displays.

2. For Original Source, select Any.

3. For Translated Source, select Original.

4. For Original Destination, select X0 IP.

5. For Translated Destination, select Create new address object and create a new address object using WAN for Zone Assignment and Host for Type.

6. For Original Service, select HTTP.

7. For Translated Service, select Original.

8. For Inbound Interface, select X0.

9. For Outbound Interface, select Any.

10. For Comment, enter a short description.

11. Select the Enable NAT Policy checkbox.

12. Select the Create a reflexive policy checkbox if you want a matching NAT Policy to be automatically created in the opposite direction. This will create the outbound as well as the inbound policies.

13. Click OK

NSA_E7500_GSG.book Page 47 Monday, June 22, 2009 3:58 PM

Page 48 Enabling Security Services in SonicOS

Enabling Security Services in SonicOS

You must enable each security service individually in the SonicOS user interface. See the following procedures to enable and configure the following three basic security services:

Gateway Anti-Virus

Intrusion Prevention

Anti-Spyware

For more information on configuring your security services, refer to the SonicOS Administrator’s Guide.

Applying Security Services to Zones

A network zone is a logical group of one or more interfaces to which you can apply security rules to regulate traffic passing from one zone to another zone.

Security services such as Gateway Anti-Virus are automatically applied to the LAN and WAN network zones when you activate the license and enable the service. To protect other zones such as the DMZ or Wireless LAN (WLAN), you must apply the security services to the network zones. For example, you can configure SonicWALL Intrusion Prevention Service for incoming and outgoing traffic on the WLAN zone to add more security for internal network traffic.

To apply services to network zones:

1. Navigate to the Network > Zones page.

2. In the Zone Settings table, click the Configure icon for the zone where you want to apply security services.

3. In the Edit Zone dialog box on the General tab, select the checkboxes for the security services to enable on this zone.

4. On the Edit Zone page, select the checkboxes for the security services that you want to enable.

5. Click OK.

6. To enable security services on other zones, repeat steps 2 through 4 for each zone.

NSA_E7500_GSG.book Page 48 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 49

Troubleshooting Diagnostic Tools

SonicOS provides a number of diagnostic tools to help you maintain your network and troubleshoot problems. Several tools can be accessed on the System > Diagnostics page, and others are available on other screens.

This section contains the following subsections:

•

Using Packet Capture - page 49

•

Using Ping - page 50

•

Using the Active Connections Monitor - page 51

Using Packet Capture

Packet Capture allows you to capture and examine the contents of individual data packets that traverse your SonicWALL firewall appliance. The captured packets contain both data and addressing information. The System > Packet Capture page provides a way to configure the capture criteria, display settings and file export settings, and displays the captured packets.

The Packet Capture screen has buttons for starting and stopping a packet capture. If you simply click Start without any configuration, the SonicWALL appliance will capture all packets except those for internal communication, and will stop when the buffer is full or when you click Stop.

NSA_E7500_GSG.book Page 49 Monday, June 22, 2009 3:58 PM

Page 50 Troubleshooting Diagnostic Tools

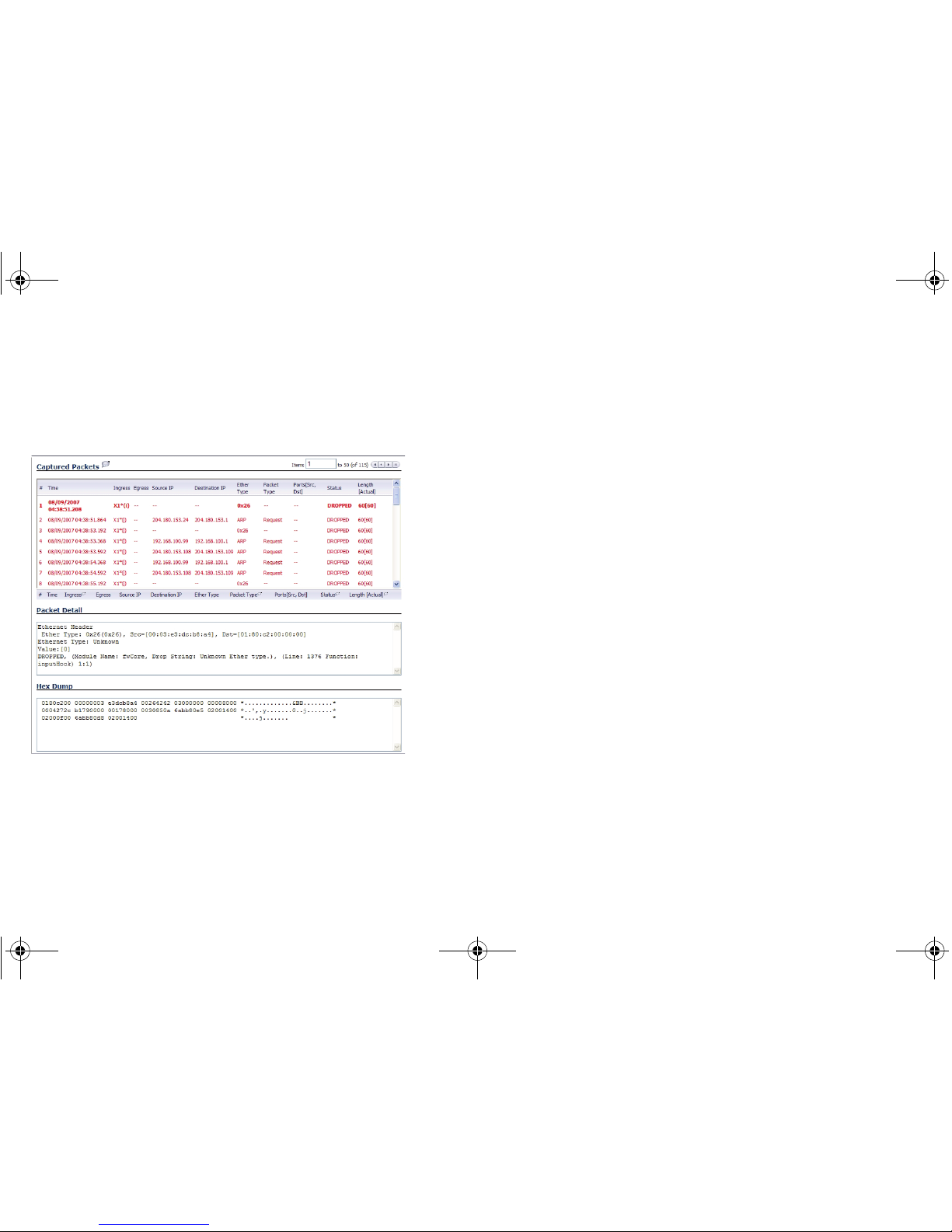

The SonicOS user interface provides three windows to display different views of the captured packets:

• Captured Packets

• Packet Detail

•Hex Dump

Click the Configure button to customize the settings for the capture. Once the configuration is complete, click Start to begin capturing packets. The settings available in the five main areas of configuration are summarized below:

• General - number of bytes to capture, wrap capture buffer

• Capture Filter - interfaces, packet types, source/ destination

• Display Filter - interfaces, packet types, source/ destination

• Logging - automatic transfer of buffer to FTP server

• Advanced - generated packets, GMS, syslog, management

NSA_E7500_GSG.book Page 50 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 51

Using Ping

Ping is available on the System > Diagnostics page.

The Ping test bounces a packet off a machine on the Internet and returns it to the sender. This test shows if the SonicWALL security appliance is able to contact the remote host. If users on the LAN are having problems accessing services on the Internet, try pinging the DNS server, or another machine at the ISP location. If the test is unsuccessful, try pinging devices outside the ISP. If you can ping devices outside of the ISP, then the problem lies with the ISP connection.

Using the Active Connections Monitor

The Active Connections Monitor displays real-time, exportable (plain text or CSV), filterable views of all connections to and through the SonicWALL security appliance. This tool is available on the Systems > Diagnostics page.

You can filter the results to display only connections matching certain criteria. You can filter by Source IP, Destination IP, Destination Port, Protocol, Src Interface and Dst Interface. Enter your filter criteria in the Active Connections Monitor Settings table.

The fields you enter values into are combined into a search string with a logical AND. Select the Group Filters box next to any two or more criteria to combine them with a logical OR.

NSA_E7500_GSG.book Page 51 Monday, June 22, 2009 3:58 PM

Page 52 Troubleshooting Diagnostic Tools

NSA_E7500_GSG.book Page 52 Monday, June 22, 2009 3:58 PM

SonicWALL NSA E7500 Getting Started Guide Page 53

Support and Training Options

In this Section:

This section provides overviews of customer support and training options for the SonicWALL NSA E7500.

• Customer Support - page 54

•

Knowledge Portal - page 54

•

User Forums - page 55

•

Training - page 56

•

SonicWALL NSA E7500, E7500 Getting Started Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
