Sonance VPXT8 Instruction Manual

VISUAL PERFORMANCE

RETROFIT ENCLOSURE

INSTRUCTION MANUAL

INTRODUCTION

Sonance Retrofit Speaker Enclosures reduce sound
transmission into rooms that are adjacent to speakers
mounted in walls or in ceilings. For the enclosures to be
eective it is important that they are installed according
the following directions to ensure a tight seal with
the speaker.

FOR STANDARD SPEAKER MODELS

Select one set of “+” and “-” terminals on the Retrofit
Enclosure and connect the wires to either set of “+” and
“-” terminals on the speakers. Make sure to connect the
red wire to the speaker’s “+” terminal and the black wire
to the speaker’s “-” terminal. Mark the set of terminals
selected on the outside of the enclosure. Use the
provided screws to attach the enclosure to the speaker,
fitting the groove on the edge of the enclosure onto the
rim of the speaker.

FOR BI-WIRED AND SINGLE STEREO
SPEAKERS

Remove the jumpers that connect the two sets of
terminals on the speaker for bi-wired models. Connect
one set of terminal wires from the Retrofit Enclosure
to one set of the “+” and “-” terminals on the speaker.
Connect the other set of terminal wires from the
enclosure to the remaining set of “+” and “-” terminals
on the speaker. Attach the enclosure to the speaker with
provided screws, fitting the groove on the edge of the
enclosure onto the rim of the speaker.

NOTE: make sure that the rubber gasket remains inside
of the groove on the enclosure.

To ensure that the gasket sits properly, tighten the
screws in a crisscross and diagonal pattern. Apply an
equal amount of torque to each screw.

NOTE: Make sure that the rubber gasket remains inside
of the groove on the enclosure.

To ensure that the gasket sits properly, tighten the
screws in a crisscross and diagonal pattern. See diagram
of large rectangle below. Apply an equal amount of
torque to each screw.

IMPORTANT: Always use low-torque setttings.
Never over tighten.

Connect the speaker wires from the amplifier to the
set of terminals on the enclosure that were previously
marked.

IMPORTANT: Always use low-torque setttings.
Never over tighten.

Connect both sets of speaker wires to the two sets
of terminals on the enclosure. Make sure to check for
proper polarity.

ARCHITECTURAL SERIES BRACKETS

The installation is very similar except that the enclosure
will attach to the Architectural Series bracket instead of
the Architectural Series speaker.

NOTE: This must be accomplished prior to installing
the Architectural Series bracket in the wall or ceiling.

1

Refer to the table below to determine total speaker
depth when a retrofit enclosure is used.

MODEL DEPTH WITH ENCLOSURE

VP42

3 7/8” (97.5mm)VP46

VP48

VP42R

VP46R

5 13/16” (147mm)

VP46R SST

VP48R

VP62

VP66

VP68

VP66 SST

VPXT6

VP62LCR

VP66LCR

VP62R

VP64R

VP66R

VP68R

VP62R SST

VP66R SST

VPXT6R

VPXT6R SST

VP82

3 7/8” (98mm)

3 15/16” (99.5mm)

5 7/8” (149mm)

4 7/8” (122.5mm)

3 7/8” (98mm)VP86

VP88

VP82R

VP86R

VP86R SST

VP88R

VPXT8R

7 1/4” (183mm)

2

LIMITED FIVE (5) YEAR WARRANTY

Sonance warrants to the first end-user purchaser that this Sonance-brand product (“Product”), when purchased from
an authorized Sonance Dealer/Distributor, will be free from defective workmanship and materials for the period stated
below. Sonance will at its option and expense during the warranty period, either repair the defect or replace the Product
with a new or remanufactured Product or a reasonable equivalent.

EXCLUSIONS

TO THE EXTENT PERMITTED BY LAW, THE WARRANTY SET FORTH ABOVE IS IN LIEU OF, AND EXCLUSIVE OF,
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED
BY SONANCE. ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY, IMPLIED WARRANTY OF FITNESS FOR USE, AND IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED.

No one is authorized to make or modify any warranties on behalf of Sonance.

The warranty stated above is the sole and exclusive remedy and Sonance’s performance shall constitute full and final
satisfaction of all obligations, liabilities and claims with respect to the Product.

IN ANY EVENT, SONANCE SHALL NOT BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, ECONOMIC, PROPERTY,
BODILY INJURY, OR PERSONAL INJURY DAMAGES ARISING FROM THE PRODUCT, ANY BREACH OF THIS WARRANTY
OR OTHERWISE.

This warranty statement gives you specific legal rights, and you may have other rights which vary from state to state.
Some states do not allow the exclusion of implied warranties or limitations of remedies, so the above exclusions and
limitations may not apply. If your state does not allow disclaimer of implied warranties, the duration of such implied
warranties is limited to period of Sonance’s express warranty.

Your Product Model and Description: Sonance Retrofit Enclosure

Additional Limitations and Exclusions from Warranty Coverage: The warranty described above is non-transferable,
applies only to the initial installation of the Product, does not include installation of any repaired or replaced Product,
does not include damage to allied or associated equipment which may result for any reason from use with this Product,
and does not include labor or parts caused by accident, disaster, negligence, improper installation, misuse (e.g.
overdriving the amplifier or speaker, excessive heat or cold or humidity, outdoor installation), or from service or repair
which has not been authorized by Sonance.

Obtaining Authorized Service: To qualify for the warranty, you must contact your authorized Sonance Dealer/Installer or
call Sonance Customer Service at [phone], must obtain a return merchandise number (RMA), and must deliver
the Product to Sonance shipping prepaid during the warranty period, together with the original sales receipt, or invoice
or other satisfactory proof of purchase.

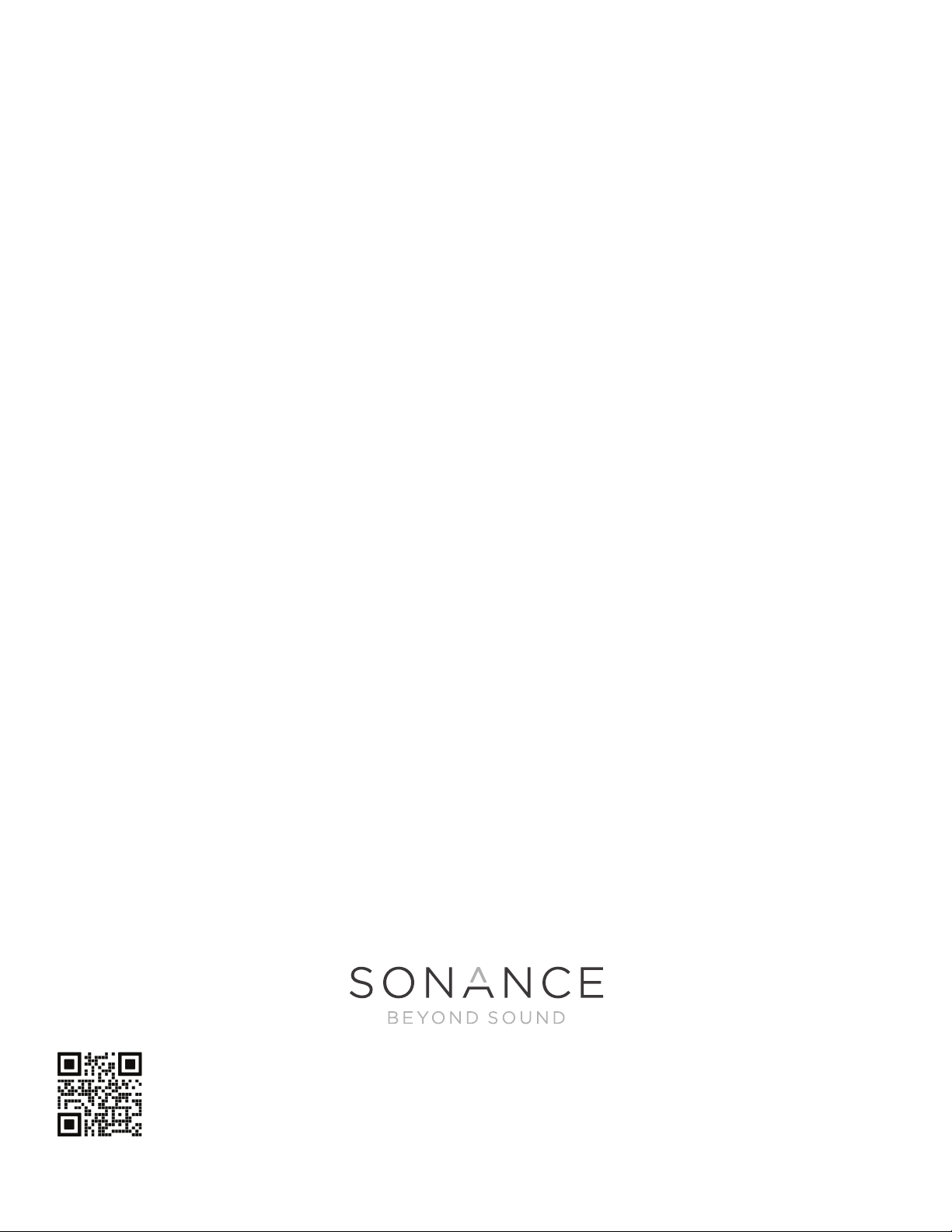

For additional
