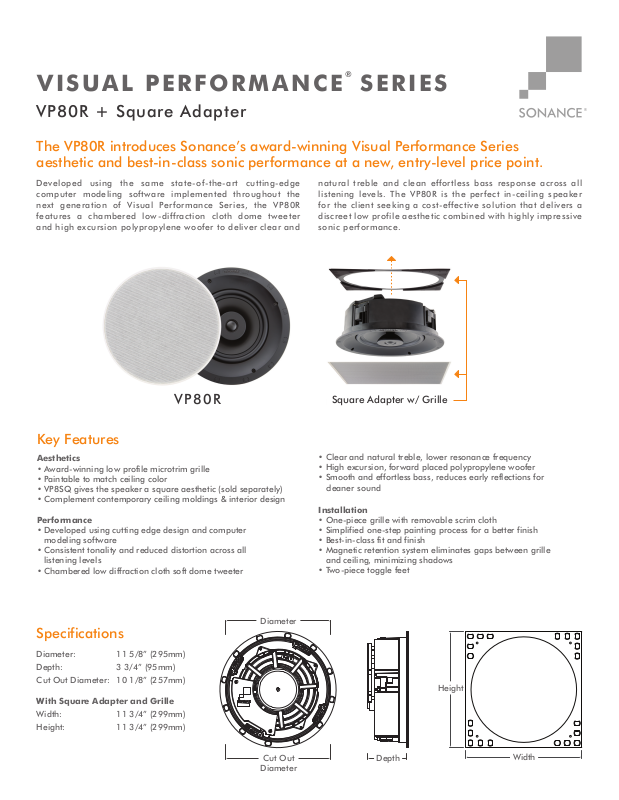

Sonance VP80R +VP8SQ, VP80R Specification Sheet

0.18 [4.7]

VISUAL PERFORMANCE® SERIES

VP80R + Square Adapter

The VP80R introduces Sonance’s award-winning Visual Performance Series aesthetic and best-in-class sonic performance at a new, entry-level price point.

Developed using the same state-of-the-art cutting-edge computer modeling software implemented throughout the next generation of Visual Performance Series, the VP80R features a chambered low-diffraction cloth dome tweeter and high excursion polypropylene woofer to deliver clear and

VP80R

Key Features

Aesthetics

• Award-winning low profile microtrim grille

• Paintable to match ceiling color

• VP8SQ gives the speaker a square aesthetic (sold separately)

• Complement contemporary ceiling moldings & interior design

Performance

• Developed using cutting edge design and computer modeling software

• Consistent tonality and reduced distortion across all listening levels

• Chambered low diffraction cloth soft dome tweeter

natural treble and clean effortless bass response across all listening levels. The VP80R is the perfect in-ceiling speaker for the client seeking a cost-effective solution that delivers a discreet low profile aesthetic combined with highly impressive sonic performance.

Square Adapter w/ Grille

• Clear and natural treble, lower resonance frequency

• High excursion, forward placed polypropylene woofer

• Smooth and effortless bass, reduces early reflections for cleaner sound

Installation

• One-piece grille with removable scrim cloth

• Simplified one-step painting process for a better finish

• Best-in-class fit and finish

• Magnetic retention system eliminates gaps between grille and ceiling, minimizing shadows

• Two-piece toggle feet

Specifications

Diameter: 11 5/8” (295mm) Depth: 3 3/4” (95mm) Cut Out Diameter: 10 1/8” (257mm)

With Square Adapter and Grille

Width: 11 3/4” (299mm) Height: 11 3/4” (299mm)

Diameter

11.06 [280.9]

Height

11.06 [280.9]

Cut Out

Diameter

Depth

Width

SPECIFICATIONS

VP80R +VP8SQ

SKU

UOM

Tweeter

Woofer

Frequency Response

Impedance

Power Handling

Sensitivity

Grille

Dimensions (Dia. x D)

Dimensions with Square Grille (W x H)

Cut-Out Dimensions (Dia.)

Shipping Weight

93089

Pair

1" (25mm) cloth dome, Ferrofluid-cooled

8" (203mm) polypropylene cone with

a rubber surround

42Hz – 20kHz ±3dB

8 ohms nominal;

6 ohms minimum

5 watts minimum;

125 watts maximum

90dB SPL

(2.83V/1 meter)

Perforated steel

11 5/8" x 3 3/4"

(295mm x 95mm)

11 3/4" x 11 3/4"

(299mm x 299mm)

10 1/8"

(257mm)

12.5 lbs (5.67kg) pair

Associated Products

VP8SQ Square Adapter w/ grille 93031 (Pair Per Box)

VP8SQ Square Adapter w/ grille 93034 (5 Pair Bulk Pack)

Large Round Retrofit Enclosure 92243 (Pair Per Box)

LIMITED LIFETIME WARRANTY

Sonance warrants to the first end-user purchaser that this Sonance-brand product (“Product”), when purchased from an authorized Sonance Dealer/Distributor, will be free from defective workmanship and materials for the life of the Product, except for the grille, which is warranted for five (5) years. Sonance will at its option and expense either repair the defect or replace the Product with a new or remanufactured Product or a reasonable equivalent. Please visit our website and owner’s e-Manual for complete warranty and exclusion information.

Due to continuous product improvement, all features and specifications are subject to change without notice. For the latest Sonance product specification information visit our website: www.sonance.com

SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA (949) 492-7777 • FAX: (949) 361-5151 • Technical Support: (949) 492-7777

www.sonance.com

Large Round 91900 Acoustic Enclosure (Each)

Large Round Flex Bracket 92247 (5 Pair Per Box)

Fire-Rated Listed Deep Backcan 92808 (Each)

Large Round Coverplate 92245 (Pair Per Box)

06.02.17
