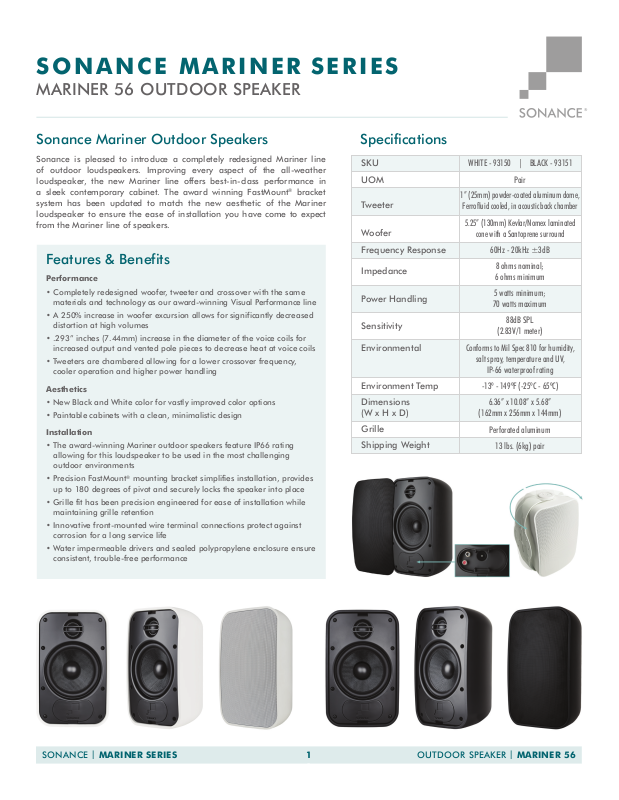

Sonance MARINER 56 Specification Sheet
SONANCE MARINER SERIES
SPECIFICATIONS
MARINER 56
MARINER 56 OUTDOOR SPEAKER
Sonance Mariner Outdoor Speakers
Sonance is pleased to introduce a completely redesigned Mariner line
of outdoor loudspeakers. Improving every aspect of the all-weather
loudspeaker, the new Mariner line offers best-in-class performance in
a sleek contemporary cabinet. The award winning FastMount
system has been updated to match the new aesthetic of the Mariner
loudspeaker to ensure the ease of installation you have come to expect
from the Mariner line of speakers.
Features & Benefits
Performance
• Completely redesigned woofer, tweeter and crossover with the same
materials and technology as our award-winning Visual Performance line
• A 250% increase in woofer excursion allows for significantly decreased
distortion at high volumes
• .293” inches (7.44mm) increase in the diameter of the voice coils for
increased output and vented pole pieces to decrease heat at voice coils
• Tweeters are chambered allowing for a lower crossover frequency,
cooler operation and higher power handling
Aesthetics
• New Black and White color for vastly improved color options
• Paintable cabinets with a clean, minimalistic design
Installation
• The award-winning Mariner outdoor speakers feature IP66 rating
allowing for this loudspeaker to be used in the most challenging
outdoor environments
• Precision FastMount® mounting bracket simplifies installation, provides
up to 180 degrees of pivot and securely locks the speaker into place
• Grille fit has been precision engineered for ease of installation while
maintaining grille retention
• Innovative front-mounted wire terminal connections protect against
corrosion for a long service life
• Water impermeable drivers and sealed polypropylene enclosure ensure
consistent, trouble-free performance
®
bracket
Specifications
SKU
UOM
Tweeter
Woofer
Frequency Response
Impedance
Power Handling
Sensitivity
Environmental
Environment Temp
Dimensions
(W x H x D)
Grille
Shipping Weight
WHITE - 93150 | BLACK - 93151
Pair
1” (25mm) powder-coated aluminum dome,
Ferrofluid cooled, in acoustic back chamber
5.25” (130mm) Kevlar/Nomex laminated
cone with a Santoprene surround
60Hz - 20kHz ±3dB
8 ohms nominal;
6 ohms minimum
5 watts minimum;
70 watts maximum
88dB SPL
(2.83V/1 meter)
Conforms to Mil Spec 810 for humidity,
salt spray, temperature and UV,
IP-66 waterproof rating
-13º - 149ºF (-25ºC - 65ºC)
6.36” x 10.08” x 5.68”
(162mm x 256mm x 144mm)
Perforated aluminum
13 lbs. (6kg) pair
SONANCE | MARINER SERIES OUTDOOR SPEAKER | MARINER 561
1
Dimensional Sketches
Specifications
Mariner 54
Height: 10.08” (256mm)
Width: 6.36” (162mm)
Depth: 5.68” (144mm)
Height
Width
Width
Width
Depth
Wall Mount
Depth
Depth
Ceiling Mount
S5 Mounting Bracket
Height: 10.669” (271mm)
Width: 4.527” (115mm)
Depth
Wall Mount: 6.181” (157mm)
Depth
Ceiling Mount: 6.575” (167mm)
LIMITED LIFETIME WARRANTY - Sonance warrants to the first end-user purchaser that this Sonance-brand product (Mariner 56 ), when purchased
from an authorized Sonance Dealer/Distributor, will be free from defective workmanship and materials for the life of the Product, except for the grille,
which is warranted for five (5) years. Sonance will at its option and expense either repair the defect or replace the Product with a new or remanufactured
Product or a reasonable equivalent. Please visit our website and owner’s e-Manual for complete warranty and exclusion information.
©2017 Sonance. All rights reserved.
Sonance is a registered trademark of Dana Innovations.
Due to continuous product improvement, all features and specifications are subject to change without notice.
For the latest Sonance product specification information visit our website: www.sonance.com
SONANCE • 212 Avenida Fabricante • San Clemente, CA 92672-7531 USA
(949) 492-7777 • FAX: (949) 361-5151 • Technical Support: (949) 492-7777
www.sonance.com/outdoor/rocks-mariners-extreme
Height
