SolarEdge SE4K, SE5000, SE6000, SE5K, SE8K Installation Manual

Installation Guide

SolarEdge System
Installation Guide

For Europe and APAC

Version 4.1

Disclaimers 1

Disclaimers

Important Notice

Copyright © SolarEdge Inc. All rights reserved.
No part of this document may be reproduced, stored in a retrieval system or

transmitted, in any form or by any means, electronic, mechanical, photographic,
magnetic or otherwise, without the prior written permission of SolarEdge Inc.

The material furnished in this document is believed to be accurate and reliable.
However, SolarEdge assumes no responsibility for the use of this material. SolarEdge
reserves the right to make changes to the material at any time and without notice. You
may refer to the SolarEdge web site (www.solaredge.com) for the most updated version.

All company and brand products and service names are trademarks or registered
trademarks of their respective holders.

Patent marking notice: see http://www.solaredge.com/patent
The general terms and conditions of delivery of SolarEdge shall apply.
The content of these documents is continually reviewed and amended, where

necessary. However, discrepancies cannot be excluded. No guarantee is made for the
completeness of these documents.

The images contained in this document are for illustrative purposes only and may vary
depending on product models.



Three Phase System Installation Guide MAN-01-00057-4.1

2 Emission Compliance

Emission Compliance

This equipment has been tested and found to comply with the limits applied by the
local regulations. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, you are encouraged to try to
correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for
compliance may void the user’s authority to operate the equipment.

-Three Phase System Installation Guide MAN-01-00057-4.1

Support and Contact Information 3

Support and Contact Information

If you have technical problems concerning SolarEdge products, please contact us:

Country Phone E-Mail

Australia ([phone]
APAC (Asia Pacific)([phone]

Belgium (+32)

0800-76633

China ([phone]

DACH & Rest of Europe ([phone]
France ([phone]
Italy ([phone]
Japan ([phone]
Netherlands ([phone]
New Zealand ([phone]
Republic of Ireland ([phone]
United Kingdom (+44) 0800 028 1183
US & Canada ([phone]
Greece ([phone]
Israel ([phone]
Middle East &Africa ([phone]
South Africa ([phone]
Turkey ([phone]
Worldwide ([phone]

[email protected]

[email protected]

[email protected]

support_
[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

Before contact, make sure to have the following information at hand:

Model and serial number of the product in question.

The error indicated on the InverterLCD screen or on the monitoring platform or
by the LEDs, if there is such an indication.

System configuration information, including the type and number of modules
connected and the number and length of strings.

The communication method to the SolarEdge server, if the site is connected.

The inverter software version as appears in the ID status screen.

Three Phase System Installation Guide MAN-01-00057-4.1

4 Revision History

Revision History

Version 4.1 (February 2019)

Added appendix 'Determining the Circuit Breaker Size' and paragraph
referencing to it, in the 'Grid Connection Guidelines' section.

In Specifications removed 'Recommended OCPD size per grid' table.

Version 4.0 (July 2018)

This guide describes three phase inverters only

Update of product names

Removal of grounding cable connected to the DINrail in the DC Safety Unit.

Hardware change - new enclosure, interfaces and communication board

Addition of possibility to use compatible connectors from third-party
manufacturers

Update regarding use of extension cables in power optimizer installation
guidelines

Recommendation to mount the power optimizer in a location protected from
direct sunlight

Power optimizer clearance - no clearance is required on the mounting bracket
side

Addition of caution - installation in saline environment

Clearance for three phase inverters installed side-by-side, single row of inverters
outdoors: 5 cm / 2”

PVRSSis enabled by default. Enabling/ disabling PVRSS feature can be done
from the inverter LCD menus.

Addition of reference to troubleshooting undetected devices application note

Torque for connecting DC strings to the fuse holders in the DC Safety Unit: 3.4
N*M / 30 lb*in

Addition of link to the Designer web page

Updated warning about sealing unused power optimizer input connectors

DC safety voltage is 1V (±0.1V)

-Three Phase System Installation Guide MAN-01-00057-4.1

Addition of link to Three Phase Inverters for Delta Grids application note

Addition of RS485-2 support

Version 3.3 (Aug.2017)

Updated the Safety section: New warning -The Safety Switch meets all
requirements for a code-compliant installation of this system. The DC
Disconnect Switch disconnects both the positive and negative conductors.

In Supported AC Grids, added:Ground connection is required for all grids

In Power Optimizer Installation chapter:

Updated string extension cable length

Added information for connecting multiple modules in parallel to an
optimizer

Removed reference to racking models and their grounding methods

Removed mentioning of tracker

In inverter Installation chapter:

Added note about copper conductors

Removed previous interface panel description and images, and type 1
bracket

In Inverter Interfaces - updated ON/OFFswitch description

Added a caution about not altering the DC Safety Unit
enclosure:SolarEdge does not permit opening or puncturing the Safety
Switch in any location other than the pre-defined drill guide locations,
or otherwise altering the construction of the enclosure, as this may
compromise safety and will void the warranty.

Reference to horizontal mounting application note

Updated clearance specifications

Connection to/from the Connection Unit:

AC grounding to bus bar instead of terminal block - updated
instructions and Connection Unit model images

String fusing requirement note updated:Fuses needed for 4 strings or
more (instead of 3).

Added conduit sealing requirement

Revision History 5

Three Phase System Installation Guide MAN-01-00057-4.1

6 Revision History

In Commissioning chapter:

Updated the activation sequence

Updated menu information descriptions

Removed RS232 reference

In Configuration Menu Options:

Communication section:

Power Control section:

Maintenance section:

Status Screens updates:

Meter status screen - added Power and Energy lines

Telemetry status screen - updated

GSMstatus screen - new

Communication options - updated

Inverter cover removal sequence - updated

RS485-E option - new

Added link to Arc Detection application note

Troubleshooting:

Error codes moved to a separate document. A link was added to the
manual.

Slave Detect and Slave List - updated

Mechanical specifications - removed type 1 bracket

External fan replacement - updated

Updated the technical specification document

Removed RS232 Conf

Added GSMConf

Removed Phase Balance link and info

Add link to P(Q) diagram application note

Added links to application notes (Upgrading the inverter using
SD card; Isolation fault troubleshooting; Arc fault detection)

Removed Optimizer Conf

-Three Phase System Installation Guide MAN-01-00057-4.1

Revision History 7

Explained whichoptimizerinstallation steps to skip when using smart modules.

Added RS485 slave detect feature

Removed USB

Three Phase System Installation Guide MAN-01-00057-4.1

8 Revision History

Contents

Disclaimers 1

Important Notice 1
Emission Compliance 2

Support and Contact Information 3

Revision History 4

HANDLING AND SAFETY INSTRUCTIONS 10

Safety Symbols Information 10

IMPORTANTSAFETYINSTRUCTIONS 11

Chapter 1: Introducing the SolarEdge Power Harvesting Syste m 13

Power Optimizer 13
Inverter 14
Monitoring Platform 14
Installation Procedure 14
Installation Equipment List 14
Inverter Transport and Storage 15

Chapter 2: Installing the Power Optimizers 16

Safety 16
Installation Guidelines 17
Step 1: Mounting the Power Optimizers 20
Step 2: Connecting a PV Module to a Power Optimizer 20
Step 3: Connecting Power Optimizers in Strings 21
Step 4: Verifying Proper Power Optimizer Connection 22

Chapter 3: Installing the Inverter 23

Inverter Package Contents 23
Identifying the Inverter 23
Inverter Interfaces 23
Mounting the Inverter 26

Chapter 4: Connecting the AC and the Strings to the Inverter 31

Grid Connection Guidelines 31
Connecting the ACGrid to the Inverter 32
Connecting the Strings to the Inverter 34
Selecting a Residual Current Device (RCD) 34

Chapter 5: Commissioning the Installation 36

Step 1: Activating the System 36
Step 2: Pairing Power Optimizers to the Inverter 38
Step 3: Verifying Proper Activation 40
Step 4: Reporting and Monitoring Installation Data 40

Chapter 6: User Int erface 44

-Three Phase System Installation Guide MAN-01-00057-4.1

Revision History 9

LCD User Buttons 44
Inverter Configuration – Setup Mode 46
Configuration Menu Options 50
Status Screens - Operational Mode 57

Chapter 7: Setting Up Communication 66

Communication Options 66

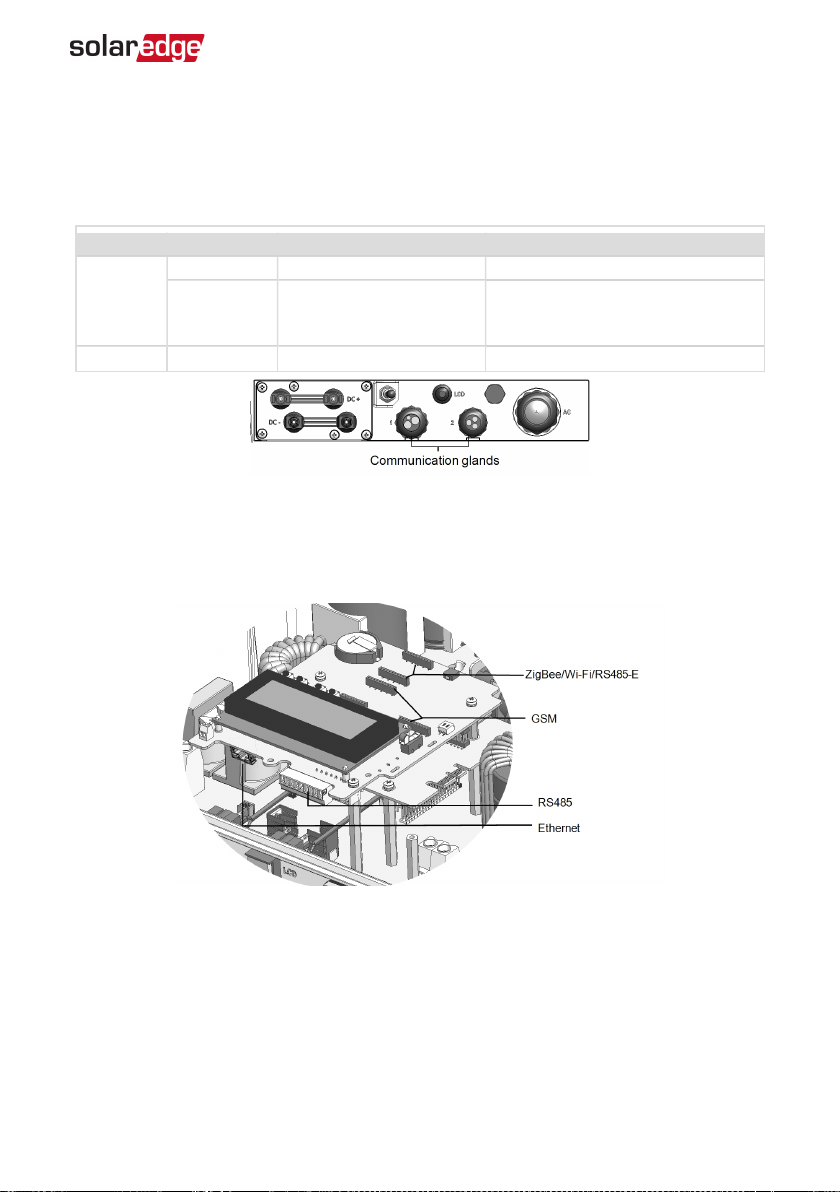

Communication Connectors 69
Removing the Inverter Cover 70

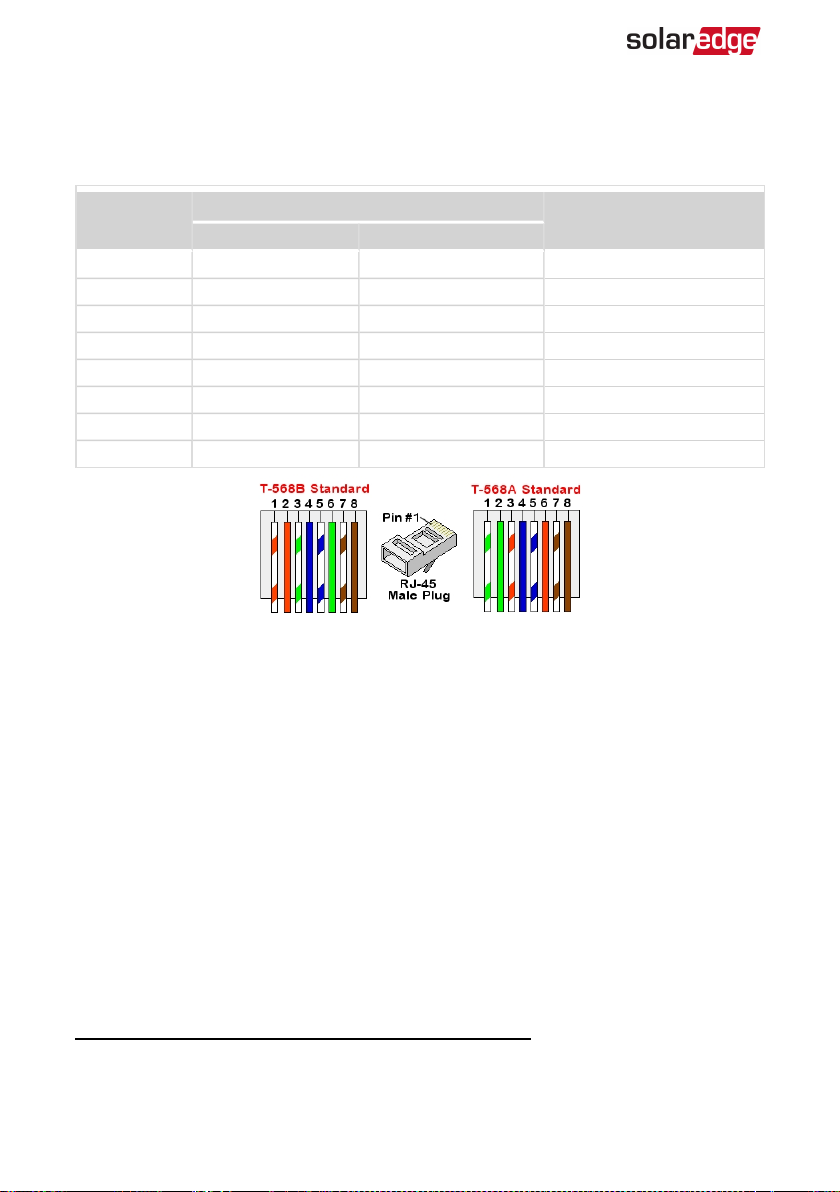

Creating an Ethernet (LAN) Connection 70

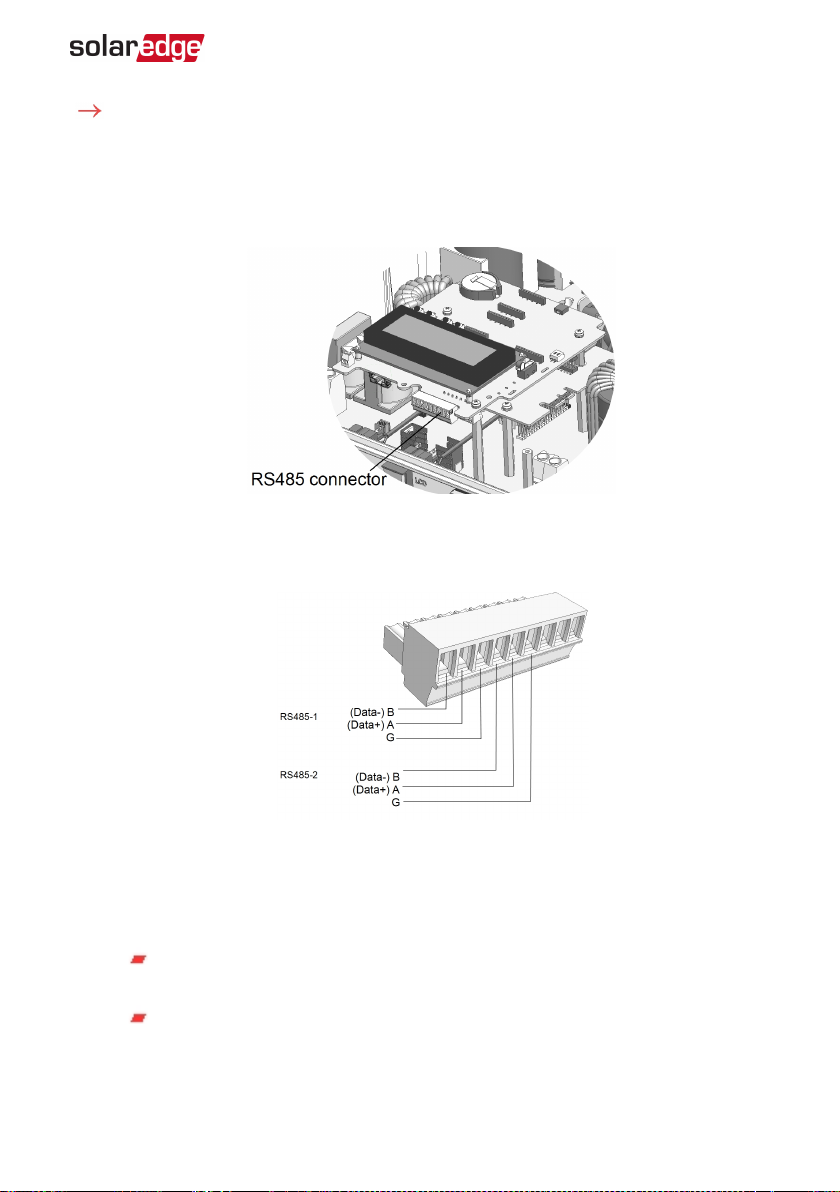

Creating an RS485 Bus Connection 74
Verifying the Connection 78

Appendix A: Errors and Troubleshooting 80

Troubleshooting Communication 80
Power Optimizer Troubleshooting 82

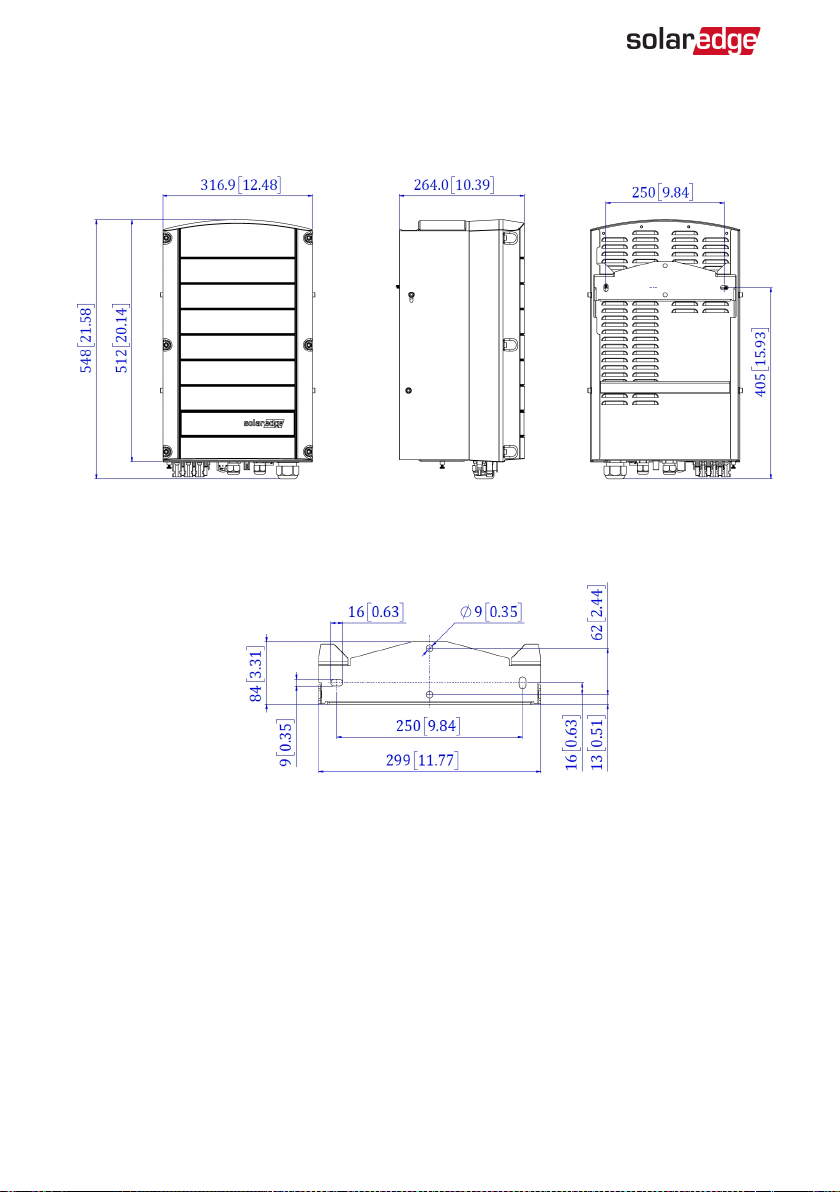

Appendix B: Mechanical Specifications 84

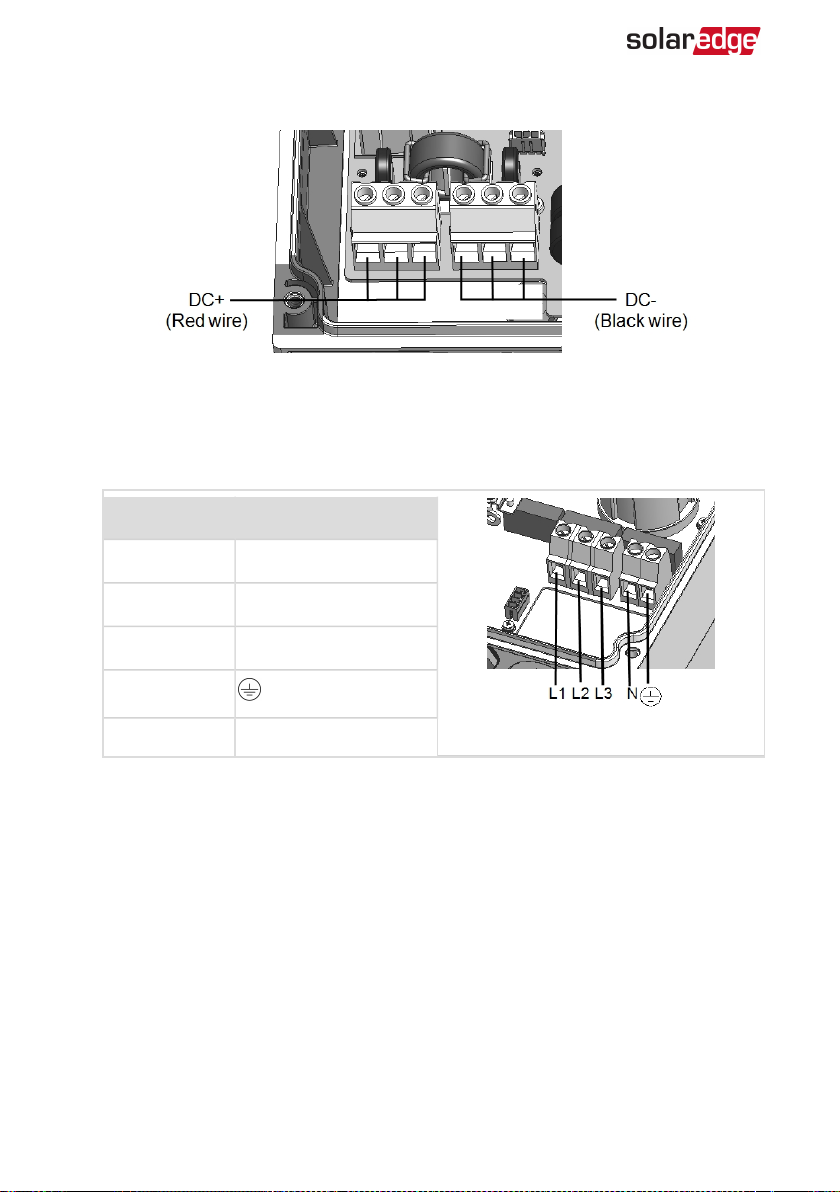

Appendix C: Connecting the AC and DCStrings to the DC Safety Unit 85

Connecting the ACGrid to the Inverter 86
Connecting the Strings to the DC Safety Unit 87

Appendix D: SafeDC™ 90

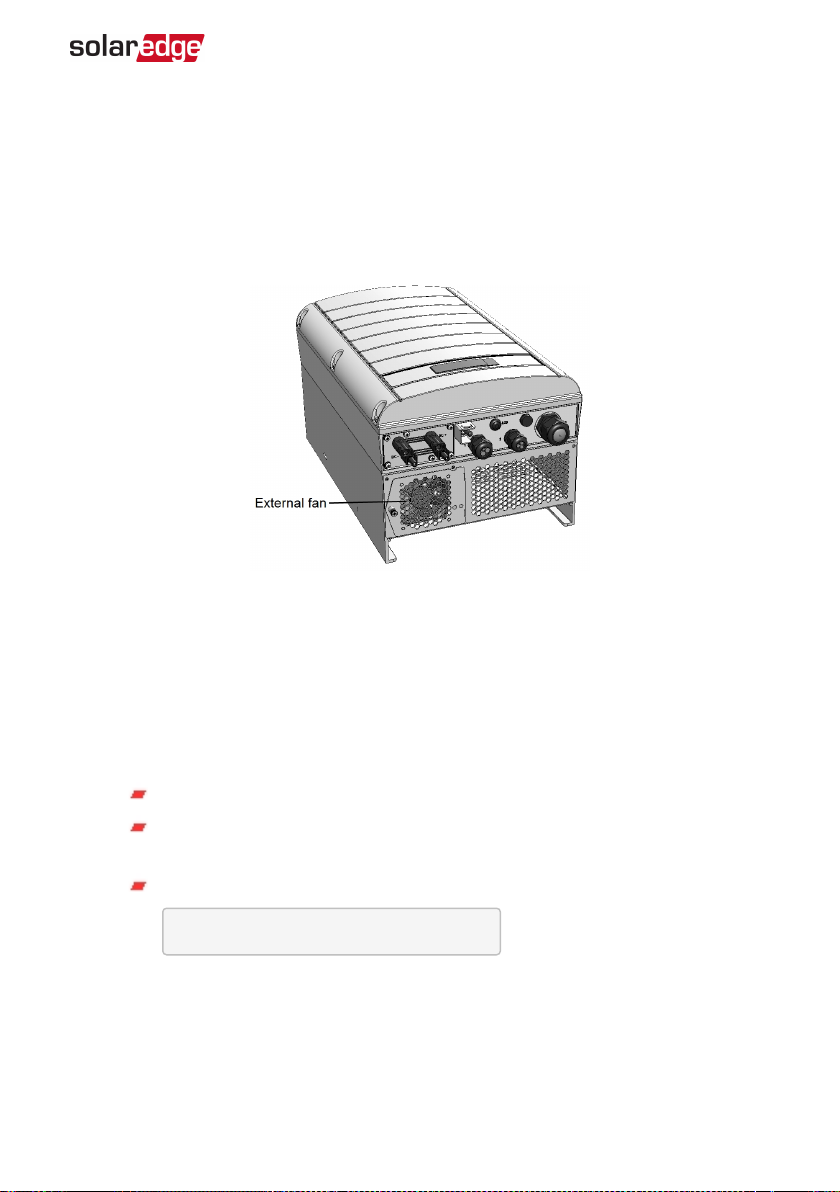

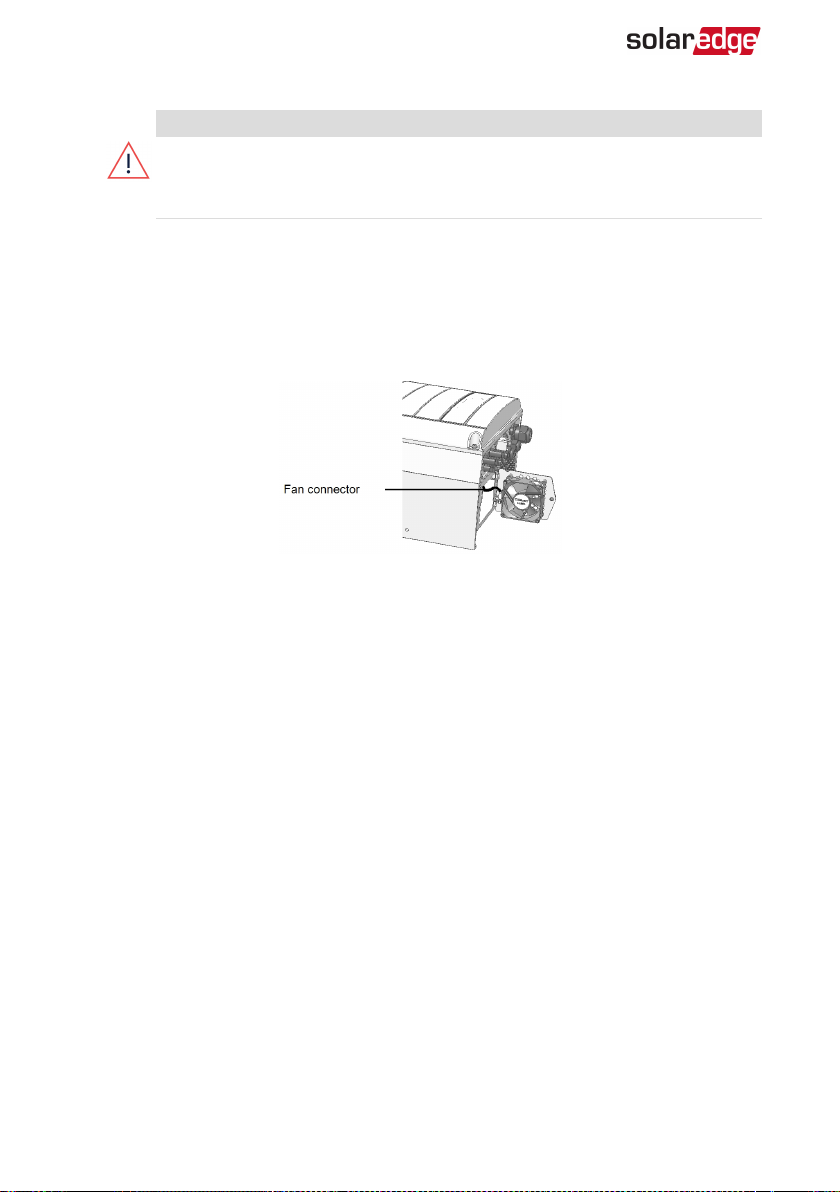

Appendix E: External Fan Maintenance and Replacement 91

Fan Maintenance 91
External Fan Replacement 91

Appendix F: Replacing and Adding System Components 93

Replacing an Inverter 93

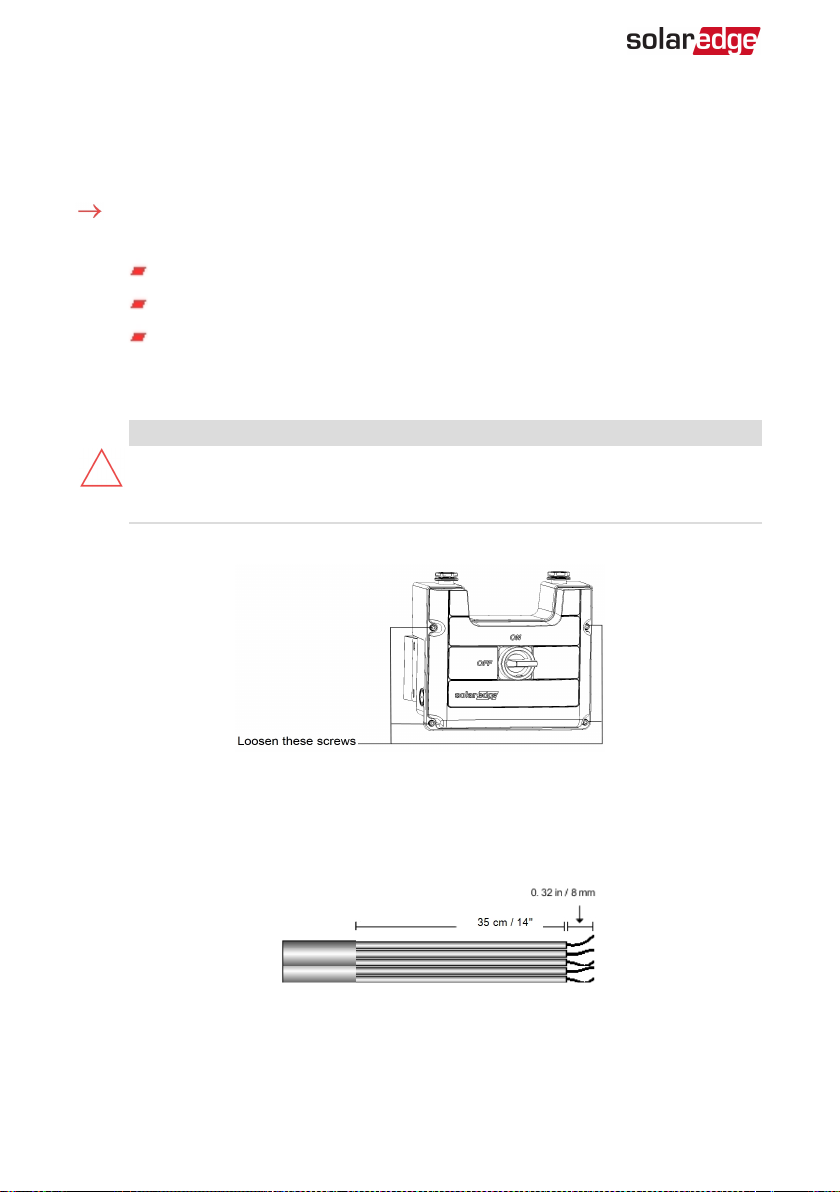

Replacing the DC Safety Unit 94
Adding, Removing, or Replacing Power Optimizers 97

Appendix G: Determining the Circuit Breaker Size 98

Revision History 98
Introduction 98

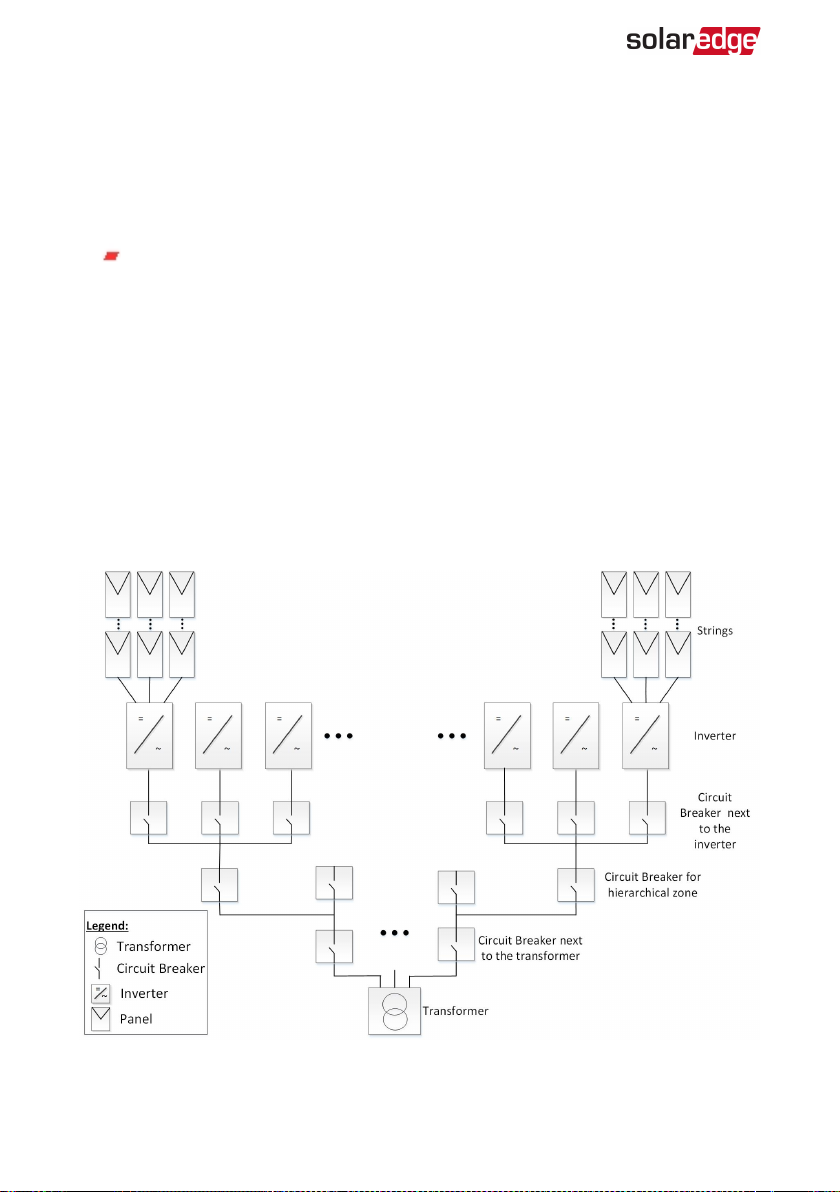

Using Transformers in Commercial Three Phase Inverter Installations 98
Determining the Size of an Inverter Circuit Breaker 100

Technical Specifications - Single Phase Inverters (Europe &APAC) 102

Technical Specifications - Three Phase Inverters (Europe &APAC) 105

Three Phase System Installation Guide MAN-01-00057-4.1

10 HANDLING AND SAFETY INSTRUCTIONS

HANDLING AND SAFETY INSTRUCTIONS

During installation, testing and inspection, adherence to all the handling and safety
instructions is mandatory. Failure to do so may result in injury or loss of life and

damage to the equipment.

Safety Symbols Information

The following safety symbols are used in this document. Familiarize yourself with the
symbols and their meaning before installing or operating the system.

WARNING!
Denotes a hazard. It calls attention to a procedure that, if not correctly

performed or adhered to, could result in injury or loss of life. Do not proceed
beyond a warning note until the indicated conditions are fully understood and
met.

CAUTION!
Denotes a hazard. It calls attention to a procedure that, if not correctly

performed or adhered to, could result in damage or destruction of the
product. Do not proceed beyond a caution sign until the indicated conditions
are fully understood and met.

NOTE

Denotes additional information about the current subject.

IMPORTANTSAFETYFEATURE
Denotes information about safety issues.

Disposal requirements under the Waste Electrical and Electronic Equipment (WEEE)
regulations:

NOTE
Discard this product according to local regulations or send it back to SolarEdge.

-Three Phase System Installation Guide MAN-01-00057-4.1

IMPORTANTSAFETYINSTRUCTIONS 11

IMPORTANTSAFETYINSTRUCTIONS

SAVETHESEINSTRUCTIONS

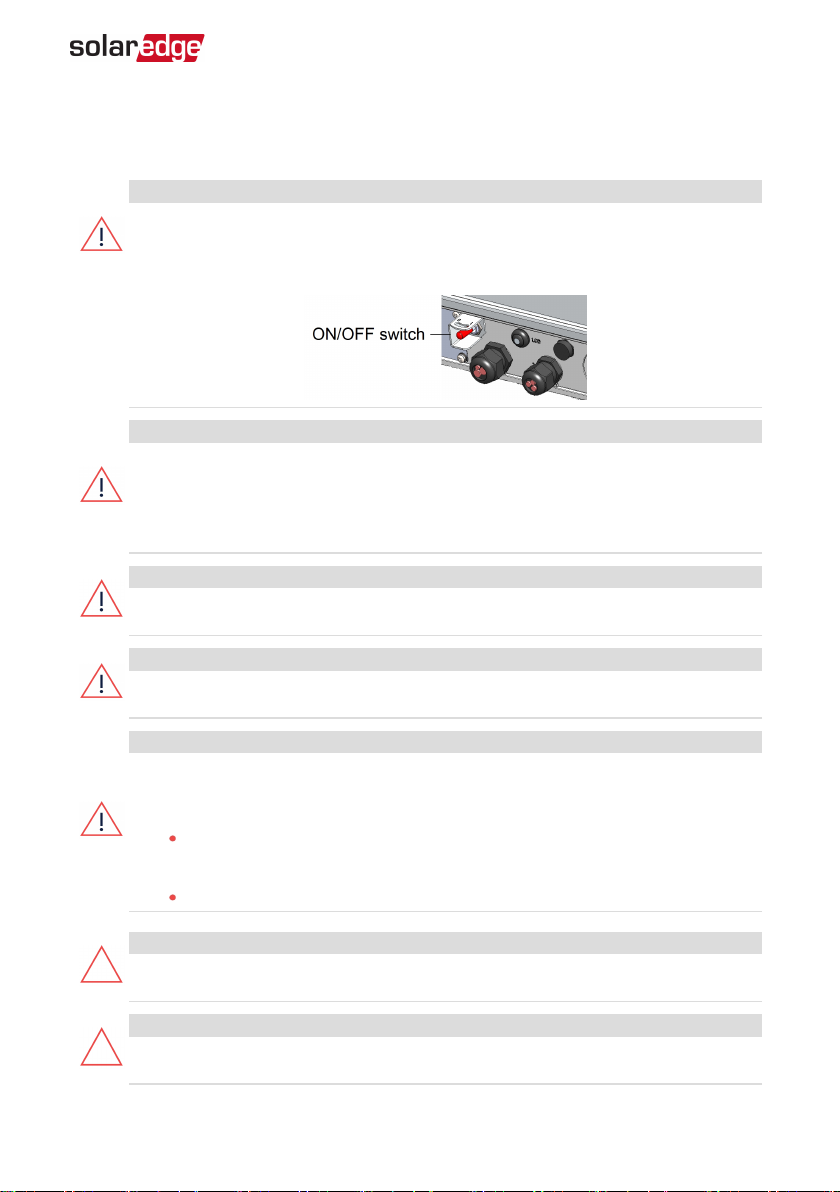

WARNING!
The inverter cover must be opened only after switching the inverter ON/OFF

switch located at the bottom of the inverter to OFF. This disables the DC voltage
inside the inverter. Wait five minutes before opening the cover. Otherwise, there
is a risk of electric shock from energy stored in the capacitors.



WARNING!
Before operating the inverter, ensure that the inverter AC power cable and wall

outlet are grounded properly. This product must be connected to a grounded,
metal, permanent wiring system, or an equipment-grounding conductor must
be run with the circuit conductors and connected to the equipment grounding
terminal or lead on the product.

WARNING!
Opening the inverter and repairing or testing under power must be performed

only by qualified service personnel familiar with this inverter.

WARNING!
Do not touch the PV panels or any rail system connected when the inverter

switch is ON, unless grounded.

WARNING!
SafeDC complies with IEC60947-3 when installing the system with a worst case

SafeDC voltage (under fault conditions) < 120V.
The worst case voltage is defined as: Voc,max+ (String Length-1)*1V, where:

Voc,max = Maximum Voc (at lowest temperature) of the PV module in
the string (for a string with multiple module models, use the max value)

String Length = number of power optimizers in the string

CAUTION!
This unit must be operated according to the technical specification datasheet

provided with the unit.

CAUTION!
HEAVY OBJECT. To avoid muscle strain or back injury, use proper lifting

techniques, and if required - a lifting aid.

Three Phase System Installation Guide MAN-01-00057-4.1

12 IMPORTANTSAFETYINSTRUCTIONS

NOTE
The inverter is IP65 rated . Unused conduit openings and glands should be

sealed with appropriate seals.

NOTE

Use PV modules rated according to IEC 61730 class A.

NOTE

The symbol appears at grounding points on the SolarEdge equipment. This
symbol is also used in this manual.

NOTE
A SolarEdge inverter may be installed in a site with a generator, however must

not operate at the same time as the generator.
Operating an inverter and a generator simultaneously will void the warranty.

SolarEdge requires installing a physical or electronic interlock, which will
prevent the generator and inverter from operating simultaneously. Interlock
procurement, installation, maintenance and support are the responsibility of
the installer. Damage to the inverter due to incorrect interlock installation or
use of an interlock that is incompatible with the SolarEdge system will render
the SolarEdge warranty invalid.

NOTE
The following warning symbols appear on the inverter warning label:

Risk of electric shock

Risk of electric shock from energy stored in the capacitor. Do not
remove cover
until 5 minutes after disconnecting all sources of supply.

Hot surface – To reduce the risk of burns, do not touch.

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 1: Introducing the SolarEdge Power Harvesting System 13

Chapter 1: Introducing the SolarEdge Power Harvesting System

The SolarEdge power harvesting solution maximizes the power output from any type of
solar Photovoltaic (PV) installation while reducing the average cost per watt. The
following sections describe each of the system’s components.

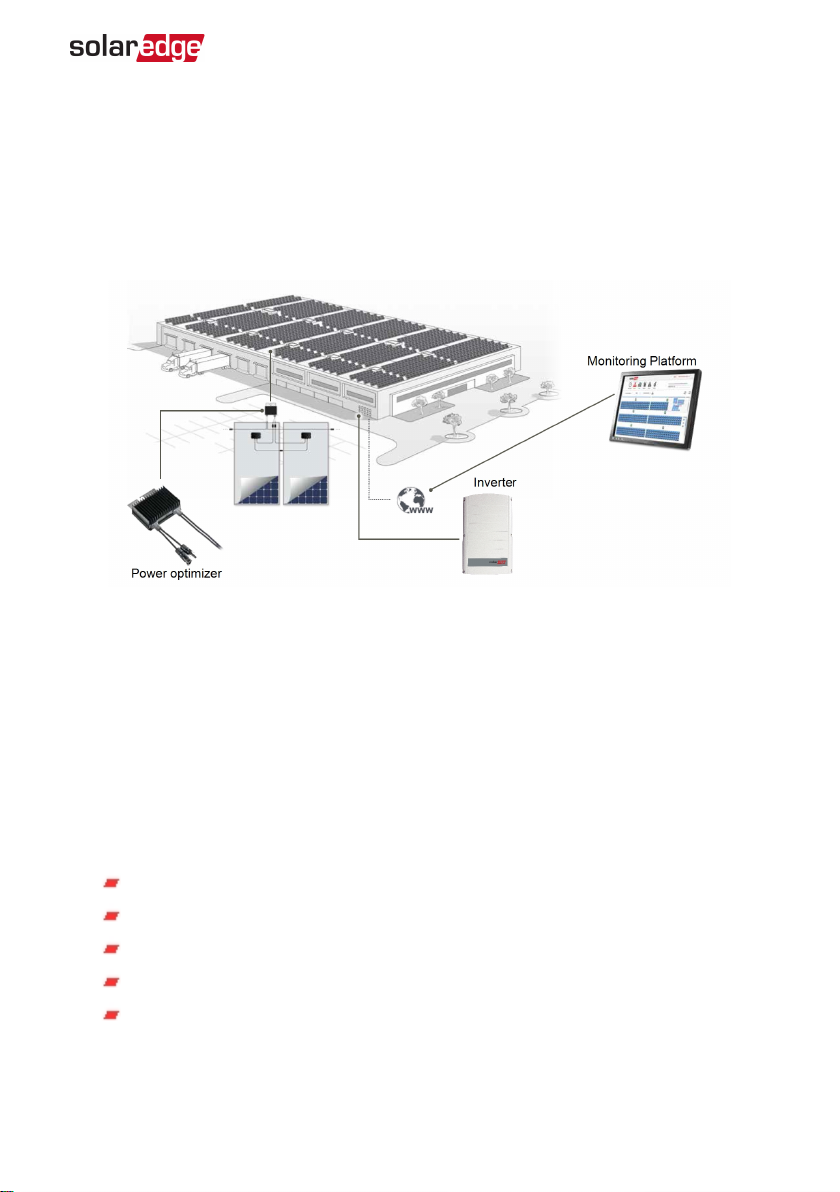

Figure 1: The SolarEdge power harvesting system components

Power Optimizer

The power optimizers are DC-DC converters connected to PV modules in order to
maximize power harvesting by performing independent Maximum Power Point
Tracking (MPPT) at the module level.

The power optimizers regulate the string voltage at a constant level, regardless of string
length and environmental conditions.

The power optimizers include a safety voltage function that automatically reduces the
output of each power optimizer to 1 Vdc in the following cases:

During fault conditions

The power optimizers are disconnected from the inverter

The inverter ON/OFF switch is turned OFF

The safety switch on the DC Safety Unit is turned OFF

The inverter AC breaker is turned OFF

Each power optimizer also transmits module performance data over the DC power line
to the inverter.

Three Phase System Installation Guide MAN-01-00057-4.1

14  Inverter

Two types of power optimizers are available:

Module Add-on power optimizer – connected to one or more modules

Smart modules - the power optimizer is embedded into a module

Inverter

The inverter efficiently converts DC power from the modules into AC power that can be
fed into the main ACservice of the site and from there to the grid. The inverter also
receives the monitoring data from each power optimizer and transmits it to a central
server (the monitoring platform; requires Internet connection).

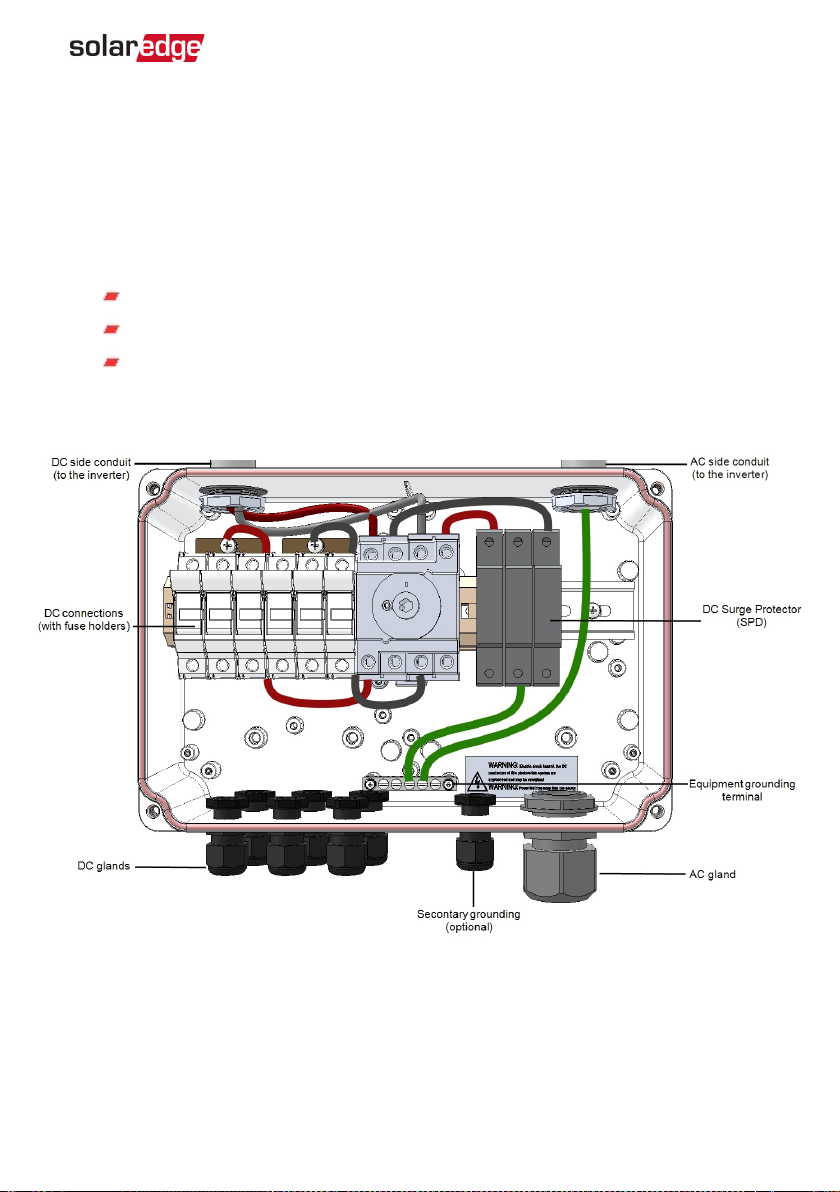

Some inverters are available with an optional DC Safety Unit. The DC Safety Unit has a
manually operated switch for disconnecting the DC power of a SolarEdge system.

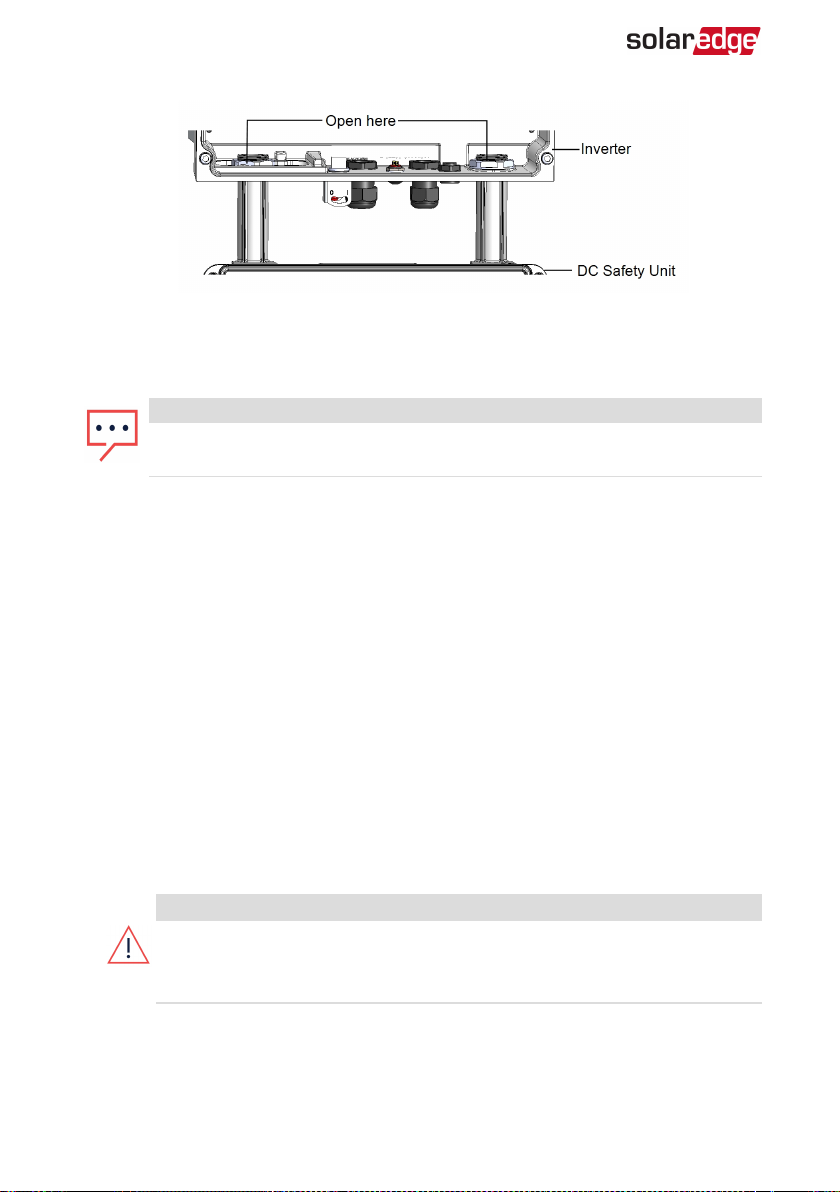

The DC Safety Unit is located below the inverter and is connected to the inverter with
AC and DC wires.

Monitoring Platform

The monitoring platform enables monitoring the technical and financial performance of
one or more SolarEdge sites. It provides past and present information on the system
performance both at the system and module levels.

Installation Procedure

The following is the procedure for installing and setting up a new SolarEdge site. Many

of these also apply to modification of an existing site.
1. Connecting Power Optimizers in Strings, page 21.

2. Recording power optimizer serial numbers (optional), page 41.

3. Mounting the inverter, Page 26.

Connecting the AC and the Strings to the Inverter, page 32, or Connecting the AC and the

4.

String to the DCSafety Unit, page 85.
Commissioning and activating the installation, page 36.

5.

6. Connecting the inverter to the monitoring platform, page 42.

Configuring the inverter, page 44.

7.

Installation Equipment List

Standard tools can be used during the installation of the SolarEdge system. The

following is a recommendation of the equipment needed for installation:

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 1: Introducing the SolarEdge Power Harvesting System 15

Allen screwdriver for 5mm screw type for the inverter cover, DC Safety Unit
cover (if applicable), and inverter side screws

Allen screwdriver for M5/M6/M8 screw types

Standard flat-head screwdrivers set

Non-contact voltage detector

Cordless drill (with a torque clutch)or screwdriver and bits suitable for the
surface on which the inverter and optimizers will be installed. Use of an impact
driver is

Appropriate mounting hardware (for example: stainless bolts, nuts, and
washers) for attaching:

MC4 crimper

Wire cutters

Wire strippers

Voltmeter

For installing the communication options, you may also need the following:

For Ethernet:

For RS485:

not

allowed.

the mounting brackets to the mounting surface

the power optimizer to the racking (not required for smart modules)

CAT5/6 twisted pair Ethernet cable with RJ45 connector.

If using a CAT5/6 cable spool: RJ45 plug and RJ45 crimper

Four- or six-wire shielded twisted pair cable.

Watchmaker precision screwdriver set

Inverter Transport and Storage

Transport the inverter in its original packaging, facing up and without exposing it to

unnecessary shocks. If the original package is no longer available, use a similar box that

can withstand the weight of the inverter (refer to the inverter weight in the specification

datasheet provided with the unit), has a handle system and can be closed fully.

Store the inverter in a dry place where ambient temperatures are -25°C to +65°C /

-13°F to 149°F.

Three Phase System Installation Guide MAN-01-00057-4.1

16 Chapter 2: Installing the Power Optimizers

Chapter 2: Installing the Power Optimizers

Safety

The following notes and warnings apply when installing the power optimizers. Some of

the following may not be applicable to smart modules:

WARNING!
When modifying an existing installation, turn OFF the inverter ON/OFF switch,

the Connection Unit and the AC circuit breaker on the main AC distribution
panel.

CAUTION!
Power optimizers are IP68/NEMA6P rated. Choose a mounting location where

optimizers will not be submerged in water.

CAUTION!
This unit must be operated according to the operating specifications provided

with the unit.

CAUTION!
Cutting the power optimizer input or output cable connector is prohibited and

will void the warranty.

CAUTION!
All PV modules must be connected to a power optimizer.
CAUTION!
If you intend to mount the optimizers directly to the module or module frame,

first consult the module manufacturer for guidance regarding the mounting
location and the impact, if any, on module warranty. Drilling holes in the
module frame should be done according to the module manufacturer
instructions.

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 2: Installing the Power Optimizers 17

CAUTION!
Installing a SolarEdge system without ensuring compatibility of the module
connectors with the optimizer connectors may be unsafe and could cause
functionality problems such as ground faults, resulting in inverter shut down. To
ensure mechanical compatibility of the power optimizers’ connectors with the PV
modules’ connectors to which they are connected:

Use identical connectors from the same manufacturer and of the same
type on both the power optimizers and on the modules; or

Verify that the connectors are compatible in the following way:

The module connector manufacturer should explicitly verify
compatibility with the SolarEdge optimizer connector; and

A third-party test report by one of the listed external labs (TUV,
VDE, Bureau Veritas UL, CSA, InterTek) should be
obtained,verifying the compatibility of the
connectors.

For more information, refer to

https://www.solaredge.com/sites/default/files/optimizer-input­connector-compatibility.pdf



IMPORTANTSAFETYFEATURE
Modules with SolarEdge power optimizers are safe. They carry only a low safety

voltage before the inverter is turned ON. As long as the power optimizers are
not connected to the inverter or the inverter is turned OFF, each power
optimizer will output a safe voltage of 1V.

Installation Guidelines

The minimum and maximum string length guidelines are stated in the power
optimizer datasheets. Refer to the Designer for string length verification. The
Designer is available on the SolarEdge website at

https://www.solaredge.com/products/installer-tools/designer#/.

Frame-mounted power optimizers are mounted directly on the
module frame , regardless of racking system (rail-less or with rails).
For installation of frame-mounted power optimizers, refer to

http://www.solaredge.com/sites/default/files/installing_frame_mounted_
power_optimizers.pdf.

Three Phase System Installation Guide MAN-01-00057-4.1

18 Installation Guidelines

The steps in this chapter refer to module add-on power optimizers. For smart
modules, start from
21

Step 3: Connecting Power Optimizers in Strings

documentation supplied with the smart modules.

The power optimizer can be placed in any orientation.

If connecting more modules than optimizer inputs in parallel, use a branch
cable. Some commercial power optimizer models have a dual input.

Position the power optimizer close enough to its module so that their cables
can be connected.

Make sure to use power optimizers that have the required output conductor
length:

Do not

between two modules connected to the same optimizer, or between two
optimizers other than in the cases specified below.

You can use extension cables between power optimizers only from row
to row, around obstacles within a row, and from the end of the string to
the inverter, as long as the maximum distance is not exceeded.

Step 3: Connecting Power Optimizers in Strings

on page

on page 21 Also refer to the

use extension cables between a module and a power optimizer,

NOTE

The total conductor length of the string (excluding
power optimizers’ conductors; including home runs and
necessary extensions between optimizers) should not
exceed the following:

Inverter model

Three phase up to
SE25K

Three phase SE25K
and above

Total conductor length ( from DC+
to DC- of the inverter)

1000 ft. /300 m

2300 ft./ 700 m

Use at least 11 AWG/ 4 mm² DC cables.

Completely shaded modules may cause their power optimizers to temporarily
shut down. This will not affect the performance of the other power optimizers in
the string, as long as the minimum number of unshaded power optimizers
connected in a string of modules is met. If under typical conditions fewer than

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 2: Installing the Power Optimizers 19

the minimum optimizers are connected to unshaded modules, add more
optimizers to the string.

To allow for heat dissipation, maintain a 2.5 cm / 1" clearance distance between
the power optimizer and other surfaces, on all sides except the mounting
bracket side.

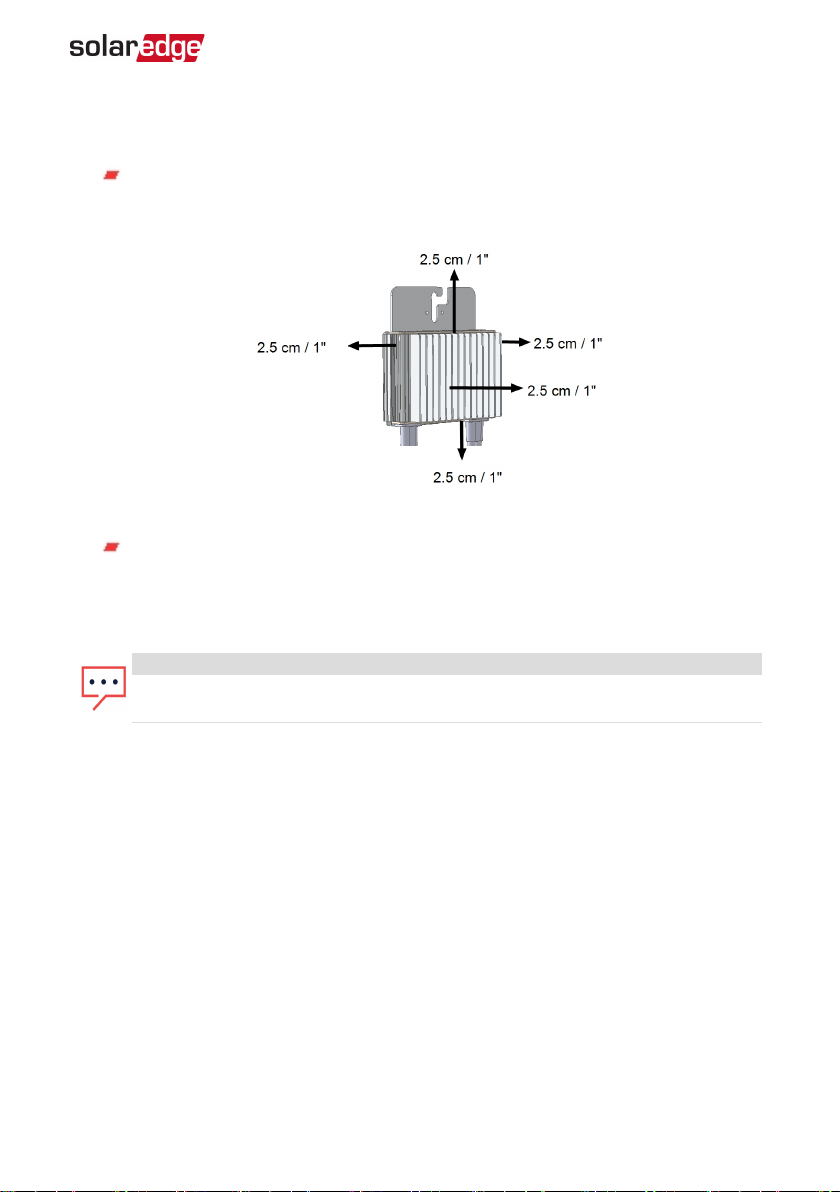

Figure 2: Power optimizer clearance

When installing modules in a confined space, for example, if installing Building­integrated photovoltaic (BIPV) modules, ventilation measures may be needed to
ensure the power optimizers are not be exposed to temperatures outside their
specifications.

NOTE
The images contained herein are for illustrative purposes only and may vary

depending on product models.

Three Phase System Installation Guide MAN-01-00057-4.1

20 Step 1: Mounting the Power Optimizers

Step 1: Mounting the Power Optimizers

For each of the power optimizers

1. Determine the power optimizer mounting location and use the power

optimizer mounting brackets to attach the power optimizer to the
support structure . It is recommended to mount the power optimizer
in a location protected from direct sunlight. For frame-mounted
power optimizers follow the instructions supplied with the optimizers,
or refer to https://www.solaredge.com/sites/default/files/installing_frame_mounted_power_

optimizers.pdf.

If required, mark the mounting hole locations and drill the hole.

2.

CAUTION!

Drilling vibrations may damage the power optimizer and will void the
warranty. Use a torque wrench or an electric drill with adjustable clutch that
meets the mounting torque requirements.
mounting the power optimizer.

Do not

drill through the power optimizer or through the mounting holes.

Attach each power optimizer to the rack using M6 (1/4'') stainless steel bolts, nuts

3.

and washers or other appropriate mounting hardware. Apply torque of 9-10 N*m /

6.5-7 lb*ft.

4. Verify that each power optimizer is securely attached to the module support

structure.

5. Record power optimizer serial numbers and locations, as described in

Reporting and Monitoring Installation Data

(1)

:

Do not

use impact drivers for

Step 4:

on page 40.

Step 2: Connecting a PV Module to a Power Optimizer

NOTE
Images are for illustration purposes only. Refer to the label on the product to

identify the plus and minus input and output connectors.

For each of the power optimizers:

Connect the Plus (+) output connector of the module to the Plus (+) input
connector of the power optimizer.

(1)

Not applicable to smart modules.

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 2: Installing the Power Optimizers 21

Connect the Minus (-) output connector of the module to the Minus (-) input
connector of the power optimizer.

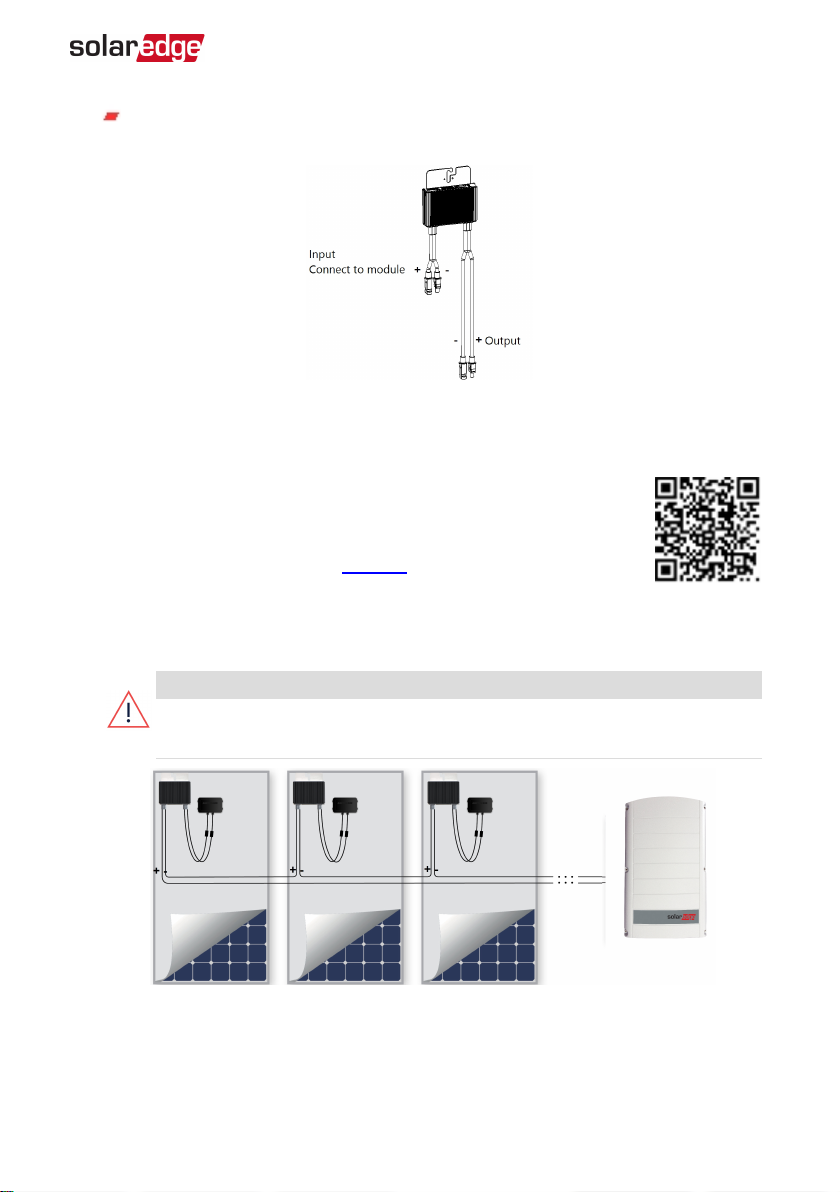

Figure 3: Power optimizer connectors

Step 3: Connecting Power Optimizers in Strings

You can construct parallel strings of unequal length, that is, the number

of power optimizers in each string does not have to be the same. The

minimum and maximum string lengths are specified in the power

optimizer datasheets. Refer to the Designer for string length verification.
1. Connect the Minus (-) output connector of the string’s first power optimizer to the

Plus (+) output connector of the string’s second power optimizer.
Connect the rest of the power optimizers in the string in the same manner.

2.

WARNING!

If using a dual-input power optimizer and some inputs are not used, seal the
unused input connectors with the supplied pair of seals.

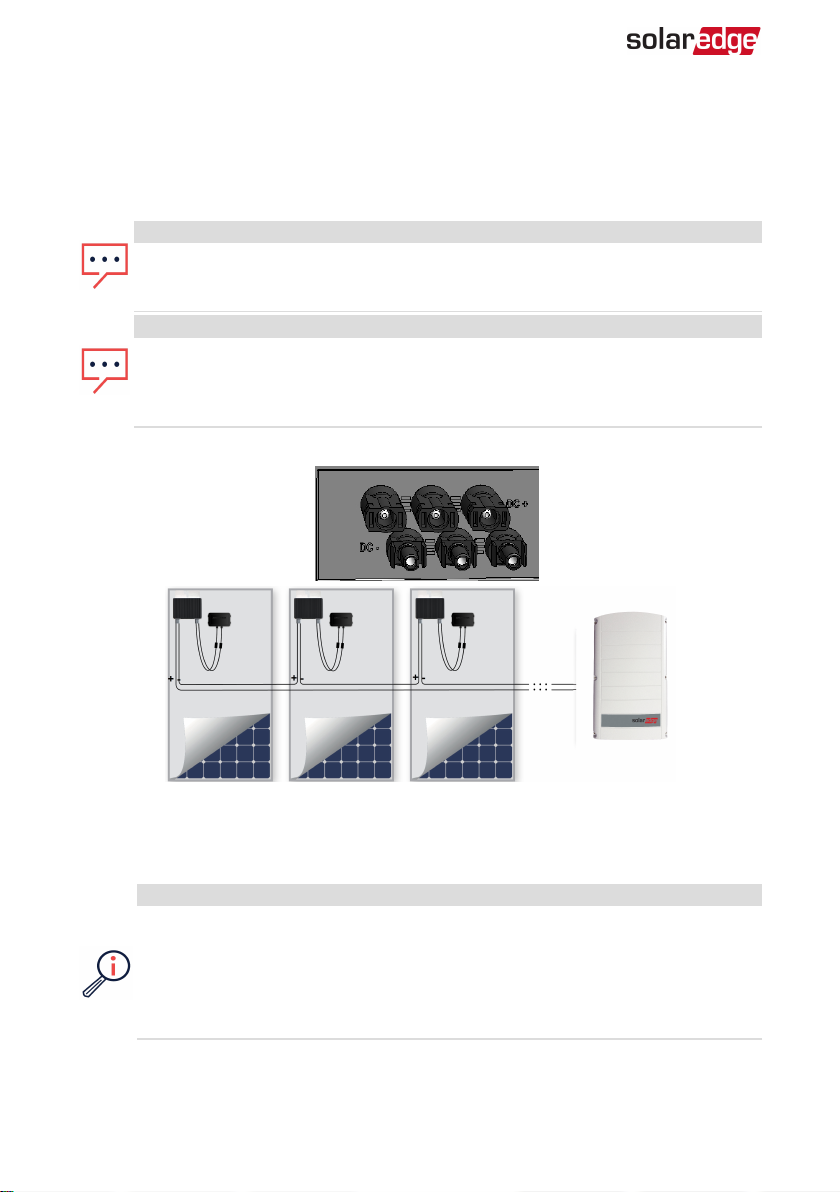

Figure 4: Power optimizers connected in series

If you intend to monitor the installation, using the monitoring platform, record the

3.

Three Phase System Installation Guide MAN-01-00057-4.1

22 Step 4: Verifying Proper Power Optimizer Connection

physical location of each power optimizer, as described in

Physical Layout using Installation Information

on page 41.

Creating Logical and

Step 4: Verifying Proper Power Optimizer Connection

When a module is connected to a power optimizer, the power optimizer outputs a safe

voltage of 1V (±0.1V). Therefore, the total string voltage should equal 1V times the

number of power optimizers connected in series in the string. For example, if 10 power

optimizers are connected in a string, then 10V should be produced.

Make sure the PVmodules are exposed to sunlight during this process. The power

optimizer will only turn ON if the PVmodule provides at least 2W.

In SolarEdge systems, due to the introduction of poweroptimizers between the PV

modules and the inverter, the short circuit current ISC and the open circuit voltage VOC

hold different meanings from those in traditional systems.

For more information about the SolarEdge system’s string voltage and

current, refer to the

available on the SolarEdge website at:

https://www.solaredge.com/sites/default/files/isc_and_voc_in_solaredge_sytems_

technical_note.pdf .

To verify proper power optimizer connection:

Measure the voltage of each string individually before connecting it to the other strings

or to the inverter. Verify correct polarity by measuring the string polarity with a

voltmeter. Use a voltmeter with at least 0.1V measurement accuracy.

NOTE
Since the inverter is not yet operating, you may measure the string voltage and

verify correct polarity on the DC wires inside the DC Safety Unit.

VOC and ISC in SolarEdge Systems Technical Note

,

For troubleshooting power optimizer operation problems, refer to

Troubleshooting

on page 82.

-Three Phase System Installation Guide MAN-01-00057-4.1

Power Optimizer

Chapter 3: Installing the Inverter 23

Chapter 3: Installing the Inverter

Install the inverter either before or after the modules and power optimizers have been

installed.

CAUTION!
Do not rest the connectors at the bottom of the inverter on the ground, as it

may damage them. To rest the inverter on the ground, lay it on its back, front
or side.

Inverter Package Contents

One inverter with DC Safety Unit

One mounting bracket

Two Allen screws for fastening the inverter to the mounting bracket

Installation guide (with activation card and instructions)

Optional (for wireless communication to monitoring platform) - RF antenna and
mounting bracket

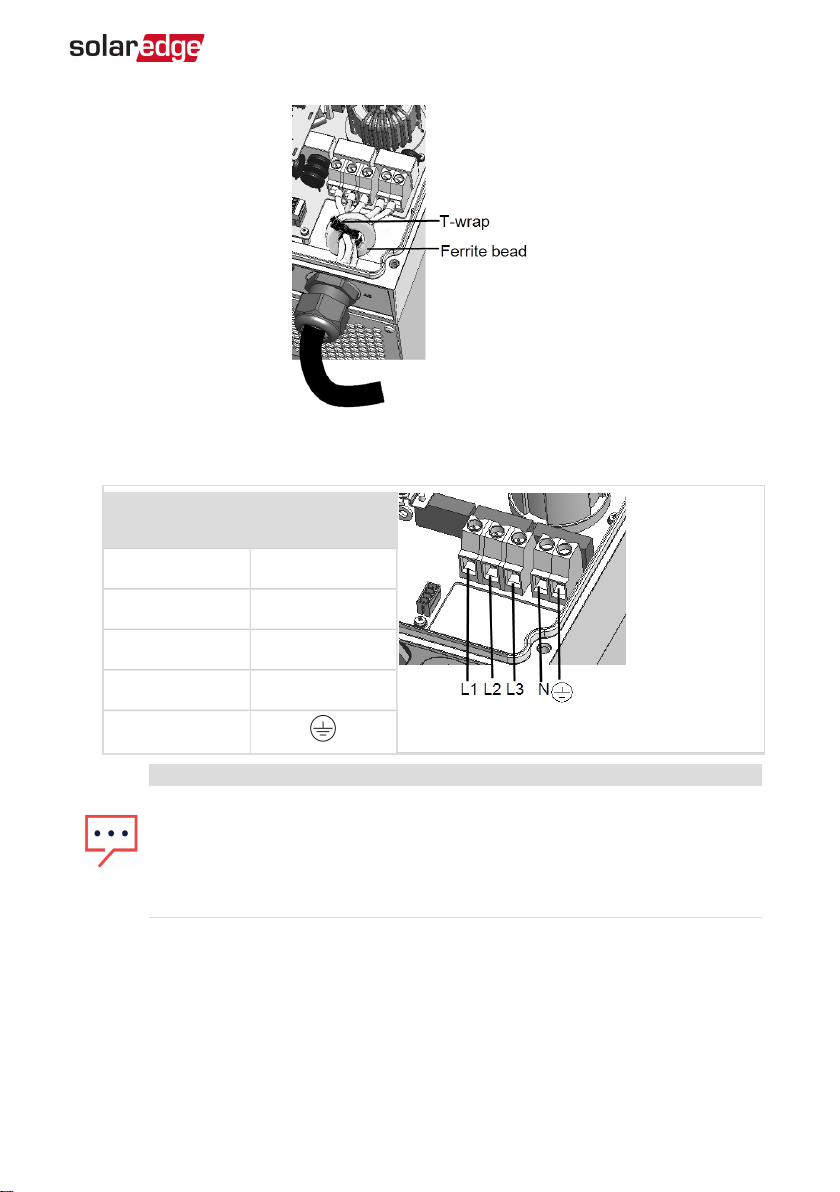

AC ferrite bead kit

Identifying the Inverter

Refer to the sticker on the inverter that specifies its Serial Number and its Electrical

Ratings. Provide the serial number when contacting SolarEdge support. The serial

number is also required when opening a new site in the monitoring platform.

Inverter Interfaces

The following figure shows the inverter connectors and components, located at the

bottom of the inverter.

Three Phase System Installation Guide MAN-01-00057-4.1

24 Inverter Interfaces

ACoutput: AC cable external gauge:

Single phase inverters: PG21 (9-16mmdiameter)

Three phase inverters: M32 (15-21mm diameter)

DC inputs: For connection of the PV installation

Two communication glands, for connection of inverter communication
options. Each gland has three openings. Refer to
page 66 for more information.

LCD light button: Pressing this button lights up the LCD for 30 seconds. In
addition, you can press this button to view inverter status screens and access
configuration menu options, as described

LCD Light Button

ON/OFF switch: Turning this switch ON (after the power optimizers are paired
with the inverter) starts the operation of the power optimizers, enables power
production and allows the inverter to begin exporting power to the utility grid.
Turning it OFF reduces the power optimizer voltage to a low safety voltage and
inhibits exportation of power. When this switch is OFF, the inverter control
circuitry remains powered up.

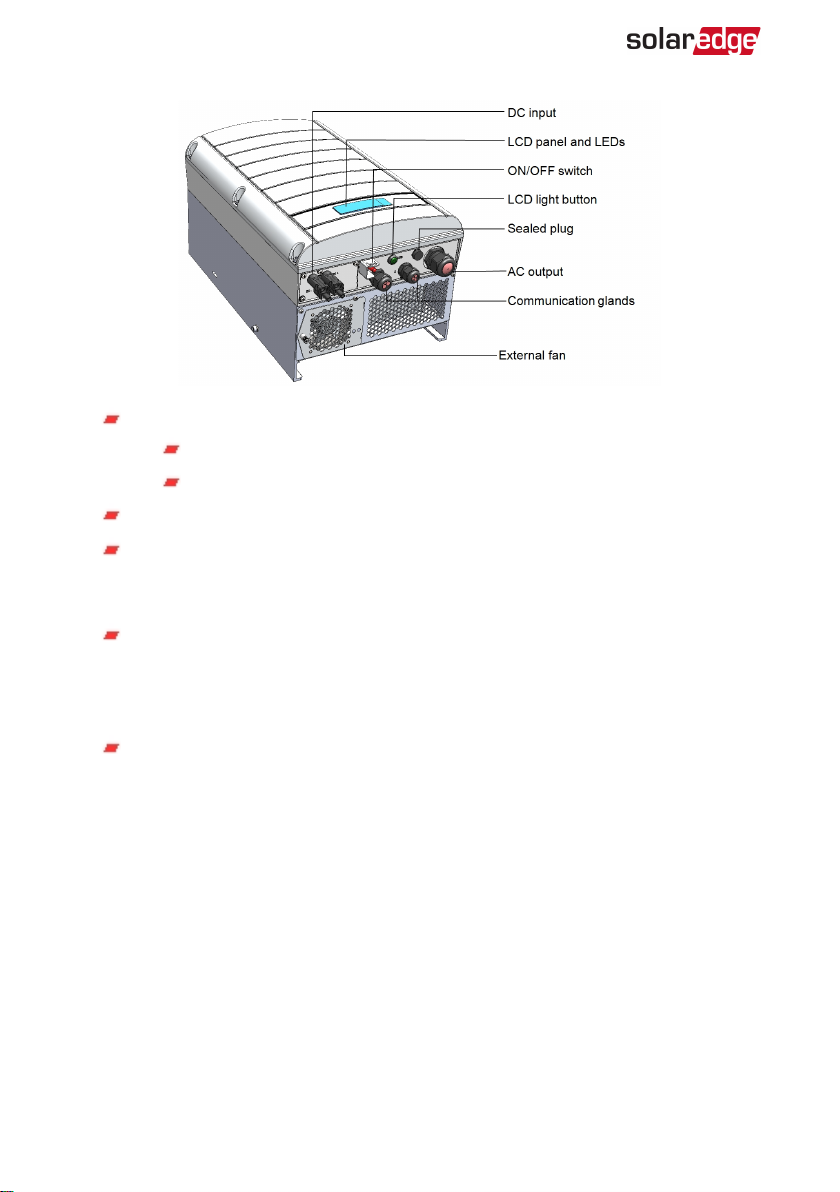

Figure 5: Inverter Interfaces

on page 48.

Setting Up Communication

Configuring the Inverter Using the

on

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 3: Installing the Inverter 25

WARNING!

For inverters with manual Rapid Shutdown (PVRSS) functionality - Upon
PVRSS, the internal circuitry remains up, therefore the inverter cover
must be opened only after shutting off the inverter ON/OFF switch. This
disables the DC voltage inside the inverter. Wait five minutes before
opening the cover. Otherwise, there is a risk of electric shock from
energy stored in the capacitors.

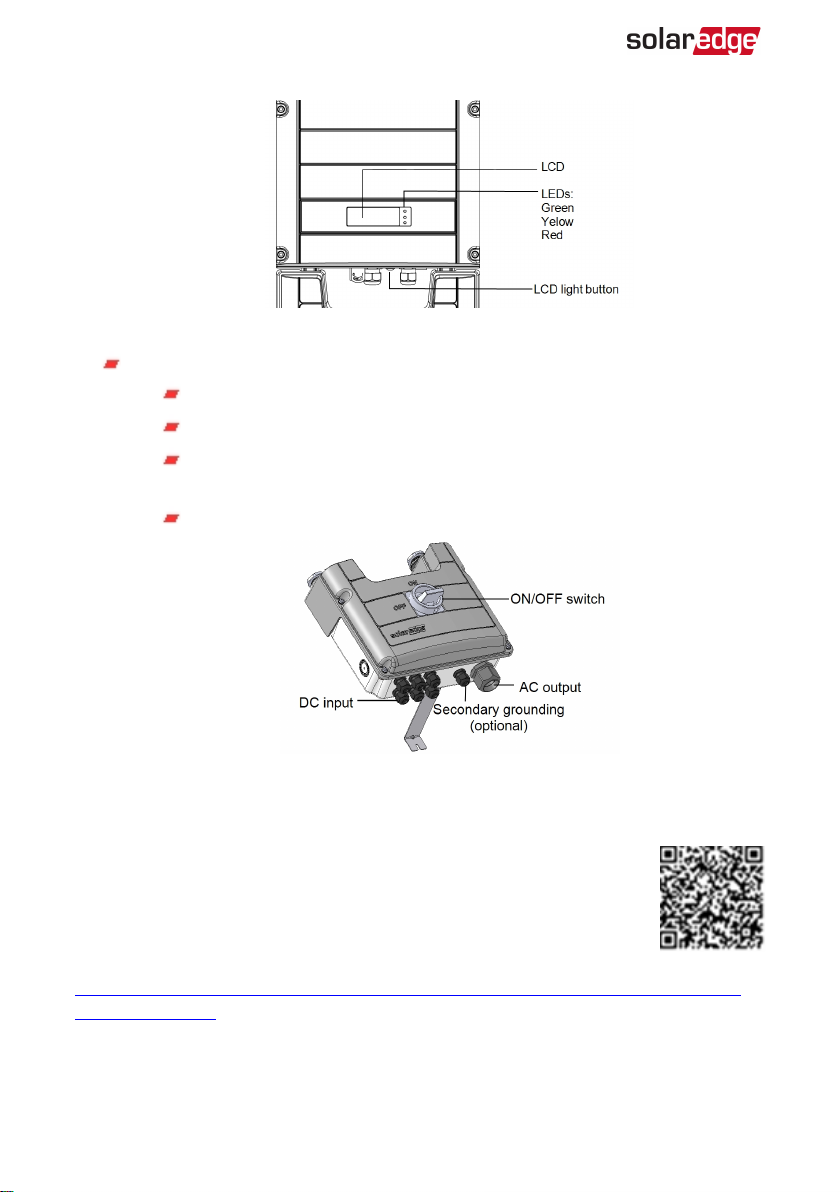

LCD panel: displays inverter information and configuration parameters

LCD LEDs: Three LEDs indicate the following inverter statuses:

Color Description Functionality

On - The inverter is producing power.
Blinking - Standby mode. The inverter is in

Standby mode until its working voltage is

Green Power production

reached. The inverter then enters Production
mode and produces power.
Off - The inverter is not producing power. This
may be during Night mode, when the inverter
ON/OFF switch is OFF or when an error occurs.

Blinking:

Yellow

Module

communication and

inverter shutdown

Monitoring information is being received
from a power optimizer.

The inverter is being shut down.

Red Fault

On - There is an error. Refer to

Troubleshooting

on page 80 for more

information.

Errors and

Blinking - The inverter is being shut down.

All LEDs turn on while the inverter is being configured.


Three Phase System Installation Guide MAN-01-00057-4.1

26 Mounting the Inverter

DC Safety Unit (if applicable), including:

ON/OFF switch: connects and disconnects the DC power of the system

AC output: Cable gland for connection to the grid

DC input: Cable glands or MC4 connectors for connection of the PV

installation

Secondary grounding (optional): Cable gland for grounding

Figure 6: Inverter front view

Figure 7: DC Safety Unit

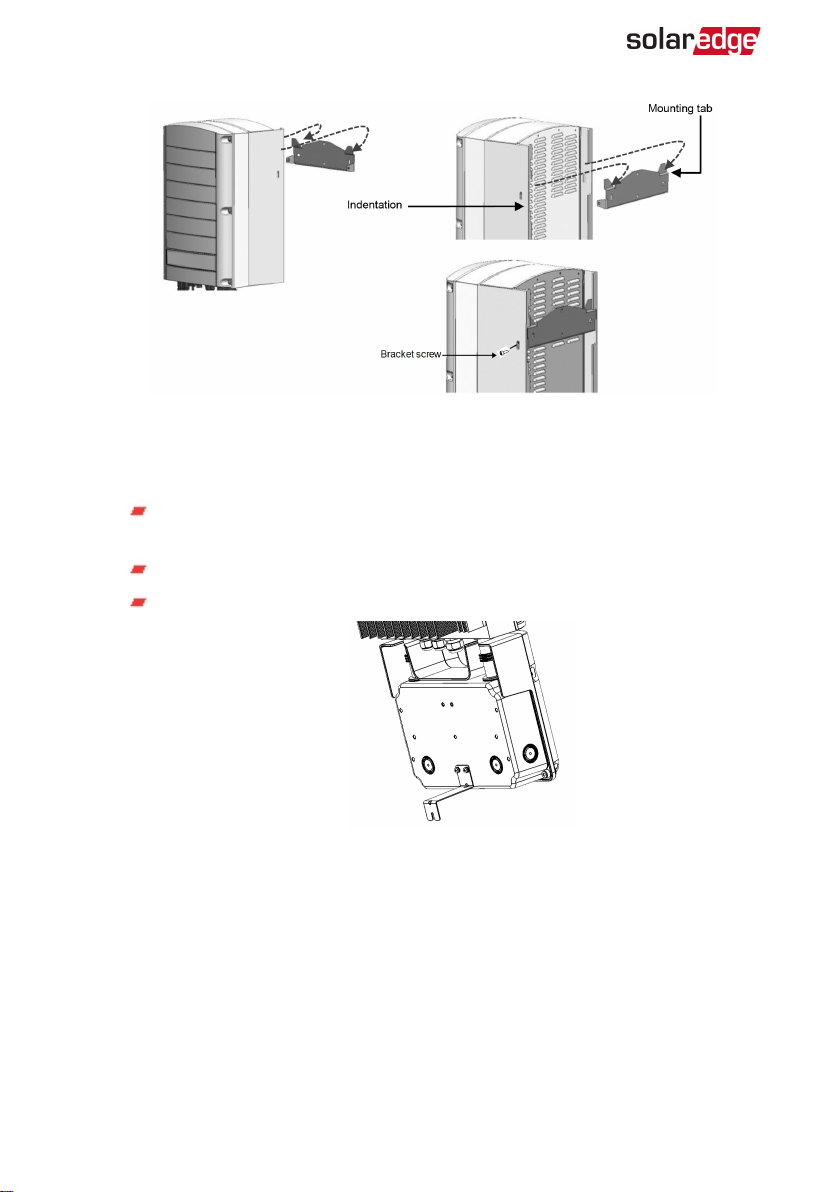

Mounting the Inverter

The inverter is typically mounted vertically, and the instructions in this

section are applicable for vertical installation. Some three phase inverter

models can be installed horizontally (above 10° tilt) as well as vertically,

and at any tilt over 10° up to 90°. For information and instructions for

horizontal mounting refer to

http://www.solaredge.com/sites/default/files/application_note_horizontal_mounting_of_three_

phase_inverters.pdf.

The inverter is supplied with a mounting bracket.

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 3: Installing the Inverter 27

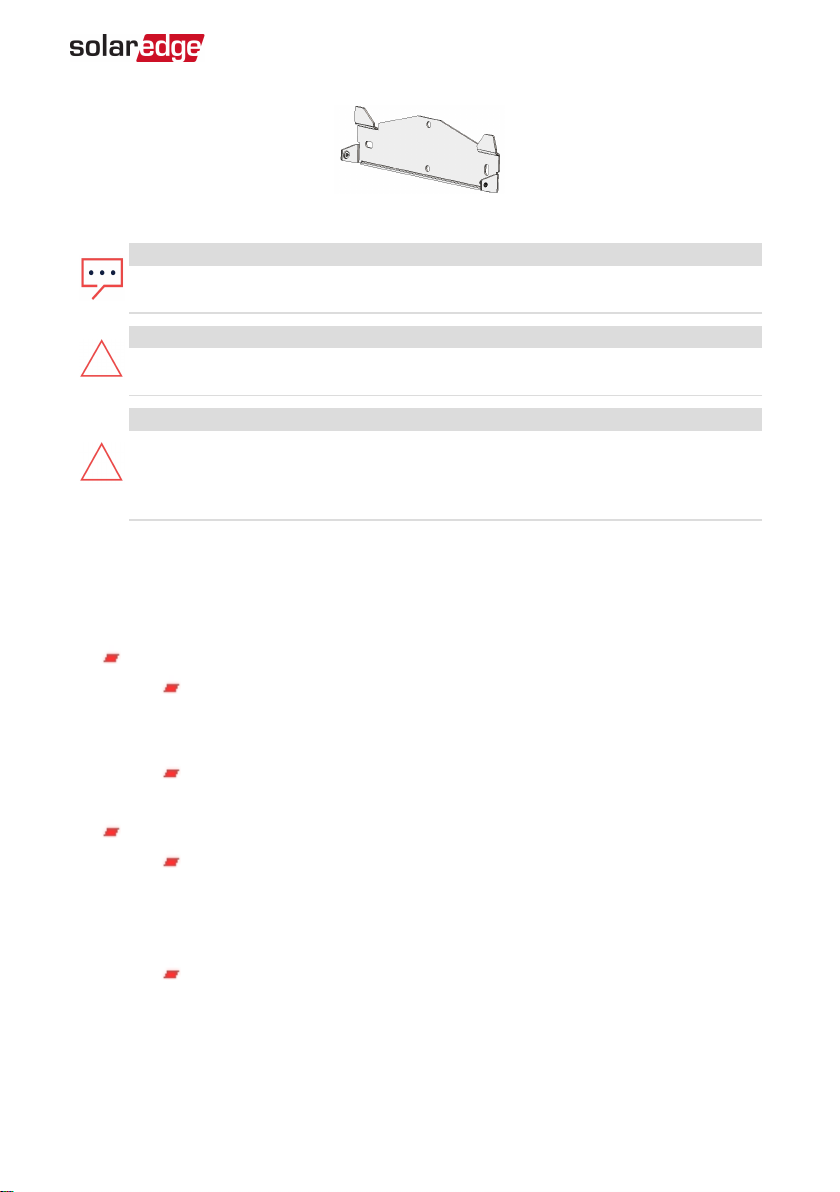

Figure 8: Mounting bracket

NOTE
Make sure the mounting surface or structure can support the weight of the

inverter and bracket, and make sure that it spans the width of the bracket.

CAUTION!
HEAVY OBJECT. To avoid muscle strain or back injury, use proper lifting

techniques, and if required - a lifting aid.

CAUTION!
SolarEdge inverters and power optimizers can be installed at a minimum

distance of 50 m/ 164 ft from the shoreline of an ocean or other saline
environment, as long as there are no direct salt water splashes on the inverter or
power optimizer.

1. Determine the inverter mounting location, on a wall, stud framing or pole. It is

recommended to mount the inverter in a location protected from direct sunlight.

2. To allow proper heat dissipation, maintain the following minimum clearance areas

between the inverter and other objects:

If installing a single inverter:

At least 20 cm (8") from the top and bottom of the inverter; if installing
an inverter with a DC Safety Unit, make sure to leave sufficient clearance
for cable entry.

10 cm (4") from the right and left of the inverter. For easy access to the
fans , a larger clearance is recommended.

If installing multiple inverters:

When installing inverters one above the other, leave at least 40 cm (16")
between inverters. If installing an inverter with a DC Safety Unit, leave 20
cm (8") between the top of an inverter and the bottom of the DC Safety
Unit).

When installing inverters side by side, follow these clearance
specifications:

Three Phase System Installation Guide MAN-01-00057-4.1

28 Mounting the Inverter

Location

Locations where the
annual average high

temperature

(1)

is below

25˚C / 77˚F

Locations where the
annual average high

temperature1 is above

25˚C / 77˚F

Indoor

Installation

20 cm / 8"

between

inverters

40 cm / 16"

between

inverters

Outdoor Installation

5 cm / 2" between inverters (if
inverters are also installed one
above the other, maintain the
indoor installation clearance)

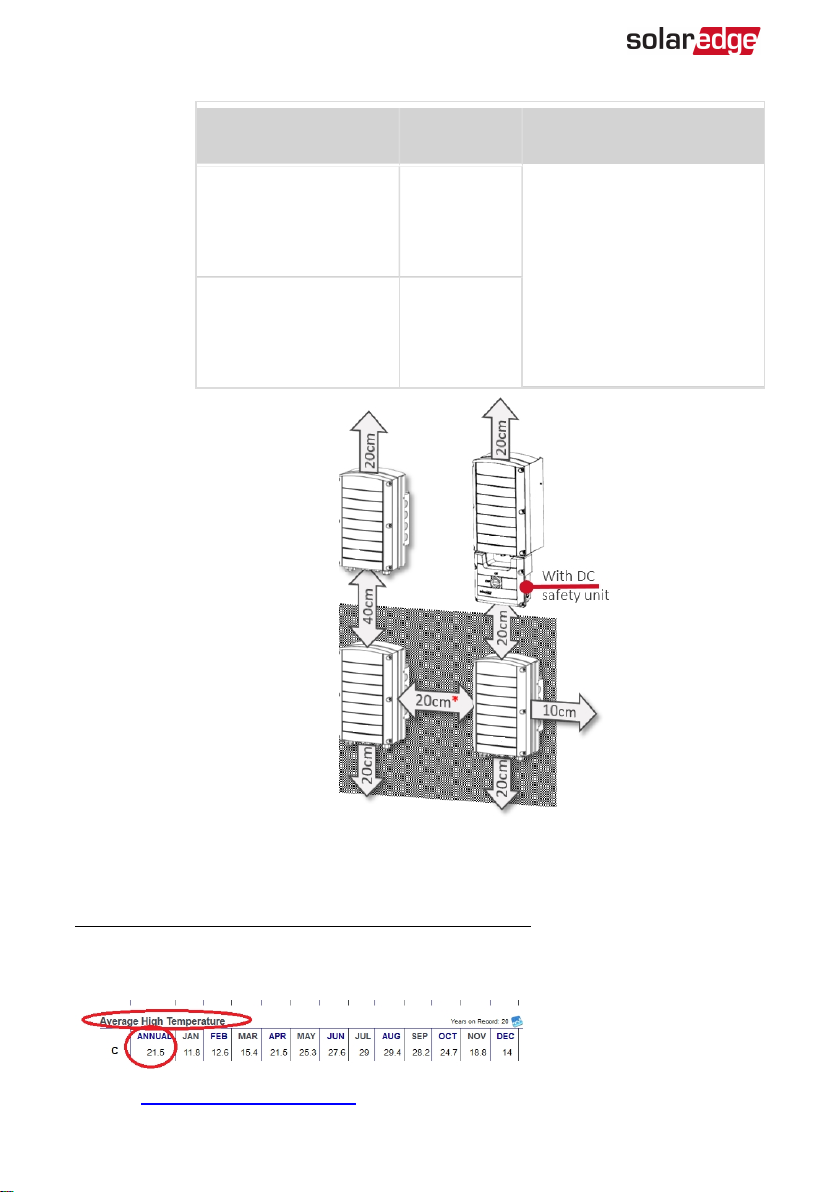

Figure 9: Clearance

(1)

Annual average high temperature – the average of the 12 monthly average highs, for

example:

Refer to http://www.weatherbase.com/ to find the value in your location.

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 3: Installing the Inverter 29

3. Position the mounting bracket against the wall/pole and mark the drilling hole

locations (refer to

Mechanical Specifications

on page 84 for inverter and mounting

bracket dimensions):

Ensure that the flat edge of the bracket is at the bottom, as in

Figure 10

.

Use at least two bracket holes. Additional holes can be used to fix the
bracket. Determine which and how many holes to use according to
mounting surface type and material.

4. Drill the holes and mount the bracket. Verify that the bracket is firmly attached to

the mounting surface.

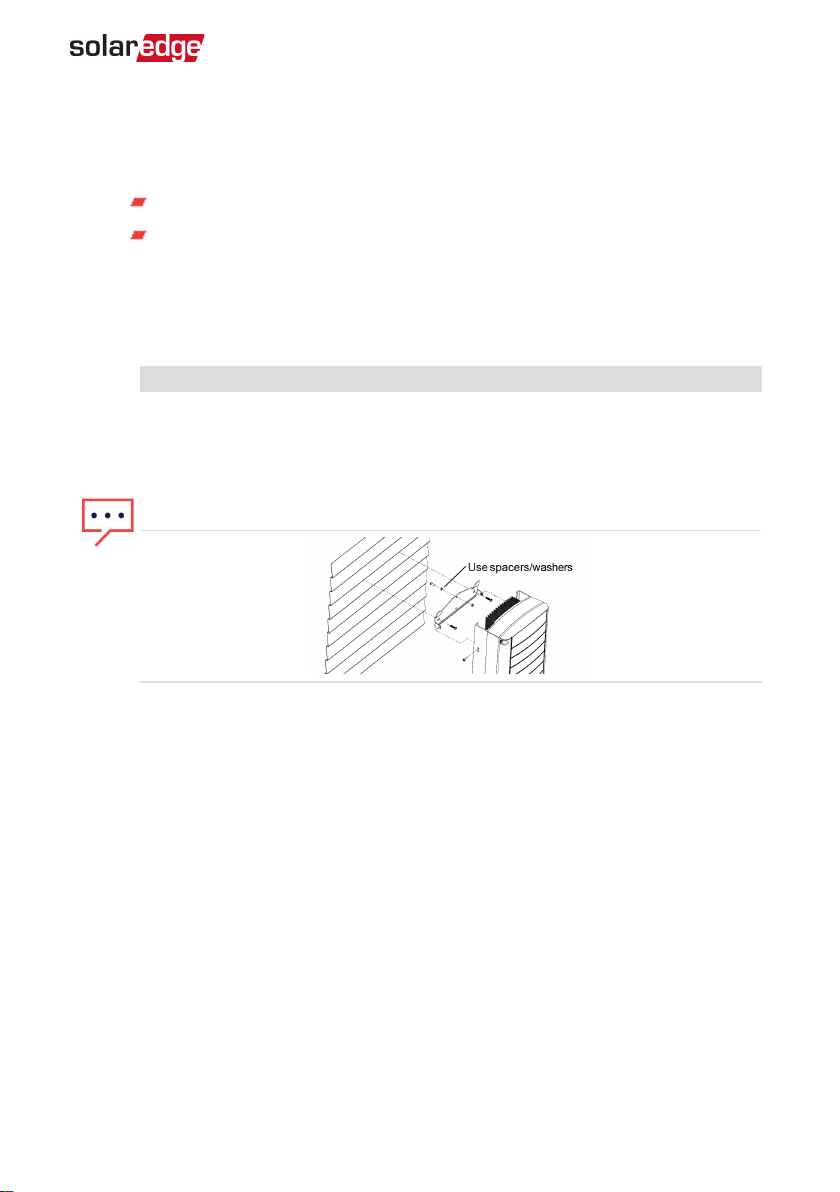

NOTE
When mounting an inverter on an uneven surface, you may use spacers/

washers behind the top mounting hole of the bracket. Depending on the
angle, use the appropriate size and number of spacers so that the bracket is
perpendicular to the ground. Recommended: a stainless steel 3/4" long screw,
with a 1/4" socket button head , two jam nuts and three washers.

5. Hang the inverter on the bracket (see

Figure 10

): Lift the inverter from the sides, or
hold it at the top and bottom of the inverter to lift the unit into place. Do not lift
holding the Connection UnitDC Safety Unit as it may be damaged.

Align the two indentations in the inverter enclosure with the two triangular

6.

mounting tabs of the bracket, and lower the inverter until it rests on the bracket
evenly.

Three Phase System Installation Guide MAN-01-00057-4.1

30 Mounting the Inverter

Figure 10: Hanging the inverter on the bracket

7. Secure the Connection Unit bracket to the wall:

8. For inverters with Connection Unit - secure the Connection Unit bracket to the wall:

Mark the location of the bracket screw for the DC Safety Unit and drill the
hole.

Fasten the bracket using a standard bolt.

Verify that the bracket is firmly attached to the mounting surface.

Figure 11: DC Safety Unit bracket

9. Insert the two supplied screws through the outer heat sink fin on both sides of the

inverter and into the bracket (see

Figure 10

). Tighten the screws with a torque of 4.0

N*m / 2.9 lb.*ft.

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 4: Connecting the AC and the Strings to the Inverter 31

Chapter 4: Connecting the AC and the Strings to the Inverter

This chapter describes how to connect the inverter to the AC grid, and to the strings of
modules with power optimizers.

If using an inverter with a DC Safety Unit, refer to the instructions in

and DCStrings to the DC Safety Unit

Refer to the technical specifications provided with the inverter.

on page 85.

Grid Connection Guidelines

In most countries, three phase inverters require neutral connection at all times.
In some countries, the three phase inverters can be connected to delta grids; in
other cases, multiple single phase inverters can be used.
Prior to system installation, refer to:

Three Phase Inverters for Delta Grids application note at

https://www.solaredge.com/sites/default/files/se_three_phase_
inverters_for_delta_grids.pdf

Connecting the AC

Supported Countries application note to confirm compatibility at

http://www.solaredge.com/sites/default/files/se_inverters_
supported_countries.pdf; installing without confirmation

may void the inverter warranty.


For more wiring information refer to the

Recommended AC Wiring Application Note

SolarEdge website at http://www.solaredge.com/files/pdfs/application-

note-recommended-wiring.pdf.

For recommended circuit breaker size per model refer to

Determining the Circuit Breaker Size




Three Phase System Installation Guide MAN-01-00057-4.1

SolarEdge

, available on the

on page 98

32 Connecting the ACGrid to the Inverter

Connecting the ACGrid to the Inverter

Use a five-wire cable for three phase connection. The maximum wire size for the input

terminal blocks is 16mm².
1. Turn OFF the AC circuit breaker.

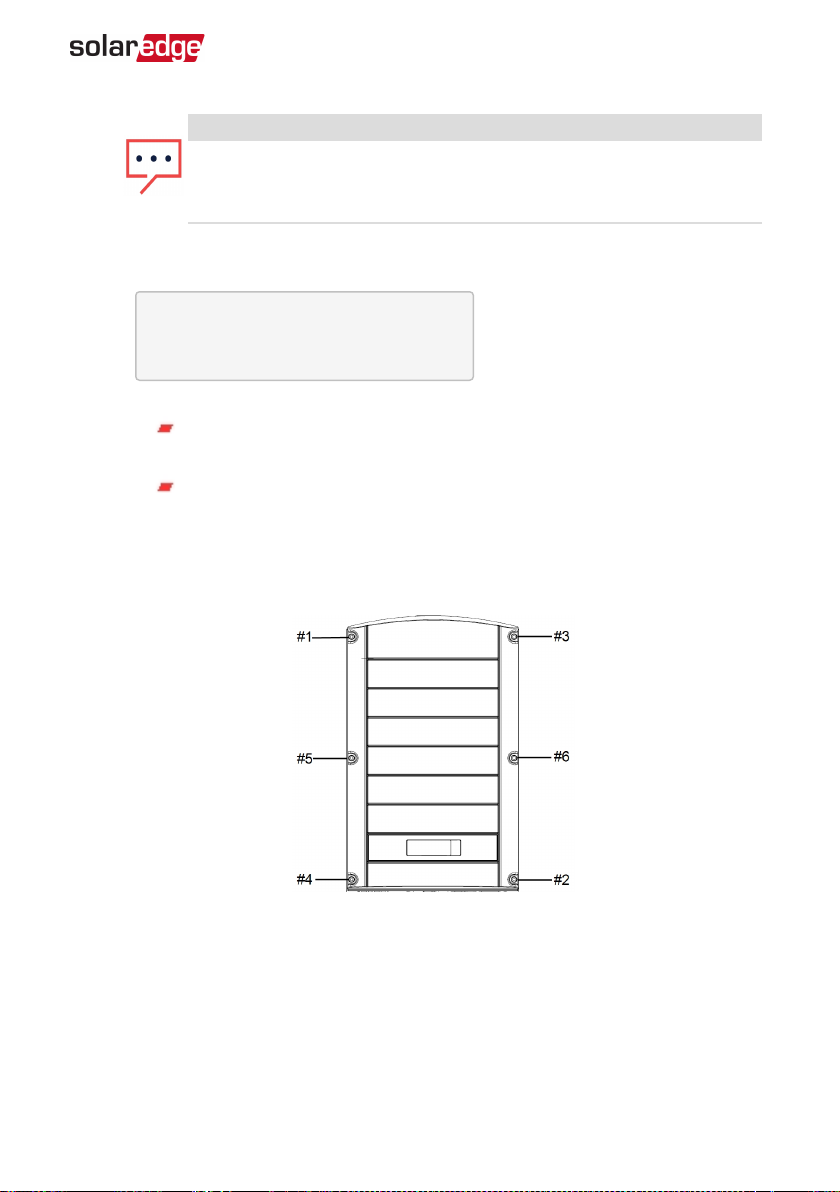

2. Open the inverter cover: Release the six Allen screws and carefully move the cover

horizontally before lowering it.

CAUTION!
When removing the cover, make sure not to damage internal components.

SolarEdge will not be held responsible for any components damaged as a
result of incautious cover removal.

Strip 58 mm / 2.32'' of the external cable insulation and strip 8 mm / 0.32'' of the

3.

internal wire insulation.

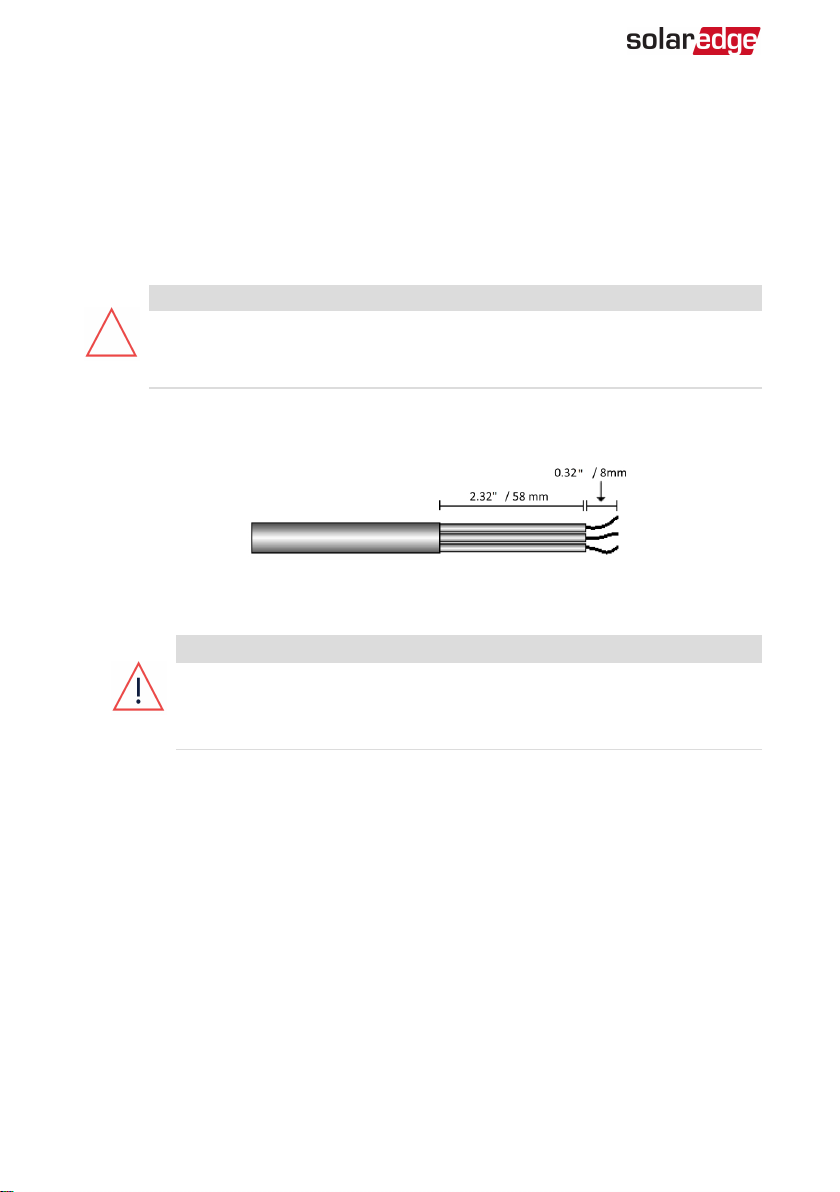

Figure 12: Insulation stripping – AC (3-wire cable)

Open the AC cable gland and insert the cable through the gland (see ).

4.

WARNING!

Turn OFF the AC before connecting the AC terminals. If connecting
equipment grounding wire, connect it before connecting the AC Line and
Neutral wires.

For SE25K, SE27.6K, and SE33.3K three phase inverters, attach the supplied Ferrite

5.

bead to the AC wires:
1. Insert the AC wires through the supplied bead.

2. Connect the AC wires to the terminal blocks as described in the next steps.

3. Tighten the wires to the bead using the supplied T-wrap.

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 4: Connecting the AC and the Strings to the Inverter 33

Figure 13: Attaching a Ferrite bead

Connect the AC, as follows. Connect the PE (grounding) wire first.

6.

Wire type

Connect to

terminal

Line 1 L1 

Line 2 L2 

Line 3 L3 

Neutral N

PE (grounding)

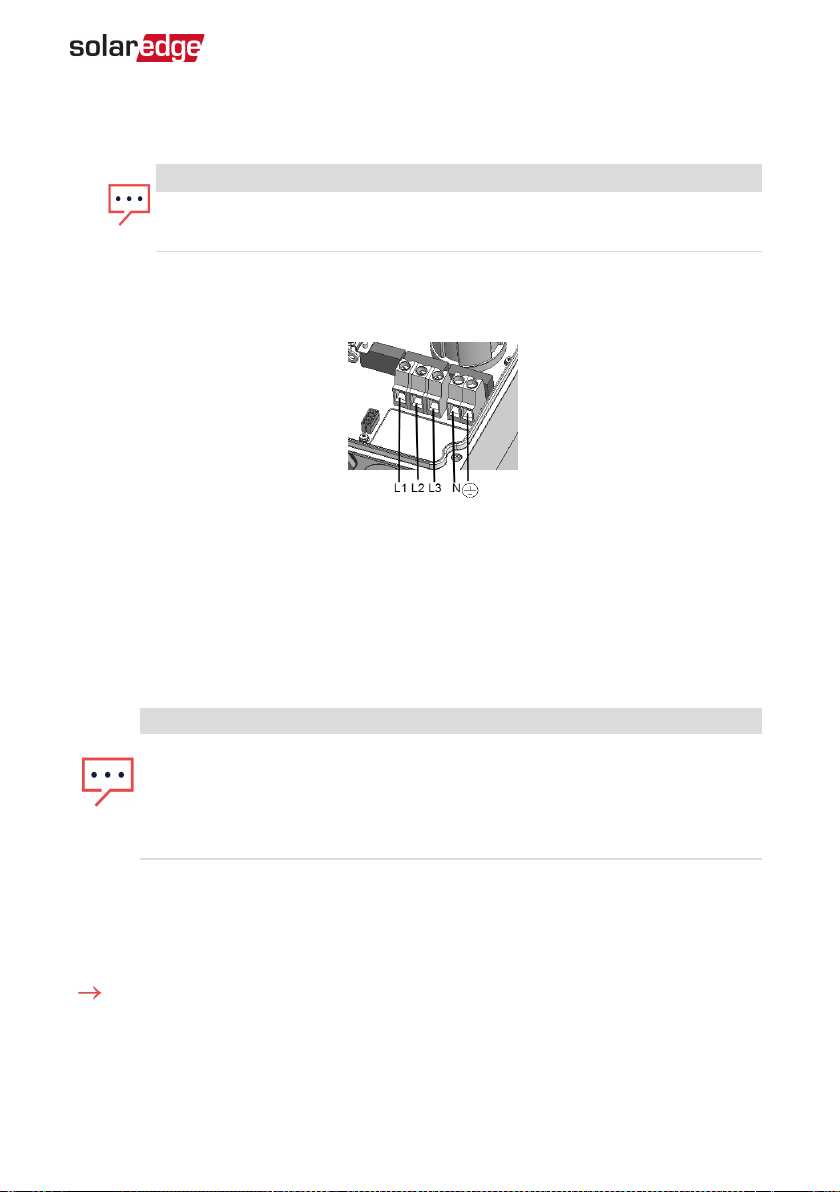

Figure 14: AC Terminals

NOTE
If power control is enabled, it is important to respect the order of grid lines

connection to the inverter. A 120deg phase difference should be kept
between L1 to L2 and between L2 to L3 (L1-L2-L3 and not, for example L1-L3­L2).
If the grid lines are not in this order, an error is displayed on the LCD screen
and the inverter will not produce power.

7. Connect the wires to the appropriate terminal block connectors in the inverter.

Tighten the terminal block screws with a torque of 1.2-1.5 N*m / 0.88-1.1 lb*ft.

8. Check that the wires are fully inserted and cannot be pulled out easily.

9. Tighten the AC cable gland with a torque of 2.8-3.3 N*m / 2.0-2.4 lb*ft.

10. Verify that there are no unconnected wires to the inverter and that the unused

terminal screws are tightened.

Three Phase System Installation Guide MAN-01-00057-4.1

34 Connecting the Strings to the Inverter

Connecting the Strings to the Inverter

Connect the string to the DC input pairs. If required, connect additional strings in
parallel using an external combiner box/branch cables before connecting to the
inverter.

NOTE
Functional electrical earthing of DC-side negative or positive poles is prohibited

because the inverter has no transformer. Grounding (earth ground) of module
frames and mounting equipment of the PV array modules is acceptable.

NOTE
SolarEdge’s fixed input voltage architecture enables the parallel strings to be of

different lengths. Therefore, they do not need to have the same number of
power optimizers, as long as the length of each string is within the permitted
range.

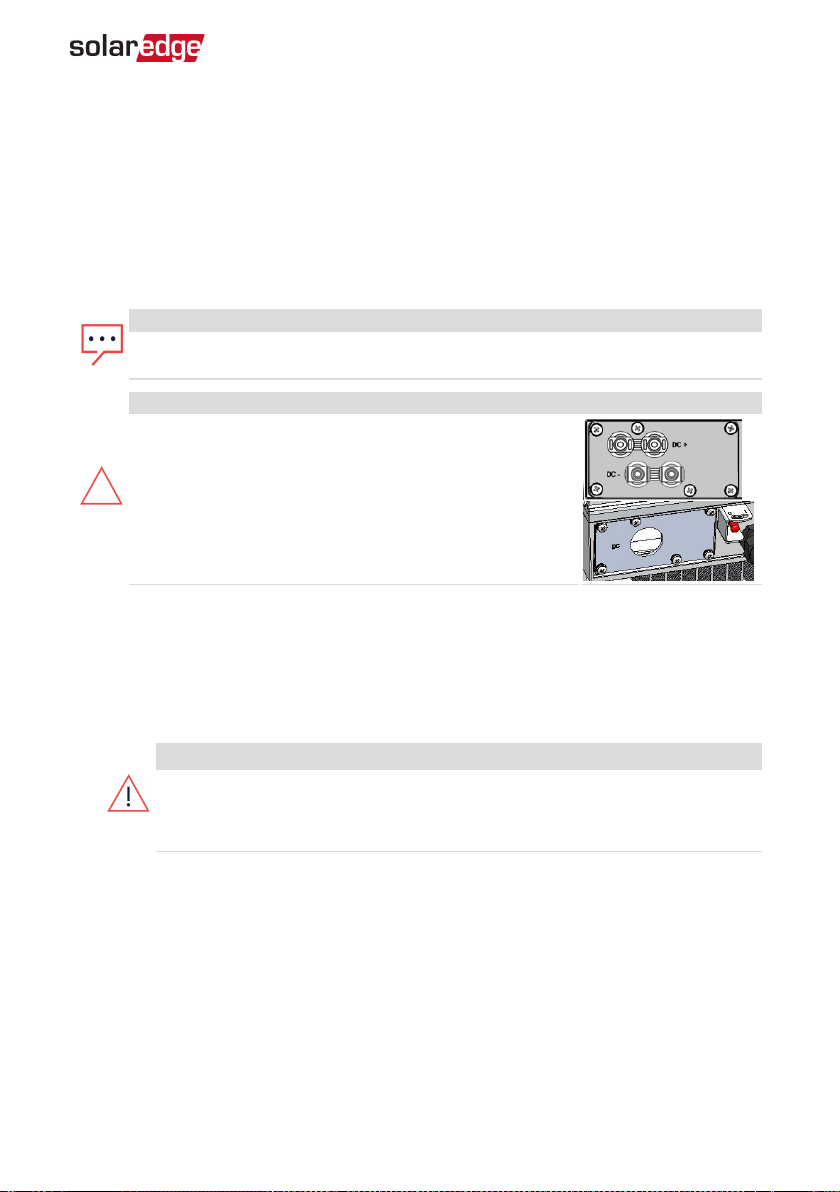

Connect the DC connectors of each string to the DC+ and DC- connectors .

 

Figure 15: Inverter DC Connections

Selecting a Residual Current Device (RCD)

 IMPORTANTSAFETYFEATURE

All SolarEdge inverters incorporate a certified internal Residual Current Device
(RCD) in order to protect against possible electrocution and fire hazard in case
of a malfunction in the PV array, cables or inverter. There are 2 trip thresholds
for the RCD as required for certification (DIN VDE 0126-1-1). The default value
for electrocution protection is 30 mA, and for slow rising current is 300 mA.

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 4: Connecting the AC and the Strings to the Inverter 35

If an external RCD is required by local regulations, check which type of RCD is required
for the relevant electric code. Install the residual-current device (RCD) in accordance
with the applicable local standards and directives. SolarEdge recommends using a type­A RCD. The recommended RCD value is 100 mA or 300 mA unless a lower value is
required by the specific local electric codes. For extended power three phase inverters
(SE25K, SE27.6K and SE33.3K) an RCD value of 300 mA should be used. When required
by local regulations, the use of an RCD type B is permitted.

NOTE
For multiple inverters, an RCD per inverter is required.

In installations where the local electric code requires an RCD with a lower leakage
setting, the discharge current might result in nuisance tripping of the external RCD. The
following steps are recommended to avoid nuisance tripping of the external RCD:

Select the appropriate RCD for correct operation of the installation: An RCD with
a rating of 30 mA may actually trip at a leakage as low as 15 mA (according to
IEC 61008). High quality RCDs will typically trip at a value closer to their rating.

Configure the trip voltage of the inverter's internal RCD to a lower value than
the trip current of the external RCD. The internal RCD will trip if the current is
higher than the allowed current, but because the internal inverter RCD
automatically resets when the residual currents are low it saves the manual
reset.

For detailed information, refer to the

Inverters Application Note

http://www.solaredge.com/sites/default/files/application_note_ground_fault_
rcd.pdf.

, available on the SolarEdge website at

RCD Selection for SolarEdge




Three Phase System Installation Guide MAN-01-00057-4.1

36 Chapter 5: Commissioning the Installation

Chapter 5: Commissioning the Installation

This chapter describes how to activate the system, pair the poweroptimizers to the
inverter and verify the proper functioning of the system.

Step 1: Activating the System

1. Verify that the inverter ON/OFF switch is OFF.

2. Verify that the DC Safety Unit (if applicable) is in the OFF position.

Remove the inverter cover: Open the inverter cover’s six Allen screws and carefully

3.

pull the cover horizontally before lowering it.

WARNING!

ELECTRICAL SHOCK HAZARD. Do not touch uninsulated wires when the
inverter cover is removed.

Activate the inverter:

4.

a. Verify that the card S/N matches the inverter S/N.

b. Insert the card into the "CARD" slot on the communication board.

c. Turn ON the AC switch of the main circuit board.

d. LCD shows: Running Script...è Done!

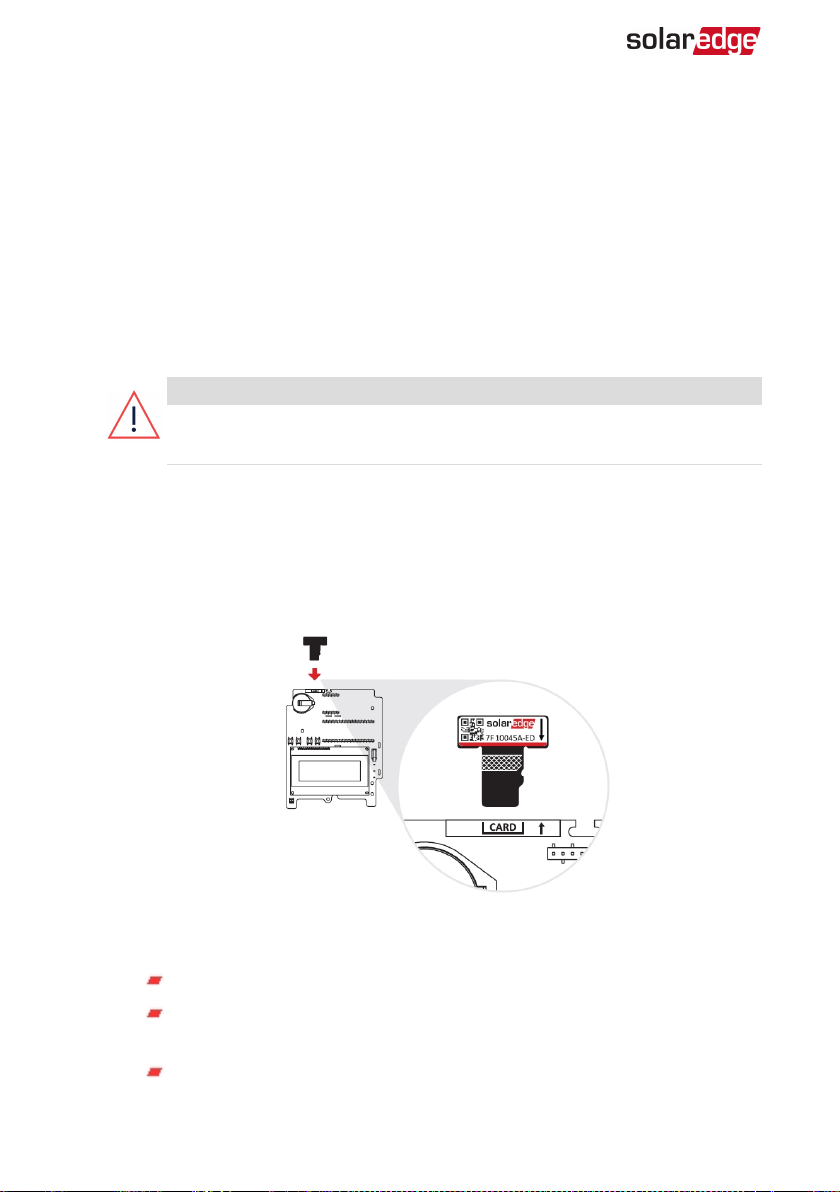

Figure 16: Activation card

If LCDshows: Failed:

Turn AC OFF and ON (reset), and repeat the activation process.

Use the activation code that appears on the certification inverter label to
manually activate the inverter.

If the problem persists, contact SolarEdge Support.

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 5: Commissioning the Installation 37

NOTE
You can use the activation code that appears on the certification

inverter label to activate the inverter in case of a script error or a missing
activation card.

5. Verify that the inverter is configured to the proper country: Press the LCD light

button until reaching the ID status screen:

I D :        # # # # # # # # # #
D S P 1 / 2 : 1 . 0 2 1 0 / 1 . 0 0 3 4
C P U :          0 0 0 3 . 1 9 x x
C o u n t r y :             E S P

If required, perform the following additional steps before closing the inverter cover:

6.

Country settings or inverter configuration using the internal LCD user
buttons – refer to

Communication options connection – refer to

Communication

Close the inverter cover by tightening the screws with a torque of 10.3 N*M/ 7.5

7.

Country and Grid

on page 66.

on page 50.

Setting Up

lb*ft. For proper sealing, first tighten the corner screws and then the two central

screws. The following figure illustrates recommended order:

Figure 17: Tightening order of the screws

Turn ONthe DC Safety Unit (if applicable) . If an additional external DC switch is

8.

installed between the power optimizers and the inverter(s) then turn it ON.

A status screen similar to the following appears on the LCD panel:

Three Phase System Installation Guide MAN-01-00057-4.1

38 Step 2: Pairing Power Optimizers to the Inverter

V a c [ V ] V d c [ V ] P a c [ w ]
2 4 0 . 7   1 4 . 1   0 . 0
P _ O K : 0 0 0 / 0 0 0 < S _ O K >

- - - - - - - - - - - - - - - O F F

9. Verify that the following information appears on the LCD panel:

P_OK: Appears only upon pairing process completion and first telemetry
reception from the power optimizers. Indicates connection to the power
optimizers and that at least one power optimizer is sending monitoring data.

000/000: Appears only upon first telemetry reception from the power
optimizers. Indicates the number of power optimizers that have been paired
to this inverter.

S_OK: The connection to the SolarEdge monitoring platform is successful
(should appear only if the inverter is connected to the server).

Vac [V]: The grid AC output voltage. Verify the correct value.

Vdc [V]: The DC input voltage of the longest string connected to the
inverter. There should be a safety voltage of 1V for each power optimizer in
the string.

NOTE



A measurement error on the inverter LCD of ±3 V is acceptable.

Pac [w]: The AC output power (should be 0.0 since the inverter is OFF).

OFF: The inverter ON/OFF switch is in the OFF position.

Step 2: Pairing Power Optimizers to the Inverter

Once all connections are made, all the power optimizers must be logically paired to
their inverter. The power optimizers do not start producing power until they are paired.
This step describes how to assign each inverter to the power optimizers from which it
will produce power.

Perform this step when the modules are exposed to sunlight. If the string length is
changed or a power optimizer is replaced, repeat the pairing process.

Perform pairing: Press and hold down the inverter LCD Light button for about 10

1.

seconds. The following message is displayed:

K e e p h o l d i n g b u t t o n
f o r p a i r i n g , r e l e a s e
t o e n t e r m e n u . . .
R e m a i n i n g :    3 s e c

Keep holding for 5 seconds until the following is displayed:

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 5: Commissioning the Installation 39

P a i r i n g

T u r n S w i t c h T o O n

Turn the inverter ON/OFF switch to ON within 5 seconds. If you wait longer than 5

2.

seconds the inverter exits the pairing mode. The following message is displayed

indicating that the inverter is performing the pairing:

P a i r i n g

R e m a i n i n g [ s e c ] : 1 8 0

Wait for the completion of the pairing (remaining seconds is 0). If pairing fails, an

3.

error is displayed. In this case, repeat the pairing steps, and refer to

Troubleshooting

on page 82. If the problem persists, contact SolarEdge Support.

Power Optimizer

When pairing succeeds, the following message is displayed:

P a i r i n g

P a i r i n g C o m p l e t e d

The system startup process begins:
nce the inverter is ON, the power optimizers start producing power and the inverter

starts converting AC.

WARNING!
When you turn ON the inverter ON/OFF switch, the DC cables carry a high

voltage and the power optimizers no longer output a safe 1V output.

When the inverter starts converting power after the initial connection to the AC, the
inverter enters Wakeup mode until its working voltage is reached. This mode is
indicated by the flickering green inverter LED.

While the inverter is in Wakeup mode, it monitors the grid and verifies correct grid
voltage and frequency. The following message is displayed:

W a k i n g U p . . .
R e m a i n i n g : 0 5 1 S e c

The countdown indicates the seconds remaining until entering the Production mode.
This time is in accordance with local regulations and is typically between three to five
minutes.

When countdown is complete, the inverter enters Production mode and produces
power. The steadily lit green inverter LED indicates this mode.

Three Phase System Installation Guide MAN-01-00057-4.1

40 Step 3: Verifying Proper Activation

Step 3: Verifying Proper Activation

After the wake-up time is over, a status screen similar to the following appears on the
inverter LCD panel:

V a c [ V ] V d c [ V ] P a c [ W ]
2 4 0 . 7 3 7 1 . 9 2 3 4 9 . 3
P _ O K : X X X / Y Y Y < S _ O K >
                      O N

1. Verify the following:

The green inverter LED is steadily lit.

The ON/OFF indicator on the LCD panel reads ON.

P_OK: XXX/YYY: There is a connection to the power optimizers and at least one
power optimizer is sending monitoring data. Optimizers send telemetries in a
frequency of up to 10 minutes. Initially after pairing, both XXX and YYY values
show 000 and the values increase as paired poweroptimizers are reported.

NOTE
It may take up to 20 minutes for all power optimizers to transmit their

telemetries and to be counted on the LCD screen.

S_OK appears, if the inverter is connected to the SolarEdge monitoring platform.

Vac [V] specifies the measured grid AC output voltage.

Vdc [v] specifies the DC input voltage, which should be approximately the
inverter DC voltage (model dependent; refer to the inverter datasheet)

Pac [W] specifies the AC output power produced.

2. Take note of the serial number on the inverter label using the detachable 2D

barcode sticker on each device. This information is used in the SolarEdge

monitoring platform to identify this inverter.

Your SolarEdge power harvesting system is now operational.

Step 4: Reporting and Monitoring Installation Data

NOTE
Monitoring the site requires connecting the inverter to the monitoring

platform, using any of the wired or wireless options available from SolarEdge.
Refer to

Setting Up Communication

-Three Phase System Installation Guide MAN-01-00057-4.1

on page 66.

Chapter 5: Commissioning the Installation 41

The Monitoring Platform

The monitoring platform provides enhanced PV performance monitoring and yield
assurance through immediate fault detection and alerts at the module , string and
system level.

Using the platform, you can:

View the latest performance of specific components.

Find under-performing components, such as modules, by comparing their
performance to that of other components of the same type.

Pinpoint the location of alerted components using the physical layout.

The monitoring platform enables accessing site information, including up-to-date
information viewed in a physical or logical view:

Logical Layout: Shows a schematic tree-layout of the components in the
system, such as: inverters, strings, modules, meters and sensors, as well as their
electrical connectivity. This view enables you to see which modules are
connected in each string, which strings are connected to each inverter, and so
on.

Physical Layout: Provides a bird's eye view of the actual placement of modules
in the site, and allows pinpoint issues to the exact location of each module on a
virtual site map.

If you do not report the mapping of the installed power optimizers, the monitoring
platform will show the logical layout indicating which power optimizers are connected
to which inverter, but will not show strings or the physical location of power optimizers.

The monitoring platform includes a built-in help system, that guides you
through the monitoring functionality.

For more information, refer to https://www.solaredge.com/products/pv-

monitoring#/.

Creating Logical and Physical Layout using
Installation Information

To display a logical layout, insert the inverterserial number in the new site created in the
monitoring platform. When the communication between the inverter and the
monitoring server is established, the logical layout is displayed.

To display a physical layout, you need to map the locations of the installed power
optimizers. To map the locations, use one of the methods described in the next sections.

Three Phase System Installation Guide MAN-01-00057-4.1

42 Step 4: Reporting and Monitoring Installation Data

Designer

Designer recommends inverter and power optimizer selection per site
size and enables report generation.You can create a project in Designer
and export the site design with the string layout to the monitoring
platform.

For more information, refer to

https://www.solaredge.com/products/installer-tools/designer#/.

Mapper Application

Use the Mapper smart phone application to scan the power optimizer and inverter 2D
bar-codes and create a virtual map of a PV site for enhanced monitoring and easier
maintenance.

Th Mapper application is integrated with the monitoring platform and enables:

Simple on-site registration of new systems.

Creating, editing and verifying system physical layout.

Scanning and assigning the power optimizer serial number to the correct
module in the system physical layout.

For detailed information, refer to the

Creating new sites using the Mapper mobile application

Mapper

demo movies:

Mapping existing sites using the Mapper mobile application



Physical Layout Editor

1. If you are a registered installer, access the monitoring platform site

creation page at https://monitoring.solaredge.com/solaredge-

web/p/home#createSites. If you have not yet signed up, go to

https://monitoring.solaredge.com/solaredge-web/p/createSelfNewInstaller.

2. Fill out all required information in the screen, which includes

information about your installation, as well as details about its logical

and physical mapping.



-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 5: Commissioning the Installation 43

Using a Paper Template

Fill out the Physical Layout Template (downloadable from the SolarEdge
website http://www.solaredge.com/files/pdfs/physical-layout-

template.pdf)using the detachable 2D barcode stickers on each power

optimizer. Once the form is completed, use the Mapper to scan the 2D
codes and create the map in the monitoring platform. Optionally, you can
send the sticker sheet to SolarEdge Support for physical layout creation.

Three Phase System Installation Guide MAN-01-00057-4.1

44 Chapter 6: User Interface

Chapter 6: User Interface

LCD User Buttons

Four buttons are located inside the inverter above the LCD panel and are used for
controlling the LCD menus, as shown below:

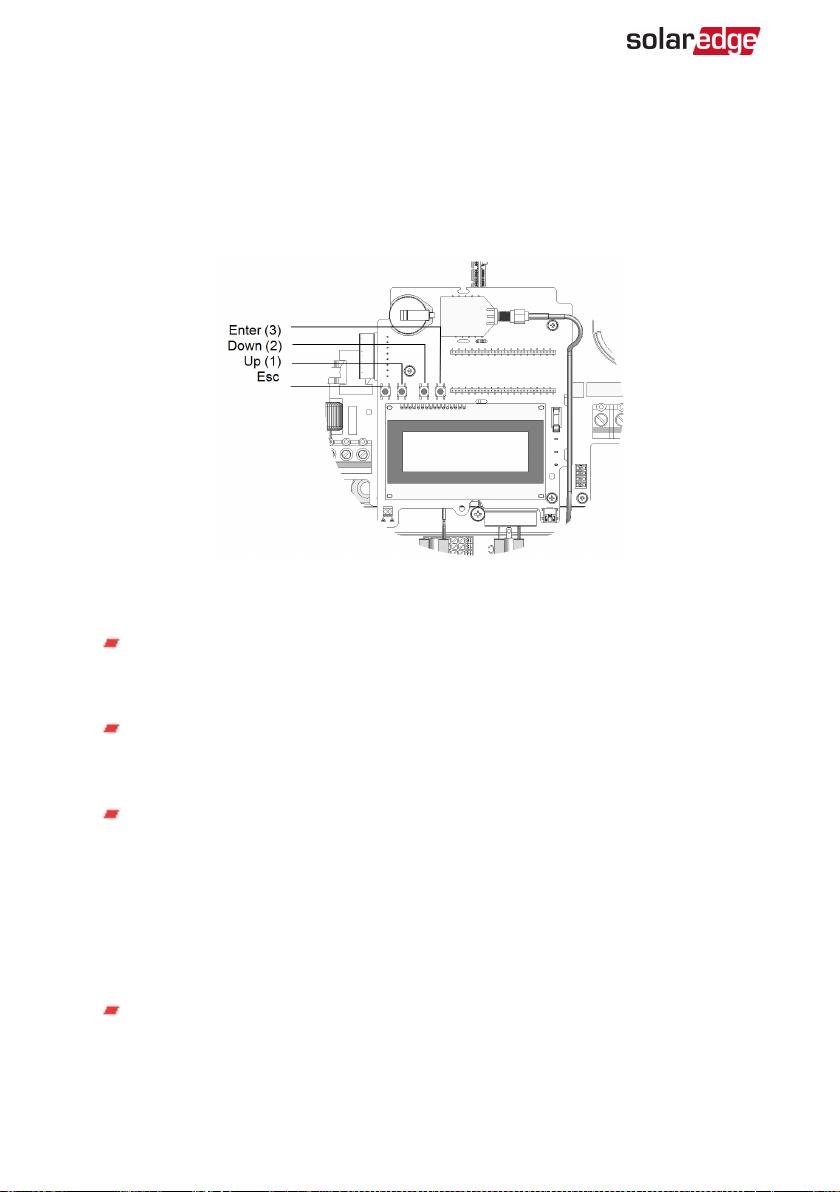

Figure 18: LCD Internal menu buttons

Use the four user buttons to control the LCD panel menus:

Esc: Moves the cursor (>) to the beginning of the currently displayed parameter;
goes to the previous menu, and cancels a value change with a long press (until

Aborted is displayed).

Up (1) and Down (2): Moves the cursor from one menu option to another,

moves among the characters of a displayed parameter, and toggles between
possible characters when setting a value.

Enter (3): Selects a menu option and accepts a value change with a long press
(until Applied is displayed).

Use the three rightmost buttons for entering the digits 123 when entering the Setup
mode password 12312312.

The LCD screen displays status information of the system and various menus for
configuration options. The LCD panel and buttons are used during the following
processes:

Operational mode: The LCD panel allows checking for proper system operation.
Refer to
option.Use the LCD light button to toggle through the informative displays

Status Screens - Operational Mode

on page 57 for a description of this

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 6: User Interface 45

Setup mode: Upon installation, an installer may perform basic configuration ,
as described in

Inverter Configuration – Setup Mode

on page 46.

Error messages: In the event of a problem, an error message may be displayed
on the LCD panel.

For more information, refer to

http://www.solaredge.com/sites/default/files/se-inverter-installation­guide-error-codes.pdf and

Inverter Configuration – Setup Mode

on

page 46.

Three Phase System Installation Guide MAN-01-00057-4.1

46 Inverter Configuration – Setup Mode

Inverter Configuration – Setup Mode

You can configure the inverter using one of the following:

The internal LCD user buttons. When using this option, the inverter cover is

removed.

The external LCD light button. When using this option, removing the inverter

cover is not required. This option of configuration includes a less detailed set of
menus.

Configuring the Inverter Using the Internal LCD User Buttons

After inverter installation, an installer may perform basic system configuration.
Configuration is done when the inverter is in Setup mode.

To enter Setup mode:

Turn the inverter ON/OFF switch to OFF (AC remains ON).

1.

WARNING!
If the inverter was operating properly (power was produced by the power

optimizers), the following message is displayed.



D C V O L T A G E N O T S A F E
D O N O T D I S C O N N E C T
V D C : 7 2 . 0

This message is displayed until the DC voltage is safe (50V). Do not open the
cover until the voltage is safe or until at least five minutes have passed.

2. Press the Enter button for at least 5 seconds. The following message is displayed:

P l e a s e e n t e r
 P a s s w o r d
* * * * * * * *

3. Use the three rightmost internal LCD user buttons to type in the following password:

12312312. The following menu is displayed:

C o u n t r y < I t a l y >
L a n g u a g e < E n g >
C o m m u n i c a t i o n
P o w e r C o n t r o l
D i s p l a y
M a i n t e n a n c e
I n f o r m a t i o n

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 6: User Interface 47

The inverter is now in Setup mode and all its LEDs are lit. The inverter automatically exits
Setup mode if no buttons are pressed for more than 2 minutes.


The following shows a hierarchical tree of the menu options, which are described in

Configuration Menu Options

on page 50. Actual menus may vary from shown

depending on the firmware version of the inverter and on the country.

Main menu:

C o u n t r y < I t a l y >
L a n g u a g e < E n g >
C o m m u n i c a t i o n
P o w e r C o n t r o l
D i s p l a y
M a i n t e n a n c e
I n f o r m a t i o n

Country:

G e r m a n y +
S p a i n
F r a n c e
.
.
.

Language:

E n g l i s h
G e r m a n
S p a n i s h
F r e n c h
I t a l i a n

Communication

(1)

:

S e r v e r < L A N >
L A N C o n f
R S 4 8 5 – 1 C o n f < S >
Z i g B e e C o n f < S >
W i - F i C o n f < N / A >
C e l l u l a r C o n f
G P I O C o n f < M T R >

(1)

If ZigBee is connected, the Wi-Fi Conf menu is not displayed. If ZigBee is not connected, ZigBee Conf and Wi-Fi Conf

are both displayed with <N/A>.

Three Phase System Installation Guide MAN-01-00057-4.1

48 Inverter Configuration – Setup Mode

Power Control

(1)

:

Display:

T e m p e r a t u r e < C >
L C D O n T i m e < 3 0 >
T L M O n T i m e < 1 5 >

Maintenance:

D a t e a n d T i m e
R e s e t C o u n t e r s
F a c t o r y R e s e t
F W U p g r a d e
D i a g n o s t i c s
G r i d P r o t e c t i o n
B o a r d R e p l a c e m e n t

Information:

V e r s i o n s
E r r o r L o g
W a r n i n g l o g
H a r d w a r e I D s

Configuring the Inverter Using the LCD Light Button

Use the LCD light button for communication setup and for displaying the Error log and
Warning Log without having to open the Inverter cover. There are fewer menus
available when using this configuration option; however, the functionality of these
menus is the same as when using the internal LCD user buttons.

1. Turn the inverter ON/OFF switch to OFF.

Press and hold down the LCD light button until the following message is displayed:

2.

K e e p h o l d i n g b u t t o n
f o r p a i r i n g , r e l e a s e
t o e n t e r m e n u . . .
R e m a i n i n g :    3 s e c

Releasing the button displays the following menu:

(1)

Phase Balance is applicable to single phase inverters only.

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 6: User Interface 49

O p t i m i z e r p a i r i n g
L a n g u a g e < e n g >
C o m m u n i c a t i o n
M a i n t e n a n c e
I n f o r m a t i o n
E x i t

3. Short-press (one second) to scroll down to the next menu option, and long-press

(three seconds) to select the item. You can use the Exit option in these menus to
move up one menu level or to exit the Setup mode from the main menu.

The following shows a hierarchical tree of the menu options that appear when using
the LCD light button:

Main menu:

O p t i m i z e r p a i r i n g
L a n g u a g e < e n g >
C o m m u n i c a t i o n
M a i n t e n a n c e
I n f o r m a t i o n
E x i t

Language:

E n g l i s h
G e r m a n
S p a n i s h
F r e n c h
I t a l i a n
E x i t

Communication

(1)

:

S e r v e r < L A N >
L A N C o n f
R S 4 8 5 – 1 C o n f < S >
Z i g B e e C o n f < S >
W i - F i C o n f < N / A >
G P I O C o n f < M T R >
R S 2 3 2 C o n f
C e l l u l a r C o n f
E x i t

Information:

(1)

If Wi-Fi is connected, the ZigBee Conf menu is not displayed, and vice versa.

Three Phase System Installation Guide MAN-01-00057-4.1

50 Configuration Menu Options

V e r s i o n s
E r r o r L o g
W a r n i n g l o g
H a r d w a r e I D s
E x i t

Maintenance:

D a t e a n d T i m e
R e s e t C o u n t e r s
F a c t o r y R e s e t
S W U p g r a d e - S D C a r d
M a n u a l A F C I  T e s t
D i a g n o s t i c s
G r i d P r o t e c t i o n
B o a r d R e p l a c e m e n t
E x i t

The options presented in these menus are described in the next section.

Configuration Menu Options

This section describes how to use the LCD menus for configuring the inverter.
Configuration is only available when the inverter ON/OFF switch is OFF. Use either the
internal LCD user buttons or the external LCD light button to move between and select
menu options.

Country and Grid

Configuring the country and grid is available using the internal user buttons only.

Select the Country option to specify the country or region in which the inverter is

1.

installed and the grid to which it is connected. This parameter may arrive pre­configured. If so, verify that it is set to the proper country or region.

WARNING!

The inverter must be configured to the proper country/ region in order to
ensure that it complies with the country grid code and functions properly
with the country grids.

A list of countries is displayed. If no country is configured, the value is <NONE>.

NOTE

If an inverter is not configured to any country, it will not produce energy,
and the following message will be displayed on the LCD:

No Country Selected

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 6: User Interface 51

A plus sign (+) near the country indicates that another menu will be displayed after
selection.

2. Confirm your country selection in the confirmation screen: Toggle to YES and press

Enter.

Language

1. Select the Language option to set the language in which the LCD should display.

2. Confirm your language selection in the confirmation screen: Toggle to YES and

press Enter.

Communication

Select the Communication option to define and configure:

1.

The communication option used by the inverter to communicate with
the SolarEdge monitoring platform

The communication option used to communicate between multiple
SolarEdge devices or other external non-SolarEdge devices, such as
energy meters or loggers.

2. Select Server to set which communication method is used to communicate between

devices and the monitoring platform. Refer to
66 for a full description of these communication options.

Setting Up Communication

on page

NOTE
The Server menu shows only the communication options installed in the

inverter.

The following shows a hierarchical tree of the menu options in the Communication
menu.

For detailed information about all the configuration options, refer to the

Communication Options Application Note

, available on the SolarEdge

website at http://www.solaredge.com/files/pdfs/solaredge-communication_

options_application_note_v2_250_and_above.pdf.

Communication

(1)

If ZigBee is connected, the Wi-Fi Conf menu is not displayed. If ZigBee is not connected, ZigBee Conf and Wi-Fi Conf

are both displayed with <N/A> and their menus are not accessible.

(2)

When using the SolarEdge GSM products, RS232 Conf menu is unavailable.

Three Phase System Installation Guide MAN-01-00057-4.1

(1),(2)

:

52 Configuration Menu Options

S e r v e r < L A N >
L A N C o n f
R S 4 8 5 – 1 C o n f < S >
Z i g B e e C o n f < S >
W i - F i C o n f < N / A >
C e l l u l a r C o n f
G P I O C o n f < M T R >

Server:

L A N
R S 4 8 5
Z i g b e e
W i - F i
C e l l u l a r
N o n e



-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 6: User Interface 53

LAN Conf:

I P C o n f i g
S e t D H C P < e n >
S e t I P
S e t M a s k
S e t G a t e w a y
S e t D N S
S e t S e r v e r A d d r
S e t S e r v e r P o r t
M o d b u s T C P < D i s >

RS485-1 Conf:

D e v i c e T y p e < S E >
P r o t o c o l < M >
D e v i c e I D < 1 >
S l a v e D e t e c t < # >
C l u s t e r S L V  D e t e c t
L o n g S l a v e D e t e c t < # >
S l a v e L i s t < # >
M u l t i - I n v . S e t

ZigBee Conf. (enabled only if the ZigBee internal card is connected):

D e v i c e T y p e < S E >
P r o t o c o l < M P S >
D e v i c e I D < 1 >
P A N I D
S c a n C h a n n e l
L o a d Z B D e f a u l t s

Wi-Fi Conf (enabled only if the internal card is connected):

S c a n N e t w o r k s
S e t k e y
L o a d D e f a u l t s



Three Phase System Installation Guide MAN-01-00057-4.1

54 Configuration Menu Options

RS232 Conf

(1)

:

D e v i c e T y p e < S E >
P r o t o c o l < G S M >
S e t A P N
S e t M o d e m T y p e
S e t U s e r N a m e
S e t P a s s w o r d

GPIO Conf:

D e v i c e T y p e < R R C R >

Power Control

Power control options are detailed in the

Power Control Application Note

, available on

the SolarEdge website at http://www.solaredge.com/files/pdfs/application_note_power_

control_configuration.pdf.

The Grid Control option may be disabled. Enabling it opens additional
options in the menu.

The Energy Manager option is used for setting power export limitation,
as described in the

Export Limitation Application Note

, available on the

SolarEdge website at http://www.solaredge.com/files/pdfs/products/feed-in_

limitation_application_note.pdf.


For P(Q) diagram refer to

https://www.solaredge.com/sites/default/files/application_note_p_q_diagram_of_
se_inverters_en_and_na.pdf

NOTE
SolarEdge inverters with “Grid Support” functionality (as marked on the

inverter certification label), are compliant with UL1741 Supplement A. The
functionality is built into the inverter and no additional external device is
required.

Display

Select Display to set the following:

(1)

When using the SolarEdge GSM products this menu is unavailable.

-Three Phase System Installation Guide MAN-01-00057-4.1

T e m p e r a t u r e < C >
L C D O n T i m e < 3 0 >
T L M O n T i m e < 1 5 >

Temperature: Select Celsius or Fahrenheit units.

LCD On Time <30>: The number of seconds that the LCD backlight is ON after
pressing the LCD light button. Set a value within the range of 10-120 seconds.

TLM On Time <15>: The number of minutes that the LCD backlight is ON while
viewing the Telemetry window. Set a value within the range of 1-120 minutes.

Maintenance

Select Maintenance to set the following options:

D a t e a n d T i m e
R e s e t C o u n t e r s
F a c t o r y R e s e t
F W U p g r a d e
D i a g n o s t i c s
G r i d P r o t e c t i o n
B o a r d R e p l a c e m e n t



Information

Select Information to display the following options:

V e r s i o n s
E r r o r L o g
W a r n i n g l o g
H a r d w a r e I D s

Chapter 6: User Interface 55

Versions: Displays inverter firmware versions:

ID: The inverter ID.

DSP 1/2: The DSP digital control board firmware version

CPU: The communication board firmware version

NOTE

Please have these numbers ready when you contact SolarEdge
Support.

Error Log: Displays the last five errors.

Warning Log: Displays the last five warnings.

Three Phase System Installation Guide MAN-01-00057-4.1

56 Configuration Menu Options

Hardware IDs: Displays the following HW serial numbers (if exist, and
connected to the inverter):

ID: the inverter's ID

RGM1 (Revenue Grade Meter): Energy Meter with ModbusConnection

RGM2: A second external Energy Meter with ModbusConnection

ZB: ZigBee MAC address

Cell: MEID (CDMA) or IMEI (GSM)

WiFi: Wi-Fi MAC address

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 6: User Interface 57

Status Screens - Operational Mode

During normal operation pressing the external LCD light button turns on the LCD
backlight.

Additional presses display the following screens one after the other.

Initial Status

V a c [ V ] V d c [ V ] P a c [ W ]
2 4 0 . 7  3 7 1 . 9   2 3 4 9 . 3
P _ O K : X X X / Y Y Y < S _ O K >
                        O N

Vac [V]: The AC output voltage

Vdc [V]: The DC input voltage

Pac [W]: The AC output power

P_OK: XXX/YYY: There is a connection to the power optimizers and at least one

power optimizer is sending monitoring data. XXX is the number of power
optimizers for which telemetries have been received in the last two hours. YYY is
the number of paired power optimizers identified during the most recent pairing
process. If XXX and YYY are not equal, there may be a problem in one or more
power optimizers.

S_OK: The connection to the SolarEdge monitoring platform is successful
(appears only if the inverter is connected to the server).

ON/OFF: Indicates the position of the inverter ON/OFF switch.

Main Inverter Status

V a c [ V ] V d c [ V ] P a c [ W ]
2 4 0 . 7  3 7 1 . 9 3 2 1 0 . 0
F a c [ H z ] O P s _ O k T e m p
5 0 . 0   1 1    2 8 . 2

Vac [V]: The AC output voltage.

Vdc [V]: The DC input voltage.

Pac [W]: The AC output power.

Fac [Hz]: The AC output frequency.

OPs_Ok: Number of optimizers sending telemetries (indicating that they are

Three Phase System Installation Guide MAN-01-00057-4.1

58 Status Screens - Operational Mode

paired)

Temp [C or F]: The inverter heat sink temperature

Energy Meter Status

Displays the total energy produced during the last day, month, year and since inverter
installation.

D a y [ W h ] :           0 . 0
M o n t h [ K W h ] :      0 . 0
Y e a r [ K W h ] :        0 . 0
T o t a l [ K W h ] :       0 . 0

Day: since midnight

Month: since 1st of the current month until today (inclusive)

Year: since January 1st until today (inclusive)

If a meter is connected to the inverter, the following status screen, showing the power
and energy readings, is displayed in addition to the above screen.

If the meter is set to Export +Import, there are two status screens, with the first line
displaying: "Export Meter" or "Import Meter". The following is an example of an export
meter status:

E x p o r t M e t e r
S t a t u s : < O K / E r r o r # >
P o w e r [ W ] : x x x x x . x
E n e r g y [ W h ] : x x x x x . x

Status: Displays OK if the meter is communicating with the communication
board.

<Error message>: If there is a meter error, it is displayed in this line.

Power (W): Depending on the meter type connected to the inverter, this line
displays the exported or imported power in Watts.

Energy (Wh): The total energy read by the meter, in Watt/hour. The value
displayed in this line depends on the meter type connected to the inverter and
its location:

If a bidirectional meter is connected at the consumption point, this
value is the consumed energy.

If the meter is installed at the production connection point, this value is
the energy produced by the site.

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 6: User Interface 59

If the meter is installed at the grid connection point, this value is the
energy exported to the grid.

If the inverter is connected to the SolarEdge server, this value will also be displayed in
the monitoring platform.

NOTE

This data is accumulated according to an internal real-time clock.

Telemetry Status

This screen displays the last power optimizer telemetry received. The display changes as
each power optimizer sends its telemetry.

In order to verify proper installation, the installer may view the Telemetry window for
some time in order to observe the power optimizers' report process.

M o d u l e : 1 0 2 8 8 0 6 3 1 B
E n e r g y [ W h ] :       5 6 . 7
V d c _ O [ V ] :          4 0 . 0
V d c _ I [ V ] :           3 8 . 3
I _ i n [ A ] :              7 . 8
T e m p [ C ] :           2 8 . 0

Module: Power optimizer serial number

Energy: power optimizer energy

Vdc_O: Power optimizer output voltage

Vdc_I: Power optimizer input voltage (module voltage)

I_in: Power optimizer input current

Temp: Power optimizer temperature

ID Status

This screen displays the inverter software version and the country to which the inverter
is configured.

I D :        # # # # # # # # # #
D S P 1 / 2 : 1 . 0 2 1 0 / 1 . 0 0 3 4
C P U :          0 0 0 3 . 1 9 x x
C o u n t r y :             E S P

ID: The inverter ID.

DSP 1/2: The DSP digital control board firmware version

Three Phase System Installation Guide MAN-01-00057-4.1

60 Status Screens - Operational Mode

CPU: The communication board firmware version

Country: the current country setting

Server Communication Status

S e r v e r : L A N  < S _ O K >
S t a t u s :       < O K >
    x x x x x x x x
< E R R O R M E S S A G E >

NOTE
If the connection method is CDMA (referred to as "Cellular" in the status

screens)or GSM, the server screen is replaced with the Cellular or GSM status
screens (see
page 61).

Server: The method of connection to the SolarEdge monitoring platform.

S_OK: The connection to the SolarEdge monitoring platform is successful
(should appear only if the inverter is connected to the server).

Status: Displays OK if the inverter established successful connection and
communication with the specified server port/device (LAN, RS485, Wi-Fi or
ZigBee Plug-in).

xxxxxxxx: Eight-bit Ethernet communication connection status: A string of 1s
and 0s is displayed. 1 indicates OK, 0 indicates an error. For a list of the possible
errors and how to troubleshoot them, refer to
on page 80

Error message, according to failure. Refer to

http://www.solaredge.com/sites/default/files/se-inverter-installation­guide-error-codes.pdf.

Status Screens - Operational Mode

on page 57 and

GSMStatus

on

Troubleshooting Communication

IP Status

This screen describes the Ethernet configuration: IP, Mask, Gateway and MAC address
(Media Access Control) of the Inverter.

I P 1 9 2 . 1 6 8 . 2 . 1 1 9
M S K 2 5 5 . 2 5 5 . 2 5 5 . 0
G W 1 9 2 . 1 6 8 . 2 . 1
M A C 0 - 2 7 - 0 2 - 0 0 - 3 9 - 3 6

-Three Phase System Installation Guide MAN-01-00057-4.1

ZigBee Status

This screen describes the ZigBee configuration:

P A N : X X X X X
C H : X X / X X X X R S S I : < L >
M I D : X X X X X X

RSSI: The receive signal strength indication of the closest ZigBee in the system.
L = low, M = medium, H = high and (-) = no signal.

PAN ID: The ZigBee transceiver PAN ID (Personal Area Network Identification),
the IDuniquely represents a device in a Zigbee network.

Ch.: The ZigBee transceiver channel

ID: The ZigBee transceiver ID

MID: The Master ID of the coordinator (master) ZigBee Plug-in. This field is
shown only in devices with router (slave) ZigBee cards, and after a successful
ZigBee association. If a ZigBee Plug-in is not connected, a No ZigBee message
is displayed instead of the MID field.

Wi-Fi Status

This screen describes the Wi-Fi configuration:

I P : 1 9 2 . 1 6 8 . 2 . 1 1 9
G W : 1 9 2 . 1 6 8 . 2 . 1
S S I D : x x x x x x x x
R S S I : < L / M / H / - >

Chapter 6: User Interface 61

IP: The DHCP provided address

GW: The gateway IP address

SSID: Service Set Identifier - the name of a wireless local area network (WLAN).
All wireless devices on a WLAN must employ the same SSID in order to
communicate with each other.

RSSI: The receive signal strength indication of the closest Wi-Fi in the SolarEdge
system. L = low, M = medium, H = high and - = no signal.

GSMStatus

If a GSM Plug-in is connected, this screen replaces the Server status screen:

Three Phase System Installation Guide MAN-01-00057-4.1

62 Status Screens - Operational Mode

S e r v e r : C e l l  < S _ O K >
S t a t u s :        < O K >
M N O : < x x x x x x x > S i g : 5
< E r r o r m e s s a g e >

Server: The method of communication to the SolarEdge monitoring platform.
Should display Cell.

Status: Displays OK if the inverter established a successful physical connection
to the modem.

S_OK: The last communication to the SolarEdge monitoring platform was
successful (appears if the inverter is connected to the platform). If S_OK is not
displayed, refer to

MNO: The mobile network operator name

Sig: The signal strength, received from the modem. A value between 0-5, (0 =

no signal;
5 = excellent signal)

Error message:per communication connection status failure

Status Screens - Operational Mode

Communication Ports Status

          D e v  P r o t  # #
R S 4 8 5 - 1 < S E > < S > < - - >
Z i g B e e < S E > < M P S > < - - >

on page 57.

##: The total number of slaves detected on the specific port

Dev: The type of device that was configured to a specific port (based on the

port’s functionality), as follows:

SE: SolarEdge device (default)

LGR: Non-SolarEdge logger

MLT: Multiple devices, such as meters and batteries

HA: Home automation devices (for Smart Energy)

-Three Phase System Installation Guide MAN-01-00057-4.1

PROT: The protocol type to which the port is set:

For a SolarEdge device:

RS485 protocol ZigBee protocol

S: SolarEdge slave

M: SolarEdge master

P2P: ZigBee point-to-point

MPM: ZigBee multipoint master (for



the ZigBee gateway or for load
management by the inverter)

MPS: ZigBee multipoint slave (for a
ZigBee router card)

Chapter 6: User Interface 63

For electricity meters, refer to the

Connecting an Electricity Meter to SolarEdge Devices

http://www.solaredge.com/files/pdfs/solaredge-meter­installation-guide.pdf.

application note -

at

SS: SunSpec - for a non-SolarEdge logger (monitoring and control)

Smart Energy Management Status

This screen is displayed only when Smart Energy Management is enabled. The screen
shows energy details of the site:

S i t e L i m i t :      7 . 0 k W
S i t e P r o d :     1 0 . 0 k W
S i t e E x p o r t :    4 . 0 k W
S e l f - c o n s u m e : 6 . 0 k W

Site Limit: The limit that was defined for the site

Site Prod: The power produced by the site

Site Export: The power that is fed into the grid

Self-consume: The PVpower consumed by the site

For more information, refer to the
available on the SolarEdge website at

http://www.solaredge.com/files/pdfs/products/feed-in_limitation_application_
note.pdf.

Export Limitation Application Note

,

Three Phase System Installation Guide MAN-01-00057-4.1

64 Status Screens - Operational Mode

Fan Status

This screen is applicable to inverters equipped with external or internal fans, and
provides information about the fan status:

F a n S t a t u s :
F a n 1 : N o t W o r k i n g
F a n 2 : O p e r a t i n g

or

F a n S t a t u s :
I n t : N o t W o r k i n g
E x t : O p e r a t i n g

Each fan can have one of the following statuses:

Operating: Fan OK

Not Working: This status may indicate a system error and not necessarily a

faulty fan. Turning AC OFF and ON again may clear this status. If the status does
not change, replace the fan.

For more information, refer to

External Fan Maintenance and Replacement

on page 91.

Power Control Status

This screen is displayed only when Power Control is enabled (available from
communication board (CPU) firmware version 2.7xx/3.7xx and later).

P W R C T R L : R E M O T E
P W R L i m i t : 1 0 . 0 4 k W
C o s P h i :    0 . 9
P o w e r P r o d : 7 0 0 0 W



PWR CTRL: The power control status:

REMOTE - Communication with the RRCR or smart energy manager is
confirmed/validated.

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 6: User Interface 65

LOCAL - The power is controlled locally (e.g. by a fixed limit), or this
inverter limits the PV power production to its relative portion of the
feed-in power limit, as a result of disconnected communication with the
smart energy manager. If this status appears, check the communication
to the smart energy manager or the communication to the meter.

PWR Limit: The inverter maximum output power set by one of the power
limiting options:

RRCR

Smart energy manager (Feed-in limitation)

P(f)

P(U)

Q(U)

Cos Phi: The ratio between active to reactive power

Power Prod: The power produced by the inverter

For more information, refer to the

Power Control Application Note

available on the SolarEdge website at

http://www.solaredge.com/files/pdfs/application_note_power_control_
configuration.pdf.

,

Three Phase System Installation Guide MAN-01-00057-4.1

66 Chapter 7: Setting Up Communication

Chapter 7: Setting Up Communication

The inverter sends the following information to the monitoring platform:

Power optimizer information received via the DC power lines (the PV output
circuit).

Inverter information

Information of any other connected devices.


This chapter describes setting up communication between:

The inverter and the monitoring platform through the Internet (wired/ wireless),
or through a cellular connection.

Multiple inverters for a master/slave configuration.

Communication setup is not required for power harvesting, however it is needed for
using the monitoring platform.

CAUTION!
When connecting the communication cables, make sure that the ON/OFF

switch at the bottom of the inverter (and the switch of the DC Safety Unit if
applicable) is turned OFF, and the AC is turned OFF.

When configuring the communication parameters

removed

Unit if applicable) is OFF, and the AC is turned ON.

, make sure that the ON/OFF switch (and the switch of the DC Safety

while the inverter cover is

Communication Options

The following types of communication can be used to transfer the monitored
information from the inverter to the monitoring platform.

Only communication products offered by SolarEdge are supported.
Always connect the communication options when the relevant devices are powered

down - Commercial Gateway, inverter, etc.

Ethernet

Ethernet is used for a LAN connection. For connection instructions refer to .

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 7: Setting Up Communication 67

RS485

RS485 is used for the connection of multiple SolarEdge devices on the same bus in a
master-slave configuration. RS485 can also be used as an interface to external devices,
such as meters and third party data loggers.

RS485-1: Enables the connection of multiple devices (inverters/Commercial
Gateway)over the same bus, such that connecting only one device to the
Internet is sufficient to provide communication services for all the devices
on the bus.

RS485 Plug-in: Purchased separately, the RS485 Plug-in
provides an additional RS485 port (referred to as RS485-E) for
the inverter for enhanced communications. The plug-in is a 3
pin terminal block which is installed on the communication
board. This kit is provided with an installation guide, which
should be reviewed prior to connection see,

https://www.solaredge.com/sites/default/files/RS485_expansion_kit_installation_
guide.pdf

For connection instructions refer to
For connection instructions refer to .

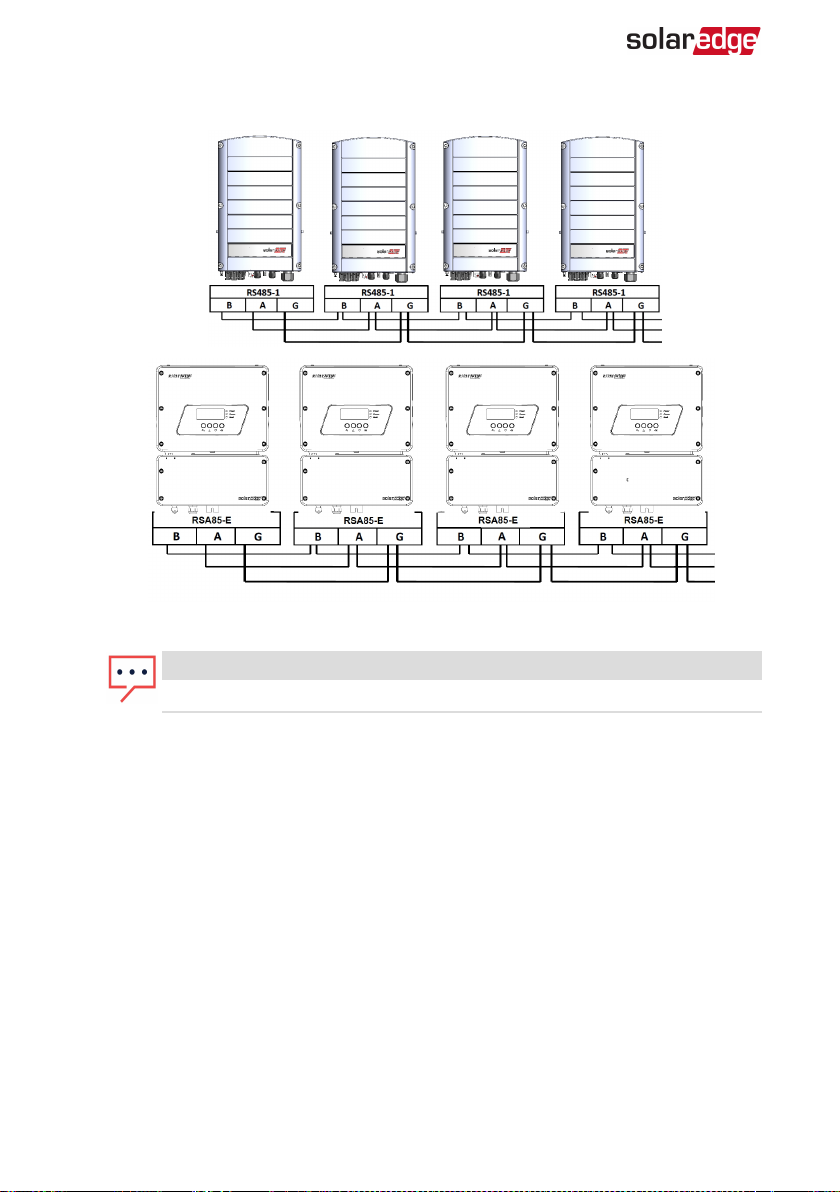

Creating an RS485 Bus Connection

on page 74

Wi-Fi

This communication option enables using a Wi-Fi connection for
connecting to the monitoring platform.

The Wi-Fi option requires a Wi-Fi Plug-in and an external antenna,
available from SolarEdge in a kit, which can be purchased separately and
assembled during system installation. The Wi-Fi Plug-in kit is provided
with a user manual, which should be reviewed prior to connection. Refer to

http://www.solaredge.com/sites/default/files/se_wifi_communication_solution_installation_
guide.pdf



Cellular (GSM, CDMA)

Three Phase System Installation Guide MAN-01-00057-4.1

68 Communication Options

This wireless communication option (purchased separately) enables
using a cellular connection to connect one or several devices (depending
on the data plan used) to the monitoring platform.

The GSM/CDMA Plug-in is provided with a user manual, which should be
reviewed prior to connection. Refer to

https://www.solaredge.com/sites/default/files/cellular_gsm_installation_guide.pdf

ZigBee

This option enables wireless connection to one or several Smart Energy products, which
automatically divert PV energy to home appliances.

This option enables wireless connection, and requires a ZigBee Plug-in and an external
antenna. ZigBee connection is used for:

Monitoring

ZigBee Gateway, for wireless communication to the SolarEdge
monitoring platform.

The ZigBee Gateway is provided with an installation guide, which
should be reviewed prior to connection. Refer to

https://www.solaredge.com/sites/default/files/se-zigbee-home-gateway-installation­guide.pdf.

Smart Energy Management

several Smart Energy products, which automatically divert PV
energy to home appliances.

The Smart Energy products are provided with an installation
guide, which should be reviewed prior to connection. Refer to

https://www.solaredge.com/products/device-control#/.

The ZigBee Plug-in for Smart Energy is provided with an
installation guide, which should be reviewed prior to connection.
Refer to https://www.solaredge.com/sites/default/files/se-device-

control-zigbee-module-installation-guide.pdf

- connection of one or several devices to a SolarEdge

- wireless connection to one or

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 7: Setting Up Communication 69

Communication Connectors

Two communication glands are used for connection of the various communication
options. Each gland has three openings. The table below describes the functionality of
each opening. Unused openings should remain sealed.

Gland# Opening Functionality Cable size (diameter)

One small External antenna cable 2-4 mm

1 (PG16)

2 (PG13.5) All three RS485, power reduction 2.5-5 mm

The communication board has a standard RJ45 terminal block for Ethernet connection,
and a 9-pin terminal block for RS485 connection, as shown below:

Two large

Ethernet connection

(CAT5/6), Cellular, ZigBee,

or Wi-Fi

Figure 19: Communication Glands

4.5-7 mm

Figure 20: Internal connectors

Three Phase System Installation Guide MAN-01-00057-4.1

70 Removing the Inverter Cover

Removing the Inverter Cover

If the inverter cover is not already removed, use the following procedure for cover
removal.

To remove the inverter cover

1. Turn the inverter ON/OFF/P switch to OFF. Wait 5 minutes for the capacitors to

discharge.

WARNING!
If the inverter was operating properly (power was produced by the power

optimizers), the following message is displayed.



This message is displayed until the DC voltage is safe (50V). Do not open the
cover until the voltage is safe or until at least five minutes have passed.

2. Turn the Connection Unit (if applicable) to OFF.

3. Disconnect the AC to the inverter by turning OFF the circuit breakers on the

distribution panel.

4. Open the Allen screws of the inverter cover and carefully pull the cover horizontally

before lowering it.

CAUTION!
When removing the inverter cover, make sure not to damage the internal

components. SolarEdge will not be held responsible for any components
damaged as a result of incautious cover removal.

D C V O L T A G E N O T S A F E
D O N O T D I S C O N N E C T
V D C : 7 2 . 0

Creating an Ethernet (LAN) Connection

This communication option enables using an Ethernet connection to connect the
inverter to the monitoring platform through a LAN.

Ethernet cable specifications:

Cable type – a shielded Ethernet cable (Cat5/5E STP) may be used

Maximum distance between the inverter and the router – 100 m/ 330 ft.

-Three Phase System Installation Guide MAN-01-00057-4.1

NOTE

If using a cable longer than 10 m / 33 ft in areas where there is
a risk of induced voltage surges by lightning, it is recommend
to use external surge protection devices.

For details refer to: http://www.solaredge.com/files/pdfs/lightning_

surge_protection.pdf.

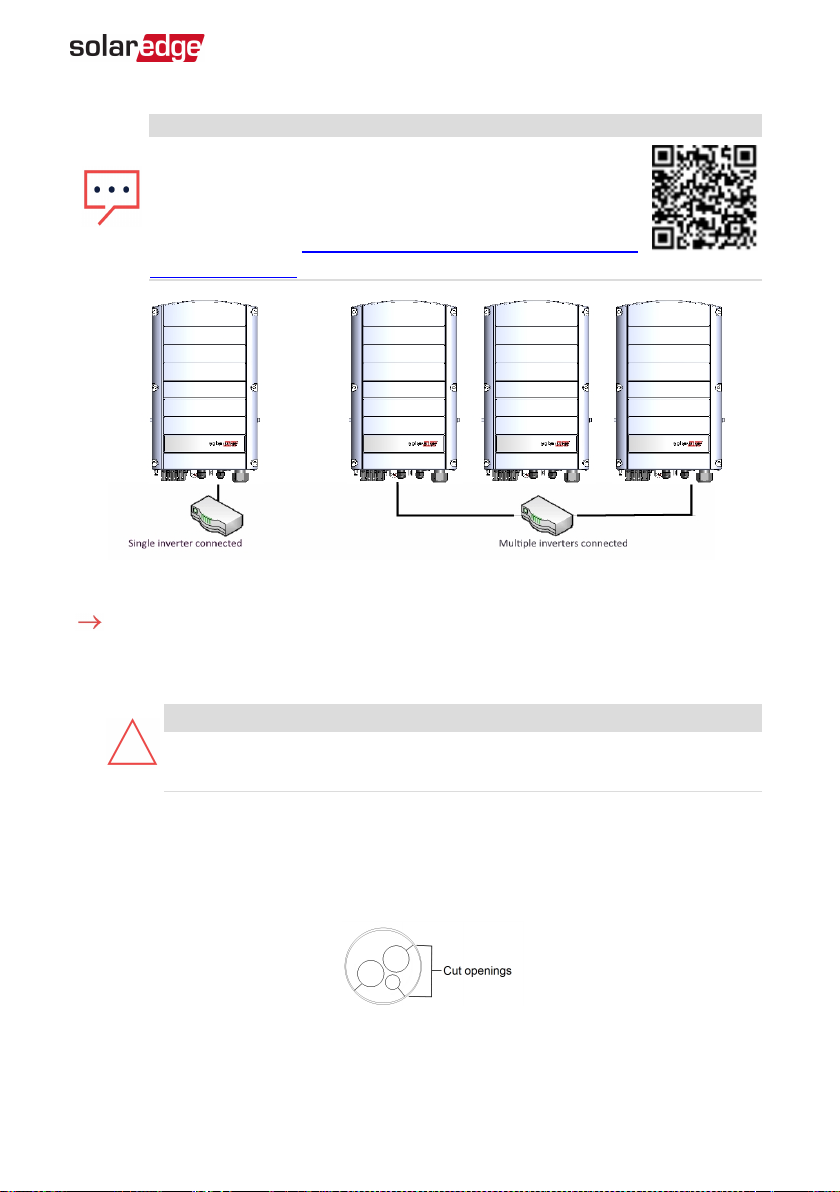

Figure 21: Example of Ethernet connection

To connect the Ethernet cable:

1. Remove the inverter cover .

Open the communication gland #1.

2.

Chapter 7: Setting Up Communication 71

CAUTION!

The gland includes a rubber waterproof fitting, which should be used to
ensure proper sealing.

3. Remove the plastic seal from one of the large opening .

4. Remove the rubber fitting from the gland and insert the CAT5/6 cable through the

gland and through the gland opening in the inverter .
Push the cable into the cut opening of the rubber fitting.

5.

Figure 22: Rubber fitting

Three Phase System Installation Guide MAN-01-00057-4.1

72 Creating an Ethernet (LAN) Connection

CAT5/6 standard cables have eight wires (four twisted pairs), as shown in the diagram
below. Wire colors may differ from one cable to another. You can use either wiring
standard, as long as both sides of the cable have the same pin-out and color-coding.

(1)

10Base-T Signal

100Base-TX Signal

RJ45 Pin #

Wire Color

T568B T568A
1 White/Orange White/Green Transmit+
2 Orange Green Transmit­3 White/Green White/Orange Receive+
4 Blue Blue Reserved
5 White/Blue White/Blue Reserved
6 Green Orange Received­7 White/Brown White/Brown Reserved
8 Brown Brown Reserved

Figure 23: Standard cable wiring

6. Use a pre-crimped cable to connect via gland #1 to the RJ45 plug on the inverter's

communication board or, if using a spool of cable, connect as follows:

a. Insert the cable through gland #1.

b. Remove the cable’s external insulation using a crimping tool or cable cutter and

expose eight wires.

c. Insert the eight wires into an RJ45 connector, as described in

Figure 23

.

d. Use a crimping tool to crimp the connector.

e. Connect the Ethernet connector to the RJ45 port on the communication board.

(1)

The inverter connection does not support RX/TX polarity change. Supporting crossover Ethernet cables depends on

the switch capabilities.

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 7: Setting Up Communication 73

Figure 24: The RJ45 Ethernet connection

7. For the switch/router side, use a pre-crimped cable or use a crimper to prepare an

RJ45 communication connector: Insert the eight wires into the RJ45 connector in the
same order as above (

Figure 23

).

8. Connect the cable RJ45 connector to the RJ45 port of the Ethernet switch or router.

You can connect more than one inverter to the same switch/router or to different
switches/routers, as needed. Each inverter sends its monitored data independently
to the monitoring platform.

The inverter is configured by default to LAN. If reconfiguration is required:

9.

a. Make sure the ON/OFF switch is OFF.

b. Turn ON the AC to the inverter by turning ON the circuit breaker on the main

distribution panel.
Use the internal user buttons to configure the connection, as described in

c.

Communication

on page 51.

NOTE



If your network has a firewall, you may need to configure it to enable
the connection to the following address:

Destination Address: prod2.solaredge.com

TCP Port: 22222, 22221, or 80 (for incoming and outgoing data)

10. Verify the connection, as described in

Three Phase System Installation Guide MAN-01-00057-4.1

Verifying the Connection

on page 78.

74 Creating an RS485 Bus Connection

Creating an RS485 Bus Connection

The RS485 option enables creating a bus of connected inverters, consisting of up to 31
slave inverters and 1 master inverter. Using this option, inverters are connected to each
other in a bus (chain), via their RS485 connectors. The first and last inverters in the
chain must be terminated as described on page 76.

RS485 wiring specifications:

Cable type: Min. 3-wire shielded twisted pair (a shielded Ethernet cable (Cat5/5E
STP) may be used)

Wire cross-section area: 0.2- 1 mm²/ 24-18 AWG (a CAT5 cable may be used)

Maximum nodes: 32

Maximum distance between first and last devices: 1 km /3300 ft.

 NOTE

If using a cable longer than 10 m/33 ft in areas where there is a
risk of induced voltage surges by lightning, it is recommend to
use external surge protection devices. For details refer to:

https://www.solaredge.com/sites/default/files/lightning_surge_
protection.pdf.

If grounded metal conduit are used for routing the communication wires, a
lightning protection device is not required.

If not using surge protection, connect the grounding wire to the first inverter
in the RS485 chain; ensure it is not in contact with other wires. For inverters
with a DC Safety Unit, connect the grounding wire to the grounding bus-bar
in the DC Safety Unit.

NOTE
An additional RS485 port (RS485-Plug-in) is available from

SolarEdge, allowing the creation of RS485 Bus Connection; Refer
to http://www.solaredge.com/files/pdfs/RS485_expansion_kit_

installation_guide.pdf

The following sections describe how to physically connect the RS485 bus and how to
configure the bus.



-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 7: Setting Up Communication 75

To connect the RS485 communication bus:

1. Remove the inverter cover as described in

Removing the Inverter Cover

on page 70.

2. Remove the seal from one of the openings in communication gland #2 and insert

the wire through the opening.
Pull out the 6-pin RS485 terminal block connector, as shown below:

3.

Figure 25: The RS485 terminal block

Loosen the screws of pins A(+), B(-), and G on the left of the RS485 terminal block

4.

(RS485-1 or RS485-2).

Figure 26: RS485 terminal block

Insert the wire ends into the G, A and B pins shown above. Use Four- or six-wire

5.

twisted pair cable for this connection.
You can use any color wire for each of the A, B and G connections, as long as:

The same color wire is used for all A pins the same color for all B pins and
the same color for all G pins

The wire for G is not from the same twisted pair as A or B.

For creating an RS485 bus - connect all B, A and G pins in all inverters. The following

6.

Three Phase System Installation Guide MAN-01-00057-4.1

76 Creating an RS485 Bus Connection

figure shows this connection schema:

Figure 27: Connecting the inverters in a chain

NOTE

Do not cross-connect B, A and G wires.

7. Tighten the terminal block screws.

8. Check that the wires are fully inserted and cannot be pulled out easily.

Push the RS485 terminal block firmly all the way into the connector on the right side

9.

of the communication board.
Terminate the first and last SolarEdge device in the chain by switching a termination

10.

DIP-switch inside the inverter to ON (move the left switch up). The switch is located
on the communication board and is marked SW7SW1.

-Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 7: Setting Up Communication 77

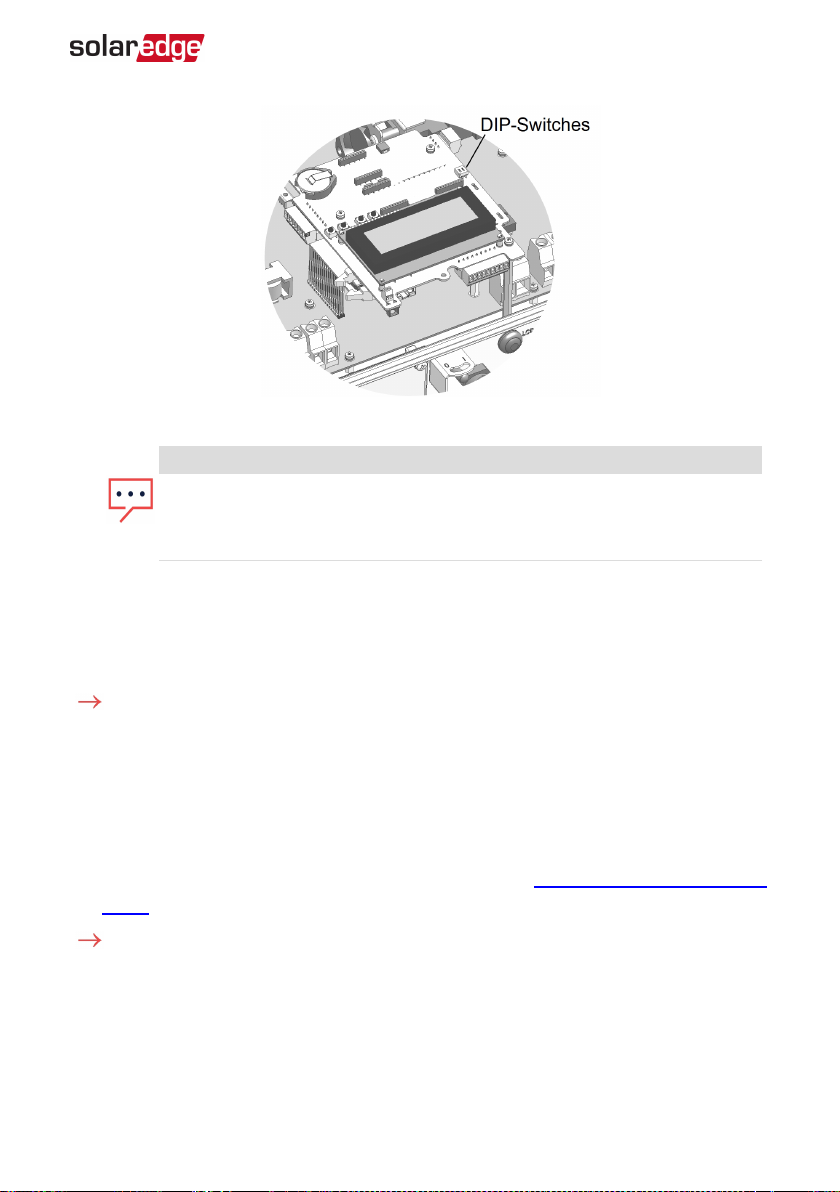

Figure 28: RS485 termination switch

NOTE

Only the first and last SolarEdge devices in the chain should be terminated.
The other inverters in the chain should have the termination switch OFF
(down position).

11. If not using surge protection, connect the grounding wire to the first inverter in the

RS485 chain; make sure the grounding wire is not in contact with other wires. For
inverters with a DC Safety Unit, connect the grounding wire to the grounding bus­bar in the DC Safety Unit.

To connect to the monitoring platform:

1. Designate a single inverter as the connection point between the RS485 bus and the

SolarEdge monitoring platform. This inverter will serve as the master inverter.

2. Connect the master to the SolarEdge monitoring platform via the LAN or ZigBee or

cellular communication option.

3. Install an RS485 Plug-in in every EV Charging single phase inverter , refer to the

'Installing the RS485 Expansion Module' chapter in the RS485 Expansion Kit Installation

Guide and to configure the RS485 bus refer to the following sections.

To configure the RS485 communication bus:

All inverters are configured by default as slaves. If reconfiguration is required:

Three Phase System Installation Guide MAN-01-00057-4.1

78 Verifying the Connection

1. Make sure the ON/OFF switch is OFF.

2. Turn ON the AC to the inverter by turning ON the circuit breaker on the main

distribution panel.

WARNING!
ELECTRICAL SHOCK HAZARD. Do not touch uninsulated wires when the inverter

cover is removed.

Use the internal buttons to configure the connection. To set the inverter designated

3.

as master, select the following in the LCDmenus:

Communication è Server è LAN, ZigBeeor Wi-Fi

RS485- Conf. è Device Type è SolarEdge

RS485- Conf. è Protocol è Master

RS485- Conf. è Slave Detect

The system starts automatic detection of the slave inverters connected to the
master inverter. The inverter should report the correct number of slaves. If it does
not, verify the connections and terminations.

4. Verify the connection of the master to the monitoring platform, as described in the

next section.

Verifying the Connection

After connecting and configuring a communication option, perform the following
steps to check that the connection to the monitoring server has been successfully
established.

1. Close the inverter cover: Attach the inverter cover and secure it by tightening the

screws with a torque of 10.3 N*m/ 7.6 lb.*ft. For proper sealing, first tighten the
corner screws and then the two central screws (see also

2. If not already ON - Turn ON the AC to the inverter by turning ON the circuit breaker

on the main distribution panel and turning on the DC Safety Unit (if applicable).

3. Wait for the inverter to connect to the SolarEdge monitoring platform. This may take

up to two minutes.

A status screen similar to the following appears on the LCD panel:

V a c [ V ] V d c [ V ] P a c [ w ]
2 4 0 . 7   1 4 . 1   0 . 0
P _ O K : 0 0 0 / 0 0 0 < S _ O K >

- - - - - - - - - - - - - - - O F F

-Three Phase System Installation Guide MAN-01-00057-4.1

Figure 17

).

Chapter 7: Setting Up Communication 79

S_OK: Indicates that the connection to the SolarEdge monitoring platform is successful.
If S_OK is not displayed, refer to

Errors and Troubleshooting on page 80.

Three Phase System Installation Guide MAN-01-00057-4.1

80 Appendix A: Errors and Troubleshooting

Appendix A: Errors and Troubleshooting

This appendix describes general system problems, and how to
troubleshoot them. For further assistance, contact SolarEdge Support.

For information on the error and warning messages that appear on the
LCD panel when an error occurs, refer to

http://www.solaredge.com/sites/default/files/se-inverter-installation-guide­error-codes.pdfhttps://www.solaredge.com/sites/default/files/troubleshooting_
for_se_inverter_insallation_guide_addendum_na.pdf.

Troubleshooting Communication

Troubleshooting Ethernet Communication

When using Ethernet communication, use the Server Communication Status window
to identify the location of the error:

S e r v e r : L A N  < S _ O K >
S t a t u s :       < O K >
    x x x x x x x x
< E R R O R M E S S A G E >

xxxxxxxx is a string of 1s and 0s showing an eight-bit communication connection
status. 1 indicates OK and 0 indicates an error.

Bit
Location

1st LAN Disconnected

2nd DHCP Failed, or Invalid DHCP Config

3rd Gateway Ping Failed

4th G Server Ping Failed

Error Message Cause and Troubleshooting

-Three Phase System Installation Guide MAN-01-00057-4.1

Physical connection fault. Check the cable pin­out assignment and cable connection. Refer to

Creating an Ethernet (LAN) Connection

page 70

IP settings issue. Check the router and inverter
configuration. Consult your network IT.

Ping to router failed. Check the physical
connection to the switch/router. Check that the
link LED at the router /switch is lit (indicating phy­link). If OK - contact your network IT, otherwise
replace the cable or change it from cross to
straight connection.

Ping to google.com failed. Connect a laptop and
check for internet connection. If internet access is
unavailable, contact your IT admin or your
internet provider.

on

Appendix A: Errors and Troubleshooting 81

Bit
Location

5th

Error Message Cause and Troubleshooting

For Wi-Fi networks, ensure that username and
password are as defined in the internet provider
AP/router.

Ping or connection to SolarEdge server
failed. Check the SolarEdge server

6th

Server x Ping Failed

address, under LAN Conf submenu:
Address: prod.solaredge.com

7th

8th Tcp Connect. Failed

Port: 22222



Check with your network administrator whether a
firewall or another device is blocking
transmission.

1. If the message Master Not Found appears, check the connections to the master

device and fix if required.
If after slave detection the number of slaves displayed in the master under RS485-X

2.

ConfèSlave Detect is smaller than the actual number of slaves, use one of the
following methods to identify missing slaves and troubleshoot connectivity
problems:

Use the Long slave Detect to retry connecting to slaves

Analyze the Slave List to check for missing slaves, and check
their connection

Refer to https://www.solaredge.com/sites/default/files/troubleshooting_

undetected_RS485_devices.pdf



Additional Troubleshooting

1. Check that the modem or hub/router is functioning properly.

2. Check that the connection to the internal connector on the communication board is

properly done.

3. Check that the selected communication option is properly configured.

4. Use a method independent of the SolarEdge device to check whether the network

and modem are operating properly. For example, connect a laptop to the Ethernet
router and connect to the Internet.

5. Check whether a firewall or another type of network filter is blocking

communication.

Three Phase System Installation Guide MAN-01-00057-4.1

82 Power Optimizer Troubleshooting

Power Optimizer Troubleshooting

If the inverter status screen indicates that not all power optimizers are
paired or not all are reporting (P_OK xxx/yyy, and x<y), those optimizers
can be identified through the LCD. Refer to

https://www.solaredge.com/sites/default/files/non_reporting_power_
optimizers.pdf

Problem Possible cause and troubleshooting

Power optimizers are shaded.
If you connected the inverter to the monitoring

Pairing failed

String voltage is 0V

String voltage not 0V but lower than
number of optimizers

platform, retry pairing remotely (during
sunlight). Make sure to leave the inverter
ON/OFF switch ON and that S_OK appears in
the status screen.

Power optimizer (s) output is disconnected.
Connect all power optimizer outputs.
Power optimizer(s) not connected in the string.
Connect all power optimizers
Module(s) not connected properly to power

optimizer inputs (not applicable to smart
modules).

Connect the modules to the optimizer inputs
String reverse polarity.

Check string polarity using a voltmeter and
correct if needed.

-Three Phase System Installation Guide MAN-01-00057-4.1

Problem Possible cause and troubleshooting

String voltage is higher than number
of optimizers

WARNING!
If the measured voltage is

too high, the installation
may not have a safe low
voltage. PROCEED WITH
CARE! A deviation of ±1%
per string is reasonable.

Appendix A: Errors and Troubleshooting 83

Extra power optimizer(s) connected in the string
(not applicable to smart modules).

Check if an extra power optimizer is connected
in the string. If not – proceed to next solution.

A module is connected directly to the string,
without a power optimizer (not applicable to
smart modules).

Verify that only power optimizers are connected
in the string and that no module outputs are
connected without a power optimizer. If the
problem persists, proceed to the next step.
Power optimizer(s) malfunction.

1. Disconnect the wires connecting the power

optimizers in the string.

2. Measure the output voltage of each power

optimizer to locate the power optimizer that
does not output 1V safety voltage. If a
malfunctioning power optimizeris located,
check its connections, polarity, module, and
voltage.

3. Contact SolarEdge Support. Do not continue

before finding the problem and replacing the
malfunctioning power optimizer. If a
malfunction cannot be bypassed or resolved,
skip the malfunctioning power optimizer,
thus connecting a shorter string.

Three Phase System Installation Guide MAN-01-00057-4.1

84 Appendix B: Mechanical Specifications

Appendix B: Mechanical Specifications

Figure 29: Inverter with bracket - front, side and rear views



Figure 30: Inverter mounting bracket



-Three Phase System Installation Guide MAN-01-00057-4.1

Appendix C: Connecting the AC and DCStrings to the DC Safety Unit 85

Appendix C: Connecting the AC and DCStrings
to the DC Safety Unit

Some inverter models are supplied with an integrated DC Safety Unit. This appendix
describes how to connect the AC grid and DC strings to the DC Safety Unit.

The DC Safety Unit includes:

Mechanical DCswitch (2-pole disconnection)

DCsurge protection (SPD, Type II)

DCfuses (plus & minus; optional)

This appendix describes connections to DC Safety Unit with or without fuses. The
following figure illustrates the DC Safety Unit supplied with fuses.



Three Phase System Installation Guide MAN-01-00057-4.1

Figure 31: Inside the DC Safety Unit with fuses

86 Connecting the ACGrid to the Inverter

Connecting the ACGrid to the Inverter

Use a five-wire cable for this connection. The maximum wire size for the input terminal
blocks is 16 mm².

To connect the AC grid to the inverter via the DC Safety Unit:

1. Turn OFF the following:

The inverter ON/OFFswitch

The AC circuit breaker

The DC Safety Unit

2. Open the inverter cover: Release the Allen screws and carefully move the cover

horizontally before lowering it.

CAUTION!
When removing the cover, make sure not to damage internal components.

SolarEdge will not be held responsible for any components damaged as a result
of incautious cover removal.

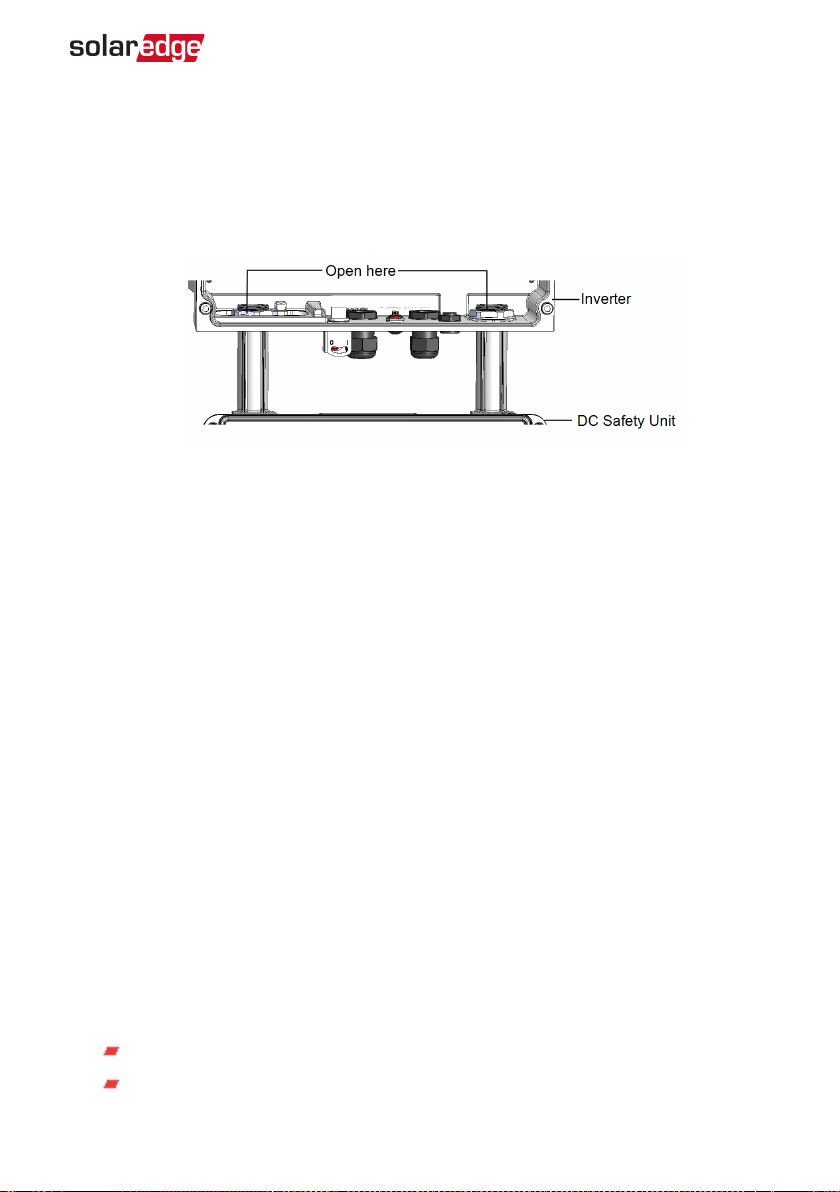

3. Loosen the screws on the front cover of the DC Safety Unit, as shown below:

Figure 32: Opening the DC Safety Unit cover

4. Remove the DC Safety Unit cover.

5. Strip 35 cm of the external cable insulation and strip 8 mm of the internal wire

insulation.

Figure 33: Insulation stripping – AC

6. Open the AC cable gland and insert the cable through the gland (see

-Three Phase System Installation Guide MAN-01-00057-4.1

Figure 31

).

Appendix C: Connecting the AC and DCStrings to the DC Safety Unit 87

Connect the grounding wire to the equipment grounding terminal in the DC Safety

7.

Unit.

NOTE

Connect the equipment grounding before connecting the AC wires to the
AC terminal block.

Insert the remaining four wires through the AC conduit to the inverter, and connect

8.

them to the appropriate terminal blocks in the inverter according to the labels on
the terminal blocks (N, L1, L2 and L3).

Figure 34: AC Terminals

9. Tighten the screws of each terminal with a torque of 1.2-1.5 N*m / 0.88-1.1 lb*ft.

10. Check that the wires are fully inserted and cannot be pulled out easily.

11. Tighten the AC cable gland with a torque of 5.0 N*m / 44 lb*in.

12. Verify that there are no unconnected wires.

13. Make sure the SPDs are tightly attached to the DIN rail.

NOTE
If power control is enabled, it is important to respect the order of grid lines

connection to the inverter. A 120deg phase difference should be kept between
L1 to L2 and between L2 to L3 (L1-L2-L3 and not, for example L1-L3-L2).
If the grid lines are not in this order, an error is displayed on the LCD screen
and the inverter will not produce power.

Connecting the Strings to the DC Safety Unit

Up to three strings may be connected in parallel to the DC input pairs of the switch. The
terminals are suitable for connection of copper conductors only.

To connect the strings to the DC Safety Unit:

1. Strip 8 mm of the DC wire insulation.

2. Insert the wires into the DC input glands of the DC Safety Unit .

Connect the DC wires according to the DC+ and DC- labels:

3.

Three Phase System Installation Guide MAN-01-00057-4.1

88 Connecting the Strings to the DC Safety Unit

For DC terminals

without fuses

: Use a standard flat-blade screwdriver to

connect the wires to the spring-clamp terminals.

The screwdriver blade should fit freely in the terminal opening.

Too large a blade can crack the plastic housing.

Insert the screwdriver and press the release mechanism and open

the clamp.

Insert the conductor into the round opening and remove the

screwdriver – the wire is automatically clamped.

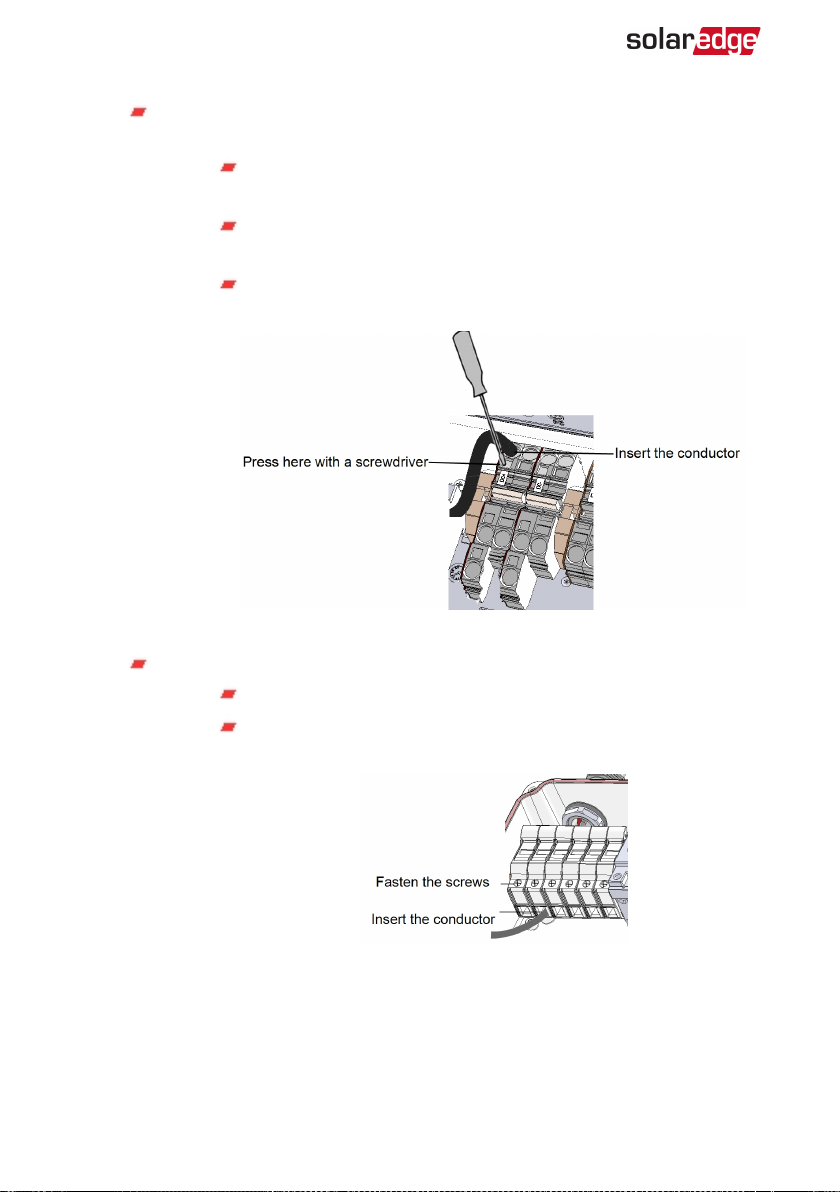

Figure 35: Spring-clamp terminals

For DC terminals

with fuses

:

Insert the wires into the side openings.

Fasten the screws at the top of the fuses. Apply torque of 3.4

N*M / 30 lb*in.

Figure 36: DC connection with fuses

4. Verify that there are no unconnected wires.

5. Close the DC Safety Unit cover: Attach the cover and secure it by tightening the four

screws with a torque of 1.2 N*m / 0.9 ft.*lb.

-Three Phase System Installation Guide MAN-01-00057-4.1

Appendix C: Connecting the AC and DCStrings to the DC Safety Unit 89

6. Ensure proper cable entry sealing: inspect the entire cable run and use standard

sealants to avoid water penetration.

Three Phase System Installation Guide MAN-01-00057-4.1

90 Appendix D: SafeDC™

Appendix D: SafeDC™

When AC supply to the inverter is shut off (by shutting off the AC breaker at the site), or
when the inverter ON/OFF switch is turned to OFF, the DC voltage drops to a safe
voltage of 1V per optimizer.

The SolarEdge inverters are certified for compliance with the following standards as
disconnection devices for PV generators, meaning that they can replace a DC
disconnect:

IEC 60947-3:1999 + Corrigendum: 1999 + A1:2001 + Corrigendum 1:2001 +
A2:2005;

DIN EN 60947-3

VDE 0660-107:2006-03

IEC 60364-7-712:2002-05

DIN VDE 0100-712:2006-06.

In compliance with these standards, the disconnection mechanism operates as follows:

Turn the inverter ON/OFF switch, located at the bottom of the inverter, to OFF, or

1.

disconnect the AC by shutting off the AC breaker at the site. The DC voltage
displayed on the inverter LCD begins to decrease.

If the AC breaker was shut off, the LCD does not display. In this case, wait five
minutes.

2. When the DC voltage reaches a safe voltage, the PV connectors at the input to the

inverter can be disconnected. A galvanic separation then exists between the PV
array and the inverter.

WARNING!
SafeDC complies with IEC60947-3 when installing the system with a worst case

SafeDC voltage (under fault conditions) < 120V.
The worst case voltage is defined as: Voc,max+ (String Length-1)*1V, where:

Voc,max = Maximum Voc (at lowest temperature) of the PV module in
the string (for a string with multiple module models, use the max value)

String Length = number of power optimizers in the string

-Three Phase System Installation Guide MAN-01-00057-4.1

Appendix E: External Fan Maintenance and Replacement 91

Appendix E: External Fan Maintenance and Replacement

The inverters have two fans: one is internal and the other is accessible from the outside
of the inverter.

A fan replacement kit is available from SolarEdge.

Figure 37: Inverter external fan

Fan Maintenance

1. At least once a year, open the fan screen and clean the accumulated dust using a

brush.

2. Check the Fan Status screen on the LCD (refer to

If one of the following occurs, replace the fan as described below:

3.

When the fan stops operating

Fan status is Not Working; Before replacing the fan, turn the inverter AC OFF
and ON and check if the status is cleared

The following Error is displayed:

F a n 2 F a i l u r e


Fan Status

on page 64).

External Fan Replacement

1. Turn OFF the inverter ON/OFF switch, and wait until the LCD indicates that the DC

voltage is safe (<50V), or wait five minutes before continuing to the next step.

Three Phase System Installation Guide MAN-01-00057-4.1

92 External Fan Replacement

WARNING!
If you cannot see the inverter panel, or if a malfunction is indicated on the

LCD panel, wait five minutes for the input capacitors of the inverter to
discharge.

2. Turn OFF the DC Safety Unit (if applicable) and the AC breaker of the distribution

panel.

3. Use a standard screwdriver to unfasten the single screw of the fan cover.

4. Open the fan door.

5. Disconnect the fan connector and remove the fan.

Figure 38: Fan connector

6. Connect the fan connector to the new fan.

7. Close the fan door and fasten the cover screw.

8. After powering up the inverter, check the fan status screen as described in

Status

on page 64.

Fan

-Three Phase System Installation Guide MAN-01-00057-4.1

Appendix F: Replacing and Adding System Components 93

Appendix F: Replacing and Adding System Components

This appendix includes replacement procedures for the SolarEdge system components.
For inverter or DC Safety Unit replacement, typically only the part to be replaced is
supplied (not both inverter and DC Safety Unit). In this case, the DC Safety Unit should
be disconnected from the inverter as described herein.

NOTE
If you are permanently disassembling the installation or part of it, make sure to

use the disposal methods dictated by local regulations.

CAUTION!

Do not remove the six screws on the DC metal panel as it
may harm the inverter sealing and void the warranty.

Replacing an Inverter

1. Turn OFF the DC Safety Unit (if applicable).

2. Turn OFF the inverter ON/OFF switch, and wait until the LCD indicates that the DC

voltage is safe (<50V), or wait five minutes before continuing to the next step.

WARNING!
If you cannot see the inverter panel, or if a malfunction is indicated on the

LCD panel, wait five minutes for the input capacitors of the inverter to
discharge.

3. Disconnect the AC to the inverter by turning OFF the circuit breakers on the

distribution panel.

4. Open the inverter cover as described in

5. Disconnect the DC plugs and AC wires from the inverter.

For inverters with a DC Safety Unit, unscrew the two conduit nuts in the inverter

6.

securing the DC Safety Unit to the inverter.

Three Phase System Installation Guide MAN-01-00057-4.1

Removing the Inverter Cover

on page 70.

94 Replacing the DC Safety Unit

Figure 39: Conduit nuts

7. Remove the screws securing the inverter to the mounting bracket and remove the

inverter from the mounting bracket.

NOTE
If you remove the old inverter and do not immediately install a new one, use

insulation tape to isolate each of the AC and DC wires

8. Place the new inverter on the mounting bracket; insert the screws securing the

inverter to the mounting bracket.

9. For inverters with a Connection Unit, screwthe two conduit nuts in the inverter

securing the DC Safety Unit to the inverter.

10. Connect all the wires to the inverter: Follow the instructions of

on page 23 and

11. Close the DC Safety Unit cover (if applicable) and the inverter cover.



Commissioning the Installation

on page 36.

Installing the Inverter

Replacing the DC Safety Unit

Removing the DC Safety Unit

1. Turn OFF the inverter ON/OFF switch, and wait until the LCD indicates that the DC

voltage is safe (<50V), or wait five minutes before continuing to the next step.

WARNING!
If you cannot see the inverter panel, or if a malfunction is indicated on the

LCD panel, wait five minutes for the input capacitors of the inverter to
discharge.

2. Turn OFF the DC Safety Unit and the AC breaker of the distribution panel.

3. Open the inverter cover.

-Three Phase System Installation Guide MAN-01-00057-4.1

Appendix F: Replacing and Adding System Components 95

4. Disconnect the DC and AC wires from the inverter. If there are ferrite beads on the

DC and AC wires in the inverter, open them and set aside.

5. Disconnect the RS485 connector from the inverter communication board.

Unscrew the two conduit nuts in the inverter securing the DC Safety Unit to the

6.

inverter, as shown below:

Figure 40: Disconnecting the conduits

7. Open the DC Safety Unit cover and disconnect the DC and AC wires. Unscrew the

two conduit nuts securing the DC Safety Unit to the external conduits.

8. If the DC Safety Unit bracket is screwed to the wall, release it.

9. Carefully remove the DC Safety Unit with its mounting bracket from the wall.

Installing a New DC Safety Unit

1. Open the conduit drill guides of the new DC Safety Unit .

2. Position the new DC Safety Unit below the inverter and from the inside of the

inverter grab the AC and DC wires extending from the switch conduits.

3. Attach the DC Safety Unit with its bracket to the wall and slightly close the screws.

Do not over tighten.

4. Securely screw the two conduit nuts onto the conduit ends in the inverter. Verify

proper conduit sealing.

Connecting the DC Safety Unit to the Inverter

1. If ferrite beads were removed from the DC and AC wires, place them on the wires

and close them. Make sure the DC labeled ferrite bead is placed on the DC wires and
the AC labeled ferrite bead is placed on the AC wires.

2. Connect the DC, as follows:

Connect the red wire to any of the DC+ terminals in the inverter.

Connect the black wire to any of the DC- terminals in the inverter.

Three Phase System Installation Guide MAN-01-00057-4.1

96 Replacing the DC Safety Unit



Figure 41: DC terminals

Connect the AC wires according to the labels on the ACterminal blocks, as follows:

3.




Wire type Connect to terminal

Line 1 L1

Line 2 L2

Line 3 L3

PE (grounding)

Neutral N

Figure 42: AC terminals

4. Tighten the screws of each terminal with a torque of 1.2-1.5 N*m / 0.88-1.1 lb.*ft.

5. Verify that there are no unconnected wires at the output of the DC Safety Unit and

that any unused terminal screws are tightened.

6. Connect the DC and AC wires to the DC Safety Unit. Refer to

the Strings to the Inverter

on page 31.

Connecting the AC and

7. Ensure proper cable entry sealing; inspect the entire cable run and use standard

sealants to avoid water penetration.

-Three Phase System Installation Guide MAN-01-00057-4.1

Appendix F: Replacing and Adding System Components 97

Adding, Removing, or Replacing Power Optimizers

Turn OFF the inverter ON/OFF switch, and wait until the LCD indicates that the DC

1.

voltage is safe (<50V), or wait five minutes before continuing to the next step.

WARNING!

If you cannot see the inverter panel, or if a malfunction is indicated on the
LCD panel, wait five minutes for the input capacitors of the inverter to
discharge.

2. Turn OFF the DC Safety Unit (if applicable).

3. Disconnect and connect the necessary power optimizers.

4. Perform pairing and other procedures described in

on page 36 on all inverters to which power optimizers were added or from which
power optimizers were removed.

5. In the monitoring platform, use the Replace button in the logical

layout tab (in site Admin). Replace the serial number of the removed
power optimizer with the serial number of the newly installed power
optimizer. Refer to https://www.solaredge.com/sites/default/files/se-

monitoring-portal-site-admin.pdf

Commissioning the Installation

Three Phase System Installation Guide MAN-01-00057-4.1

98 Appendix G: Determining the Circuit Breaker Size

Appendix G: Determining the Circuit Breaker Size

Revision History

Version 1.0 February 2019: first release

Introduction

Inverters should be protected by circuit breakers. This document describes how to
determine which circuit breaker to use in three phase commercial installations.

Using Transformers in Commercial Three Phase Inverter Installations

Using transformers in a commercial installation is optional. In most cases a transformer
is used to connect the installation to the medium voltage power grid. The following
figure illustrates a typical transformer and commercial three phase inverter installation
topology.

Figure 43: Typical transformer and commercial three phase inverter installation topology

-Three Phase System Installation Guide MAN-01-00057-4.1

Appendix G: Determining the Circuit Breaker Size 99

There are many considerations for selecting the suitable transformer and its associated
current limiting devices such as circuit breakers and fuses. The considerations must
include at least the following:

The transformer should be designed for a typical PV system production profile:
high daytime loads with no loads at night.

The current limiting devices should protect the electrical circuits and the
inverters from the excess current created by an overload, or a short circuit. If a
short circuit or other overcurrent occurs, the current limiting devices should
block the current flow to the circuit, thus preventing damage to the electrical
circuits and the inverters.

The circuit breakers and the fuses should comply with the transformer
manufacturer recommendations and with the relevant sections in standards
such as IEC 60909, IEC 60364, UL 508A and NEC 2017.
Some manufacturers provide detailed information about the transformer short
circuit calculation procedure, and its effect on the selection of circuit breakers
and fuses at the different hierarchical levels of the installation topology (see

Figure 43

).

For an example of a calculation, refer to:

Guidelines on the Short Circuit Current Rating for Industrial Control Panels

Short-circuit current rating (SCCR) of industrial control panels

To ensure that the circuit breaker and fuses trip as expected, follow their
manufacturers' recommendations, especially with respect to the various de­rating considerations.

NOTE
Transformer procurement, installation, maintenance and support are the

responsibility of the installer. Damage to the inverter due to incorrect
transformer installation, or use of a transformer that is incompatible with the
SolarEdge system will render the SolarEdge warranty invalid.

 

NOTE
Transformer procurement, installation, maintenance and support are the

responsibility of the installer. Damage to the inverter due to incorrect
transformer installation, or use of a transformer that is incompatible with the
SolarEdge system will render the SolarEdge warranty invalid.

Three Phase System Installation Guide MAN-01-00057-4.1
