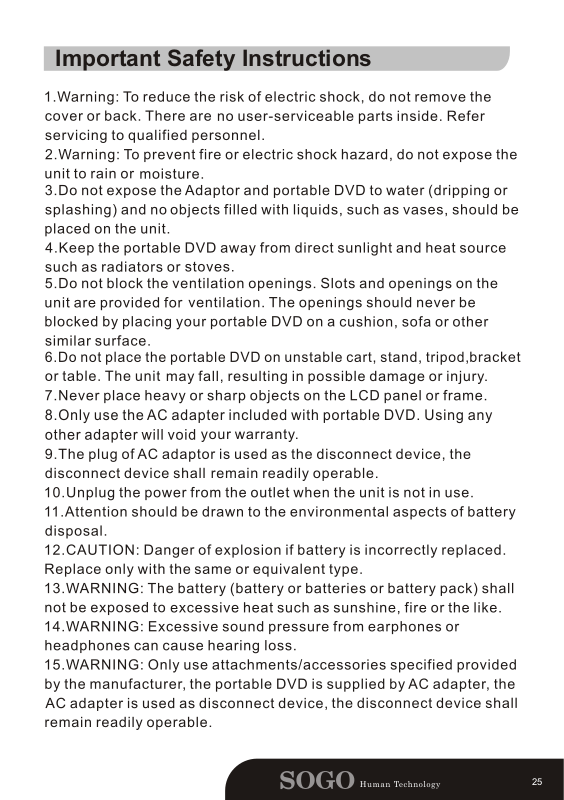

Important Safety Instructions
25

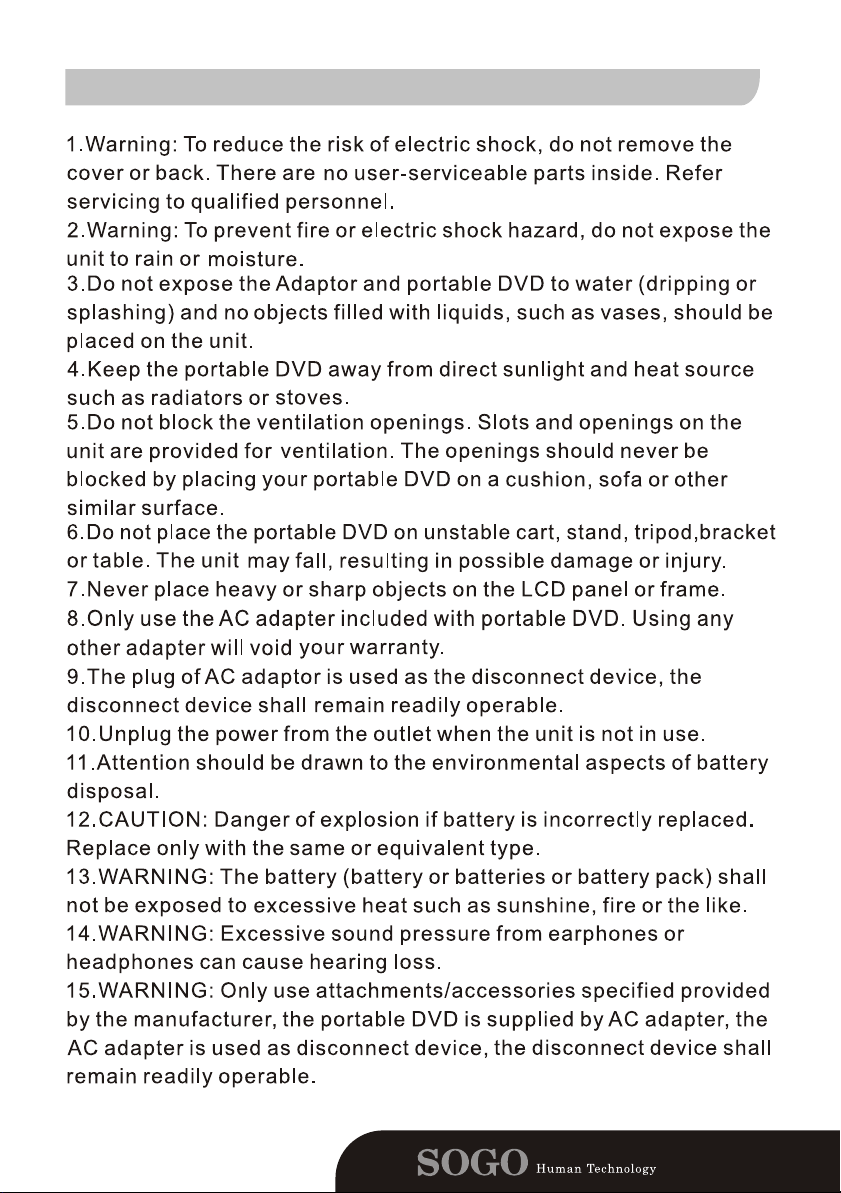

Safety Precautions
1.Warning:
2.Warning:
3.Warning:
4.Caution:
5.Warning:
6.Warning:
7.Warning:
8.Warning:
9.Warning:
26

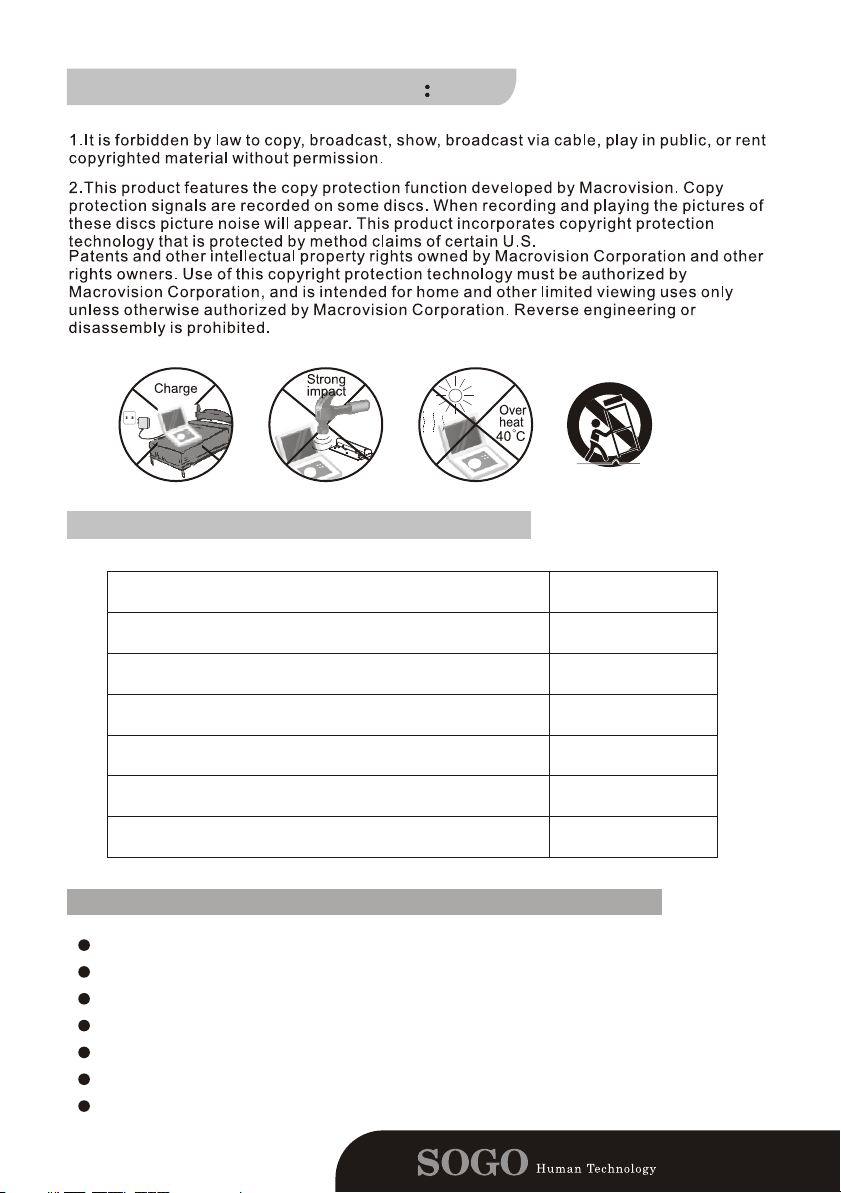

Notes on Copyrights
Package
DVD Player
Remote Control with battery
AC/DC Power Adapter
Cigarette Lighter Adapter
User Manual
Earphone
Carry bag
Main Features
High brightness color 7” LCD screen
Compatible with disc of DVD,VCD,MP3,MPEG4,CD,JPEG,etc
Built-in stereo speaker
Built-in rechargeable Lithium polymer battery
Support PAL or NTSC system
Support Multi-language OSD,speed forward/backward,repeat function
Zoom in/out function
1
1
1
1
1
1
1
27

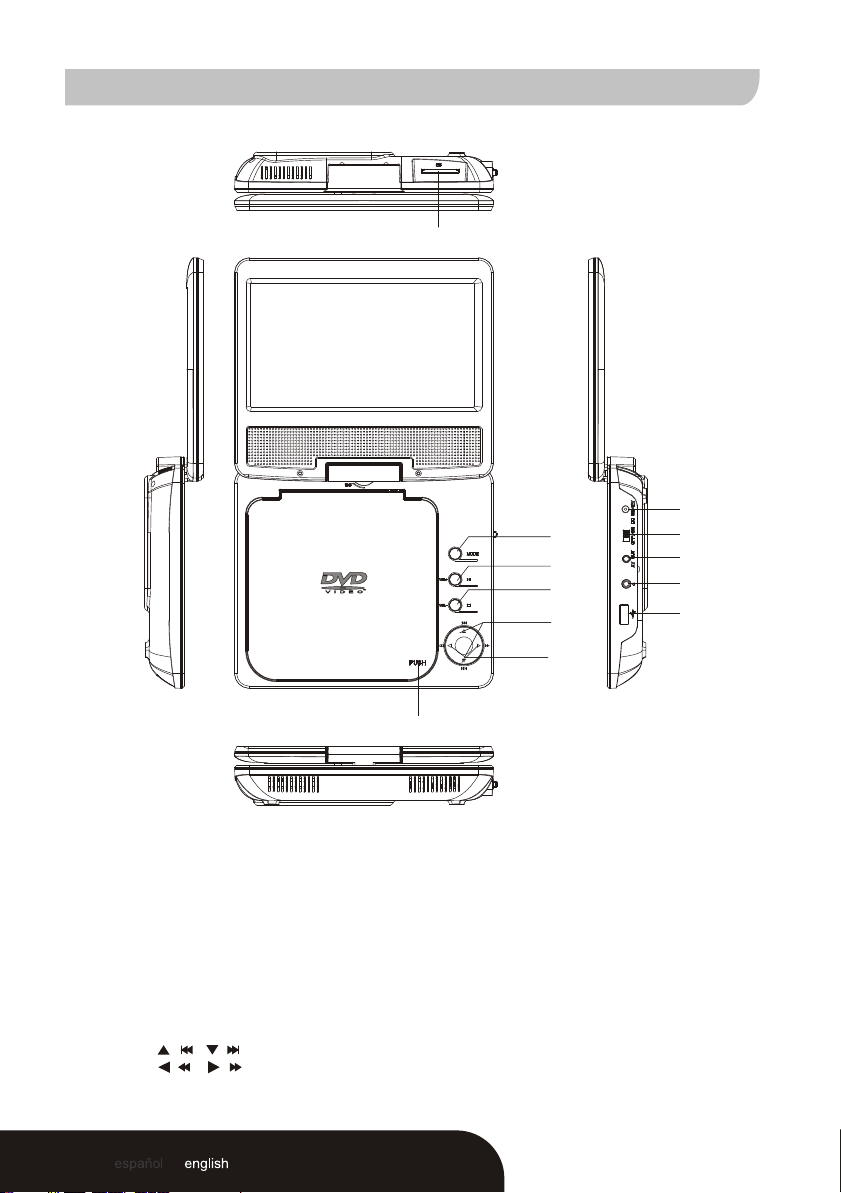

Main Unit Controls
1
7
2
3
4
5
6
8
9
10
11
28
1. SD card slot
2. MODE button
3. PLAY/PAUSE button /Vol+
(Press shortly to play/pause,
press longly to add volume.)
4. STOP button and Vol (Press shortly to stop,
press longly to reduce volume.)
5.
( )
( )
/
( )/( )
6.
12
7. DC IN 9-12V
8. Power ON/OFF switch
9. AV OUT
10. Earphone jack
11. USB Port
12.Open knob
System Connection

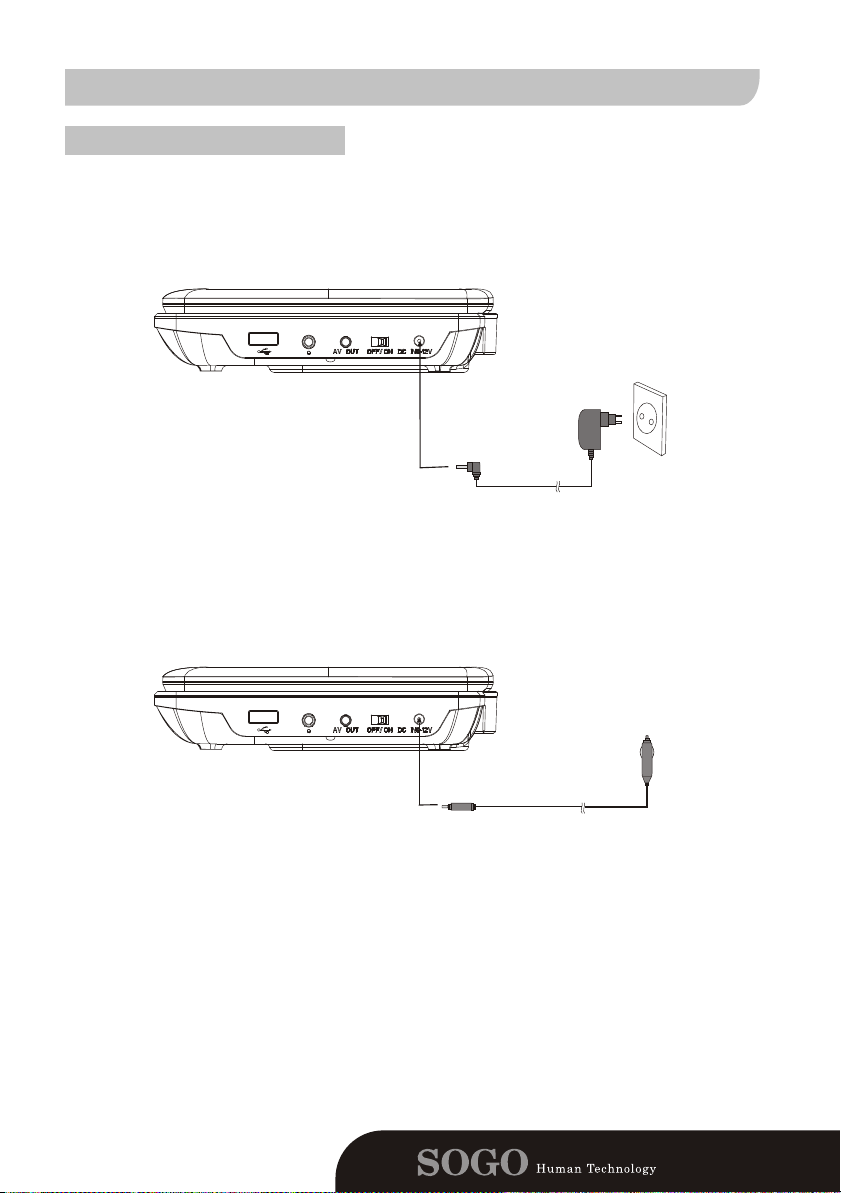

Powering and installation
Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the
unit, then plug the other end into the AC power receptacle. Please refer to the following
illustration.
If using car cigarette lighter adaptor to connect to the power:
Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug
the other end into the car cigarette lighter socket.See illustration below.
Note:
1.Car cigarette lighter adaptor is not recommended to recharge the battery.
2.Car cigarette light adaptor can only be used when the car power supply is 9-12V.
3.The mains plug is used as the disconnect device, the disconnect device should remain
readily operable.
29

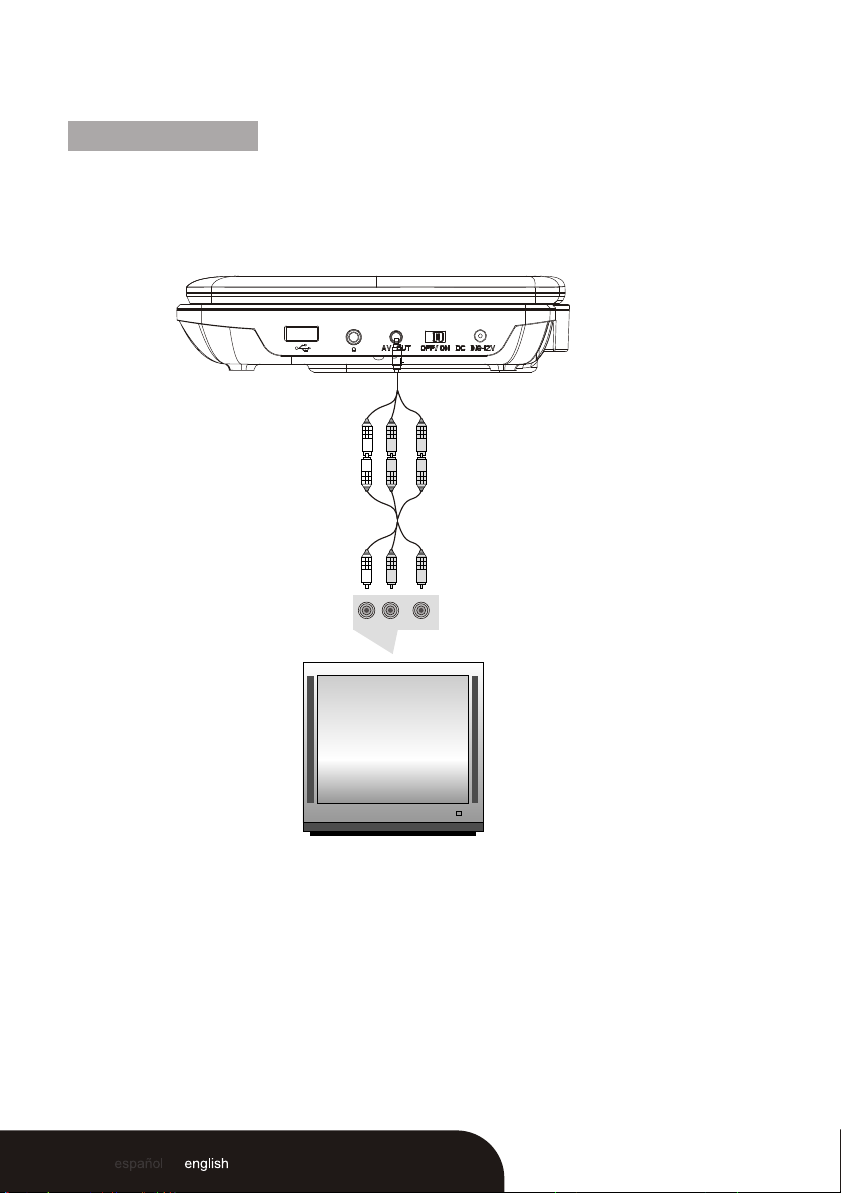

Connecting to TV
You can also connect the unit to TV to enjoy high quality picture and stereo sound.
Please refer to the following illustration:
AV CABLE
Not supplied
VIDEO IN
AUDIO IN
TV
Please use AV cable to connect the machine and the TV. Make sure it is connected
correctly.
30

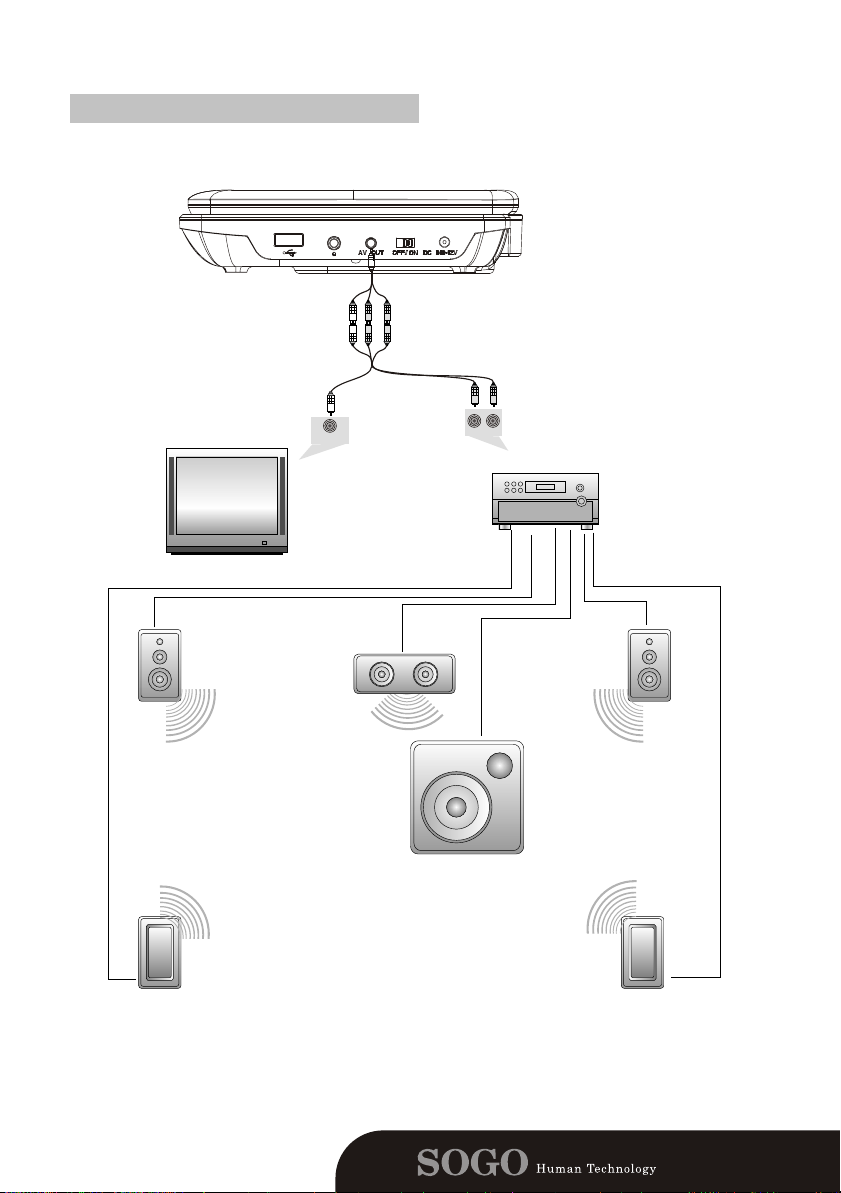

Connecting with external Speaker
The unit can be connected with external speaker.Please see the following illustration.
Left front speaker
SUBWOOFER
AV CABLE
Not supplied
TV
Center speaker
Not supplied
AUDIO INVIDEO IN
AMPLIFIER
Right front speaker
Left rear speaker
Note:
There is no 5.1 channel in the unit, however,after connecting to APM it is available to output
audio in 5.1 channel.
Right rear speaker
31

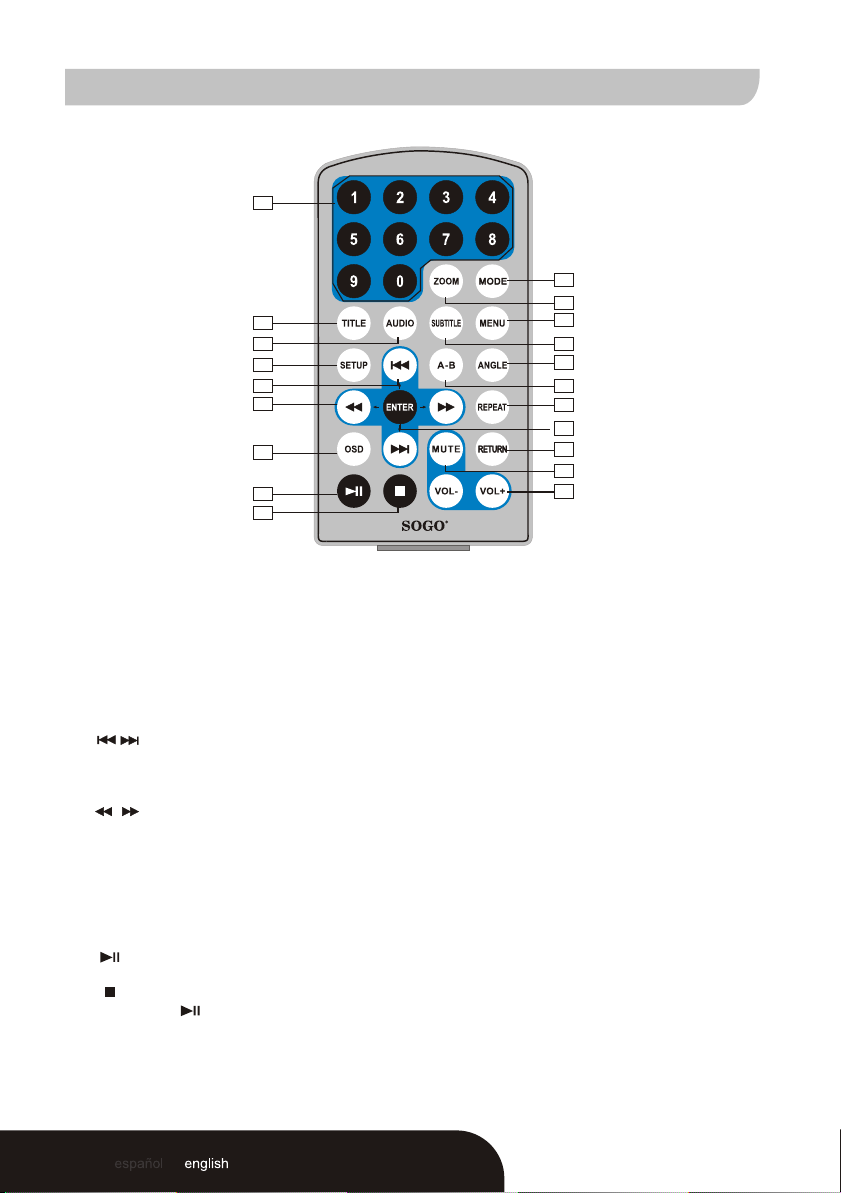

The Remote Control
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
20
17
18
19
SS-7865
1. Number button
2. TITLE(To display title information)
3. AUDIO(To select audio language)
4. SETUP(To go to or exit setup menu)
5. Previous/Next button(To go
to previous/next chapter or scene
during playing)
6. Fast forward/backward
button(To scan forward/backward
at 2,4,8,16,or 32 times)
7. OSD(To display disc information
during playing such as elapsed and
remaining time)
8. PLAY/PAUSE
9. STOP(press once to stop playback,
then press to resume playback
from the point where you stopped;
press stop button twice to stop
playback completely)
32
10. MODE(To select the source)
11. ZOOM(To zoom in/out the image
during the playback)
12. MENU(To enter or exit root menu)
13. SUBTITLE(To select subtitle
language when playing DVD disc)
14. ANGLE(To change viewing angle
when playing disc with multi-angle)
15. A-B(Repeat a specific portion from
point A to B, press it again to cancel
repeat playing)
16. REPEAT(To repeat playing title,
chapter or track)
17. RETURN(To return to the main menu)
18. MUTE(To turn to mute)
19. VOL +/- (To adjust the volume)
20. ENTER(To confirm)
The Use of Remote Control

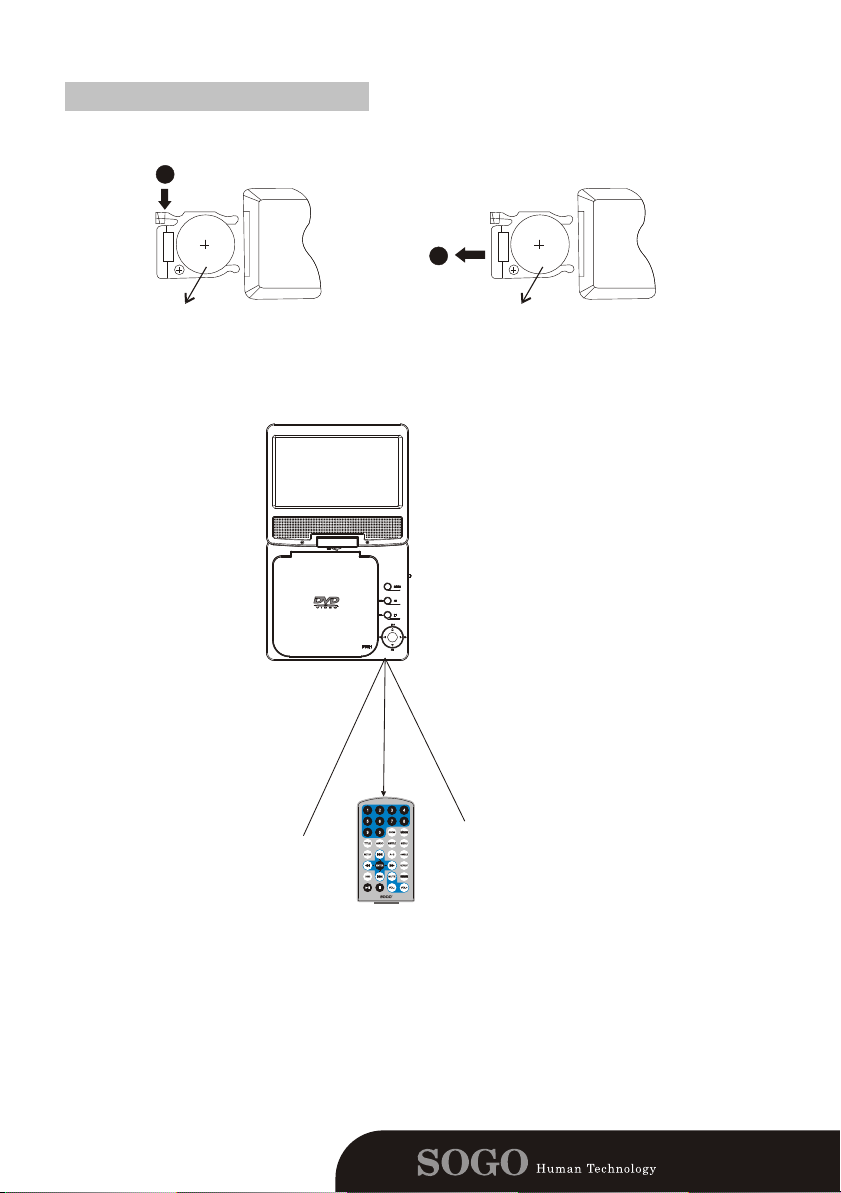

Please put the battery into the remote control as per below illustration.
1
2
CR2025 CR2025
When using remote control,make sure the infrared window is pointed to infrared receiving
window of the machine.The distance between machine and remote control must be within
3 metres.Please refer to the following illustration.
SS-7865
Note:
1. To avoid falling off or place near damp environment.
2. To avoid infrared receiving window of the unit being under direct sunlight.
3. Please use a new battery to replace old one if the remote control doesn't work.
33

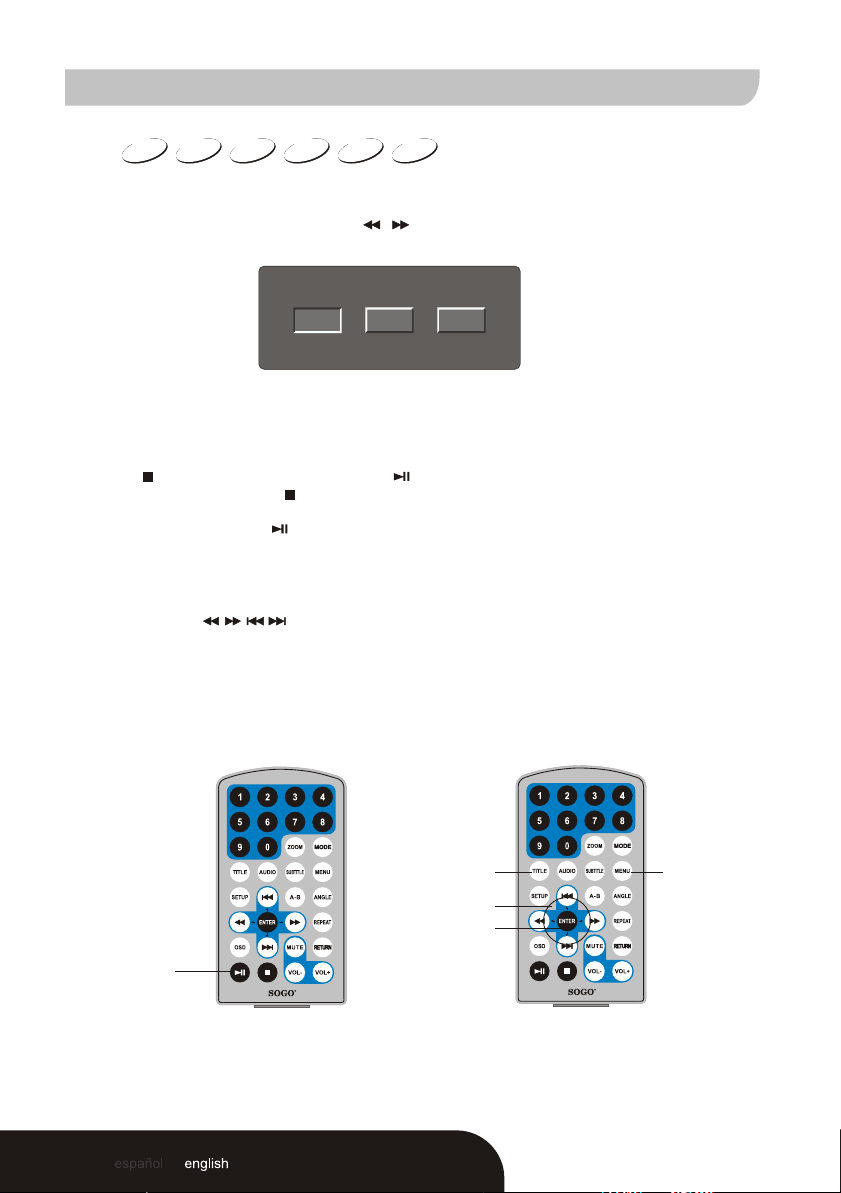

Basic Operation
DVD
MPEG4
SVCD VCD CD
Playing disc of DVD, MPEG4, SVCD, VCD, CD, Mp3.
1.
In the Source Mode,you can press ,to select and "ENTER" key to enter the
source you want.
MP3
“ ”
DVD
SD USB
2. Open the disc door and insert a disc into the door with the label side facing up.
3. Close the disc door.The unit will load the disc and start playing.
4. Press“ ”once to stop playback; press“ ”to resume playback from the point
where you stoped;press“ ”twice to stop playback completely.
5. During playback,press“ ”to pause; press it again to resume playback.
6. When the playing is finished, please turn off the power by sliding ON/OFF switch to OFF.
7. For some DVD disc with Title or Chapter menu, press“MENU”button to enter menu
page, and use“ ”to select. Press ENTER to confirm.
Note:
Please do not disconnect USB devices or plug out SD/MMC cards while they are working
with the unit.Functional failure may occur in case of wrong operations.
Title Menu
Cursor button
ENTER
34
Play/pause
SS-7865
SS-7865

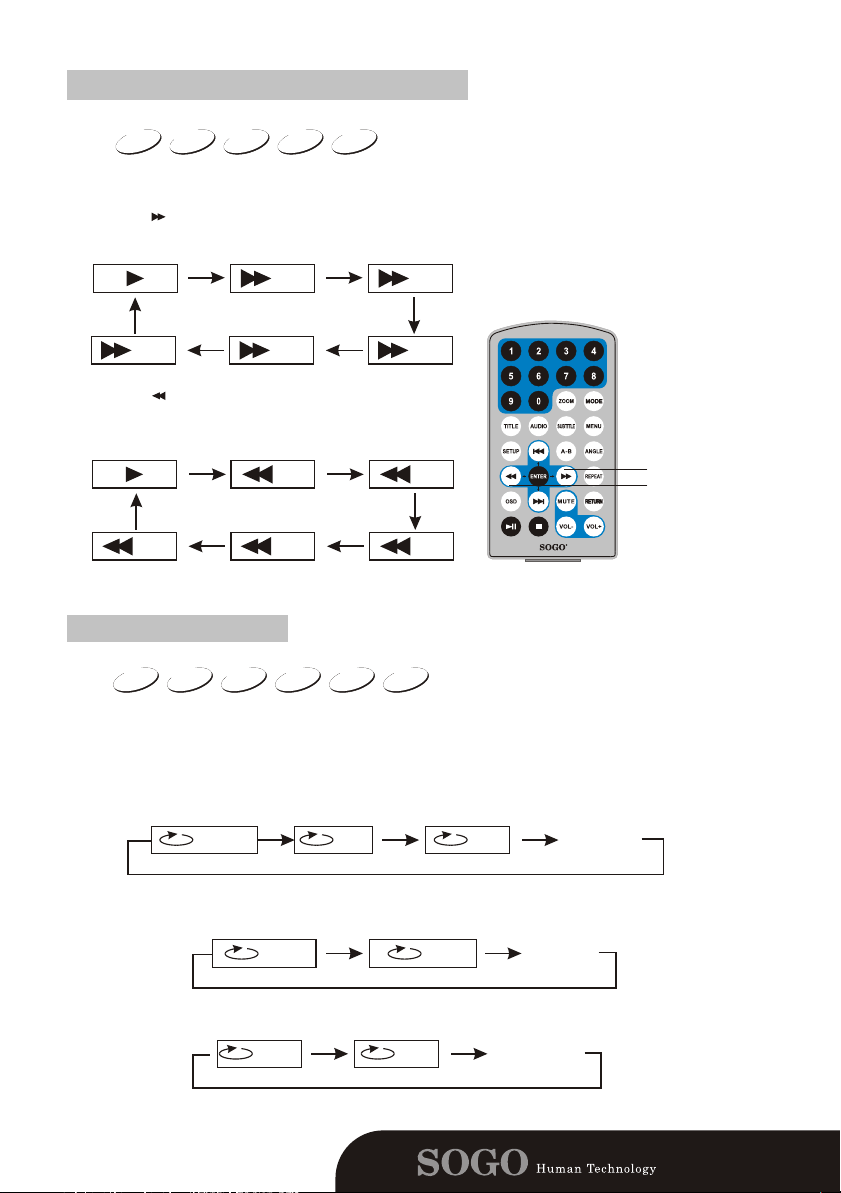

Fast forward and fast backward
MPEG4
DVD
When playing disc of DVD,MPEG4,SVCD,VCD,CD, the machine can search forward or
backward.
1. Press“ ”,the unit will search forward. Press it repeatedly ,the machine will play
at 2, 4,8, 16, 32 times of speed.
2. Press“ ”, the unit will search backward.
Press it repeatedly,the machine will play at
2,4,8,16,32 times of speed.
SVCD VCD CD
2X 4X
8X16X32X
2X 4X
16X32X
8X
SS-7865
Search forward
Search backward

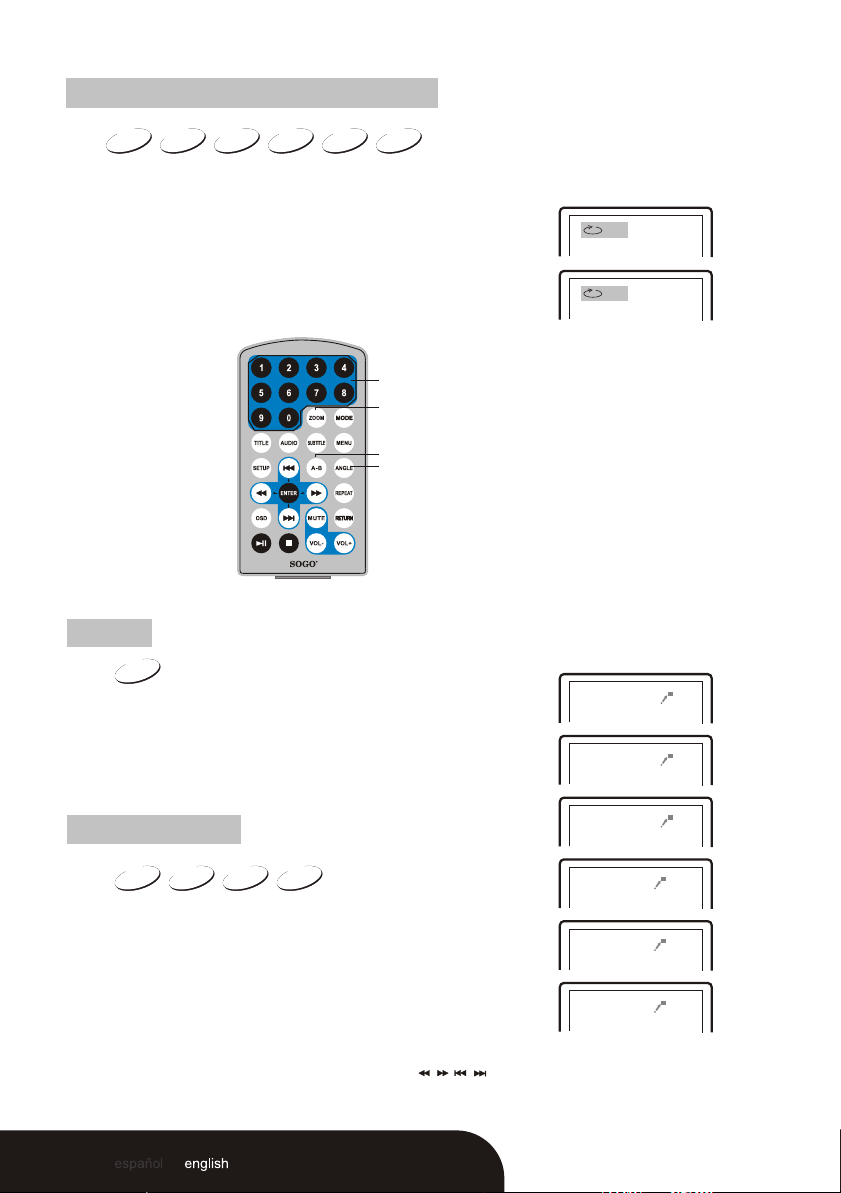

Repeat playing
DVD
MPEG4
SVCD VCD CD
When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeat playing one
chapter, title or the whole disc.
For DVD disc,press“repeat”button,user can repeat playing one Chapter;press it
again to repeat playing Title;press it the third time to repeat playing the whole disc.
Chapter Title All
For MP3 disc,press“repeat”button to repeat playing present file;press it again to repeat
playing the folder;press it the third time to cancel repeat function.
one folder
For CD/VCD disc, press repeatedly to repeat the track and the whole disc. “repeat”button
MP3
Repeat off
Repeat off
Track
All
Repeat off
35
Repeat playing of favorite scene
DVD
MPEG4
VCDSVCD
MP3
CD
When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeatedly play a
specific section.
During playback,press“A-B”button at a point A,then press
this button again in point B,the unit will automatically repeat
A
playing the part between“A-B”
AB
Press it the third time,the unit will return to normal playback.
Number
Zoom in/out
A-B
Angle
SS-7865
Angle
DVD
During playing DVD disc with multi-angle, press
“Angle”button to change the display angle.
Note:
The function is available only for discs with
multi-angle.
Zoom in/ out
DVD MPEG4 VCD
During playback,press“Zoom”button,the image will be
enlarged;press it again the image will be enlarged again;
press it fourth time,the image will zoom out,press it
repeatedly and the image will return to normal status.
When playing disc of DVD,MPEG4,SVCD,VCD,user can
zoom in or zoom out the image.
When the image is enlarged,user can press“ / / / ”to move the image.
36
SVCD
2X
3X
4X
1 /2X
1 /3X
1 /4X
Playing JPEG file in data disc
1. Place a JPEG disc into the tray, the unit will start reading and play.
2. Press “ ” to select a JPEG file and press“ENTER”button to confirm.
Note:you can press “MENU” to return to the folder list.Press “ ” or “ENTER” to
preview the file selected.
3. To rotate the picture counter-clockwise,press“ ”;Press “ ”to rotate the picture
clockwise.
4. Press “OSD” button when viewing pictures,you can select different refresh mode as
follows:
1. from top to bottom
2. from bottom to top
3. from left side to right side
4. from right side to left side
5. from left top to right bottom
6. from right top to left bottom
7. from left bottom to right top
8. from right bottom to left top
9. from horizontal center to both sides
10.from vertical center to both sides
11.from top and bottom to center
12.from right and left to center
13.from four window's top side to bottom side
14.from four window's left side to right side
15.from 4 edges to center
5. During viewing files,“ ”may appear when pressing“Angle”or“Subtitle”or “Audio”
or“A-B”or“Title”etc; in this situation these options are unavailable to operate.
6. When viewing JPEG files,press“ ”,pictures will be displayed in thumbnail mode,
press“ ”or“ENTER”button to select one picture to view.
Playing MP3 files in data disc
1.Place MP3 disc into the disc door.
Press “ ” or “ENTER”button to choose an MP3 file;Press “ ” or“ENTER”button to
play the file selected.

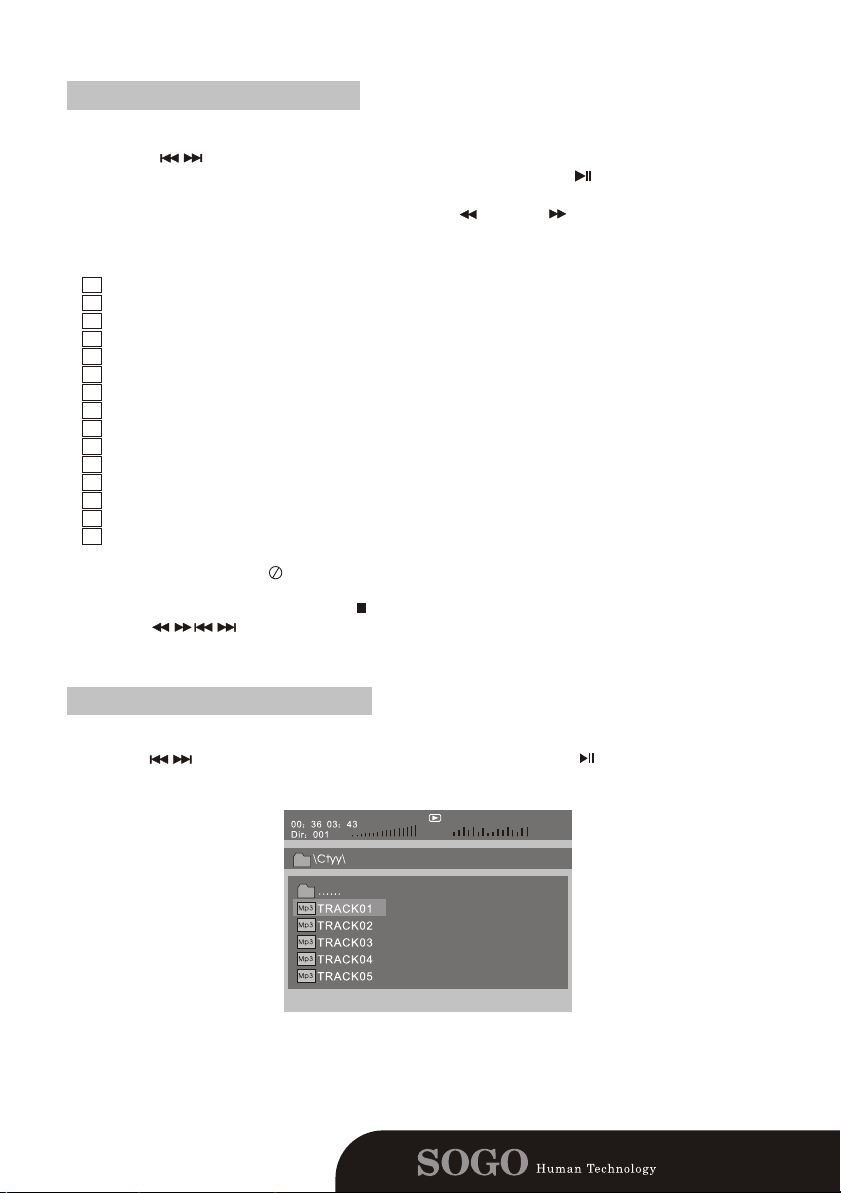

00 36 03 43
Dir 001
\Ctyy\
......
Mp3
TRACK01
Mp3
TRACK02
Mp3
TRACK03
Mp3
TRACK04
Mp3
TRACK05
37

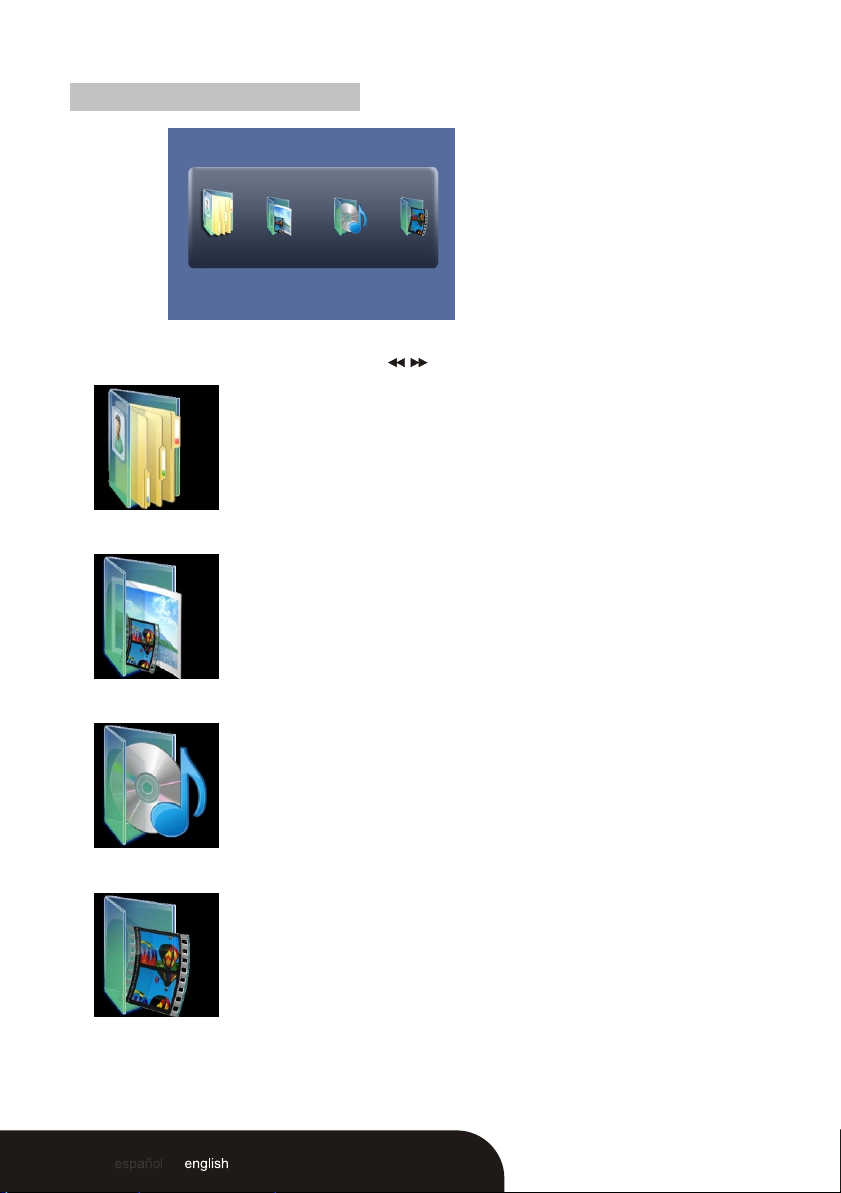

SD/MMC/USB main menu
After entering the SD/MMC or USB,the system will show Main Menu which includes 4
Function ICONS.You can select them by and press key to confirm.“ ” “ENTER”
Browser Mode
Please refer to P39 for detail explanation
Photo Mode
Please refer to P39 -40for detail explanation
Music Mode
Please refer to P40 for detail explanation
Movie Mode
Please refer to P41 for detail explanation
Note:Media cards formatted in exFAT file system are not supported.
38

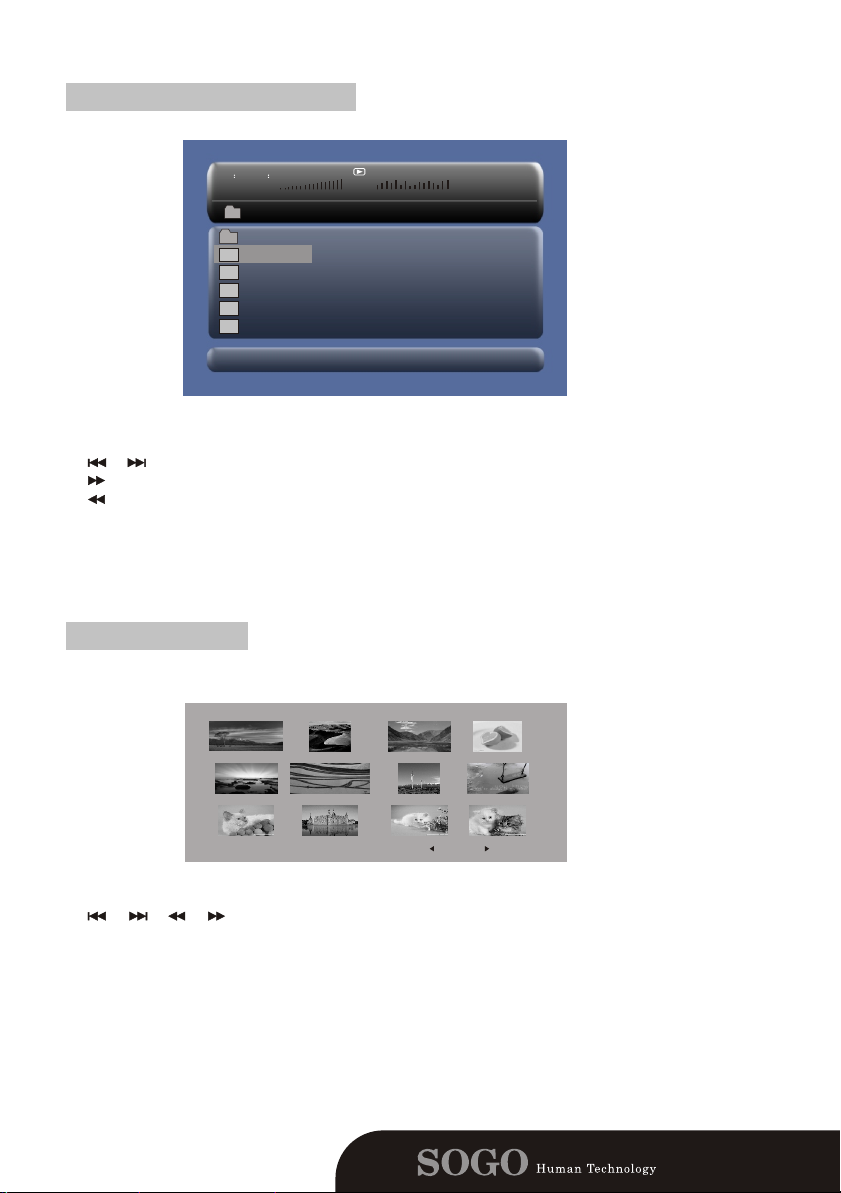

Browser mode
00 00 03 43
001/008
\Ctyy\
......
Mp3
TRACK01
Mp3
TRACK02
Mp3
TRACK03
Mp3
TRACK04
Mp3
TRACK05
In the Browser Mode,the system will show the list of file and folder.
“ ” “ ” “ENTER”
, , key:select and play
“ ”
:Enter the folder
“ ”
:Quit the folder
Note:
If you want to return to the Main Menu,please make sure the system is in list of file or
folder status,then press RETURN KEY.“”
Photo mode
Slide Show Menu Prev Next
In the Photo Mode,the System will show the thumbnail Mode first.
“ ” “ ” “ ” “ ” “ENTER”
, , , , :select and play.
Slide Show:play the JPEG.
Menu:Enter the Help Menu.
Prev:Page Up.
Next:Page Down.
39
When playing JPEG :
1.To rotate the picture counter-clockwise,press “ ”; Press“ ” to rotate the picture
clockwise
2. Press OSD button when viewing pictures,you can select different refresh mode as
follows:
1. from top to bottom
2. from bottom to top
3. from left side to right side
4. from right side to left side
5. from left top to right bottom
6. from right top to left bottom
7. from left bottom to right top
8. from right bottom to left top
9. from horizontal center to both sides
10.from vertical center to both sides
11.from top and bottom to center
12.from right and left to center
13.from four window's top side to bottom side
14.from four window's left side to right side
15.from 4 edges to center
3. During viewing files,“ ”may appear when pressing“Angle”or“Subtitle”or“Audio”
or“A-B”or“Title”etc;in this situation these options are unavailable to operate.
4. When viewing JPEG files,press“ ”and“RETURN”key,pictures will be displayed in
thumbnail mode,press“ ”or“ENTER”button to select one picture to view.
Note :
If you want to return the Main Menu, please press“RETURN”key in the thumbnail mode.
Music mode
40
128Kbps
Mp3
TRACK01
Mp3
TRACK02
Mp3
TRACK03
Mp3
TRACK04
Mp3
TRACK05
P P
00 00 03 43
001/008
Repeat Off

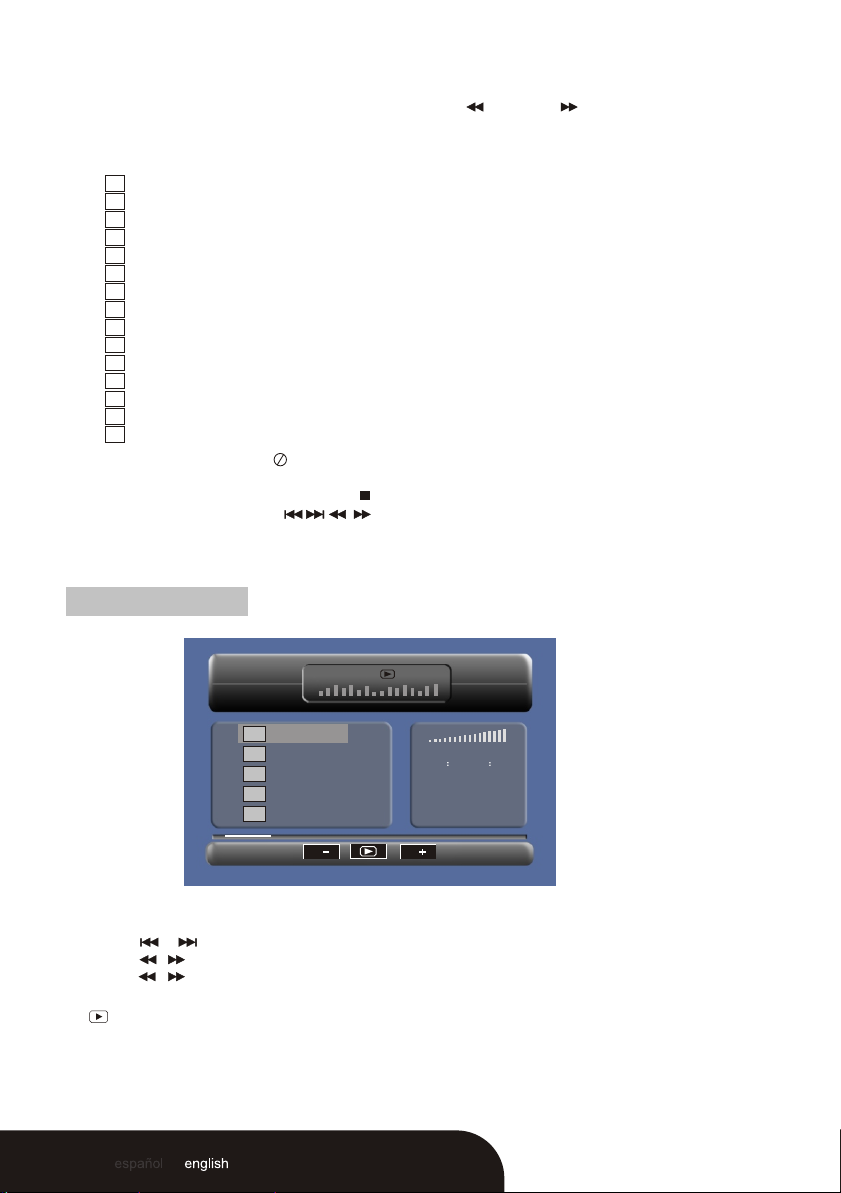

In the Music Mode,the system will show the list of music file,like Mp3 and so on.
“ ” “ ” “ENTER”
Press , , ,select and play.
“ ”
Press to fast forward /backward MP3 during playing.
“ ” “ ”
Press to select the function button when in stop status.
Page-:Page Up.
:play
Page+:Page Down
Note:Press Return Key to Return to the Main Menu.
“”
Movie mode
001/006
AVI
TRACK01
AVI
TRACK02
AVI
TRACK03
AVI
TRACK04
AVI
TRACK05
AVI
TRACK06
In the Movie Mode,the system will show the list of Movie file,like AVI and so on.
, , Key:Select and Play.
“ ” “ ” “ENTER”
When playing movie you can press MENU and Return Key to back to the list of movie
file status.And if you want to Return to the Main Menu,Please Press Return key in list
“”“ ”
“”
of Movie file status.
CD RIPPING
During playing the CD/HDCD disc,you can enter CD Ripping function.By pressing
subtitle button,DVD player will be able to change the CD format into MP3 format,
and then store it in the USB or SD card.
CD RIP
Options
Speed Normal
Bitrate 128kbps
Create Id3 Yes
Device USB 1
SUMMARY
Selected Track 0
Selected Time 00:00
Start Exit All None
Track
Track 01 03:36
Track 02 03:36
Track 03 03:36
Track 04 03:36
Track 05 03:36
Track 06 03:36
Track 07 03:36
41
Speed: In this item, you can set the rip speed: Normal or Fast.
Bitrate: In this item, you can set the bitrate. It has 6 choices,128Kbps,192Kbps,256Kbps,
320Kbps,96Kbps and 112Kbps.
Create ID3:In this item, you can create ID3 when playing CD text.
Device: This item indicates whether USB or SD CARD is connected with DVD player.
Exit: Exit to the previous menu.
All: Select all the files in the disc for convertion and storage.
None: Cancel the selection.
Start: Move the cursor to the item and press “ENTER” button, the convertion begins.
During the converting,you can select “CANCEL” to stop it.
CD RIP
Ripping
Track Progress
Total Progress
Cancel
SUMMARY
Now ripping
Track 01/01
Selected track
Track 01 9%
42
System Setup
Setup Menu -- Main Page
General Setup
Video Setup
Preference Setup
“”
Press Setup button,the main menu will be
displayed on the screen
In the main Page,Press button to
highlight the item.
Press ENTER button to access.
“”
Press Setup button to exit.
“ ”
General Setup Page
General Setup
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
:Move
:Return :Entry
General Setup
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
:Move
:Return :Entry
General Setup
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
:Move
:Return :Entry
Normal/PS
Normal/LB
Wide
On
Off
Spanish
English
French
German
Italian
Portugese
Polish
TV display:
Enter this option,user can set screen display
format(Nomal/PS,Nomal/LB,Wide)
The default is Wide
Note
The function depends on the display ratio
with which the DVD disc is recorded.
Please choose Wide(16:9) when using
a 16:9 wide screen TV set.
Angle Mark:
Enter this option to set the angle during
playback.
Optional setting:ON,OFF
“”
“”
The default is:ON
OSD Language:
In the option user can set OSD menu
language(Spanish, English,French,
German,Italian, Portugese, Polish).
The default: Spanish
General Setup
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
:Move
:Return
On
Off
:Entry
Screen Saver
Enter this option to set whether to activate
the screen saver function.
The default is ON.
43
Video Setup Page
Video Setup
TV Type PAL
Quality
Panel Quality
:Move
:Return
Video Setup
TV Type PAL
Quality
Panel Quality
:Move
:Return
Video Setup
TV Type PAL
Quality
Panel Quality
:Move
:Return
PAL
NTSC
:Entry
:Entry
:Entry
TV Type:
Enter this option to select TV type(PAL,NTSC)
The default is PAL.
Set the Video Quality of AV OUT
Set the Video Quality of PANEL
Preference Page
44
Preference Setup
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
:Move
:Return
Spanish
French
German
Italian
:Entry
Audio:
Enter this option,user can select preferred
audio language for DVDs.
The default is Spanish.
Note
The audio language depend on the material
on each disc.
User can also change the audio language
duri ng pla yback by pressing the Audio button.
Preference Setup
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
Spanish
French
German
Italian
Off
Subtitle
Select your preferred language to show the
subtitles on the screen.
The default is OFF
The subtitle languages depend on the
information available on each disc,You can
also change the subtitle language during
playback by press the SUBTITLE button.
:Move
:Return :Entry
Preference Setup
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
:Move
:Return :Entry
Preference Setup
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
:Move
:Return
Preference Setup
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
Spanish
French
German
Italian
1 KID SAFE
2 G
3 PG
4 PG 13
5 PGR
6 R
7 NC 17
8 ADULT
:Entry
Reset
Disc Menu
This function allows you to choose the menu
language stored on the disc.
The default is Spanish.
Note:the disc menu languages depend on the
information available on the disc.
Parental:
Enter this option to set the parental control
level to some unsuitable disc scenes being
watched by the children.
Optional parental control levels: KID SAFE,
G, PG,PG 13,PGR, R, Nc17, ADULT.
The default is ADULT.
The default password:8888.
Default:
Select this item and press “ button to
reset.
ENTER”
:Move
:Return
:Entry
45
Specification
Compatible disc: DVD/VCD/CD/MP3/MPEG4
Signal system: PAL/NTSC
Panel size: 7 inch
Frequency response: 20 Hz to 20 kHz
Video output: 1 Vp-p/75Ohm, unbalanced
Audio output: 1.4Vrms/10kOhm
Audio S/N: Better than 80dB
Dynamic range: Better than 85dB
Laser: Semiconductor Laser, Wave Length: 650nm/795nm
Power source: DC 9-12V
Power consumption: 10 W
Operating temperature: 0~40°C
Weight( ):0.6kg
Dimensions (W x D x H): 176x157x40mm
Battery Type: Li Polymer
Note:
1.The quality and speed for reading JPEG photos depend on the resolution and
compression ratio of the photos. Some JPEG photo may not be played due to the disc
quality and the formats.
2.Some DVD+R/RW,DVD-R/RW,CD-R/RW disc may not be played due to the quality on
burning conditions.
The machine utiliz es long-life Li polymer battery for portable power supply.The battery has
no Memory Effect”and thus can be recharged safely regardless of whether the battery
is fully or partially discharged.It's enough to recharge no longer than 3H each time,fully
recharged battery can last about 2 hours with earphone.
Monitor/DVD Player
Rechargeable battery use
“
Precautions related to Battery Recharge
The battery can be only recharged when turning power to OFF state,and keep continuous
power supply, the red light will be on,and the light will turn yellow when it's fully charged.
Using and Maintaining Rechargeable Battery
1. The normal working temperature is:0 ~40 ;
2. Always unplug AC/DC power supply for the unit when not in use;
3. Heat will create during playing,it's normal,while avoid long time playing and
unattendance;
4. Avoid having the unit collide with any objects,and place away from all possible heat
sources or damp areas.
Caution:Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
46
°C °C
Troubleshooting
PROBLEM SOLUTION
No sound or
distorted sound
Can't advance
through a movie
The icon
appears on
screen
Picture is distorted
No forward or
reverse scan
Make sure the machine is connected properly.
Make sure all cables are securely inserted into
the appropriate jacks.
You can't advance through the opening credits
and warning information that appears at the
beginning of movies because the disc is
programmed to prohibit that action.
The feature or action cannot be completed at
this time because:
1.The disc's software restricts it.
2.The disc's software doesn't support the
feature (e.g.,angles)
3.The feature is not available at the moment.
4.You've requested a title or chapter number
that is out of range.
The disc might be damaged.Try another disc;
it is normal for some distortion to appear during
forward or reverse scan.
Some discs have sections that prohibit rapid
scanning or chapter skip;If you try to skip
through the warning information and credits
at the beginning of a movie,you won't be able
to.This part of the movie is often programmed
to prohibit skipping through it.
Owing to continuous improvement,no prior notice will be given regarding
changes on above feature and spec.
Imported by:
Samini Europe S.L
CIF: B91954099
Spain
Made in P.R.C
47
ref. SS-7865
Loading...
