Socket Mobile Series 7 User Manual

Cordless Hand Scanner Series 7

with Bluetooth® Wireless Technology

Featuring a Bluetooth enabled bar code scanner and SocketScan software for wirelessly adding bar code scanning to Bluetooth enabled mobile computers running:

• Windows Mobile 2003, 2003SE or 5.0

• Palm OS 5.2 or later

• Windows XP or XP Tablet Edition

User’s Guide

5/2006 Document # 6410-00233 H

Copyright Notice

Socket, the Socket logo and Battery Friendly are registered trademarks of Socket Communications, Inc. Cordless Hand Scanner with Bluetooth Wireless Technology, SocketScan, Mobility Friendly, Connect!Agent, and Error Proof Protocol are trademarks of Socket Communications, Inc.

Bluetooth and the Bluetooth logos are registered trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to Socket Communications, Inc.

All other brand and product names are trademarks of their respective holders.

The Cordless Hand Scanner includes technology licensed under United States Patent No. 5,902,991.

Reproduction of the contents of this manual without the permission of Socket Communications is expressly prohibited. Please be aware that the products described in this manual may change without notice.

Feel free to contact SOCKET COMMUNICATIONS at:

Socket Communications, Inc.

37400 Central Court Newark, CA 94560

Other than the above, Socket Communications can assume no responsibility for anything resulting from the application of information contained in this manual.

Please refrain from any applications of the Socket Cordless Hand Scanner that are not described in this manual. Please refrain from disassembling the Cordless Hand Scanner. Disassembly of this device will void the product warranty.

You can track new product releases, software updates and technical bulletins by visiting Socket’s web page at:

www.socketcom.com.

Table of Contents

About the Software 5 About Combining Scanning with Bluetooth 6 System Requirements 7 Package Contents 7 Product Registration 8 Hardware Features 8

2 | HARDWARE PREPARATION 10

Installing Batteries and Attaching the Tether 10 Charging the Scanner 11

3 | SETUP FOR WINDOWS MOBILE 12

STEP 1: Install the Software 13 STEP 2: Configure Scanner Settings 15 STEP 3: Connect CHS to Host Device with Bluetooth 17 STEP 4: Scan Data into Your Application 19 OPTIONAL: Select Symbologies 21 OPTIONAL: Configure Prefix/Suffixes 22 OPTIONAL: Run Scan Demo 23

4 | SETUP FOR PALM 24

STEP 1: Install the Software 25 STEP 2: Connect CHS to PDA with Bluetooth 26 STEP 6: Scan Data into Your Application 29 OPTIONAL: Configure Scan Settings 31 OPTIONAL: Select Symbologies 33 OPTIONAL: Test Bar Codes 34

5 | SETUP FOR WINDOWS XP 35

STEP 1: Install the Software 36 STEP 2: Configure Bluetooth Settings 38 STEP 3: Configure Scanner Settings 44 STEP 4: Start SocketScan and Connect to CHS 46 STEP 5: Scan Data into Your Application 47 OPTIONAL: Assign Sound and Prefix/Suffix Settings 49 OPTIONAL: Configure Advanced Bluetooth Settings 50 OPTIONAL: Assign a Trigger Button 52 OPTIONAL: Select Symbologies 53 OPTIONAL: View Version Information 54

APPENDICES A | SPECIFICATIONS 55

LIMITED WARRANTY 69 REGULATORY COMPLIANCE 71

1 | Introduction

If you need to collect bar coded data but don't want to be tied to your mobile or desktop computer, Socket's Cordless Hand Scanner (CHS) Series 7 with Bluetooth wireless technology is just what you're looking for. This innovative device combines the power of laser bar code scanning with the convenience of Bluetooth wireless technology in a single compact, lightweight device that is ergonomically designed to fit comfortably in the palm of your hand.

Bar code scanning is the most efficient way to collect data from a mobile computer. If the data to be entered is bar coded, using a laser scanner is 50 times faster and 10,000 times more accurate than manual data entry.

Bluetooth wireless technology transforms how devices connect with each other, offering you new possibilities for using your mobile computer with other devices. With Socket's Cordless Hand Scanner (CHS), you can scan bar codes while connected to the PDA in your pocket or to your laptop, tablet or desktop computer located up to 300 feet away — all without the hassle of cables or the awkwardness of a protruding antenna.

Scanner Versions

The CHS Series 7 includes three versions of the scanner. The entry-level CHS 7E uses linear CMOS imaging technology. The mid-level CHS 7M has a Class 1 laser scanner. The performance level CHS 7P features a Class 2

laser scanner and a ruggedized construction.

About the Software

SocketScan™ enters scanned data directly into any open

Windows or Palm OS program as if the data were manually typed, so you can use the CHS with your favorite application. Included is a utility that enables you to configure Prefix/Suffixes, sounds, and other special settings for the CHS.

Connect!Agent™ for Windows Mobile and XP simplifies Bluetooth by

automatically setting up and managing the wireless connection. Connect!Agent runs in the background, requiring no user interaction.

CHAPTER 1: INTRODUCTION 5

About Combining Scanning with Bluetooth

The Cordless Hand Scanner represents an optimal combination of proven laser bar code scanning and state-of-the-art Bluetooth connectivity. Because of the problems inherent in the intermittent storage of scanned data in o nboard memory if the Bluetooth connection is lost, the CHS is designed to operate only when connected to the host, with the powerful Class 1 radio providing the maximum possible connection range.

The user is advised of the connection status with a single beep when the CHS connects to the host and a double beep when the connection is closed or lost. As with any wireless device, connectivity range can be affected by a variety of environmental variables.

The most likely source of errors in any cordless scanning system is not in the scanning and decoding process, but in the transmission of the data to the host. For this reason, the Cordless Hand Scanner features Socket’s exclusive Error Proof Protocol (patent pending), which ensures that scanned data is correctly received by the host computer and allows for realtime validation of data and notifies the user in case of errors.

The beeper and green LED signals provided by the CHS confirm not only a successful scan but also the successful transmission of the scanned data to the host. Users familiar with bar code scanning may notice a slight delay between the successful scan and shut off of the laser, and the beep and green LED from the CHS confirming completed transmission of the data. In most instances, this delay is less than 300 ms (milliseconds), but may be slightly longer as the connectivity range limit is approached.

Because of the two-way transmission verification process, it is possible to cause communication problems by scanning bar codes as fast as possible. When this occurs, all transmissions will stop for several seconds before scanning can be resumed. To prevent this from happening, the user should wait until the confirming beep is received before scanning the next bar code.

System Requirements

Your mobile computer should meet these minimum requirements:

• Any of the following operating systems:

− Windows Mobile 2003, 2003SE or 5.0

− Palm OS 5.2 or later

− Windows XP or XP Tablet Edition

• Any of the following Bluetooth stacks: *

− Socket Drakar v1.4 (from Socket SDIO and CF Connection Kits)

− IVT BlueSoleil v1.4.7 or later (from Socket CF Connection Kit with Adapter

or Socket Class 1 USB Adapter)

− Broadcom (Widcomm) v1.4

− Microsoft Bluetooth stack for Pocket PCs

− Microsoft Windows XP Service Pack 2

− Toshiba Bluetooth stack 3.03.06 or greater (with Windows XP)

If you are using a Pocket PC or Palm device, during installation you will need a desktop or laptop computer that meets these minimum requirements:

• Windows 98SE, Me, 2000 or XP

• Either Microsoft ActiveSync 4.0 or greater or Palm Desktop Software

For information about using the CHS with Symbian Series 60 devices, please visit:

www.socketcom.com/product/cordless.asp?Type=Scanner

*Support for other Bluetooth stacks is planned for future releases. For Windows XP, only the IVT and Microsoft stacks are compatible with the optional Socket Connect!Agent software.

For software updates, please visit:

www.socketcom.com/support/support_bar.asp

Package Contents

The Socket Cordless Hand Scanner package includes these items:

• Socket Cordless Hand Scanner with Bluetooth Wireless Technology

• AC charging adapter with international plugs

• 2 NiMH rechargeable AAA batteries

• Lanyard with retractable tether

• Software Installation CD

• Booklets with copyright, warranty, and regulatory compliance

information

CHAPTER 1: INTRODUCTION 7

Product Registration

Socket highly recommends that all customers register their Socket products. Registered users receive the following benefits:

• Priority for technical support

• Special offers for future products and upgrades

• The latest new product information.

Hardware Features

Rechargeable Batteries and AC Adapter

Charge the internal batteries by using the included AC adapter. The adapter rating is 5V, 2A, positive pole center. A fully charged battery should provide roughly 8 hours of normal operation.

WARNING: Charge ONLY NiMH batteries in the CHS. Damage may result if other battery types are charged. Do not store the CHS for more than 30 days with the batteries installed.

The red Battery Status LED will not function properly if standard AAA nonrechargeable batteries are being used.

Besides the included AC adapter, you can also recharge the CHS by using any of the following:

• Socket’s Mobile Power Pack. For more information, please visit:

www.socketcom.com/product/AC4009-541.asp

• AC and DC adapters of most recent Pocket PCs from Casio, Compaq,

Dell, Fujitsu, and Toshiba are also compatible.

Touch Screen Stylus

The CHS features a stylus tip in the tail of the CHS that you can use Pocket PC and other device touch screens. The stylus can be removed with small pliers if desired. Visit the Socket website to purchase replacement styli.

WARNING: Do not use the stylus if damaged. A damaged stylus may scratch the display screen of your computer.

The stylus does not work with XP Tablet computers using Active Matrix displays.

Status Indicator LED

LED LED Activity Meaning

Bluetooth

Status

(Blue)

Good Read

(Green)

Battery

Status

(Red)

1 blink per second

1 blink per 5 seconds

Green

1 blink per second Solid red Batteries are charging.

Off when connected to charger

Bluetooth radio is on, but not connected.

Bluetooth radio is on, connection established.

Data successfully scanned and transmitted to host device.

Less than 20% of battery life remaining.

Batteries are fully charged.

Status Indicator Beeps

The scanner beeps to signal the Bluetooth connection status. You can also have the scanner beep to indicate scanned data reaching the host device.

LED Beep Pattern Meaning

Bluetooth

Status

(Blue)

Good Read

(Green)

1 beep Connection to host device has begun.

2 beeps Connection to host device has ended.

1 beep

Data was successfully scanned and transmitted to host device.

CHAPTER 1: INTRODUCTION 9

2 | Hardware Preparation

Installing Batteries and Attaching the Tether

1. Use a coin or screwdriver to unlock and remove the battery cover. Turn

the lock underneath the scanner to a horizontal position. Remove the casing.

2. Install the batteries in opposite directions, as indicated by the positive

symbols.

WARNING: Do not install the batteries incorrectly. Damage may result.

3. If desired, attach the tether. Wrap the string loop around the inside part

of the lock.

4. Replace the battery cover and lock it into place.

5. If desired , attach the tether to a lanyard or belt.

Charging the Scanner

Use the included AC adapter to charge the Cordless Hand Scanner. The scanner’s NiMH batteries must be charged for at least 4 hours before the first use. The Battery Status LED will emit a solid red light while charging, and turn off when the batteries are fully charged.

WARNING: Do not attempt to charge alkaline batteries — this may cause alkaline batteries to leak and damage the CHS.

The red Battery Status LED will not function properly if standard AAA alkaline batteries are being used.

CHAPTER 2: SETUP FOR WINDOWS MOBILE 11

3 | Setup for Windows Mobile

This chapter explains how to install and use the Cordless Hand Scanner (CHS) with a Bluetooth enabled Pocket PC or other mobile computing device running Windows Mobile 2003, 2003SE or 5.0.

Before you begin the instructions in this chapter, make sure you have installed the batteries (and tether, if desired), and charged the scanner, as described in Chapter 2, “Hardware Preparation.”

Setup Summary

STEP 1: Install the software. STEP 2: Configure scanner settings. STEP 3: Connect scanner to host device with Bluetooth. STEP 4: Scan data into your application.

OPTIONAL:

• Select symbologies.

• Configure prefix/suffixes.

• Run Scan Demo.

STEP 1: Install the Software

You must install SocketScan, but installing Connect!Agent is optional.

Should I install Connect!Agent?

Connect!Agent simplifies Bluetooth by automatically setting up and managing the Bluetooth connection. It runs in the background and requires no interaction from the user. If you choose not to install Connect!Agent, you will need to use your Bluetooth software to manually configure and manage the Bluetooth connection.

Software Installation

ADVANCED USERS: Refer to the README file for CAB installation instructions.

1. Delete any bar code scanning software already installed in your device,

including software from other companies. Make sure the software is closed. Tap Start | Settings | System tab | Remove Programs. Use the utility to delete the software.

2. Use ActiveSync and a serial/USB cable or cradle to make an active

connection between the mobile computer and a host PC. ActiveSync should say Connected, and the ActiveSync icon should turn green.

IMPORTANT! ActiveSync 4.0 or greater is required. Download it free

www.socketcom.com/activesync.

from

3. Insert the installation CD into your host PC.

4. Use My Computer or Windows Explorer to access your CD drive.

5. In the CD, open the SocketScanCE folder and click on Setup.exe.

CHAPTER 2: SETUP FOR WINDOWS MOBILE 13

6. The installation wizard will automatically begin. Follow the wizard to

install the software.

7. After installing the software, a dialog on your Pocket PC will direct

you to soft reset. Tap ok.

8. Remove your device from the cable/cradle and perform a soft reset by

pressing the reset button. If you skip this step, some icons may not appear correctly.

9. If desired, install Connect!Agent by opening the Connect!Agent folder in

the CD and clicking on Connect!AgentSetup.exe. Follow the wizard to install the software.

STEP 2: Configure Scanner Settings

1. Tap Start | Programs | SocketScan.

2. Go to the Today screen by tapping Start | Today.

3. Tap the SocketScan icon at the bottom of the screen. In the pop-up

menu, tap Settings.

4. The Scanner Settings utility will appear. Tap on the CS tab at the bottom

of the screen.

5. Enter the following settings:

Enable Cordless Scanner support: Check this box. IMPORTANT!!! Stack:

• Connect!Agent: Select if you installed Connect!Agent and would

like to use it.

• Built in: Select if your device has a built-in Bluetooth radio, and you

don’t want to use Connect!Agent. Your Bluetooth stack will be reported (e.g., Widcomm).

• Socket: Select if using the Socket SD/CF Bluetooth card.

CHAPTER 2: SETUP FOR WINDOWS MOBILE 15

6. Tap on the CS HW tab.

Enter the following settings:

• Trigger: Select whether you would like the CHS to scan only when a

Bluetooth connection to the device is detected. If you require the CHS to detect a Bluetooth connection before each scan, scanning will be a few milliseconds slower.

• Good Read Indicator: Select how you would like the CHS to indicate

that it has successfully read data.

• Battery Level: No progress bar should appear since you are not

connected to the CHS.

• Disable Auto Power Off mode: The CHS automatically shuts off if

there is no Bluetooth connection for 20 minutes. Check to disable.

7. After enterin g settings, tap ok to save the changes.

STEP 3: Connect CHS to Host Device with Bluetooth

1. Turn on the Cordless Hand Scanner. Press the small

power button for five seconds, until you see the LED

turn blue. The LED should blink blue once every second to show that the Bluetooth radio is on but not connected. If the LED begins blinking red, the battery needs to be recharged.

2. Prepare the Bluetooth hardware for your Pocket PC. Make sure the

Bluetooth radio is turned on. If needed, make sure a COM port is enabled for outbound Bluetooth Serial communications, and note the COM port number. Refer to the documentation for your Bluetooth

hardware for instructions.

3. If you did not install Connect!Agent, make sure a COM port is enabled

for outbound

Bluetooth serial communication. Refer to the device

manual.

4. Tap Start | Programs | SocketScan.

Disregard the icons for Socket Trigger RFID, Socket Trigger Scan, and Socket Trigger Select.

5. Tap on the SocketScan icon

at the bottom of the screen. In the menu,

tap Connect CS.

CHAPTER 2: SETUP FOR WINDOWS MOBILE 17

6. You r device will begin searching for the CHS.

• If you installed Connect!Agent, your mobile device will automatically

search for and connect to the CHS. A beep will indicate the connection.

• If you did not install Connect!Agent, your device’s Bluetooth

software will search for devices. In the list of found Bluetooth devices, select Socket CHS. The device will connect to the CHS, indicated by a beep.

If using the Broadcom (Widcomm) stack, you will be prompted to configure automatic connections.

If a passkey is requested, enter 1234.

7. After you r mobile device connects to the CHS, the scanner will beep

once. The SocketScan icon at the bottom of the Today screen will change into a scanner icon to indicate the connection.

Connect!Agent will save information about the CHS to automate future connections to your specific unit.

STEP 4: Scan Data into Your Application

1. Start the Windows application that you want to receive the data (e.g.,

Excel, Notepad, etc.). Make sure a document or spreadsheet is open.

2. Place the cursor where you want data from the next scan to go.

3. Press the trigger button and scan the code.

When data is read and sent to the mobile computing device, the laser will

turn off. Depending on your scanner settings, the scanner may beep and/or the Hand scanner’s LED may flash green to indicate a good read.

If no data is read in a few seconds, the laser will turn off, and you must try again.

CHAPTER 2: SETUP FOR WINDOWS MOBILE 19

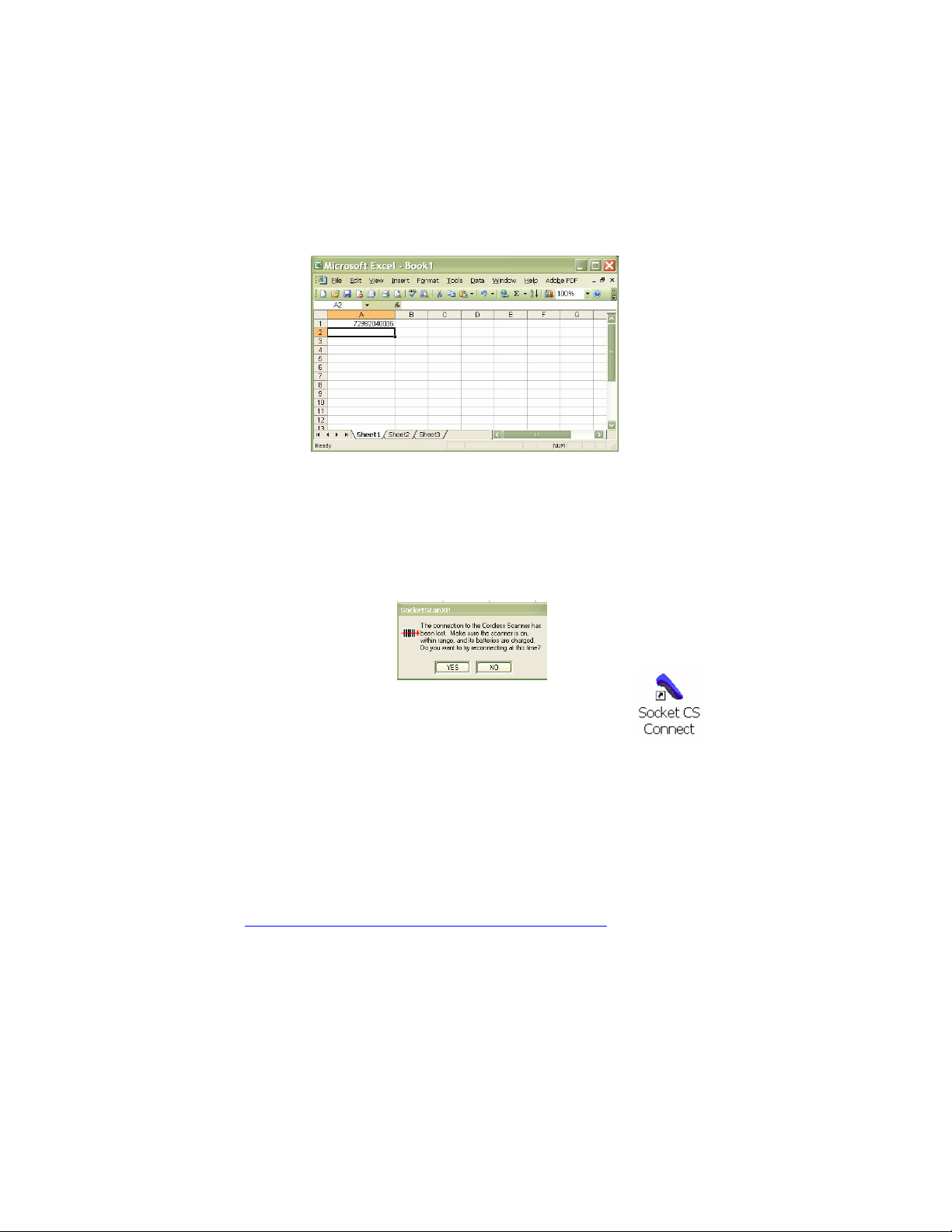

4. After a successful scan, data should appear in your document. For

example, after you scan a bar code into a Pocket Excel spreadsheet, data should appear in the first cell. The default “CR” (carriage return) suffix will advance the cursor to the next cell, ready for the next scan.

Wait for the “Good Scan” indication before you scan another bar code. If you try to scan too fast, the device can lock up un til you stop scanning.

If your mobile device suspends or the CHS moves out of range, the connection will end. After the mobile device turns on again or returns in range, SocketScan will try to re-connect 3 times. If, after the 3 attempts, they have not re-connected, you will need to manually re-connect the devices.

To turn off the CHS, press the power button for at least 2 seconds, until the LED stops blinking.

For information about third-party applications compatible with the CHS for asset tracking, health care, and other vertical markets, visit:

www.socketcom.com/solutions/default.asp?Type=Vertical

OPTIONAL: Select Symbologies

The applet makes it quick and convenient to modify which symbologies you want the scanner to recognize. By default, the scanner is set to recognize nine of the most common symbologies.

1. Tap on the SocketScan icon. In the pop-up menu, tap Symbology Selector...

2. In the screen that appears, check the symbologies you wish to enable.

Uncheck those you wish to disable. Tap ok.

Symbologies not supported by the CHS will be grayed out. Enabling all possible symbologies will make the decode process slightly longer.

CHAPTER 2: SETUP FOR WINDOWS MOBILE 21

OPTIONAL: Configure Prefix/Suffixes

The SocketScan applet lets you specify prefix and/or suffix characters to be added automatically to the data you scan. This helps to further eliminate manual data entry.

1. Tap on the SocketScan icon. In the pop-up menu, tap Settings.

You can configure prefix/suffixes whether or not the CHS is connected to your Pocket PC.

2. In the pop-up menu, select Prefix/Suffix...

3. In the screen that appears, enter the characters you want to be appended

to each scan (128 character maximum). Tap ok.

By default, SocketScan enters a carriage return after every data scan.

• Use \r for Carriage Return, \n for Linefeed, \t for Tab., \\ for a sing le \

character.

• Other characters can be typed or entered using the format \nnn, where

nnn = ASCII character 001 through 255.

OPTIONAL: Run Scan Demo

Scan Demo makes it easy to determine the symbology, number of characters, and decoded data (in either ASCII or Hex) of any bar code supported by the scanner. This is especially useful if you encounter a bar code that the scanner will not decode by default.

1. Tap Start | Programs | Scan Demo.

Accessing Scan Demo disconnects the Bluetooth link. If you have not configured the CHS to automatically connect, select

2. The Scan Demo screen will appear. If desired, use the check boxes at

the bottom of the screen to modify the test. Enable all symbologies: By default, this option is checked. Different

symbologies can sometimes interpret the same bar code differently, so you may want to uncheck this option.

Display as hex data: Check this box to view scanned data in hexadecimal format. Otherwise, data will appear as ASCII.

3. Scan th e bar code. Scan Demo will report the properties of the bar code.

the CHS tab at the bottom of the page to re-establish this link.

CHAPTER 2: SETUP FOR WINDOWS MOBILE 23

4 | Setup for Palm

This chapter explains how to install and use the Cordless Hand Scanner (CHS) with a Bluetooth enabled device running Palm OS 5.2 or later.

Before you begin the instructions in this chapter, make sure you have installed the batteries (and tether, if desired), and charged the scanner, as described in Chapter 2, “Hardware Setup.”

Setup Summary

STEP 1: Install the software. STEP 2: Connect scanner to PDA with Bluetooth. STEP 3: Scan data into your application.

OPTIONAL:

• Configure scan settings.

• Select symbologies.

• Test bar codes.

For help using SocketScan, tap on the any screen.

button on the top of

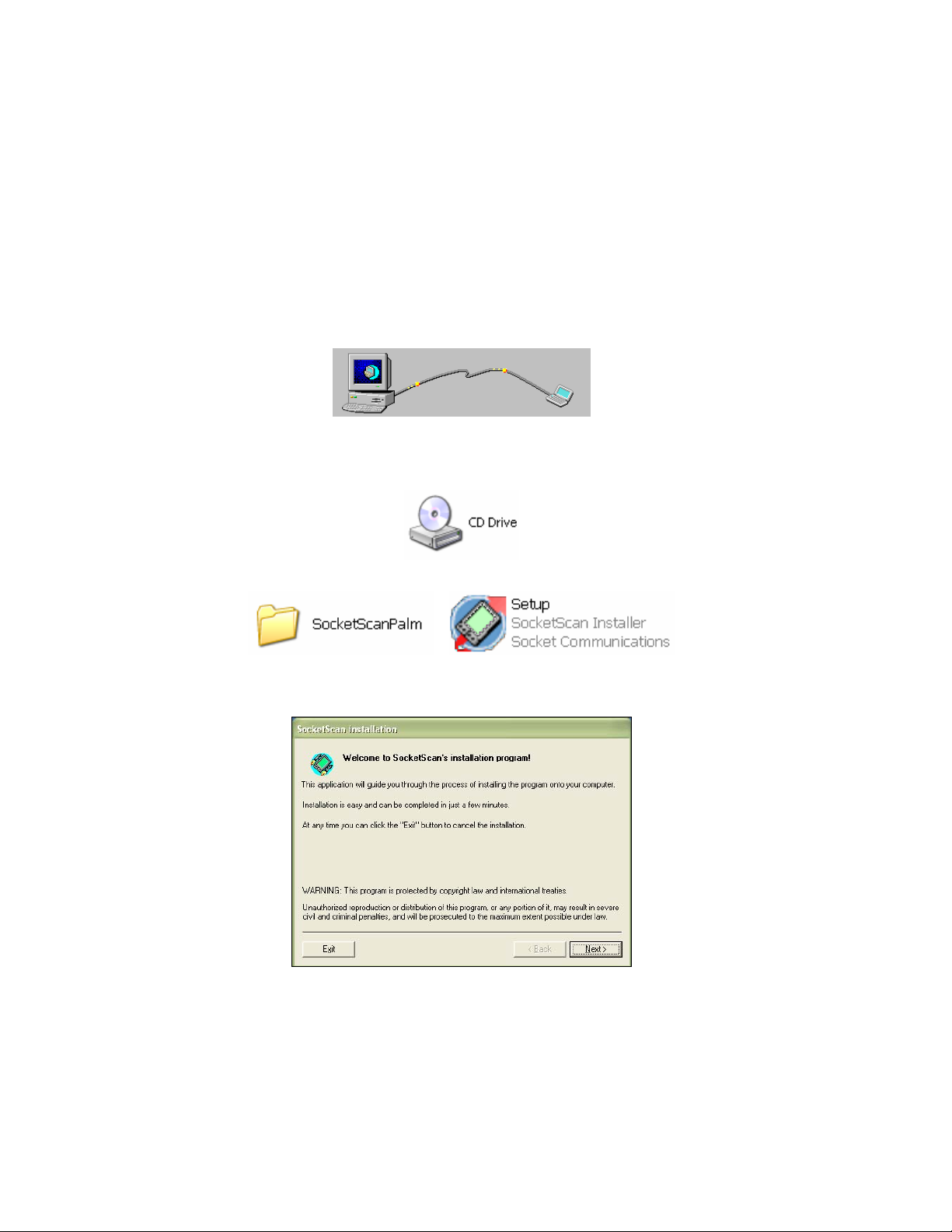

STEP 1: Install the Software

1. Delete any bar code scanning software already installed in your device,

including from other companies. Make sure the software is closed. Tap Home, then tap Menu. In the App menu, tap Delete. Use the utility to delete the software.

2. Use HotSync and a serial/USB cable or cradle to connect your device to

a host PC.

3. Insert the installation CD into your host PC.

4. Use My Computer or Windows Explorer to access your CD drive.

5. In the CD, open the SocketScanPalm folder and click on Setup.

6. The SocketScan Installation program will begin. Follow the instru ctions

on your screen to install the software.

7. When software installation is complete, disconnect the device from the

host PC. Soft reset the device by pressing the reset button.

CHAPTER 3: SETUP FOR PALM 25

STEP 2: Connect CHS to PDA with Bluetooth

1. Turn on the Cordless Hand Scanner. Press the

small power button for five seconds, until you

see the LED turn blue. The LED should blink blue once every second to show that the Bluetooth radio is on but not connected. If the LED begins blinking red, the battery needs to be recharged.

2. Start SocketScan. Tap Home. In the upper right corner, make sure All is

selected. Scroll down and tap on the SocketScan icon.

3. The main screen of SocketScan will appear, showing a picture of the

Socket SDIO In-Hand Scan Card. In the Scanner Device drop-down menu, select Bluetooth CHS.

4. The screen will display a picture of the Cordless Hand Scanner. In the

Device is field, tap Enabled.

5. If you have not yet enabled your Bluetooth hardware, a message will ask

if you wish to do so. Tap OK.

6. Your device will begin searching for Bluetooth enabled devices in

range. After it finishes searching, select the Socket CHS from the list of discovered devices and tap OK.

The Cordless Hand Scanner will appear as Socket CHS [xxxxxx], where the characters in brackets are the last 6 characters of the scanner’s Bluetooth MAC address.

7. Your device will connect to the CHS. If a passkey is requested, enter

1234.

CHAPTER 3: SETUP FOR PALM 27

8. When the scanner connects to your device, the CHS will beep once. Th e

main screen of SocketScan will also indicate that the scanner is enabled, and the Configure, Symbologies, and Test buttons will appear at the bottom of the screen.

If the PDA suspends, the CHS will automatically re-connect once you turn on the PDA again.

If the CHS is taken out of range, or if the Bluetooth connection is otherwise lost, to resume operation you must enable it again in SocketScan.

For more information about the meanings of LEDs and beeps, please see page 9.

STEP 6: Scan Data into Your Application

1. Start the Palm application that you want to receive the data (e.g.,

Memo). Make sure a document or spreadsheet is open.

Note: You cannot scan data into Palm Note Pad, because it is a graphics-based program.

2. Press the trigger button and scan the code.

When data is read and transmitted to the host, the laser will turn off. Depending on the settings chosen in the SocketScan Configure screen, the scanner may beep and/or the LED may flash green.

If the Scanner fails to read data within a few seconds, the laser will turn off, and you must try again.

CHAPTER 3: SETUP FOR PALM 29

3. After a successful scan, data should appear in your document. For

example, after you scan a bar code into a Memo, data should appear in the first line. The default “CR” (carriage return) suffix will advance the cursor to the next line, ready for the next scan.

Wait for the “Good Scan” indication before you scan another bar code. If you try to scan too fast, the device can lock up un til you stop scanning.

For information about bar code scanning applications for asset tracking, health care and other vertical markets, please visit:

www.socketcom.com/solutions

OPTIONAL: Configure Scan Settings

1. Make sure the main screen of SocketScan reports that the CHS is

enabled. Tap Configure.

You can configure prefix/suffixes whether or not the CHS is connected to your device.

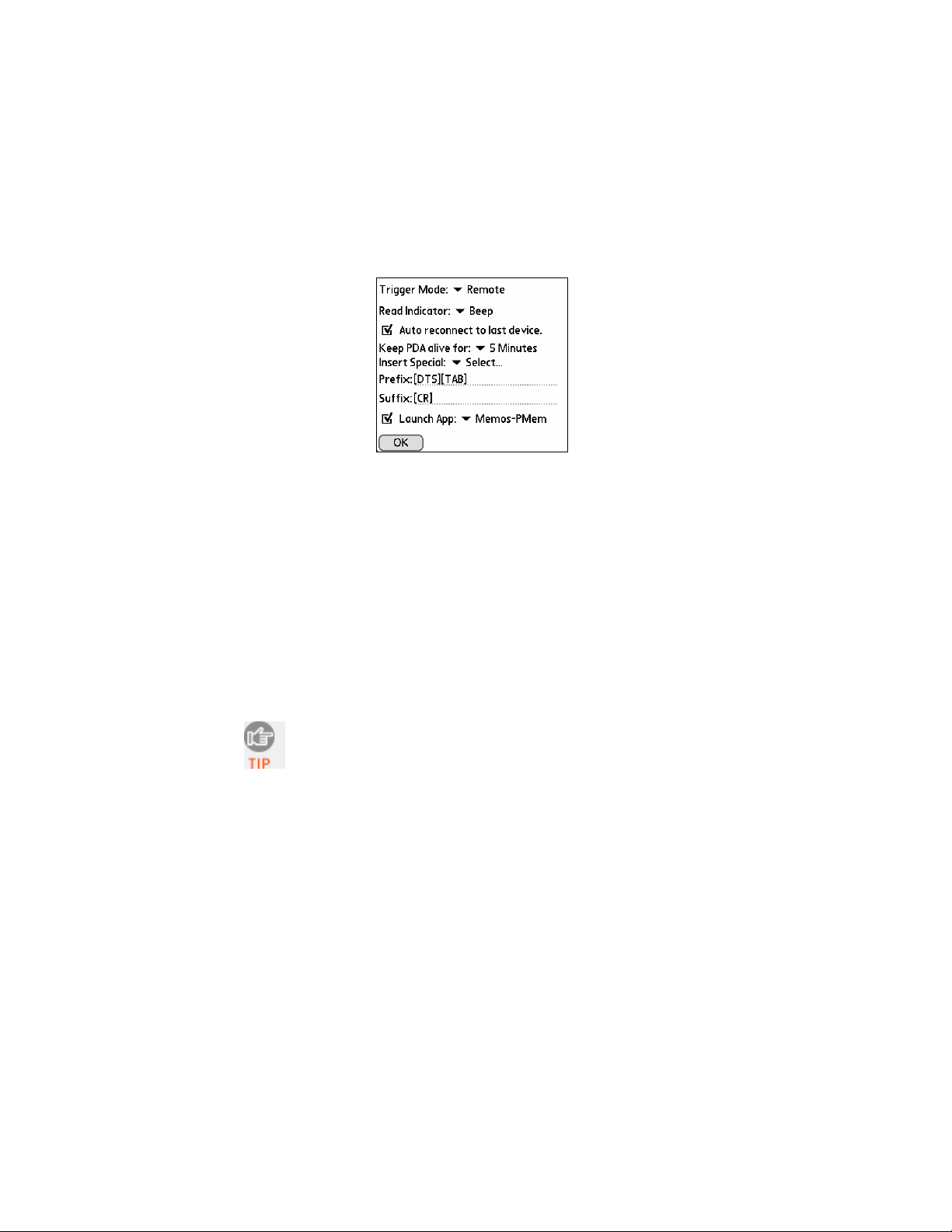

2. The Configure screen will appear. Enter any settings, as desired:

• Trigger Mode: Select Local to directly trigger the scanner whenever

you press the trigger button. Select Remote to have the scanner verify a connection to your PDA before it activates the laser.

• Read Indicator: Select how you would like the CHS to indicate that

data was successfully decoded and transmitted to the PDA.

• Auto reconnect to last device: Check to have your PDA automatically

connect to the last CHS unit it connected to whenever you tap Enabled in the main screen of SocketScan.

• Keep PDA alive for: Select how long you would like the PDA to stay

alive after the last scan. This feature allows you to scan data for several hours without touching the PDA, as long as you scan at least once before the time limit passes. Select System Default to keep your PDA alive for the amount of time set as default in the PDA’s system settings.

CHAPTER 3: SETUP FOR PALM 31

• Insert Special: First tap in the Prefix or Suffix field to indicate where

you would like to enter special data, such as a date stamp, time stamp, tab, etc. Then tap on the Insert Special drop-down menu and select the type of special data to enter.

• Prefix: Tap to enter characters you would like appended before

scanned data (128 character maximum). Besides special data items, only printable ASCII characters can be used.

• Suffix: Tap to enter characters you would like appended after

scanned data (128 character maximum). Besides special data items, only printable ASCII characters can be used. The default suffix is a carriage return [CR].

• Launch App: Check the box, then use the drop-down menu that

appears to select an application that you would like SocketScan to automatically enter data into whenever you press the trigger button . The application will launch only when you are outside o f SocketScan (i.e., SocketScan is running in the background).

If you configured SocketScan to launch an application, whenever you scan data into a document, the data will only be entered after any existing data, no matter where you place the cursor. You will not be able to scan data into the middle of existing data.

For example, if you already scanned three lines of data into Memo, the next data you scan will appear on the fourth line, even if you place the cursor on a previous line before scanning.

3. After entering any settings, tap OK to make the changes take effect.

OPTIONAL: Select Symbologies

The feature makes it easy to modify which symbologies you want the scanner to recognize. By default, the scanner is set to recognize eight of the most common symbologies.

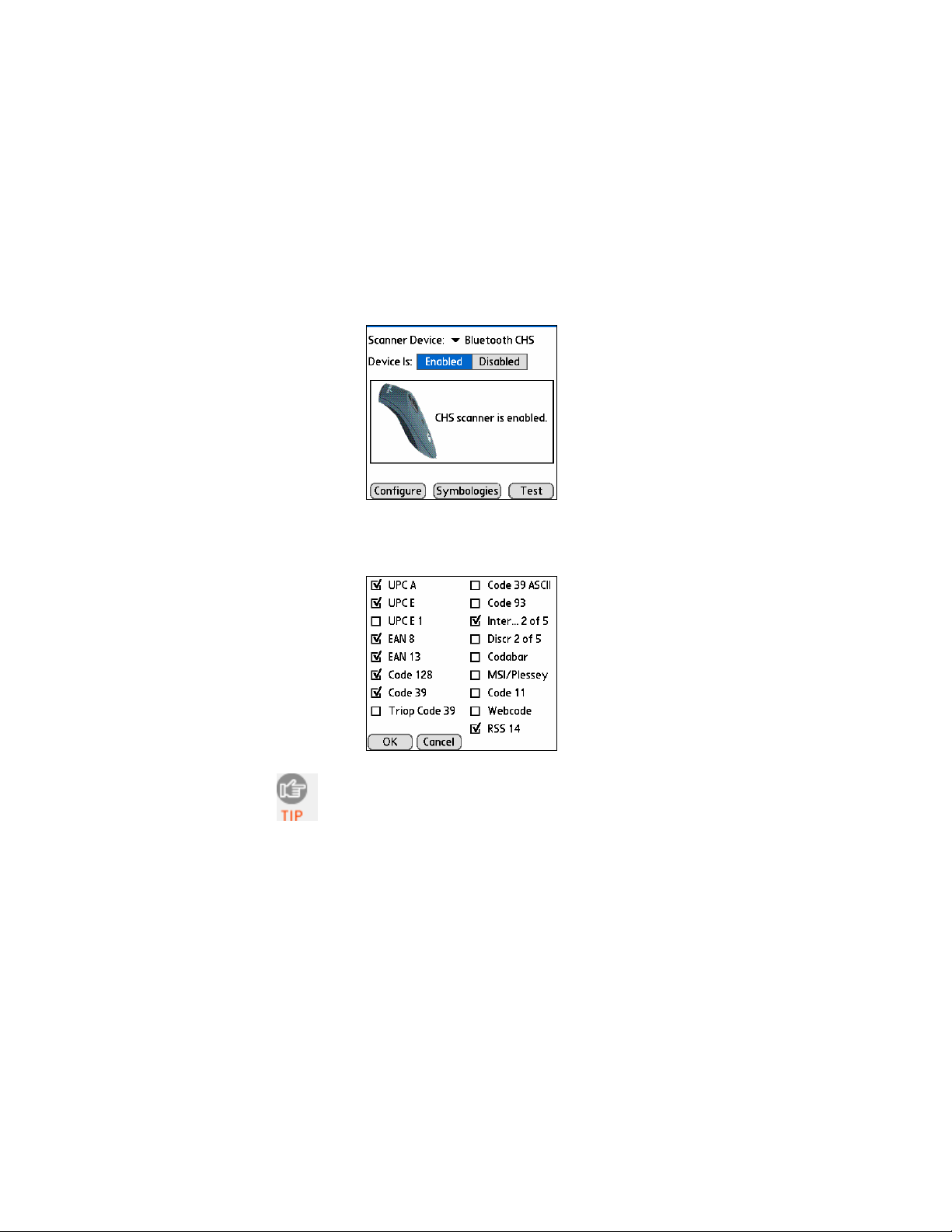

1. In the main screen of SocketScan, tap Symbologies.

2. In the screen that appears, check the symbologies you wish to enable.

Uncheck those you wish to disable. Tap OK.

Enabling all possible symbologies will make the decode process slightly longer.

CHAPTER 3: SETUP FOR PALM 33

OPTIONAL: Test Bar Codes

SocketScan includes a Test feature that makes it easy to determine the symbology, number of characters, and decoded data (in either ASCII or Hex) of any bar code supported by the scanner. This is especially useful if you encounter a bar code that the scanner will not decode by default.

1. In the main screen of SocketScan, tap Test.

2. The Test Scan screen will appear. If desired, check the View as Hex box

to view scanned data in hexadecimal format. Otherwise, data will appear as ASCII.

3. Scan the bar code. You can either press the trigger button on the CHS,

or press the Scan button on the screen. SocketScan will report the properties of the bar code.

4. After you complete your testing, tap OK.

5 | Setup for Windows XP

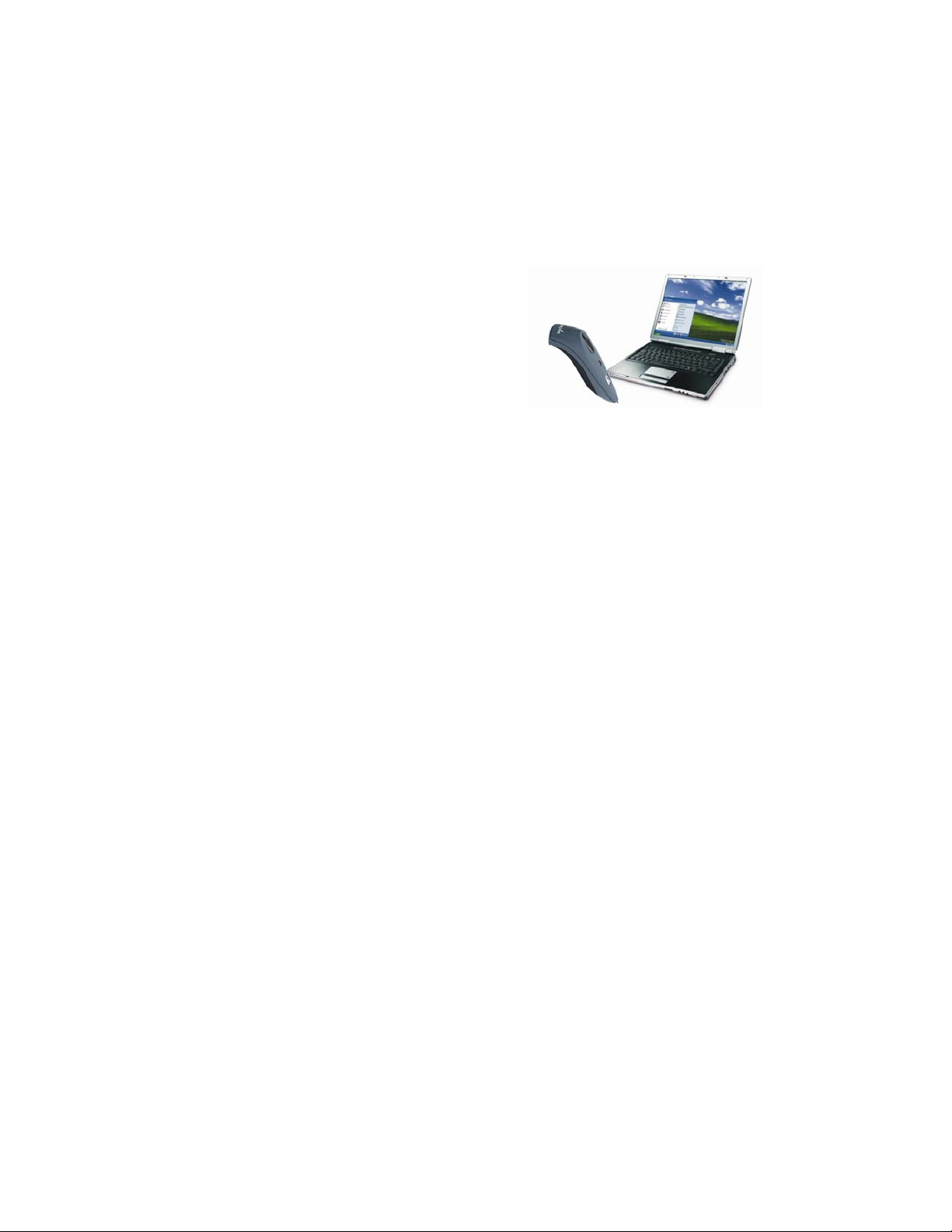

This chapter explains how to install and use the Cordless Hand Scanner (CHS) with a Bluetooth enabled computer running Windows XP or Windows XP Tablet Edition.

Before you begin the instructions in this chapter, make sure you have installed the batteries (and tether, if desired), and charged the scanner, as described in Chapter 2, “Hardware Setup.”

Setup Summary

STEP 1: Install the software. STEP 2: Connect scanner to computer with Bluetooth. STEP 3: Configure scanner settings. STEP 4: Scan data into your application.

OPTIONAL:

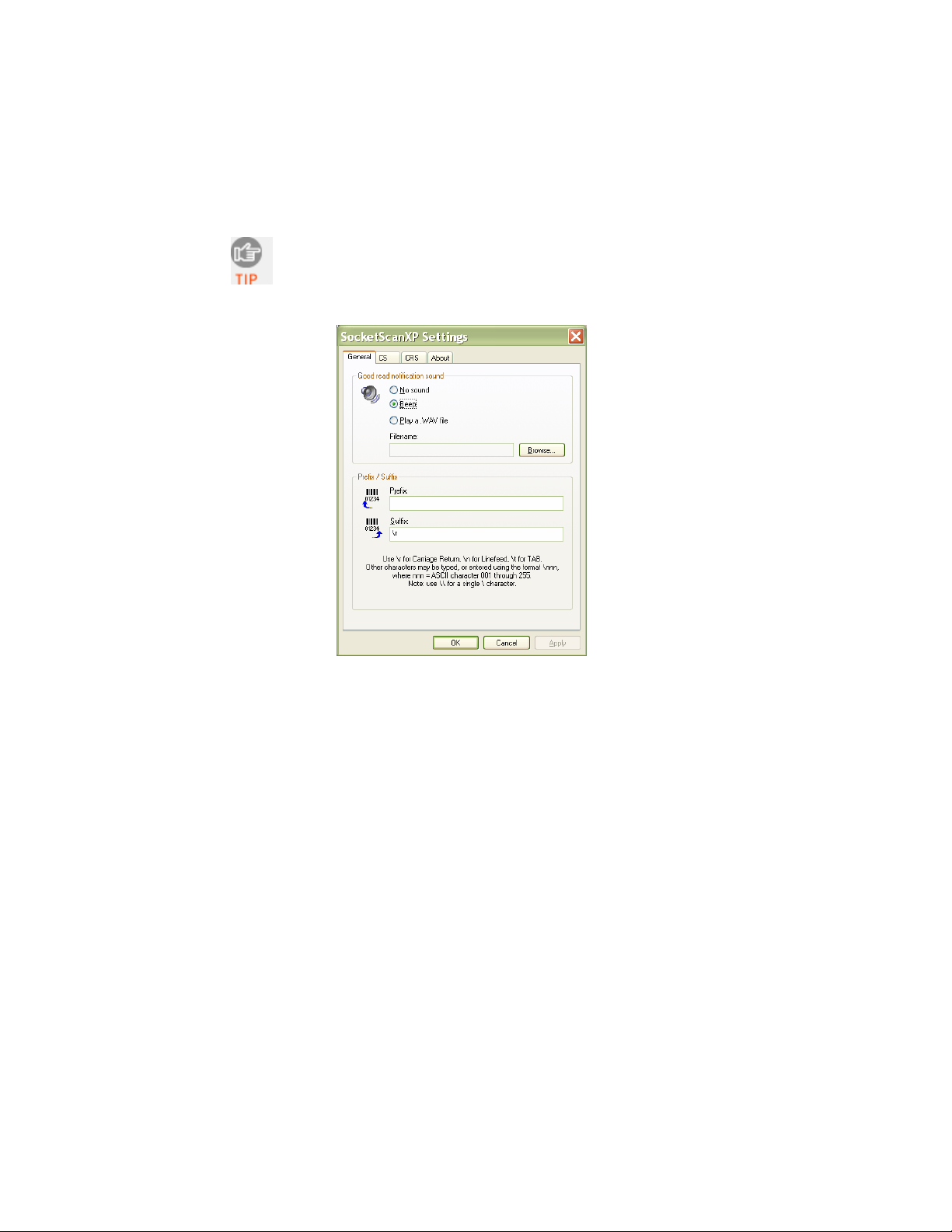

• Assign sound and prefix/suffixes.

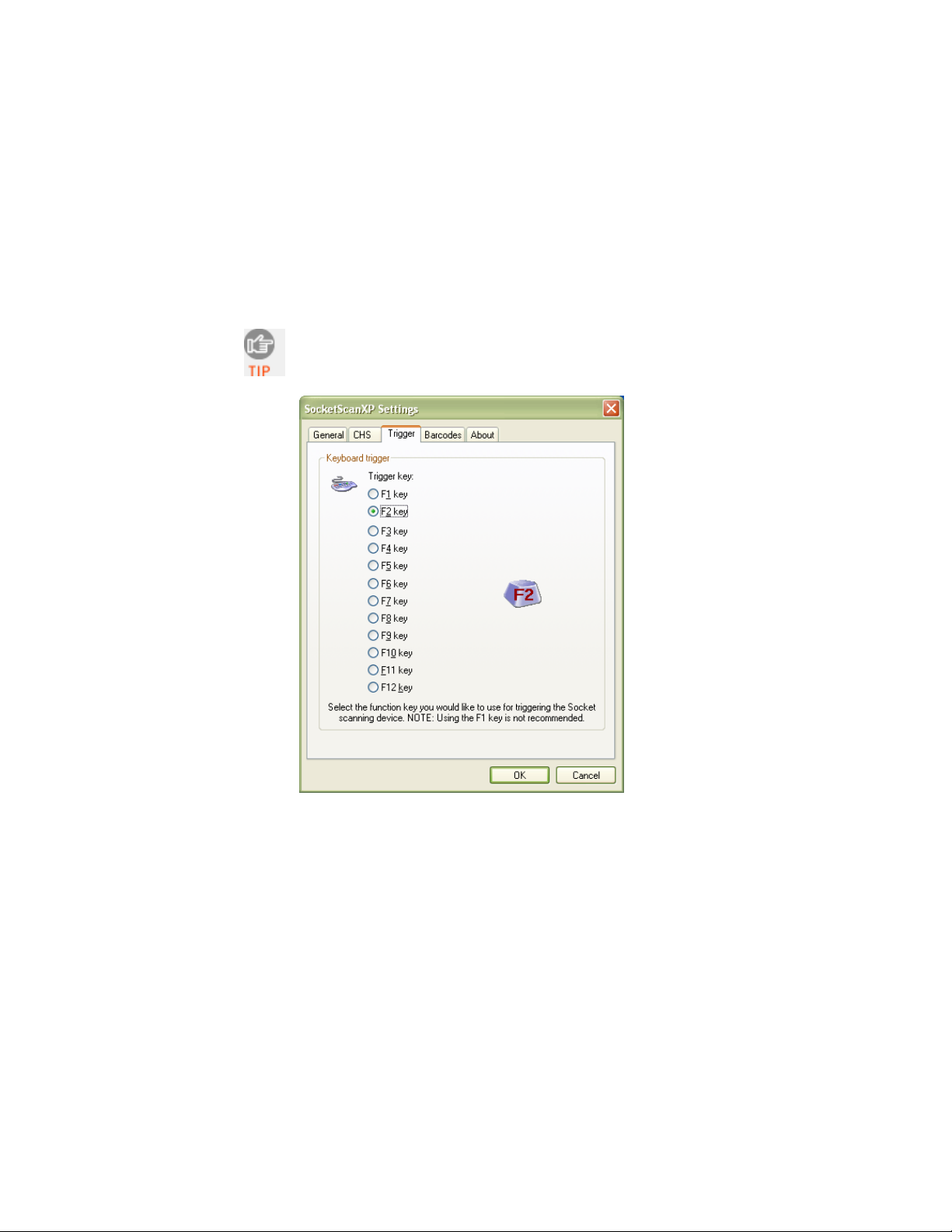

• Assign a trigger button.

• Select symbologies.

CHAPTER 4: SETUP FOR WINDOWS XP 35

STEP 1: Install the Software

You must install SocketScan, but installing Connect!Agent is optional. Connect!Agent is only compatible with the IVT BlueSoleil and Microsoft XP SP2 Bluetooth stacks.

Should I install Connect!Agent?

Connect!Agent simplifies the Bluetooth setup and connection process. Once the CHS is turned on and SocketScan is running, Connect!Agent will automatically set up and manage the Bluetooth connection. It runs in the background and requires no interaction from the user.

Software installation instructions

ADVANCED USERS: Refer to the README file for CAB installation instructions.

1. Delete any bar code scanning software already installed in your

computer, including software from other companies. Make sure the software is closed. Click Start | Control Panel | Add or Remove Programs. Use the utility to delete the software.

2. Insert the SocketScan installation CD into the CD drive of your

computer.

3. Use My Computer or Windows Explorer to access your CD drive.

4. In the CD contents, open the SocketScanXP folder and click on the

Setup.exe file.

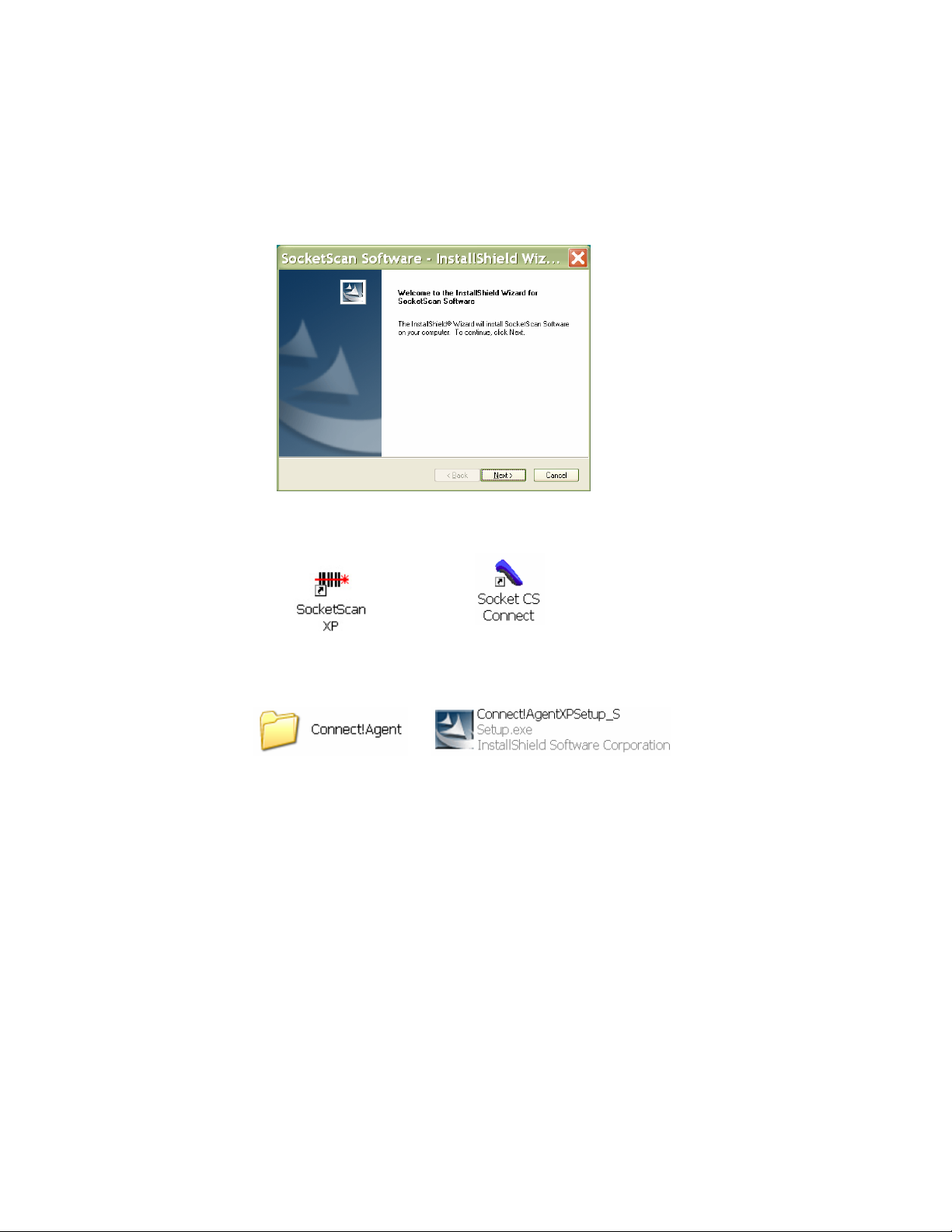

5. The installation wizard will launch. Follow the wizard to install the

software.

6. After software installation, icons for SocketScanXP and Socket CS

Connect will appear on your desktop.

7. If desired, install Connect!Agent by opening the Connect!Agent folder in

the CD and launching the Connect!AgentXPSetup_S.exe file. Follow the wizard to install the software.

CHAPTER 4: SETUP FOR WINDOWS XP 37

STEP 2: Configure Bluetooth Settings

Skip this step if you installed and want to use Connect!Agent, which automatically configures the Bluetooth settings. Connect!Agent works only with the Socket (IVT) and Microsoft stacks.

If you will not be using Connect!Agent, follow the appropriate instructions for your Bluetooth stack. Configuration is only needed the first time you connect the CHS to your computer.

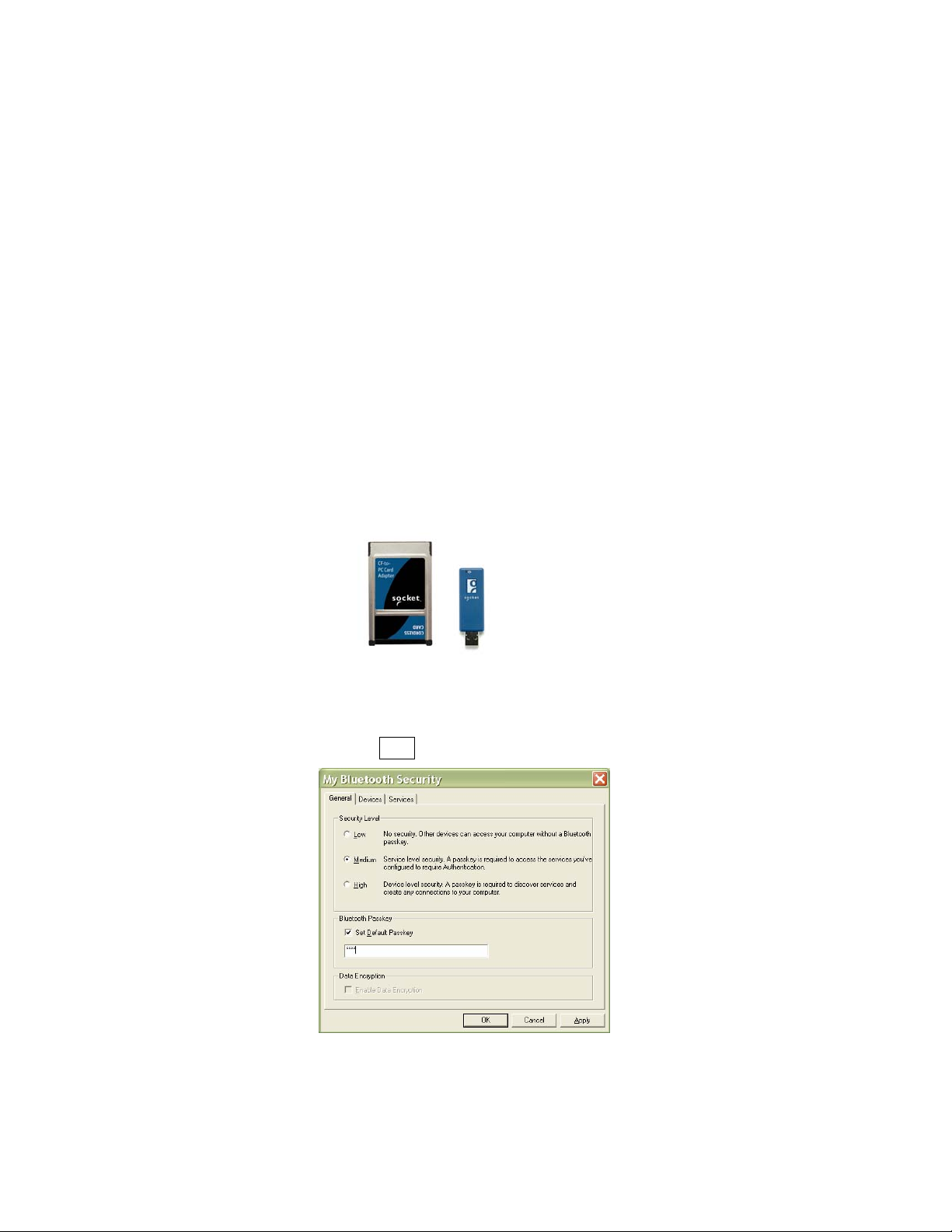

Socket Connection Kit with IVT BlueSoleil software (CF or USB):

1. Turn on the Cordless Hand Scanner. Press the small power button for

five seconds, until you see the LED turn blue. The LED should blink

blue once per second to show that the Bluetooth radio is on but not connected.

2. Insert the Socket card into your computer, using a CF-to-PC Card

adapter, or insert the Class 1 USB Adapter into the USB port.

3. Start BlueSoleil. Click on the BlueSoleil icon on your desktop, or click

Start | All Programs | IVT BlueSoleil | BlueSoleil.

4. Click My Bluetooth | Security. Check the box Set Default Passkey and

enter the default PIN

1234 in the field below.

5. Double-click on the red ball to search for the

Cordless Hand Scanner, which will appear as Socket CHS [xxxxxx].

The characters in brackets are the last 6 characters of the scanner’s Bluetooth MAC address.

6. Double-click on the Socket CHS icon to begin the service

discovery. After the Serial Port Service icon is highlighted at the top of the screen, right-click on the Serial Port Service icon and click Connect.

7. BlueSoleil will ask whether you want to connect to the CHS

automatically when Windows applications open the serial port. Click Yes.

8. When the devices connect, the CHS will beep once, and the

Bluetooth logo in the task tray will turn green.

9. Click Tools | Configurations | Quick Connect. Choose a COM port

assigned to SPP (Serial Port Profile) and click Assign. In the next screen, select the CHS and click OK. Remember which COM number you assigned to the CHS and click OK.

CHAPTER 4: SETUP FOR WINDOWS XP 39

Microsoft Windows XP Service Pack 2:

Refer to the documentation for your Bluetooth hardware/software for instructions on discovering and connecting to the CHS.

1. Turn on the Cordless Hand Scanner. Press the small power button for five

seconds, until you see the LED turn blue. The LED should blink blue once per second to show that the Bluetooth radio is on but not connected.

2. Turn on the Bluetooth radio of your computer.

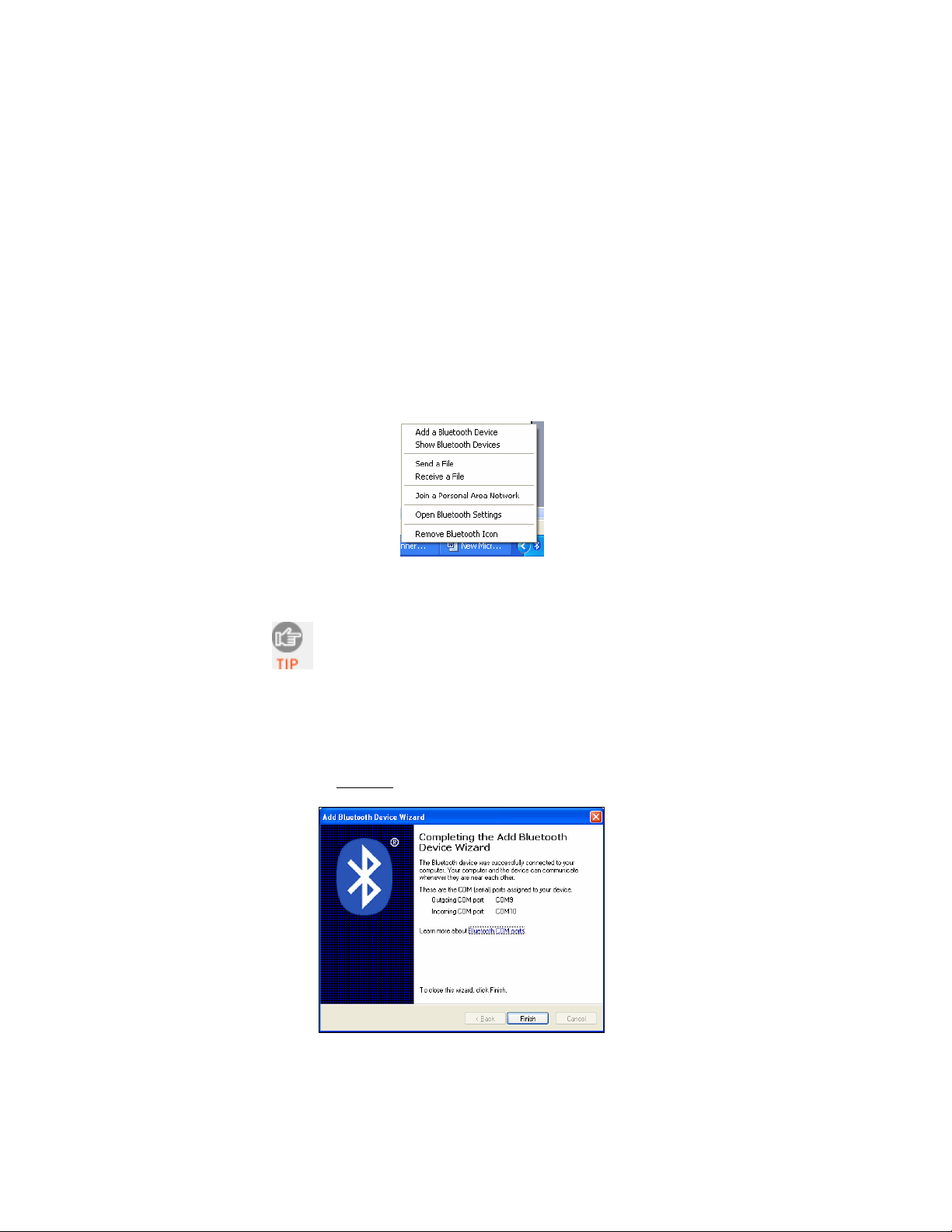

3. Use the Add Bluetooth Device Wizard to discover and connect to the

Cordless Hand Scanner. Click on the Bluetooth icon in the task tray. In the pop-up menu, click Add a Bluetooth Device.

4. During the device discovery, the Cordless Hand Scanner will appear as

Socket CHS [xxxxxx]

The characters in brackets are the last 6 characters of the scanner’s Bluetooth MAC address.

5. In the passkey options screen, select the option Let me choose my own

passkey and enter a passkey of your choice.

6. To indicate the connection, the CHS will beep once.

7. In the last screen of the Add Bluetooth Device Wizard, note the COM

number of the Outgoing

COM port.

Toshiba Bluetooth Stack:

These instructions are based on a Motion Computing tablet. Refer to the manual for your Bluetooth hardware/software for specific Bluetooth usage instructions.

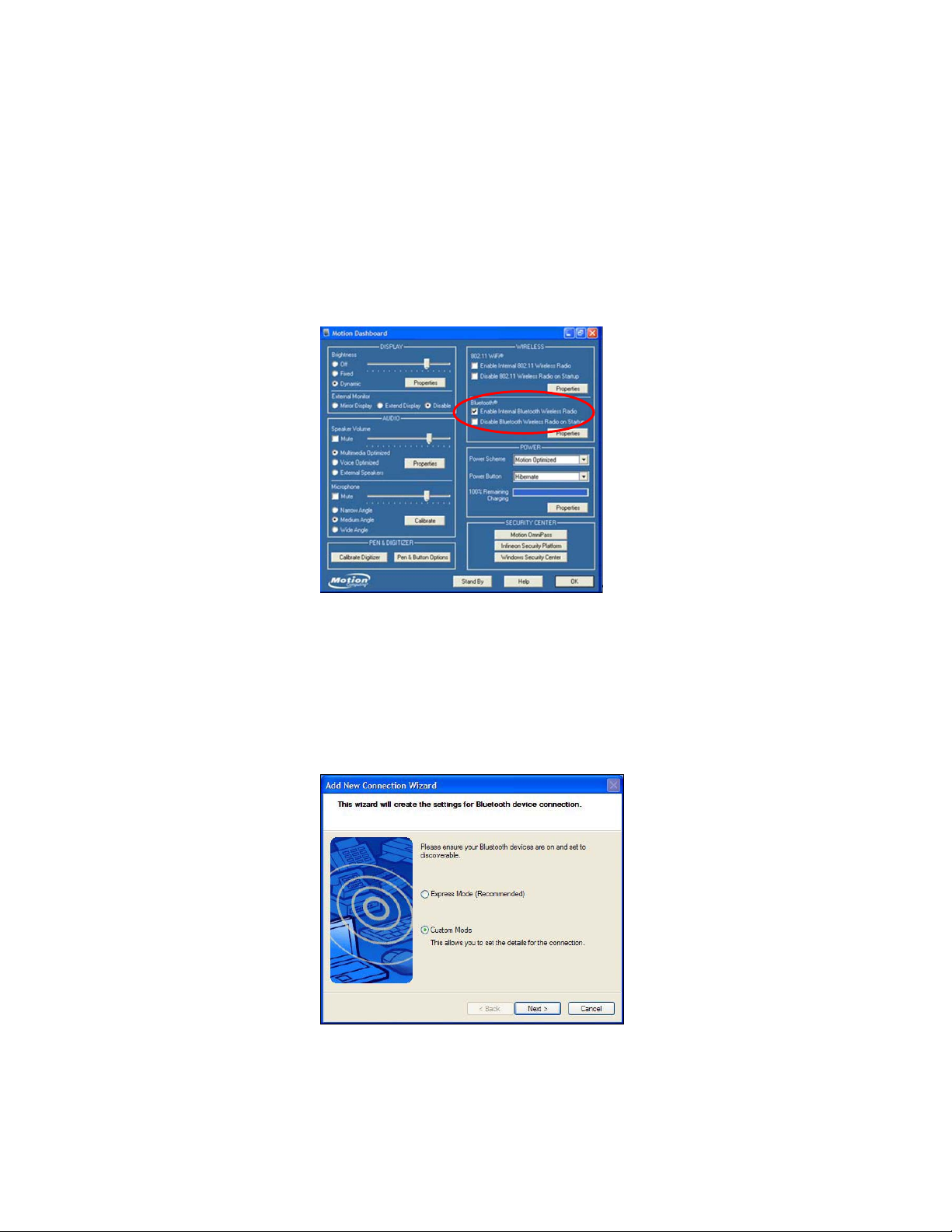

1. Turn on the Bluetooth radio of your computer. Tap on the Dashboard icon

on the desktop. In the dashboard, check Enable Internal Bluetooth Wireless Radio. Tap OK.

2. Turn on the Cordless Hand Scanner. Press the small power button for five

seconds, until you see the LED turn blue. The LED should blink blue once per second to show that the Bluetooth radio is on but not connected.

3. Double-tap on the Bluetooth icon at the bottom of your screen.

4. In Bluetooth Settings, tap New Connection at the bottom of the screen.

5. The Ad d New Connection Wizard will launch. Select Custom Mode and

tap Next. The tablet will begin searching for Bluetooth devices in range.

CHAPTER 4: SETUP FOR WINDOWS XP 41

6. In the list of found devices, select Socket CHS [xxxxxx]. Tap Next.

7. If a passkey is requested, enter the default PIN 1234. Tap OK. To indicate

the connection, the CHS will beep once.

8. In the list of device services, select Serial Port. Tap Next.

9. Note wh ich COM port is assigned to the CHS.

Broadcom (Widcomm) Bluetooth Stack:

Refer to the manual for your Bluetooth hardware/software for specific instructions. Many Bluetooth USB adapters use this stack.

1. Turn on the Bluetooth radio of your computer.

2. Turn on the Cordless Hand Scanner. Press the small power button for

five seconds, until you see the LED turn blue. The LED should blink blue once per second to show that the Bluetooth radio is on but not connected.

3. Perform a Quick Connect to a Bluetooth Serial Port. Click the Bluetooth

icon in the task tray. Click Quick Connect | Bluetooth Serial Port | Find Devices.

It is essential to connect to the CHS via Quick Connect becau s e this sets the CHS as your default Bluetooth serial device.

4. During the device search, the CHS will appear as Socket CHS [xxxxxx]

The characters in brackets are the last 6 characters of the scanner’s Bluetooth MAC address.

5. If a passkey is requested, enter 1234. To indicate the connection, the

CHS will beep once.

By default, the Bluetooth software will ask you for the passkey each time you connect. To stop the automatic prompts, under Advanced Configuration, disable the Secure Connection requirement for both the Local Service and Client Application, then unpair the devices. Refer to the documentation for your Bluetooth hardware/software for complete instructions.

CHAPTER 4: SETUP FOR WINDOWS XP 43

STEP 3: Configure Scanner Settings

1. Click the SocketScan icon at the bottom of the screen. In the pop-up

menu, click Settings.

Alternatively, click Start | Control Panel | SocketScanXP Settings.

2. Tap on the CS tab. Enter the following settings:

• Enable CS support: Check this box. IMPORTANT!!!

• Bluetooth stack: Select Socket (Connect!Agent) if you want to use it.

Otherwise, select your computer’s Bluetooth stack. The Connect!Agent option will only appear if you installed the Connect!Agent software.

• COM Port: Select the COM port number assigned to the CHS. This

field will only appear for some Bluetooth stacks.

• CS trigger operation: Select whether you want the CHS to scan only

when a Bluetooth connection to the device is detected. If you select

• Scan only when connected to host, scanning will be a few

milliseconds slower.

• Good read indication on CS: Select how you would like the CHS to

indicate that it has successfully read data.

• Auto re-connect: Select the maximum number of attempts and time

limit per attempt for the CHS to try to reconnect to your computer in case they are moved out of range from each other.

• Battery Level: No progress bar should appear since you are not

connected to the CHS.

• Power management: The CHS automatically shuts off if there is no

Bluetooth connection for 20 minutes. Check to disable.

• Advanced: When the computer is connected to the CHS, you can

modify the Bluetooth friendly name and security settings of the CHS.

3. Click on the CHS tab. Select which button on the CHS you would like to

use to trigger the scanner.

4. After entering settings, click OK to save the changes.

5. If SocketScan is open, you will be prompted to exit and restart SocketScan.

Click OK. Click on the SocketScan icon at the bottom of your screen and in the pop-up menu, click Exit.

CHAPTER 4: SETUP FOR WINDOWS XP 45

STEP 4: Start SocketScan and Connect to CHS

1. If you did not install Connect!Agent start your computer’s Bluetooth

software and make sure the Bluetooth radio is turned on.

2. Start SocketScan XP. Click on the icon on the desktop.

3. Right-click the SocketScan icon at the bottom of the screen and click

Connect CS.

If you installed Connect!Agent, it will automatically o pen the Bluetooth software and turn on the Bluetooth radio when you click Connect CS.

After you configure the correct Bluetooth hardware settings in SocketScan, the Connect CS menu option allows you to connect to the CHS directly from SocketScan, instead of manually connecting via your Bluetooth software.

The Connect CS option will not appear unless you checked the box Enable CS Support in the SocketScanXP settings.

SocketScan will not be able to connect to the CHS if you have another device assigned as your favorite or default Bluetooth serial device.

4. If you are using Connect!Agent, and this is your first time connecting,

Connect!Agent will automatically begin searching for the CHS. After it finds the CHS, it will automatically configure the connection.

5. SocketScan will connect the computer to the CHS,

indicated by a beep and a status bubble.

6. Th e task tray icon at the bottom of your screen will change

to an image of a scanner to indicate that SocketScan is connected to the CHS.

STEP 5: Scan Data into Your Application

1. Start the Windows application that you want to enter scanned data into

(e.g., Excel, Notepad, etc.). Make sure a document or spreadsheet is open.

2. Place the cursor where you want data from the next scan to be entered.

3. Press the trigger button and aim your finger at the bar code. The red

laser beam should cover the entire width of the bar code. See Chapter 1 for scanning tips.

When data is read and sent to the mobile computing device, the laser will turn off. Depending on your scanner settings, the scanner may beep and/or the Hand scanner’s LED may flash green to indicate a good read.

If no data is read in a few seconds, the laser will turn off, and you must try again.

CHAPTER 4: SETUP FOR WINDOWS XP 47

4. After a successful scan, data should appear in your document. By default,

the cursor automatically advances to the next cell or line, ready for the next scan.

Wait for the “Good Scan” indication before you scan another bar code. If you try to scan too fast, the device can lock up until you stop scanning.

If your computer suspends or the CHS is moved out of range, the connection will be lost. After the computer turns on again or returns in range, SocketScan will try to re-connect according to the “auto reconnect” settings you chose in SocketScan.

After the time limit for re-connection attempts has passed, you can click on the Socket CS Connect icon on the desktop to manually initiate re-connection.

To end the connection, click on the SocketScan icon and click Disconnect CS. The CHS will beep twice to indicate the connection has ended.

To turn off the CHS, press the power button on the wrist unit for at least 2 seconds, until the LED stops blinking.

For information about third-party applications compatible with the CHS for asset tracking, warehouse mobility, and other vertical markets, visit:

www.socketcom.com/solutions/default.asp?Type=Vertical

OPTIONAL: Assign Sound and Prefix/Suffix Settings

You can configure these settings whether or not the CHS is connected to your computer.

1. In SocketScanXP Settings, click on the General tab.

2. Adjust any settings as desired:

Good read notification sound:

Select which sound you would like your computer to use to indicate good readings of data. By default, your computer will beep.

• If you would like your computer to play a .WAV file, select Play a

.WAV file and click Browse to indicate the file location.

Prefix/Suffix:

Enter any prefix and/or suffixes you would like SocketScan to automatically append to scanned data (128 character max., printable ASCII characters only). By default, SocketScan will enter a carriage return after every data scan.

• Use \r for Carriage Return, \n for Linefeed, \t for Tab., \\ for a single \

character.

• Other characters can be typed or entered using the format \nnn, where

nnn = ASCII character 001 through 255.

3. After adjusting any settings, click OK. As prompted, exit and restart

SocketScanXP to have your changes take effect.

CHAPTER 4: SETUP FOR WINDOWS XP 49

OPTIONAL: Configure Advanced Bluetooth Settings

The SocketScanXP utility enables you configure advanced Bluetooth settings of the CHS, including the Bluetooth friendly name and security settings.

1. In SocketScanXP Settings, click on the CS tab.

The Trigger and Barcodes tabs will only appear if you are connected to the CHS.

2. At the bottom of the CHS screen, the CHS battery level will be indicated

by a status bar. Click Advanced.

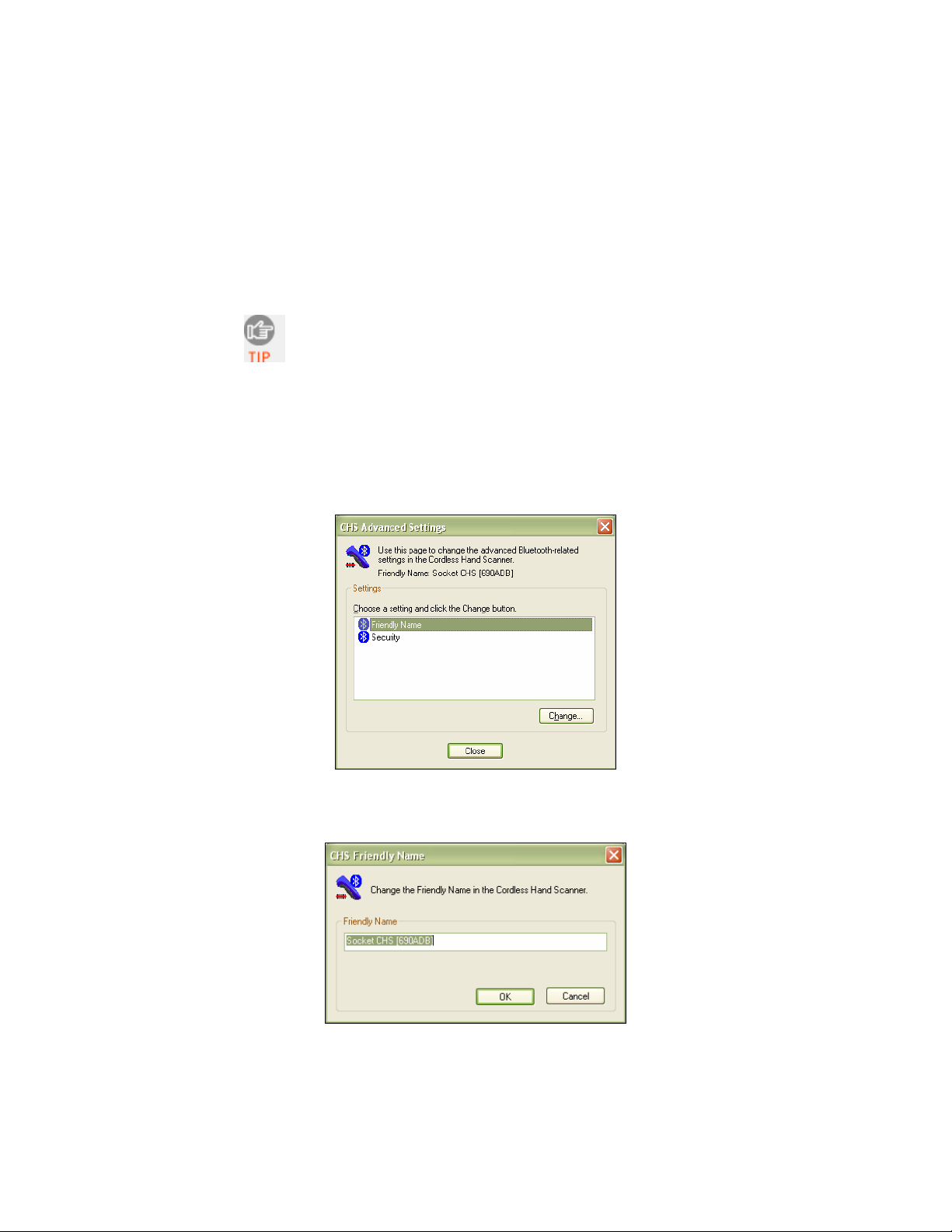

3. The CHS Ad vanced Settings screen will appear, reporting the current

Bluetooth friendly name assigned to the CHS.

4. If desired, select Friendly Name or Security and click Change.

5. In the screen that appears, enter any changes and click OK.

CHS Friendly Name: Enter a new friendly name and click OK.

CHS Security Settings: Enter a PIN code and/or any authentication or encryption settings. If desired, click Delete Bonding to delete any bonding/pairing information in the CHS. After making any changes, click OK.

6. If you modified any secu rity settings, you will be prompted to turn your CHS

off and back on to make the changes take effect. Read the message and click OK. Turn the CHS off and back on again.

7. When you return to the CHS Advanced Settings screen, click Close.

8. In the SocketScanXP Settings screen, click OK.

9. Exit and restart SocketScanXP to have your changes take effect.

CHAPTER 4: SETUP FOR WINDOWS XP 51

OPTIONAL: Assign a Trigger Button

The SocketScanXP utility enables you to assign one of your computer’s function keys to trigger the CHS.

1. In SocketScanXP Settings, click on the Trigger tab.

The Trigger and Barcodes tabs will only appear if you are connected to the CHS.

2. Select the function key you would like to use as a trigger key. Click OK.

3. As prompted, exit and restart SocketScanXP to have your changes take

effect.

OPTIONAL: Select Symbologies

The SocketScanXP utility makes it easy to modify which symbologies you want the scanner to recognize and decode.

1. In SocketScanXP Settings, click on the Barcodes tab.

The Trigger and Barcodes tabs will only appear if you are connected to the CHS.

2. Check the symbologies you wish to enable. Uncheck those you wish to

disable. Click OK.

Enabling all possible symbologies will make the decode process slightly longer.

3. As prompted, exit and restart SocketScanXP to have your changes take

effect.

CHAPTER 4: SETUP FOR WINDOWS XP 53

OPTIONAL: View Version Information

1. In SocketScanXP Settings, click on the About tab.

The Trigger and Barcodes tabs will only appear if you are connected to the CHS.

2. View the control panel applet (CPL) and CHS firmware version information.

Click OK.

To view the SocketScan software version, click on the

SocketScan icon and in the menu, click About.

Appendix A

Specifications

Physical Characteristics

Size: 125l x 31h x 35w (mm) 4.9l x 1.2h x 1.4w (in.) Total Mass: approx. 90 g (0.2 lb)

Power Source: Two AAA NiMH rechargeable batteries Expected Battery Life with Normal Operation (connected via Bluetooth and

minimum 2,000 bar code scans): 8 hours

Operating Temp: 32 to 120°F (0 to 50°C)

Operating System Support:

• Windows Mobile 2003, 2003SE, 5.0

• Windows XP, XP Tablet Edition

• Palm OS v5.2 and later

For information about using the CHS with Symbian OS, please visit:

www.socketcom.com/product/cordless.asp?Type=Scanner

2005 Sunrise Date Compliant

Scanning Characteristics

Bar Code Symbologies Decoded: Code 39, UPC/EAN/JAN, MSI, Code

128, Code 93, Codabar, I 2 of 5, D 2 of 5, RSS-14

Laser: Class 1 (CHS 7M) with Fuzzy Logic (Optional Class 2 (CHS 7P)

with Fuzzy Logic)

Scan Angle: 46.5°

Laser Scanner Performance:

Scan Repetition Rate: 50 (± 3) scans/sec (bi-directional) Decode Distances: 2.2 to 40+ inches depends on symbol size, symbology,

label media, W-N Ratio, scan angle

Bluetooth Characteristics

Protocol: Bluetooth 2.45 GHz ISM band frequency hopping Antenna: Integrated Radio Range: Up to 330 ft (100 m), depending on environment Connection: Point-to-point Security: Encrypted link RF Power: Class 1 radio; Typical Output: 14 dbm

APPENDIX A: SPECIFICATIONS 55

Bluetooth Stack Support

• Socket Drakar v1.4 (from Socket SD/CF Connection Kit)

• IVT BlueSoleil v1.4.7 or greater (from Socket CF + Adapter/USB

Connection Kits)

• Broadcom (Widcomm) v1.4

• Microsoft Bluetooth stack for Windows Mobile

• Microsoft Windows XP SP 2

• Palm Bluetooth Stack

• Toshiba Bluetooth stack 3.03.06 or greater

Certification/Compliance

FCC: Part 15, Class B CE: EN55024:1998 C-TICK: s.182 Bluetooth 1.1 TELEC

ETS 300 328 ETS 300 826

About Bluetooth Range

The Cordless Hand Scanner features a powerful Class 1 Bluetooth radio to provide the maximum possible range. As with all wireless technologies, the connection range can vary widely depending on many factors such as the brand and placement of the host device, the type and size of physical obstacles and the presence and activity level of competing radio transmissions.

In range testing of the CHS while connected to a variety of typical host devices with Class 2 radios, functional connection distances from 18 to over 100 feet have been experienced depending on the environment. The following conditions appear to reduce the Bluetooth connection range:

• The presence of soft, absorbent materials such as paper, fiberglass

insulation, foam material in office cubical walls, carpeting and, to a lesser extent, even sheetrock and wood construction materials. Hard materials such as concrete increase the range.

• Human bodies or containers of liquid positioned between the host and

the CHS.

• The presence and activity level of competing Bluetooth or 802.11

(Wi-Fi) systems using the same 2.4 GHz frequency.

• Metal in a grid pattern, such as chain link fencing or chicken wire. This

type of material may block the Bluetooth (or Wi-Fi) signal completely.

56 | APPENDIX A: SPECIFICATIONS

Appendix B

Safety and Usage Tips

About Bluetooth and Health

Bluetooth wireless technology allows you to use short-range radio signals to connect a variety of devices, such as bar code scanners, mobile phones, Pocket PCs, notebook computers, printers, LAN access points, and many other devices at home or work. These radio signals replace the cables that have traditionally connected these devices.

Bluetooth products have small radio transmitters and receivers. Output power is normally very low, only 1 mW (1/1000 of a watt). This gives a working range of approximately 10 meters.

The maximum exposure levels from Bluetooth products are far below recommended safety guidelines. At most, typical Bluetooth devices (1mW) reach only one percent of the prescribed safety levels.

Product Care

• Do not expose your product to liquid, moisture or extreme humidity.

• Do not expose your product to extreme high or low temperatures.

• Do not expose your product to lit candles, cigarettes, or cigars, or to

open flames, etc.

• Do not drop, throw or try to bend the product, as rough treatment could

damage it.

• Do not paint your product, as the paint could obstruct parts and prevent

normal use.

• Do not attempt to disassemble your product: a broken warranty seal will

void the warranty. The product does not contain consumer serviceable components. Should your Cordless Hand Scanner need service, please contact Socket technical support at:

• Treat your product with care. Keep in a clean and dust-free place.

• Changes or modifications of this product, not expressly approved by

Socket, may void the user’s authority to operate the equipment.

Antenna Care

Do not place a metallic shield around the Cordless Hand Scanner since it will reduce the radio transmission efficiency.

support@socketcom.com.

APPENDIX B: SAFETY AND USAGE TIPS 57

Efficient Use

For optimum performance, please make sure that there is no metal surrounding your Cordless Hand Scanner.

Driving

RF energy may affect some electronic systems in motor vehicles, such as car stereo, safety equipment, etc. Check with your vehicle manufacturer to be sure that the Cordless Hand Scanner will not affect the vehicle’s electronics.

Aircraft

• Turn off your Cordless Hand Scanner before boarding any aircraft.

• To prevent interference with communications systems, you must not use

your Cordless Hand Scanner while the plane is in the air.

• Do not use it on the ground without permission from the crew.

Radio Frequency Exposure

Your Cordless Hand Scanner contains a radio transmitter and receiver. When in operation, it communicates with a Bluetooth enabled mobile computer by receiving and transmitting radio frequency (RF) magnetic fields in the frequency range 2400 to 2500 MHz. The output power of the radio transmitter is 0.001 Watt. The Cordless Hand Scanner is designed to be in compliance with the RF exposure limits set by national authorities and international health agencies

when installed or used separately from other

antennas or radio transmitters.

Examples of RF exposure standards and guidelines:

ICNIRP, “Guidelines for limiting exposure to time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz)”, International Commission on NonIonizing Radiation Protection (ICNIRP), Health Physics, vol. 74, pp 494-533, April

1998.

99/519/EC, EU Council Recommendation on the limitation of exposure to the general public to electromagnetic fields 0 Hz – 300 GHz, Official Journal of the European Communities, July 12, 1999.

ANSI/IEEE C95.1-1992, “Safety levels with respect to human exposure to radio frequency electromagnetic fields, 3 kHz to 300 GHz”, The Institute of Electrical and Electronics Engineers, Inc., New York, 1991.

FCC Report and Order, ET Docket 93-62, FCC 96-326, Federal Communications Commission (FCC), August 1996.

Radiocommunications (Electromagnetic Radiation Human Exposure) Standard 1999, Australian Communications Authority (ACA), May 1999.

Appendix C

Bar Code Label Specifications

All bar code symbols/labels should satisfy the appropriate AIM Uniform Symbology Specification.

Background Substrate:

The bar code symbol should be printed on material (media) that is reflective and has a matte (not glossy) finish. A background diffuse reflectance of at least 70% to 80% is desirable for optimum contrast. Retro-reflective media should be used to obtain decode distances greater than 36 inches.

Ink Color and Type:

The inked bars should not exceed 25% reflectance at the wavelength that is being used for reading, whether printed with black ink or colored ink. The reflectance value should not vary more than 5% within the same character.

Voids and Specks:

The code should be printed clearly, free of voids, specks, blemishes and lines that could “fool” the scanner. Specks or blemishes in the white spaces, or false or missing bar sections could be interpreted by the reading equipment as part of the code. Generally, the width of such flaws is more serious than the height. Code symbols/ labels should be rejected if these defects are present.

Definition:

The bars in the bar code symbol should be well defined. Their edges should not be rough or fuzzy, so that the bars and spaces have the proper widths intended for the bar code symbology used.

Contrast:

Background reflectance (that of the substrate on which the codes are printed) should always provide a good contrast relative to the ink reflectance (that of the code bars). The difference between the two should be at least 37.5% at the wavelength used for reading.

Tolerance:

The ratio of the widths of bars and spaces in a bar code symbol must conform to the appropriate AIM bar code specifications and can cause problems if not correct throughout the bar code. Problems can occur when bar edges are smeared or rough, or when they exhibit voids.

APPENDIX C: BAR CODE LABEL SPECIFICATIONS 59

Appendix D

Enabling or Disabling Symbologies

The Cordless Hand Scanner is pre-set to automatically detect and decode (auto-discriminate) the most common bar code symbologies. To enable or disable symbologies, simply use SocketScan’s Symbology Selector.

Notes:

• The length of some symbologies will change after Symbology Selector is

used. See Table 1.

• With more symbologies enabled, the scanner must work harder to search

through all the possible combinations. This may make the decoding process slightly longer.

• The advanced symbology parameters listed in Table 2 can only b e modified

by using the SocketScan Advanced Programming Guide or the SocketScan SDK. Check Socket’s website for updates.

Table 1. Default Symbologies

Symbology

UPC/EAN/JAN

UPC-A Enabled N/A N/A UPC-E Enabled N/A N/A UPC-E1 Disabled N/A N/A EAN-8 Enabled N/A N/A EAN-13 Enabled N/A N/A

Code 128 (USS-128 & UCC/EAN 128) Code 39*

Code 39 Enabled 2 to 23 2 to 55 Trioptic Code 39 Enabled 2 to 23 2 to 55 Code 39 Full ASCII Disabled 2 to 23 2 to 55

Code 93 Interleaved 2 of 5* Discrete 2 of 5* Codabar MSI Plessey* RSS-14 (Standard, Limited, Expanded)**

*Warning: Setting the length to “Any” may lead to inaccurate decodes of these symbologies. **This symbology will be added in the next release.

Scanner

Default

Enabled Any Any

Disabled 2 to 38 2 to 55

Enabled 14 Only 2 to 55 Disabled 12 Only 2 to 55 Disabled 5 to 55 2 to 55 Disabled 1 to 30 2 to 55 Disabled N/A N/A

Default Length

Length after

Symbology Selector

Table 2. Other Symbology Parameters

Symbology Parameters Scanner Default

UPC/EAN/JAN

Supplementals Disabled Transmit Check Digit Enabled Bookland EAN Disabled Decode UPC/EAN Supplementals Ignore UPC/EAN Supplemental Redundancy Seven Transmit UPC-A Check Digit Enabled Transmit UPC-E Check Digit Enabled Transmit UPC-E1 Check Digit Enabled Convert UPC-E to A Disabled Convert UPC-E1 to A Disabled EAN-8 Zero Extend Disabled UPC/EAN Security Level 0 UPC/EAN Coupon Code Disabled

Code 39

Convert Code 39 to Code 32 Disabled Code 32 Prefix Disabled Check Digit Verification Disabled Transmit Check Digit Disabled Code 39 Full ASCII Disabled

Interleaved 2 of 5

Check Digit Verification Disabled Transmit Check Digit Disabled Convert I 2 of 5 to EAN-13 Disabled

RSS-14

Disabled RSS-14 Limited Disabled RSS-14 Expanded Disabled

APPENDIX D: ENABLING/DISABLING SYMBOLOGIES 61

For more information on bar codes, symbologies, labels or other bar code related topics, visit any of the following web sites:

www.aimglobal.org/technologies/barcode/

www.aimglobal.org/aimstore/stackedsymbologies.htm

www.adams1.com

www.bizfonts.com

www.barcode-us.com/info_center/upc.htm (UPC Codes)

www.barcode-us.com/info_center/bookinfo.htm (Bookland EAN)

www.dataid.com/bcsymbology.htm

www.aaabarcodes.com

www.snx.com/mechanics.html

www.pscnet.com/html/aabcsymbologies.htm#Checksums

www.idautomation.com/barcoding4beginners.html

Appendix E

Decode Zone

The decode zones for the Cordless Hand Scanner is shown below. The minimum element width (“X Dimension” or bar code “size”) is the width in thousandths of an inch (mils) of the narrowest element (bar or space) in the symbol. The figures shown are the typical scanning distances (depths of field) for selected bar code sizes. The maximum usable length of a bar code symbol (Width of Field) at any given range is also shown.

APPENDIX E: DECODE ZONE 63

Appendix F

Troubleshooting

For help on SocketScan, tap Start | Help on a Pocket PC, or tap on the icon on a Palm device.

SYMPTOM

of my Windows-based mobile computer and can’t trigger the laser or scan any bar codes.

POSSIBLE REASON SOLUTION

Your mobile computer is not connected to the Cordless Hand Scanner.

SYMPTOM

appears on my screen, and the laser eventually turns off.

POSSIBLE REASON SOLUTION

The scanner is too close or too far from the bar code.

The bar code is incorrectly formatted or poorly printed.

The bar code symbology may be disabled or not supported by the Cordless Hand Scanner.

You don’t have an application open to scan data into.

: I get the “No Scanner Detected” icon in the task tray

Make sure the Cordless Hand Scanner is on and in range and has enough battery power. Try to reconnect.

: When I try to scan, the laser activates, but no data

Practice so you get accustomed the most effective distance and scanning angle. Try scanning a bar code that is correctly formatted or printed well, such as on a retail package. Use Scan Demo for Windows Mobile or the Test screen for Palm OS to identify the symbology. If needed, enable the symbology by using Symbology Selector for Windows Mobile or the Symbology screen for Palm OS. Open an application, such as Excel, and place the cursor where you want scanned data to go. Try scanning again.

64 | APPENDIX F TROUBLESHOOTING

SYMPTOM: When I scan a lot of bar codes very fast, the scanner locks up and won’t work for a few seconds.

POSSIBLE REASONS SOLUTION

You are scanning too fast for the Error Proof Protocol to confirm that the mobile computer has successfully received each scan of data.

Wait for the confirmation beep after each scan before you scan a new bar code. You may need to re-scan data that was not correctly received by the mobile computer.

SYMPTOM

: My mobile computer cannot find the Cordless Hand

Scanner, and/or I get an error message saying that there are connection problems.

POSSIBLE REASONS SOLUTION

You are too far from the Cordless Hand Scanner. The Cordless Hand Scanner is not turned on. You have assigned another device as your favorite or default Bluetooth serial device. You are using an XP system without Connect!Agent, and you did not start the Bluetooth software. The Bluetooth radio of your mobile computer is not turned on.

Move the devices closer together, within a range of 10-15 meters. Turn on the Cordless Hand Scanner. Remove any settings that assign another device as your favorite Bluetooth serial device. Start the Bluetooth software.

Turn on the Bluetooth radio of your mobile computer.

APPENDIX F: TROUBLESHOOTING 65

SYMPTOM

: While scanning with the CHS, I turned off the Pocket

PC, or my Pocket PC entered suspend mode. Now my Pocket PC won’t turn on again.

POSSIBLE REASONS SOLUTION

This is a known problem with the Widcomm stack (built into HP h221X iPAQ Pocket PCs with ROM version 1.00).

Soft reset the Pocket PC by pressing the reset button.

SYMPTOM: My Pocket PC shows an error message saying that there are insufficient device resources.

POSSIBLE REASONS SOLUTION

Some HP iPAQ Pocket PCs are not compatible with the Socket Cordless Hand Scanner.

SYMPTOM: Connect!Agent has found multiple CHS devices, and I

don’t know which one to choose.

The CHS will not work with your Pocket PC at this time.

POSSIBLE REASONS SOLUTION

This is your first time using Connect!Agent to connect to a CHS, and Connect!Agent has found multiple CHS devices using the default name.

Turn off the CHS device(s) you do not want to connect to. Tap Refresh. Connect!Agent will connect to and save information about your CHS to exclusively connect to it in the future. If you are using SocketScan XP, you can use the SocketScan settings utility to change the Bluetooth friendly name of your CHS.

66 | APPENDIX F TROUBLESHOOTING

SYMPTOM

: While scanning with the CHS, I turned off the Pocket

PC, or my Pocket PC entered suspend mode. Now the CHS won’t reconnect to my Pocket PC.

POSSIBLE REASONS SOLUTION

There is a problem with the Widcomm stack on some Pocket PCs where the CHS can be discovered but fails to communicate. Affected units include the HP iPAQ models h221X with ROM version 1.10 and h1945.

Soft reset the Pocket PC by pressing the reset button.

APPENDIX F: TROUBLESHOOTING 67

Appendix G Technical Support

If you have trouble installing or using the Cordless Hand Scanner with Bluetooth Wireless Technology, contact Socket’s technical support department for assistance.

IMPORTANT! To obtain technical support, you must first register your product online

www.socketcom.com/prodreg.

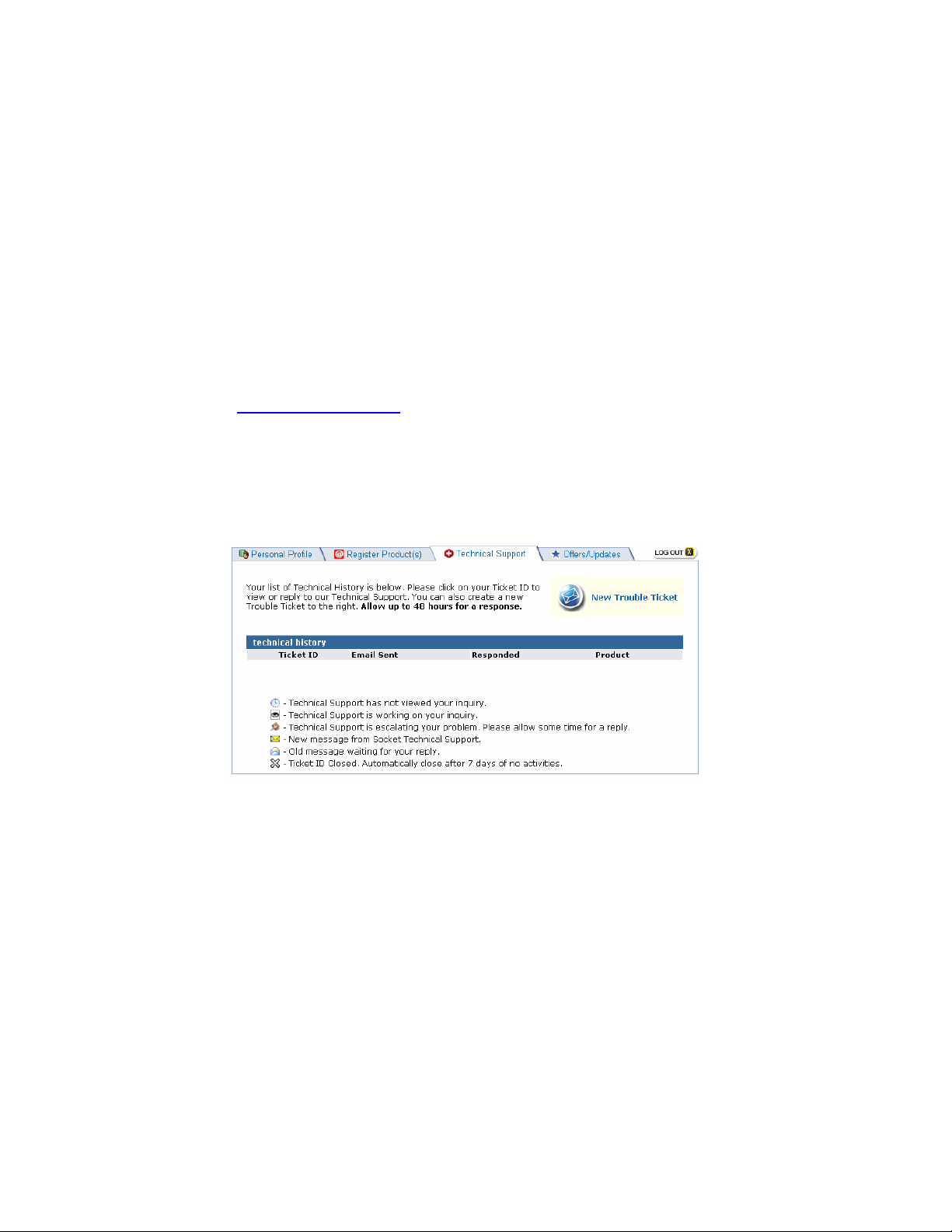

After you register your product and log in, click on the Technical Support tab, then click New Trouble Ticket to submit an online request for technical support. Afterwards , you can log on anytime to monitor the status of your request. If we are unable to resolve your support inquiry online, we can arrange for a technical support representative to call you at a specific time.

Please refrain from disassembling the Cordless Hand Scanner. Disassembly of this device will void the product warranty.

Limited Warranty

Socket Communications Incorporated (Socket) warrants this product against defects in material and workmanship, under normal use and service, for the following period from the date of purchase:

Cordless Hand Scanner: Two years

Incompatibility is not a defect covered by Socket’s warranty. During the warranty period, Socket will, at its option, repair or replace the defective product at no charge when furnished with proof of retail purchase, provided that you deliver the product to Socket or to an authorized Socket Service Center.

The returned product must be accompanied by a return material authorization (RMA) number issued by Socket or by Socket's Authorized Service Center. If you ship the product, you must use the original container or equivalent and you must pay the shipping charges to Socket. Socket will pay shipping charges back to any location in the contiguous United States. This warranty applies only to the original retail purchaser and is not transferable.

Socket may, at its option, replace or repair the product with new or reconditioned parts and the returned product becomes Socket's property. Socket warrants the repaired or replaced products to be free from defects in material or workmanship for ninety (90) days after the return shipping date, or for the duration of the original warranty period, whichever is greater.

This warranty does not cover the replacement of products damaged by abuse, accident, misuse or misapplication, nor as a result of service or modification other than by Socket.

SOCKET IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING DAMAGE TO PROPERTY AND, TO THE EXTENT PERMITTED BY LAW, DAMAGES FOR PERSONAL INJURY. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states do not allow limitation of implied warranties, or the exclusion or limitation of incidental or consequential damages, so that the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

This product may contain fully tested, recycled parts, warranted as if new. For warranty information, phone (510) 744-2700.

LIMITED WARRANTY. SOCKET warrants that the original disk or CD ROM is free from defects for 90 days from the date of delivery of the SOFTWARE.

CUSTOMER REMEDIES. SOCKET’S entire liability and your exclusive remedy shall be, at SOCKET’S option, either (a) return of the price paid or (b) replacement of the SOFTWARE which does not meet SOCKET’S Limited Warranty and which is returned to SOCKET with a copy of your receipt. Any replacement SOFTWARE will be warranted for the remainder of the original warranty period or 30 days, whichever is longer. THESE REMEDIES ARE NOT AVAILABLE OUTSIDE OF THE UNITED STATES OF AMERICA.

NO OTHER WARRANTIES. SOCKET disclaims all other warranties, either express or implied, including but not limited to implied warranties of merchantability and fitness for a particular purpose, with respect to the SOFTWARE and the accompanying written materials. This limited warranty gives you specific legal rights. You may have others which vary from state to state.

NO LIABILITY FOR CONSEQUENTIAL DAMAGES. In no event shall SOCKET or its suppliers be liable for any damages whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information, or other pecuniary loss) arising out of the use of or inability to use the SOFTWARE, even if SOCKET has been advised of the possibility of such damages. Because some states do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply to you.

EXPORT LAW ASSURANCES. You may not use or otherwise export or reexport the SOFTWARE except as authorized by United States law and laws of the jurisdiction in which the SOFTWARE was obtained. In particular, but without limitation, none of the SOFTWARE may be used or otherwise exported or reexported (a) into (or to a national or resident of) a United States embargoed country or (b) to anyone on the U.S. Treasury Department’s list of Specially Designated Nationals or the U.S. Department of Commerce’s Table of Denial Orders. By using the SOFTWARE, you represent and warrant that you are not located in, under control of, or a national or resident of any such country or on any such list.

Limited Software Warranty

GOVERNMENT END USERS. If the SOFTWARE is supplied to the U. S. Government, the SOFTWARE is classified as “restricted computer software” as defined in clause 52.227-19 of the FAR. The U. S. Government ‘s rights to the SOFTWARE are as provided in clause 52.227-19 of the FAR.

CONTROLLING LAW AND SEVERABILITY. This License shall be governed by the laws of the United States and the State of California. If for any reason a court of competent jurisdiction finds any provision, or portion thereof, to be unenforceable, the remainder of this License shall continue in full force and effect.

Regulatory Compliance

The Socket Cordless Hand Scanner is designed to be compliant with the rules and regulations in locations where they are sold and will be labeled as required. This product is type approved — users are not required to obtain license or authorization before using.

This product has been certified as conforming to technological standards. Therefore, the following actions are punishable by law:

• Disassembly or modification of this product

• Removal of identification labels on the back of the product

The frequency used by this product is also used by industrial, scientific and medical devices, such as microwave ovens, as well as wireless detectors for motion detectors, such as those requiring licenses used on manufacturing lines or similar radio transmitters (all of these wireless devices will be called “other wireless transmitters” below). Most modern electronic equipment (e.g., in hospitals and cars), is shielded from RF energy. However, certain electronic equipment is not.

1. Please ensure that all medical devices used in proximity to this device

meet appropriate susceptibility specifications for this type of RF energy.

2. In the unlikely event that there is electronic in terference between this

system and other wireless transmitters, quickly change the location of operation or stop operating the unit (cease signal transmission).

3. If other electrical interference or related problems occur, contact Socket

technical support at

support@socketcom.com

Radio Frequency Interference Requirements

This device complies with part 15 of the FCC rules and Industry Canada. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment is also ETS EN300 328-2, ETS EN301 489-1 and ETS EN301 489-17 compliant. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his or her own expense.

This equipment generates and radiates radio-frequency energy. To comply with FCC RF exposure compliance requirements, the following antenna installation and device operating configurations must be satisfied: (1) Users are not permitted to make changes or modify the system in any way, and (2) connecting external antennas to the Cordless Hand Scanner is prohibited. This device and its antenna must not be co-located or operated with any other antenna or transmitter.

To comply with Industry Canada RF exposure compliance requirements, the following antenna installation and device operating configurations must be satisfied: “The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, available at Health Canada’s website www.hc-sc.gc.ca/ehp/ehd/catalogue/rpb.htm

”

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user may try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna of the radio or television.

• Increase the distance separating the equipment and the receiver.

• Connect the equipment to an outlet on a different branch circuit than that

of the receiver.

• Consult the dealer or an experienced radio/TV technician for help.

The user may find the following booklet helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402.

Canada Certification

The marking of “IC:xxxxxx-yyyyyy” on the device means: “xxxxxxyyyyyy” is the certification number, and the term “IC’ before the equipment certification number only signifies that Industry Canada technical specifications were met.

Radio Frequency Interference Requirements – Canada

This Class B digital apparatus meets the requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la Classe B respecte toutes les exigencies du Reglement sur le Matériel Brouilleur du Canada.

CE Marking & European Union Compliance

Products intended for sale within the European Union are marked with a CE Mark which indicates compliance to applicable Directives and

European Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows:

Applicable Directives:

• Radio and Telecommunications Terminal Equipment Directive

1999/5/EC

• Low Voltage Directive 73/23/EEC

Applicable Standards:

• EN 55 022 – Limits and Methods of Measurement of Radio Interference

Characteristics of Information Technology Equipment.

• EN 50 082-1 – Electromagnetic Compatibility – General Immunity

Standard, Part 1: Residential, Commercial, Light Industry.

• IEC 801.2 – Electromagnetic Compatibility for Industrial Process

Measurement and Control Equipment, Part 2: Electrostatic Discharge Requirements.

• IEC 801.3 – Electromagnetic Compatibility for Industrial Process

Measurement and Control Equipment, Part 3: Radiated Electromagnetic Field Requirements.

• IEC 801.4 - Electromagnetic Compatibility for Industrial Process

Measurement and Control Equipment, Part 4: Electrical Fast Transients Requirements

• EN 60 950 + Amd 1 + Amd 2 – Safety of Information Technology

Equipment Including Business Equipment.

LASER DEVICE:

Class 1 laser devices are not considered to be hazardous when used for their intended purpose. The following statement is required to comply with U.S. and international regulations:

CAUTION: Use of controls, adjustments or performance of procedure other than those specified herein may result in hazardous laser light exposures.

Class 2 laser scanners use a low power, visible light diode. As with any very bright light source, such as the sun, the user should avoid staring directly into the light beam. Momentary exposure to a Class 2 laser is not known to be harmful.

Battery Warning:

• Your device contains a rechargeable NiMH battery. Never throw the

battery into a fire, as that could cause the battery to explode.

• Never short-circuit the battery by bringing the terminals in contact with

another metal object. This could cause personal injury or a fire, and could also damage the battery.

• Never dispose of used battery with other ordinary solid wastes.

Batteries contain toxic substances.

• Dispose of used battery in accordance with the prevailing community

regulations that apply to the disposal of batteries. Cover the metal terminals with insulating tape. (This is to prevent accidental shortcircuiting).

• Never expose the battery to any liquid.

• Always keep the battery out of reach of infants or small children.

• Never shock the battery by dropping it or throwing it.

• Dispose of a spent or damaged battery promptly.

Product Disposal

Your device should not be placed in municipal waste. Please check local regulations for disposal of electronic products.

Socket Mobile Series 7 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Copyright Notice

1 | Introduction

Scanner Versions

About the Software

About Combining Scanning with Bluetooth

System Requirements

Package Contents

Product Registration

Hardware Features

2 | Hardware Preparation

Installing Batteries and Attaching the Tether

Charging the Scanner

3 | Setup for Windows Mobile

STEP 1: Install the Software

STEP 2: Configure Scanner Settings

STEP 3: Connect CHS to Host Device with Bluetooth

STEP 4: Scan Data into Your Application

OPTIONAL: Select Symbologies

OPTIONAL: Configure Prefix/Suffixes

OPTIONAL: Run Scan Demo

4 | Setup for Palm

STEP 1: Install the Software

STEP 2: Connect CHS to PDA with Bluetooth

STEP 6: Scan Data into Your Application

OPTIONAL: Configure Scan Settings

OPTIONAL: Select Symbologies

OPTIONAL: Test Bar Codes

5 | Setup for Windows XP

STEP 1: Install the Software

STEP 2: Configure Bluetooth Settings

STEP 3: Configure Scanner Settings

STEP 4: Start SocketScan and Connect to CHS

STEP 5: Scan Data into Your Application

OPTIONAL: Assign Sound and Prefix/Suffix Settings

OPTIONAL: Configure Advanced Bluetooth Settings

OPTIONAL: Assign a Trigger Button

OPTIONAL: Select Symbologies

OPTIONAL: View Version Information

Appendix G Technical Support

Limited Warranty

Regulatory Compliance
