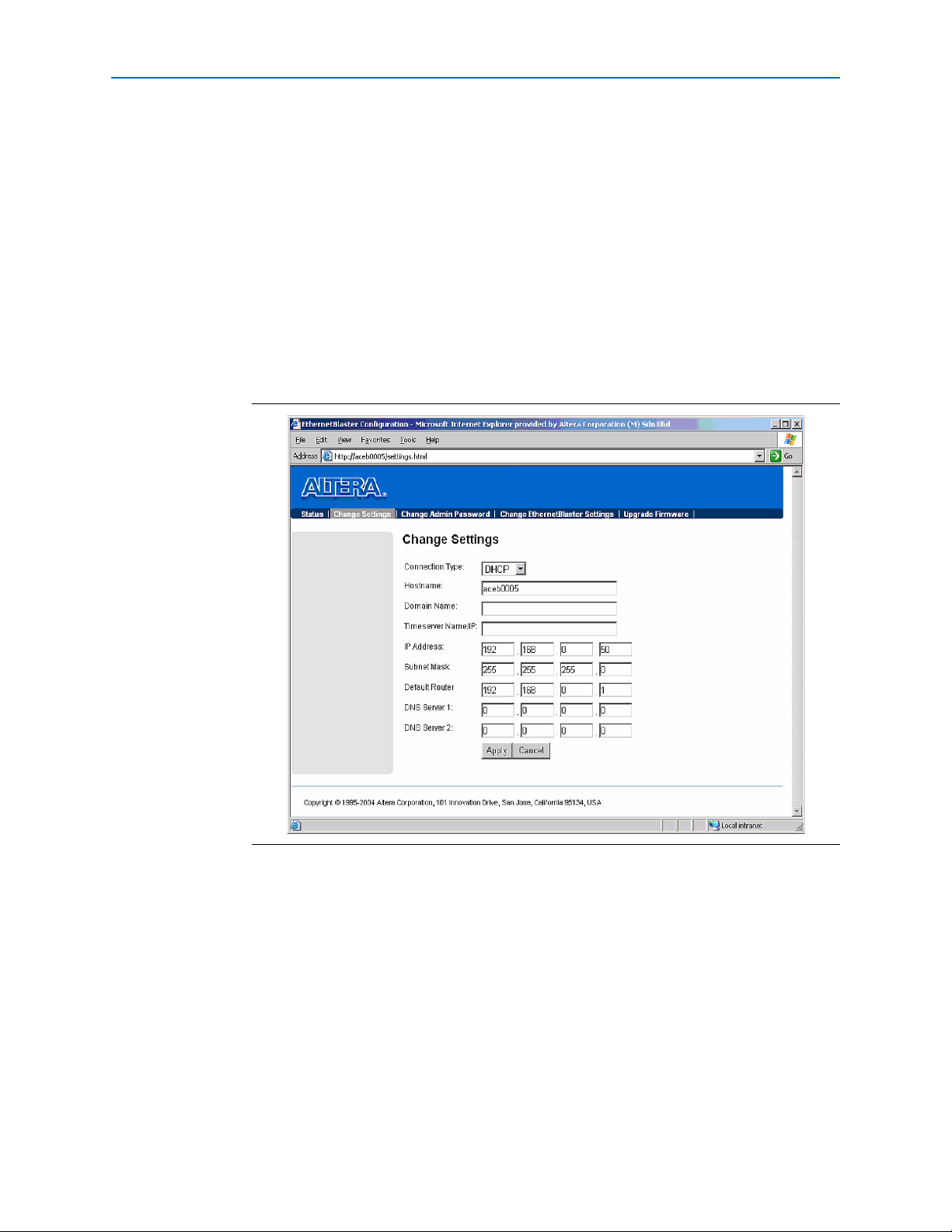

Figure 1–8: EthernetBlaster Change Settings Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Figure 1–9: EthernetBlaster Change Settings Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

Figure 1–10: Hardware Setup Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

Figure 2–1: Change Admin Password Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Figure 2–2: Change Quartus II Remote Connection Password Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Figure 2–3: Machine Reset button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Figure 2–4: Upgrade Firmware Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Figure 3–1: Ethernet Jack Pin Number Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Figure 3–2: EthernetBlaseter 10-Pin Female Target-Side Plug Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Figure 3–3: 10-Pin Male Header Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

vi List of Figures

EthernetBlaster Communications Cable User Guide © July 2008 Altera Corporation

List of Tables vii

List of Tables

Table 1–1: Status LED Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Table 1–2: Programming Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13

Table 2–1: Default Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Table 3–1: EthernetBlaster VCC(TRGT) Pin Voltage Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Table 3–2: EthernetBlaster Female Plug Signal Names & Programming Modes . . . . . . . . . . . . . . . . . . . . . 3-2

Table 3–3: EthernetBlaster Cable Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Table 3–4: EthernetBlaster Cable Recommended Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Table 3–5: EthernetBlaster Cable DC Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

viii List of Tables

EthernetBlaster Communications Cable User Guide © July 2008 Altera Corporation

Introduction

The EthernetBlaster communications cable connects to a standard Ethernet network port with an RJ-45 connector. This cable communicates with client systems using the TCP/IP protocol and supports both static and dynamic IP addressing. The EthernetBlaster communications cable can be plugged into an existing 10/100 Base-T Ethernet network to communicate with clients remotely or interfaced directly via a standard 10/100 Base-T Ethernet port using a crossover cable. Because design changes are downloaded directly to the device, prototyping is easy and you can accomplish multiple design iterations in quick succession. Harnessing the power of an Ethernet network, multiple users can remotely access Altera new level of productivity to prototyping and debugging.

Supported Devices

You can use the EthernetBlaster communications cable to download configuration data to the following Altera devices:

■ Stratix

■ Cyclone

■ MAX

■ APEX

■ ACEX

■ Mercury

■ FLEX

■ Excalibur

series FPGAs

series CPLDs

™

series FPGAs

1K FPGAs

™

FPGAs

series FPGAs

™

FPGAs

1. About the EthernetBlaster Communications Cable

devices, bringing a

You can perform in-system programming of the following devices:

■ Advanced configuration devices, including EPC2, EPC4, EPC8, and EPC16

devices.

■ Serial configuration devices, including EPCS1, EPCS4, EPCS16, EPCS64 and

EPCS128 devices.

In addition, the EthernetBlaster communications cable supports target systems using

5.0-V TTL, 3.3-V LVTTL/LVCMOS, and single-ended I/O standards from 3.3 V down to 1.5 V.

Power Requirements

The EthernetBlaster communications cable requires between 1.5 V and 5.0 V from the target circuit board, and 12.0 VDC (0.875A) input power for the EthernetBlaster V

(a 12.0 VDC wall transformer is supplied).

CCSUPPLY

1–2 Chapter 1: About the EthernetBlaster Communications Cable

Introduction

The EthernetBlaster V the device being programmed. The pull-up resistors on the target circuit board for the configuration/programming signals must be connected to the same power supply as the EthernetBlaster V

Software Requirements

The EthernetBlaster communications cable is available on the Windows, UNIX, and Linux platforms, including the following:

■ Windows NT 4.0

■ Windows 2000

■ Windows XP x32 edition and x64 edition

■ Windows Vista x32 edition and x64 edition

■ Solaris 2.6

■ Solaris 2.7/7

■ Solaris 8/9

■ Solaris 10

■ Red Hat Linux version 7.3

■ Red Hat Linux version 8.0

CC(TARGET)

pin must be connected to the appropriate voltage for

Connections

■ Red Hat Linux version 9

■ Red Hat Enterprise Linux WS 3.0

■ Red Hat Enterprise Linux 4

■ Red Hat Enterprise Linux 5

■ HP-UX version 11.0 or later

Use the Quartus

II software beginning with version 4.0 to configure your device. The

EthernetBlaster communications cable also supports the following tools:

■ Quartus II Programmer (for programming and configuration), which you can run

within the Quartus II software or as a stand-alone version

■ Quartus II SignalTap

II Logic Analyzer (for logic analysis), which you can run

within the Quartus II software or as a stand-alone version

■ Nios

■ Nios II IDE Flash Programmer (for programming Flash devices)

II IDE (for software downloading and debugging)

The EthernetBlaster communications cable houses an Ethernet port on one side and a 10-pin female target port on the opposite side. The Ethernet port side contains an Ethernet port, a reset button, and a DC12V jack. The target port side includes the 10pin female target port and LED status light. The base of the cable includes the MAC address and host name. Figure 1–1 shows the side and base views of the hardware.

EthernetBlaster Communications Cable User Guide © June 2008 Altera Corporation

Chapter 1: About the EthernetBlaster Communications Cable 1–3

TARGET

STATUS

ETHERNET

DC12V

Status LED

Target Port View

Ethernet Port View

Base View

Ethernet Port 10-Pin Target Port

DC12V Jack

Machine Reset

Ethernet Blaster

00:07:ED:05:XX:XX

Host Name: acebXXXX

MAC Address

Host Name

Introduction

Figure 1–1. EthernetBlaster Communications Cable Ethernet Port, Target Port, and Base Views

The status LED on the target port side of the cable displays the operation status of the EthernetBlaster communications cable. See Tab le 1 –1 for a description of each LED status modes.

Table 1–1. Status LED Modes

Status LED Status Description

Red-Green Power on, reset

Green, blinking Cable initialization

Green, steady Cable ready

Blue, blinking Downloading data to target printed circuit

Static & Dynamic IP Addressing

The EthernetBlaster communications cable supports both static IP and dynamic IP addressing, the latter by means of Dynamic Host Configuration Protocol (DHCP). By default, the EthernetBlaster cable is configured at the factory to use dynamic IP addressing. Upon power up, the cable attempts to obtain an IP address from your network DHCP server. The Status LED is green and blinking while the network address is being obtained and the cable is initializing. This process may take up to two minutes.

When an IP address is obtained and the cable is ready to use, the status LED emits a steady green light. If the attempt to obtain an IP address is unsuccessful (the DHCP server may be down or absent), the cable switches to static IP addressing. The default IP address is configured to 192.168.0.50. If static IP addressing is used, you must configure your computer to an IP address in the same subnet as the cable to communicate with it. The default setting requires your address to be in the 192.168.0.X network domain.

board

1–4 Chapter 1: About the EthernetBlaster Communications Cable

Cable Setup

1 Refer to your operating system manual or contact your network administrator to

verify that your network supports DHCP services and for instruction on how to change your IP address.

To maintain your computer’s IP address and change the EthernetBlaster communications cable’s default IP address, see “Configuring the

EthernetBlaster Hardware to Use Static IP Addressing” on page 1–10.

The EthernetBlaster communications cable includes a self-hosted administrative web page, allowing you to configure various aspects of cable operation. The following section describes how to access this web page based on your mode of connection.

Cable Setup

This section describes how to install and set up the EthernetBlaster communications cable for device configuration or programming including the following setups:

■ Remote Connection via Network Using Default Factory Settings

■ Direct Connection to a Computer Using Default Factory Settings

■ Configuring the EthernetBlaster Hardware to Use Static IP Addressing

■ Configuring the EthernetBlaster Hardware to Use Dynamic IP Addressing

■ Setting Up the EthernetBlaster Hardware in the Quartus II Software

■ Removing the EthernetBlaster Hardware from the Quartus II Software

1 For plug and header dimensions, pin names, and operating conditions, see

“EthernetBlaster Communications Cable Specifications” on page 3–1.

Remote Connection via Network Using Default Factory Settings

Use the following steps to connect remotely to the EthernetBlaster communications cable:

1 These steps assume no changes have been made to the default factory settings.

1. Disconnect the power cable from the circuit board.

2. Plug one end of a standard CAT 5 UTP 4-pair patch cable into the Ethernet jack on the EthernetBlaster communications cable, and the other end into a network port of a switch, router, or hub. See Figure 1–2 below.

EthernetBlaster Communications Cable User Guide © June 2008 Altera Corporation

Chapter 1: About the EthernetBlaster Communications Cable 1–5

Switch, Router, or Hub

ETHERNET

DC12V

EthernetBlaster Communications Cable,

Ethernet Port Side View

CAT 5 UTP Standard Cable

Ethernet Jack

CAT 5 UTP

Standard Cable

Ethernet Connector

EIA/TIA 568B

1 .

. .

Pin EIA/TIA 568B Wire Color

1 2 3 4 5 6 7 8

White with Orange Stripe

Orange with White Stripe

White with Green Stripe

Blue with White Stripe

White with Blue Stripe

Green with White Stripe

White with Brown Stripe

Brown with White Stripe

Ethernet Jack

10-pin Female Connector (connects to the target printed circuit board 10-pin male header)

Pin 1 of the Flexible PCB Shielded-Cable Facing this Side

EthernetBlaster

DC12V

ETHERNET

Cable Setup

Figure 1–2. Remote Connection via Network

3. Connect the 10-pin female plug of the flexible, PCB-shielded cable labeled “BLASTER SIDE” to the 10-pin female target port on the Ethernet communications cable, and the 10-pin female plug of the cable labeled “TARGET SIDE” to the 10pin male header on the target circuit board as shown in Figure 1–3 on page 1–5.

Figure 1–3. Connecting the EthernetBlaster Communications Cable to the Target Circuit Board

4. Plug the supplied 12.0 VDC wall transformer into a power outlet and then into the EthernetBlaster communications cable.

1–6 Chapter 1: About the EthernetBlaster Communications Cable

EthernetBlaster Communications Cable Bottom View

Ethernet Blaster

00:07:ED:05:XX:XX

Host Name: acebXXXX

Use the hostname as the address to access the EthernetBlaster communications cable configuration administrative web page.

The last 4 digits of the MAC address are the same as the last 4 digits of the host name.

Cable Setup

1 Always connect the network patch cable as instructed in step 2 before

connecting the power cord. This allows the EthernetBlaster communications cable to obtain a DHCP address (if your network is configured to do so). Wait until the Status LED emits a steady green light.

5. Reconnect the power cable to the circuit board to reapply power.

6. If your network supports DHCP, see step 7 on the following page for configuration instructions. If your network does not support DHCP, see step 8 on the following page for configuration instructions.

7. If your network supports DHCP, you can access the EthernetBlaster Configuration administrative web page using a web browser with the hostname as the address. The hostname is located on the label on the base of the EthernetBlaster communications cable as shown in Figure 1–4 on page 1–6.

Figure 1–4. MAC Address & Host Name

Browse to http://<host name> and specify the host name from the label on the base of your EthernetBlaster communications cable. The EthernetBlaster login window opens.

1 Note that the last 4 digits of the MAC address match the last 4 digits of the

If you know the IP address obtained by the EthernetBlaster communications cable, you can access the administrative web page by entering this address in your browser.

1 See step 9 on the following page for system configuration details.

8. If your network does not support DHCP, you must configure your computer to an address in the 192.168.0.X network domain, and then browse to http://192.168.0.50. See step 9 on the following page for system configuration details.

EthernetBlaster Communications Cable User Guide © June 2008 Altera Corporation

host name on the label on the base of your EthernetBlaster cable.

Chapter 1: About the EthernetBlaster Communications Cable 1–7

Cable Setup

1 Refer to your operating system manual or contact your network

administrator for instruction on how to change your IP address.

1 To maintain your computer’s IP address and change the EthernetBlaster

communications cable default IP address, see “Configuring the

EthernetBlaster Hardware to Use Static IP Addressing” on page 1–10.

9. In the EthernetBlaster login window, enter admin as the login and password as the default password. The EthernetBlaster Status page opens, displaying the status of your EthernetBlaster communications cable, including the current IP address. See Figure 1–5.

Figure 1–5. EthernetBlaster Configuration Administrative Page

1 See “Managing Passwords” on page 2–1 to manage your password after

initial login.

10. Proceed to “Setting Up the EthernetBlaster Hardware in the Quartus II Software”

on page 1–12 to set up your hardware in the Quartus II software.

Direct Connection to a Computer Using Default Factory Settings

The EthernetBlaster communications cable can be connected directly to the network port of a computer. This setup does not allow remote users to access the EthernetBlaster communications cable.

Use the following steps to connect the EthernetBlaster communications cable directly to your system:

1 These steps assume no changes have been made to the default factory

settings.

1. Disconnect the power cable from the circuit board.

1–8 Chapter 1: About the EthernetBlaster Communications Cable

Cable Setup

2. Plug the EIA/TIA 568B connector of a crossover CAT 5 UTP 4-pair patch cable into the Ethernet jack on the EthernetBlaster communications cable, and the EIA/TIA 568A connector into your computer. See Figure 1–6 below.

Figure 1–6. Direct Connection to a Computer Using a Crossover Cable

Computer

EthernetBlaster Communications Cable,

Ethernet Port Side View

Ethernet

ETHERNET

Jack

. . .

Pin EIA/TIA 568B Wire Color

White with Orange Stripe

Orange with White Stripe

White with Green Stripe

Blue with White Stripe

White with Blue Stripe

Green with White Stripe

White with Brown Stripe

Brown with White Stripe

Ethernet EIA/TIA 568B Connector Connected

DC12V

Ethernet Jack

CAT 5 UTP

Crossover Cable

ETHERNET

. . .

Pin EIA/TIA 568A Wire Color

White with Green Stripe

Green with White Stripe

White with Orange Stripe

Blue with White Stripe

White with Blue Stripe

Orange with White Stripe

White with Brown Stripe

Brown with White Stripe

Ethernet EIA/TIA 568A Connector Connected to the Computer

to the EthernetBlaster Communications Cable

CAT 5 UTP Crossover Cable

Plug one end of a standard CAT5 UTP 4-pair patch cable into the Ethernet jack on the EthernetBlaster communications cable, and add a crossover adapter to the other end of the cable. Plug the adapter end of the cable into your computer. See Figure 1–7 on

page 1–9.

EthernetBlaster Communications Cable User Guide © June 2008 Altera Corporation

Chapter 1: About the EthernetBlaster Communications Cable 1–9

Computer

ETHERNET

DC12V

EthernetBlaster Communications Cable,

Ethernet Port Side View

EIA/TIA 568B Connector

CAT 5 UTP

Standard Cable

Ethernet Jack

EIA/TIA 568B Connector

Ethernet Jack

Crossover Adapter

Cable Setup

Figure 1–7. Direct Connection to a Computer Using a Standard Cable and a Crossover Adapter

4. Plug the supplied 12.0 VDC wall transformer into a power outlet and then into the EthernetBlaster communications cable.

5. Reconnect the power cable to the target circuit board to reapply power.

6. To access the EthernetBlaster Status web page, configure your computer to an address in the 192.168.0.X network domain and then browse to http://192.168.0.50. The EthernetBlaster login window opens.

1 Refer to your operating system manual or contact your network

administrator for instruction on how to change your IP address.

To maintain your computer’s IP address and change the EthernetBlaster communications cable default IP address, see “Configuring the EthernetBlaster

Hardware to Use Static IP Addressing” on page 1–10.

7. In the EthernetBlaster login window, enter admin as the login and password as the default password. The EthernetBlaster Status page opens displaying the status of your EthernetBlaster communications cable including the current IP address. See Figure 1–5.

1 See “Managing Passwords” on page 2–1 to manage your password after

initial login.

8. To set up the EthernetBlaster communications cable in the Quartus II software, see

“Setting Up the EthernetBlaster Hardware in the Quartus II Software” on page 1–12.

1–10 Chapter 1: About the EthernetBlaster Communications Cable

Cable Setup

Configuring the EthernetBlaster Hardware to Use Static IP Addressing

By default, the EthernetBlaster communications cable is factory configured to use dynamic IP addressing.

1 Depending on your connection mode, this section assumes that you have completed

the steps in “Remote Connection via Network Using Default Factory Settings” on

page 1–4, or “Direct Connection to a Computer Using Default Factory Settings” on page 1–7.

To configure your cable to use static IP addressing and complete your remote connection, follow the directions below:

1. Open the EthernetBlaster Status page.

2. Click the Change Settings tab and select Static IP from the Connection Type menu. Enter the desired IP address and other appropriate data in the settings fields. See Figure 1–8 on page 1–10.

1 Contact your network administrator if you do not know the settings to

complete the Change Settings page.

Figure 1–8. EthernetBlaster Change Settings Page

3. Click Apply. The EthernetBlaster communications cable automatically restarts. When the status LED returns to a steady green state, the EthernetBlaster communications cable has successfully restarted and can now be added to the Quartus II software. See “Setting Up the EthernetBlaster Hardware in the

Quartus II Software” on page 1–12.

EthernetBlaster Communications Cable User Guide © June 2008 Altera Corporation

Chapter 1: About the EthernetBlaster Communications Cable 1–11

Cable Setup

Configuring the EthernetBlaster Hardware to Use Dynamic IP Addressing

To configure the EthernetBlaster communications cable to use dynamic IP addressing, follow the directions below:

1 Depending on your connection mode, this section assumes that you have completed

the steps in “Remote Connection via Network Using Default Factory Settings” on

page 1–4, or “Direct Connection to a Computer Using Default Factory Settings” on page 1–7.

1. Open the EthernetBlaster Status page.

2. Click the Change Settings tab and select DHCP from the Connection Type menu. See Figure 1–9 below.

Figure 1–9. EthernetBlaster Change Settings Page

1 Contact your network administrator if you do not know the settings to

complete the Change Settings page.

Quartus II Software” on page 1–12.

1–12 Chapter 1: About the EthernetBlaster Communications Cable

Cable Setup

Setting Up the EthernetBlaster Hardware in the Quartus II Software

Use the following steps to set up the EthernetBlaster communications cable in the Quartus II software.

1. Start the Quartus II software.

2. Choose Programmer (Tools menu).

3. Click Hardware Setup. The Hardware Settings tab of the Hardware Setup dialog box is displayed.

4. Click Add Hardware. The Add Hardware dialog box is displayed. Select EthernetBlaster and click Auto Detect.

1 The server name list is automatically populated with the EthernetBlaster

communications cable detected on your subnet if Auto Detect is selected. However, if the cable is not on your subnet, you must manually type the name or IP address of the EthernetBlaster cable in the Server Name field of the Add Hardware dialog box.

If you are using a direct connection to your computer, type 192.168.0.50 in the Server Name field.

5. Type the server password in the Server password field (“password” is the factory default), and click OK.

6. EthernetBlaster is now visible in the Available hardware items list of the Hardware Setup dialog box, as shown in Figure 1–10 below.

Figure 1–10. Hardware Setup Dialog Box

7. Click Close to close the Hardware Setup dialog box.

8. In the Mode list, select the desired mode (Programmer window). Table 1–2 describes each mode.

EthernetBlaster Communications Cable User Guide © June 2008 Altera Corporation

Chapter 1: About the EthernetBlaster Communications Cable 1–13

Cable Setup

1 The EthernetBlaster communications cable supports the Joint Test Action

Group (JTAG), Passive Serial Programming, and Active Serial modes.

Table 1–2. Programming Modes

Mode Mode Description

Joint Test Action Group (JTAG)

In-Socket Programming Not supported by the EthernetBlaster cable.

Passive Serial Programming Configures all Altera devices supported by the Quartus II software,

Active Serial Programming Programs a single EPCS1, EPCS4, EPCS16, EPCS64, or EPCS128

Programs or configures all Altera devices supported by the Quartus II software, excluding FLEX 6000 devices.

excluding the following devices: MAX 3000 and MAX 7000 devices, advanced configuration devices, and serial configuration devices.

serial configuration device.

Removing the EthernetBlaster Hardware from the Quartus II Software

Changes to the EthernetBlaster communications cable setup, including password change and IP addressing mode change, necessitate removal of the cable from the Quartus II Programmer Hardware setup on client systems, followed by adding the cable back into the Quartus II Programmer Hardware setup. To remove the EthernetBlaster communications cable from the Quartus II Programmer hardware setup, follow the instructions below.

1. Start the Quartus II software.

2. Choose Programmer (Tools menu).

3. Click Hardware Setup. The Hardware Settings tab of the Hardware Setup dialog box is displayed.

4. Click JTAG Settings. The JTAG Settings dialog box is displayed. Select the corresponding hostname or IP address of the EthernetBlaster hardware to remove. Click Remove Server.

1 See “Setting Up the EthernetBlaster Hardware in the Quartus II Software”

on page 1–12 for instructions to add the EthernetBlaster communications

cable back into the Quartus II Programmer Hardware setup.

f For details about programming devices and creating secondary programming files,

see the Programming & Configuration chapter of the Introduction to Quartus II Manual.

For further information, see the Programming module of the Quartus II online tutorial.

For further information, refer to the following topics in the Quartus II online Help:

■ Changing the Hardware Setup

■ Programmer Introduction

■ Overview: Working with Chain Description Files

■ Overview: Converting Programming Files

1–14 Chapter 1: About the EthernetBlaster Communications Cable

Cable Setup

EthernetBlaster Communications Cable User Guide © June 2008 Altera Corporation

Introduction

This chapter describes how to administer your EthernetBlaster communications cable:

■ Managing Passwords

■ Changing the Administrative Password

■ Changing the Quartus II Remote Connection Password

■ Resetting the Hardware

■ Firmware Upgrade

Managing Passwords

Networking allows multiple users in both remote and local locations to use the EthernetBlaster communications cable, increasing the productivity in prototyping and debugging. However, because of this flexibility, it is necessary to limit and control user access using the provided password service in the EthernetBlaster communications cable setup.

2. EthernetBlaster Communications Cable Administration

The EthernetBlaster communications cable contains two types of passwords, an administrative password and a Quartus II remote connection password.

The administrative password is the master password used to enter the EthernetBlaster administrative web page. If you know the administrative password you have full control of settings and the ability to modify both the administrative password and the Quartus II remote connection password.

The Quartus II remote connection password enables clients to add the EthernetBlaster hardware to their Quartus II Programmer hardware setup. This password is used to control who has access to the EthernetBlaster communications cable. However, they do not have access to the EthernetBlaster administrative web page and cannot modify the settings or change passwords.

1 When you change the Quartus II remote connection password, client systems using

the EthernetBlaster communications cable must remove the hardware from their Quartus II Programmer hardware setup. See “Removing the EthernetBlaster

Hardware from the Quartus II Software” on page 1–13 for details. The hardware then

needs to be added back into the Quartus II software. See “Setting Up the

EthernetBlaster Hardware in the Quartus II Software” on page 1–12 for details.

Changing the Administrative Password

To change the administrative password, follow the directions below:

1. Open and log into the EthernetBlaster administrative web page in your browser.

1 See “Cable Setup” on page 1–4 for instructions on accessing the administrative web

page using your specific connection.

2–2 Chapter 2: EthernetBlaster Communications Cable Administration

Managing Passwords

2. Click the Change Admin Password tab. See Figure 2–1 below.

Figure 2–1. Change Admin Password Page

3. Enter the new administrative password in the New Password field and again in the Confirm New Password field. Click Apply.

The new password takes effect immediately when logging back into the administrative web page.

1 The EthernetBlaster communications cable does not restart when the administrative

password is reset.

Changing the Quartus II Remote Connection Password

To change the Quartus II remote connection password, follow the directions below:

1. Open and log into the EthernetBlaster administrative web page in your browser.

1 See “Cable Setup” on page 1–4 for instructions on accessing the administrative web

page using your specific connection.

2. Click the Change EthernetBlaster Settings tab. See Figure 2–2 below.

EthernetBlaster Communications Cable User Guide © June 2008 Altera Corporation

Chapter 2: EthernetBlaster Communications Cable Administration 2–3

Resetting the Hardware

Figure 2–2. Change Quartus II Remote Connection Password Page

3. Enter the new Quartus II remote connection password in the New Password field and again in the Confirm New Password field. Click Apply.

The EthernetBlaster communications cable restarts. When the status LED emits a steady green light, the EthernetBlaster has successfully reset and the new password is effective.

Resetting the Hardware

The EthernetBlaster communications cable reset button is located on the Ethernet port side of the hardware. See Figure 2–3.

Figure 2–3. Machine Reset button

Use a small pointed object such as a paper clip to press the machine reset button to restart and reset all values to the default factory settings. See Tab le 2 –1 for a list of factory default settings.

Table 2–1. Default Factory Settings

ETHERNET

Machine Reset Paper cli

DC12V

Setting Value

Connection Type DHCP

Host name acebXXXX (1)

Domain name Clear

Timeserver Name/IP Clear

2–4 Chapter 2: EthernetBlaster Communications Cable Administration

Table 2–1. Default Factory Settings

IP Address 192.168.0.50

Subnet Mask 255.255.255.0

Default Router 192.168.0.1

DNS Server 1 0.0.0.0

DNS Server 2 0.0.0.0

Administrative Password password

Quartus II Remote Connection Password password

Note:

(1) The host name and MAC address are located on the label on the base of your cable.

The last 4 digits of the MAC address represent the “XXXX” in the host name.

Firmware Upgrade

1 When the ErthenetBlaster is reset, existing client system using passwords other than

the fastory default must remove the ErthernetBlaster hardware from their Quartus II Programmer Hardware Setup. See “Removing the EthernetBlaster Hardware from the

Quartus II Software” on page 1–13 or instruction on removal of the EthernetBlaster

hardware. The hardware then needs to be added back into the Quartus II software. See Setting Up the EthernetBlaster Hardware in the Quartus II “Setting Up the

EthernetBlaster Hardware in the Quartus II Software” on page 1–12 for details.

Firmware Upgrade

The EthernetBlaster communications cable has been designed to enable remote firmware upgrade when a new version of firmware is available from Altera Corporation. New firmware may contain enhanced features, better performance, or bug fixes.

c Do not turn off the EthernetBlaster communications cable power when performing

the firmware upgrade or severe damage will occur.

Firmware upgrades are included in Quartus II releases. Firmware upgrades and GPL source code updates are also available on the Altera website. For details, go to

http://www.altera.com/support/software/drivers/dri-index.html.

To upgrade the EthernetBlaster communications firmware, follow the directions below.

1. Open and log into the EthernetBlaster Configuration administrative web page in your browser.

1 See “Cable Setup” on page 1–4 for instructions on accessing the administrative web

page using your specific connection.

2. Click the Upgrade Firmware tab. See Figure 2–4 on page 2–5.

EthernetBlaster Communications Cable User Guide © June 2008 Altera Corporation

Chapter 2: EthernetBlaster Communications Cable Administration 2–5

Firmware Upgrade

Figure 2–4. Upgrade Firmware Page

3. Click Browse and then locate and select the firmware file on your system. Click Apply.

The EthernetBlaster communications cable restarts automatically after the firmware has been successfully upgraded. When the status LED returns to a steady green state, the EthernetBlaster communications cable has restarted successfully.

2–6 Chapter 2: EthernetBlaster Communications Cable Administration

Firmware Upgrade

EthernetBlaster Communications Cable User Guide © June 2008 Altera Corporation

3. EthernetBlaster Communications

Overview

This chapter provides comprehensive information about the EthernetBlaster communications cable, including the following:

■ EthernetBlaster Hardware Connections

■ Operating Conditions

EthernetBlaster Hardware Connections

The EthernetBlaster cable connects to an Ethernet cable with a RJ45 jack to a 10/100Base-T Ethernet hub/switch (via a straight 8-wire data cable) or a 10/100BaseT Ethernet port of a PC (via a crossover data cable). Depending on your connection (remote or direct), data is downloaded through the EthernetBlaster communications cable to the circuit board via the connections discussed in this section.

Cable Specifications

Voltage Requirements

The EthernetBlaster V

CC(TARGET)

device being programmed. Connect pull-up resistors to the same power supply as the EthernetBlaster V

Table 3–1. EthernetBlaster V

Pin Voltage Requirements

CC(TRGT)

CC(TARGET).

Device Family USB-Blaster VCC Voltage Required

II devices As specified by VCCIO of Bank 1

MAX

MAX 7000S device 5 V

MAX 7000AE and MAX 3000A devices 3.3 V

MAX 7000B device 2.5 V

Stratix

III and Stratix IV devices As specified by V

Cyclone® III devices As specified by V

Stratix II, Stratix, Stratix II GX, Stratix GX, and Arria™ GX devices As specified by V

Cyclone II, Cyclone, APEX II, APEX 20K, and Mercury devices As specified by VCCIO

FLEX 10K, FLEX 8000, and FLEX 6000 devices 5 V

FLEX 10KE device 2.5 V

FLEX 10KA and FLEX 6000A devices 3.3 V

EPC2 devices 5 V or 3.3 V

EPC4, EPC8, and EPC16 devices 3.3 V

EPCS1, EPCS4, EPCS16, EPCS64, and EPCS128 devices 3.3 V

pin must be connected to a specific voltage for the

See Tab le 3– 1.

CCPGM

CCA

CCSEL

or V

CCPD

CCIO

3–2 Chapter 3: EthernetBlaster Communications Cable Specifications

EthernetBlaster Hardware Connections

EthernetBlaster Ethernet Jack Connection

The Ethernet cable Ethernet jack connects to the EthernetBlaster communications cable Ethernet port. The Ethernet jack pin number designations are shown in

Figure 3–1 below.

Figure 3–1. Ethernet Jack Pin Number Designations

Pin Signal

TxData +

TxData RecvData +

RecvData

2 3 4 5 6 7 8

EthernetBlaster Plug Connection

The 10-pin female plug connects to a 10-pin male header on the circuit board containing the target device. See Figure 3–2.

Figure 3–2. EthernetBlaseter 10-Pin Female Target-Side Plug Dimensions

0.425 Typ.

0.250 Typ.

Dimensions are shown in inches. Spacing between pin centers is 0.1 inches.

1098765432

0.100 Sq.

0.700 Typ.

0.025 Sq.

Tab le 3– 2 identifies the 10-pin female plug pin names and the corresponding

programming mode.

Table 3–2. EthernetBlaster Female Plug Signal Names & Programming Modes (Part 1 of 2)

AS Mode PS Mode JTAG Mode

Signal Name Description Signal Name Description Signal Name Description

1 DCLK Clock signal DCLK Clock signal TCK Clock signal

2 GND Signal ground GND Signal ground GND Signal ground

3 CONF_DONE Configuration done CONF_DONE Configuration

TDO Data from device

done

4 VCC(TARGET) Target power

supply

VCC(TARGET) Target power

supply

VCC(TARGET) Target power

supply

Chapter 3: EthernetBlaster Communications Cable Specifications 3–3

Operating Conditions

Table 3–2.

5 nCONFIG Configuration

EthernetBlaster Female Plug Signal Names & Programming Modes (Part 2 of 2)

control

nCONFIG Configuration

control

TMS JTAG state

machine control

6 nCE Cyclone chip enable — No connect — No connect

7 DATAOUT Active serial data

out

8 nCS Serial configuration

nSTATUS Configuration

status

— No connect — No connect

— No connect

device chip select

9 ASDI Active serial data in DATA0 Data to device TDI Data to device

10 GND Signal ground GND Signal ground GND Signal ground

1 The circuit board must supply VCC(TARGET) and ground to the EthernetBlaster

cable for the I/O drivers.

Circuit Board Header Connection

The circuit board's 10-pin male header, which connects to the EthernetBlaster cable's 10-pin female plug, has two rows of five pins. These pins are connected to the device’s programming or configuration pins. Figure 3–3 shows the dimensions of a typical 10pin male header.

1 Although a 10-pin surface mount header can be used for the JTAG, AS or PS

download cable, Altera recommends using a through-hole connector due to the repeated insertion and removal force needed.

Figure 3–3. 10-Pin Male Header Dimensions

Top View Side View

0.100

Dimensions are shown in inches.

0.025 Sq

0.235

Operating Conditions

Tab le 3– 3 through Ta bl e 3– 5 summarize the maximum ratings, recommended

operating conditions, and DC operating conditions for the cable.

Table 3–3. EthernetBlaster Cable Absolute Maximum Ratings

Symbol Parameter Conditions Min Max Unit

CC(TARGET)

CC(SYS)

Target supply voltage With respect to ground –0.3 5.5 V

System supply voltage With respect to ground –0.5 14.0 V

3–4 Chapter 3: EthernetBlaster Communications Cable Specifications

Operating Conditions

Table 3–3. EthernetBlaster Cable Absolute Maximum Ratings

Symbol Parameter Conditions Min Max Unit

Input current TDO or dataout –10.0 10.0 mA

Output current TCK, TMS, TDI, nCS, nCE –10.0 10.0 mA

Table 3–4. EthernetBlaster Cable Recommended Operating Conditions

Symbol Parameter Conditions Min Max Unit

Target supply voltage, 5.0-V operation — 4.75 5.25 V

Target supply voltage, 3.3-V operation — 3.0 3.6 V

CC(TARGET)

Target supply voltage, 2.5-V operation — 2.375 2.625 V

Target supply voltage, 1.8-V operation — 1.71 1.89 V

Target supply voltage, 1.5-V operation — 1.43 1.57 V

Table 3–5. EthernetBlaster Cable DC Operating Conditions

Symbol Parameter Conditions Min Max Unit

High-level input voltage VCC(TARGET) < or = 3.3 V VCC(TARGET)

–0.2

—V

High-level input voltage VCC(TARGET) > 3.3 V 3.1 — V

Low-level input voltage — 0.15 V

5.0-V high-level output voltage VCC(TARGET) = 4.5 V, IOH = 20 A 3.3 — V

3.3-V high-level output voltage VCC(TARGET) = 3.0 V, IOH = 20 A 2.0 — V

2.5-V high-level output voltage VCC(TARGET) = 2.375 V, IOH = 20 A 1.6 — V

1.8-V high-level output voltage VCC(TARGET) = 1.71 V, IOH = 20 A 1.15 — V

1.5-V high-level output voltage VCC(TARGET) = 1.43 V, IOH = 20 A 0.95 — V

5.0-V low-level output voltage VCC(TARGET) = 5.5 V, IOL = 1 mA — 0.4 V

3.3-V low-level output voltage VCC(TARGET) = 3.6 V, IOL = 1 mA — 0.4 V

2.5-V low-level output voltage VCC(TARGET) = 2.625 V, IOL = 1 mA — 0.4 V

1.8-V low-level output voltage VCC(TARGET) = 1.89 V, IOL = 1 mA — 0.4 V

1.5-V low-level output voltage VCC(TARGET) = 1.57 V, IOL = 1 mA — 0.4 V

CC(SYS)

Operating current (No Load) Typical ICC(SYS) = 350mA @ VCC(SYS) =

12V

— 700 mA

Referenced Documents

For more information on configuration and in-system programmability (ISP), see the following sources:

■ AN 39: IEEE 1149.1 (JTAG) Boundary-Scan Testing in Altera Devices

■ AN 95: In-System Programmability in MAX Devices

■ Configuring Cyclone FPGAs chapter in volume 1 of the Cyclone Device Handbook

■ Configuring Cyclone II Devices chapter in volume 1 of the Cyclone II Device Handbook

■ Configuring Stratix and Stratix GX Devices chapter in volume 2 of the Stratix Device

Handbook

■ In-System Programmability Guidelines for MAX II Devices chapter in volume 1 of the

MAX II Device Handbook

■ Serial Configuration Devices Data Sheet

Info. Additional Information

■ Programming & Configuration chapter in the Introduction to Quartus II manual

■ The Programming module of the Quartus II online tutorial

■ Refer to the following glossary definitions in Quartus II Help:

■ “EthernetBlaster Cable” (general description)

■ “Configuration scheme” (general description)

■ “Programming files” (general description)

■ Refer to the following procedures in Quartus II Help:

■ Programming a Single Device or Multiple Devices in JTAG or Passive Serial

Mode

■ Programming a Single Device in Active Serial Programming Mode

■ Selecting the Communications Cable for the SignalTap II Logic Analyzer

■ Refer to the following introduction and overview topics in Quartus

■ Programmer Introduction

■ Overview: Working with Chain Description Files

■ Overview: Converting Programming Files

II Help:

Info–2 Chapter Info: Additional Information

Revision History

The table below displays the revision history for the chapters in this user guide.

Date and

Document

Version Changes Made Summary of Changes

July 2008, v1.1

December 2004, v1.0

Updates included:

■ Updated the style and format.

■ Created “Additional Information” page.

■ Updated Table 1–2.

■ Updated Table 3–1.

■ Updated Software Requirements“Software

Requirements” section.

■ Updated “Supported Devices” section.

Initial release.

—

How to Contact Altera

For the most up-to-date information about Altera® products, refer to the following table.

Contact (1) Contact Method Address

Technical support Website www.altera.com/support

Technical training

Website www.altera.com/training

Email custrain@altera.com

Product literature Website www.altera.com/literature

Altera literature services Email literature@altera.com

Non-technical support (General)

(Software Licensing)

Note to table:

(1) You can also contact your local Altera sales office or sales representative.

Email nacomp@altera.com

Email authorization@altera.com

Typographic Conventions

This document uses the typographic conventions shown below.

Visual Cue Meaning

Bold Type with Initial Capital Letters

bold type External timing parameters, directory names, project names, disk drive names, filenames,

Italic Type with Initial Capital Letters

Command names, dialog box titles, checkbox options, and dialog box options are shown in bold, initial capital letters. Example: Save As dialog box.

filename extensions, and software utility names are shown in bold type. Examples: f

MAX

\qdesigns directory, d: drive, chiptrip.gdf file.

Document titles are shown in italic type with initial capital letters. Example: AN 75: HighSpeed Board Design.

Chapter Info: Additional Information Info–3

Typographic Conventions

Visual Cue Meaning

Italic type Internal timing parameters and variables are shown in italic type.

Examples: t

PIA

, n + 1.

Variable names are enclosed in angle brackets (< >) and shown in italic type. Example: <file name>, <project name>.pof file.

Initial Capital Letters Keyboard keys and menu names are shown with initial capital letters. Examples: Delete

key, the Options menu.

“Subheading Title” References to sections within a document and titles of on-line help topics are shown in

quotation marks. Example: “Typographic Conventions.”

Courier type Signal and port names are shown in lowercase Courier type. Examples: data1, tdi,

input. Active-low signals are denoted by suffix n, for example, resetn.

Anything that must be typed exactly as it displays is shown in Courier type. For example:

c:\qdesigns\tutorial\chiptrip.gdf. Also, sections of an actual file, such as a

Report File, references to parts of files (for example, the AHDL keyword well as logic function names (e.g.,

1., 2., 3., and a., b., c., etc.

■ ● • Bullets are used in a list of items when the sequence of the items is not important.

Numbered steps are used in a list of items when the sequence of the items is important, such as the steps listed in a procedure.

TRI) are shown in Courier.

SUBDESIGN), as

v The checkmark indicates a procedure that consists of one step only. 1 The hand points to information that requires special attention. c A caution calls attention to a condition or possible situation that can damage or destroy

the product or the user’s work.

w A warning calls attention to a condition or possible situation that can cause injury to the

user.

r The angled arrow indicates you should press the Enter key.

f The feet direct you to more information about a particular topic.

Socket Mobile Ethernet Blaster Communications Cable User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction

Supported Devices

1. About the EthernetBlaster Communications Cable

Power Requirements

Software Requirements

Connections

Static & Dynamic IP Addressing

Cable Setup

Remote Connection via Network Using Default Factory Settings

Direct Connection to a Computer Using Default Factory Settings

Configuring the EthernetBlaster Hardware to Use Static IP Addressing

Configuring the EthernetBlaster Hardware to Use Dynamic IP Addressing

Setting Up the EthernetBlaster Hardware in the Quartus II Software

Removing the EthernetBlaster Hardware from the Quartus II Software

Introduction

Managing Passwords

2. EthernetBlaster Communications Cable Administration

Changing the Administrative Password

Changing the Quartus II Remote Connection Password

Resetting the Hardware

Firmware Upgrade

Overview

EthernetBlaster Hardware Connections

Voltage Requirements

EthernetBlaster Ethernet Jack Connection

EthernetBlaster Plug Connection

Operating Conditions

Circuit Board Header Connection

Referenced Documents

Info. Additional Information

Revision History

How to Contact Altera

Typographic Conventions
