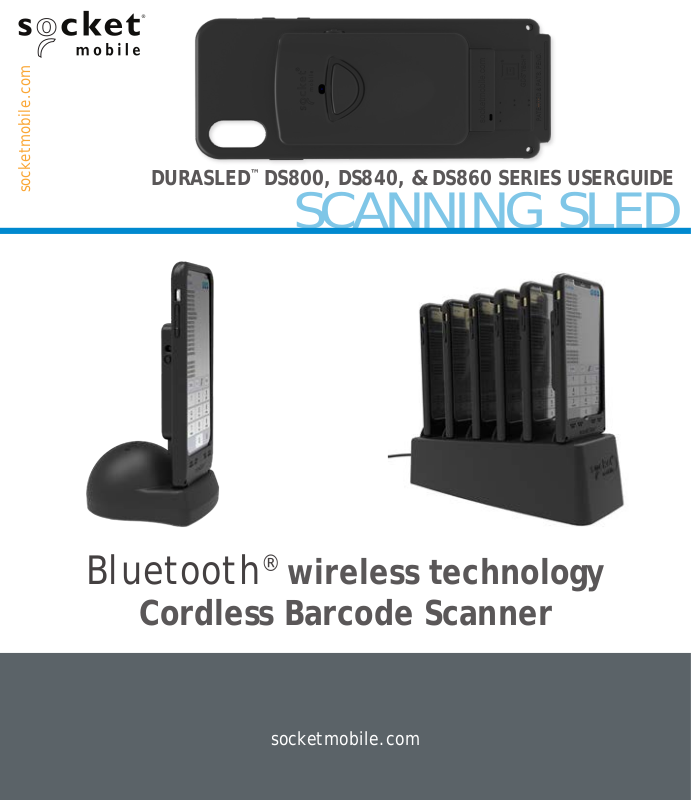

socketmobile DS800, DS840, DS860 User Manual

SCANNING SLED

socketmobile.com

DURASLED™ DS800, DS840, & DS860 SERIES USERGUIDE

Bluetooth

®

wireless technology

Cordless Barcode Scanner

socketmobile.com

Package Contents 3

TABLE OF CONTENTS

PACKAGE CONTENTS

Product Information 4
Charge the Battery 5
Optional Charging Accessories 6
Scanning Barcodes 7
Bluetooth Connection Modes 8-9

How to setup your scanner:

Download our Companion App for Apple

Can’t use Companion App?
How to setup your scanner in Basic Mode

• Basic Mode 11

How to setup your scanner in Application Mode:

• Apple® 12

• Android 14

• Android for DS800 Rev. M and below 15

• Windows (option 1) or Android 14

• Windows (option 2) 16

Bluetooth Unpairing 17
Factory Reset 18
Restore Method 19
Status Indicators 20-21

Product Specications 22-26

Helpful Resources 27
Battery Warning, Safety, Compliance, Warranty 28-38

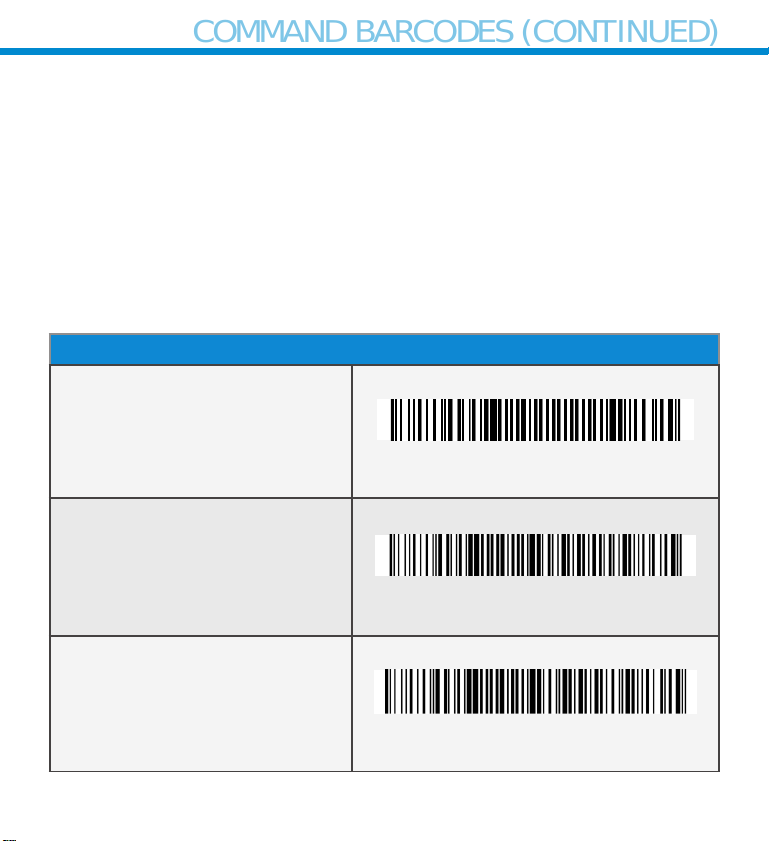

Command Barcodes 39-44

®

and Android Device 10

PACKAGE CONTENTS

DuraSled®

- 800 Series
Barcode

Scanning Sled

Charging Dock

(Available with bundle

charging cable included)

6 Bay Charger

(Available with bundle

charging cable included)

(NOT compatible with the

iPhone 6/7/8 Plus or Xs Max)

Thank you for choosing Socket Mobile!

Let’s get started!

© 2019 Socket Mobile, Inc. All rights reserved. Socket®, the Socket Mobile logo, SocketScan®,
DuraSled®, Socket Mobile DuraCase™ Battery Friendly® are registered trademarks or trade­marks of Socket Mobile, Inc. Microsoft® is a registered trademark of Microsoft Corporation
in the United States and other countries. Apple®, iPad®, iPad Air®, iPad mini®, iPad Pro®,
iPhone®, iPod touch®, Objective-C®, Swift™, and Xcode® are registered trademarks of Apple,
Inc., registered in the U.S. and other countries. The Bluetooth® Technology word mark and
logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks
by Socket Mobile, Inc. is under license. Other trademarks and trade names are those of their
respective owners.

PRODUCT INFORMATION

CHARGE THE BATTERY

Bluetooth
indicator LED

Scan button

Wrist Strap

Hook

Battery indicator LED

Power button*

Charging Pins

Socket Mobile’s barcodes scanners can be wiped clean with a cloth
dampened with isopropyl alcohol or water. Or, the barcode scanners can
be wiped clean with a Sani-Cloth.

Warning: DO NOT IMMERSE IN WATER (scanner’s mechanics could be

damaged)
DO NOT USE BLEACH FOR CLEANING (scanner’s material property may be

aected)

*Also used to display the on-screen keyboard in Basic Mode (iOS only).

Wrist Strap Hook

4

CHARGE THE BATTERY

1. Insert scanner into Charging Dock, 6 Bay Charger or Charging Adapter.

• Bundles available for Charging Dock and 6 Bay Charger.

2. Insert USB or plug into wall port.

3. The scanner will beep twice indicating adequate power is being
supplied to the unit.

Side LED status

• Red = Charging

8 Hours

• Green = Fully charged

Charging Adapter

Note: The scanner comes with a pre-installed rechargeable Lithium Ion
battery, the initial full charging of the battery can take up to 8 hours.

Power On

Press and hold down the small power button on the side until the
scanner beeps twice (low-high tone).

Charging Dock 6 Bay Charger

(NOT compatible with the

iPhone 6/7/8 Plus or Xs Max)

5

SCANNING BARCODES

BLUETOOTH CONNECTION MODES

After connecting the scanner to your device, open an application. Place
the cursor where you want to enter the scanned data.

1. Hold the scanner a few inches from the barcode.

2. Aim, press and hold the trigger button.

By default, the scanner will beep, vibrate, and the side LED will ash
green to conrm successful scan.

DuraSled DS800

~4” to 8”

scanning distance

DuraSled DS840

~6” to 12”

scanning distance

DuraSled DS860

~2” to 30”

scanning distance

6

BLUETOOTH CONNECTION MODES

Connect your scanner using one of the following Bluetooth connection modes:

Bluetooth Connection Proles

Bluetooth Mode Description

Basic Mode (HID)
(Default)*

Human Interface

Device Prole

Application Mode
(SPP)

Serial Port Prole

Application Mode
(MFi-SPP)

Apple Specic

Serial Prole

• NO software installation required

• Connects to most devices

• Good for barcodes containing small amounts
of data

• Scanner interacts with host device like a
keyboard

For Android or Windows

• Software installation is required

• More ecient and reliable data
communications for barcodes containing lots
of data

• If you have an application that supports
Socket Mobile Scanners this is the mode
recommended

For iOS Devices

• Must use with an App developed to work with
iOS devices

• Software installation is required

• If you have an iOS application that supports
Socket Mobile Scanners this is the mode you
want to use

*By default, the scanner is set to Basic Mode (HID).

7

BLUETOOTH CONNECTION MODES

Operating System Connection Options

COMPANION APP

Bluetooth

Operating

Systems

(OS)

Android

Apple iOS

Windows PC Windows 7, 8, 10 Yes Yes N/A

Mac OS

Note: To switch from one mode to the other you must remove the
pairing information from both devices - host computer and the scanner.
(see unpairing procedure on page 15)

The scanner will unpair and automatically power o. The next time you

power on the scanner, it will be discoverable.
Select the appropriate mode and pair with the second host device.

Devices

Android 4.0.3 &

later

iPod, iPhone, &

iPad

Mac OS X 10.4 to

10.X

Mac Books, Mac

Mini, & iMac

Bluetooth

HID

Support

Yes Yes N/A

Yes N/A Yes

Yes No N/A

Bluetooth

SPP

Support

Apple
Serial

Specic

(MFi Mode)

8

Setup your scanner with Socket Mobile

COMPANION APP

Companion App.

Socket Mobile Companion App will help you

congure and check the status of your Socket

Mobile Barcode scanners.

• Easy pairing.

• Check device status.

• Check warranty.

• Register your scanner.

Scan QR code with mobile

device to download new app!

Scan QR code with mobile

device to download new app!

9

Connect Device in Basic Mode

BASIC MODE

In this mode the scanner functions and communicates similar to a
keyboard. Therefore, the scanner will work with Notes, and any other
application that supports an active cursor.

1. Power on the scanner. Make sure the scanner is
discoverable (unpaired and Bluetooth LED blinking).

2. Go to Settings > Bluetooth.

3. Make sure the Bluetooth is “On” and scan for devices.

4. In the list of found devices, tap S8xx [xxxxxx] to Pair.

5. The scanner will connect to the host device.

6. The scanner will beep once after it has connected.

*If you have trouble connecting or pairing with host device, turn host

device’s Bluetooh o/on, and/or perform factory reset on the scanner

(see page 38).

Now you are ready to scan barcodes!

10

APPLICATION MODE

Connect Apple iOS device in Application Mode

Please check with your scanner application vendor or visit

www.socketmobile.com/appstore to conrm your scanner-enabled

application supports the scanner.
If you are using the scanner with an Apple iOS device and a

scanner-enabled Application that does not provide instructions how to
connect your scanner, please use the following steps.

1. Power on the scanner. Make sure the scanner is discoverable
(unpaired). The Blue light should be blinking fast.

2. Scan the barcode to change the prole to Application Mode

(MFI-SPP).

Use with iPad, iPod touch, and iPhones.

3. Turn on Bluetooth on the Apple device. Go to Settings > Bluetooth. A

Bluetooth Devices search will begin.

11

APPLICATION MODE

4. Tap Socket S8xx[xxxxxx] in the list of other devices found. After a

few seconds the status will change to “Connected” and the LED will
stop blinking and turn solid blue.

Note: The characters in brackets are the last 6 characters of the
Bluetooth Address.

5. Launch your scanner-enabled Application. The scanner will beep

once indicating that it is connected to the appropriate application.

Now you are ready to scan barcodes!

12

APPLICATION MODE

Application Mode (SPP) for Windows (option 1) or Android

(Auto Connect - No conguration required for Application pairing)

1. Power on the scanner. Make sure the scanner is discoverable
(unpaired). The Blue light should be blinking fast.

2. Scan the barcode to change the prole to Application Mode (SPP).

3. Turn on Bluetooth on the Android device. Go to Settings > Bluetooth.

A Bluetooth Devices search will begin.

4. Tap Socket S8xx[xxxxxx] in the list of other devices found. After a

few seconds the status will change to “Connected” and the LED will
stop blinking and turn solid blue.

Note: The characters in brackets are the last 6 characters of the
Bluetooth Address.

5. Launch your scanner-enabled Application. The scanner will beep

once indicating that it is connected to the appropriate application.

Now you are ready to scan barcodes!

13

APPLICATION MODE

Connect Windows (option 2) in Application Mode

Note: Make sure you have administrative privileges.

1. Download the latest SocketScan 10 software from Socket Mobile’s

support web page.

2. Follow the on-screen instructions to install the software.

3. In SocketScan 10 Settings, select an incoming Bluetooth serial COM

port.

Note: If there is none, please click Ports to create at least one new
incoming COM port in Bluetooth settings.

4. Power on the scanner. Make sure the scanner is discoverable to be

connected to Bluetooth (unpaired and Bluetooth LED blinking).

5. Launch SocketScanScan 10 and click on the SocketScanScan 10 icon in

the task tray. In the pop-up menu, click Socket EZ Pair.

6. Scan the barcode that appears on the screen.

7. Open the Bluetooth settings, add and pair the scanner manually.

(If prompted for a passkey, enter 0000)

8. Open SocketScan. From EZ pair, select the pre-paired Bluetooth

option. Click on the scanner to pair.

Note: The characters in brackets are the last 6 characters of the
Bluetooth Address.

Now you are ready to scan barcodes!

14

FACTORY RESET

BLUETOOTH UNPAIRING

Note: This procedure will put the scanner in discoverable mode.

Step 1: Unpairing the scanner: Delete the Bluetooth Pairing

If the scanner is paired with a device, unpair it before trying to

connect to a dierent device.

a. Power on the scanner.
b. Press the scan button then power button and hold both until

you hear 3 beeps.

The scanner will unpair and automatically power o. The next time you

power on the scanner, it will be discoverable.

Step 2: Remove or forget the scanner from the Bluetooth list on the
host device.

Important: Both steps above must be done to complete

the unpairing.

15

FACTORY RESET

Factory Reset will restore the scanner to Factory Default settings

(congured as shipped). If your scanner cannot scan the Factory Default

barcode below, then Follow the Factory Reset (button) sequence:

Scan this barcode
Or follow the steps below to manually reset the scanner:

1. Turn ON the scanner.

Scan Button

Power Button

2. Press and hold the scan button1, then quickly press and release the
power button2, while continuing to hold the scan button.

1

Quickly press
and release the
power button

2

3. Let go of scan button after the scanner beeps once (after 15

seconds). Five conrmation tones will sound from high to low tones

and then the scanner will turn OFF.

Note: If you follow this sequence, but release the scan button too early
(before 15 seconds and the beep) the Factory Reset will fail.

16

STATUS INDICATORS

RESTORE METHOD

NOTE: If your scanner remains in an unresponsive state after following
the Factory Reset, use the Restore Method as a last resort.

The Restore Method should be the last attempt used to revive an
unresponsive scanner. It will reinitialize the core hardware.

1. Make sure your scanner is OFF.

2. Press and hold the power button until the LED light goes on and o
(about 15 seconds)

17

STATUS INDICATORS

Top LED

Bluetooth

Side LED LED Activity Meaning

LED Activity Meaning

Quick Blinking Blue
(2 blinks every
second)

Slow Blinking Blue
(1 blink every
second)

Solid Blue Scanner connected

Blink Green Once Good Scan/Read

Discoverable - waiting for
a host Bluetooth
connection.

Scanner is attempting to
connect to the last known
host device.
After 1 minute of blinking,
scanner will stop
searching.

Side LED

Battery Status

Connected

to power

Not connected

to power

LED Activity Meaning

Solid Red
(while charging)

Solid Green
(while charging)

No Light

Blinking Red

Charging the battery

Battery is full

Battery capacity
above 20%

Battery capacity
below 20%

18

STATUS INDICATORS

Beep Pattern Sound Meaning

Low-High Tone Power On
High-Low Tone Power O

High-High Tone

1 Low Beep

1 Beep

1 Beep Data successfully scanned
2 Beeps (same tone) Scanner disconnected

1 Long Beep Scanner gave up searching for a host

3 Beeps
(escalating tone)

3 Beeps (escalating
tone followed by
long tone)

Power Supply detected and scanner started
charging

Scanner has toggled on-screen keyboard
or keyboard toggle feature is enabled (iOS
devices only)

Scanner connected to device and is ready to
scan barcodes

Scanner has been recongured (the command

barcode was scanned successfully)

The command barcode did NOT work! (Verify
if the command barcode used is valid for your
scanner and try again)

19

SCANNER SPECIFICATIONS

SCANNER SPECIFICATIONS

Vibrate Meaning

Vibrate Data successfully scanned

Command Barcodes are available on pages 37-42 to modify the
LED, beep, and vibrate settings.

If you are using a scanner-enabled application, typically the
application provides settings for LED, beep, and vibrate settings.

Conguration Settings

Time after powering on
Scanner

0-5 minutes Discoverable and connectable

Bluetooth mode

5 minutes

2 hours

If connection is not made, scanner

powers o

If your scanner is connected but not

used it will power o in 2 hours.

When trigger button is pressed the
timer is reset.

20

SCANNER SPECIFICATIONS

Specications DS800 DS840/DS860

Dimensions
(L x W x H)

Total Mass 2.52 oz (71.5 g)
Antimicrobial Antimicrobial additive in external surfaces

Battery Lithium ion rechargeable battery
Charge Time 8 Hours

Battery Life -
Per Full Charge

4.2 x .66 x 2.25 in. (106.7 x 16.8 x 57.2 mm)

8,000 scans within
9 hours (calculation
based on 1 scan every
4 seconds)

Note: Battery life varies depending on ambient
temperature, ambient light, and age of battery.

34,000 scans within 3
hours (based on 2 scans
every 1 second) or
1,000 scans within 10
hours (based on 1 scan
every 4 seconds)

Bluetooth Version

Wireless Range Up to 10 m (33 ft), depending on environment

Scanner Type 1D Linear Imager

Class 1 Bluetooth v2.1 + EDR with 56 bit data
encryption

DS840/DS860:
2D/1D Omni-directional
Imager
DS860:
scans DotCode,
OCR A + B fonts

21

PRODUCT SPECIFICATIONS

Specications DS800 DS840/DS860

Default
Symbologies

CODE 39, CODE 128, EAN
8, EAN 13, GS1 DATABAR,
GS1 DATABAR EXPANDED
STACKED, GS1 DATABAR
EXTENDED, GS1 DATABAR
LIMITED, INTERLEAVED 2
OF 5, ISBT 128, UPC A,
UPC E (0)

DS840/DS860

1D Symbologies: Codabar,
Code 39, Code 93, Code
128, EAN-13/JAN, EAN-8/
JAN, GS1 Databar, GS1
Databar Expanded, GS1
Databar Limited, GS1­128, Interleaved 2 of 5,
ISBT 128, UPC A, UPC EO
2D Symbologies: Aztec,
Data Matrix, Maxicode,
Micro PDF417, PDF417
Postal Codes: Australia
Post

DS860 only

Dot Code
OCR Type Face: OCR B
ICAO Travel Documents

22

PRODUCT SPECIFICATIONS

PRODUCT SPECIFICATIONS

Supported
Symbologies

BOOKLAND EAN, Codabar,
CODE 39, CODE 39 ASCII
(EXTENDED), CODE 39
Trioptic, CODE
93, CODE 128, DISCRETE
2 OF 5, EAN 8, EAN 13,
EAN 128, EAN 128 + COM­POSITE, EAN-UCC 128,
GS1 128,
GS1 DataBar-14, GS1
DATABAR, GS1 DATABAR
EXPANDED STACKED, GS1
DATABAR EXTENDED, GS1
DATABAR
LIMITED, INTERLEAVED 2
OF 5, ISBT 128, KOREAN
3 OF 5, MATRIX 2 OF
5, MSI , PLESSEY, RSS
EXPANDED
STACKED, RSS-14, UPC A,
UPC E (0), UPC E1

DS840/DS860

1D Symbologies: Book­land EAN, Chinese 2 of 5,
Codabar, Code 11, Code
39, Code 93, Code 128,
Composite CC-A/B, Com­posite CC-C, Composite
TLC, Discrete 2 of 5,
EAN-13/JAN, EAN-8/JAN,
GS1 Databar, GS1 Databar
Expanded, GS1 Databar
Limited, GS1-128, Inter­leaved 2 of 5, ISBT 128,
ISSN EAN, Matrix 2 of 5,
MSI, UPC/EAN/JAN, UPC
A, UPC EO
2D Symbologies: Aztez,
Data Matrix, Maxicode,
Micro PDF417, MicroQR,
PDF417, QR Code
Postal Codes: Australia
Post, Han Xin, Japan
Postal, KIX Code, Maxi­code, Netherlands, UPU
FICS Posta, US Planet, US
Postnet, USPS 4CB/One
Code/Intelligent Mail

DS860 only

Dot Code
OCR Type Face: OCR-A,
OCR-B, MICR-BBB, US cur­rency serial number

23

PRODUCT SPECIFICATIONS

Supported
Language
Settings
[in Basic Mode
(HID)]

Systems/
Battery
Charging
Requirement

Ambient Light From 0 to 100 000 lux
Operating

Temperature
Storage

Temperature
Relative

Humidity
Sealing IP40

English, English UK, French, German, Italian,
Japanese, Polish, Spanish, Swedish & ANSI Emulation

USB Type 5V 1A

+32 to +122°F (0 to +50°C)

-22 to +158°F (-30 to +70°C)

5% to 95% non-condensing

Drop

Specications

Multiple 3.3 ft (1 m) drops to vinyl covered concrete

24

HELPFUL RESOURCES

Technical Support & Product Registration:

support.socketmobile.com

Phone: [phone] [phone] (worldwide)

Warranty Checker:

socketmobile.com/support/warranty-checker

Socket Mobile Developer Program:

Learn more at: socketmobile.com/developers

The Command Barcodes (Advanced Scanner Congurations) can be

download at:

socketmobile.com/support/downloads

25

WARNING: Failure to follow these safety instructions could result

SAFETY AND HANDLING INFORMATION

in re or other injury or damage to the barcode scanners or other

property.

Carrying and Handling the scanners: The Socket Mobile barcode
scanner contains sensitive components. Do not disassemble, open,
crush, bend, deform, puncture, shred, microwave, incinerate, paint, or
insert foreign objects into this unit.

Do not attempt to disassemble the product. Should your unit need
service, contact Socket Mobile technical support at

https://support.socketmobile.com/

Changes or modications of this product, not expressly approved by

Socket Mobile may void the user’s authority to use the equipment.
Do not charge the scanner using an AC adapter when operating the unit

outdoors, or in the rain.
Operating Temperature - this product is designed for a maximum

ambient temperature of 50° degrees C or 122° degrees F.

Pacemaker Disclaimer: We do not have specic information on the
eect(s) of vibration or devices with Bluetooth wireless technology
on pacemakers. Socket Mobile cannot provide any specic guidance.

Individuals who are concerned with using the barcode scanner should

immediately turn the device o.

26

FCC ID: LUBMA41

BLUETOOTH DEVICE UNITED STATES

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment o and

on, the user is encouraged to try to correct the interference by one of
the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that
to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, any changes or
modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
(Example - use only shielded interface cables when connecting to
computer or peripheral devices).

27

FCC Radiation Exposure Statement

BLUETOOTH DEVICE UNITED STATES

This equipment complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment. This device meets the FCC
requirements for RF exposure in public or uncontrolled environments.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including

interference that may cause undesired operation

28

IC ID: 2529A-MA41S8

BLUETOOTH DEVICE CANADA

This device complies with Industry Canada license exempt RSS
standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must ac­cept any interference, including interference that may cause undesired
operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applica­bles aux appareils radio exempts de licence. L’exploitation est autorisée
aux deux conditions suivantes: (1) l’appareil ne doit pas produire de
brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.

29

CE Marking & European Union Compliance

BLUETOOTH DEVICE EUROPE

Products intended for sale within the European Union are marked with a
CE Mark, which indicates compliance to applicable Directives and
European Normes (EN), as follows. Amendments to these Directives or
ENs are included: Normes (EN), as follows:

CONFORMS TO THE FOLLOWING EUROPEAN DIRECTIVES

Low Voltage Directives: 2014/35/EU
RED Directive: 2014/53/EU
EMC Directive: 2014/30/EU
RoHS Directive: 2011/65/EC
WEEE Directive: 2012/19/EC

Supplementary Information:
Safety: EN 60950-1: 2006/A11:2009, A12:2011, A1:2010,

A2:2013
ETSI EN 300 328
ETSI EN 301 489

30

Telec Marking Compliance

BLUETOOTH DEVICE JAPAN

Products intended for sale within the country of Japan are marked with
a Telec mark, which indicates compliance to applicable Radio Laws,
Articles and Amendments.

R 201-125799
R 211-131101

31

BATTERY WARNING STATEMENTS

This device contains a rechargeable Lithium Ion battery.
Stop charging scanners if charging isn’t completed within the

normal specied time (approx. 8 hours).

Stop charging the battery if the scanner case
becomes abnormally hot, or shows signs of odor, discoloration,
deformation, or abnormal conditions is detected during use, charge, or
storage.

Stop using the scanner if the enclosure is cracked, swollen or shows any
other signs of mis-use. Discontinue immediately and email support@
socketmobile.com.

Your device contains a rechargeable Lithium Ion battery, which may

present a risk of re or chemical burn if mistreated.

Do not charge in hot temperatures over 60 degrees C or 140 degrees F.

• Never throw the battery into a re, as that could cause the battery
to explode.

• Never short circuit the battery by bringing the terminals in contact

with another metal object. This could cause personal injury, or re,

and could also damage the battery.

• Never dispose of used batteries with other ordinary solid wastes.
Batteries contain toxic substances.

32

BATTERY WARNING STATEMENTS

• Dispose of used batteries in accordance with the prevailing
community regulations that apply to the disposal of batteries.

• Never expose this product or the battery to any liquids.

• Do not shock the battery by dropping it or throwing it.

If this unit shows any type of damage, such as bulging, swelling or

disgurement, discontinue use and email [e-mail].

Product Disposal

Your device should not be placed in municipal waste. Please check local
regulations for disposal of electronic products.

CAUTION:

Risk of explosion if battery is replaced by incorrect type.
Only use Lithium Ion rechargeable batteries provided by the manufacturer.

33

LED DEVICES

Caution: DO NOT STARE DIRECTLY INTO THE LED BEAM.

LED DEVICE:

The DuraSled DS800, DS840, and DS860 contain a LED-type scan engine.
For the LED version of this engine, the following

applies:

• Complies with EN/IEC 62471 (Exempt Group)

• LED output is in the 630-670nm range (visible red).

• LED devices are not considered to be hazardous when used for their intended

purpose.
The following statement is required to comply with US and international
regulations:

Caution: Use of controls, adjustments or performance of procedures
other than those specied herein may result in hazardous LED light
exposure.

34

REGULATORY COMPLIANCE

CE MARKING AND EUROPEAN UNION COMPLIANCE
Testing for compliance to CE requirements was performed by an
independent laboratory. The unit under test was found compliant with all the
applicable Directives, 2004/108/EC and 2006/95/EC.

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
The WEEE directive places an obligation on all EU-based
manufacturers and importers to take-back electronic products at the end of their
useful life.

RoHS STATEMENT OF COMPLIANCE
This product is compliant to Directive 2011/95/EC.

NON-MODIFICATION STATEMENT

Changes or modications not expressly approved by

the party responsible for compliance.
CONFORMS TO THE FOLLOWING EUROPEAN DIRECTIVES
Low Voltage Directives: 2014/35/EU

RED Directive: 2014/53/EU
EMC Directive: 2014/30/EU
RoHS Directive: 2011/65/EC
WEEE Directive: 2012/19/EC

Supplementary Information:
Safety: EN 60950-1: 2006/A11:2009, A12:2011, A1:2010, A2:2013

ETSI EN 300 328
ETSI EN 301 489

WEEE

35

LIMITED WARRANTY

Socket Mobile Incorporated (Socket) warrants this product against defects
in material and workmanship, under normal use and service, for one (1)
year from the date of purchase. Product must be purchased new from a
Socket Authorized Distributor or Reseller. Used products and products
purchased through non-authorized channels are not eligible for this war­ranty support.

Warranty benets are in addition to rights provided under local
consumer laws. You may be required to furnish proof of purchase details
when making a claim under this warranty.

Consumables such as batteries, removable cables, cases, straps, and
chargers: 90 day coverage only

For more warranty information, please visit:

https://socketmobile.com/support/downloads

36

Scan command barcode(s) to quickly congure the Scanner.

COMMAND BARCODES

Make sure the scanner is not connected to a device before scanning a
command barcode! See page 17 for unpairing instructions.

For a complete set of command barcodes, download the Command Barcodes
Sheet: https://socketmobile.com/support/download

Charging Stand Modes

Auto Mode

Scan the barcode to congure your

scanner to automatically detect bar­codes without pressing the scan buton.

*Only works when in Charging Stand.

Mobile Mode - Normal (default)*
Scanning this bar code will enable the
scanner to enter mobile mode. It will
always be in manual trigger mode even
when placed in the stand or cradle.

*Scanner Factory Reset returns to
Mobile Mode.

#FNB 41FBA50003#

#FNB 41FBA50000#

37

COMMAND BARCODES (CONTINUED)

Important! Make sure the scanner is not connected to a host computer or
device before scanning a command barcode!

Basic Mode (HID) (default)

Congures the Scanner to Human

Interface Device (HID) mode as a
Keyboard class device

Application Mode (MFi-SPP) for
Apple iOS devices

Congures scanner to work with

an application.

Application Mode (SPP) for Win­dows or Android 8.0 and later

(Auto Connect - Scan the barcode
and pair the scanner with your
device.)

Bluetooth Connection Modes

#FNB00F40001#

#FNB00F40002#

#FNB00F40003#

Application Mode (SPP) for
Windows or Android version 7.0
and lower

Congures scanner to Serial Port
Prole.

#FNB00F40000#

38

COMMAND BARCODES (CONTINUED)

Always Active Mode

For busy days on the job, try using the Active Mode to keep you moving faster.
Avoid the hassle of turning the scanner on again and reconnecting to your host
device.

Scan one of the barcodes below and recongure the scanner to remain on longer.

Note: Turn o the host device’s Bluetooth prior to scanning one of the alternate

timer barcodes. Then turn the Bluetooth back on.

Power cycle the scanner (turn o/on).

Bluetooth Connection Modes

Scanner Always On*

Congures the scanner to never
power o.

Continuous Power for 8 hours*

Scan Barcode to congure the

scanner to remain on for 8 hours.

#FNB012100000000#

#FNB012101E001E0#

Continuous Power for 4 hours*

Scan Barcode to congure the

scanner to remain on for 4 hours.

#FNB012100F000F0#

39

COMMAND BARCODES (CONTINUED)

*These settings drain the battery faster. It is assumed you will charge the
scanner within a 24-hour period or overnight. If you don’t, the scanner’s
battery will drain completely.

Return Scanner to Default Setting

Turns the scanner o when it is not

in use – 3 to 5 minutes after being
disconnected from host device.

#FNB012100780005#

40

Important! Make sure the Scanner is not connected to a host

COMMAND BARCODES (CONTINUED)

computer or device before scanning a command barcode!

Beep Settings

Beep after scanner
Decodes Data ON

(default)
Enables scanner to

beep to indicate suc­cessful scans.

Beep after scanner
Decodes Data OFF

Disables scanner from
beeping to indicate
successful scans.

#FNB0119E000100030078004B#

#FNB01190E000100000078004B#

41

Vibrate Settings

COMMAND BARCODES (CONTINUED)

EXTEND YOUR WARRANTY

Vibrate ON (default)
Enables scanner to vibrate to
indicate successful scans.

Vibrate OFF

Disables scanner from
vibrating to indicate
successful scans.

Factory Reset

Revert all settings to
factory defaults. The scanner

will power o after scanning this

barcode.

#FNB01310001000100FA0000#

#FNB013100010000#

Factory Default

#FNB00F0#

For more command codes go to:

https://socketmobile.com/support/download

42

Extend your scanner’s standard one-year

EXTEND YOUR WARRANTY

limited warranty coverage up to five years
from date of purchase. Additional service
features are available to further enhance your
extended warranty coverage.

Extend Your Standard Warranty Coverage:

• 3-Year Extended Coverage

• 5-Year Extended Coverage

Receive Faster Service Turnaround:

• SocketCare Extended Warranty receives faster service turnaround
compared to standard warranty coverage

Additional service features available to meet your scanning and business
needs. Choose which service feature fits best, or add both:

• Express Replacement Service

• One-Time Accidental Coverage

• Premium Service includes both Express Replacement and One-Time
Accidental

For detailed information visit:

SocketCare

https://www.socketmobile.com/socketcare

10/2019
