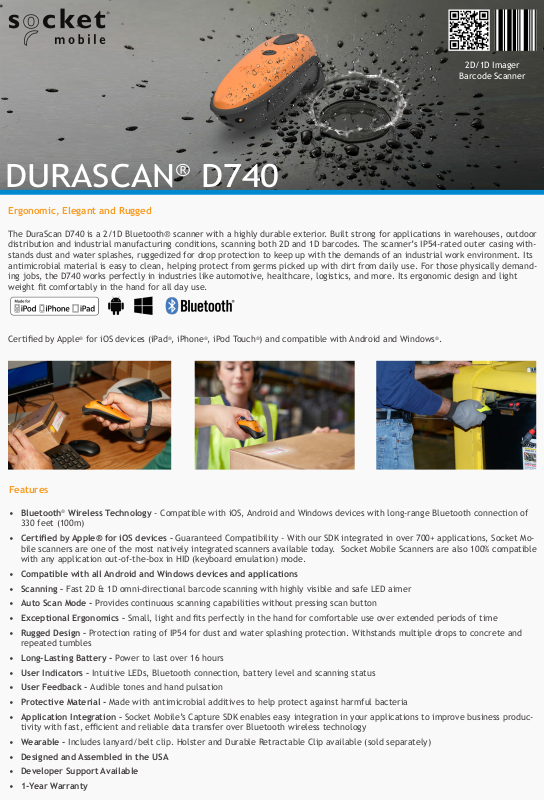

DURASCAN

®

D740

2D/1D Imager

Barcode Scanner

Ergonomic, Elegant and Rugged

The DuraScan D740 is a 2/1D Bluetooth® scanner with a highly durable exterior. Built strong for applications in warehouses, outdoor
distribution and industrial manufacturing conditions, scanning both 2D and 1D barcodes. The scanner’s IP54-rated outer casing with­stands dust and water splashes, ruggedized for drop protection to keep up with the demands of an industrial work environment. Its
antimicrobial material is easy to clean, helping protect from germs picked up with dirt from daily use. For those physically demand­ing jobs, the D740 works perfectly in industries like automotive, healthcare, logistics, and more. Its ergonomic design and light

weight t comfortably in the hand for all day use.

Certied by Apple® for iOS devices (iPad®, iPhone®, iPod Touch®) and compatible with Android and Windows®.

Features

• Bluetooth® Wireless Technology - Compatible with iOS, Android and Windows devices with long-range Bluetooth connection of

330 feet (100m)

• Certied by Apple® for iOS devices – Guaranteed Compatibility - With our SDK integrated in over 700+ applications, Socket Mo-

bile scanners are one of the most natively integrated scanners available today. Socket Mobile Scanners are also 100% compatible

with any application out-of-the-box in HID (keyboard emulation) mode.

• Compatible with all Android and Windows devices and applications

• Scanning – Fast 2D & 1D omni-directional barcode scanning with highly visible and safe LED aimer

• Auto Scan Mode - Provides continuous scanning capabilities without pressing scan button

• Exceptional Ergonomics – Small, light and ts perfectly in the hand for comfortable use over extended periods of time

• Rugged Design – Protection rating of IP54 for dust and water splashing protection. Withstands multiple drops to concrete and

repeated tumbles

• Long-Lasting Battery - Power to last over 16 hours

• User Indicators – Intuitive LEDs, Bluetooth connection, battery level and scanning status

• User Feedback - Audible tones and hand pulsation

• Protective Material - Made with antimicrobial additives to help protect against harmful bacteria

• Application Integration – Socket Mobile’s Capture SDK enables easy integration in your applications to improve business produc-

tivity with fast, ecient and reliable data transfer over Bluetooth wireless technology

• Wearable - Includes lanyard/belt clip. Holster and Durable Retractable Clip available (sold separately)

• Designed and Assembled in the USA

• Developer Support Available

• 1-Year Warranty

SCANNER TYPE

BATTERY

Default Barcode

SCANNING PERFORMANCE

Symbologies:

1D Symbologies: Codabar, Code 39, Code 93, Code 128, EAN-13/JAN, EAN-8/JAN, GS1 Databar, GS1 Da­tabar Expanded, GS1 Databar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, UPC A, UPC EO

2D Symbologies: Aztec, Data Matrix, Maxicode, Micro PDF417, PDF417
Postal Codes: Australia Post

Supported Barcode
Symbologies:

1D Symbologies: Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, Compos­ite CC-A/B, Composite CC-C, Composite TLC, Discrete 2 of 5, EAN-13/JAN, EAN-8/JAN, GS1 Databar, GS1
Databar Expanded, GS1 Databar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, ISSN EAN, Matrix 2 of 5,
MSI, UPC/EAN/JAN, UPC A, UPC EO

2D Symbologies: Aztec, Data Matrix, Maxicode, Micro PDF417, MicroQR, PDF417, QR Code
Postal Codes: Australia Post, Han Xin, Japan Postal, KIX Code, Maxicode, Netherlands, UPU FICS Posta,

US Planet, US Postnet, USPS 4CB/One Code/Intelligent Mail

Scan Angle: 42° (Horizontal) - 28° (Vertical)

Sensor Resolution: 640 horizontal x 400 vertical pixels

Print Contrast: Down to 25%-20%

Reading
Distance:

1.8*

PDF417 (10 mils)

2.0 6.4

Code 39 (5 mils)

C128 (5 mils)

2.5 5.0

Code 39 (5 mils)

2.0 6.4

2.5

PDF417 (6.6 mils)

6.3

9.0

D740

QR Code (20 mils)

1.5 11.0

1.5 13.5

2.0* 12.5

2.0* 19.5

0

In.

0

cm

DataMatrix (20 mils)

100% UPC (13 mils)

5

12.7

* Field of View limited

Code 39 (20 mils)

Depth of Field

4.5 to 49.5 cm (1.5 to 19.5 in.) Depends on barcode size, symbology, label media, Narrow and Wide

ratio, scan angle

Technology: 2D/1D Barcode Linear Imager

Light Source: Hyper Red 660 nm (nanometer) LED

Aimer: 610 nm LED

25.4

10

38.1

15

20

50.8

Battery: 1400 mAh Lithium - Ion Battery

Charge Time: 6 Hours

Battery Life -
Per Full Charge:

Standby time: over 20 hours

Active Scan Time: 85,000 scans within 9 hours (based on 2 scans every 1 second)
17,000 scans within 19 hours (based on 1 scan every 4 seconds)

Note: Battery life varies depending on ambient temperature, ambient light and age of battery.

Bluetooth Radio: Class 1 Bluetooth, version 2.1 + EDR (Enhanced Data Rates) with 56-bit data encryption

BLUETOOTH (WIRELESS CONNECTION)

PHYSICAL CHARACTERISTICS

Bluetooth Range: Up to 100 m (330 ft.) depending on environment, range limit is usually due to the Host Device (phone,

tablet or notebook)

Bluetooth Proles: Basic Mode - Human Interface Device (HID)*, Application Mode - Serial Port Prole (SPP) and Application

Mode - MFi-SPP. Some Operating Systems or smartphone/tablet models may support only one prole.

*By default, the scanner is set to Basic Mode (HID).

1.5 in.

37.1 mm

1.6 in.

40.1 mm

5.2 in.

132.2 mm

Intuitive LED Indicators

• Battery LED: Green, Amber & Red

• Bluetooth LED: Blue

• Scan LED: Green and Red

Weight/Mass

• 4.0 oz. (112.5 g)

Power Button

• On/O
(enabled on-screen keyboard)

in Basic Mode

Scan Button

Ambient Light: From 0 to 100 000 lux, From pitch black to direct sun light

USER ENVIRONMENT

OPERATING SYSTEM COMPATIBILITY

CERTIFICATION & REGULATORY

WARRANTY

COMMON USES

Operating
Temperature:

Storage Temperature: -5° to 70° C (-22° to 158° F)

Relative Humidity: 95% at 60° C (140° F) (non-condensing)

Sealing: IP54 (Ingress Protection rating for dust and water) EN60529

Drop Specications: Multiple 5 ft. drops to concrete

Tumble Specication: 250 cycles at 1.64 ft. (0.5 m) (500 drops), IEC60068-2-31, IEC60068-2-32

Android OS - Basic Mode (HID)* & Application Mode (SPP) Mac OS and Linux - Basic Mode (HID)* only

Apple iOS - Basic Mode (HID)* & Application Mode (MFi-SPP) Windows OS - 10, 8, and 7 - Basic Mode (HID)* & Application Mode

Compatible with devices supporting Basic Mode (HID)*
protocol

*By default the scanner is in Basic Mode (HID). No software installation required.

Certied by Apple® for iOS devices (iPad®, iPhone®, iPod Touch®) and compatible with Android and Windows®.

0° to 45° C (32° to 113° F)

(SPP)

Supported Language Setting in Basic Mode (HID): English, French,

German and Spanish

Bluetooth SIG: Declaration ID: D030473 QD ID: 82009

Electrical Safety: Certied to IEC 60950-1, UL 60950-1, CAN/CSA C22.2

Environmental: Environmental: RoHS EN 50581

EMI / RFI: FCC Part 15 Class C, RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024, TELEC

FCC ID: T9J-RN41-3
IC ID: 6514A-RN413

Telec ID: R 211-161214

LED Safety: IEC 62471, EN 62471 (EXEMPT GROUP)

WEEE

Scanner: Standard one year limited warranty

Accessories: 90 days

Extended Warranty:

(sold separately)

www.socketmobile.com/socketcare

Retail/Point of Sale Warehouse management Transportation

Oce use Shipping & Receiving Gaming

Healthcare Field Sales/Service

Mobile Tracking Banking

(1) DuraScan D740, 2D/1D Barcode Imager

SINGLE PACKAGE INCLUDES

OPTIONAL ACCESSORIES

(1) Charging Cable
(1) Lanyard
(1) Get Started Insert

The D740 is available in 3 colors:

Socket Mobile Companion
Download for Free!

Utility Gray (SKU# CX3426-1872)

Safety Green (SKU# CX3428-1874)

Construction Orange (SKU# CX3430-1876)

Charging Stand

SKU# AC4076-1538

Great for using Presentation Mode

Durable Retractable Clip

AC4130-1828

Charging Cradle

SKU# AC4102-1695

Perfect for wall mounting

Holster

AC4131-1829

Charging Dock

SKU# AC4133-1871

Ideal as a desktop charger

Lanyard - Black

SKU# AC4100-1692

Provides quick access to scanner
