CHS 7Xi
QUICK START GUIDE
www.socketmobile.com
Bluetooth Cordless Barcode Scanner

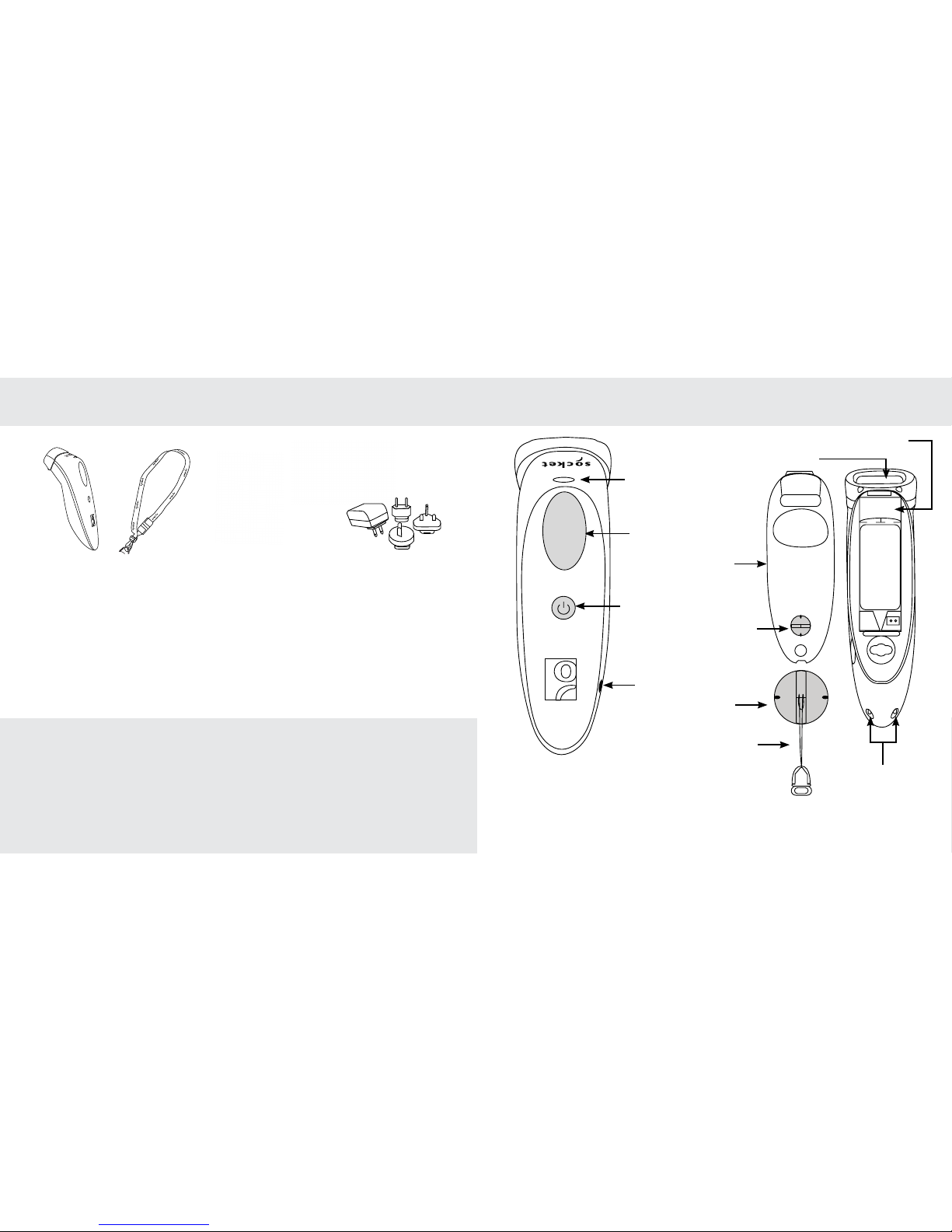

PACKAGE CONTENTS PRODUCT INFORMATION
© 2010-2015 Socket Mobile, Inc. All rights reserved. Socket, the Socket logo, and
SocketScan are registered trademarks or trademarks of Socket Mobile, Inc. The Bluetooth
word mark and logo are registered trademarks of the Bluetooth SIG, Inc. USA, and any
use by Socket Mobile, Inc. is under license. All other trademarks and trade names contained herein may be those of their respective owners.
mobi le
®
mobi le
®
mobil e
®
mobi le
®
mobi le
®
mobi le
®
mobi le
®
mobi le
®
Rechargeable
Li-ion battery pack
(installed)
AC adapter* & USB to
DC plug cable
*Use the plug that is
regionally appropriate
Lanyard
CHS 7Xi
Thank you for choosing Socket Mobile!
Let’s get started!
mo bile
®
3
*Also used for keyboard Pop-up (HID Mode only)
Scanner head
Product label
Lanyard
Blue/Green/Red
LED
Trigger button
Power button*
DC-in connector
Battery door
Twist-lock
(horizontal/unlocked)
Twist-lock
(vertical/locked)
Pins for
charging
cradle
mobile
®

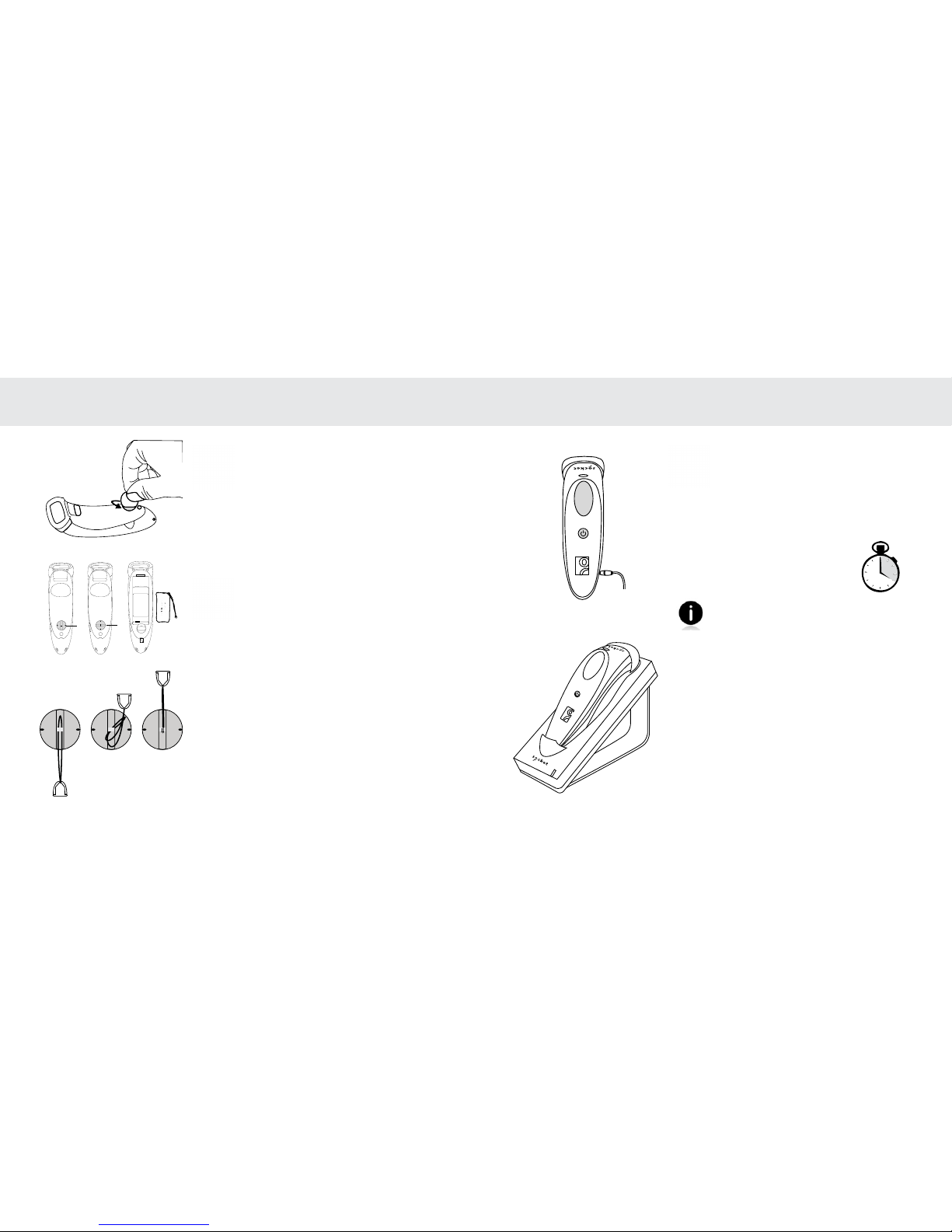

SCANNER SETUP
Battery door removal
Unlock the Battery door by using a
thin coin to turn the lock under the
CHS to a horizontal position (turn
90 degrees).
Attach the Lanyard (optional)
Detach the string loop of the tether
from the lanyard. Then feed the
string loop through the slot in the Twistlock
and then through the end of the loop.
Pull tight so the string loop is secure to the
Twist-lock, Reattach the string loop to the
tether from the Lanyard.
If desired, attach the tether to a lanyard
or belt.
CHARGE THE BATTERY
Charge the CHS
The CHS must be fully charged be-
fore rst use. Please allow 4 hours
uninterrupted charging for the initial battery charge. Lift the rubber
ap to access the power connection.
• Red LED = Charging
• Green LED = Fully charged
Charging from a computer USB port
is not reliable and not recommended.
Socket Mobile offers a Charging Cradle
(optional Accessory/sold separately, SKU#
AC4054-1382) which is a convenient holder
that charges the scanner when not in use.
mobile
®
m
o
b
ile
®
m
o
b
il e
®
Lock
Unlock
4 5

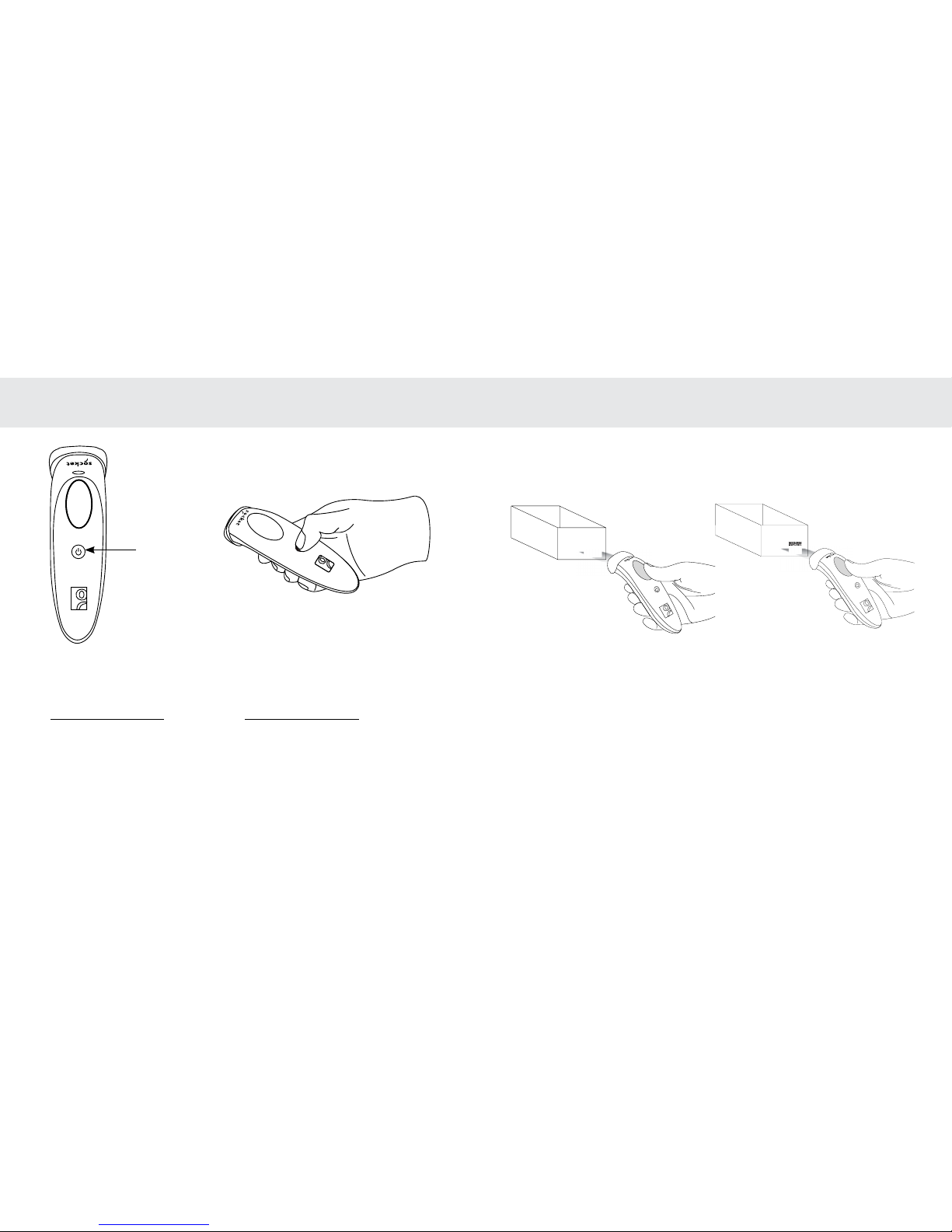

BASIC FUNCTIONALITY
•Powering On:
Press and hold down the small
power button until the LED
turns Blue and the CHS beeps
twice (low-high).
•Powering Off/Disconnecting:
Press and hold down the small
power button until the CHS beeps
twice (high-low).
BASIC FUNCTIONALITY (CONTINUED)
Scanning Barcodes:
After connecting the CHS to your device, open an application and put
the cursor where you want to enter data.
Hold the CHS about 4 inches (10 cm) from the barcode and press and
hold the trigger button. Position the CHS so the Red beam covers the
entire width of the barcode. Keep your hand steady while scanning.
By default, the CHS will beep and vibrate, and the LED will ash
Green to conrm that data was decoded and sent to the device.
1D
Aim the scan beam straight
across the entire barcode.
2D
Aim at the center.
mob ile
mob ile
6 7
Power button
m
o
b
i
l
e
m
obile
CONNECTION MODES (CONTINUED)
CONNECTION MODES
HID Keyboard Emulation mode (default)
In HID mode the CHS emulates a keyboard. This is a universal connection
method and will work with any application that has a text eld.
The application receives the data input from the CHS. The CHS includes
a keyboard pop-up feature so you can disable the CHS and accept data
input from the onscreen keyboard on the device. Pages 10-11 provides
the connection steps using HID mode.
MAC OS devices are connected using HID mode.
iOS devices are connected using either iOS mode or HID mode, but
not both together.
The CHS is connected to your iOS device using one of the following
modes:
1. iOS mode
2. HID Keyboard Emulation mode (default)
iOS mode
iOS mode is used with a Scanner-enabled Application. Scanner controls
are embedded in the Application to provide better performance, secu-
rity, features, and domain-specic capabilities.
If you purchased a Scanner-enabled Application on the Apple App Store
(or through the Apple Volume Purchase Program for Business) that
features integrated support for the CHS, we recommend you install that
Application on your device and follow the Application instructions to
connect with the CHS. If the connection steps are not documented in
the Application, please see pages 12-13 for the connection steps using
iOS mode.
Please visit the Socket Mobile App Store to conrm your Scanner-enabled
Application supports the CHS.
http://www.socketmobile.com/appstore
9
8
