Socket Mobile BluetoothTM Connection Kit User Manual

Bluetooth™ Connection Kit

Featuring the Socket Bluetooth Card™ and Windows CE software for adding Bluetooth wireless connectivity to the following mobile computers:

• Pocket PC 2000s

• Pocket PC 2002s

• Handheld PC 2000s

User’s Guide

How this Manual is Organized

This manual is designed to help you install and use the Socket Bluetooth Connection Kit.

Chapter 1, Introduction, describes key features of the Bluetooth Connection Kit and identifies package contents.

Chapter 2, Basic Setup, explains the minimum steps you need to complete to install and use the Bluetooth Card.

Chapter 3, Features, explains how to turn the transmitter on/off, use the Bluetooth ActiveSync and Bluetooth LAN Access options, and perform Bluetooth faxing.

Chapter 4, Advanced Features, shows additional steps you may choose to perform while installing and/or operating the Bluetooth Card.

Chapter 5, The Socket Dialer, explains how to install the Socket Dialer, assign a dialing prefix, and use the program to dial a number directly from your Contacts folder.

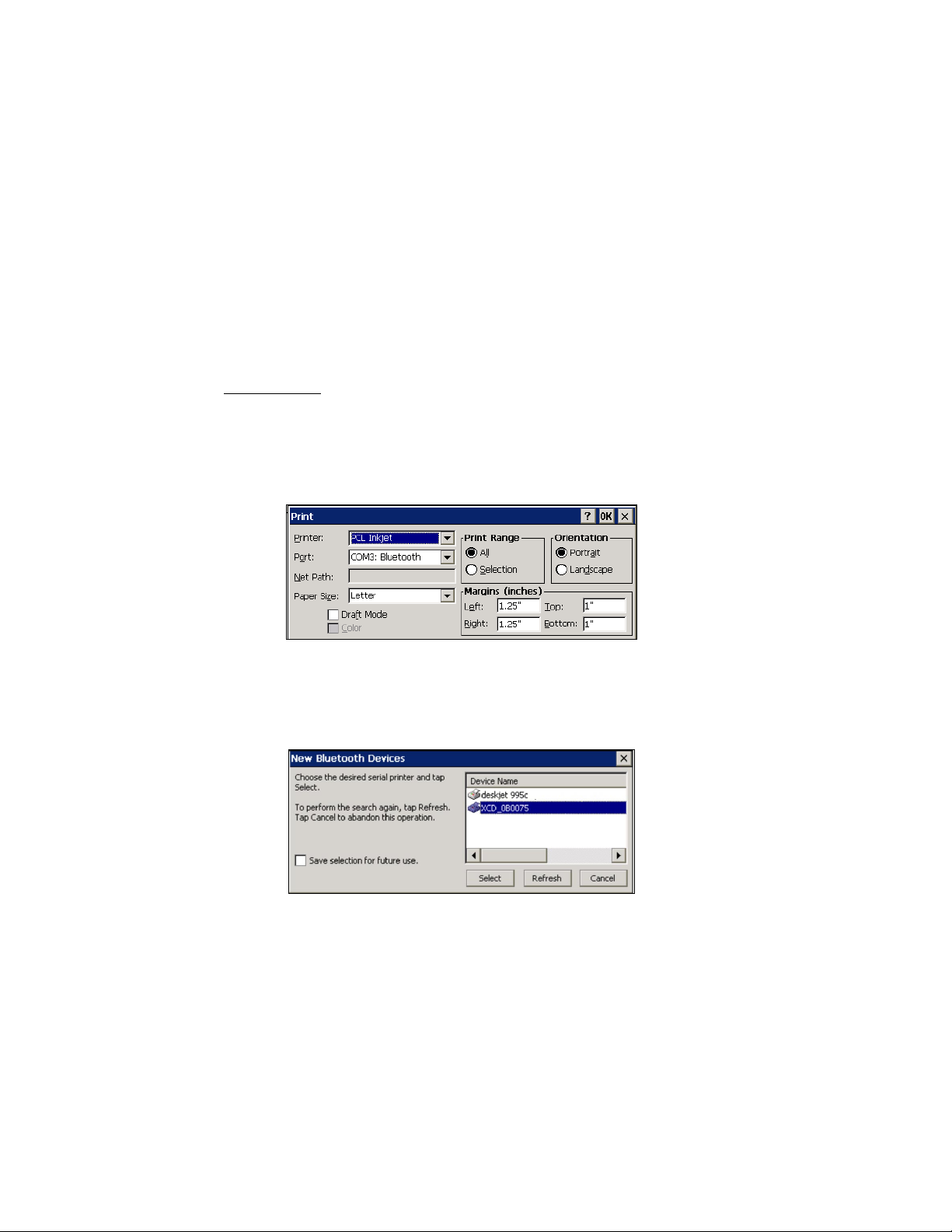

Chapter 6, Bluetooth Printing, shows how to print either directly from Pocket Word or Pocket Excel on an HPC 2000 or using the PrintPocketCE program included on the Bluetooth Connection Kit Installation CD on a Pocket PC.

Appendix A, Specifications, provides technical specifications for the Bluetooth Card.

Appendix B, Safety and Usage Tips, lists guidelines you should follow to use the Bluetooth Card safely and efficiently.

Appendix C, Troubleshooting, gives advice for fixing the most common problems you may encounter using the Bluetooth Card.

Appendix D, Technical Support, explains how you can reach Socket’s technical support department.

CHAPTER 1 INTRODUCTION 4

CHAPTER 2 BASIC SETUP 7

STEP 1: Register the Card 7 STEP 2: Prepare Network Information 7 STEP 3: Install the Software 7 STEP 4: Complete the Bluetooth Setup Wizard 8 STEP 5: Insert the Card 10 STEP 6: Get Connected! 11 STEP 7: Dial-up to Your Network 15

CHAPTER 3 FEATURES 20

Turn Radio Transmitter ON/OFF 20 Bluetooth ActiveSync 21 Bluetooth LAN Access 24 Bluetooth Faxing 27

CHAPTER 4 ADVANCED FEATURES 30

Set up Your Bluetooth Card 31 Assign COM Ports 32 View Device Properties 36 Set up Your Favorite Device 37 Discover Bluetooth Device(s) 33 Bond with Discovered Device(s) 34 Change Views 36 Delete a Device from the Bluetooth Devices Folder 39

CHAPTER 5 THE SOCKET DIALER 40

CHAPTER 6 BLUETOOTH PRINTING 43

APPENDIX A SPECIFICATIONS 47

APPENDIX B SAFETY AND USAGE TIPS 48

APPENDIX C TROUBLESHOOTING 50

APPENDIX D TECHNICAL SUPPORT 53

LIMITED WARRANTY 54

REGULATORY COMPLIANCE 57

Chapter 1 Introduction

Overview

The Socket Bluetooth Connection Kit makes it easy to add Bluetooth wireless connectivity to a Windows Powered Pocket PC 2000 or Pocket PC 2002 or a Windows CE-based HPC 2000. It’s perfect for connecting any of these mobile computers wirelessly to your favorite Bluetooth phone, LAN access point, computer or printer.

The Bluetooth Card is the only plug-in card to incorporate all Bluetooth components within the CompactFlash Type I form factor. With a CompactFlash-to-PC Card adapter, the Bluetooth Card also works in a PC Card (PCMCIA) slot. You can purchase adapters separately online at:

www.esend.com/socket/product.asp?sku=AC4000%2 D978

The Bluetooth Connection Kit includes a Bluetooth Card and Bluetooth software, including drivers, the Bluetooth Setup Wizard, the Get Connected! Wizard, the Bluetooth Devices folder, and the Socket Dialer.

For quickly connecting your mobile computer to a Bluetooth phone, use the Get Connected! Wizard. Afterwards, you can use the Socket Dialer to directly dial a number from your Contacts list.

In addition to phones, Socket’s Bluetooth software also makes it easy to connect to devices like computers, access points, and printers. The Bluetooth ActiveSync option guides you through connecting and synchronizing with a computer. Similarly, the Bluetooth LAN Access option helps you connect to a LAN access point. To connect to a printer or other type of device, use the advanced features found in the Bluetooth Devices folder.

This User’s Guide explains how to install and use the Bluetooth Card. This guide shows Pocket PC 2000 and Pocket PC 2002 screens. Except where otherwise noted, other types of mobile computers will have functionally equivalent screens.

The term “Pocket PCs ” refers to both Pocket PC 2000s and Pocket PC 2002s.

Software updates: www.socketcom.com/support/support_bluetooth.htm

4 | CHAPTER 1: INTRODUCTION

Contents of the Connection Kit

The Socket Bluetooth Connection Kit includes these items:

• A Socket Bluetooth Card (CompactFlash card Type I)

• The Socket Bluetooth Connection Kit Installation CD

To register the kit online, visit: www.socketcom.com/product/prodreg.htm

CHAPTER 1: INTRODUCTION | 5

Installation Steps Summary

Basic installation and operation of the Bluetooth Card for use with a Bluetooth phone can be completed in seven steps.

BASIC SETUP AND USE WITH A BLUETOOTH PHONE

STEP 1: Register the card. STEP 2: Prepare network information. STEP 3: Install the software. STEP 4: Complete the Socket Bluetooth Setup Wizard. STEP 5: Insert the Bluetooth Card into your mobile computer. STEP 6: Get Connected! STEP 7: Dial-up to your network.

FEATURES

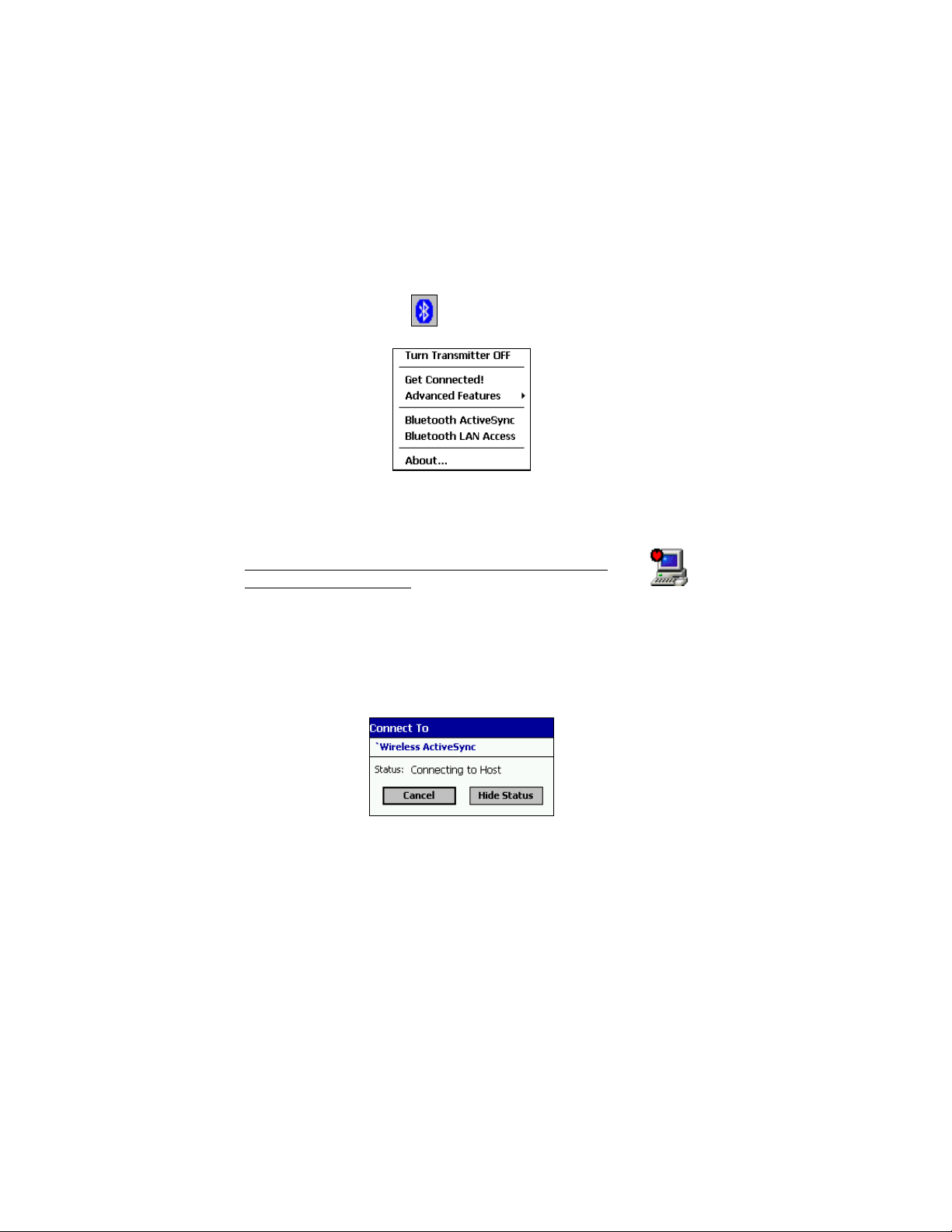

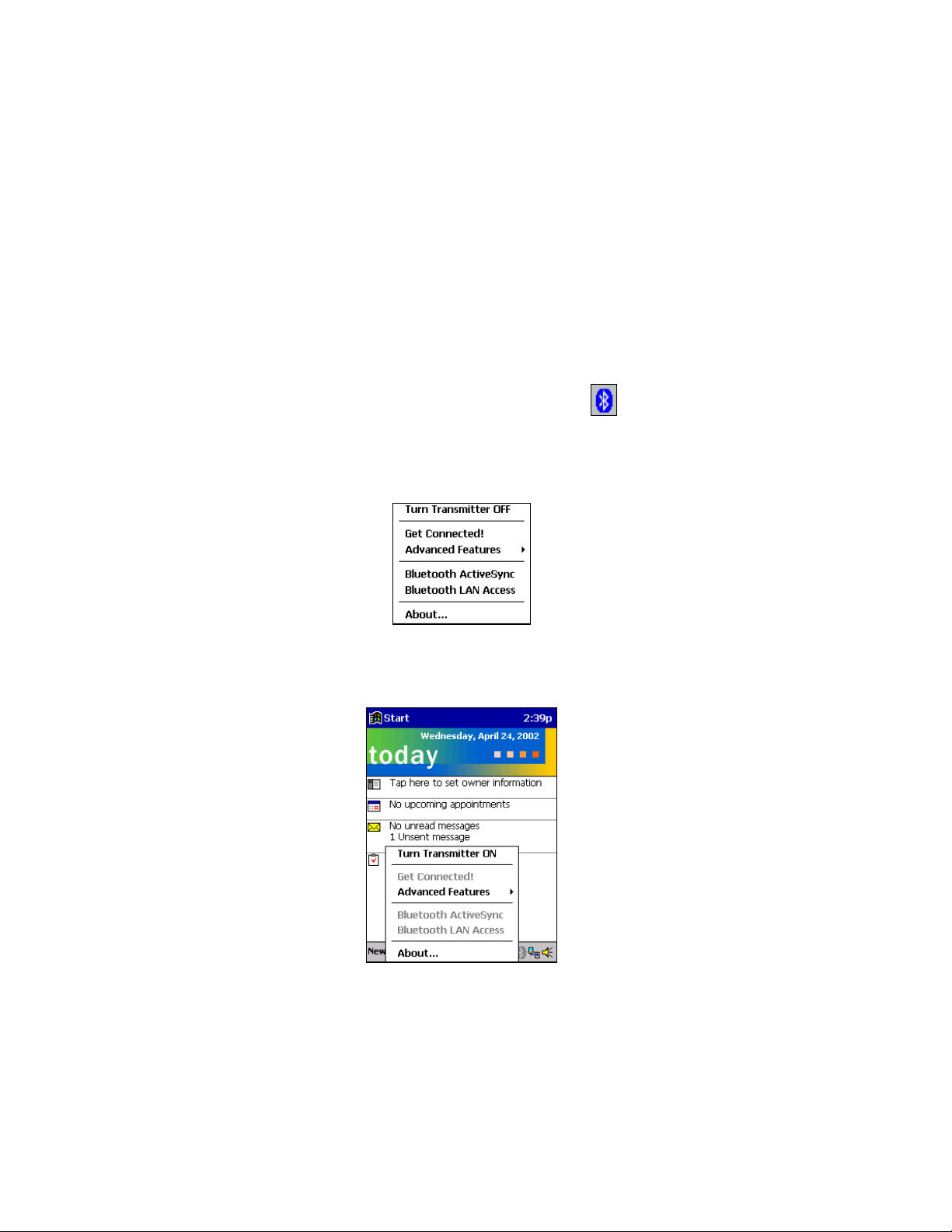

• Turn transmitter ON/OFF

• Bluetooth ActiveSync

• Bluetooth LAN Access

ADVANCED FEATURES

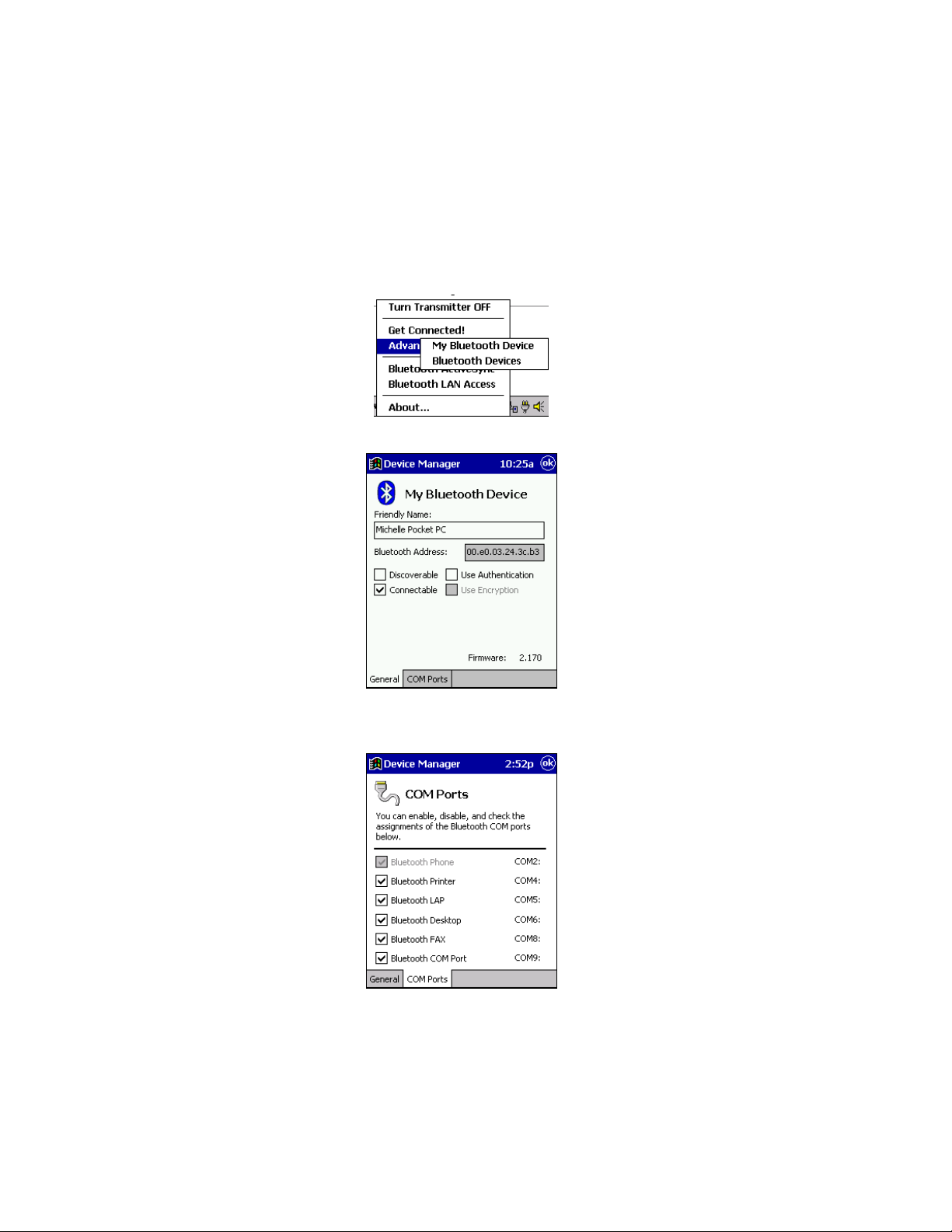

• Set up your Bluetooth Card.

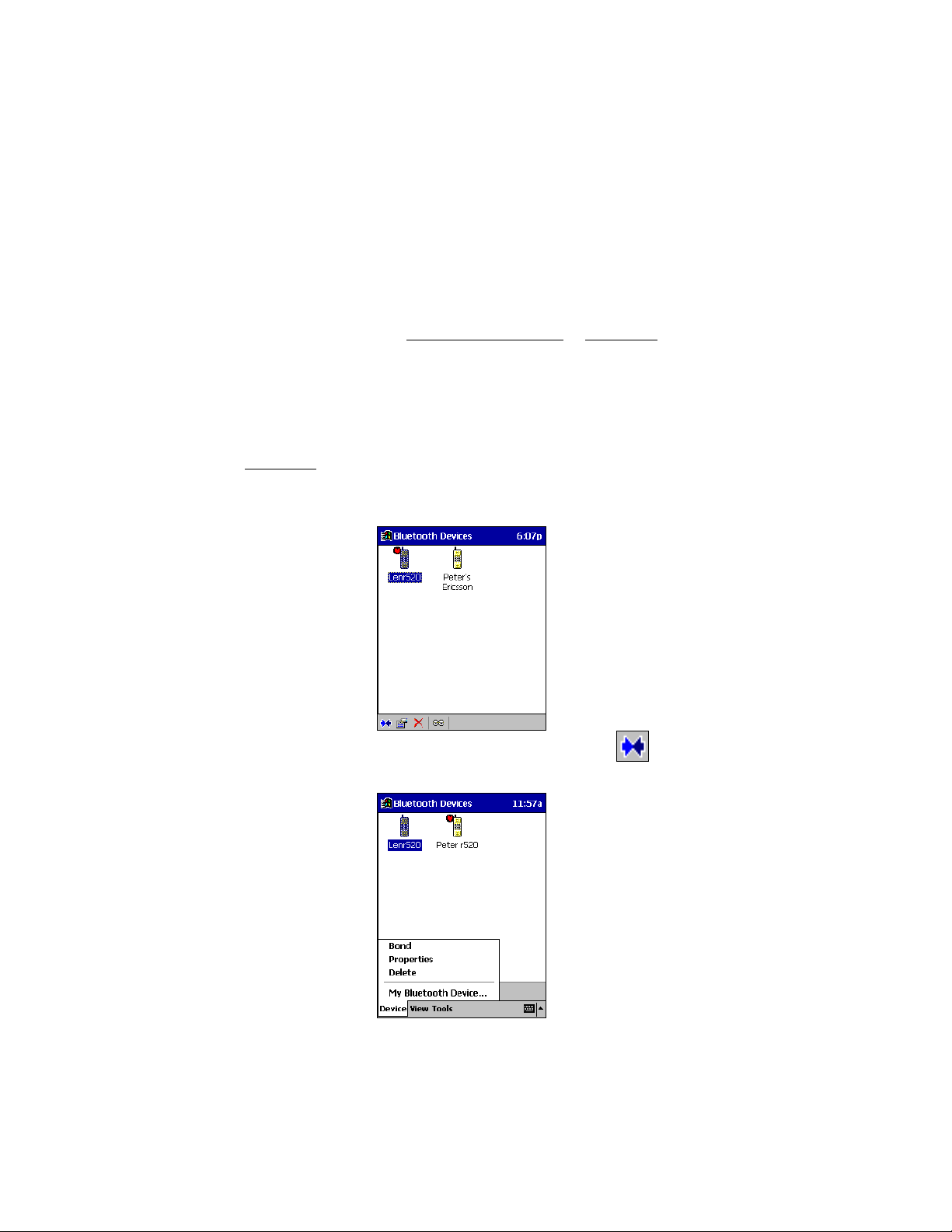

• Use the Bluetooth Devices folder.

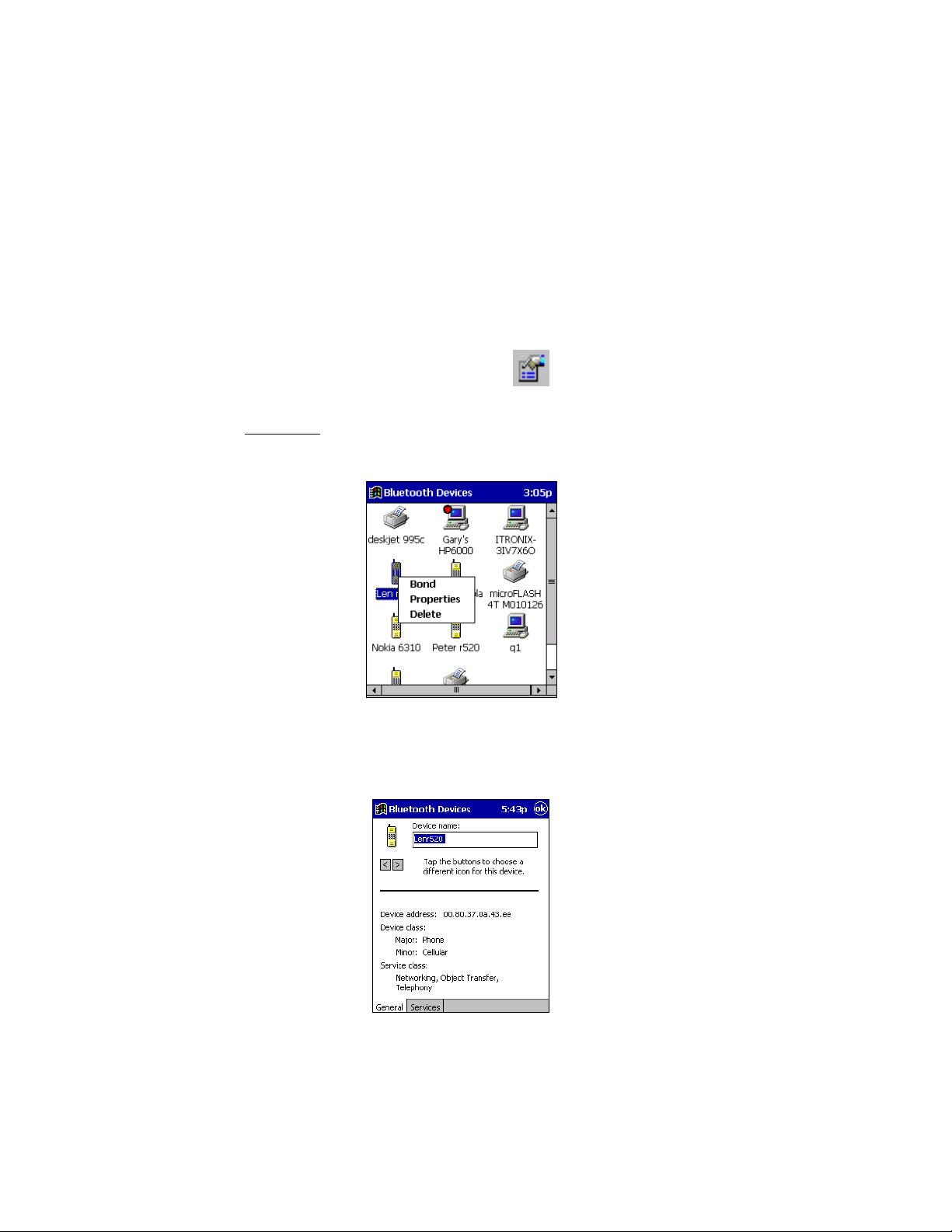

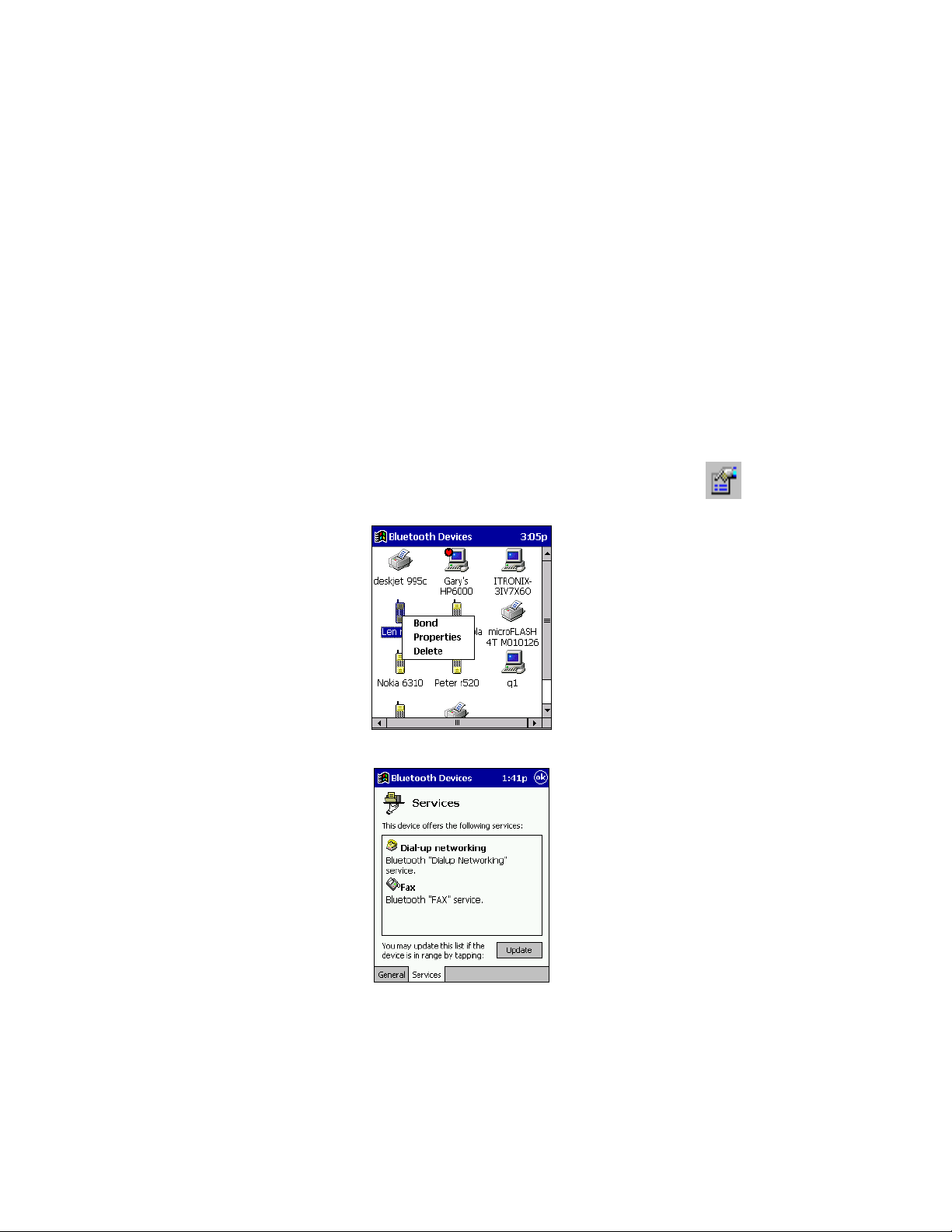

- View device properties.

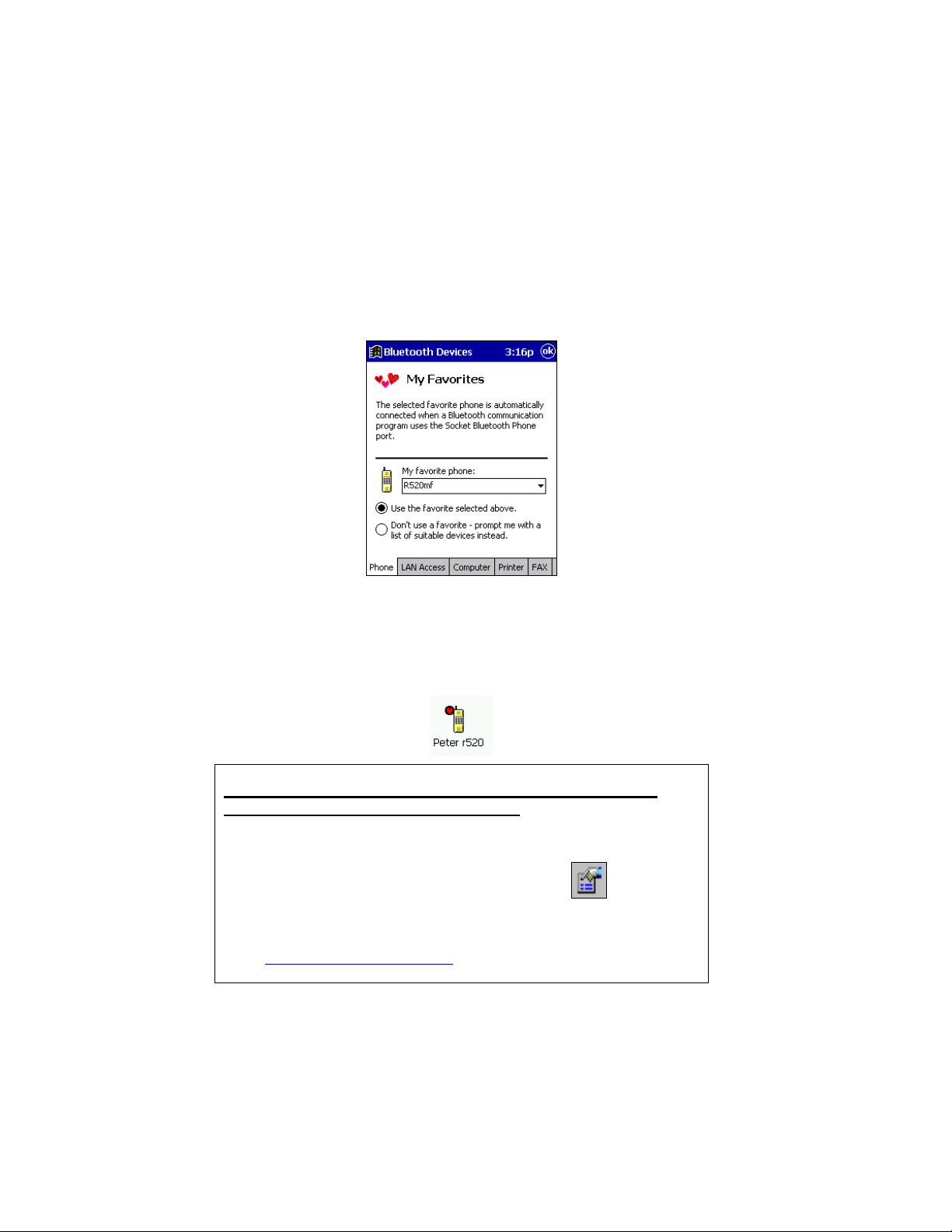

- Set up your favorite devices.

- View/modify Bluetooth COM ports.

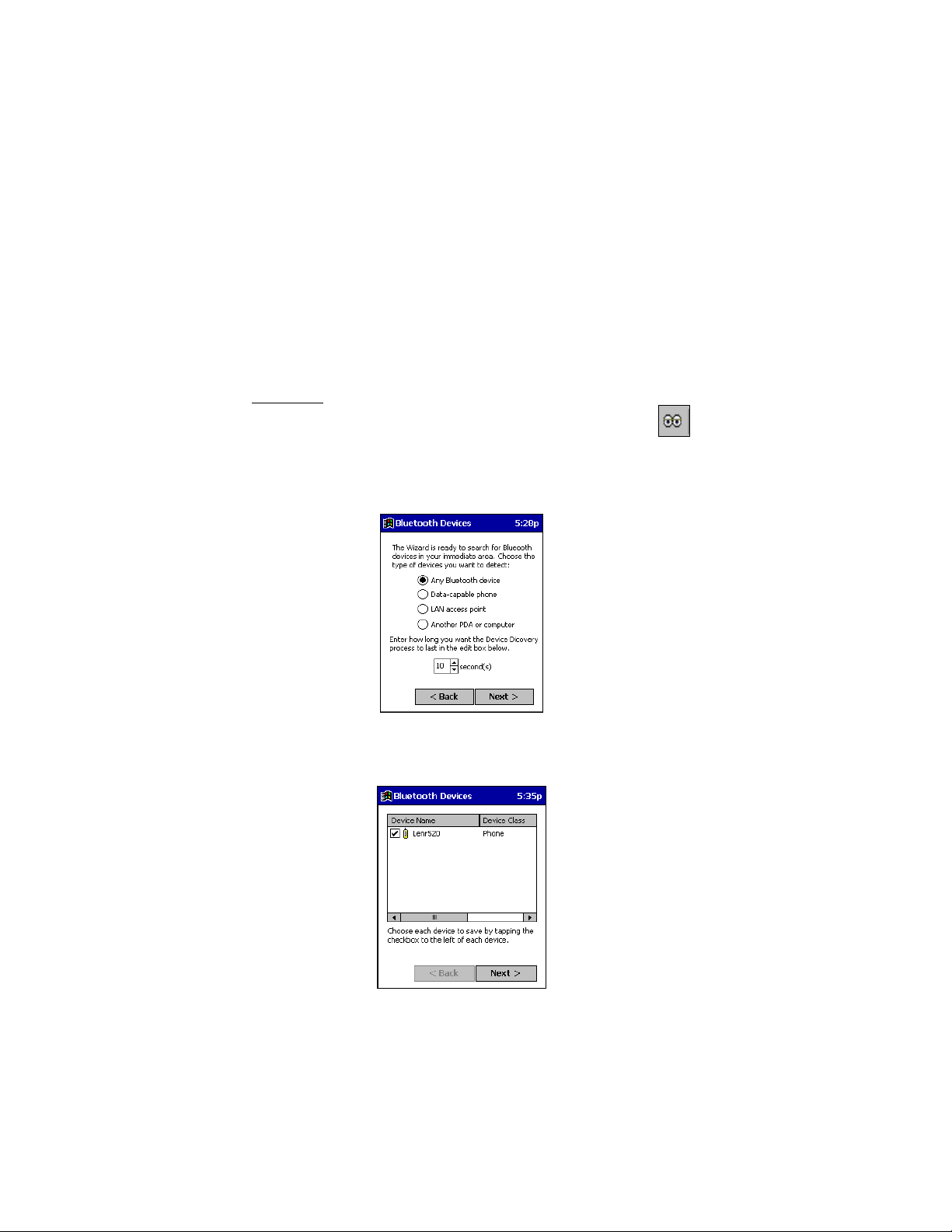

- Discover other Bluetooth device(s).

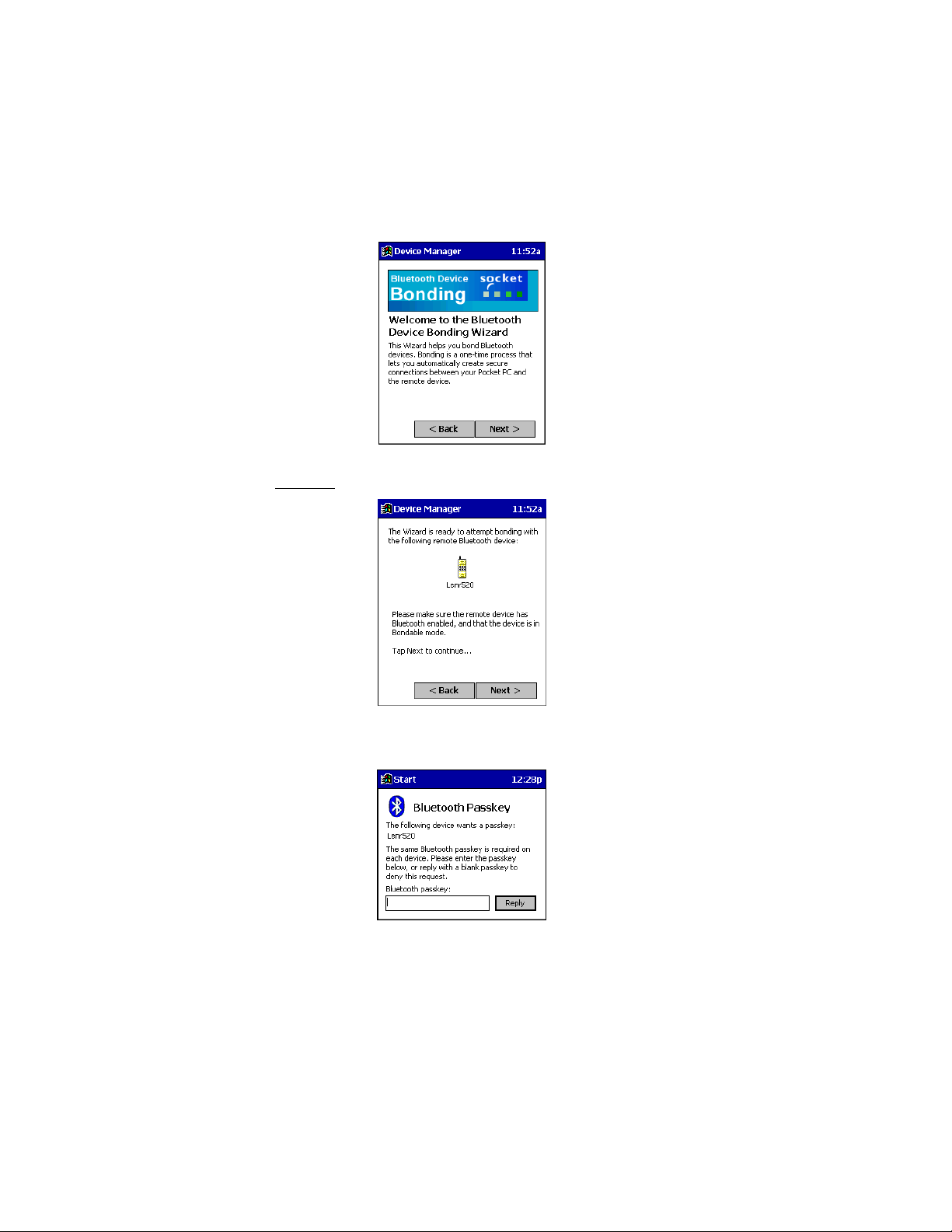

- Bond with another Bluetooth device.

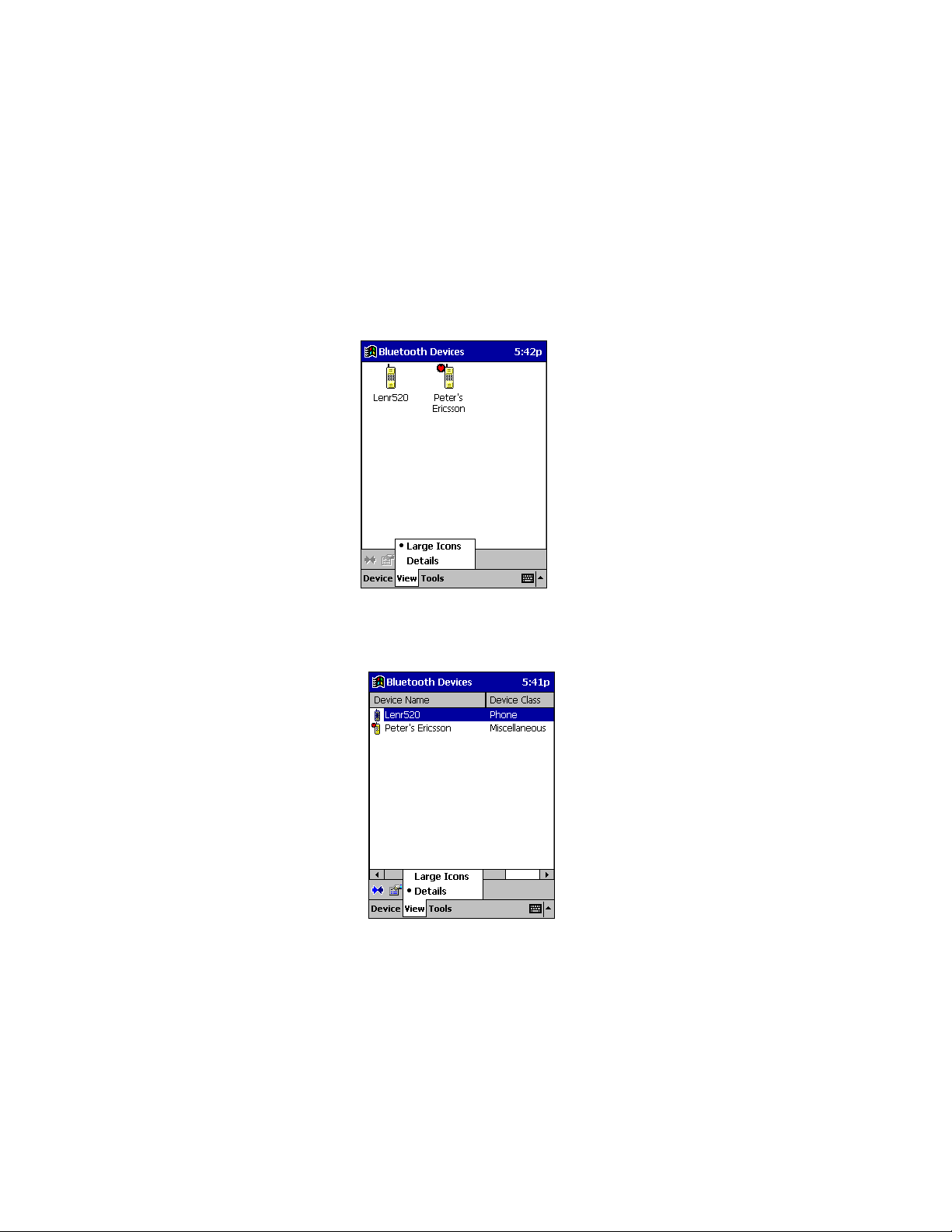

- Change views.

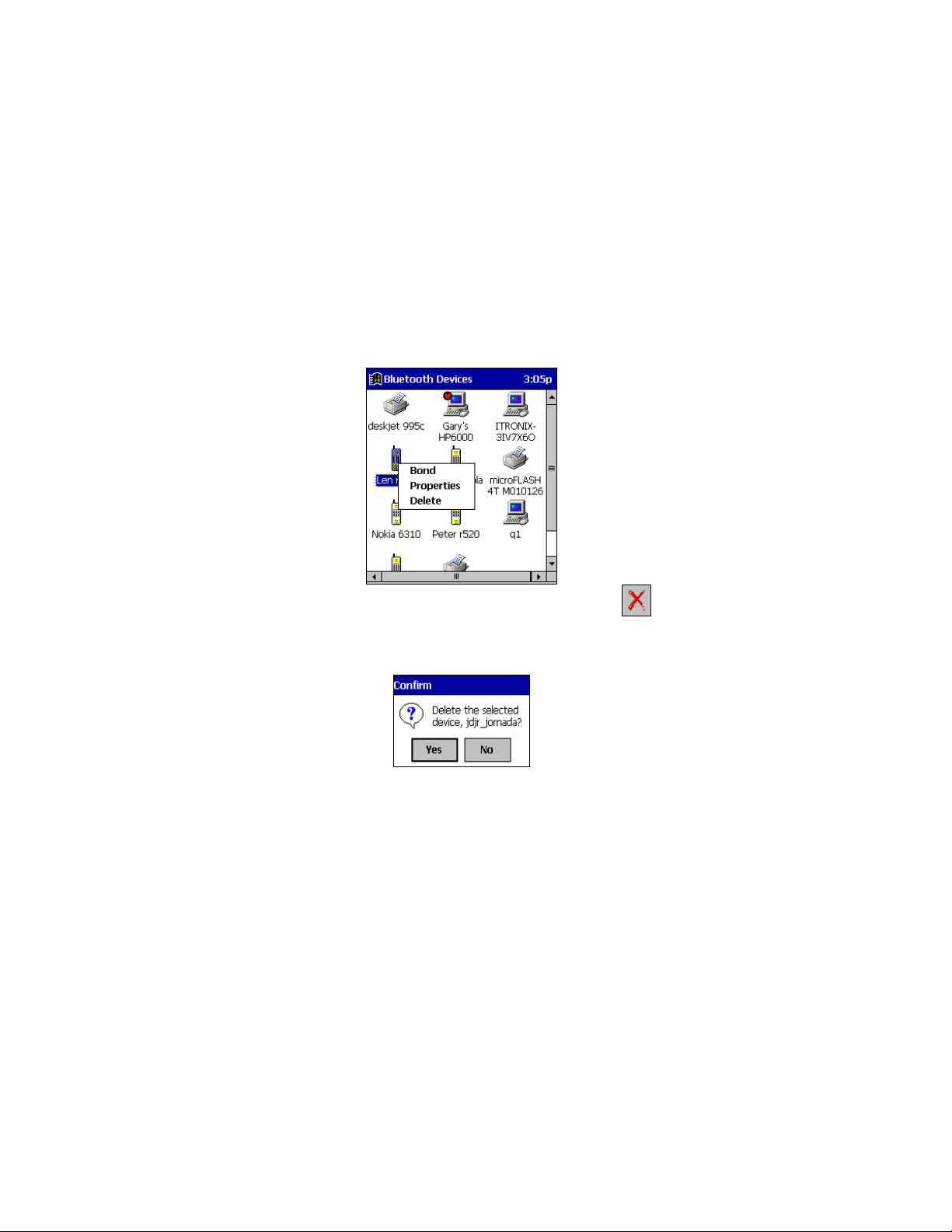

- Delete a device from your folder.

Note: There are some important safety and usage guidelines you should read before operating the Bluetooth Card. Please refer to Appendix B, “Safety and Usage Tips.”

6 | CHAPTER 1: INTRODUCTION

Chapter 2 Basic Setup

This chapter covers the minimum steps you must complete to install and use the Bluetooth Card.

STEP 1: Register the Card

STEP 2: Prepare Network Information

Consult with your network administrator/MIS technician to obtain any necessary settings for your network (e.g. IP addresses, dial-up number, user name, password, etc.).

STEP 3: Install the Software

Follow these steps to install the software BEFORE inserting the Bluetooth Card.

1. Make an active connection between the mobile computer and a host PC.

An active connection exists if data can move between the host PC and mobile computer via a serial/USB/Ethernet connection cable or cradle.

2. Insert the Bluetooth Connection Kit Installation CD into the host PC.

3. The setup program should auto-run. Follow the instructions on your host computer and mobile computer screens to install the software.

Note: If the program fails to auto-run, use My Computer or Windows Explorer to access your CD-ROM drive. In the CD, click on

SETUP.EXE

CHAPTER 2: BASIC SETUP | 7

STEP 4: Complete the Bluetooth Setup Wizard

1. After you install the software, the Socket Bluetooth Setup Wizard will

automatically launch on your mobile computer. Tap Next>.

2. Give your mobile computer a friendly name. Tap Next>.

8 | CHAPTER 2: BASIC SETUP

3. If your mobile computer has fewer than 6 COM ports free, the Disable

IrDA? Screen will appear. If desired, disable IrDA to free more ports. Tap Next>.

Note: This will disable the IR port on a Pocket PC. To readjust the IrDA settings, go to Start | Settings | System| IrDA. Some devices do not allow you to disable IrDA.

4. If your mobile computer still has fewer than 6 COM ports free, the next

screen will allow you to choose which services you plan to use most. After making your selections, tap Next>.

Note: You cannot disable the Bluetooth Phone port.

5. In the last screen, tap Finish.

6. If you disabled IrDA while using the wizard, soft reset your mobile

computer by pressing the reset button. This will is necessary for changes to take effect.

CHAPTER 2: BASIC SETUP | 9

STEP 5: Insert the Card

Important!

Do NOT insert the card upside down or shove the card in too hard. Damage may occur!

Insert the card into your mobile computer’s slot. If using a PC Card slot, first insert the Bluetooth Card into a CompactFlash-to-PC Card adapter (available separately). Make sure the blue label is on top.

nsert the card directly into a CompactFlash

/O slot…

…or plug the card into an adapter for use in a

C Card slot.

When properly inserted, the card unit will be fully contained within the slot.

After the mobile computer recognizes the card, The Bluetooth icon appear in the task tray (visible in the Today screen for Pocket PCs).

will

10 | CHAPTER 2: BASIC SETUP

STEP 6: Get Connected!

The Get Connected! Wizard guides you through a one-time setup process that prepares the mobile computer and phone for Bluetooth connections. The wizard varies depending on what phone you want to connect to.

Ericsson, Nokia 6210, NTT DoCoMo, Sony Phones

1. Tap on the Bluetooth task tray icon (visible from the Today screen for Pocket PCs). In the pop-up menu, select Get Connected!

2. Follow the Bluetooth “Get Connected!” Wizard. In the second screen, use the drop-down list to select your Bluetooth phone. The wizard will provide tailored instructions based on your selection.

This example is

or a Nokia phone. Your phone may differ.

3. Follow the next screen(s) to prepare your specific phone for Bluetooth connections. You may need to do 1, 2 or all of the following steps: a. Naming your Bluetooth phone b. Setting your Bluetooth phone in Discoverable mode c. Preparing your Bluetooth passkey

CHAPTER 2: BASIC SETUP | 11

4. When the search is complete, a list of the discovered Bluetooth phones will appear. Choose the phone you wish to connect to, and tap Select. A service discovery phase will begin, about 5-10 seconds.

5. As prompted in the next screen, prepare your phone for bonding. For instructions on setting your phone to “Bondable” or “Pairable” mode, refer to your phone manual. Have your passkey ready, then tap Next>.

6. In the next screen, enter the passkey. Tap Reply.

Note: Exchanging passkeys allows the phone and mobile computer to set up an encrypted data link for secure communications.

7. The mobile phone may then either automatically accept the passkey or ask you to enter one. If prompted for a passkey, use the same one you entered on the mobile computer.

Ericsson T68/T68i only: When the phone asks you if you want to bond , select 2: Add to paired devices. Do not ACCEPT.

8. Tap Finish. After successfully connecting, the phone will appear in the Bluetooth Devices folder. You will not need to run the Get Connected!

Wizard again unless you plan to switch between different phones.

Note: You may also switch between different phones by assigning a new “favorite phone” in the Bluetooth Devices folder.

12 | CHAPTER 2: BASIC SETUP

Motorola Timeport 270C, Nokia 6310

1. Tap on the Bluetooth task tray icon (visible from the Today screen for Pocket PC devices). In the pop-up menu, select Get Connected!

2. Follow the Bluetooth “Get Connected!” Wizard. In the second screen, use the drop-down list to select your Bluetooth phone. The wizard will provide tailored instructions for your phone.

Note: The screens below are for the Motorola Timeport 270C.

3. As directed in the next two screens, assign the phone a unique name and set the phone in Discoverable mode. Then tap Next>.

4. The mobile computer will begin to search for the phone. When the search is over, a list of the discovered Bluetooth phones will appear.

Choose the phone you wish to connect to, and tap Select. A service discovery phase will begin, about 5-10 seconds.

CHAPTER 2: BASIC SETUP | 13

5. The next two screens describe procedures you can only complete outside of the wizard. Read through each screen but do not complete the described procedures until you exit the wizard. Directions for these procedures are provided in STEP 7: Dial-up to Your Network, starting on the next page. The two procedures are:

Bonding with your phone — This must be completed in order to complete the Bluetooth connection and involves dial-up networking.

Automatic Connections — This procedure is optional but will make future Bluetooth connections more convenient.

6. Continue to the last screen of the wizard and tap Finish. Now proceed to STEP 6 to complete the bonding process and, if desired, set up automatic connections.

14 | CHAPTER 2: BASIC SETUP

STEP 7: Dial-up to Your Network

Complete the following steps to create a new Bluetooth connection. Before setting up dial-up networking, prepare yourself with dial-up information and other necessary settings for your office network or ISP.

Pocket PCs

This section pertains to Pocket PC 2000s and Pocket PC 2002s.

1. Pocket PC 2000 — Go to Start | Settings | Connections | Modem. In the next screen, tap New Connection…

Pocket PC 2002 — Go to Start | Settings | Connections. Tap on the Connections icon. In the top field, select Internet Settings. Tap Modify… In the next screen, tap New…

CHAPTER 2: BASIC SETUP | 15

2. In the next screen, enter a name for the dial-up connection. For the modem, select Bluetooth Phone. For the Baud Rate, select 115200. Tap Advanced…

Note: Remember what you name the connection. You will need it when you start the connection.

3. The Port Settings screen will appear. If needed, tap on the TCP/IP and/or Name Servers screens to enter any necessary settings for your office network or ISP. Tap ok.

4. Tap Next.

5. In the Phone number field, enter the dial-up number. Tap Next.

6. Uncheck Wait for dial tone before dialing. Tap Finish.

16 | CHAPTER 2: BASIC SETUP

7. Now you are ready to start the connection.

Pocket PC 2000 — Go to Start | Programs | Connections. Tap on the Bluetooth connection you just set up. Make sure the dialing settings are correct. Tap Connect.

Pocket PC 2002 — In the Connections screen, under Internet Settings, tap Connect. In Network Log On, verify the dialing settings. Tap OK.

8. FOR MOTOROLA TIMEPORT 270C AND NOKIA 6310 ONLY: After you tap Connect for the first time, the phone will display a message asking if you want to bond. On Motorola, enter GRANT; on Nokia, enter ACCEPT. Make up a 4-16 digit passkey, enter it on the phone, then enter it on the Pocket PC. After successfully bonding, you can set up the phone for automatic connections.

Automatic Connections for Motorola Timeport 270C:

• On the phone, press MENU.

• Scroll to Settings, then press SELECT.

• Scroll to Connection, then press ON.

• On Bluetooth Link, press SELECT.

• Scroll to Devices, then press SELECT.

• Choose your mobile computer, then press EDIT.

• Scroll to Access:Ask, then press CHANGE.

• Scroll to Automatic, then press SELECT. Press DONE.

Automatic Connections for Nokia 6310

• On the phone, press MENU.

• Scroll to 10 Bluetooth, then press SELECT.

• Scroll to 4 View Paired Devices, then press SELECT.

• Highlight the Pocket PC, then press OPTIONS.

• Scroll to 3 Request Connection Authorization, then press NO.

9. To use a different Bluetooth phone for dial-up networking, you can use the same connection setup, but you must make the new phone your favorite. Just run the Get Connected! Wizard again, select the new phone, and make it your new Favorite when prompted. Or you can use the Bluetooth Devices folder to change your favorite phone (see page 37).

CHAPTER 2: BASIC SETUP | 17

Handheld PC 2000

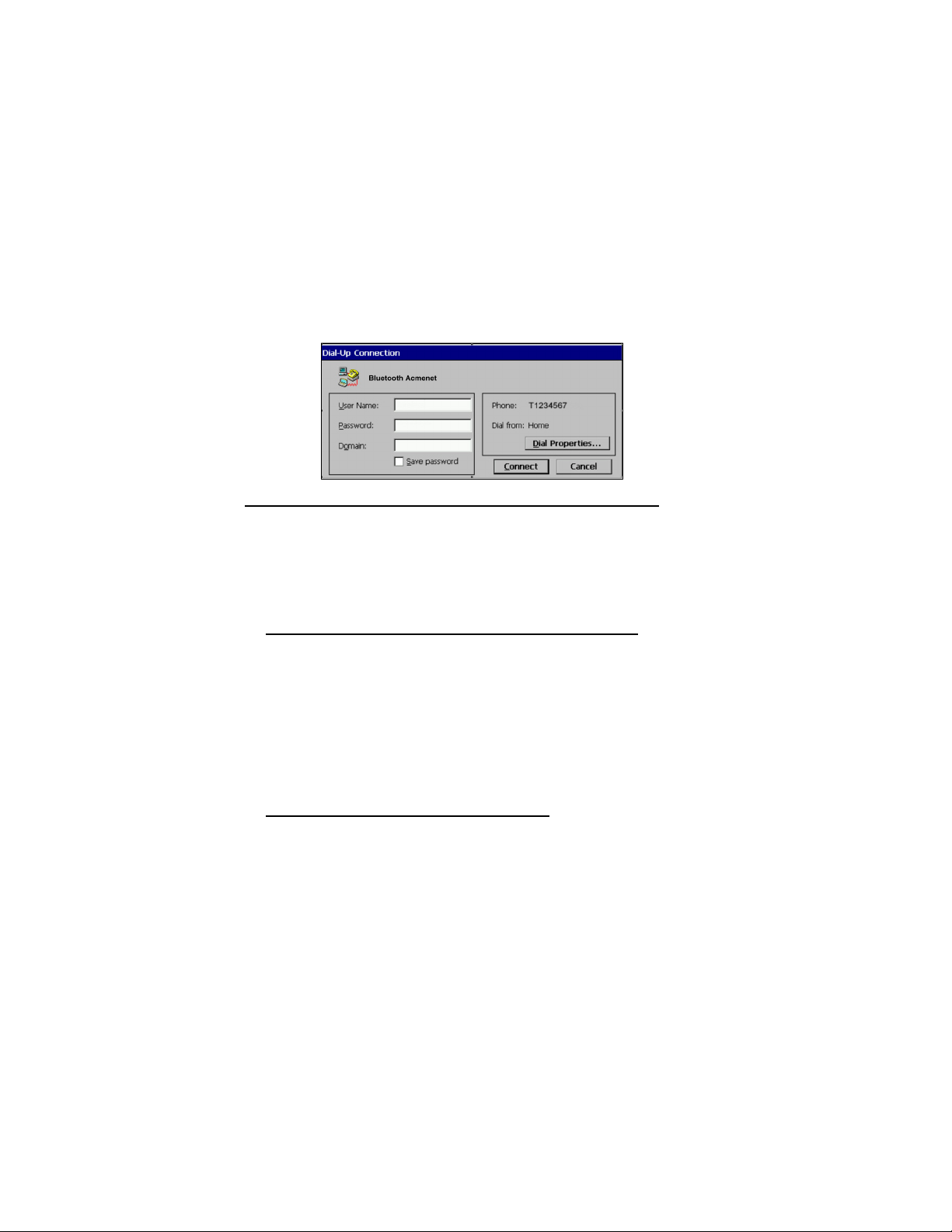

1. Go to Start | Programs | Communication | Remote Networking | Make New Connection.

2. In the next screen, enter a name for the Bluetooth connection. Select Dial-Up Connection. Tap Next>.

2. Select Bluetooth Phone for the modem. Tap Configure…

3. The Port Settings screen will appear. For Baud Rate, select 115200. Tap on the Call Options tab.

5. Uncheck Wait for dial tone before dialing. Tap OK.

18 | CHAPTER 2: BASIC SETUP
