1 | INTRODUCTION

Thank you for purchasing the Socket Cordless Hand Scanner (CHS)
Series 7 with Bluetooth Wireless Technology. The CHS combines
the power of bar code scanning with the convenience of
Bluetooth wireless technology so you can collect bar coded data
without being tied to your mobile or desktop computer. Compact,
lightweight, and ergonomically designed to fit comfortably in a
hand, the CHS is ideal for high volume data collection
applications.

SCANNER VERSIONS

The CHS Series 7 includes three
versions of the scanner.

• The entry-level CHS 7E uses

linear CMOS imaging
technology.

• The mid-level CHS 7M has a

Class 1 laser scanner.

• The performance level CHS 7P

features a Class 2 laser scanner
and a ruggedized construction.

ABOUT THE SOFTWARE

SocketScan™ enters scanned data directly into any

Windows, Palm or RIM OS program as if the data were
manually typed. Included is a utility that enables you
to configure Prefix/Suffixes, sounds, and other special
settings for the CHS.

Connect!Agent™ software for Windows Mobile automates

Bluetooth by setting up and managing the wireless connection.

ActivePairing

connect to a specific host computer by scanning a special bar code.

Error Proof Protocol

confirming in real time that scanned data has reached the host
computer. This minimizes the risk of data loss from a dropped
connection.

™

for Windows Mobile, XP and Vista enables you to

™

ensures reliability of data collection by

6

PACKAGE CONTENTS

• Cordless Hand Scanner with Bluetooth Wireless Technology

• AC charging adapter with international plugs

• 2 NiMH rechargeable AAA batteries

• Lanyard with retractable tether

• Software Installation CD

• Booklets with copyright, warranty, and regulatory compliance

SYSTEM COMPATIBILITY REQUIREMENTS

Windows Mobile:

• Any of the following Windows Mobile versions:

− Windows Mobile 2003, 2003SE or 5.0 for Pocket PC/Pocket PC

Phone

− Windows Mobile 6.0 or 6.1 Classic/Professional

• Bluetooth radio

• Either of the following Bluetooth stacks:*

− Broadcom 1.5 or later

− Microsoft Bluetooth stack for Windows Mobile

− Stonestreet One 1.2.4 (Build 1783)

• Software installation requires a Windows-based host PC with

the appropriate synchronization software (available free
from the Microsoft website).

Windows CE.NET
Intermec CK30 mobile computer.

Windows XP and Windows Vista

• Windows XP Professional/ Tablet PC (SP1, SP2, SP3) or

Windows Vista Business/Ultimate (SP1)

• Bluetooth radio

• Bluetooth stack from Microsoft, Toshiba or Broadcom

Palm OS

:

• Palm OS 5.2 or later

• Bluetooth wireless technology

• Software installation requires Palm Desktop Software on a

host computer.

: The CHS Series 7 is compatible with the

:

CHAPTER 1: INTRODUCTION 7

RIM BlackBerry:

• Any of the following devices:

− Curve 83xx

− Pearl 81xx

− Bold 9000

For instructions on using the CHS with a smartphone running
Symbian OS, visit: www.socketmobile.com/support/downloads

For software updates, visit: www.socketmobile.com/support/downloads/

PRODUCT REGISTRATION

Socket highly recommends that all customers register their products.
Registered users receive priority for technical support and can choose
to obtain special offers, upgrades, and new product information.
Register online at: support.socketmobile.com

SOCKETCARE

The SocketCare service program is available for the Cordless
Hand Scanner. For more information, please visit:

www.socketmobile.com/support/socketcare/

™

SERVICE PROGRAM

ACCESSORIES

Various accessories are available for the CHS, including:

• Charging cradle

• Car charger

• Scanning Companion USB Bluetooth adapter

• Accessory pack with lanyard, pull reel, and batteries

• Mobile Power Pack (available in Americas and Asia Pacific)

For more information, please visit:

www.socketmobile.com/products/accessories/

ADDITIONAL DOCUMENTATION

Socket has also published Quick Start Guides and an Advanced
Programming Guide, which includes information on enabling
special scanning settings (e.g., raw data mode). Download them
online at: www.socketmobile.com/support/downloads/

8

HARDWARE FEATURES

Product Diagram

Scanner exit
window

Battery cover

Status indicator LED

Trigger button

Power button

Stylus tip

Rechargeable Batteries and AC Adapter

Charge the internal batteries by using the included AC adapter.
The adapter rating is 5V, 2A, positive pole center. New, fully
charged batteries last ~19 hours to scan 14,000 bar codes.

WARNING: Charge ONLY NiMH batteries in the CHS. Damage may
result if other battery types are charged. Do not store the CHS
for more than 30 days with the batteries installed.

The red Battery Status LED will not function properly if standard
AAA non-rechargeable batteries are being used.

Besides the included AC adapter, you can also recharge the CHS
by using any of the following:

• Socket charging cradle for the CHS

• Socket car charger

• Socket Mobile Power Pack (available in Americas and Asia

Pacific)

• AC and DC adapters of the Socket SoMo 650 handheld

computer, as well as those of most recent Pocket PCs from
Casio, Fujitsu, HP, and Toshiba

Socket charging accessories are available online at:

www.socketmobile.com/products/accessories

CHAPTER 1: INTRODUCTION 9

Status Indicator LED

LED LED Activity Meaning

Bluetooth

1 blink per second

Bluetooth radio is on, but not

connected.
Status
(Blue)

1 blink per 3 seconds Bluetooth connection.

Good Read

(Green)

On

Data successfully scanned and

transmitted to host device.

Battery

Status

(Red)

Blinking 20% battery capacity remaining

On 10% battery capacity remaining

Off Off or Good Battery status

Status Indicator Beeps

Beep Pattern Meaning

2 beeps (low-high) Power on

2 beeps (high-low) Power off

Bluetooth connection to host device has begun

1 beep

2 beeps
(same tone)

3 long beeps Cable disconnected from wrist unit

5 beeps CRS has detected an error and reset

*Good scan confirmation beep is enabled only in packet mode (default).

OR data has been successfully scanned and sent
to host device*

Bluetooth connection to host device has ended

Touch Screen Stylus

The CHS features a stylus tip in the tail of the
CHS that you can use on Pocket PC and other
device touch screens.

WARNING: Do not use the stylus if
damaged. A damaged stylus may scratch
the display screen of your computer.

The stylus does not work with tablets using Active Matrix displays.

10

2 | HARDWARE PREPARATION

INSTALLING BATTERIES AND ATTACHING THE TETHER

1. Use a coin or screwdriver to unlock and remove the battery

cover. Turn the lock underneath the scanner to a horizontal
position.

2. Remove the battery cover.

The Bluetooth Device Address is printed on a label
inside the battery compartment. Note the address to
help identify your CHS if you plan to use it within
range of other CHS devices.

3. If desired, attach the tether. Wrap the string loop around the

inside part of the lock.

CHAPTER 2: HARDWARE PREPARATION 11

4. Install the batteries as indicated by the +/- symbols.

WARNING: Do not install the batteries incorrectly.
Damage may result.

5. Replace the battery cover and turn the lock to a vertical

position to secure it.

6. If desired, attach the tether to a lanyard or belt.

12

ASSEMBLING THE AC ADAPTER

The AC adapter included with the CHS includes four
international plugs. Simply find the correct plug for your region
and slide it into the head of the adapter.

CHARGING THE SCANNER

Use the included AC adapter to charge the Cordless Hand
Scanner. Alternatively, you can use a charging cradle, car
charger, or the Mobile Power Pack (all available separately).

The scanner must be fully charged before its first use. The LED
will emit a solid red light while charging, and turn green when
the batteries are fully charged.

WARNING: Do not attempt to charge alkaline
batteries — this may cause alkaline batteries to
leak and damage the CHS.

The red Battery Status LED will not work properly if
standard AAA alkaline batteries are being used.

To purchase charging accessories, please visit:

www.socketmobile.com/products/accessories/

CHAPTER 2: HARDWARE PREPARATION 13

3 | SETUP FOR WINDOWS MOBILE

This chapter explains how to install and use
the Cordless Hand Scanner (CHS) with the
SoMo 650 or other Bluetooth enabled Pocket
PC or mobile computer running Windows
Mobile.

Before you begin the instructions in this
chapter, make sure you have installed the
batteries (and tether, if desired), and charged
the scanner, as described in Chapter 2,
“Hardware Preparation.”

Setup Summary

STEP 1: Uninstall other scanning software.
STEP 2: Install SocketScan and Connect!Agent.*
STEP 3: Start SocketScan.
STEP 4: Configure scanner settings.
STEP 5: Turn on the CHS.
STEP 6: Connect CHS to host device.
STEP 7: Start your application.
STEP 8: Scan bar codes.

Application Features

Symbology Selector
Scanner Settings
Scan Demo
Connect!Agent Utility

*Note: Software installation is not required for the Socket SoMo
650 handheld computer. However, you may want to update the
software if a more recent version of SocketScan or
Connect!Agent is available.

14

STEP 1: UNINSTALL OTHER SCANNING SOFTWARE

Remove any bar code scanning software already installed on
your device.

Note: The SocketScan software pre-installed on the SoMo 650
cannot be uninstalled but can be upgraded.

OPTION 1: Uninstall Directly from the Pocket PC

1. Make sure the bar code scanning software is not running.

2. Tap Start | Settings. Tap on the System tab or Control

Panel.

3. Tap on the Remove Programs icon.

4. Use the utility to remove the software.

OPTION 2: Uninstall with the ActiveSync

1. Make sure the bar code scanning software is not running.

2. Use ActiveSync and a serial/USB cable or cradle to make an

active connection between your device and a host PC.

3. On the host PC, open Microsoft ActiveSync.

4. Click Tools | Add/Remove Programs.

5. Use the utility to remove the software.

CHAPTER 3: SETUP FOR WINDOWS MOBILE 15

STEP 2: INSTALL SOCKETSCAN AND CONNECT!AGENT

Follow these instructions to install SocketScan and Connect!Agent
software into your Pocket PC. Both are required to use the CHS.

1. Use a serial/USB cable or cradle and the appropriate

synchronization software (ActiveSync or the Windows Mobile
Device Center) to make an active connection between your
device and a host PC.

Synchronization software is available free from the Microsoft
website.

2. Insert the installation CD into your host PC.

3. Use My Computer or Windows Explorer to access your CD-

ROM drive. In the CD, click on SETUP.EXE.

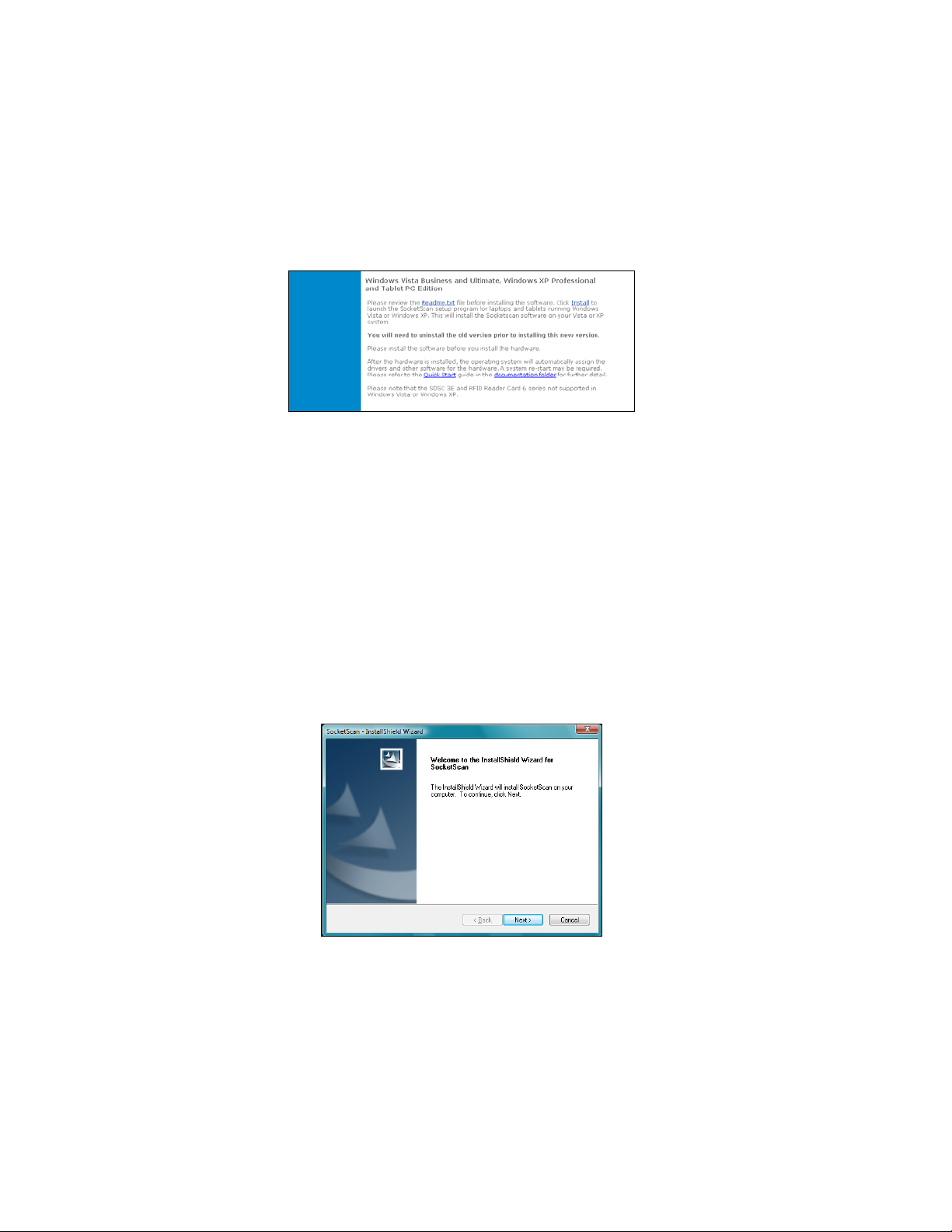

4. The SocketScan Setup Center will appear in your web browser.

Read the first page and click Installation in the left margin.

16

5. In the SocketScan installation page, in the Windows CE

section, click Install In the first paragraph.

6. Your web browser will present a series of dialogs.

Internet Explorer:

• In the File Download –Security Warning dialog, click Run.

• In the second warning dialog, click Run.

• Internet Explorer will download the file.

Firefox:

• In the file opening dialog, click Save File.

• Firefox will download the file.

• In the Downloads list, next to SocketScanCE.exe, click Open.

• In the warning dialog, click OK to continue.

7. The InstallShield Wizard for SocketScan Software will

automatically launch. Follow the wizard to install the software.

CHAPTER 3: SETUP FOR WINDOWS MOBILE 17

8. After installing the software, a dialog on your Pocket PC will

direct you to soft reset. Tap ok.

9. Remove your device from the cable/cradle and perform a soft

reset by pressing the reset button. If you skip this step, some
icons may not appear correctly.

10. Install Connect!Agent by returning to the SocketScan Setup

Center. In the Installation page, scroll down to Connect!Agent
– Mobile Devices section and click on the Connect!Agent

software link there.

IMPORTANT! Both SocketScan and Connect!Agent
software must be installed.

18

STEP 3: START SOCKETSCAN

1. Tap Start | Programs | SocketScan folder | SocketScan.

2. When SocketScan is running a SocketScan icon will appear at

the bottom of the Today screen.

Icon Meaning

No bar code scanner detected

CHS is connected and ready to scan

STEP 4: CONFIGURE SCANNER SETTINGS

1. Tap the SocketScan icon at the bottom of the Today screen.

In the pop-up menu, tap Settings.

2. The Scanner Settings utility will appear. Tap on the CS tab at

the bottom of the screen.

CHAPTER 3: SETUP FOR WINDOWS MOBILE 19

3. Check the box Enable Cordless Scanner support. IMPORTANT!!!

4. Tap on the CS HW tab.

Enter the following settings:

• Good Read Indicator: Select how you would like the CHS

to indicate that it has successfully read data.

• Battery Level: When the scanner is connected, a progress

bar displays this advanced feature.

• Disable Auto Power Off mode:

CAUTION: Selecting this option will disable the Auto
Power Off mode and can result in complete
discharge of the CHS batteries. Use with caution.

5. After entering settings, tap ok to save the changes.

20

STEP 5: TURN ON THE CHS

Press and hold the small power button for 3 seconds, until

the LED turns blue and the scanner beeps.

The LED should blink blue once every second to show that the
Bluetooth radio is on but not connected.

Time after turning on scanner Bluetooth mode

0-5 minutes Discoverable and connectable
5-20 minutes Connectable
20 minutes Scanner automatically powers off

STEP 6: CONNECT DEVICE TO CHS

1. Tap on the SocketScan icon at the bottom of the screen. In

the menu, tap Connect CS.

If Connect CS does not appear, tap Settings in the menu, tap
on the CS tab, and enable cordless scanner support.

2. Connect!Agent will automatically turn on the Bluetooth radio

and begin to search for and connect to the CHS.

- If this is your first time connecting to a CHS from this

device, Connect!Agent will search for any CHS in range.

CHAPTER 3: SETUP FOR WINDOWS MOBILE 21

- If you have previously connected to a CHS, Connect!Agent

will automatically search for your favorite (default) device.

3. If Connect!Agent does not have a favorite scanner, select the

one you want to connect to and tap ok.

To help you identify the scanner, Connect!Agent
reports the Bluetooth Device Address, which is
printed on a label inside the battery compartment.
The characters in brackets are the last six characters
of the address.

22

4. Connect!Agent will begin connecting to the CHS.

5. After the devices connect, the CHS will beep once. The

SocketScan icon at the bottom of the Today screen will
change into a scanner icon to indicate the connection.

Connect!Agent will save data to automate future connections to
your CHS. To change the favorite scanner, use the
Connect!Agent utility (see instructions at the end of this
chapter).

STEP 7: START YOUR APPLICATION

1. Start the application that you want SocketScan to feed the bar

code data into.

2. Place the cursor where you want data from the next scan to

go.

CHAPTER 3: SETUP FOR WINDOWS MOBILE 23

STEP 8: SCAN DATA INTO YOUR APPLICATION

1. Press the trigger button and scan the bar code.

When data is read and sent to device, the scanner will beep

once, the LED will flash green, and the beam will turn off.

If no data is read in a few seconds, the scanner beam will turn
off, and you must try again.

After you scan a bar code, the CHS will not allow you to
scan another bar code for 10 seconds or until the host
device confirms receipt of the scanned data.

2. After a successful scan, data should appear in your document.

The default “CR” (carriage return) suffix will advance the
cursor to the next line or field, ready for the next scan.

Wait for the “Good Scan” indication before you scan another
bar code. If you try to scan too fast, the device can lock up
until you stop scanning.

24

SocketScan Auto-Reconnect

If your mobile device suspends or the CHS moves out of range,
the connection will end. After the mobile device turns on again
or returns in range, SocketScan will try to re-connect for
approximately three minutes.

If, after 3 minutes, they have not re-connected, you will need to
manually re-connect them by tapping on the SocketScan icon
and tapping Connect CS.

DISCONNECTING

To disconnect, tap on the SocketScan icon at the bottom of the
Today screen and tap Disconnect. Your mobile device will
disconnect from the CHS, and Connect!Agent will turn off the
Bluetooth radio of your mobile device.

Turning off the CHS

To turn off the CHS, press and hold the power button at least 3
seconds, until the blue LED turns off.

CHAPTER 3: SETUP FOR WINDOWS MOBILE 25

SYMBOLOGY SELECTOR

1. Tap on the SocketScan icon. In the pop-up menu, tap Symbology

Selector...

2. In the screen, check the symbologies you wish to enable.

Uncheck those you wish to disable. For convenience, you can
tap Disable All to disable all the symbologies and select the
ones you want. Tap ok.

26

Socket does not recommend enabling all possible
symbologies. Doing so will make the decode process
slightly longer.

SCANNER SETTINGS

1. Tap on the SocketScan icon. In the pop-up menu, tap Settings.

2. Enter characters append to each scan (128 character

maximum).

The default suffix, \r, is for a carriage return. Use \n for
Linefeed, \t for Tab., \\ for a single \ character. Other
characters can be typed or entered using the format \nnn,
where nnn = ASCII character 001 - 255.

3. Tap on the Sound tab. Select a sound to indicate a good read.

If you select Play .wav file, tap … to search for the file (it
must be in My Documents).

4. Tap ok.

CHAPTER 3: SETUP FOR WINDOWS MOBILE 27

SCAN DEMO

Scan Demo makes it easy to determine the symbology, number
of characters, and decoded data (in either ASCII or Hex) of any
bar code supported by the scanner. This is especially useful if you
encounter a bar code that the scanner will not decode by
default.

1. Tap Start | Programs | SocketScan folder | Scan Demo.

Accessing Scan Demo disconnects the Bluetooth link. If
you have not configured the CHS to automatically
connect, select the CHS tab at the bottom of the page

2. The Scan Demo screen will appear. If desired, use the check

boxes at the bottom of the screen to modify the test.

Enable all symbologies: By default, this option is checked.
Different symbologies can sometimes interpret the same bar
code differently, so you may want to uncheck this option.

Display as hex data: Check this box to view scanned data in
hexadecimal format. Otherwise, data will appear as ASCII.

3. Scan the bar code. Scan Demo will report the properties of the

bar code.

to re-establish this link.

28

CONNECT!AGENT UTILITY

The Connect!Agent utility enables you to view and change the
default Socket Bluetooth peripherals for Connect!Agent.

1. Tap Start | Settings | System tab | Connect!Agent.

2. The Connect!Agent utility lists the cordless bar code scanner it

has saved as a favorite device. Connect!Agent will
automatically try to connect to this device when SocketScan
starts.

Note: Besides SocketScan, the Connect!Agent utility can save a
favorite cordless bar code scanner for Scan Demo.

CHAPTER 3: SETUP FOR WINDOWS MOBILE 29

3. If you wish to remove a device from the partnership list, select

the device and tap Delete. In the confirmation screen, tap

Yes.

DUAL DEVICE SUPPORT

SocketScan versions 7.2.4 and later support the simultaneous use
of a cordless and a plug-in Socket data collection device with the
same computer.

Simply connect or plug in each device as normal. Each device will
function normally. No extra configuration is required.

The SocketScan menu will list both devices, with a checkmark
next to the active device. Additionally, the Symbology Selector
menu option will have a submenu for you to choose which
device to choose symbologies for.

30

4 | SETUP FOR THE INTERMEC CK30

This chapter explains how to install and
use the Cordless Hand Scanner (CHS) with
the Intermec CK30 mobile computer,
which runs the Windows CE.NET
operating system.

Before you begin the instructions in this
chapter, make sure you have installed the
batteries (and tether, if desired), and
charged the scanner, as described in
Chapter 2, “Hardware Preparation.”

Setup Summary

STEP 1: Install Connect!Agent and SocketScan.
STEP 2: Turn on the CHS.
STEP 3: Connect CHS to CK30.
STEP 4: Open your application.
STEP 5: Scan data into your application.

Application Features

Symbology Selector
Prefixes/suffixes
Power settings

CHAPTER 4: SETUP FOR INTERMEC CK30 31

STEP 1: INSTALL CONNECT!AGENT AND SOCKETSCAN

You must install both SocketScan and Connect!Agent.

1. Use ActiveSync (4.0 or greater), the Windows Mobile Device Center

(for Windows Vista) or another method to copy the
CEConnect!Agent.160s.ARM… and SocketScan.160s.ARM…
CAB files from the 160s folder in the installation CD and paste them
into the CK30. Refer to your CK30 manual for instructions.

Remember where you save the CAB files in the CK30. For
example, you may want to save the files in the My Documents
folder.

2. After copying the CAB files into the CK30, push the green

button then the orange button on the CK30 to access the
System Main Menu.

3. In the System Main Menu, press 2 File Manager.

4. Navigate to the location where you saved the CAB files.

32

5. Select the CE.Connect!Agent.160s.ARM… CAB file and

press the Enter button on the right side.

6. In the options window, select Run and press the Enter button

on the right side.

7. Follow the instructions on your screen to install

Connect!Agent.

8. After you finish Connect!Agent installation, navigate to

where you saved the CE.SocketScan.160s.ARM… CAB file and
run it.

STEP 2: TURN ON THE CHS

Press and hold the small power button for 3 seconds, until

the LED turns blue and the scanner beeps. The LED should blink
blue once per second to show that the Bluetooth radio is on but
not connected.

Time after turning on scanner Bluetooth mode

0-5 minutes Discoverable and connectable
5-10 minutes Connectable
10-20 minutes Not discoverable or connectable
20 minutes Scanner automatically powers off

CHAPTER 4: SETUP FOR INTERMEC CK30 33

STEP 3: START SOCKETSCAN

1. On the CK30, press the green button and then the orange

button to access the System Main Menu.

2. In the System Main Menu, press 7 SocketScan.

STEP 4: CONNECT CK30 TO CHS

1. In the SocketScan menu, press 1 Connect Cordless Scanner.

2. Connect!Agent will automatically turn on the Bluetooth radio

and begin to search for and connect to the CHS.

34

- If this is your first time connecting to a CHS from this

CK30, Connect!Agent will begin searching for any CHS in
range.

- If you have previously connected to a CHS, Connect!Agent will

begin searching for the last one you connected to.

3. If Connect!Agent does not have a favorite scanner and finds

multiple CHS devices in range, select the one you want to
connect to and press the Enter button on the right side.

The characters in brackets are the last six characters
of the Bluetooth Device Address, which is printed
on a label inside the battery compartment.

4. Connect!Agent will begin connecting to the CHS.

5. After the CK30 connects to the CHS, the CHS will beep once,

and the bottom of the screen will report, “CHS connected.”

6. In the SocketScan menu, press 6 Hide SocketScan.

IMPORTANT! Do not press the Esc button, or you will close
SocketScan and won’t be able to scan bar codes into the CK30.

CHAPTER 4: SETUP FOR INTERMEC CK30 35

STEP 5: OPEN YOUR APPLICATION

1. Start the Windows application that you want to receive the

data (e.g., Word Pad). Make sure a document is open.

2. Place the cursor where you want data from the next scan to

go.

STEP 6: SCAN DATA INTO YOUR APPLICATION

1. Press the trigger button and scan the code.

When data is read and sent to the CK30, the scanner will beep
once, the LED will flash green, and the beam will turn off.

If no data is read in a few seconds, the scanner beam will turn
off, and you must try again.

After you scan a bar code, the CHS will not allow you to
scan another bar code for 10 seconds or until the host
device confirms receipt of the scanned data.

2. After a successful scan, data should appear in your document.

For example, after you scan a bar code into a spreadsheet,
data should appear in the first cell. The default “CR” (carriage
return) suffix will advance the cursor to the next cell, ready
for the next scan.

Wait for the “Good Scan” indication before you scan another
bar code. If you try to scan too fast, the device can lock up until
you stop scanning.

SocketScan Auto-Reconnect

36

If your CK30 suspends or the CHS moves out of range, the
connection will end. After the mobile device turns on again or
returns in range, SocketScan will try to re-connect for
approximately 3 minutes. If, after 3 minutes, they have not re­connected, you will need to manually re-connect them.

DISCONNECTING

In the SocketScan menu, press 2 Disconnect Cordless Scanner.

Turning off the CHS

To turn off the CHS, press and hold the power button at least 3
seconds, until the blue LED turns off.

CHAPTER 4: SETUP FOR INTERMEC CK30 37

SYMBOLOGY SELECTOR

The SocketScan utility makes it easy to choose which symbologies
you want the scanner to recognize.

1. In the SocketScan menu, press 4 Symbology Selector.

2. In Symbology Selector, press the arrow buttons to scroll

through the list. To enable/disable a symbology, select it from
the list and press the Enter button on the right side. For
convenience, you can press F3 to disable all the symbologies,
and later select the ones you want.

3. After making all of your selections, press Esc to exit

Symbology Selector.

Enabling all possible symbologies will make the
decode process slightly longer.

38

PREFIXES/SUFFIXES

The SocketScan utility lets you specify prefix and/or suffix
characters to be added automatically to the data you scan. This
helps to further eliminate manual data entry.

1. In the SocketScan menu, press 3 Settings.

You can configure prefix/suffixes whether or not the
CHS is connected to the CK30.

2. In the Settings menu, press 1 Prefix and suffix.

3. In the screen that appears, enter the characters you want to

be appended to each scan (128 character maximum).

By default, SocketScan enters a carriage return after every
data scan.

• Use \r for Carriage Return, \n for Linefeed, \t for Tab., \\ for a single \

character.

• Other characters can be typed or entered using the format

\nnn, where nnn = ASCII character 001 through 255.

4. When you have finished entering prefixes/suffixes, press Esc.

CHAPTER 4: SETUP FOR INTERMEC CK30 39

POWER SETTINGS

The SocketScan utility lets you manage the power settings of the
CHS.

1. Make sure the CHS is connected to the CK30.

2. In the SocketScan menu, press 3 Settings.

3. In the Settings menu, press 3 Battery level.

4. The next screen will report the battery level of the CHS.

Disable Auto Power Off mode:

CAUTION: Selecting this option will disable the Auto
Power Off mode and can result in complete discharge
of the CHS batteries. Use with caution.

5. Press Esc to exit the Battery Level screen.

40

5 | SETUP FOR WINDOWS XP AND

WINDOWS VISTA

This chapter explains how to install and
use the Cordless Hand Scanner (CHS) with
a Bluetooth enabled computer running
either of the following operating systems:

− Windows XP Professional/Tablet PC

(SP1, SP2, SP3)

− Windows Vista Business/Ultimate (SP1)

Before you begin the instructions in this chapter, make sure you
have installed the batteries (and tether, if desired), and charged
the scanner, as described in Chapter 2, “Hardware Setup.”

Setup Summary

STEP 1: Uninstall other scanning software.
STEP 2: Install SocketScan software.
STEP 3: Turn on the CHS.
STEP 4: Start Bluetooth on your computer.
STEP 5: Configure Bluetooth settings.
STEP 6: Start SocketScan.
STEP 7: Configure scanner settings.
STEP 8: Connect computer to CHS.
STEP 9: Open your application.
STEP 10: Scan data into your application.

Application Features

Scanner settings.
Advanced Bluetooth settings.
Remote trigger button.
Symbology selector
Version information

CHAPTER 5: SETUP FOR WINDOWS XP & WINDOWS VISTA 41

STEP 1: UNINSTALL OTHER SCANNING SOFTWARE

Uninstall any bar code scanning software already installed in your
computer, including previous versions of SocketScan.

1. Make sure the software is closed.

2. Click Start | Control Panel. For Windows Vista, click

Programs and Features. For Windows XP, click Add or
Remove Programs.

3. Use the utility to remove the software.

STEP 2: INSTALL THE SOFTWARE

1. If you are using Windows Vista, make sure you have an

administrator account.

2. Insert the installation CD into the CD drive of your PC.

3. Use My Computer or Windows Explorer to access your CD-

ROM drive. In the CD, click on SETUP.EXE.

4. The SocketScan Setup Center will appear in your web

browser. Read the first page and click Installation in the left
margin.

42

5. In the SocketScan Installation page, scroll down to the

Windows XP and Windows Vista section and click on the
Install link there.

6. Your web browser will present a series of dialogs.

Internet Explorer:

• In the File Download –Security Warning dialog, click Run.

• In the second warning dialog, click Run.

• Internet Explorer will download the file.

Firefox:

• In the file opening dialog, click Save File.

• Firefox will download the file.

• In the Downloads list, next to SocketScan...exe, click Open.

• In the warning dialog, click OK to continue.

7. The installation wizard will launch. Follow the wizard to

install the software.

CHAPTER 5: SETUP FOR WINDOWS XP & WINDOWS VISTA 43

8. During installation, a message will warn that the software is

unsigned.

• Windows XP: Click Continue Anyway.

• Windows Vista

: Click Install this driver software anyway.

9. After software installation, icons for SocketScan and Socket

CS Connect will appear on your desktop.

10. Restart your computer.

STEP 3: TURN ON THE CHS

Press and hold the small power button for 3 seconds, until

the LED turns blue and the scanner beeps. The LED should blink
blue once per second to show that the Bluetooth radio is on but not
connected.

After the scanner is turned on, its Bluetooth mode will change over
time if no connection is made.

Time after turning on scanner Bluetooth mode

0-5 minutes Discoverable and connectable
5-10 minutes Connectable
10-20 minutes Not discoverable or connectable
20 minutes Scanner automatically powers off

44

STEP 4: START BLUETOOTH ON YOUR COMPUTER

1. If you are using an add-on Bluetooth card or adapter, such as the

Socket Scanning Companion USB adapter, plug it into your
computer.

2. Start your computer’s Bluetooth software. Please refer to the

documentation that came with your Bluetooth software for
instructions. For some computers, the Bluetooth software will
automatically launch after you turn on the Bluetooth radio.

3. Turn on the Bluetooth radio. For some computers, the Bluetooth

radio must be enabled through the software. Other computers have
a hardware switch. Please refer to the documentation that came
with your computer’s Bluetooth hardware for instructions.

Note: The screen above is for the Toshiba Bluetooth stack. Your
computer may vary.

STEP 5: CONFIGURE BLUETOOTH SETTINGS

Follow the appropriate instructions for your Bluetooth stack.
Configuration is only needed the first time you connect the CHS
to your PC.

Refer to your Bluetooth software manual for full instructions.

SocketScan supports a generic Bluetooth COM port and may be
able to connect to Bluetooth stacks other than those listed.

CHAPTER 5: SETUP FOR WINDOWS XP & WINDOWS VISTA 45

Microsoft Bluetooth Stack:

1. Right-click on the Bluetooth icon in the task tray. In the pop-

up menu, click Add a Bluetooth Device.

.

2. The Add Bluetooth Device Wizard will start. Check the box

My device is set up and ready to be found. Click Next.

3. After the device search, select Socket CHS [xxxxxx]. Click

Next.

The characters in brackets are the last 6 characters of the
scanner’s Bluetooth Device Address, which is printed on a
label inside the battery compartment.

46

4. In the passkey options screen, select Use the passkey found

in the documentation and enter the default PIN

1234.

5. Your computer will exchange passkeys and connect to the

CHS. A status balloon will report that device drivers are being
installed.

6. After connecting, the CHS will beep once. A status balloon

report a Bluetooth serial communications link.

7. In the last screen of the wizard, note the COM number of the

Outgoing

COM port (the one in the status balloon).

CHAPTER 5: SETUP FOR WINDOWS XP & WINDOWS VISTA 47

Toshiba Bluetooth Stack:

1. Double-click on the Bluetooth icon at the bottom of your

screen.

2. In Bluetooth Settings, tap New Connection.

3. The Add New Connection Wizard will launch. Select Custom

Mode and click Next. The tablet will search for Bluetooth
devices in range.

4. In the list of devices, select Socket CHS [xxxxxx]. Click Next.

The characters in brackets are the last 6 characters of the
scanner’s Bluetooth Device Address, which is printed on a
label inside the battery compartment.

5. If a passkey is requested, enter the default PIN 1234. Click OK.

To indicate the connection, the CHS will beep once.

48

6. In the list of device services, select Serial Port. Click Next.

7. In the next screen, uncheck Use default COM port. Click

Next.\

8. The software will report that the default setting is

recommended. Click OK.

CHAPTER 5: SETUP FOR WINDOWS XP & WINDOWS VISTA 49

9. Select another COM port. If desired, check Auto Connect. Click

Next.

WARNING! Do not select a COM port that is used by
another device on your system!

10. After the wizard reports that COM port selection is complete,

remember the COM port number and click Next.

11. In the next screen, edit the connection name and/or icon if

desired and click Next.

12. In the last screen, click Finish.

50

Broadcom (Widcomm) Bluetooth Stack:

1. Perform a Quick Connect to a Bluetooth Serial Port. Click the

Bluetooth icon in the task tray. Click Quick Connect |

Bluetooth Serial Port | Find Devices.

It is essential to connect to the CHS via Quick Connect because
this sets the CHS as your default Bluetooth serial device.

2. During the device search, the CHS will appear as Socket CHS

[xxxxxx]. The characters in brackets are the last 6 characters

of the scanner’s Bluetooth Device Address, which is printed on
a label inside the battery compartment.

3. If a passkey is requested, enter 1234. To indicate the

connection, the CHS will beep once.

By default, the Bluetooth software will ask you for the
passkey each time you connect.

To stop the automatic prompts, under Advanced
Configuration, disable the Secure Connection requirement for
both the Local Service and Client Application, then unpair the
devices. Refer to the documentation for your Bluetooth
hardware/software for complete instructions.

CHAPTER 5: SETUP FOR WINDOWS XP & WINDOWS VISTA 51

STEP 6: START SOCKETSCAN

Double-click on the SocketScan icon on your desktop.

STEP 7: CONFIGURE SCANNER SETTINGS

1. Click the SocketScan icon in the task tray at the bottom of

the screen. In the pop-up menu, click Settings.

If the Settings option does not appear, click Start | Control
Panel | SocketScan Settings. In the General tab, select

“Display ‘Settings’ option in the SocketScan tray icon menu.”

2. Tap on the CS tab. Select Enable CS Support. IMPORTANT!!!

3. More fields will appear. Enter the following settings:

• Enable ActivePairing: Check if you want to use ActivePairing.

For instructions, refer to the end of this chapter.

52

• Port: Select the outgoing COM port number for the CHS.

• Good read indication on CS: Select how you would like

the CHS to indicate that it has successfully read data.

• Auto re-connect: Select the maximum number of attempts

and time limit per attempt for the CHS to try to reconnect
to your computer in case they are moved out of range from
each other.

• Power management: Disable CS Auto Power Off mode

CAUTION: Selecting this option will disable the Auto
Power Off mode and can result in complete
discharge of the CHS batteries. Use with caution.

Note: You must disable CS Auto Power Off mode if you
would like the CHS to automatically reconnect to the
computer after losing a connection.

• Advanced: When the PC is connected to the CHS, you can

modify the Bluetooth friendly name and security settings of
the CHS. Please refer to the instructions later in this chapter.

• Battery Level: When the scanner is connected, a progress

bar will show the scanner’s battery level.

4. After entering settings, click OK to save the changes.

CHAPTER 5: SETUP FOR WINDOWS XP & WINDOWS VISTA 53

STEP 8: CONNECT COMPUTER TO CHS

1. Right-click the SocketScan icon at the bottom of the screen and

click Connect CS.

After you configure the correct Bluetooth hardware settings
in SocketScan, the Connect CS menu option allows you to
connect to the CHS directly from SocketScan, instead of
manually connecting via your Bluetooth software.

The Connect CS option will not appear unless you checked
the box Enable CS Support in the SocketScan settings.

2. If you are using the Microsoft Bluetooth stack, a balloon will

report that a device is requesting to connect. Click on the
balloon. As prompted, enter the passkey 1234 to connect.

3. SocketScan will begin to connect to the CHS. A status balloon

will report that SocketScan is opening the scanner.

4. After they connect, the CHS will beep, and the task tray icon

will change to an image of a scanner. A status balloon will
report that the scanner is ready to use.

54

STEP 9: OPEN YOUR APPLICATION

1. Start the application that you want SocketScan to feed

scanned data into. Make sure a document or spreadsheet is
open.

If you scan into Microsoft Word, if the first character of
scanned data is a letter, it will be capitalized by default.

2. Place the cursor where you want data from the next scan to be

entered.

STEP 10: SCAN DATA INTO YOUR APPLICATION

1. Press the trigger button and aim the scanner at the bar code.

The red scanner beam should cover the entire width of the
bar code. See Chapter 1 for scanning tips.

When data is read and sent to the computer, the scanner will
beep once, the LED will flash green, and the beam will turn
off. If no data is read in a few seconds, the beam will turn off,
and you must try again.

After you scan a bar code, the CHS will not allow you to
scan another bar code for 10 seconds or until the host
device confirms receipt of the scanned data.

2. After a successful scan, data should appear in your document.

By default, the cursor automatically advances to the next cell
or line, ready for the next scan.

Wait for the “Good Scan” indication before scanning another
bar code. If you scan too fast, the device can lock up until you
stop scanning.

CHAPTER 5: SETUP FOR WINDOWS XP & WINDOWS VISTA 55

SocketScan Auto-Reconnect

If your computer suspends or the CHS is moved out of range,
the connection will be lost. After the computer turns on again
or returns in range, SocketScan will try to re-connect
according to the “auto re-connect” settings you chose in
SocketScan.

After the time limit for re-connection attempts has
passed, you can click on the Socket CS Connect icon
on the desktop to manually initiate re-connection.

By default, CS Auto Power off mode is enabled. This mode
must be disabled in order to enable automatic reconnections.

DISCONNECTING

To disconnect, click on the SocketScan icon. In the menu, click

Disconnect CS.

Turning off the CHS

To turn off the CHS, press and hold the power button for at least
3 seconds, until the blue LED turns off.

56

SCANNER SETTINGS

You can configure these settings whether or not the CHS is
connected to your computer.

1. In SocketScan Settings, click on the General tab.

2. Adjust any settings as desired:

Good read notification sound: Select a sound to indicate good
reads of data. By default, the computer will beep. If you would
like the computer to play a .WAV file, select Play a .WAV file
and click Browse to select the file location.

Prefix/Suffix: Enter any prefixes and/or suffixes you would like
SocketScan to automatically add to scanned data (128 character
maximum, printable ASCII characters only). By default, SocketScan
will enter a carriage return after every data scan.

Display “Settings” option in the SocketScan tray icon
menu: Check this box to display the “Settings” option in the

SocketScan menu.

3. After adjusting any settings, click OK.

CHAPTER 5: SETUP FOR WINDOWS XP & WINDOWS VISTA 57

ADVANCED BLUETOOTH SETTINGS

The SocketScan utility enables you configure advanced Bluetooth
settings of the CHS, including the Bluetooth friendly name and
security settings.

1. In SocketScan Settings, click on the CS tab.

The Trigger and Barcodes tabs will only appear if
you are connected to the CHS.

2. At the bottom of the CS screen, the CHS battery level will be

indicated by a status bar. Click Advanced.

3. The CHS Advanced Settings screen will appear, reporting the

current Bluetooth friendly name assigned to the CHS.

58

4. If desired, select Friendly Name or Security and click Change.

5. In the screen that appears, enter any changes and click OK.

CHS Friendly Name: Enter a new friendly name and click OK.

IMPORTANT! Make sure the friendly name includes the
string “CHS” if you plan to also use the CHS with a
Windows Mobile powered device. Otherwise,
Connect!Agent will not be able to find the CHS.

CHS Security Settings: If enabled, the default security PIN code

is

1234. A new 4 digit PIN can be entered, but it must be entered

manually for each connection. The PIN is used to authenticate the
device to the host every time it connects.

CHAPTER 5: SETUP FOR WINDOWS XP & WINDOWS VISTA 59

If desired, click Delete Bonding to delete any bonding/pairing
information in the CHS. After making any changes, click OK.

6. If you modified any security settings, you will be prompted to turn

your CHS off and back on to make the changes take effect. Read
the message and click OK. Turn the CHS off and back on again.

7. When you return to the CHS Advanced Settings screen, click

Close.

8. In the SocketScan Settings screen, click OK.

60

REMOTE TRIGGER BUTTON

The SocketScan utility enables you to assign one of your
computer’s function keys to trigger the CHS.

1. In SocketScan Settings, click on the Trigger tab.

The Trigger and Barcodes tabs will only appear if
you are connected to the CHS.

2. Select the function key you would like to use as a trigger key.

Click OK.

CHAPTER 5: SETUP FOR WINDOWS XP & WINDOWS VISTA 61

SYMBOLOGY SELECTOR

The SocketScan utility makes it easy to modify which symbologies
you want the scanner to recognize and decode.

1. In SocketScan Settings, click on the Barcodes tab.

The Trigger and Barcodes tabs will only appear if
you are connected to the CHS.

2. Check the symbologies you wish to enable. Uncheck those you

wish to disable. Click OK.

Enabling all possible symbologies will make the
decode process slightly longer.

62

VERSION INFORMATION

1. In SocketScan Settings, click on the About tab.

2. View the version information. If the PC is connected to a CHS, the

control panel applet (CPL) and CHS firmware version will appear.
Click OK.

DUAL DEVICE SUPPORT

SocketScan versions 6.4.2 and later support the simultaneous use
of two Socket data collection devices from the same PC.

SocketScan can capture data from one cordless scanner at a time.

Simply connect or plug in each device as you normally would.
The functionality of each device is the same. No extra
configuration is required.

You can configure each device separately. In the SocketScan
menu, click the Settings option will have a submenu for you to
choose which device to configure.

CHAPTER 5: SETUP FOR WINDOWS XP & WINDOWS VISTA 63

6 | SETUP FOR PALM OS

This chapter explains how to install and use
the Cordless Hand Scanner (CHS) with a
Bluetooth enabled device running Palm OS

5.2 or later.

Before you begin the instructions in this
chapter, make sure you have installed the
batteries (and tether, if desired), and
charged the scanner, as described in Chapter
2, “Hardware Setup.”

Setup Summary

STEP 1: Uninstall other scanning software.
STEP 2: Install SocketScan software.
STEP 3: Turn on the CHS.
STEP 4: Start SocketScan
STEP 5: Connect PDA to CHS.
STEP 6: Open your application.
STEP 7: Scan data into your application.

Application Features

Scanner settings
Symbology Selector
Scan Test

64

For help using SocketScan, tap on the
top of any screen.

button on the

STEP 1: UNINSTALL OTHER SCANNING SOFTWARE

Uninstall any bar code scanning software already installed in
your device, including previous versions of SocketScan.

1. Make sure the software is not running.

2. Tap Home, then tap Menu.

3. In the App menu, tap Delete.

4. Use the utility to uninstall the bar code scanning software.

STEP 2: INSTALL SOCKETSCAN SOFTWARE

1. Use HotSync and a serial/USB cable or cradle to connect your

device to a host PC.

2. Insert the installation CD into your host PC.

3. Use My Computer or Windows Explorer to access your CD-

ROM drive. In the CD, click on SETUP.EXE.

4. The SocketScan Setup Center will appear in your web browser.

Read the first page and click Installation in the left margin.

CHAPTER 6: SETUP FOR PALM OS 65

5. In the SocketScan Installation page, scroll down to the Palm

OS section and click the Install link there.

6. Your web browser will present a series of dialogs.

Internet Explorer:

• In the File Download –Security Warning dialog, click Run.

• In the second warning dialog, click Run.

• Internet Explorer will download the file.

Firefox:

• In the file opening dialog, click Save File.

• Firefox will download the file.

• In the Downloads list, next to SocketScanCE.exe, click Open.

• In the warning dialog, click OK to continue.

7. The SocketScan Installation program will begin. Follow the

instructions on your screen to install the software.

8. When software installation is complete, disconnect the device

from the host PC. Soft reset the device by pressing the reset
button.

66

STEP 3: TURN ON THE CHS

Press and hold the small power button for 3 seconds, until

the LED turns blue and the scanner beeps. The LED should blink
blue once every second to show that the Bluetooth radio is on
but not connected.

Time after turning on scanner Bluetooth mode

0-5 minutes Discoverable and connectable
5-10 minutes Connectable
10-20 minutes Not discoverable or connectable
20 minutes Scanner automatically powers off

STEP 4: START SOCKETSCAN

1. Tap Home.

2. In the upper right corner, make sure All is selected.

3. Scroll down and tap on the SocketScan icon.

CHAPTER 6: SETUP FOR PALM OS 67

STEP 5: CONNECT CHS TO PDA WITH BLUETOOTH

1. After you start SocketScan, the main screen of SocketScan will

appear, showing a picture of the Socket SD Scan Card. In the
Scanner Device drop-down menu, select Bluetooth CHS.

2. The screen will display a picture of the Cordless Hand Scanner.

In the Device is field, tap Enabled.

3. If you have not yet enabled your Bluetooth hardware, a

message will ask if you wish to do so. Tap OK.

68

4. Your device will begin searching for Bluetooth enabled

devices in range. After it finishes searching, select the Socket
CHS from the list of discovered devices and tap OK.

Note: The characters in brackets are the last 6 characters of
the scanner’s Bluetooth Device Address, which is printed on a
label inside the battery compartment.

5. Your device will connect to the CHS. If a passkey is requested,

enter 1234.

6. When the devices connect, the CHS will beep once. The main

screen of SocketScan will report that the CHS is enabled, and
the Configure, Symbologies, and Test buttons will appear.

If the PDA suspends, the CHS will automatically re­connect once you turn on the PDA again.

CHAPTER 6: SETUP FOR PALM OS 69

If the CHS is taken out of range, or if the Bluetooth
connection is otherwise lost, to resume operation you
must enable it again in SocketScan.

For more information about the meanings of LEDs
and beeps, please see Chapter 1.

STEP 6: OPEN YOUR APPLICATION

1. Start the Palm application that you want to receive the data

(e.g., Memo). Make sure a document or spreadsheet is open.

Note: You cannot scan data into Palm Note Pad, because it is a
graphics-based program.

2. Place the cursor where you want data from the next scan to

enter.

70

STEP 7: SCAN DATA INTO YOUR APPLICATION

1. Press the trigger button and scan the bar code.

When data is read and transmitted to the host, the scanner
will beep once, the LED will flash green, and the beam will
turn off.

If the Scanner fails to read data within a few seconds, the
scanner beam will turn off, and you must try again.

2. After a successful scan, data should appear in your document.

For example, after you scan a bar code into a Memo, data
should appear in the first line. The default “CR” (carriage
return) suffix will advance the cursor to the next line, ready
for the next scan.

Wait for the “Good Scan” indication before you scan another
bar code. If you try to scan too fast, the device can lock up
until you stop scanning.

Turning off the CHS

To turn off the CHS, press and hold the power button for at least
3 seconds, until the blue LED turns off.

CHAPTER 6: SETUP FOR PALM OS 71

SCANNER SETTINGS

1. Make sure the main screen of SocketScan reports that the CHS

is enabled. Tap Configure.

You can configure prefix/suffixes whether or not the
CHS is connected to your device.

2. The Configure screen will appear. Enter any settings, as

desired:

• Trigger Mode: Select Local to directly trigger the scanner

whenever you press the trigger button. Select Remote to
have the scanner verify a connection to your PDA before it
activates the scanner beam.

• Read Indicator: Select how you would like the CHS to

indicate that data was successfully decoded and
transmitted to the PDA.

• Auto reconnect to last device: Check to have your PDA

automatically connect to the last CHS unit it connected to
whenever you tap Enabled in the main screen of
SocketScan.

72

• Keep PDA alive for: Select how long you would like the

PDA to stay alive after the last scan. This feature allows you
to scan data for several hours without touching the PDA, as
long as you scan at least once before the time limit passes.
Select System Default to keep your PDA alive for the
amount of time set as default in the PDA’s system settings.

• Insert Special: First tap in the Prefix or Suffix field to

indicate where you would like to enter special data, such as
a date stamp, time stamp, tab, etc. Then tap on the Insert
Special drop-down menu and select the type of special
data to enter.

• Prefix: Tap to enter characters you would like appended

before scanned data (128 character maximum). Besides
special data items, only printable ASCII characters can be
used.

• Suffix: Tap to enter characters you would like appended

after scanned data (128 character maximum). Besides
special data items, only printable ASCII characters can be
used. The default suffix is a carriage return [CR].

• Launch App: Check the box, then use the drop-down

menu that appears to select an application that you would
like SocketScan to automatically enter data into whenever
you press the trigger button. The application will launch
only when you are outside of SocketScan (i.e., SocketScan is
running in the background).

If you configured SocketScan to launch an application,
whenever you scan data into a document, the data will
only be entered after any existing data, no matter
where you place the cursor. You will not be able to
scan data into the middle of existing data.

CHAPTER 6: SETUP FOR PALM OS 73

For example, if you already scanned three lines of data
into Memo, the next data you scan will appear on the
fourth line, even if you place the cursor on a previous
line before scanning.

3. After entering any settings, tap OK to save the changes.

SYMBOLOGY SELECTOR

The feature makes it easy to modify which symbologies you want
the scanner to recognize. By default, the scanner is set to
recognize eight of the most common symbologies.

1. In the main screen of SocketScan, tap Symbologies.

2. In the screen that appears, check the symbologies you wish to

enable. Uncheck those you wish to disable. Tap OK.

Enabling all possible symbologies will make the
decode process slightly longer.

74

SCAN TEST

SocketScan includes a Test feature that makes it easy to
determine the symbology, number of characters, and decoded
data (in either ASCII or Hex) of any bar code supported by the
scanner. This is especially useful if you encounter a bar code that
the scanner will not decode by default.

1. In the main screen of SocketScan, tap Test.

2. The Test Scan screen will appear. If desired, check the View

as Hex box to view scanned data in hexadecimal format.
Otherwise, data will appear as ASCII.

3. Scan the bar code. You can either press the trigger button on

the CHS, or press the Scan button on the screen. SocketScan
will report the properties of the bar code.

4. After you complete your testing, tap OK.

CHAPTER 6: SETUP FOR PALM OS 75

7 | SETUP FOR RIM BLACKBERRY

This chapter explains how to install and use
the Cordless Hand Scanner (CHS) with a RIM
BlackBerry® Bold™, Curve™ or Pearl™
Smartphone.

Before you begin the instructions in this
chapter, make sure you have installed the
batteries (and tether, if desired), and
charged the scanner, as described in Chapter
2, “Hardware Setup.”

Setup Summary

STEP 1: Install SocketScan software.
STEP 2: Turn on the CHS.
STEP 3: Pair smartphone with CHS.
STEP 4: Start SocketScan
STEP 5: Connect smartphone to CHS.
STEP 6: Open your application.
STEP 7: Scan data into your application.

Application Features

Symbology Selector
Scanner settings
Device bonding

Note: The instructions in this chapter are based on a BlackBerry
Curve 8320 smartphone. Other BlackBerry smartphones may vary.

76

STEP 1: INSTALL SOCKETSCAN SOFTWARE

This User’s Guide covers two methods for installing SocketScan
software: downloading to the smartphone and synchronizing with
a desktop PC.

Downloading to the Smartphone

1. Make sure your smartphone is connected to the Internet.

2. Open the Browser and go to:

http://www.socketmobile.com/blackberry

3. The SocketScan for BlackBerry installation screen will appear.

Read the information in the screen. If you accept the license
agreement, click I Accept.

4. The download screen will appear. Click Download.

5. The smartphone will download and install SocketScan.

6. After installation, a dialog will report that installation was

successful. Click OK.

Synchronizing with a Desktop PC

Refer to your BlackBerry Desktop Manger manual for complete
instructions.

1. Install the SocketScan for BlackBerry Desktop Installer

(SocketScanBlackBerry_Installer.exe) on your PC.

2. Use a USB connection cable/cradle to connect the smartphone to

the PC.

3. Launch the BlackBerry Desktop Manager.

Click Start | Programs | BlackBerry | Desktop Manager.

4. If prompted, enter your password. Click OK.

5. Click Next.

6. If prompted, enter your password. Click Next.

7. Click Add/Remove Application.

CHAPTER 7: SETUP FOR RIM BLACKBERRY 77

8. Select the checkbox for SocketScan and click Next.

9. Click Finish.

10. After the software finishes loading, click Close.

STEP 2: TURN ON THE CHS

Press and hold the small power button for 3 seconds, until

the LED turns blue and the scanner beeps. The LED should blink
blue once every second to show that the Bluetooth radio is on
but not connected.

Time after turning on scanner Bluetooth mode

0-5 minutes Discoverable and connectable
5-10 minutes Connectable
10-20 minutes Not discoverable or connectable
20 minutes Scanner automatically powers off

STEP 3: PAIR SMARTPHONE WITH CHS

1. In the Home Screen, click Set Up Bluetooth.

If your device does not have the Set Up Bluetooth option, click
Settings then Bluetooth.

2. A dialog will ask you to make sure the Bluetooth device is in

pairing mode (connectable mode). Click OK.

3. Your smartphone will begin searching for Bluetooth enabled

devices in range.

4. In the list of found devices, click Socket CHS [xxxxxx].

The characters in brackets are the last 6 characters of
the scanner’s Bluetooth Device Address, which is
printed on a label inside the battery compartment.

5. When prompted to enter a numeric passkey, type

6. A dialog will report that pairing is complete.

1234.

78

STEP 4: START SOCKETSCAN

1. In the Home Screen, click SocketScan.

For some smartphones, the SocketScan icon appears in
the Downloads folder. You may want to move it to the
Home Screen or into the Applications folder.

2. The SocketScan main screen will appear, with a picture

indicating that the smartphone is not connected to the CHS.

STEP 5: CONNECT SMARTPHONE TO CHS

1. Make sure the CHS is still turned on.

2. In the SocketScan menu, click Connect CS.

3. A dialog will report that SocketScan is requesting changes to

its application control permissions. Click View.

4. Accept the default permissions. Click Allow. In the Options

menu, click Save.

5. In the SocketScan main screen, open the SocketScan menu

and click Connect CS.

6. The smartphone will begin connecting to the CHS.

7. After the smartphone connects to the CHS, the picture on the

main screen of SocketScan will change to indicate the
connection. A progress bar will also display the battery level
of the CHS.

STEP 6: OPEN YOUR APPLICATION

1. Start the application that you want to receive the data (e.g.,

MemoPad). Make sure a document or spreadsheet is open.

To quickly change applications, in the SocketScan
menu, click Switch Applications.

2. Place the cursor where you want data from the next scan to go.

CHAPTER 7: SETUP FOR RIM BLACKBERRY 79

STEP 7: SCAN DATA INTO YOUR APPLICATION

1. Press the trigger button and scan the bar code.

When data is read and transmitted to the smartphone, the
scanner will beep once, the LED will flash green, and the
beam will turn off.

If the Scanner fails to read data within a few seconds, the
scanner beam will turn off, and you must try again.

After you scan a bar code, the CHS will not allow you to
scan another bar code for 10 seconds or until the
smartphone confirms receipt of the scanned data.

2. After a successful scan, data should appear in your document.

The default “CR” (carriage return) suffix will advance the
cursor to the next line, ready for the next scan.

Wait for the “Good Scan” indication before you scan
another bar code. If you try to scan too fast, the device
can lock up until you stop scanning.

DISCONNECTING

To disconnect, in the SocketScan menu, click Disconnect CHS.

Turning off the CHS

To turn off the CHS, press and hold the power button for at least
3 seconds, until the blue LED turns off.

80

SYMBOLOGY SELECTOR

The feature makes it easy to modify which symbologies you want
the scanner to recognize. By default, the scanner is set to
recognize several of the most common symbologies.

You can configure symbologies only when the CHS is
connected to your smartphone.

1. In the SocketScan menu, click Symbology Selector.

2. In the screen that appears, press the space key to check the

symbologies you wish to enable. Uncheck those you wish to
disable.

3. In the Options menu, click Save.

Enabling all possible symbologies will make the
decode process slightly longer.

SCANNER SETTINGS

You can configure scanner settings only when the CHS
is connected to your smartphone.

1. In the SocketScan menu, click Settings.

2. In the Settings screen, enter any settings, as desired:

• Prefix: Type characters you would like appended before

scanned data (100 character maximum). Besides special data
items, only printable ASCII characters can be used.

• Suffix: Type characters you would like appended after

scanned data (100 character maximum). Besides special data
items, only printable ASCII characters can be used. The default
suffix is a carriage return [CR].

• Beeper Frequency: Select the frequency of the beep that the

CHS emits to indicate good scans, power on/off, connection/
disconnection, etc.

CHAPTER 7: SETUP FOR RIM BLACKBERRY 81

• Good Scan Beep: Select to have the CHS beep to indicate

that data was successfully decoded and transmitted to the
smartphone.

• Good Scan LED: Select to have the CHS LED turn green to

indicate that data was successfully decoded and transmitted
to the smartphone.

• Disable Auto Power off: Select to have the CHS stay on even

when there has been no connection to a device for 20 minutes.

3. After entering any settings, in the Options menu, click Save.

CS BONDING

This option lets you eliminate the need to enter the passkey every
time you connect.

1. In the SocketScan menu, click CS Bonding.

2. In the dialog, click Bond with CS.

3. A dialog will direct you to enter the passkey the next time you

connect to suppress the passkey prompt in the future. Click OK.

VERSION INFORMATION

1. In the SocketScan menu, click About.

2. A screen will display the SocketScan version number. If the

CHS is connected, the CHS firmware version will also be
reported.

82

APPENDIX A

S

PECIFICATIONS

Physical Characteristics

Size: 125l x 31h x 35w (mm) 4.9l x 1.2h x 1.4w (in.)
Total Mass: approx. 90 g (0.2 lb)

Power Source: Two AAA NiMH rechargeable batteries
Expected Battery Life with Normal Operation (connected via

Bluetooth and minimum 2,000 bar code scans): 8 hours

Environmental Specifications

Operating Temperature:

• CHS 7E: +32 to 140°F (0 to +60°C)

• CHS 7M/7P: -4 to +140°F (-20 to +60°C)

Storage Temperature:

• CHS 7E: -22 to +158°F (-30 to +70°C)

• CHS 7M/7P: -40 to +158°F (-40 to +70°C)

Relative Humidity: 5% to 95% non-condensing

Ambient Light:

• CHS 7E: 0.5 ft candles (5 lux) to 8,000 ft candles (86,112 lux)

• CHS 7M/7P: Sunlight: 10,000 ft candles (107,640 lux);

Artificial light: 450 ft candles (4,844 lux)

Electrical Specifications

Power Source: Two NiMH rechargeable batteries
Expected Battery Life: 14,000+ scans in 19 hours with a Bluetooth

connection in typical usage conditions

Laser Power (650 nm):

• CHS 7M: 0.7 mW (±0.1 mW)

• CHS 7P: 1.7 mW (±0.2 mW)

Operating System Support:

• Windows Mobile 2003, 2003SE, 5.0 for Pocket PC/Pocket PC Phone

• Windows Mobile 6.0 or 6.1 Classic/Professional

• Windows CE.NET for the Intermec CK30

• Windows XP Professional/Tablet PC (SP1, SP2, SP3)

APPENDIX A: SPECIFICATIONS 83

• Windows Vista Business/Ultimate (SP1)

• Palm OS 5.2 and later

• RIM BlackBerry OS for Curve, Bold, Pearl smartphones

For information about using the CHS with Symbian OS, please
visit: www.socketmobile.com/products/

2005 Sunrise Date Compliant

Scanning Characteristics

Bar Code Symbologies Decoded:

• CHS 7E: Code 39, UPC/EAN/JAN, MSI, Code 128, Code 93,

Codabar, I 2 of 5, D 2 of 5

• CHS 7M/7P: Code 39, UPC/EAN/JAN, MSI, Code 128, Code 93,

Codabar, I 2 of 5, D 2 of 5, RSS-14, RSS Limited/Expanded
Stacked, Chinese 2 of 5

Scanner Type:

• CHS 7E: CMOS linear imager

• CHS 7M: Class 1 laser

• CHS 7P: Class 2 laser

Laser Scan Angle: 46.5°

Scan Repetition Rate:

• CHS 7E: Frame rate varies with the amount of ambient light

• CHS 7M/7P: 100 scans/sec (bi-directional)

Optical Resolution:

• CHS 7M/7P: 0.004 inch (0.102 mm) minimum/bar code element

width (X Dimension)

Print Contrast:

• CHS 7E: 35% absolute dark/light reflectance (MRD) measured

at 675 nm

• CHS 7M/7P: Minimum 25% absolute dark/light reflectance

(MRD) measured at 650 nm

Scan Angle:

• CHS 7M/7P: Wide (default): 47° ±3°

Narrow: 35° ±3°

84

Decode Distance (depends on symbol size, symbology, label
media, W-N Ratio, scan angle)

• CHS 7E: 1.5 to 8 inches (3.8 to 20 cm) typical

• CHS 7M: 1.5 to 20 inches (3.8 to 51 cm) typical

• CHS 7P: 1.5 to 45+ inches (3.8 to 144 cm) typical

Bluetooth Characteristics

Interface Standard: Bluetooth Serial Port Profile
Protocol: Bluetooth 2.0 with Enhanced Data Rates (EDR), 2.45

GHz ISM band frequency hopping

Antenna: Integrated
Radio Range: Up to 330 ft (100 m), depending on environment
Connection: Point-to-point
Security: 56 bit encryption
RF Power: Class 1 radio; Typical Output: 12 dbm

Bluetooth Stack Support

Windows Mobile/CE:

• Broadcom 1.5 or greater

• Microsoft Bluetooth stack

• Stonestreet One 1.2.4 (Build 1783)

Windows XP and Windows Vista:

• Most Bluetooth stacks, including Microsoft, Toshiba, and

Broadcom

Certification/Compliance

• CHS 7E: FCC: Part 15, Class B; CE: EN55024:2003; C-TICK: s.182;

RoHS; Bluetooth 1.1; Bluetooth QD ID B0164000; ETS 300 328;
ETS 300 826

• CHS 7M/7P: Same as 7E plus TELEC, IEC60825-1:1993 +A1:1997

+A2:2001

About Bluetooth Range

The Cordless Hand Scanner features a powerful Class 1 Bluetooth
radio to provide the maximum possible range. As with all
wireless technologies, the connection range can vary widely
depending on many factors such as the brand and placement of
the host device, the type and size of physical obstacles and the
presence and activity level of competing radio transmissions.

In range testing of the CHS while connected to a variety of
typical host devices with Class 2 radios, functional connection

APPENDIX A: SPECIFICATIONS 85

distances from 18 to over 100 feet have been experienced
depending on the environment. The following conditions
appear to reduce the Bluetooth connection range:

• The presence of soft, absorbent materials such as paper,

fiberglass insulation, foam material in office cubical walls,
carpeting and, to a lesser extent, even sheetrock and wood
construction materials. Hard materials such as concrete
increase the range.

• Human bodies or containers of liquid positioned between the

host and the CHS.

• The presence and activity level of competing Bluetooth or

802.11 (Wi-Fi) systems using the same 2.4 GHz frequency.

• Metal in a grid pattern, such as chain link fencing or chicken

wire. This type of material may block the Bluetooth (or Wi-Fi)
signal completely.

86

APPENDIX B

S

AFETY AND USAGE TIPS

About Bluetooth and Health

Bluetooth wireless technology allows you to use short-range
radio signals to connect a variety of devices, such as bar code
scanners, mobile phones, Pocket PCs, notebook computers,
printers, LAN access points, and many other devices at home or
work. These radio signals replace the cables that have
traditionally connected these devices.

Bluetooth products have small radio transmitters and receivers.
Output power is normally very low, only 15.75 mW. This gives a
working range of approximately 10 meters.

The maximum exposure levels from Bluetooth products are far
below recommended safety guidelines. At most, typical
Bluetooth devices (15.75 mW) reach only one percent of the
prescribed safety levels.

Product Care

• Do not expose your product to liquid, moisture or extreme

humidity.

• Do not expose your product to extreme high or low

temperatures.

• Do not expose your product to lit candles, cigarettes, or cigars,

or to open flames, etc.

• Do not drop, throw or try to bend the product, as rough

treatment could damage it.

• Do not paint your product, as the paint could obstruct parts

and prevent normal use.

• Do not attempt to disassemble your product: a broken

warranty seal will void the warranty. The product does not
contain consumer serviceable components. Should your CHS
need service, please contact Socket technical support at:

http://support.socketmobile.com

• Treat your product with care. Keep in a clean and dust-free

place.

APPENDIX B: SAFETY AND USAGE TIPS 87

• Changes or modifications of this product, not expressly

approved by Socket, may void the user’s authority to operate
the equipment.

Antenna Care

Do not place a metallic shield around the Cordless Hand Scanner
since it will reduce the radio transmission efficiency.

Efficient Use

For optimum performance, please make sure that there is no
metal surrounding your Cordless Hand Scanner.

Driving

RF energy may affect some electronic systems in motor vehicles,
such as car stereo, safety equipment, etc. Check with your vehicle
manufacturer to be sure that the Cordless Hand Scanner will not
affect the vehicle’s electronics.

Aircraft

• Turn off your Cordless Hand Scanner before boarding any

aircraft.

• To prevent interference with communications systems, you

must not use your Cordless Hand Scanner while the plane is in
the air.

• Do not use it on the ground without permission from the

crew.

Radio Frequency Exposure

Your Cordless Hand Scanner contains a radio transmitter and
receiver. When in operation, it communicates with a Bluetooth
enabled mobile computer by receiving and transmitting radio
frequency (RF) magnetic fields in the frequency range 2400 to

2483.5 MHz. The output power of the radio transmitter is 15.75
mW. The Cordless Hand Scanner is designed to be in compliance
with the RF exposure limits set by national authorities and
international health agencies

1

when installed or used separately

from other antennas or radio transmitters.

1

Examples of RF exposure standards and guidelines:

ICNIRP, “Guidelines for limiting exposure to time-varying electric, magnetic, and
electromagnetic fields (up to 300 GHz)”, International Commission on Non­Ionizing Radiation Protection (ICNIRP), Health Physics, vol. 74, pp 494-533, April

1998.

88

99/519/EC, EU Council Recommendation on the limitation of exposure to the
general public to electromagnetic fields 0 Hz – 300 GHz, Official Journal of the
European Communities, July 12, 1999.

ANSI/IEEE C95.1-1992, “Safety levels with respect to human exposure to radio
frequency electromagnetic fields, 3 kHz to 300 GHz”, The Institute of Electrical and
Electronics Engineers, Inc., New York, 1991.

FCC Report and Order, ET Docket 93-62, FCC 96-326, Federal Communications
Commission (FCC), August 1996.

Radiocommunications (Electromagnetic Radiation Human Exposure) Standard
1999, Australian Communications Authority (ACA), May 1999.

APPENDIX B: SAFETY AND USAGE TIPS 89

APPENDIX C

B

AR CODE LABEL SPECIFICATIONS

All bar code symbols/labels should satisfy the appropriate AIM
Uniform Symbology Specification.

Background Substrate:

The bar code symbol should be printed on material (media) that
is reflective and has a matte (not glossy) finish. A background
diffuse reflectance of at least 70% to 80% is desirable for
optimum contrast. Retro-reflective media should be used to
obtain decode distances greater than 36 inches.

Ink Color and Type:

The inked bars should not exceed 25% reflectance at the
wavelength that is being used for reading, whether printed with
black ink or colored ink. The reflectance value should not vary
more than 5% within the same character.

Voids and Specks:

The code should be printed clearly, free of voids, specks,
blemishes and lines that could “fool” the scanner. Specks or
blemishes in the white spaces, or false or missing bar sections
could be interpreted by the reading equipment as part of the
code. Generally, the width of such flaws is more serious than the
height. Code symbols/ labels should be rejected if these defects
are present.

Definition:

The bars in the bar code symbol should be well defined. Their
edges should not be rough or fuzzy, so that the bars and spaces
have the proper widths intended for the bar code symbology
used.

Contrast:

Background reflectance (that of the substrate on which the codes
are printed) should always provide a good contrast relative to
the ink reflectance (that of the code bars). The difference
between the two should be at least 37.5% at the wavelength
used for reading.

90

Tolerance:

The ratio of the widths of bars and spaces in a bar code symbol
must conform to the appropriate AIM bar code specifications and
can cause problems if not correct throughout the bar code.
Problems can occur when bar edges are smeared or rough, or
when they exhibit voids.

APPENDIX C: BAR CODE LABEL SPECIFICATIONS 91

APPENDIX D

E

NABLING OR DISABLING SYMBOLOGIES

The CHS is pre-set to automatically detect and decode (auto­discriminate) the most common bar code symbologies. To enable
or disable symbologies, use the SocketScan Symbology Selector.

Notes:

• The length of some symbologies will change after Symbology

Selector is used. See Table 1.

• Enabling more symbologies will make the scanner work harder

to search through more possible combinations, making the
decoding process slightly longer.

• The advanced symbology parameters listed in Table 2 can only be

modified with the SocketScan Advanced Programming Guide or
SocketScan SDK. Check the Socket website for updates.

Table 1. Default Symbologies

Symbology

UPC/EAN/JAN

UPC-A Enabled N/A N/A
UPC-E Enabled N/A N/A
UPC-E1 Disabled N/A N/A
EAN-8 Enabled N/A N/A
EAN-13 Enabled N/A N/A

Code 128 (USS-128 & UCC/EAN 128) Enabled Any Any
Code 39*

Code 39 Enabled 2 to 23 2 to 55
Trioptic Code 39 Enabled 2 to 23 2 to 55
Code 39 Full ASCII Disabled 2 to 23 2 to 55

Code 93 Disabled 2 to 38 2 to 55
Interleaved 2 of 5* Enabled 14 Only 2 to 55
Discrete 2 of 5* Disabled 12 Only 2 to 55
Codabar Disabled 5 to 55 2 to 55
MSI Plessey* Disabled 1 to 30 2 to 55
RSS-14 (Standard, Limited, Expanded) Disabled N/A N/A

*Warning: Setting the length to “Any” may lead to inaccurate decodes of these symbologies.

Scanner

Default

Default

Length

Length after

Symbology Selector

92

Table 2. Other Symbology Parameters

Symbology Parameters Scanner Default

UPC/EAN/JAN

Supplementals Disabled
Transmit Check Digit Enabled
Bookland EAN Disabled
Decode UPC/EAN Supplementals Ignore
UPC/EAN Supplemental Redundancy Seven
Transmit UPC-A Check Digit Enabled
Transmit UPC-E Check Digit Enabled
Transmit UPC-E1 Check Digit Enabled
Convert UPC-E to A Disabled
Convert UPC-E1 to A Disabled
EAN-8 Zero Extend Disabled
UPC/EAN Security Level 0
UPC/EAN Coupon Code Disabled

Code 39

Convert Code 39 to Code 32 Disabled
Code 32 Prefix Disabled
Check Digit Verification Disabled
Transmit Check Digit Disabled
Code 39 Full ASCII Disabled

Interleaved 2 of 5

Check Digit Verification Disabled
Transmit Check Digit Disabled
Convert I 2 of 5 to EAN-13 Disabled

RSS-14

RSS-14 Limited Disabled
RSS-14 Expanded Disabled

Disabled

APPENDIX D: ENABLING/DISABLING SYMBOLOGIES 93

APPENDIX E

D

ECODE ZONE

The decode zones for the Cordless Hand Scanner are shown
below. The minimum element width (“X Dimension” or bar code
“size”) is the width in thousandths of an inch (mils) of the
narrowest element (bar or space) in the symbol. The figures
shown are the typical scanning distances (depths of field) for
selected bar code sizes. The maximum usable length of a bar
code symbol (Width of Field) at any given range is also shown.

CHS 7E

94

CHS 7M

APPENDIX E: DECODE ZONE 95

CHS 7P

96

APPENDIX F

R

ESTORING FACTORY DEFAULTS

To restore the CHS to its factory defaults, do the following:

1. Turn on the CHS. Make sure the CHS does not have a Bluetooth

connection.

2. While pressing the trigger button, briefly press and release the

power button.

3. Wait 15 seconds or until you hear a single beep.

4. Release the trigger button. If you performed the actions

correctly, multiple beeps will sound, and the CHS will power
off.

5. The next time you power on the CHS, it will reset the virtual

memory and scan engine to their factory default settings.

APPENDIX F: RESTORING FACTORY DEFAULTS 97

APPENDIX G

T

ROUBLESHOOTING

For help on SocketScan, tap Start | Help on a Pocket PC, or tap on

the

SYMPTOM

tray of my Windows-based mobile computer and can’t trigger
the scanner or scan any bar codes.

POSSIBLE REASON SOLUTION

Your mobile computer is not
connected to the Cordless Hand
Scanner.

SYMPTOM

no data appears on my screen, and the beam eventually turns off.

POSSIBLE REASON SOLUTION

The scanner is too close or too
far from the bar code.

The bar code is incorrectly
formatted or poorly printed.

The bar code symbology may
be disabled or not supported by
the Cordless Hand Scanner.

You don’t have an application
open to scan data into.

icon on a Palm device.

: I get the “No Scanner Detected” icon in the task

Make sure the Cordless Hand
Scanner is on and in range and
has enough battery power. Try
to reconnect.

: When I try to scan, the scanner beam activates, but

Practice so you get accustomed
the most effective distance and
scanning angle.
Try scanning a bar code that is
correctly formatted or printed
well, such as on a retail package.
Use Scan Demo for Windows
Mobile or the Test screen for
Palm OS to identify the
symbology. If needed, enable
the symbology by using
Symbology Selector for Windows
Mobile or the Symbology screen
for Palm OS.
Open an application, such as
Excel, and place the cursor
where you want scanned data to
go. Try scanning again.

98

SYMPTOM: When I scan a lot of bar codes very fast, the scanner
locks up and won’t work for a few seconds.

POSSIBLE REASONS SOLUTION

You are scanning too fast for
the Error Proof Protocol to
confirm that the mobile
computer has successfully
received each scan of data.

Wait for the confirmation beep
after each scan before you scan
a new bar code. You may need
to re-scan data that was not
correctly received by the mobile
computer.

SYMPTOM

: My mobile computer cannot find the Cordless Hand

Scanner, and/or I get an error message saying that there are
connection problems.

POSSIBLE REASONS SOLUTION

You are too far from the
Cordless Hand Scanner.

Move the devices closer
together, within a range of 10-

15 meters.
The Cordless Hand Scanner is
not turned on.
You have assigned another
device as your favorite or
default Bluetooth serial device.
You are using an XP or Vista

Turn on the Cordless Hand

Scanner.

Remove any settings that assign

another device as your favorite

Bluetooth serial device.

Start the Bluetooth software.
system without Connect!Agent,
and you did not start the
Bluetooth software.
The Bluetooth radio of your
mobile computer is not turned
on.

Turn on the Bluetooth radio of

your mobile computer.

APPENDIX G: TROUBLESHOOTING 99

SYMPTOM

: While scanning with the CHS, I turned off the

Pocket PC, or my Pocket PC entered suspend mode. Now my
Pocket PC won’t turn on again.

POSSIBLE REASONS SOLUTION

This is a known problem with
the Widcomm stack (built into
HP h221X iPAQ Pocket PCs with
ROM version 1.00).

Soft reset the Pocket PC by

pressing the reset button.

SYMPTOM: My Pocket PC shows an error message saying that
there are insufficient device resources.

POSSIBLE REASONS SOLUTION

Some HP iPAQ Pocket PCs are
not compatible with the
Cordless Hand Scanner.

The CHS will not work with your

Pocket PC at this time.

SYMPTOM

: Connect!Agent has found multiple CHS devices, and

I don’t know which one to choose.

POSSIBLE REASONS SOLUTION

This is your first time using
Connect!Agent to connect to a
CHS, and Connect!Agent has
found multiple CHS devices
using the default name.

Same as above. If you have a Windows XP or

Turn off the CHS device(s) you

do not want to connect to. Tap

Refresh. Connect!Agent will

connect to and save information

about your CHS to exclusively

connect to it in the future.

Windows Vista system, you can

install SocketScan and use the

Advanced Security Settings to

change the scanner’s Bluetooth

friendly name to something you

can easily recognize.

100
