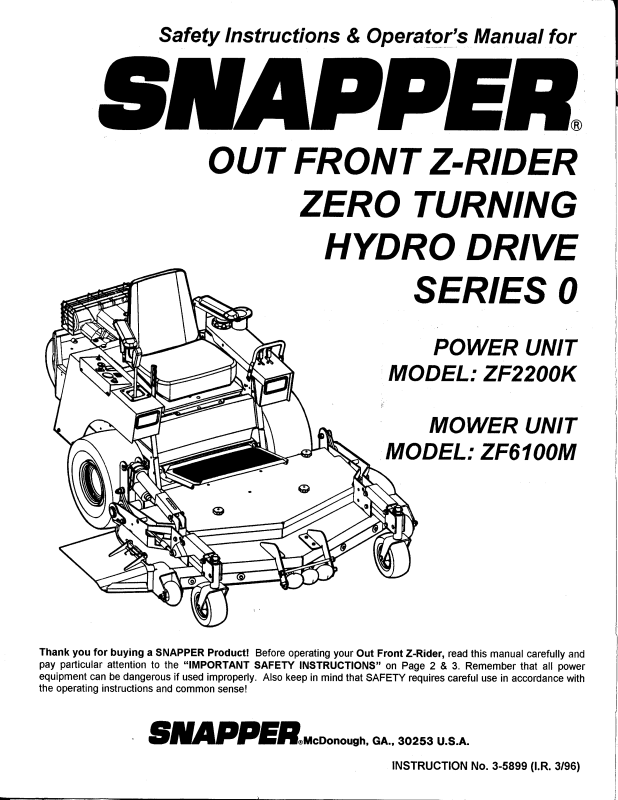

Snapper ZF6100M User Manual
Specifications and Main Features
- Model: ZF2200K (Power Unit)
- Model: ZF6100M (Mower Unit)
- Drive Type: Zero Turning Hydro Drive
- Tire Pressure:
- Drive Tires: 22psi
- Rear Caster Tire: 40psi
- Front Deck Caster Wheels: 25psi
- Engine: Electric Start
- Blade Switch: Engagement/Disengagement operation
- Hydraulic System: Hydrostatic drive with steering by joystick
- Parking Brake: Engaged to lock joysticks in neutral position
- Cutting Height Adjustment: Cut range of 1 inch to 5 inches
- Mower Deck Levelness Adjustments: Adjust cutting deck level from the front to the rear and sideways.
- Maintenance Schedule: Recommended every 5, 25, 50 and 100 hours.
- Lubrication: Required for various components, in specified intervals.
- Safety Features: Blade disengagement switch, operator presence system.
Frequently Asked Questions
Q: What is the maximum cutting height of the mower?
A: 5 inches is the maximum cutting height.
Q: How do I engage the blades on the mower?
A: To engage the blades - pull the blade switch out.
Q: What causes the engine not to start?
A: Make sure the parking brake is engaged, the blade switch turned to “OFF” position and there is fuel in the tank.
Q: How do I changing the the height of cutting?
A: To set the deck to the preferred height, employ the deck lift switch to raise or lower the deck.
Q: How frequently should I do some maintenance on the mower’s component?
A: It is suggested that a maintenance procedure be carried out after every extended period for 5 hours of use and on more critical levels after periods of 25 hours, 50 hours and 100 hours.
Q: What is the required mowing unit tire inflation?
A: The tire pressure for the drive tires needs to be set at 22 psi, the casting tires at the back set at 40 psi and the front caster wheels set at 25 psi.
Q: Cleaning the mower deck, what steps will I take?
A: The accumulation of grass clipping and other kinds of litter on the mower deck should be cleaned out often as to ensure the said area is clean.
Q: For my device, which engine oil should I apply?
A: Ensure that you look into the owners manual for the engine to get the specific oil characteristics required.
Q: Shoul I repair the mower blade or leave it to an expert?
A: Yes, you can sharpen or replace the blade, but make sure that the engine is turned off first when you do so and consider safety measures always.
Q: In a situation where the mower does not achieve the required cuts, what should I do?
A: Ensure there are no mistakes made especially for uneven tire pressure, measure the cutting height and also check the condition of the blades.
