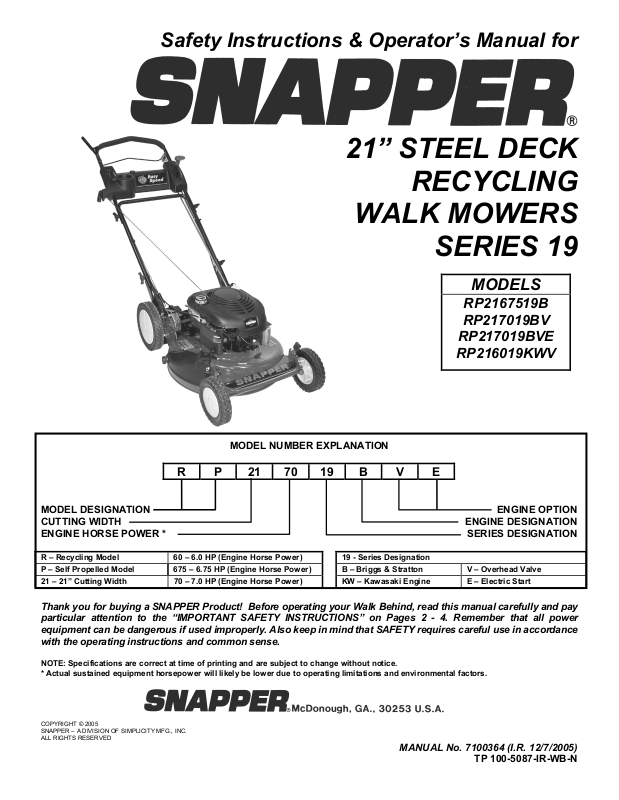

Safety Instructions & Operator’s Manual for
21” STEEL DECK
RECYCLING
WALK MOWERS
SERIES 19
MODEL NUMBER EXPLANATION
MODEL DESIGNATION ENGINE OPTION CUTTING WIDTH ENGINE DESIGNATION ENGINE HORSE POWER * SERIES DESIGNATION
R – Recycling Model 60 – 6.0 HP (Engine Horse Power) 19 - Series Designation P – Self Propelled Model 675 – 6.75 HP (Engine Horse Power) B – Briggs & Stratton V – Overhead Valve
21 – 21” Cutting Width 70 – 7.0 HP (Engine Horse Power) KW – Kawasaki Engine E – Electric Start
Thank you for buying a SNAPPER Product! Before operating your Walk Behind, read this manual carefully and pay particular attention to the “IMPORTANT SAFETY INSTRUCTIONS” on Pages 2 - 4. Remember that all power equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in accordance with the operating instructions and common sense.
NOTE: Specifications are correct at time of printing and are subject to change without notice. * Actual sustained equipment horsepower will likely be lower due to operating limitations and environmental factors.
COPYRIGHT © 2005 SNAPPER – A DIVISION OF SIMPLICITY MFG., INC. ALL RIGHTS RESERVED
MANUAL No. 7100364 (I.R. 12/7/2005)
MODELS
RP2167519B
RP217019BV
RP217019BVE
RP216019KWV
TP 100-5087-IR-WB-N
IMPORTANT SAFETY INSTRUCTIONS
WARNING: This powerful cutting machine is capable of amputating hands and feet and can throw objects that can cause injury and damage! Failure to comply with the following SAFETY instructions could result in serious injury or death to the operator or other persons. The owner of the machine must understand these instructions and must allow only persons who understand these instructions to operate machine. Each person operating the machine must be of sound mind and body and must not be under the influence of any substance, which might impair vision, dexterity or judgment. If you have any questions pertaining to your machine which your dealer cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough, Georgia 30253. Phone: (1-800-935-2967).
PROTECTION FOR CHILDREN
Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.
1. KEEP children out of the mowing area and under the watchful care of a responsible adult other than the operator.
2. DO NOT allow children in yard when machine is operated and turn machine OFF if anyone enters the area.
3. DO NOT allow pre-teenage children to operate machine.
4. ALLOW only responsible adults & teenagers with mature judgment under close adult supervision to operate machine.
5. DO NOT pull mower backwards unless absolutely necessary. LOOK and SEE behind and down for children, pets and hazards before and while backing.
6. USE EXTRA CARE when approaching blind corners, shrubs, trees, or other objects that may obscure vision.
SLOPE OPERATION
1. Slopes are a major factor related to slip and fall accidents, which can result in severe injury. All slopes require extra caution. If you feel uneasy on a slope, DO NOT mow it.
2. Mow across slopes, never up-and-down. Exercise extreme CAUTION when changing directions on slopes. DO NOT mow steep slopes or other areas where stability or traction is in doubt.
3. Use extra care with grass catchers or other attachments; these affect the handling and the stability of the machine.
PREPARATION
1. Read, understand, and follow instructions and warnings in this manual and on the mower, engine and attachments. Know the controls and the proper use of the mower before starting.
2. Only mature, responsible persons shall operate the machine and only after proper instruction.
PREPARATION
(Continued From Previous Column)
3. Data indicates that operators age 60 and above, are involved in a large percentage of mower-related injuries. These operators should evaluate their ability to operate the mower safely enough to protect themselves and others from serious injury.
4. Handle fuel with extra care. Fuels are flammable and vapors are explosive. Use only an approved fuel container. DO NOT remove fuel cap or add fuel with engine running. Add fuel outdoors only with engine stopped and cool. Clean spilled fuel and oil from machine. DO NOT smoke.
5. Check the area to be mowed and remove all objects such as toys, wire, rocks, limbs and other objects that could cause injury if thrown by blade or interfere with mowing. Also note the location of holes, stumps, and other possible hazards.
6. Keep people and pets out of the mowing area. Immediately, STOP Blade, Stop engine and Stop mower if anyone enters the area.
7. Check shields, deflectors, switches, blade controls and other safety devices frequently for proper operation and location.
8. Make sure all safety decals are clearly legible. Replace if damaged.
9. Protect yourself when mowing and wear safety glasses, long pants and substantial footwear. DO NOT mow barefooted or with sandals.
10. Know how to STOP blade and engine quickly in preparation for emergencies.
11. Use extra care when loading or unloading the machine into a trailer or truck.
12. Check grass catcher components frequently for signs of wear or deterioration and replace as needed to prevent injury from thrown objects going through weak or torn spots.
SAFE HANDLING OF GASOLINE
To avoid personal injury or property damage, use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive
1. Extinguish all cigarettes, cigars, pipes and other sources of ignition.
2. Use only an approved fuel container.
2
IMPORTANT SAFETY INSTRUCTIONS
SAFE HANDLING OF GASOLINE
(Continued From Previous Page)
3. DO NOT remove fuel cap or add fuel with the engine running. Allow the engine to cool before refueling.
4. DO NOT refuel the machine indoors.
5. DO NOT store the machine or fuel container inside where there is an open flame, spark or pilot light such as on a water heater or other appliances.
6. DO NOT fill fuel containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place the containers on the ground away from the vehicle before filling.
7. Remove gas-powered equipment from the vehicle or trailer and refuel it on the ground. If this is not possible, then refuel equipment using a portable container, rather than a gasoline dispenser nozzle.
8. DO NOT start gas powered equipment in enclosed vehicles or trailers.
9. Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. DO NOT use a nozzle lock-open device
10. If fuel is spilled on clothing, change clothing immediately.
11. DO NOT overfill a fuel tank. Replace fuel cap and tighten securely.
OPERATION
1. DO NOT put hands or feet near or under rotating parts. Keep clear of discharge area while engine is running.
2. STOP engine when crossing gravel drives, walks, or roads, and under any conditions where thrown objects might be a hazard.
3. Mow only in daylight or good artificial light.
4. DO NOT operate mower while under the influence of alcohol or drugs.
5. After striking a foreign object or if mower vibrates abnormally, STOP the engine, disconnect and secure spark plug wire. Inspect the mower for any damage and repair the damage before starting.
6. DO NOT mow near drop offs, ditches or embankments. Operator could lose footing or balance.
7. STAY ALERT for holes and other hidden hazards. Tall grass can hide obstacles. Keep away from ditches, washouts, culverts, fences and protruding objects.
8. DO NOT mow on wet grass. Always be sure of your footing. Keep a firm hold on the handle and walk, never run. Slipping could cause injury.
9. ALWAYS stay behind handle when engine (motor) is running.
10. DO NOT leave the machine with the engine running. STOP BLADE and STOP ENGINE before leaving the operators position for any reason.
OPERATION
(Continued From Previous Column)
11. Before cleaning, repairing or inspecting make certain engine, blade and all moving parts have STOPPED. Disconnect and secure spark plug wire away from plug to prevent accidental starting.
12. STOP engine and wait until the blade comes to complete STOP before removing grass bag and/or clearing grass.
13. DO NOT operate mower without the entire grass catcher, discharge guard, rear guard or other safety devices in place and working. DO NOT point discharge at people, passing cars, windows or doors.
14. DO NOT discharge material against a wall or obstruction. Material may ricochet back towards the operator.
15. Slow down before turning.
16. Watch out for traffic when near or crossing roadways.
17. DO NOT operate engine in enclosed areas. Engine exhaust gases contain carbon monoxide, a deadly poison.
18. Only use accessories approved by the manufacturer. See manufacturer’s instructions for proper operation and installation of accessories.
MAINTENANCE AND STORAGE
1. DO NOT store mower or fuel container inside where fumes may reach an open flame, spark or pilot light such as in a water heater, furnace, clothes dryer or other gas appliance. Allow engine to cool before storing machine in an enclosure. Store fuel container out of reach of children in a well ventilated, unoccupied building.
2. Keep mower and engine free of grass, leaves or excess grease to reduce fire hazard and engine overheating.
3. When draining fuel tank, drain fuel into an approved container outdoors and away from open flame.
4. Keep all bolts, especially blade bolts, nuts and screws properly tight. Check that all cotter pins are in proper position.
5. Always provide adequate ventilation when running engine. Engine exhaust gases contain carbon monoxide, a deadly poison.
6. Service engine and make adjustments only when engine is stopped. Removed spark plug wire from spark plug and secure wire away from spark plug to prevent accidental starting.
7. DO NOT change engine governor speed settings or overspeed engine.
8. Check grass bag assembly frequently for wear or deterioration to avoid thrown objects and exposure to moving parts. Replace with new bag if loose seams or tears are evident. Replace slider or bag adapter if broken or cracked.
3
IMPORTANT SAFETY INSTRUCTIONS
MAINTENANCE AND STORAGE
(Continued From Previous Page)
9. Mower blades are sharp and can cut. Wrap the blades or wear heavy leather gloves and use CAUTION when handling them.
10. DO NOT test for spark by grounding spark plug next to spark plug hole; spark plug could ignite gas exiting engine.
11. Have machine serviced by an authorized SNAPPER dealer at least once a year and have the dealer install any new safety devices.
12. Use only genuine SNAPPER replacement parts to assure that original standards are maintained.
4
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS...................................................................... 2 - 4
TABLE OF CONTENTS......................................................................................................5
SECTION 1 - FAMILIARIZATION.......................................................................................6
SECTION 2 - OPERATING INSTRUCTIONS............................................................... 7-11
Pre-start Checklist................................................................................................7
Starting & Stopping Engine & Blade .............................................................. 7-8
Starting & Stopping Wheel Drive........................................................................8
Handle Height Adjustment ..................................................................................8
Cutting Height Adjustment.............................................................................. 8-9
Recycling Operation.............................................................................................9
Installation of Side Discharge Deflector ............................................................9
Installation of Grass Bag Assembly............................................................. 9-10
SECTION 3 - MAINTENANCE INSTRUCTIONS ....................................................... 11-12
Change Engine Oil..............................................................................................11
Check Transmission Grease .............................................................................11
Check Mower Blade ...........................................................................................12
Check Engine Drive Belt....................................................................................12
Check Transmission Poly-V Belt ......................................................................12
Service - Annually ..............................................................................................12
Engine ..............................................................................................................12
Air Filter............................................................................................................12
Engine Oil.........................................................................................................12
Storage Procedure .............................................................................................12
SECTION 4 - ADJUSTMENTS AND REPAIR............................................................ 13-20
Mower Blade Replacement................................................................................13
Blade Sharpening......................................................................................... 13-14
Wheel Drive Control Adjustment ......................................................................14
Driven and Drive Disc Service .................................................................... 15-18
Cleaning Drive Disc and Driven Disc ............................................................15
Drive Spring Repair/Replacement .................................................................15
Driven Disc Adjustment............................................................................ 15-16
Driven Disc Replacement ......................................................................... 16-17
Driven Disc Bearing Replacement ................................................................17
Hex Shaft Bearing Replacement....................................................................18
Belt Service ................................................................................................... 18-19
Engine Drive Belt Replacement............................................................... 18-19
Transmission Poly-V Belt Replacement .......................................................19
Battery Service ...................................................................................................20
TROUBLESHOOTING......................................................................................................21
SERVICE SCHEDULE......................................................................................................22
Maintenance/Replacement Parts ......................................................................22
WARRANTY......................................................................................................................23
PRIMARY MAINTENANCE ........................................................................................ 24-27
PRODUCT REGISTRATION FORM.................................................................................28
! IMPORTANT ! The figures and illustrations in this manual are provided for reference only and may differ from your specific model. Contact your local SNAPPER dealer if you have questions.
5
Section 1 - FAMILIARIZATION
A
ENGINE SPEED CONTROL
ROPE START HANDLE
1.1 INTRODUCTION
This manual has been prepared for the operators of the SNAPPER WALK BEHIND MOWERS. Its purpose, aside from recommending operating and routine service requirements, is to promote safety through the use of accepted operating practices. Read, Understand and Follow the “IMPORTANT SAFETY INSTRUCTIONS” on Pages 2 - 4 of this manual and all safety messages on the mower and attachments before operating the mower.
WHEEL DRIVE CONTROL
FUEL FILL *
REAR HEIGHT ADJUSTMENT LATCH
SPRING-LOADED RECYCLING COVER
BLADE CONTROL
GROUND SPEED CONTROL
* LOCATION MAY VARY BY ENGINE
FIGURE 1.1
OIL FILL
ND DIPSTICK *
FRONT HEIGHT ADJUSTMENT LATCHES
1.2 NOMENCLATURE
The nomenclature drawing above, Figure 1.1, shows the essential parts of the SNAPPER WALK BEHIND MOWERS. It is recommended that all operators of the mower become thoroughly familiar with the controls, parts and operation of the mower before operating. Specific details involving the engine are found in the separate engine owner’s manual. Study these manuals before operating and keep both handy for future reference.
BRIGGS ENGINE
SPEED
CONTROL
FAST
SLOW
KAWASAKI
ENGINE
SPEED
CONTROL
CHOKE
FAST
SLOW
ENGINE PRIMER (BRIGGS ENGINES ONLY)
6
Section 2 - OPERATING INSTRUCTIONS
2.1 PRE-START CHECK LIST
Make the following checks and perform the service required before each start-up.
2.1.1. Check guards, deflectors, grass bag, adapter and covers to make sure all are in place and securely tightened.
2.1.2. Check blade control, wheel drive control, and engine speed control to insure they work freely. See Figure 2.1.
WHEEL DRIVE CONTROL
BLADE CONTROL
2.1.6. Clean exterior surfaces of cutting deck and
engine of any accumulation of spilled fuel, dirt, grass, oil, etc. Keep engine air intake screen and cooling fins clear at all times.
2.2 STARTING & OPERATION
2.2.1. ENGINE & BLADE (Briggs Engine)
1. Move engine speed control to “Fast” (Rabbit) position. See Figure 2.4 and “FAMILIARIZATION”.
2. Push primer bulb three times to start a cold
engine. See Figure 2.3. NOTE: Primer should not be required to restart a hot engine.
PRIMER
ENGINE SPEED CONTROL
FIGURE 2.1
2.1.3. Check cutting height. Adjust to desired height.
Refer to Section “OPERATING INSTRUCTIONS – CUTTING HEIGHT ADJUSTMENT”.
2.1.4. Check engine oil and add as needed to bring level up to ‘full’ mark on dipstick. See Figure 2.2. (Briggs 6.5hp engine shown, fuel and oil fill locations may vary with engine.) Refer to Engine Owner’s Manual for oil specifications.
2.1.5. Add fuel to tank. See Figure 2.2. Fuel mower outside where fumes can safely dissipate. Make sure cap is tightened after refueling. Refer to Engine Owners Manual for fuel specifications.
OIL FILL/ DIPSTICK
FUEL FILL
FIGURE 2.2
ROPE START HANDLE
FIGURE 2.3
3. Pull blade control against handle.
4. Recoil Start: Pull rope start handle to crank
engine. Electric Start: Turn ignition key to ‘Start’. (NOTE: If after 5 seconds of cranking the engine does not start, release the key and attempt starting again after waiting for approximately 20 seconds.)
BLADE CONTROL
IGNITION KEY
ENGINE SPEED CONTROL
FIGURE 2.4
5. After engine starts, reduce engine speed and
allow a brief warm-up until engine runs smooth.
NOTE: Stop the engine (and blade) by releasing the
blade control.
7
Section 2 - OPERATING INSTRUCTIONS
2.2 STARTING & OPERATION
2.2.1. ENGINE & BLADE (Kawasaki Engine)
1. Make sure fuel valve on engine is open. See
Figure 2.5.
FUEL
VALVE
CLOSE
OPEN
2.3 STOPPING
Stop forward motion of mower by releasing the wheel drive control. Stop engine and blade by releasing the blade control.
2.4 HANDLE HEIGHT ADJUSTMENT
The height of the mower handle can be adjusted as follows:
1. Loosen the lower nuts on each lower handle as shown in Figure 2.7.
LOWER HANDLE
HIGHER
FIGURE 2.5
2. Move engine speed control past “Fast” detent to
“Choke” position. See Figure 2.4 and “FAMILIARIZATION”.
3. Pull blade control against handle.
4. Pull rope start handle to crank engine.
5. After engine starts, turn off choke, reduce engine
speed, and allow a brief warm-up until engine runs smooth.
NOTE: Stop the engine (and blade) by releasing the
blade control.
2.2.3. PROPELLING MOWER (Self Propelled Models Only)
1. Start engine. Refer to Section “Starting &
Operation”.
2. Move ground speed control to the desired speed position. See Figure 2.6.
3. Move wheel drive control against handle to engage wheel drive and propel mower forward. Forward speed can be adjusted while the mower is moving by changing position of the ground speed control. See Figure 2.6.
ENGAGE
WHEEL DRIVE CONTROL
SLOWER
FASTER
FIGURE 2.6
GROUND SPEED CONTROL
LOWER
LOOSEN LOWER NUTS ON EACH LOWER HANDLE
FIGURE 2.7
2. Move upper mower handle up or down until the
desired position is achieved.
3. Tighten the lower nuts on each lower handle to maintain desired position.
WARNING
STOP engine and mower blade by releasing the blade control before adjusting cutting height or handle height.
2.5 CUTTING HEIGHT ADJUSTMENT
1. Pull the height adjusting latch outward and move
to desired cutting height. See Figure 2.8.
8
LOWEST CUTTING
1
HEIGHT
1
2
3
4
5
6
7
FIGURE 2.8
LATCH
HIGHEST CUTTING HEIGHT
7
Section 2 - OPERATING INSTRUCTIONS
2. Set all wheels at the same cutting height. The
highest cutting position is Notch 7. The lowest cutting position is Notch 1. See Figures 2.8 & 2.9.
LATCH POSITION
CUTTING HEIGHT SETTINGS
FIGURE 2.9
2.6 RECYCLING OPERATION NOTE: For best recycling results, cut up to a maximum of 1/3
of grass blade length and recycle ONLY when grass is dry.
1. Set all wheels in the highest cutting position (Notch
7). Refer to Section “Cutting Height Adjustment”.
2. Move engine speed control to “FAST” (Rabbit) position.
3. Move ground speed control to slowest speed setting.
4. Proceed mowing slowly. If grass is very dense, lower each rear wheel latch one notch lower than the front wheel latches to improve recycling performance.
NOTE: The recycling cover is designed to remain on the machine at all times. When alternate discharge operations are desired, such as side discharging or bagging, recycling cover can be raised to accommodate alternate discharge components.
TO RAISE RECYCLING COVER:
Remove knob nut and internal/external tooth lock washer securing rear of recycling cover to mower deck. Pull rear of cover out from stud, and flip cover forward. See Figure
2.10.
PULL REAR OF RECYCLING COVER OUT FROM STUD, AND FLIP COVER FORWARD
SPRING­LOADED HINGE
REMOVE KNOB NUT & LOCK WASHER
FIGURE 2.10
DO NOT attempt any maintenance, adjustments or service with engine and blade running. STOP engine and blade. Disconnect spark plug wire and secure away from spark plug. Engine and components are HOT. Avoid serious burns, allow sufficient time for all components to cool.
2.7 INSTALLATION OF SIDE DISCHARGE DEFLECTOR STEP 1: Raise recycling cover. Refer to Section
“Recycling Operation”. STEP 2: Install deflector to deck underneath raised recycling cover, making sure that: 1) outside front edge of deflector slips behind recycling cover hinge bracket, 2) slot on inside front of deflector slips under restraining nut on top of deck (under right front corner of engine), and 3) slot on inside rear of deflector slips onto stud behind rear of discharge opening, where rear of recycling cover was originally secured. See Figure 2.11. Install internal/external tooth lock washer and knob nut onto stud and tighten securely. Release recycling cover and allow it to rest against side discharge deflector.
REAR SLOT OVER STUD ; INSTALL LOCK WASHER & KNOB NUT
2.8 INSTALLATION OF GRASS BAG ADAPTER (Optional Accessory on Some Models) STEP 1: Raise recycling cover. Refer to Section
“Recycling Operation”. STEP 2: Install grass bag adapter to deck in place of raised recycling cover, making sure that: 1) outside front edge of adapter slips behind recycling cover hinge bracket, 2) slot on inside front of adapter slips under restraining nut on top of deck (under right front corner of engine), and 3) slot on bottom rear of adapter slips onto stud behind rear of discharge opening, where rear of recycling cover was originally secured. See Figure 2.12. Install internal/external tooth lock washer and knob nut onto stud and tighten securely. Release recycling cover and allow it to rest against adapter.
9
WARNING
FRONT SLOT UNDER NUT
FIGURE 2.11
RECYCLING COVER (RAISED)
FRONT EDGE BEHIND HINGE BRACKET
Section 2 - OPERATING INSTRUCTIONS
WARNING
DO NOT attempt any maintenance, adjustments or service with engine and blade running. STOP engine and blade. Disconnect spark plug wire and secure away from spark plug. Engine and components are HOT. Avoid serious burns, allow sufficient time for all components to cool.
STEP 3: Route recoil rope around outside of rope guide
pulley. See Figure 2.12. (NOTE: Recoil rope may need to be slackened. Refer to “Starting & Operation”.)
FIGURE 2.12
2.9 INSTALLATION OF GRASS BAG (Door Type Bag)
STEP 1: Install grass bag adapter. Refer to Section
“Installation of Grass Bag Adapter”. STEP 2: Install grass bag by sliding connector over adapter flange. See Figure 2.13. STEP 3: Attach grass bag hooks over middle handle cross bar. See Figure 2.13.
ROUTE RECOIL ROPE AROUND PULLEY
SECURE ADAPTER TO DECK
WARNING
DO NOT operate without entire Grass Catcher or guard in place. Grass Catcher components are subject to deterioration during normal use. Inspect frequently and replace worn or damaged components immediately.
WARNING
Grass Catcher bags used on SNAPPER products are made of woven fabric, and are subject to deterioration and wear during normal usage. Check condition of bag before each use. Immediately replace worn or damaged catcher bags with only bags recommended by SNAPPER. The grass catcher is optional equipment on some models.
SLIDE CONNECTOR OVER FLANGE
HOOK TO MIDDLE HANDLE CROSS BAR
FIGURE 2.13
10
Loading...
+ 22 hidden pages
