Snapper RD2140 User Manual

Parts Manual fo

r

LAWN TRACTOR ELECTRIC CLUTCH

HYDRO DRIVE 4WD RMO & ACS "RD"

LT300 SERIES

MODEL

RD2140 (2690774)

Briggs & Stratton Yard Power Products Group

535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967

Manual No. 7006271

Revision IR, TP 400-5419-IR-TC-N10/15/2008

s

PAGE GROUP

4
6

8
10
14
18
20
24
26
28
30
32
34
38
42

Wheels & Tires Group
Hood, Grille & Dash Group
Steering Group - Power Steering
Frame & Front Axle Group - 4WD
Controls Group
Cruise Control Group
Transmission Group - Tuff Torq K-4664
Seat Deck & Fuel Tank Group
Engine & Electric Clutch Group - 21HP Briggs & Stratton, Vanguard
Decals Group
40" Mower Deck - Housing, Arbors & Blade

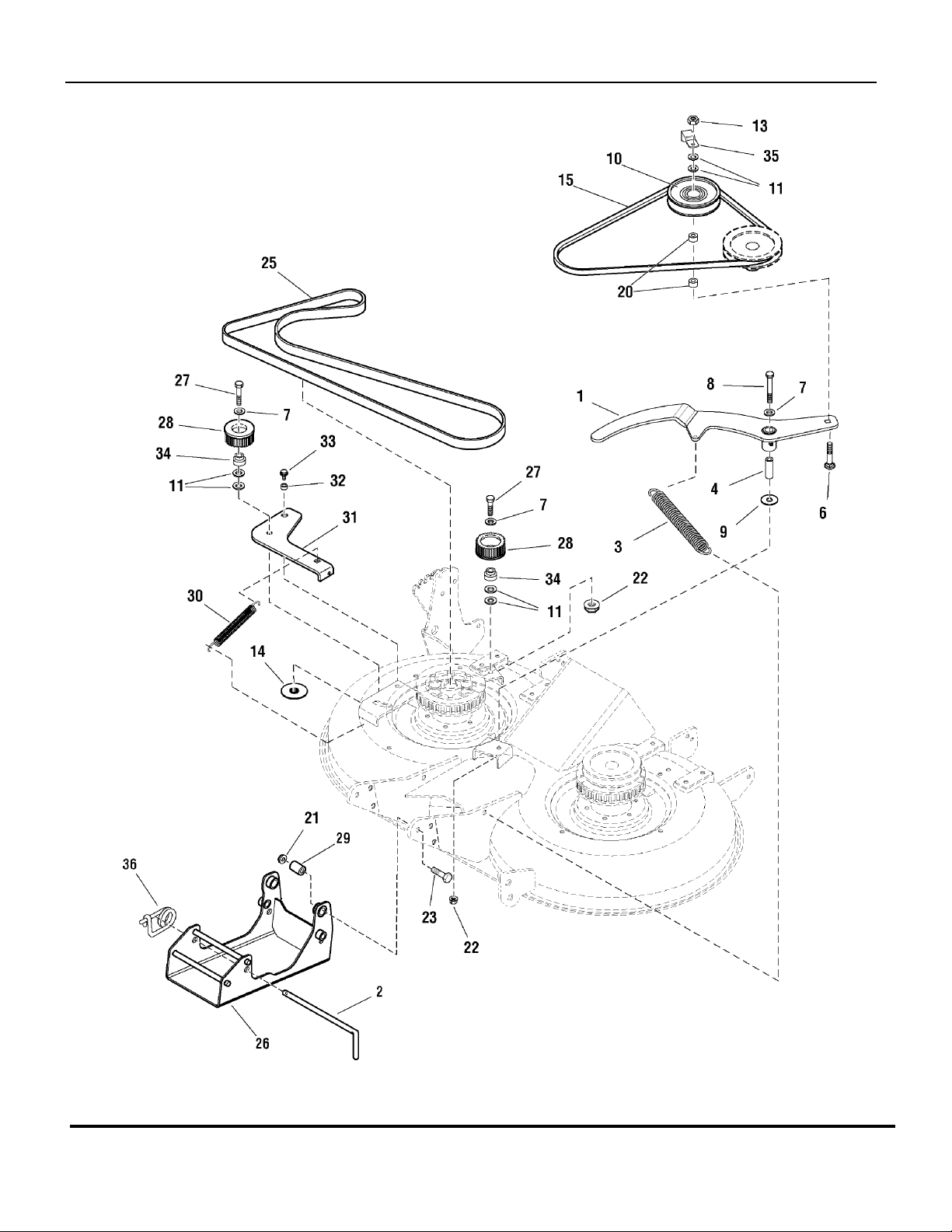

40" Mower Deck - Belt, Idle Arm & Hitch
40" Mower Deck - Height Adjustment & Roller Bar
Hopper Group
Electrical Group

Table Of Content

LAWN TRACTOR ELECTRIC CLUTCH
LT300 SERIES

Manual No. 7006271

3

TP 400-5419-IR-TC-N

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

4

LT300 SERIES

Wheels & Tires Group

p

y

Part No Descri

1 1732202 2 WHEEL & TIRE ASSEMBLY, Front (Includes Ref. Nos. 2, 3, 4, 5)
2 1733882 1 TIRE, 15 x 6, Super Turf
3 1664090 1 TUBE, Tire, Front, 4.10/3.50
4 1717056 2 BEARING, Ball
5 1722837 1 WHEEL, 4-1/2” x 6”
6 2172353 4 VALVE STEM & CAP ASSEMBLY
7 1722726A 4 WASHER, Special, (As Required)
8 1919394 4 WASHER, 1, (As Required)

9 2832577 2 RING, Retaining, External #98
10 1722676 4 CAP, Hub, Gray
11 1729279 2 KEY, Parellel, 3/16 x 3/16 x 1-1/2
12 2960202 4 WASHER, 3/4
13 1709527 2 SPACER
14 1732203 2 WHEEL & TIRE ASSEMBLY (Includes Ref. Nos. 6, 15, 16 &

15 17338 81 1 TIRE , 20 x 10 , 8 Super Turf
16 2173477 1 TUBE, Tire, 20 x 8, Rear
17 1722835 1 WHEEL, 7 x 7.96, W/ 3/4 OD Shaft
18 1722717A 2 WASHER, Special
19 1960114 2 WASHER, 3/4
20 2827794 2 RING, “E” External

tionItem Qt

Note

17)

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

5

TP 400-5419-IR-TC-N

Hood, Grille & Dash Group

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

6

LT300 SERIES

Hood, Grille & Dash Group

p

y

Part No Descri

1 1728031D 1 HOOD, W/Scoop

4 1721804D 1 PANEL, R.H. Side

5 1721803D 1 PANEL, L.H. Side

6 1721810 1 HEADLIGHT ASSEMBLY (Includes Ref. Nos. 22, 23 & 24)

7 1721802D 1 GRILLE

8 1930641 12 NUT, Hex Flange 1/4-20 Whiz Lock

9 1726827 1 DASHBOARD (Used only on YT & LT models)
10 1726894 1 DASHBOARD, W/Hydraulic Lift Slot (Used only on GT models)
12 1721808A 1 HINGE, Hood L.H.
13 1721809A 1 HINGE, Hood R.H.
14 1723123 1 ROD, Dash Support
15 1933896 1 NUT, Hex Lo ck 10-2 4 w/Nylon Insert
16 1960392 1 SCREW, Pan Head Phillips #10-24 x 1
17 1960295 12 SCREW, Hex Whiz Lock Flange 1/4-20 x 5/8
18 1733457A 1 DUCT, Air Inlet
19 1726895 1 DASHBOARD, w/Buzzer Hole (Used only on Barons models)
20 1722285 1 COVER, Dash (Used only on Barons models)
21 1722607 1 SCREW, Pan Head Torx #8-16 x 1/2 Plastite (Used only on Barons models)
22 1677371 4 BULB, Headlight
23 1723451 4 SOCKET ASSEMBLY, Seal
24 1722902 1 REFLECTOR, Headlight

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

7

TP 400-5419-IR-TC-N

Steering Group - Power Steering

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

8

LT300 SERIES

Steering Group - Power Steering

p

y

Part No Descri

1 1733363 1 STEERING WHEEL

4 1724685A 1 PLATE, Steering Mounting

5 1960655 2 CARRIAGE BOLT, 5/16-18 x 1-1/4 G5

6 1725294 1 ADAPTER, Tilt

7 1723898 2 SPACER

8 1933988 2 NUT, Push Pal

9 1960636 2 NUT, Hex Keps 5/16-18
10 1733790 1 STEERING UNIT, Tilt
11 1686970 1 BELLOWS, Tilt Steering Unit w/Slot
12 1725024 1 CAP, Steering Wheel
13 1716518 2 DECAL, Power Steering
15 1960576 1 NUT, Hex Lock ESNA Light 5/8-18

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

9

TP 400-5419-IR-TC-N

Frame & Front Axle Group - 4WD

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

10

LT300 SERIES

Frame & Front Axle Group - 4WD

p

y

Part No Descri

1 1734731A 1 FRAME ASSEMBLY, Front & Rear 4WD

2 1733139A 1 TOWER & SUPPORT ASSEMBLY

3 1723528A 1 SUPPORT, Seat Deck

4 1722602A 1 SU P P OR T, Dr a w ba r

5 1733918A 1 BRACKET ASSEMBLY, Steering 4WD

6 1721805A 1 BUMPER, 4GA

7 1733480 1 AXLE ASSEMBLY, Front

8 1734241A 1 PIVOT ASSEMBLY, Axle w/Bushings

9 1960755 1 CAPSCREW, Hex Head, 5/8-11 x 2-1/2 G5
12 1931348 2 CARRIAGE BOLT, 3/9-16 x 3/4 G5
13 1702779 1 JOINT, Ball 1/2-20
14 1708236 1 SPACER
15 1919262 1 NUT, Hex Jam, 1/ 2-2 0
16 2860681 1 NUT, Hex, 3/8-16
18 1733166A 1 BRACKET, Cylinder Mounting
20 2172914 1 SPACER
21 1737058 1 CYLINDER, Hydraulic Steering
22 197487 3 CAPSCREW, Hex Head, M12-1-3/4 x 35
23 1733863 1 SHAFT & BRACKET ASSEMBLY, Axle Pivot
24 1960035 2 WASHER, 5/8
25 1734511A 1 STOP, "L" Steering
26 1664847 4 SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
27 2860646 2 NUT, Hex Flange 5/8-11 Two-Way Lock
28 1923683 4 SCREW, Hex Washer head, Taptite, 3/8-16 x 3/4
31 1923114 2 CAPSCREW, Hex 1/2-13 x 1
30 1928352 4 NUT, Hex Flange 3/8-16 Whiz Lock
32 1921210 2 CAPSCREW, Hex 3/8-16 x 1
33 1960086 4 SCREW, Truss Head Torx Drive 5/16-18 x 7/8
34 1733581 2 PIN, Dowel
35 1960170 3 WASHER, 1/2
36 1916966 3 LOCKWASHER, Spring
38 1960754 6 LOCKWASHER, Spring
39 1950 0 36 6 C A PSCREW, Hex Head
40 1667812 1 SPACER, Powdered Metal
41 1733403 2 FITTING, Hose Elbow, 45 Degrees, 13/16-16 x 3/4-16
42 1737062 1 HOSE ASSEMBLY, Hydraulic
43 1737063 1 HOSE ASSEMBLY, Hydraulic
44 1733501A 1 BRACKET, Hose Mounting 10GA

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

11

TP 400-5419-IR-TC-N

Frame & Front Axle Group - 4WD

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

12

LT300 SERIES

Frame & Front Axle Group - 4WD

p

y

Part No Descri

45 1733402 2 FITTING, Bulkhead Union 13/16-16
46 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4 G5
47 1960636 2 NUT, Hex KEPS, 5/16-18
48 1733947 2 NUT, Jam 13/16-16
49 1960103 1 WASHER, 3/8
50 1931355 1 CARRIAGE BOLT, 3/8-16 x 2-1/4 G5
51 1733044A 1 SUPPORT, Steering Unit 7GA
52 1924856 4 SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
53 1723866 1 NUT, Push 3/8

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

13

TP 400-5419-IR-TC-N

Controls Group

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

14

LT300 SERIES

Controls Group

p

y

Part No Descri

1 1721353 1 ROD, Brake

2 1721891 1 KNOB, Push On, Red

3 1930591 1 CAPSCREW, Hex Head Flange Lock, 5/16-18 x 3/4

4 1960687 3 NUT, Hex Flange, 3/8-16 ESNA

5 1721134 1 PULLEY ASSEMBLY, 3 OD, W/Bearing

6 1667811 2 SPACER

7 1922755 3 WASHER, 3/8

8 1710545 1 PULLEY, Idler 4 OD

9 1960315 2 CARRIAGE BOLT, 3/8-16 x 2 G5
10 1663114 2 BUSHING
11 1727370 1 ARM & HUB ASSEMBLY, Idler
12 1733844 1 SPRING, Extension
13 1960020 1 WASHER, 5/8
14 1924366 1 WASHER, 5/8
15 1704420 1 RING, Clipring
16 1704314 1 FITTING, Lube, 1/4 Ball Check
17 1710539 1 PULLEY, Idler 3-1/4 OD
18 1960315 1 CARRIAGE BOLT, 3/8-16 x 2 G5
19 1918447 1 PIN, Cotter
20 1924940 1 WASHER
21 1727408 1 ROD, Brake (Flat Ends)
22 1722460 1 PIN, Quick
23 1919326 1 WASHER
24 17213 54A 1 LATCH, Brake
25 1726763 1 CONTROL ASSEMBLY, Foot Pedal
26 1721995 1 SPRING, Extension
27 1686612 1 CAM, Roller
28 1920397 1 NUT, Hex Lock ESNA, 1/4-20
29 1960636 8 NUT, Hex KEPS, 5/16-18
30 1931320 1 CARRIAGE BOLT, 1/4-20 x 1-1/4
31 1664847 3 CAPSCREW, Hex head Washer Taptite, 5/16-18 x 3/4
32 1919381 1 WASHER
33 1919438 1 NUT, Hex Lock ESNA, 5/16-18
34 1927557 3 NUT, Hex Flange Lock, 5/16-18
35 1722535A 1 PEDAL, Brake
36 1721577 1 PAD, Brake Pedal
37 1931334 4 CARRIAGE BOLT, 5/16-18 x 7/8

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

15

TP 400-5419-IR-TC-N

Controls Group

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

16

LT300 SERIES

Controls Group

p

y

Part No Descri

38 1722083A 1 ACTUATOR, Switch
39 1921333 3 CAPSCREW, Hex Head, 5/16-18 x 1
40 1722070A 1 PEDAL, Forward
41 1721675 1 PAD, Foot Pedal Forward
42 1721674 1 PAD, Foot Pedal Reverse
43 1722071A 1 PEDAL, Reverse
44 1931333 4 CARRIAGE BOLT, 5/16-18 x 3/4
45 19313 48 1 CARRIAGE BOLT, 3/8-16 x 3/4
46 1726087A 1 SUPPORT, Idler

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

17

TP 400-5419-IR-TC-N

Cruise Control Group

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

18

LT300 SERIES

Cruise Control Group

p

y

Part No Descri

1 1960666 1 CAPSCREW, Torx Socket Head, 1/4-20 x 7/8

2 1722303 1 KNOB, Cruise

3 1920397 1 NUT, Hex ESNA Lock, 1/4-20

4 1723258 1 LEVER & BRACKET ASSEMBLY, Cruise

5 1960103 3 WASHER

6 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4

7 926192 2 WASHER, 9/16 x 1-1/4 x 1/8

8 1709043 1 SPACER

9 1931342 1 CARRIAGE BOLT, 5/16-18 x 2-3/4
10 1960273 1 CARRIAGE BOLT, 5/16-18 x 2-1/4
11 1918447 2 PIN, Cotter
12 1726059 1 ROD, Cruise
13 1960636 2 NUT, Hex KEPS, 5/16-18
14 1960001 2 CAPSCREW, Hex Head Plastite, 10-14 x 5/8
15 1717050 1 SWITCH, Push, Neutral Start, Gray
16 1722080 1 SPACER
17 1919326 1 WASHER
18 1919381 2 WASHER
19 1919438 1 NUT, Hex ESNA Lock, 5/16-18
20 1677746 1 SPRING, Compression
21 1722460 2 PIN, Quick
22 1723099 1 ROD, Cruise Return

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

19

TP 400-5419-IR-TC-N

Transmission Group - Tuff Torq K-4664

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

20

LT300 SERIES

Transmission Group - Tuff Torq K-4664

p

y

Part No Descri

1 1735070 1 TRANSMISSION ASSEMBLY, Tuff Torq K664

2 1719911 2 V-BELT, 117.0" EL HA -117

3 1727552 1 SHAFT & ARMS ASSEMBLY, Control

4 1734956 1 STRAP. Torque

5 1919326 9 WASHER, 5/16

6 1919326 8 NUT, Hex, CON, Lock, 5/16-18

7 1666697 2 SPACER, Powered Metal

8 1722460 4 PIN, Quick

9 1734965 1 ROD, Control
10 1923141 4 CAPSCREW, Hex Head, 5/16-18 x 2-3/4 G5
11 1960141 2 WASHER, 5/16
12 1921978 1 CAPSCREW, Hex Head 5/16-18 x 2 G5
13 1931333 7 CARRIAGE BOLT, 5/16-18 x 3/4 G5
14 1727473 1 ARM & PIN ASSEMBLY, Speed Control
15 1734970 1 ROD, Free Wheel
16 2827794 2 RING, E Retaining
17 2176440 2 BUSHING, Nylon
18 1734966A 1 SUPPORT, Transmission, LH
19 1734967A 1 SUPPORT, Transmission, RH
20 1931350 2 CARRIAGE BOLT, 3/8-16 x 1 G5
21 1960221 1 CLIP, Hair Pin Spring
22 1710545 1 PULLEY, Idler, 4 in.
23 1924940 6 WASHER, 3/8
24 1960687 3 NUT, Hex Flange 3/8-16 ESNA
25 17324958A 1 BRACKET, Chute Locator
26 1922755 1 WASHER, Flat 3/8
27 1950537 2 NUT, Lock, KEPS, 3/8-16
28 1721134 1 PULLEY, V Idler -3
29 1722173 1 PAD, Footrest, RH Black Vinyl Textured
30 1722174 1 PAD, Footrest with Differential Lock, LH Black Vinyl Texture
31 1704351 15 FASTENER, Panel 3/4 Head
32 1960676 2 SCREW, Pnhd Torx tt, 1/4-20 x 1.25
33 1921210 2 CAPSCREW, Hex, 3/8-16 x 1.0
34 1735108 1 ROD, Brake
35 1735110 1 BRAKE, Bracket Assembly
36 1729277 1 SPRING, Compression
37 1918447 2 PIN, Cotter

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

21

TP 400-5419-IR-TC-N

Transmission Group - Tuff Torq K-4664

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

22

LT300 SERIES

Transmission Group - Tuff Torq K-4664

p

y

Part No Descri

38 1960315 1 BOLT, Carriage, 3/8-16 x 2
39 1719968 1 NUT, Flange, Nylock, M10
40 1921333 2 CAPSCREW, Hex Head, 5/16-18 x 1 G5
41 1727215A 1 ACTUATOR, Switch
42 1960684 9 NUT, Hex KEPS, 5/16-18 Conical Washer
43 1734980A 1 DRAWBAR
44 1931353 2 CARRIAGE BOLT, 3/8-16 x 1-3/4 G5
45 1924856 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2
46 19283 52 2 NUT, Hex Flange, 3/8-16 Whiz Lock Large
47 1960103 1 WASHER, 3/8
48 1735081 1 TUBE, Hydro, Front-Outside
49 1735082 1 TUBE, Hydro, Rear-Inside
50 1735558 1 HOSE, Tank (To Transmission)
51 1735097 1 HOSE, Return
52 17232 14 4 CL AMP, Hose
53 1735557 1 TANK, Reservoir
54 1722711 1 CAP, Tank
55 1735066A 1 BRACKET, Tank Support
56 2825094 6 TIE, Wire
57 1736019 1 SPACER, Fan
58 1735634 1 FAN, 9
59 1735636 1 PULLEY ASSEMBLY
60 1735568 1 ARM ASSEMBLY, Control
61 1921221 1 CAPSCREW, Hex 5/16-18 x 1.50
62 1735576A 1 BRACKET, Dampener, MTG
63 2860765 2 CAPSCREW, THD Cut, M8, 1.25 x 30
64 1736066 1 PIN, Drive
65 1723893 1 WIRE, Tie
66 2860266 2 CL AMP, Wo rm Drive

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

23

TP 400-5419-IR-TC-N

Seat Deck & Fuel Tank Group

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

24

LT300 SERIES

Seat Deck & Fuel Tank Group

p

y

Part No Descri

1 1722129A 1 BRACKET, Seat

2 1725019 1 SEAT, 15” Back, Snapper Logo

3 1722128A 1 SUP P OR T, S ea t

4 2172434 1 CLIP, Wire

5 1709256A 6 WASHER, Spring

6 1714263 2 S P RING, Compressi on

7 1919438 2 NUT, Hex Lock ESNA, 5/16-18

8 1717051 2 S P RING, Compressi on

9 1930591 8 CAPSCREW, Hex Head Whizlock, 5/16-18 x 3/4
10 19313 39 2 CAR R I AGE BOLT , 5/16-18 x 2
11 19313 50 2 CARRIAGE BOLT, 3/8-16 x 1
12 1722356 1 SLIDE, Seat, (2 Piece Set)
13 1935255 4 NUT, Speed, 5/16-18
14 1930601 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 5/8
15 1722309 1 PLUG, Hole Black
16 1722109 1 POD, LH, w/Cup Holder
17 1924940 2 WASHER
18 1722313 1 COVER, Cruise, w/Symbols
19 2960664 4 CAPSCREW, Hex Head Washer Dog Point, 1/4-20 x 7/8
20 1722300 1 GAS GAUGE
21 1722337 1 GROMMET
22 1715917 1 CAP, Gas
23 1722340 1 TUBE & ELBOW ASSEMBLY
24 1654930 1 BUSHING
25 1722652 1 TANK, Fuel
26 1931277 4 NUT, Hex Whiz Lock, 5/16-18
27 1960636 4 NUT, Hex KEPS, 5/16-18
28 1727397D 1 DECK, Seat, Red
29 1722108 1 POD, RH, W/2 Slots
30 2934665 1 CAPSCREW, Hex Head Whizlock, 5/16-18 x 5/8
31 1722105D 1 TUNNEL, Footrest, Red
32 1663752 2 SPACER
33 1930645 2 NUT, Hex Flange Lock, 3/8-16
34 1960667 4 CAPSCREW, Hex Head Flange Lock, 5/16-18 x 3/4

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

25

TP 400-5419-IR-TC-N

Engine & Electric Clutch Group - 21HP Briggs & Stratton, Vanguard

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

26

LT300 SERIES

Engine & Electric Clutch Group - 21HP Briggs & Stratton, Vanguard

p

y

Part No Descri

1 1723165 1 HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings

2 -- 1 * ENGINE, 21HP B&S Vanguard Twin, Mod. 385777-0119-G1

4 1722388A 1 BULKHEAD

5 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black

6 1734506 1 CONTROL, Throttle Double 39" Long w/Knobs

7 2825094 2 TIE, Wir e, 7-5/16" Long

8 791850 2 * CLAMP, Hose Type E

9 1734985 1 HOSE, Fuel, 59" Long
10 17223 92A 2 SHIELD, Side
11 1927428 8 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
12 1722288 1 PULLEY & HUB ASSEMBLY
13 2832747 2 TIE, Self Locking, 3-5/8 Long
14 1708264 1 WASHER, Hex, 7/ 16 , Bla c k
15 1918199 1 LOCKWASHER, 7/16
16 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 3-3/4
17 1686880 1 CLUTCH, Electric
18 1720463 1 KEY, HI PRO, 1/4 x 2 1/2
19 2830598 4 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/2
20 2820427 1 LOCKWASHER, External Tooth, 3/8
21 1722414A 1 SHIELD, Muffler Bottom
22 1960368 8 NUT, Speed, 1/4-20, Lug
23 1960295 8 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8
24 1935255 2 NUT, Speed, 5/16-18, Lug, Black
25 1722389A 1 DUCT, Muffler Top
26 2834683 2 CLIP, Wire 1/8
27 1722390A 1 DUCT, Muffler Extension
28 1924856 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2, Black
29 1736543 1 MUFFLER, Briggs & Stratton, Vanguard Twin
30 -- 1 * GASKET, Briggs & Stratton, Vanguard Twin
31 -- 4 * LOCKWASHER, 5/16
32 -- 4 * CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 7/8
33 1732026 1 RETAINER, Clutch
34 1924940 1 WASHER, Flat 3/8
35 2827187 1 CAPSCREW, 3/8-16 x 1
36 1732396 1 PLATE, RMP Limiter
37 1728125 1 SCREW, Pan Head Torx
38 1728126 1 THROTTLE CABLE - Clamp

tionItem Qt

Note

Footnotes:

Note* See your local Briggs & Stratton distributor for parts

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

27

TP 400-5419-IR-TC-N

Decals Group

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

28

LT300 SERIES

Decals Group

p

y

Part No Descri

1 1725128 2 DECAL, RD21 4 0

1 1725240 2 DECAL, RD18 4 0

2 1725065 1 DECAL, Hood Stripe, Snapper, LH

3 1727713 1 DECAL, Belt & Blade

4 1722806 1 D E C AL , Ig nition Switch

5 1723713 1 DECAL, Crusie / Lift

6 1723310 1 DECAL, Hopp e r Lev er

7 1725061 1 DECAL, Snapper

8 1724680 1 DECAL, Latch Release

9 1727714 1 DECAL, Baron XL
10 1723317 1 DECAL, Hopper Pedal
11 1723296 2 DECAL, Protective, Clear
12 -- 1 * DECAL, Patent
13 -- 1 * DECAL, Serial Number, Tractor
14 -- 2 * DECAL, Decible Power Mass, Export Only
15 1720391 2 DECAL, Danger Operating W/O Catcher
16 1721141 1 DECAL, Drawbar Max Load
17 1725066 1 DECAL, Hood Stripe, Snapper, RH
18 1723425 1 DECAL, Transmission Release Valve
19 1720390 1 DECAL, Danger Catcher Open
20 1723175 1 DECAL, Warning/Danger Icons, Tunnel
21 1725072 1 DECAL, Touch Up Paint
21 1720454 1 DECAL, Touch Up Paint, Orange, Black, Red
22 1720389 2 DECAL, Danger Rotating Blade, Export Only
23 1723470 1 DECAL, Height Of Cut
24 1721107 1 DECAL, Danger, Discharge Tube
25 -- 1 * DECAL, Serial Number, Mower Deck
26 1731419 1 DECAL, Steering Wheel, Snapper
27 1732413 1 DECAL, Belts and Blades

tionItem Qt

Note

Footnotes:

Note: * Not a Service Part

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

29

TP 400-5419-IR-TC-N

40" Mower Deck - Housing, Arbors & Blade

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

30

LT300 SERIES

40" Mower Deck - Housing, Arbors & Blade

p

y

Part No Descri

1 1733079D 1 HOUSING ASSEMBLY, 40" Red

3 1664847 6 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4

4 2830584 1 CAPSCREW, Hex Head 7/16-14 x 2-3/4 G8

5 1933263 1 WASHER, 7/16

7 1656916 3 WASHER, Spring

8 1732123 1 PULLEY

9 1719862 1 HUB
10 1732590 2 SPROCKET & FLANGE ASSEMBLY, Rivets/Screws 40"
11 1657969 2 SHIELD, Bearing, Mower Arbor Uppoer Heat Treated
12 1655729A 2 HOUSING, Arbor Top
13 1707335 2 GASKET, Foam
14 1722396 1 ARBOR SHAFT & BEARINGS ASSEMBLY, 40"
15 1703273A 2 HOUSING & FITTING ASSEMBLY, Lower
16 1677274A 2 ADAPTER, Arbor
17 1700230 2 WASHER, Shim
18 17002 29 2 SHIELD, Bearing
19 1655777 2 ADAPTER, Blade
20 1727477 1 BLADE, Mower L.H.
21 1727478 1 BLADE, Mower R.H.
22 1722258 2 PIN, Blade
23 1722257 2 WASHER, Spline
24 2827120 2 CAPSCREW, Hex Head 7/16-14 x 2-1/4 G8
25 1960373 12 SCREW, Hex Washer Head Taptite 5/16-18 x 1
26 1675044 2 RIVET, Pop
27 17211 32A 1 GUARD, Extension
28 1724600 1 COVER, Arbor R.H.
29 1960096 2 WASHER
36 1713675 2 WASHER, Bellville
37 1714419 1 NUT, Hex Flange 9/16-18
38 1726826 1 ARBOR SHAFT & BEARINGS ASSEMBLY, 40"
40 1732960A 1 SHIM, Cover L.H.
41 1732961A 1 SHIM, Cover R.H.
42 1732301 1 COVER, Arbor L.H.

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

31

TP 400-5419-IR-TC-N

40" Mower Deck - Belt, Idle Arm & Hitch

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

32

LT300 SERIES

40" Mower Deck - Belt, Idle Arm & Hitch

p

y

Part No Descri

1 1734495 1 IDLER ARM ASSEMBLY, w/Bushings

2 1731414 1 R OD, Latch

3 1715435 1 S P R IN G, E x te ns i on

4 1657242 1 SPACER

6 1960615 1 CARRIAGE BOLT, 3/8-16 x 2-1/2

7 1922755 3 WASHER

8 1960614 1 CAPSCREW, Hex Head, 3/8-16 x 3, G8

9 1933263 1 WASHER
10 2101096 1 PULLEY, 4-1/2 OD
11 1924940 8 WASHER
13 1919439 1 NUT, Hex Lock ESNA, 3/8-16
14 1721425 1 WASHER & LOCK NUT ASSEMBLY, 3/8-16
15 1725557 1 V-BELT, 60.10" EL HA
20 2157081 2 SPACER
21 2860681 2 NUT, Spiral Flange Toplock, 3/8-16
22 1928352 2 NUT, Hex Flange Lock, 3/8-16
23 1921968 2 CAPSCREW, Hex Head, 3/8-16 1-3/8
25 1724626 1 BELT, Timing
26 1737046A 1 HITCH, Mower
27 1960746 2 SCREW, Hex Flange Head, 3/8-16 x 2
28 1731892 2 PULLEY, Idler
29 1736018 2 SPACER
30 1674671 1 SPRING, Extension
31 1726387A 1 ARM, Idler
32 1666697 1 SPACER
33 1930601 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 5/8
34 1719221 2 HUB, Pulley
35 1719842 1 STOP, Belt
36 2176012 1 PIN, Spring

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

33

TP 400-5419-IR-TC-N

40" Mower Deck - Height Adjustment & Roller Bar

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

34

LT300 SERIES

40" Mower Deck - Height Adjustment & Roller Bar

p

y

Part No Descri

1 1921977 1 CAPSCREW, Hex Head 5/16-18 x 1-1/4 G5

2 1960044 1 WASHER, 5/16

3 1733899A 2 BRACKET, Flat Mounting

4 1921333 4 CAPSCREW, Hex Head 5/16-18 x 1 G5

5 1960686 4 NUT, Hex Flange 5/16-18 Es na

6 1960116 1 PIN, Cle vis

9 1960170 4 WASHER, Flat. .5
10 1924940 6 WASHER, 3/8
11 1960687 4 NUT, Flange, 3/8-16
13 1723124 1 BUTTON
14 1713995 1 GRIP
15 1960674 1 NUT, Push Pal 1/4 Diameter Thread
16 1723321 1 SPRING, Compression
17 1732751A 1 HANDLE ASSEMBLY, Lift Curved
18 1732754 1 ROD, Curved
19 1921159 1 CAPSCREW, Hex Head 1/4-20 x 2-1/4 G5
20 1720599 1 LATCH
21 1920397 1 NUT, Hex Lock Esna Light 1/4-20
22 1931335 2 BOLT,Carriage 5/16-18 x 1 G5
23 1917356 2 LOCKWASHER, 5/16
24 1917372 2 NUT, Hex 5/16-18
25 1714760 4 WHEEL
26 2108765 4 CAPSCREW, Hex Head 3/8-16 x 3 G5
29 1722661 1 ROD
31 2860681 1 NUT, Hex Toplock Spiralock Flange 3/8-16
32 2118053 1 PIN, Round Head Drilled 3/8 x 2
33 1706645A 1 TRUNNION
34 1915726 2 NUT, Hex 5/8-11
35 1722460 1 PIN, Quick
36 1931202 4 SCREW, Hex Washer Head Taptite 5/16-18 x 1-1/4
37 1919381 4 WASHER, 5/16
38 1933988 4 NUT, Push Pal 5/16 Diameter Thread
39 1665374 3 STRAP
40 1664847 2 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
41 1720931A 1 BRACKET, Height of Cut
43 1719929 2 UPSTOP

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

35

TP 400-5419-IR-TC-N

40" Mower Deck - Height Adjustment & Roller Bar

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

36

LT300 SERIES

40" Mower Deck - Height Adjustment & Roller Bar

p

y

Part No Descri

44 1960703 2 WASHER, 5/8
45 1919438 1 NUT, Hex Lock Esna Light 5/6-18
46 21085 12 1 PIVOT, 3/4 Hex & 3/8
47 1918447 1 PIN, Cotter 3/4
48 1723409A 1 BRACKET, Adjusting
49 1666697 1 SPACER
50 1720704 1 ROD & WASHER ASSEMBLY
51 1651820 1 GRIP
52 1917421 1 NUT, Hex Jam 3/8-16
53 1960601 1 NUT, Hex Flange 3/8-16
54 2108241 1 GUIDE ASSEMBLY, Rod
55 1918265 1 WASHER, 5/16
56 1733065A 1 SHAFT ASSEMBLY, Rocker 40"
57 1727102A 1 HANGER, R.H.
58 17271 03A 1 HANGER, L.H.
59 1960074 2 CLIP, Hair Pin
60 1920161 2 NUT, Hex Jam 5/16-18
61 1708088A 2 CHAIN, Link
62 1960033 3 CLIP, Hair Pin
63 1731382 2 TRUNNION
64 1731384 2 ROD, Height Adjusting
65 1930645 1 NUT, Hex Flange 3/8-16 Two-Way Lock

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

37

TP 400-5419-IR-TC-N

Hopper Group

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

38

LT300 SERIES

Hopper Group

p

y

Part No Descri

1 1727486A 1 ROD & TABS ASSEMBLY, Bagger Front

2 1960685 22 NUT, Hex KEPS Conical Washer, 1/4-20

3 1960353 8 WASHER, 1/4

4 1931320 4 CARRIAGE BOLT, 1/4-20 x 1-1/4

5 1921333 6 CAPSCREW, Hex Head, 5/16-18 x 1 G5

6 1917356 6 LOCKWASHER, Spring 5/16

7 1919326 6 WASHER, 5/16

8 1931317 15 CARRIAGE BOLT, 1/4-20 x 3/4 G5

9 1715654 2 SPACER
10 1727674 6 CLIP, L 12GA
11 1727420A 1 FRAME ASSEMBLY, Hopper
12 1924009 4 CAPSCREW, Hex Head, 1/4-20 x 7/8 G5
13 1921319 3 WASHER, 1/4
14 1916964 4 LOCKWASHER, Spring 1/4
15 1916622 4 NUT, Hex 1/4-20
16 1727 832 2 CABLE, Bagger, 17.72 Long
17 1727676 4 CLIP, L 12GA
18 1727671A 1 BAR, Bagger Top 7GA
19 1724684 2 WASHER, 5/8
20 1724399A 1 HANDLE, Hopper, 13.59 Long
21 1727931 1 LID & SCREEN ASSEMBLY, Red
22 1727423 1 BAG, Grass Black Cloth
23 1931334 9 CARRIAGE BOLT, 5/16-18 x 7/8 G5
24 1727520A 1 PLATE, Tube Stop Bagger 14GA
25 1727670A 1 BAR, Bagger Bottom 7GA
26 1727 675A 2 BRACE, Angle
27 1960044 1 WASHER, 5/16
28 1960684 5 NUT, Hex KEPS Conical Washer, 5/16-18
29 1921978 1 CAPSCREW, Hex Head, 5/16-18 x 2 G5
30 1960044 2 WASHER, 5/16
31 1724651A 1 LATCH, Release 10GA
32 1921333 1 CAPSCREW, Hex Head, 5/16-18 x 1 G5
33 1919326 2 WASHER, 5/16
34 1666697 1 SPACER, Powdered Metal
35 1714263 1 SPRING, Compression
36 1923360 1 PIN, Cotter

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

39

TP 400-5419-IR-TC-N

Hopper Group

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

40

LT300 SERIES

Hopper Group

p

y

Part No Descri

37 1724652 1 ROD, Foot Pedal Bagger Release, 11.66 Long, 2 Bends
38 1919438 2 NUT, Hex Lock ESNA Light, 5/16-18 NC-3B
39 1727580A 1 PIVOT ASSEMBLY, Latch
40 1928352 5 NUT, Hex Flange Whiz Lock, 3/8-16 Large
41 1921965 4 CAPSCREW, Hex Head, 3/8-16 x 3/4 G5
42 1727419A 1 BACKPLATE ASSEMBLY
43 1723182A 1 BRACKET, Latch LH, 7GA
44 1931277 4 NUT, Hex Flange Whiz Lock, 5/16-18 Small
45 1960074 2 CLIP, Hair Pin, Spring Wire
46 1724458 1 ROD, 25.12 Long, 2 Bends
47 1921973 1 CAPSCREW, Hex Head, 3/8-16 x 2-3/4 G5
48 1924940 1 WASHER, 3/8
49 1676148 2 BUSHING, Powdered Metal
50 1669105A 1 SPACER, 1-1/2 Long, Hardened
51 1718016 1 SPRING, Extansion
52 1725036 1 ROD & TUBE ASSEMBLY, Differential Lock Pedal
53 1719940 1 KNOB, Hole 1/2, 1.37 Long
54 1960268 4 CARRIAGE BOLT, 3/8-16 x 1-1/4 G5
55 1724540 1 SHAFT & ARMS ASSEMBLY, Latch
56 1960556 4 SCREW, Pan Head Torx Taptite, 1/4-20 x 3/4
57 1930645 1 NUT, Hex Flange Two Way Lock, 3/8-16 GA
58 1923341 1 CAPSCREW, Hex Head, 1/4-20 x 3/4 G5
59 1727429 1 CHUTE, Discharge Black Poly
60 1724553 1 CAPLUG, Black Poly, 3/4 Hole
61 1713855 1 KNOB, Bagger Release
62 1666969 1 PIN, Klik 5/164
63 1727 5 23A 1 HANDLE, Tube, 39.7 5 Lo ng
64 1723359 1 GRIP, Hopper Lift Rod
65 1727406 1 TRANSITION, Hopper Black
66 1723181A 1 BRACKET, Latch RH, 7GA

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

41

TP 400-5419-IR-TC-N

Electrical Group

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

42

LT300 SERIES

Electrical Group

p

y

Part No Descri

1 1721810 1 HEADLIGHT ASSEMBLY, 4 Bulb

2 1722669 1 HARNESS, Head l ig ht

3 1722887 1 SWITCH, PTO Push/Pull w/Symbols

4 1921959 1 CAPSCREW, Hex Head, 1/4 x 5/8

5 1722739 1 SOLENOID

6 1726556 1 MODULE, RMO (Includes Ref. No. 7)

7 1726557 1 KEY, RMO Module Plastic

7 1727185 1 KEY, w/Hang Tag for RMO Module

8 1722611 1 PLUG, Hole B lack

9 1665237 1 WIRE, 12GA 8 Long Red
10 2920426 3 LOCKWASHER, External Tooth 5/16
11 1665238 1 BREAKER, Circuit 12VOLT 20AMPS w/Tabs
12 2916622 3 NUT, Hex, 1/4-20 NC-2B
13 1716061 1 SWITCH ASSEMBLY, Ingition, 6 Pin Indak (Includes Ref. Nos. 1)
14 2101025 1 WASHER, 5/8
15 1960547 1 LOCKWASHER, Internal Tooth, 5/8
16 17175 49 1 NU T, Hex Fl ange, 5/8-32 Ignition Switch
17 1717550 1 COVER, Ignition Switch, Black
18 1717163 1 KEYS, Ignition Set of 2
19 1721830 1 CABLE, # 6 x 25 Long Red, 2 Ring Terminals
20 1725523 1 METER, Hour Digital w/Oil & Lube Alarms
21 17255 24 1 PL U G, Dash, Hour Meter
21 1725698 1 PLUG, Dash, No Hour Meter Hole
22 1725835 1 CLIP, Hour Meter, Holds In Dash
23 1720117 1 BUZZER, Pulse, Grass Bag Full
24 1716951 1 SWITCH, Headlights, 2 Terminal
25 1726890 1 HARNESS, Wiring Upper
26 1677296 1 BOOT, Insulator, Battery Terminal
27 920263 2 NUT, Hex, 5/16-24 NF-2B
28 1727776A 1 DEFLECTOR, Sw itch 14GA
29 1960685 2 NUT, Hex KEPS Conical Washer, 1/4-20
30 1723954 1 HARNESS, Wiring Rear
31 1720411 1 SWITCH, Push Button w/Boot, Bagger
32 1960252 3 CARRIAGE BOLT, 1/4-20 x 5/8 G5
33 1727428 1 PIVOT, Actuator 14GA, E-Coat
34 1960103 1 WASHER, 3/8
35 960293 1 NUT, Wing Lock, 1/4-20

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

43

TP 400-5419-IR-TC-N

Electrical Group

Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH
TP 400-5419-IR-TC-N

44

LT300 SERIES

Electrical Group

p

y

Part No Descri

36 1960607 1 PIN, Clevis
37 1960221 1 CLIP, Hair Pin
38 1727427 1 SUPPORT, Actuator 14GA, E-Coat
39 1960536 2 SCREW, Hex Washer Head Plastite, 1/4 x 1/2
40 1716368 1 SWITCH, Operator Presents, Seat NC
41 1929000 1 SCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
42 1726810A 1 BRACKET, Switch Mounting, RMO
43 1704379 2 SWITCH, Push Button, Reverse Pedal
44 1732006 1 SWITCH, Push Button, Foot Pedal NO/NC was 1723507
45 1717050 1 SWITCH, Push Button, Cruise Control NO/NC Gray
46 16036 18 1 CA BLE, # 6 x 9 Long, 2 Ring Terminals
47 1685215 1 BATTERY, 12VOLT 6CELL 230AMPS CCA
48 1722009 1 STRAP, Battery 14 Long, Black Rubber
49 1713163 1 CABLE, # 6 x 26 Long Black, 2 Ring Terminals
50 2923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4 G5
51 2921319 2 WASHER, 1/4
52 2916964 2 LOCKWASHER, Spring 1/4
53 1713535 1 BOOT, Insulator Red, Cable Terminal
54 2925094 4 TIE, Self Locking, 7-5/16
55 1726889 1 HARNESS, Wiring Lower

tionItem Qt

Note

Footnotes:

Manual No. 7006271LAWN TRACTOR ELECTRIC CLUTCH

LT300 SERIES

45

TP 400-5419-IR-TC-N

Parts Manual fo

r

LAWN TRACTOR ELECTRIC CLUTCH

HYDRO DRIVE 4WD RMO & ACS "RD"

LT300 SERIES

IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS

PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO.

WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD

IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY

OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS

Briggs & Stratton Yard Power Products Group

535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967

www.snapper.com

Copyright © 2008
Milwaukee, WI USA. All Rights Reserved

Briggs & Stratton Corporation

Manual No. 7006271

Revision IR,

TP 400-5419-IR-TC-N

10/15/200
