Snapper RD18S40, RD18VG40 User Manual

Parts Manual fo

r

)

)

YARD TRACTOR ELECTRIC CLUTCH

HYDRO DRIVE RMO & ACS "RD"

SERIES 0

MODEL

RD18S40 (2690624

D18VG40 (2690623

Briggs & Startton Yard Power Products Group
Copyright © 2007
Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation

McDonough, GA, 30253 U.S.A.

Revision IR,

5/23/2007

Manual No. 7006469

TP 400-5273-IR-TC-N

s

PAGE GROUP

4
6

8
10
14
18
20
24
26
28
30
32
34
38
42
44
46

Wheels & Tires Group
Hood, Grille & Dash Group
Steering Group
Frame & Front Axle Group
Controls Group
Cruise Control Group
Transmission Group - Tuff Torq K-46BF
Seat Deck & Fuel Tank Group
Engine Group - 18 HP INTEK Single Cyl.
Engine Group - 18 HP & 20 HP VANGUARD Twin Cyl.
40" Mower Deck - Belt, Idle Arm & Hitch
40" Mower Deck - Housing, Arbors & Blade
40" Mower Deck - Height Adjustment & Roller Bar
Hopper Group
Deflector Group
Decals Group
Electrical Group

Table Of Content

SERIES 0

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

3

TP 400-5273-IR-TC-N

Wheels & Tires Group

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

4

SERIES 0

Wheels & Tires Group

p

y

Part No Descri

1 1722065 2 WHEEL & TIRE ASSEMBLY, Front (Includes Ref. Nos. 2, 3, 4, 5)
2 1722838 1 TIRE, 15 x 6, Super Turf
3 1664090 1 TUBE, Tire, Front, 4.10/3.50
4 1717056 2 BEARING, Ball
5 1722837 1 WHEEL, 4-1/2” x 6”
6 2172353 4 VALVE STEM & CAP ASSEMBLY
7 1722726A 4 WASHER, Special, (As Required)
8 1919394 4 WASHER, 1, (As Required)

9 2932577 2 RING, Retaining, External #98
10 1722676 4 CAP, Hub, Gray
11 1729279 2 KEY, Parellel, 3/16 x 3/16 x 1-1/2
12 2960202 4 WASHER, 3/4
13 1709527 2 SPACER
14 1721694 2 WHEEL & TIRE ASSEMBLY (Includes Ref. Nos. 6, 15, 16 &

15 1722826 1 TIRE, 20 x 10, 8 Super Turf
16 2173477 1 TUBE, Tire, 20 x 8, Rear
17 1722835 1 WHEEL, 7 x 7.96, W/ 3/4 OD Shaft
18 1722717A 2 WASHER, Special
19 1960114 2 WASHER, 3/4
20 2927794 2 RING, “E” External

tionItem Qt

Note

17)

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

5

TP 400-5273-IR-TC-N

Hood, Grille & Dash Group

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

6

SERIES 0

Hood, Grille & Dash Group

p

y

Part No Descri

1 1728031D 1 HOOD, W/Scoop

4 1721804D 1 PANEL, R.H. Side

5 1721803D 1 PANEL, L.H. Side

6 1721810 1 HEADLIGHT ASSEMBLY (Includes Ref. Nos. 22, 23 & 24)

7 1721802D 1 GRILLE

8 1930641 12 NUT, Hex Flange 1/4-20 Whiz Lock

9 1726827 1 DASHBOARD (Used only on YT & LT models)
10 1726894 1 DASHBOARD, W/Hydraulic Lift Slot (Used only on GT models)
12 1721808A 1 HINGE, Hood L.H.
13 1721809A 1 HINGE, Hood R.H.
14 1723123 1 ROD, Dash Support
15 1933896 1 NUT, Hex Lock 10-24 w/Nylon Insert
16 1960392 1 SCREW, Pan Head Phillips #10-24 x 1
17 1960295 12 SCREW, Hex Whiz Lock Flange 1/4-20 x 5/8
18 1733457A 1 DUCT, Air Inlet
19 1726895 1 DASHBOARD, w/Buzzer Hole (Used only on Barons models)
20 1722285 1 COVER, Dash (Used only on Barons models)
21 1722607 1 SCREW, Pan Head Torx #8-16 x 1/2 Plastite (Used only on Barons models)
22 1677371 4 BULB, Headlight
23 1723451 4 SOCKET ASSEMBLY, Seal
24 1722902 1 REFLECTOR, Headlight

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

7

TP 400-5273-IR-TC-N

Steering Group

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

8

SERIES 0

Steering Group

p

y

Part No Descri

1 1722318 1 STEERING WHEEL, Straight Shaft

2 1725024 1 CAP, Steering Wheel, Plain

3 1960540 1 PIN, Spring

4 1722749 1 COVER, Black Rubber

5 2176440 2 BUSHING

6 1721736A 1 PLATE, Mounting Steering

7 1960114 6 WASHER

8 1933260 2 CAPSCREW, Hex Head Flange Lock, 3/8-16 x 3/4

9 1931211 2 NUT, Hex Whiz Lock, 3/8-16
10 1722459 1 BEARING, Flange
11 1722461 1 SPACER
12 1724470A 1 GEAR & SHAFT ASSEMBLY
13 1960032 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4
14 1930645 1 NUT, Hex Flange Lock, 3/8-16
15 1664847 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
16 1723604 1 SHAFT ASSEMBLY
17 1919314 1 PIN, Cotter
18 1931317 2 CARRIAGE BOLT, 1/4-20 x 3/4
19 2928372 2 NUT, Hex,1/4-20
20 1611710 1 RING, Clipring Extension
21 1960114 2 WASHER

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

9

TP 400-5273-IR-TC-N

Frame & Front Axle Group

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

10

SERIES 0

Frame & Front Axle Group

p

y

Part No Descri

1 1930645 7 NUT, Hex Flange Lock, 3/8-16

2 1960035 2 WASHER

3 2960646 1 NUT, Hex Flange, 5/8-11

4 1722212A 1 PLATE, Axle

5 1724081A 1 TOWER & SUPPORT ASSEMBLY

6 1923683 4 CAPSCREW, Hex Head Taptite, 3/8-16 x 3/4

7 1723528A 1 SUPPORT

8 1664847 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4

9 1727396A 1 FRAME ASSEMBLY
10 2960645 1 CAPSCREW, 5/8-11 x 3-1/2
11 1704314 2 FITTING, Grease for Wear Plate, 1/4-20, with Ball
12 1933260 4 CAPSCREW, Hex Head, Flange Lock, 3/8-16 x 3/4
13 1722541 1 LINK, Drag
14 1922755 1 WASHER
15 1960103 2 WASHER
16 1919262 1 NUT, Hex Jam, 1/2-20
17 1702779A 1 JOINT, Ball
18 1708236 1 SPACER
19 1931350 2 CARRIAGE BOLT, 3/8-16 x 1
20 1611705 2 SPACER
21 1722626A 1 ROD, Tie
22 1721682 6 BUSHING
23 1930650 2 NUT, Hex Flange Lock, 7/16-14
24 1704314 3 FITTING, Lube
25 1686985 1 SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27)
26 2823485 1 CAPSCREW, 3/8-16 x 7/8, GR8
27 1663151 1 WASHER, Spring, 3/8
28 1725112 1 HUB & ARM ASSEMBLY
29 2830671 1 KEY, Woodruff
30 1724264 1 SPINDLE, LH
31 1722200A 1 AXLE ASSEMBLY, w/ LH Spindle, Complete (Includes Ref. Nos. 2)
32 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2
33 1927531 2 CAPSCREW, Hex Head, 7/16-14 x 2, GR8
34 1721918A 1 HOOK, “J”
35 1721752 1 SPACER
36 1960086 4 SCREW, Torx Head, 5/16-18 x 7/8
37 1721805A 1 BUMPER, Black, Steel, Standard

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

11

TP 400-5273-IR-TC-N

Frame & Front Axle Group

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

12

SERIES 0

Frame & Front Axle Group

p

y

Part No Descri

37 1723502 1 BUMPER, Chrome, Optional
38 1930591 2 CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4
39 1724801A 1 PLATE, Axle Wear
40 1931277 2 NUT, Hex Falnge Whiz Lock, 5/16-18
41 1722199 1 SPINDLE, RH
42 1919394 1 WASHER
43 2932577 1 RETAINING RING

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

13

TP 400-5273-IR-TC-N

Controls Group

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

14

SERIES 0

Controls Group

p

y

Part No Descri

1 1721353 1 ROD, Brake

2 1721891 1 KNOB, Push On, Red

3 1930591 1 CAPSCREW, Hex Head Flange Lock, 5/16-18 x 3/4

4 1960687 3 NUT, Hex Flange, 3/8-16 ESNA

5 1721134 1 PULLEY ASSEMBLY, 3 OD, W/Bearing

6 1667811 2 SPACER

7 1922755 3 WASHER, 3/8

8 1710545 1 PULLEY, Idler 4 OD

9 1960315 2 CARRIAGE BOLT, 3/8-16 x 2 G5
10 1663114 2 BUSHING
11 1727370 1 ARM & HUB ASSEMBLY, Idler
12 1733844 1 SPRING, Extension
13 1960020 1 WASHER, 5/8
14 1924366 1 WASHER, 5/8
15 1704420 1 RING, Clipring
16 1704314 1 FITTING, Lube, 1/4 Ball Check
17 1710539 1 PULLEY, Idler 3-1/4 OD
18 1960315 1 CARRIAGE BOLT, 3/8-16 x 2 G5
19 1918447 1 PIN, Cotter
20 1924940 1 WASHER
21 1727408 1 ROD, Brake (Flat Ends)
22 1722460 1 PIN, Quick
23 1919326 1 WASHER
24 1721354A 1 LATCH, Brake
25 1726763 1 CONTROL ASSEMBLY, Foot Pedal
26 1721995 1 SPRING, Extension
27 1686612 1 CAM, Roller
28 1920397 1 NUT, Hex Lock ESNA, 1/4-20
29 1960636 8 NUT, Hex KEPS, 5/16-18
30 1931320 1 CARRIAGE BOLT, 1/4-20 x 1-1/4
31 1664847 3 CAPSCREW, Hex head Washer Taptite, 5/16-18 x 3/4
32 1919381 1 WASHER
33 1919438 1 NUT, Hex Lock ESNA, 5/16-18
34 1927557 3 NUT, Hex Flange Lock, 5/16-18
35 1722535A 1 PEDAL, Brake
36 1721577 1 PAD, Brake Pedal
37 1931334 4 CARRIAGE BOLT, 5/16-18 x 7/8

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

15

TP 400-5273-IR-TC-N

Controls Group

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

16

SERIES 0

Controls Group

p

y

Part No Descri

38 1722083A 1 ACTUATOR, Switch
39 1921333 3 CAPSCREW, Hex Head, 5/16-18 x 1
40 1722070A 1 PEDAL, Forward
41 1721675 1 PAD, Foot Pedal Forward
42 1721674 1 PAD, Foot Pedal Reverse
43 1722071A 1 PEDAL, Reverse
44 1931333 4 CARRIAGE BOLT, 5/16-18 x 3/4
45 1931348 1 CARRIAGE BOLT, 3/8-16 x 3/4
46 1726087A 1 SUPPORT, Idler

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

17

TP 400-5273-IR-TC-N

Cruise Control Group

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

18

SERIES 0

Cruise Control Group

p

y

Part No Descri

1 1960666 1 CAPSCREW, Torx Socket Head, 1/4-20 x 7/8

2 1722303 1 KNOB, Cruise

3 1920397 1 NUT, Hex ESNA Lock, 1/4-20

4 1723258 1 LEVER & BRACKET ASSEMBLY, Cruise

5 1960103 3 WASHER

6 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4

7 926192 2 WASHER, 9/16 x 1-1/4 x 1/8

8 1709043 1 SPACER

9 1931342 1 CARRIAGE BOLT, 5/16-18 x 2-3/4
10 1960273 1 CARRIAGE BOLT, 5/16-18 x 2-1/4
11 1918447 2 PIN, Cotter
12 1726059 1 ROD, Cruise
13 1960636 2 NUT, Hex KEPS, 5/16-18
14 1960001 2 CAPSCREW, Hex Head Plastite, 10-14 x 5/8
15 1717050 1 SWITCH, Push, Neutral Start, Gray
16 1722080 1 SPACER
17 1919326 1 WASHER
18 1919381 2 WASHER
19 1919438 1 NUT, Hex ESNA Lock, 5/16-18
20 1677746 1 SPRING, Compression
21 1722460 2 PIN, Quick
22 1723099 1 ROD, Cruise Return

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

19

TP 400-5273-IR-TC-N

Transmission Group - Tuff Torq K-46BF

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

20

SERIES 0

Transmission Group - Tuff Torq K-46BF

p

y

Part No Descri

1 1960676 2 SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/4

2 1704351 15 FASTENER, Panel 3/4 Head

3 1722173 1 PAD, Footrest, RH Black Vinyl Textured

4 1722174 1 PAD, Footrest with Differential Lock, LH Black Vinyl Texture

5 1960637 4 NUT, Hex KEPS, 3/8-16

6 1928352 2 NUT, Hex Flange, 3/8-16 Whiz Lock Large

7 1931353 1 CARRIAGE BOLT, 3/8-16 x 1-3/4 G5

8 1726052A 1 SUPPORT, Idler, RH

9 1931333 3 CARRIAGE BOLT, 5/16-18 x 3/4 G5
10 2174561 1 PULLEY, 3 in.
11 1960687 3 NUT, Hex Flange3/8-16 ESNA
12 1922755 3 WASHER, 3/4
13 1931350 4 CARRIAGE BOLT, 3/8-16 x 1 G5
14 1919326 10 WASHER, 5/16
15 1960684 2 NUT, Hex KEPS, 5/16-18 Conical Washer
16 1727431A 1 BRACKET, Chute Locator
17 1710545 1 PULLEY, Idler, 4 in.
18 1726053A 1 SUPPORT, Idler, LH
19 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 G5
20 1921210 2 CAPSCREW, Hex Head, 3/8-16X1.000 G5 BLK
21 1727400A 1 DRAWBAR, 1/4 in. Thick
22 1960636 1 NUT, Hex KEPS, 5/16-18
23 1919438 6 NUT, Hex Lock ESNA Light, 5/16-18NC-3B
24 1727526 1 ROD, Transmission Release
25 1960221 1 CLIP, Hair Pin Spring
26 1921978 1 CAPSCREW, Hex Head, 5/16-18 x 2 G5
27 1960141 2 WASHER, 5/16
28 1726055A 1 STRAP, Torque, 1/4 Thick 4 in. Long
29 1923141 4 CAPSCREW, Hex Head, 5/16-18 x 2-3/4 G5
30 1722460 3 PIN, Quick
31 1723045 1 ROD, Control
32 1918447 2 PIN, Cotter
33 1727552 1 SHAFT & ARMS ASSEMBLY, Control
34 1666697 1 SPACER, Powered Metal
35 1727407 1 V-BELT, Drive Belt
36 1924856 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2
37 1727215A 1 ACTUATOR, Switch

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

21

TP 400-5273-IR-TC-N

Transmission Group - Tuff Torq K-46BF

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

22

SERIES 0

Transmission Group - Tuff Torq K-46BF

p

y

Part No Descri

38 1924940 1 WASHER, 3/8
39 1726057 1 ROD, Brake
40 1727473 1 ARM & PIN ASSEMBLY, Speed Control
41 1921333 1 CAPSCREW, Hex Head, 5/16-18 x 1 G5
42 1723267 1 BRACKET & PIN ASSEMBLY, Brake
43 1729277 1 SPRING, Compression
44 2176440 2 BUSHING, Nylon
45 2927794 2 RING, E Retaining
46 1727712 1 TRANSMISSION ASAEMBLY, Tuff Torq K46BF

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

23

TP 400-5273-IR-TC-N

Seat Deck & Fuel Tank Group

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

24

SERIES 0

Seat Deck & Fuel Tank Group

p

y

Part No Descri

1 1722129A 1 BRACKET, Seat

2 1725019 1 SEAT, 15” Back, Snapper Logo

3 1722128A 1 SUPPORT, Seat

4 2172434 1 CLIP, Wire

5 1709256A 6 WASHER, Spring

6 1714263 2 SPRING, Compression

7 1919438 2 NUT, Hex Lock ESNA, 5/16-18

8 1717051 2 SPRING, Compression

9 1930591 8 CAPSCREW, Hex Head Whizlock, 5/16-18 x 3/4
10 1931339 2 CARRIAGE BOLT, 5/16-18 x 2
11 1931350 2 CARRIAGE BOLT, 3/8-16 x 1
12 1722356 1 SLIDE, Seat, (2 Piece Set)
13 1935255 4 NUT, Speed, 5/16-18
14 1930601 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 5/8
15 1722309 1 PLUG, Hole Black
16 1722109 1 POD, LH, w/Cup Holder
17 1924940 2 WASHER
18 1722313 1 COVER, Cruise, w/Symbols
19 2960664 4 CAPSCREW, Hex Head Washer Dog Point, 1/4-20 x 7/8
20 1722300 1 GAS GAUGE
21 1722337 1 GROMMET
22 1715917 1 CAP, Gas
23 1722340 1 TUBE & ELBOW ASSEMBLY
24 1654930 1 BUSHING
25 1722652 1 TANK, Fuel
26 1931277 4 NUT, Hex Whiz Lock, 5/16-18
27 1960636 4 NUT, Hex KEPS, 5/16-18
28 1727233D 1 DECK, Seat, Red
29 1722108 1 POD, RH, W/2 Slots
30 2934665 1 CAPSCREW, Hex Head Whizlock, 5/16-18 x 5/8
31 1722105D 1 TUNNEL, Footrest, Red
32 1663752 2 SPACER
33 1930645 2 NUT, Hex Flange Lock, 3/8-16
34 1960667 4 CAPSCREW, Hex Head Flange Lock, 5/16-18 x 3/4

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

25

TP 400-5273-IR-TC-N

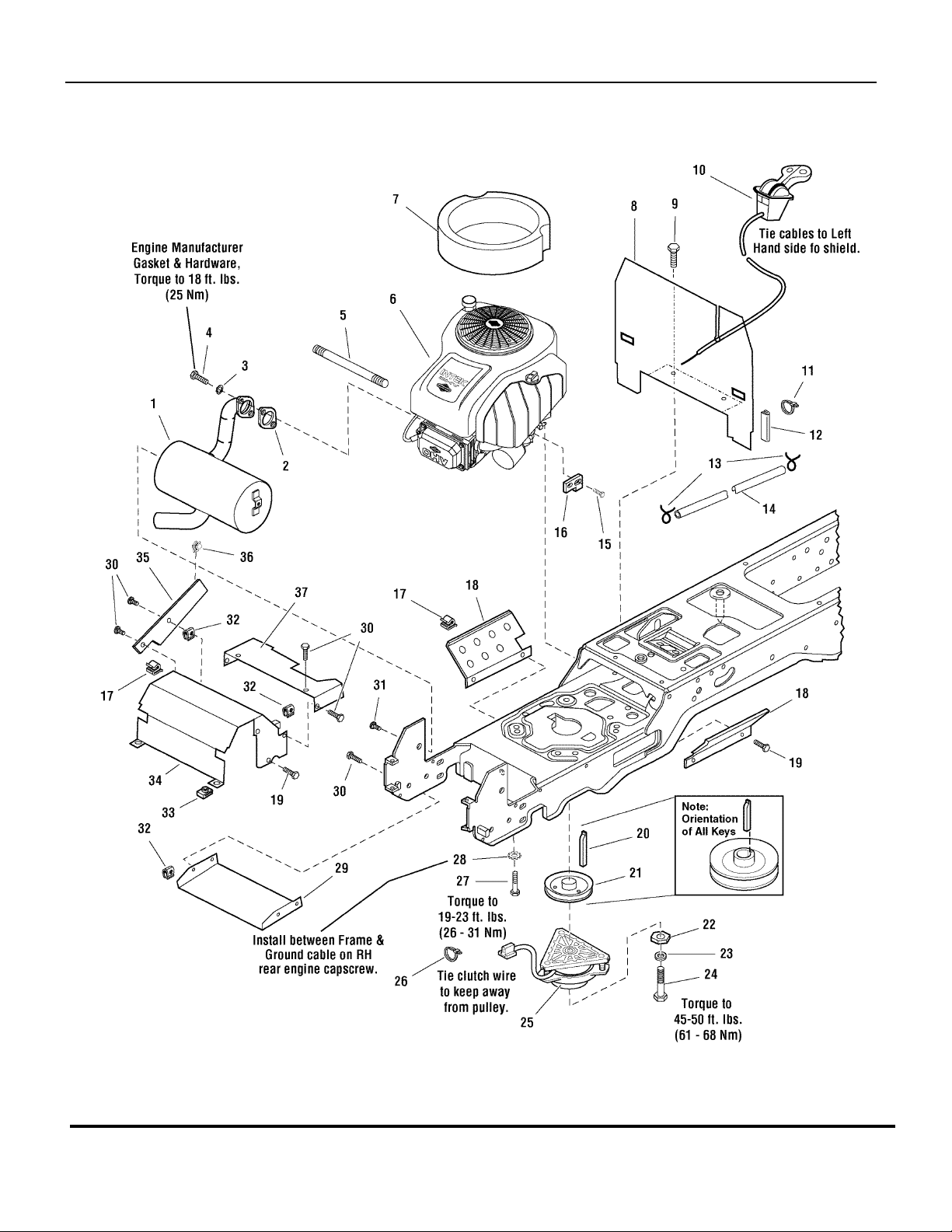

Engine Group - 18 HP INTEK Single Cyl.

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

26

SERIES 0

Engine Group - 18 HP INTEK Single Cyl.

p

y

Part No Descri

1 1723467 1 MUFFLER

2 2 * GASKET

3 1917356 4 LOCKWASHER, 5/16

4 2960660 4 CAPSCREW, Socket Head, 5/16-18 x 7/8, G8

5 1723165 1 HOSE, Oil Drain

6 1 * ENGINE, 18HP Briggs & Stratton INTEK Single (Mod. 31H777-0118-E1)

7 1722950 1 SEAL, Circle

8 1722388A 1 BULKHEAD

9 1925003 2 CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2
10 1724013 1 CONTROL, Throttle/Choke
11 2925094 1 TIE
12 1723894 1 EDGING, Rubber
13 2960112 2 CLAMP, Hose Type E
14 1723174 1 HOSE, 59” Long
15 1726466 1 SCREW, Trox Head Taptite, #8-32 x 1/2
16 1726465 1 PLATE, Limiter RPM
17 2934683 2 CLIP, Wire
18 1722392A 2 SHIELD
19 1929000 3 SCREW, Hex Head Taptite, 1/4-20 x 3/8
20 1720463 1 KEY
21 1722288 1 PULLEY & HUB ASSEMBLY, 4-1/2 OD
22 1708264 1 WASHER, Hex
23 1918199 1 LOCKWASHER, 7/16
24 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 2-3/4
25 1720532 1 CLUTCH, Electric, OGURA
26 2932747 1 TIE
27 2930598 4 CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/2
28 2920427 1 LOCKWASHER, External Tooth, 3/8
29 1722414A 1 SHIELD, Muffler Bottom
30 1960295 6 CAPSCREW, Hex Head Flange Lock1/4-20 x 5/8
31 1924856 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2
32 1960368 5 NUT, Speed, 1/4-20
33 1935255 2 NUT, Speed, 5/16-18
34 1722389A 1 DUCT, Muffler Top
35 1723897A 1 GUARD, Manifold Pipe
36 2172434 1 CLIP, Wire
37 1722390A 1 DUCT, Muffler Extension

tionItem Qt

Note

Footnotes:

Note* See your local Briggs & Stratton distributor for parts and service.

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

27

TP 400-5273-IR-TC-N

Engine Group - 18 HP & 20 HP VANGUARD Twin Cyl.

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

28

SERIES 0

Engine Group - 18 HP & 20 HP VANGUARD Twin Cyl.

p

y

Part No Descri

1 1722625 1 MUFFLER

2 1 * GASKET

3 1917356 2 LOCKWASHER, 5/16

4 2960660 2 CAPSCREW, Socket Head, 5/16-18 x 7/8, G8

5 1728125 1 SCREW, Pan Head Trox, #10-32 x 5/8

6 1728126 1 CLAMP, Throttle Cable

7 1727696 1 PLATE, Limiter RPM

8 1723165 1 HOSE, Oil Drain

9 1 * ENGINE, 18HP Briggs & Stratton INTEK Twin (Mod. 356777-0113-E1)

9 1 * ENGINE, 20HP Briggs & Stratton INTEK Twin (Mod. 358777-0110-E1)
10 1722949 1 SEAL, Circle
11 1722388A 1 BULKHEAD
12 1925003 2 CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2
13 1727223 1 CONTROL, Throttle Double 39” Long w/Knobs
14 2925094 1 TIE
15 2960112 2 CLAMP, Hose Type E
16 1723165 1 HOSE, 59” Long
17 2934683 2 CLIP, Wire
18 1722392A 2 SHIELD
19 1929000 8 SCREW, Hex Head Taptite, 1/4-20 x 3/8
20 1720463 1 KEY
21 1722288 1 PULLEY & HUB ASSEMBLY, 4-1/2 OD
22 1708264 1 WASHER, Hex
23 1918199 1 LOCKWASHER, 7/16
24 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 2-3/4
25 1720532 1 CLUTCH, Electric, OGURA
26 2932747 1 TIE
27 2930598 4 CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/2
28 2920427 1 LOCKWASHER, External Tooth, 3/8
29 1722414A 1 SHIELD, Muffler Bottom
30 1960295 8 CAPSCREW, Hex Head Flange Lock, 1/4-20 x 5/8
31 1924856 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2
32 1960368 8 NUT, Speed, 1/4-20
33 1935255 2 NUT, Speed, 5/16-18
34 1722389A 1 DUCT, Muffler Top
35 1722390A 1 DUCT, Muffler Extension

tionItem Qt

Note

Footnotes:

Note* See your local Briggs & Stratton distributor for parts and service.

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

29

TP 400-5273-IR-TC-N

40" Mower Deck - Belt, Idle Arm & Hitch

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

30

SERIES 0

40" Mower Deck - Belt, Idle Arm & Hitch

p

y

Part No Descri

1 1725557 1 V-BELT

2 2101096 1 PULLEY, 4-1/2 OD

3 1919439 1 NUT, Hex Lock ESNA, 3/8-16

4 1719842 1 STOP, Belt

5 1924940 8 WASHER

6 2157081 2 SPACER

7 1719965 1 GRIP, Black

8 1720444 1 IDLER ARM ASSEMBLY, w/Bushings

9 1960614 1 CAPSCREW, Hex Head, 3/8-16 x 3, G8
10 1922755 3 WASHER
11 1960615 1 CARRIAGE BOLT, 3/8-16 x 2-1/2
12 1657242 1 SPACER
13 1933263 1 WASHER
14 1715435 1 SPRING, Extension
15 1923701 2 CAPSCREW, Hex Head, 3/8-16 x 2
16 1724802 2 PULLEY, Idler
17 1719221 2 HUB, Pulley
18 1928352 2 NUT, Hex Flange Lock, 3/8-16
19 1921968 2 CAPSCREW, Hex Head, 3/8-16 1-3/8
20 2172329 2 SPACER
21 1713578 1 ROD
22 2156302 1 SPRING, Extension
23 1715759 1 ROD
24 1720044A 1 HITCH, Mower
25 1960519 1 NUT, Push
26 960681 2 NUT, Spiral Flange Toplock, 3/8-16
27 1721425 1 WASHER & LOCK NUT ASSEMBLY, 3/8-16
28 1674671 1 SPRING, Extension
29 1726387A 1 ARM, Idler
30 1666697 1 SPACER
31 1930601 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 5/8
32 1724626 1 BELT, Timing

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

31

TP 400-5273-IR-TC-N

40" Mower Deck - Housing, Arbors & Blade

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

32

SERIES 0

40" Mower Deck - Housing, Arbors & Blade

p

y

Part No Descri

1 1687322 1 HOUSING ASSEMBLY, 40" Red

3 1664847 6 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4

4 2830584 1 CAPSCREW, Hex Head 7/16-14 x 2-3/4 G8

5 1933263 1 WASHER, 7/16

7 1656916 3 WASHER, Spring

8 1732123 1 PULLEY

9 1719862 1 HUB
10 1732590 2 SPROCKET & FLANGE ASSEMBLY, Rivets/Screws 40"
11 1657969 2 SHIELD, Bearing, Mower Arbor Uppoer Heat Treated
12 1655729A 2 HOUSING, Arbor Top
13 1707335 2 GASKET, Foam
14 1722396 1 ARBOR SHAFT & BEARINGS ASSEMBLY, 40"
15 1703273A 2 HOUSING & FITTING ASSEMBLY, Lower
16 1677274A 2 ADAPTER, Arbor
17 1700230 2 WASHER, Shim
18 1700229 2 SHIELD, Bearing
19 1655777 2 ADAPTER, Blade
20 1727477 1 BLADE, Mower L.H.
21 1727478 1 BLADE, Mower R.H.
22 1722258 2 PIN, Blade
23 1722257 2 WASHER, Spline
24 2827120 2 CAPSCREW, Hex Head 7/16-14 x 2-1/4 G8
25 1960373 12 SCREW, Hex Washer Head Taptite 5/16-18 x 1
26 1675044 2 RIVET, Pop
27 1721132A 1 GUARD, Extension
28 1724600 1 COVER, Arbor R.H.
29 1960096 2 WASHER
36 1713675 2 WASHER, Bellville
37 1714419 1 NUT, Hex Flange 9/16-18
38 1726826 1 ARBOR SHAFT & BEARINGS ASSEMBLY, 40"
40 1732960A 1 SHIM, Cover L.H.
41 1732961A 1 SHIM, Cover R.H.
42 1732301 1 COVER, Arbor L.H.

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

33

TP 400-5273-IR-TC-N

40" Mower Deck - Height Adjustment & Roller Bar

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

34

SERIES 0

40" Mower Deck - Height Adjustment & Roller Bar

p

y

Part No Descri

1 1921977 1 CAPSCREW, Hex Head 5/16-18 x 1-1/4 G5

2 1960044 1 WASHER, 5/16

3 1733899A 2 BRACKET, Flat Mounting

4 1921333 4 CAPSCREW, Hex Head 5/16-18 x 1 G5

5 1960686 4 NUT, Hex Flange 5/16-18 Esna
10 1924940 12 WASHER, 3/8
11 1669585 8 SPACER
13 1723124 1 BUTTON,
14 1713995 1 GRIP
15 1960674 1 NUT, Push Pal 1/4 Diameter Thread
16 1723321 1 SPRING, Compression
17 1732751A 1 HANDLE ASSEMBLY, Lift Curved
18 1732754 1 ROD, Curved
19 1921159 1 CAPSCREW, Hex Head 1/4-20 x 2-1/4 G5
20 1720599 1 LATCH
21 1920397 1 NUT, Hex Lock Esna Light 1/4-20
22 1931335 2 CARRIAGE BOLT, 5/16-18 x 1 G5
23 1917356 2 LOCKWASHER, Spring 5/16
24 1917372 2 NUT, Hex 5/16-18
25 1714760 4 WHEEL
26 1923903 4 CAPSCREW, Hex Head 3/8-16 x 3 G5
28 1922606 1 CAPSCREW, Hex Head 3/8-16 x 3/4 G8
29 1722661 1 ROD
30 1706644 1 SPACER, 3/8 x 3/4 x 15/16
31 2860681 7 NUT, Hex Toplock Spiralock Flange 3/8-16
32 2118053 1 PIN, Round Head Drilled 3/8 x 2
33 1706645A 1 TRUNNION
34 1915726 2 NUT, Hex 5/8-11
35 1722460 1 PIN, Quick
36 1931202 4 SCREW, Hex Washer Head Taptite 5/16-18 x 1-1/4
37 1919381 4 WASHER, 5/16
38 1933988 4 NUT, Push Pal 5/16 Diameter Thread
39 1665374 3 STRAP
40 1664847 2 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
41 1720931A 1 BRACKET, Height of Cut
42 1719846A 1 BAR
43 1719929 2 STOP, Up

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

35

TP 400-5273-IR-TC-N

40" Mower Deck - Height Adjustment & Roller Bar

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

36

SERIES 0

40" Mower Deck - Height Adjustment & Roller Bar

p

y

Part No Descri

44 1960703 2 WASHER, 5/8
45 1919438 1 NUT, Hex Lock Esna Light 5/6-18
46 2108512 1 PIVOT, 3/4 Hex & 3/8
47 1918447 1 COTTER PIN,
48 1723409A 1 BRACKET, Adjusting
49 1666697 1 SPACER
50 1720704 1 ROD & WASHER ASSEMBLY
51 1651820 1 GRIP
52 1917421 1 NUT, Hex Jam 3/8-16
53 1960601 1 NUT, Hex Flange 3/8-16
54 2108241 1 GUIDE ASSEMBLY, Rod
55 1918265 1 WASHER, 5/16
56 1733065A 1 SHAFT ASSEMBLY, Rocker 40"
57 1727102A 1 HANGER, R.H.
58 1727103A 1 HANGER, L.H.
59 1960074 2 CLIP, Hair Pin
60 1920161 2 NUT, Hex Jam 5/16-18
61 1708088A 2 CHAIN, Link
62 1960033 2 CLIP, Hair Pin
63 1731382 2 TRUNNION
64 1731384 2 ROD, Height Adjusting
65 1930645 1 NUT, Hex Flange 3/8-16 Two-Way Lock

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

37

TP 400-5273-IR-TC-N

Hopper Group

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

38

SERIES 0

Hopper Group

p

y

Part No Descri

1 1727486A 1 ROD & TABS ASSEMBLY, Bagger Front

2 1960685 22 NUT, Hex KEPS Conical Washer, 1/4-20

3 1960353 8 WASHER, 1/4

4 1931320 4 CARRIAGE BOLT, 1/4-20 x 1-1/4

5 1921333 6 CAPSCREW, Hex Head, 5/16-18 x 1 G5

6 1917356 6 LOCKWASHER, Spring 5/16

7 1919326 6 WASHER, 5/16

8 1931317 15 CARRIAGE BOLT, 1/4-20 x 3/4 G5

9 1715654 2 SPACER
10 1727674 6 CLIP, L 12GA
11 1727420A 1 FRAME ASSEMBLY, Hopper
12 1924009 4 CAPSCREW, Hex Head, 1/4-20 x 7/8 G5
13 1921319 3 WASHER, 1/4
14 1916964 4 LOCKWASHER, Spring 1/4
15 1916622 4 NUT, Hex 1/4-20
16 1727832 2 CABLE, Bagger, 17.72 Long
17 1727676 4 CLIP, L 12GA
18 1727671A 1 BAR, Bagger Top 7GA
19 1724684 2 WASHER, 5/8
20 1724399A 1 HANDLE, Hopper, 13.59 Long
21 1727931 1 LID & SCREEN ASSEMBLY, Red
22 1727423 1 BAG, Grass Black Cloth
23 1931334 9 CARRIAGE BOLT, 5/16-18 x 7/8 G5
24 1727520A 1 PLATE, Tube Stop Bagger 14GA
25 1727670A 1 BAR, Bagger Bottom 7GA
26 1727675A 2 BRACE, Angle
27 1960044 1 WASHER, 5/16
28 1960684 5 NUT, Hex KEPS Conical Washer, 5/16-18
29 1921978 1 CAPSCREW, Hex Head, 5/16-18 x 2 G5
30 1960044 2 WASHER, 5/16
31 1724651A 1 LATCH, Release 10GA
32 1921333 1 CAPSCREW, Hex Head, 5/16-18 x 1 G5
33 1919326 2 WASHER, 5/16
34 1666697 1 SPACER, Powdered Metal
35 1714263 1 SPRING, Compression
36 1923360 1 PIN, Cotter

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

39

TP 400-5273-IR-TC-N

Hopper Group

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

40

SERIES 0

Hopper Group

p

y

Part No Descri

37 1724652 1 ROD, Foot Pedal Bagger Release, 11.66 Long, 2 Bends
38 1919438 2 NUT, Hex Lock ESNA Light, 5/16-18 NC-3B
39 1727580A 1 PIVOT ASSEMBLY, Latch
40 1928352 5 NUT, Hex Flange Whiz Lock, 3/8-16 Large
41 1921965 4 CAPSCREW, Hex Head, 3/8-16 x 3/4 G5
42 1727419A 1 BACKPLATE ASSEMBLY
43 1723182A 1 BRACKET, Latch LH, 7GA
44 1931277 4 NUT, Hex Flange Whiz Lock, 5/16-18 Small
45 1960074 2 CLIP, Hair Pin, Spring Wire
46 1724458 1 ROD, 25.12 Long, 2 Bends
47 1921973 1 CAPSCREW, Hex Head, 3/8-16 x 2-3/4 G5
48 1924940 1 WASHER, 3/8
49 1676148 2 BUSHING, Powdered Metal
50 1669105A 1 SPACER, 1-1/2 Long, Hardened
51 1718016 1 SPRING, Extansion
52 1725036 1 ROD & TUBE ASSEMBLY, Differential Lock Pedal
53 1719940 1 KNOB, Hole 1/2, 1.37 Long
54 1960268 4 CARRIAGE BOLT, 3/8-16 x 1-1/4 G5
55 1724540 1 SHAFT & ARMS ASSEMBLY, Latch
56 1960556 4 SCREW, Pan Head Torx Taptite, 1/4-20 x 3/4
57 1930645 1 NUT, Hex Flange Two Way Lock, 3/8-16 GA
58 1923341 1 CAPSCREW, Hex Head, 1/4-20 x 3/4 G5
59 1727429 1 CHUTE, Discharge Black Poly
60 1724553 1 CAPLUG, Black Poly, 3/4 Hole
61 1713855 1 KNOB, Bagger Release
62 1666969 1 PIN, Klik 5/164
63 1727523A 1 HANDLE, Tube, 39.75 Long
64 1723359 1 GRIP, Hopper Lift Rod
65 1727406 1 TRANSITION, Hopper Black
66 1723181A 1 BRACKET, Latch RH, 7GA

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

41

TP 400-5273-IR-TC-N

Deflector Group

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

42

SERIES 0

Deflector Group

p

y

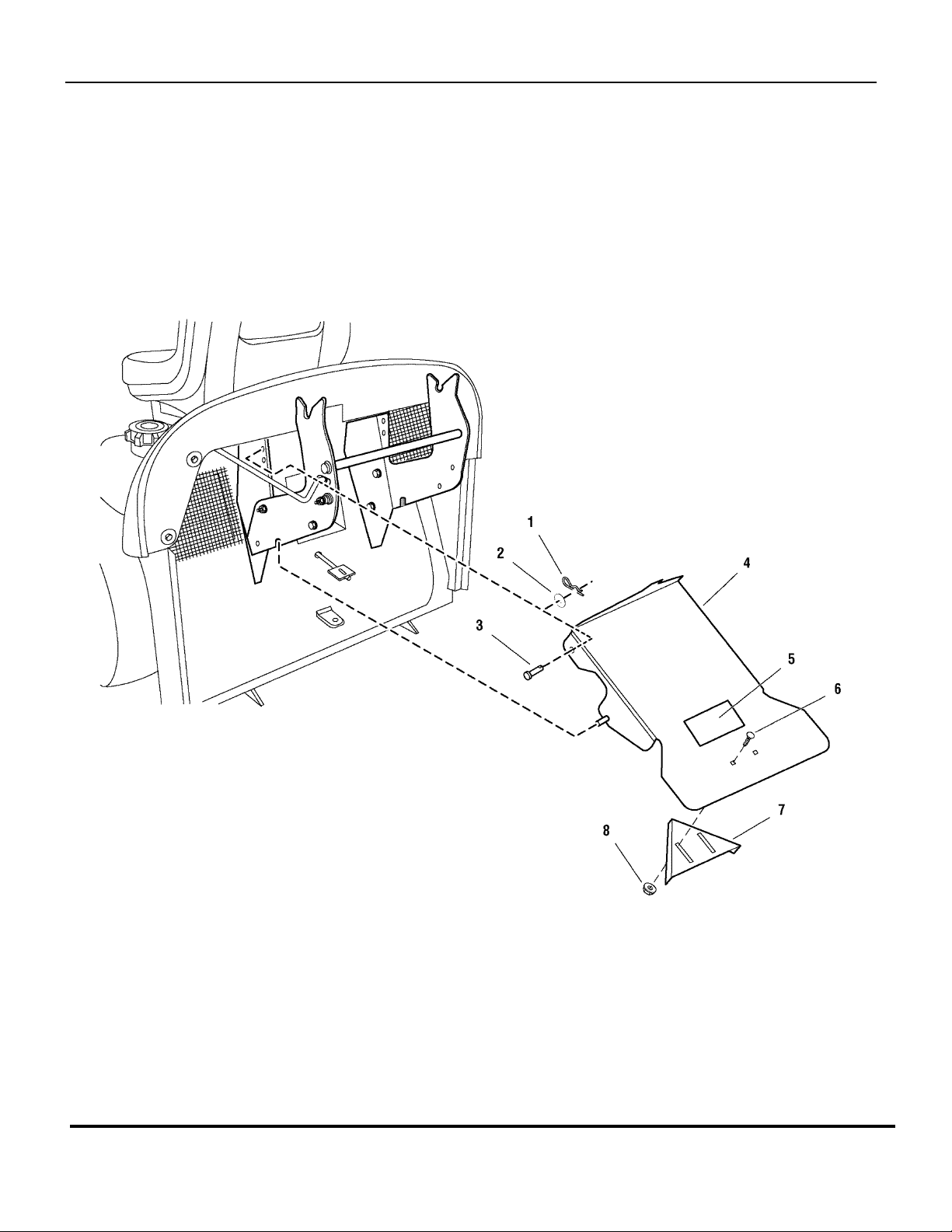

Part No Descri

1 1960074 2 CLIP, Hair Pin

2 1919381 2 WASHER, 5/16

3 1723683 2 PIN, Clevis

4 1724935A 1 DEFLECTOR & PINS ASSEMBLY

5 1720391 1 DECAL, Danger Operating without Catcher

6 1960252 2 CARRIAGE BOLT, 1/4-20 x 5/8 G5

7 1724864A 1 DEFLECTOR, 16GA

8 1960685 2 NUT, Hex KEPS Conical Washer, 1/4-20

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

43

TP 400-5273-IR-TC-N

Decals Group

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

44

SERIES 0

Decals Group

p

y

Part No Descri

1 1725240 2 DECAL, RD1840

2 1725065 1 DECAL, Hood Stripe, Snapper, LH

3 1727713 1 DECAL, Belt & Blade

4 1722806 1 DECAL, Ignition Switch

5 1723713 1 DECAL, Crusie / Lift

6 1723310 1 DECAL, Hopper Lever

7 1725061 1 DECAL, Snapper

8 1724680 1 DECAL, Latch Release

9 1727714 1 DECAL, Baron XL
10 1723317 1 DECAL, Hopper Pedal
11 1723296 2 DECAL, Protective, Clear
12 1 * DECAL, Patent
13 1 * DECAL, Serial Number, Tractor
14 2 * DECAL, Decible Power Mass, Export Only
15 1720391 2 DECAL, Danger Operating W/O Catcher
16 1721141 1 DECAL, Drawbar Max Load
17 1725066 1 DECAL, Hood Stripe, Snapper, RH
18 1723425 1 DECAL, Transmission Release Valve
19 1720390 1 DECAL, Danger Catcher Open
20 1723175 1 DECAL, Warning/Danger Icons, Tunnel
21 1725072 1 DECAL, Touch Up Paint
22 1720389 2 DECAL, Danger Rotating Blade, Export Only
23 1723470 1 DECAL, Height Of Cut
24 1721107 1 DECAL, Danger, Discharge Tube
25 1 * DECAL, Serial Number, Mower Deck

tionItem Qt

Note

Footnotes:

Note: * Not a Service Part

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

45

TP 400-5273-IR-TC-N

Electrical Group

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

46

SERIES 0

Electrical Group

p

y

Part No Descri

1 1721810 1 HEADLIGHT ASSEMBLY, 4 Bulb

2 1722669 1 HARNESS, Headlight

3 1722887 1 SWITCH, PTO Push/Pull w/Symbols

4 1921959 1 CAPSCREW, Hex Head, 1/4 x 5/8

5 1722739 1 SOLENOID

6 1726556 1 MODULE, RMO (Includes Ref. No. 7)

7 1726557 1 KEY, RMO Module Plastic

7 1727185 1 KEY, w/Hang Tag for RMO Module

8 1722611 1 PLUG, Hole Black

9 1665237 1 WIRE, 12GA 8 Long Red
10 2920426 3 LOCKWASHER, External Tooth 5/16
11 1665238 1 BREAKER, Circuit 12VOLT 20AMPS w/Tabs
12 2916622 3 NUT, Hex, 1/4-20 NC-2B
13 1716061 1 SWITCH ASSEMBLY, Ingition, 6 Pin Indak (Includes Ref. Nos. 1)
14 2101025 1 WASHER, 5/8
15 1960547 1 LOCKWASHER, Internal Tooth, 5/8
16 1717549 1 NUT, Hex Flange, 5/8-32 Ignition Switch
17 1717550 1 COVER, Ignition Switch, Black
18 1717163 1 KEYS, Ignition Set of 2
19 1721830 1 CABLE, # 6 x 25 Long Red, 2 Ring Terminals
20 1725523 1 METER, Hour Digital w/Oil & Lube Alarms
21 1725524 1 PLUG, Dash, Hour Meter
21 1725698 1 PLUG, Dash, No Hour Meter Hole
22 1725835 1 CLIP, Hour Meter, Holds In Dash
23 1720117 1 BUZZER, Pulse, Grass Bag Full
24 1716951 1 SWITCH, Headlights, 2 Terminal
25 1726890 1 HARNESS, Wiring Upper
26 1677296 1 BOOT, Insulator, Battery Terminal
27 920263 2 NUT, Hex, 5/16-24 NF-2B
28 1727776A 1 DEFLECTOR, Switch 14GA
29 1960685 2 NUT, Hex KEPS Conical Washer, 1/4-20
30 1723954 1 HARNESS, Wiring Rear
31 1720411 1 SWITCH, Push Button w/Boot, Bagger
32 1960252 3 CARRIAGE BOLT, 1/4-20 x 5/8 G5
33 1727428 1 PIVOT, Actuator 14GA, E-Coat
34 1960103 1 WASHER, 3/8
35 960293 1 NUT, Wing Lock, 1/4-20

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

47

TP 400-5273-IR-TC-N

Electrical Group

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5273-IR-TC-N

48

SERIES 0

Electrical Group

p

y

Part No Descri

36 1960607 1 PIN, Clevis
37 1960221 1 CLIP, Hair Pin
38 1727427 1 SUPPORT, Actuator 14GA, E-Coat
39 1960536 2 SCREW, Hex Washer Head Plastite, 1/4 x 1/2
40 1716368 1 SWITCH, Operator Presents, Seat
41 1929000 1 SCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
42 1726810A 1 BRACKET, Switch Mounting, RMO
43 1704379 2 SWITCH, Push Button, Reverse Pedal
44 1723507 1 SWITCH, Push Button, Foot Pedal
45 1717050 1 SWITCH, Push Button, Cruise Control
46 1603618 1 CABLE, # 6 x 9 Long, 2 Ring Terminals
47 1685215 1 BATTERY, 12VOLT 6CELL 230AMPS CCA
48 1722009 1 STRAP, Battery 14 Long, Black Rubber
49 1713163 1 CABLE, # 6 x 26 Long Black, 2 Ring Terminals
50 2923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4 G5
51 2921319 2 WASHER, 1/4
52 2916964 2 LOCKWASHER, Spring 1/4
53 1713535 1 BOOT, Insulator Red, Cable Terminal
54 2925094 4 TIE, Self Locking, 7-5/16
55 1726889 1 HARNESS, Wiring Lower

tionItem Qt

Note

Footnotes:

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

SERIES 0

49

TP 400-5273-IR-TC-N

Parts Manual fo

r

YARD TRACTOR ELECTRIC CLUTCH

HYDRO DRIVE RMO & ACS "RD"

SERIES 0

IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS

PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO.

WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD

IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY

OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS

Briggs & Startton Yard Power Products Group
Copyright © 2007
Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation

Revision IR,

McDonough, GA, 30253 U.S.A.

5/23/2007

Manual No. 7006469

TP 400-5273-IR-TC-N
