Parts Manual fo
r
)
)
YARD TRACTOR ELECTRIC CLUTCH
HYDRO DRIVE REAR DISCHARGE RMO
SERIES 0
MODEL
RD1840 (2690342
RD18S40 (2690341
COPYRIGHT ©2005
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
McDonough, GA, 30253 U.S.A.
Manual No. 06457
Revision IR,
6/7/2005
TP 400-5064-IR-TC-N
s
PAGE GROUP
4
6
8
10
14
18
20
24
26
28
30
32
34
36
40
42
46
48
Wheels & Tires Group
Hood, Grille & Dash Group
Steering Group
Frame & Front Axle Group
Controls Group
Cruise Control Group
Transmission Group - Tuff Torq K-46BF
Seat Deck & Fuel Tank Group

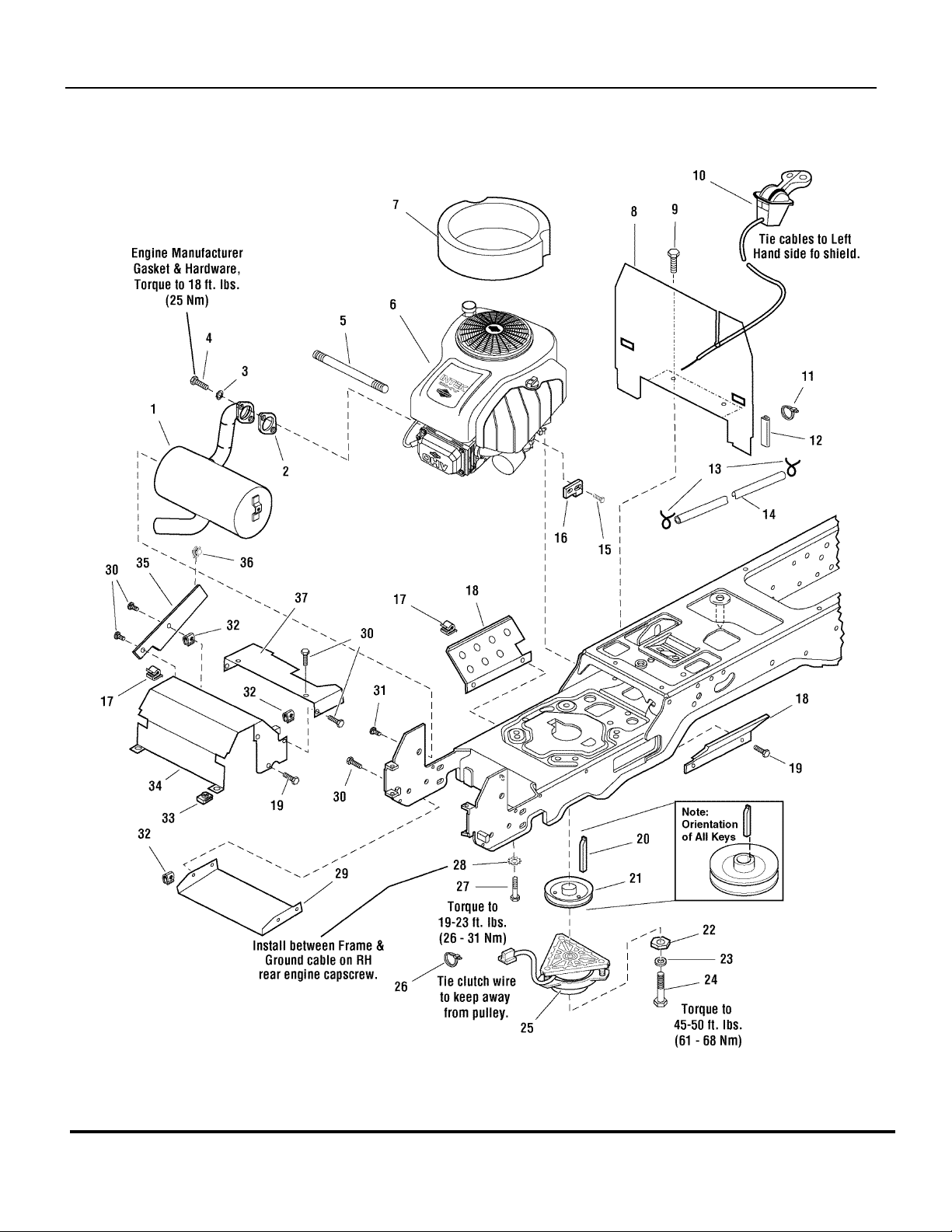

Engine Group - 18 HP INTEK Single Cyl.
Engine Group - 18 HP & 20 HP VANGUARD Twin Cyl.
Lift Group
40" Mower Deck - Belt, Idle Arm & Hitch
40" Mower Deck - Housing, Arbors & Blade
40" Mower Deck - Height Adjustment & Roller Bar
Deflector Group
Hopper Group
Decals Group
Electrical Group
Table Of Content
SERIES 0
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
3
TP 400-5064-IR-TC-N
Wheels & Tires Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
4
SERIES 0
Wheels & Tires Group
p
y
Part No Descri
1 1722065 2 WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 2, 3, 4, 5
2 1722838 1 TIRE, 15 x 6, Super Turf
3 1664090 1 TUBE, Tire, Front, 4.10/3.50
4 1717056 2 BEARING, Ball
5 1722837 1 WHEEL, 4-1/2” x 6”
6 2172353 4 VALVE STEM & CAP ASSEMBLY
7 1722726 4 WASHER, Special, (As Required)
8 1919394 4 WASHER, 1, (As Required)
9 2932577 2 RING, Retaining, External #98
10 1722676 4 CAP, Hub, Gray
11 1729279 2 KEY, Parellel, 3/16 x 3/16 x 1-1/2
12 2960202 4 WASHER, 3/4
13 1709527 2 SPACER
14 1721694 2 WHEEL & TIRE ASSEMBLY, (Includes Ref. Nos. 6, 15, 16 & 17)
15 1722826 1 TIRE, 20 x 10, 8 Super Turf
16 2173477 1 TUBE, Tire, 20 x 8, Rear
17 1722835 1 WHEEL, 7 x 7.96, W/ 3/4 OD Shaft
18 1722717 2 WASHER, Special
19 1960114 2 WASHER, 3/4
20 2927794 2 RING, “E” External
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
5
TP 400-5064-IR-TC-N
Hood, Grille & Dash Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
6
SERIES 0
Hood, Grille & Dash Group
p
y
Part No Descri
1 1721804 1 PANEL, RH Side
1 1721804D 1 PANEL, RH Side, Red
2 1721801 1 HOOD, no Louvers
2 1721801D 1 HOOD, no Louvers, Red
3 1722110 1 HOOD, with Louvers
3 1722110D 1 HOOD, with Louvers, Red
4 1960295 12 CAPSCREW, Hex Head Flange Lock,1/4-20 x 5/8
5 1960392 1 SCREW, Phillips Head, #10-24 x 1/2
6 1687056 1 DASHBOARD, RMO with Buzzer Hole, Black
7 1933896 1 NUT, Hex Nylock,#10-24
8 1723123 1 ROD, Dash Support
9 1930641 12 NUT, Hex Flange Lock, 1/4-20
10 1721803 1 PANEL, LH Side
10 1721803D 1 PANEL, LH Side, Red
11 1721808 1 HINGE, LH
12 1722391 1 DUCT, Air Inlet
13 1721802 1 GRILLE
13 1721802D 1 GRILLE, Red
14 1721810 1 HEADLIGHT ASSEMBLY, (Includes Ref. Nos. 15 & 16)
15 1677371 4 BULB, Headligh
16 1723451 4 SOCKET, Headlight
17 1721809 1 HINGE, RH
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
7
TP 400-5064-IR-TC-N
Steering Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
8
SERIES 0
Steering Group
p
y
Part No Descri
1 1722318 1 STEERING WHEEL, Straight Shaft
2 1725024 1 CAP, Steering Wheel, Plain
3 1960540 1 PIN, Spring
4 1722749 1 COVER, Black Rubber
5 2176440 2 BUSHING
6 1721736 1 PLATE, Mounting Steering
7 1960114 6 WASHER
8 1933260 2 CAPSCREW, Hex Head Flange Lock, 3/8-16 x 3/4
9 1931211 2 NUT, Hex Whiz Lock, 3/8-16
10 1722459 1 BEARING, Flange
11 1722461 1 SPACER
12 1724470 1 GEAR & SHAFT ASSEMBLY
13 1960032 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4
14 1930645 1 NUT, Hex Flange Lock, 3/8-16
15 1664847 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
16 1723604 1 SHAFT ASSEMBLY
17 1919314 1 PIN, Cotter
18 1931317 2 CARRIAGE BOLT, 1/4-20 x 3/4
19 2928372 2 NUT, Hex,1/4-20
20 1611710 1 RING, Clipring Extension
21 1960114 2 WASHER
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
9
TP 400-5064-IR-TC-N
Frame & Front Axle Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
10
SERIES 0
Frame & Front Axle Group
p
y
Part No Descri
1 1930645 7 NUT, Hex Flange Lock, 3/8-16
2 1960035 2 WASHER
3 2960646 1 NUT, Hex Flange, 5/8-11
4 1722212 1 PLATE, Axle
5 1724081 1 TOWER & SUPPORT ASSEMBLY
6 1923683 4 CAPSCREW, Hex Head Taptite, 3/8-16 x 3/4
7 1723528 1 SUPPORT
8 1664847 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
9 1727396 1 FRAME ASSEMBLY
10 2960645 1 CAPSCREW, 5/8-11 x 3-1/2
11 1704314 2 FITTING, Grease for Wear Plate, 1/4-20, with Ball
12 1933260 4 CAPSCREW, Hex Head, Flange Lock, 3/8-16 x 3/4
13 1722541 1 LINK, Drag
14 1922755 1 WASHER
15 1960103 2 WASHER
16 1919262 1 NUT, Hex Jam, 1/2-20
17 1702779 1 JOINT, Ball
18 1708236 1 SPACER
19 1931350 2 CARRIAGE BOLT, 3/8-16 x 1
20 1611705 2 SPACER
21 1722626 1 ROD, Tie
22 1721682 6 BUSHING
23 1930650 2 NUT, Hex Flange Lock, 7/16-14
24 1704314 3 FITTING, Lube
25 1686985 1 SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26,
27,
26 2823485 1 CAPSCREW, 3/8-16 x 7/8, GR8
27 1663151 1 WASHER, Spring, 3/8
28 1725112 1 HUB & ARM ASSEMBLY
29 2830671 1 KEY, Woodruff
30 1724264 1 SPINDLE, LH
31 1722200 1 AXLE ASSEMBLY, w/ LH Spindle, Complete (Includes Ref. Nos.
2
32 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2
33 1927531 2 CAPSCREW, Hex Head, 7/16-14 x 2, GR8
34 1721918 1 HOOK, “J”
35 1721752 1 SPACER
36 1960086 4 SCREW, Torx Head, 5/16-18 x 7/8
37 1721805 1 BUMPER, Black, Steel, Standard
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
11
TP 400-5064-IR-TC-N
Frame & Front Axle Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
12
SERIES 0
Frame & Front Axle Group
p
y
Part No Descri
37 1723502 1 BUMPER, Chrome, Optional
38 1930591 2 CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4
39 1724801 1 PLATE, Axle Wear
40 1931277 2 NUT, Hex Falnge Whiz Lock, 5/16-18
41 1722199 1 SPINDLE, RH
42 1919394 1 WASHER
43 2932577 1 RETAINING RING
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
13
TP 400-5064-IR-TC-N
Controls Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
14
SERIES 0
Controls Group
p
y
Part No Descri
1 1721353 1 ROD, Brake
2 1721891 1 KNOB, Push On, Red
3 1930591 1 CAPSCREW, Hex Head Flange Lock, 5/16-18 x 3/4
4 1960687 3 NUT, Hex Flange, 3/8-16 ESNA
5 1721134 1 PULLEY ASSEMBLY, 3 OD, W/Bearing
6 1667811 2 SPACER
7 1922755 3 WASHER, 3/8
8 1710545 1 PULLEY, Idler 4 OD
9 1960315 2 CARRIAGE BOLT, 3/8-16 x 2 G5
10 1663114 2 BUSHING
11 1727370 1 ARM & HUB ASSEMBLY, Idler
12 1727910 1 SPRING, Extension
13 1960020 1 WASHER, 5/8
14 1924366 1 WASHER, 5/8
15 1704420 1 RING, Clipring
16 1704314 1 FITTING, Lube, 1/4 Ball Check
17 1710539 1 PULLEY, Idler 3-1/4 OD
18 1960315 1 CARRIAGE BOLT, 3/8-16 x 2 G5
19 1918447 1 PIN, Cotter
20 1924940 1 WASHER
21 1727408 1 ROD, Brake (Flat Ends)
22 1722460 1 PIN, Quick
23 1919326 1 WASHER
24 1721354 1 LATCH, Brake
25 1726763 1 CONTROL ASSEMBLY, Foot Pedal
26 1721995 1 SPRING, Extension
27 1686612 1 CAM, Roller
28 1920397 1 NUT, Hex Lock ESNA, 1/4-20
29 1960636 4 NUT, Hex KEPS, 5/16-18
30 1931320 1 CARRIAGE BOLT, 1/4-20 x 1-1/4
31 1664847 3 CAPSCREW, Hex head Washer Taptite, 5/16-18 x 3/4
32 1919381 1 WASHER
33 1919438 1 NUT, Hex Lock ESNA, 5/16-18
34 1927557 3 NUT, Hex Flange Lock, 5/16-18
35 1722535 1 PEDAL, Brake
36 1721577 1 PAD, Brake Pedal
37 1931334 4 CARRIAGE BOLT, 5/16-18 x 7/8
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
15
TP 400-5064-IR-TC-N
Controls Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
16
SERIES 0
Controls Group
p
y
Part No Descri
38 1722083 1 ACTUATOR, Switch
39 1921333 3 CAPSCREW, Hex Head, 5/16-18 x 1
40 1722070 1 PEDAL, Forward
41 1721675 1 PAD, Foot Pedal Forward
42 1721674 1 PAD, Foot Pedal Reverse
43 1722071 1 PEDAL, Reverse
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
17
TP 400-5064-IR-TC-N
Cruise Control Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
18
SERIES 0
Cruise Control Group
p
y
Part No Descri
1 1960666 1 CAPSCREW, Torx Socket Head, 1/4-20 x 7/8
2 1722303 1 KNOB, Cruise
3 1920397 1 NUT, Hex ESNA Lock, 1/4-20
4 1723258 1 LEVER & BRACKET ASSEMBLY, Cruise
5 1960103 3 WASHER
6 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4
7 926192 2 WASHER, 9/16 x 1-1/4 x 1/8
8 1709043 1 SPACER
9 1931342 1 CARRIAGE BOLT, 5/16-18 x 2-3/4
10 1960273 1 CARRIAGE BOLT, 5/16-18 x 2-1/4
11 1918447 2 PIN, Cotter
12 1726059 1 ROD, Cruise
13 1960636 2 NUT, Hex KEPS, 5/16-18
14 1960001 2 CAPSCREW, Hex Head Plastite, 10-14 x 5/8
15 1717050 1 SWITCH, Push, Neutral Start, Gray
16 1722080 1 SPACER
17 1919326 1 WASHER
18 1919381 2 WASHER
19 1919438 1 NUT, Hex ESNA Lock, 5/16-18
20 1677746 1 SPRING, Compression
21 1722460 2 PIN, Quick
22 1723099 1 ROD, Cruise Return
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
19
TP 400-5064-IR-TC-N
Transmission Group - Tuff Torq K-46BF
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
20
SERIES 0
Transmission Group - Tuff Torq K-46BF
p
y
Part No Descri
1 1960676 2 SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/4
2 1704351 15 FASTENER, Panel 3/4 Head
3 1722173 1 PAD, Footrest, RH Black Vinyl Textured
4 1722174 1 PAD, Footrest with Differential Lock, LH Black Vinyl Texture
5 1960637 4 NUT, Hex KEPS, 3/8-16
6 1928352 2 NUT, Hex Flange, 3/8-16 Whiz Lock Large
7 1931353 1 CARRIAGE BOLT, 3/8-16 x 1-3/4 G5
8 1726052 1 SUPPORT, Idler, RH
9 1931333 3 CARRIAGE BOLT, 5/16-18 x 3/4 G5
10 2174561 1 PULLEY, 3 in.
11 1960687 3 NUT, Hex Flange3/8-16 ESNA
12 1922755 3 WASHER, 3/4
13 1931350 4 CARRIAGE BOLT, 3/8-16 x 1 G5
14 1919326 10 WASHER, 5/16
15 1960684 2 NUT, Hex KEPS, 5/16-18 Conical Washer
16 1727431 1 BRACKET, Chute Locator
17 1710545 1 PULLEY, Idler, 4 in.
18 1726053 1 SUPPORT, Idler, LH
19 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 G5
20 1921210 2 CAPSCREW, Hex Head, 3/8-16X1.000 G5 BLK
21 1727400 1 DRAWBAR, 1/4 in. Thick
22 1960636 1 NUT, Hex KEPS, 5/16-18
23 1919438 6 NUT, Hex Lock ESNA Light, 5/16-18NC-3B
24 1727526 1 ROD, Transmission Release
25 1960221 1 CLIP, Hair Pin Spring
26 1921978 1 CAPSCREW, Hex Head, 5/16-18 x 2 G5
27 1960141 2 WASHER, 5/16
28 1726055 1 STRAP, Torque, 1/4 Thick 4 in. Long
29 1923141 4 CAPSCREW, Hex Head, 5/16-18 x 2-3/4 G5
30 1722460 3 PIN, Quick
31 1723045 1 ROD, Control
32 1918447 2 PIN, Cotter
33 1727552 1 SHAFT & ARMS ASSEMBLY, Control
34 1666697 1 SPACER, Powered Metal
35 1727407 1 V-BELT, Drive Belt
36 1924856 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2
37 1727215 1 ACTUATOR, Switch
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
21
TP 400-5064-IR-TC-N
Transmission Group - Tuff Torq K-46BF
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
22
SERIES 0
Transmission Group - Tuff Torq K-46BF
p
y
Part No Descri
38 1924940 1 WASHER, 3/8
39 1726057 1 ROD, Brake
40 1727473 1 ARM & PIN ASSEMBLY, Speed Control
41 1921333 1 CAPSCREW, Hex Head, 5/16-18 x 1 G5
42 1723267 1 BRACKET & PIN ASSEMBLY, Brake
43 1729277 1 SPRING, Compression
44 2176440 2 BUSHING, Nylon
45 2927794 2 RING, E Retaining
46 1727712 1 TRANSMISSION ASAEMBLY, Tuff Torq K46BF
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
23
TP 400-5064-IR-TC-N
Seat Deck & Fuel Tank Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
24
SERIES 0
Seat Deck & Fuel Tank Group
p
y
Part No Descri
1 1722129 1 BRACKET, Seat
2 1725019 1 SEAT, 15” Back, Snapper Logo
3 1722128 1 SUPPORT, Seat
4 2172434 1 CLIP, Wire
5 1709256 6 WASHER, Spring
6 1714263 2 SPRING, Compression
7 1919438 2 NUT, Hex Lock ESNA, 5/16-18
8 1717051 2 SPRING, Compression
9 1930591 8 CAPSCREW, Hex Head Whizlock, 5/16-18 x 3/4
10 1931339 2 CARRIAGE BOLT, 5/16-18 x 2
11 1931350 2 CARRIAGE BOLT, 3/8-16 x 1
12 1722356 1 SLIDE, Seat, (2 Piece Set)
13 1935255 4 NUT, Speed, 5/16-18
14 1930601 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 5/8
15 1722309 1 PLUG, Hole Black
16 1722109 1 POD, LH, w/Cup Holder
17 1924940 2 WASHER
18 1722313 1 COVER, Cruise, w/Symbols
19 2960664 4 CAPSCREW, Hex Head Washer Dog Point, 1/4-20 x 7/8
20 1722300 1 GAS GAUGE
21 1722337 1 GROMMET
22 1715917 1 CAP, Gas
23 1722340 1 TUBE & ELBOW ASSEMBLY
24 1654930 1 BUSHING
25 1722652 1 TANK, Fuel
26 1931277 4 NUT, Hex Whiz Lock, 5/16-18
27 1960636 4 NUT, Hex KEPS, 5/16-18
28 1727233D 1 DECK, Seat, Red
29 1722108 1 POD, RH, W/2 Slots
30 2934665 1 CAPSCREW, Hex Head Whizlock, 5/16-18 x 5/8
31 1722105D 1 TUNNEL, Footrest, Red
32 1663752 2 SPACER
33 1930645 2 NUT, Hex Flange Lock, 3/8-16
34 1960667 4 CAPSCREW, Hex Head Flange Lock, 5/16-18 x 3/4
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
25
TP 400-5064-IR-TC-N
Engine Group - 18 HP INTEK Single Cyl.
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
26
SERIES 0
Engine Group - 18 HP INTEK Single Cyl.
p
y
Part No Descri
1 1723467 1 MUFFLER
2 * 2 GASKET
3 1917356 4 LOCKWASHER, 5/16
4 2960660 4 CAPSCREW, Socket Head, 5/16-18 x 7/8, G8
5 1723165 1 HOSE, Oil Drain
6 * 1 ENGINE, 18HP Briggs & Stratton INTEK Single, Model 31H777,
T
7 1722950 1 SEAL, Circle
8 1722388 1 BULKHEAD
9 1925003 2 CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2
10 1724013 1 CONTROL, Throttle/Choke
11 2925094 1 TIE
12 1723894 1 EDGING, Rubber
13 2960112 2 CLAMP, Hose Type E
14 1723174 1 HOSE, 59” Long
15 1726466 1 SCREW, Trox Head Taptite, #8-32 x 1/2
16 1726465 1 PLATE, Limiter RPM
17 2934683 2 CLIP, Wire
18 1722392 2 SHIELD
19 1929000 3 SCREW, Hex Head Taptite, 1/4-20 x 3/8
20 1720463 1 KEY
21 1722288 1 PULLEY & HUB ASSEMBLY, 4-1/2 OD
22 1708264 1 WASHER, Hex
23 1918199 1 LOCKWASHER, 7/16
24 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 2-3/4
25 1720532 1 CLUTCH, Electric, OGURA
26 2932747 1 TIE
27 2930598 4 CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/2
28 2920427 1 LOCKWASHER, External Tooth, 3/8
29 1722414 1 SHIELD, Muffler Bottom
30 1960295 6 CAPSCREW, Hex Head Flange Lock1/4-20 x 5/8
31 1924856 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2
32 1960368 5 NUT, Speed, 1/4-20
33 1935255 2 NUT, Speed, 5/16-18
34 1722389 1 DUCT, Muffler Top
35 1723897 1 GUARD, Manifold Pipe
36 2172434 1 CLIP, Wire
tionItem Qt
Note
Footnotes:
* See your local Briggs & Stratton distributor for parts and service.
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
27
TP 400-5064-IR-TC-N
Engine Group - 18 HP & 20 HP VANGUARD Twin Cyl.
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
28
SERIES 0
Engine Group - 18 HP & 20 HP VANGUARD Twin Cyl.
p
y
Part No Descri
1 1722625 1 MUFFLER
2 * 1 GASKET
3 1917356 2 LOCKWASHER, 5/16
4 2960660 2 CAPSCREW, Socket Head, 5/16-18 x 7/8, G8
5 1728125 1 SCREW, Pan Head Trox, #10-32 x 5/8
6 1728126 1 CLAMP, Throttle Cable
7 1727696 1 PLATE, Limiter RPM
8 1723165 1 HOSE, Oil Drain
9 * 1 ENGINE, 18HP Briggs & Stratton INTEK Twin, Model 356777,
Typ
9 * 1 ENGINE, 20HP Briggs & Stratton INTEK Twin, Model 358777,
Typ
10 1722949 1 SEAL, Circle
11 1722388 1 BULKHEAD
12 1925003 2 CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2
13 1727223 1 CONTROL, Throttle Double 39” Long w/Knobs
14 2925094 1 TIE
15 2960112 2 CLAMP, Hose Type E
16 1723165 1 HOSE, 59” Long
17 2934683 2 CLIP, Wire
18 1722392 2 SHIELD
19 1929000 8 SCREW, Hex Head Taptite, 1/4-20 x 3/8
20 1720463 1 KEY
21 1722288 1 PULLEY & HUB ASSEMBLY, 4-1/2 OD
22 1708264 1 WASHER, Hex
23 1918199 1 LOCKWASHER, 7/16
24 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 2-3/4
25 1720532 1 CLUTCH, Electric, OGURA
26 2932747 1 TIE
27 2930598 4 CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/2
28 2920427 1 LOCKWASHER, External Tooth, 3/8
29 1722414 1 SHIELD, Muffler Bottom
30 1960295 8 CAPSCREW, Hex Head Flange Lock, 1/4-20 x 5/8
31 1924856 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2
32 1960368 8 NUT, Speed, 1/4-20
33 1935255 2 NUT, Speed, 5/16-18
34 1722389 1 DUCT, Muffler Top
35 1722390 1 DUCT, Muffler Extension
tionItem Qt
Note
Footnotes:
* See your local Briggs & Stratton distributor for parts and service.
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
29
TP 400-5064-IR-TC-N
Lift Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
30
SERIES 0
Lift Group
p
y
Part No Descri
1 1722302 1 GRIP, Black Vinyl
2 1722024 1 ROD, Lift Lever
3 1930645 1 NUT, Hex Flange Lock, 3/8-16
4 1924940 2 WASHER
5 1722460 2 PIN, Quick
6 2162085 1 SPRING, Compression
7 1723866 1 NUT, Push, 3/8
8 1923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4
9 1722313 1 COVER, W/Lift Icon, models without cruise
10 1722284 1 QUADRANT
11 1920397 2 NUT, Hex Lock ESNA, 1/4-20
12 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2
13 1960636 4 NUT, KEPS Lock, 5/16-18
14 1722607 1 SCREW, Torx Head, # 8-16 x 1/2
15 1722285 1 COVER, Dash, modles without cruise
16 1726404 1 LIFT SHAFT ASSEMBLY
17 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4
18 1725037 1 ROD, Lift
19 2156302 1 SPRING, Extension
20 1921977 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/4
21 1921971 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4
22 1960680 2 NUT, KEPS Lock, 3/8-16
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
31
TP 400-5064-IR-TC-N
40" Mower Deck - Belt, Idle Arm & Hitch
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
32
SERIES 0
40" Mower Deck - Belt, Idle Arm & Hitch
p
y
Part No Descri
1 1725557 1 V-BELT
2 2101096 1 PULLEY, 4-1/2 OD
3 1919439 1 NUT, Hex Lock ESNA, 3/8-16
4 1719842 1 STOP, Belt
5 1924940 8 WASHER
6 2157081 2 SPACER
7 1719965 1 GRIP, Black
8 1720444 1 IDLER ARM ASSEMBLY, w/Bushings
9 1960614 1 CAPSCREW, Hex Head, 3/8-16 x 3, G8
10 1922755 3 WASHER
11 1960615 1 CARRIAGE BOLT, 3/8-16 x 2-1/2
12 1657242 1 SPACER
13 1933263 1 WASHER
14 1715435 1 SPRING, Extension
15 1923701 2 CAPSCREW, Hex Head, 3/8-16 x 2
16 1724802 2 PULLEY, Idler
17 1719221 2 HUB, Pulley
18 1928352 2 NUT, Hex Flange Lock, 3/8-16
19 1921968 2 CAPSCREW, Hex Head, 3/8-16 1-3/8
20 2172329 2 SPACER
21 1713578 1 ROD
22 2156302 1 SPRING, Extension
23 1715759 1 ROD
24 1720044 1 HITCH, Mower
25 1960519 1 NUT, Push
26 960681 2 NUT, Spiral Flange Toplock, 3/8-16
27 1721425 1 WASHER & LOCK NUT ASSEMBLY, 3/8-16
28 1674671 1 SPRING, Extension
29 1726387 1 ARM, Idler
30 1666697 1 SPACER
31 1930601 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 5/8
32 1724626 1 BELT, Timing
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
33
TP 400-5064-IR-TC-N
40" Mower Deck - Housing, Arbors & Blade
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
34
SERIES 0
40" Mower Deck - Housing, Arbors & Blade
p
y
Part No Descri
1 1724600 1 COVER, Arbor, RH
2 1721132 1 GUARD, Extension
3 1675044 4 RIVET, Pop
4 1960096 2 WASHER
5 1703273 2 HOUSING, Arbor, Bottom w/Lube Fitting
6 1704314 2 FITTING, Lube
7 1722396 1 ARBOR SHAFT & BEARING ASSEMBLY
8 1707335 2 GASKET
9 1655729 2 HOUSING, Arbor, Top
10 1657969 2 SHIELD, Bearing
11 1724453 2 SPROCKET & FLANGE ASSEMBLY, 38 Tooth
12 1719862 1 HUB
13 1713091 1 PULLEY, 5” OD
14 1656916 2 WASHER, Spring
15 1933263 1 WASHER
16 1930584 1 CAPSCREW, Hex Head, 7/16-14 x 2-3/4, GR8
17 1713675 2 WASHER, Belleville
18 1714419 1 NUT, Hex Flange, 9/16-18
19 1726826 1 ARBOR SHAFT & BEARING ASSEMBLY
20 1721258 1 GUARD & BRACKET ASSEMBLY, LH
21 1664847 6 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
22 1724601 1 COVER, Arbor, LH
23 1727233 1 HOUSING ASSEMBLY, Orange
23 1727233D 1 HOUSING ASSEMBLY, Red
24 1719736 1 BLADE, Mower LH, Standard
24 1727477 1 BLADE, Mower LH, Mulching High Lift
25 1722258 2 PIN, Blade
26 1722257 2 WASHER, Spline
27 2927120 2 CAPSCREW, Hex Head, 7/16-14 x 2-1/4, GR8
28 1655777 2 ADAPTER, Blade
29 1700229 2 SHIELD, Bearing
30 1700230 2 WASHER, Shim
31 1677274 2 ADAPTER, Arbor
32 1960373 12 CAPSCREW, Hex Head Taptite, 5/16-18 x 1
33 1719737 1 BLADE, Mower RH, Standard
33 1727478 1 BLADE, Mower RH, Mulching High Lift
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
35
TP 400-5064-IR-TC-N
40" Mower Deck - Height Adjustment & Roller Bar
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
36
SERIES 0
40" Mower Deck - Height Adjustment & Roller Bar
p
y
Part No Descri
1 1921977 3 CAPSCREW, Hex Head, 5/16-18 x 1-1/4
2 1960044 3 WASHER
3 1960236 2 SPACER
4 1723305 1 SHAFT & BAR ASSEMBLY
5 1924366 7 WASHER
6 1722036 2 ROLLER
7 1668513 6 ROLLER
8 1717675 1 ROLLER
9 1602946 1 SPACER
10 1919381 4 WASHER
11 2960643 2 NUT, Hex Flange Lock, 5/16-18
12 1960170 2 WASHER, 3/8
13 1924940 8 WASHER
14 2176012 1 RETAINER, Pin
15 1725043 1 LINK & PIN ASSEMBLY
16 1722460 1 PIN, Retaining
17 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2
18 1726049 1 SHAFT & ARM ASSEMBLY
19 1720659 1 STOP, Up
20 1931202 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4
21 1665374 3 STRAP
22 1723470 1 DECAL, Height of Cut
23 1720931 1 BRACKET, Height of Cut
24 1919438 2 NUT, Hex ESNA, 3/8-16
25 1664847 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
26 960681 5 NUT, Spiral Flange Toplock, 3/8-16
27 1704082 1 NUT, Hex Adjusting
28 1704073 1 BAR
29 1677507 1 SLIDE
30 1924361 1 WASHER
31 2172622 3 SHOULDER BOLT, 3/8-16
32 1960520 1 NUT, Push
33 1930651 1 NUT, Hex Centerlock, 3/8-16
34 1960703 2 WASHER, 21/32 x 1 x 1/64
35 1706644 1 SPACER
36 1921332 2 CAPSCREW, Hex Head, 5/16-18 x 3/4
37 1722661 1 ROD, Adjusting
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
37
TP 400-5064-IR-TC-N
40" Mower Deck - Height Adjustment & Roller Bar
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
38
SERIES 0
40" Mower Deck - Height Adjustment & Roller Bar
p
y
Part No Descri
38 1922606 1 CAPSCREW,Hex Head, 3/8-16 x 1-3/4, GR8
39 1915726 2 NUT, Hex, 5/8-11
40 2118053 1 PIN, Round Head Drilled, 3/8 x 2
41 1706645 1 TRUNNION
42 1920397 1 NUT, Hex Lock ESNA, 1/4-20
43 1720599 1 LATCH, “U”
44 1721257 1 ROD
45 1921159 1 CAPSCREW, Hex Head 1/4-20 x 2-1/4
46 1931335 2 CARRIAGE BOLT, 5/16-18 x 1
47 1917372 2 NUT, Hex, 5/16-18
48 1917356 2 LOCKWASHER, 5/16
49 1720695 1 HANDLE ASSEMBLY, Lift
50 1723321 1 SPRING, Compression
51 1960674 1 NUT, Push
52 1713995 1 GRIP, Black
53 1723124 1 BUTTON, Red
54 1933988 4 NUT, Push
55 1719929 1 UPSTOP
56 1669585 4 SPACER
57 1714760 2 WHEEL, Gauge
58 1923903 2 CAPSCREW, Hex Head, 3/8-16 x 3
59 1916950 2 NUT, Hex, 3/8-16
60 1918265 1 WASHER, 11/32 x 11/16 x 1/16
61 1918447 1 PIN, Cotter, 15/16 x 3/4
62 1723409 1 BRACKET, Adjusting
63 1666697 1 SPACER, 21/64 x 1/2 x 7/32
64 2108512 1 PIVOT, 3/4 Hex
65 1917421 1 NUT, Hex Jam, 3/8-16 NC-2B
66 1960601 1 NUT, Hex Flange, 3/8-16
67 2108241 1 GUIDE ASSEMBLY, Rod
68 1720704 1 ROD & WASHER ASSEMBLY, Adjustment Handle
69 1651820 1 GRIP, Black Vinyl
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
39
TP 400-5064-IR-TC-N
Deflector Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
40
SERIES 0
Deflector Group
p
y
Part No Descri
1 1960074 2 CLIP, Hair Pin
2 1919381 2 WASHER, 5/16
3 1723683 2 PIN, Clevis
4 1724935 1 DEFLECTOR & PINS ASSEMBLY
5 1720391 1 DECAL, Danger Operating without Catcher
6 1960252 2 CARRIAGE BOLT, 1/4-20 x 5/8 G5
7 1724864 1 DEFLECTOR, 16GA
8 1960685 2 NUT, Hex KEPS Conical Washer, 1/4-20
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
41
TP 400-5064-IR-TC-N
Hopper Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
42
SERIES 0
Hopper Group
p
y
Part No Descri
1 1727486 1 ROD & TABS ASSEMBLY, Bagger Front
2 1960685 22 NUT, Hex KEPS Conical Washer, 1/4-20
3 1960353 8 WASHER, 1/4
4 1931320 4 CARRIAGE BOLT, 1/4-20 x 1-1/4
5 1921333 6 CAPSCREW, Hex Head, 5/16-18 x 1 G5
6 1917356 6 LOCKWASHER, Spring 5/16
7 1919326 6 WASHER, 5/16
8 1931317 15 CARRIAGE BOLT, 1/4-20 x 3/4 G5
9 1715654 2 SPACER
10 1727674 6 CLIP, L 12GA
11 1727420 1 FRAME ASSEMBLY, Hopper
12 1924009 4 CAPSCREW, Hex Head, 1/4-20 x 7/8 G5
13 1921319 3 WASHER, 1/4
14 1916964 4 LOCKWASHER, Spring 1/4
15 1916622 4 NUT, Hex 1/4-20
16 1727832 2 CABLE, Bagger, 17.72 Long
17 1727676 4 CLIP, L 12GA
18 1727671 1 BAR, Bagger Top 7GA
19 1724684 2 WASHER, 5/8
20 1724399 1 HANDLE, Hopper, 13.59 Long
21 1727930 1 LID & SCREEN ASSEMBLY, Orange
21 1727931 1 LID & SCREEN ASSEMBLY, Red
22 1727423 1 BAG, Grass Black Cloth
23 1931334 9 CARRIAGE BOLT, 5/16-18 x 7/8 G5
24 1727520 1 PLATE, Tube Stop Bagger 14GA
25 1727670 1 BAR, Bagger Bottom 7GA
26 1727675 2 BRACE, Angle
27 1960044 1 WASHER, 5/16
28 1960684 5 NUT, Hex KEPS Conical Washer, 5/16-18
29 1921978 1 CAPSCREW, Hex Head, 5/16-18 x 2 G5
30 1960044 2 WASHER, 5/16
31 1724651 1 LATCH, Release 10GA
32 1921333 1 CAPSCREW, Hex Head, 5/16-18 x 1 G5
33 1919326 2 WASHER, 5/16
34 1666697 1 SPACER, Powdered Metal
35 1714263 1 SPRING, Compression
36 1923360 1 PIN, Cotter
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
43
TP 400-5064-IR-TC-N
Hopper Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
44
SERIES 0
Hopper Group
p
y
Part No Descri
37 1724652 1 ROD, Foot Pedal Bagger Release, 11.66 Long, 2 Bends
38 1919438 2 NUT, Hex Lock ESNA Light, 5/16-18 NC-3B
39 1727580 1 PIVOT ASSEMBLY, Latch
40 1928352 5 NUT, Hex Flange Whiz Lock, 3/8-16 Large
41 1921965 4 CAPSCREW, Hex Head, 3/8-16 x 3/4 G5
42 1727419 1 BACKPLATE ASSEMBLY
43 1723182 1 BRACKET, Latch LH, 7GA
44 1931277 4 NUT, Hex Flange Whiz Lock, 5/16-18 Small
45 1960074 2 CLIP, Hair Pin, Spring Wire
46 1724458 1 ROD, 25.12 Long, 2 Bends
47 1921973 1 CAPSCREW, Hex Head, 3/8-16 x 2-3/4 G5
48 1924940 1 WASHER, 3/8
49 1676148 2 BUSHING, Powdered Metal
50 1669105 1 SPACER, 1-1/2 Long, Hardened
51 1718016 1 SPRING, Extansion
52 1725036 1 ROD & TUBE ASSEMBLY, Differential Lock Pedal
53 1719940 1 KNOB, Hole 1/2, 1.37 Long
54 1960268 4 CARRIAGE BOLT, 3/8-16 x 1-1/4 G5
55 1724540 1 SHAFT & ARMS ASSEMBLY, Latch
56 1960556 4 SCREW, Pan Head Torx Taptite, 1/4-20 x 3/4
57 1930645 1 NUT, Hex Flange Two Way Lock, 3/8-16 GA
58 1923341 1 CAPSCREW, Hex Head, 1/4-20 x 3/4 G5
59 1727429 1 CHUTE, Discharge Black Poly
60 1724553 1 CAPLUG, Black Poly, 3/4 Hole
61 1713855 1 KNOB, Bagger Release
62 1666969 1 PIN, Klik 5/164
63 1727523 1 HANDLE, Tube, 39.75 Long
64 1723359 1 GRIP, Hopper Lift Rod
65 1727406 1 TRANSITION, Hopper Black
66 1723181 1 BRACKET, Latch RH, 7GA
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
45
TP 400-5064-IR-TC-N
Decals Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
46
SERIES 0
Decals Group
p
y
Part No Descri
1 1725240 2 DECAL, RD1840
2 1725065 1 DECAL, Hood Stripe, Snapper, LH
3 1727713 1 DECAL, Belt & Blade
4 1722806 1 DECAL, Ignition Switch
5 1723713 1 DECAL, Crusie / Lift
6 1723310 1 DECAL, Hopper Lever
7 1725061 1 DECAL, Snapper
8 1724680 1 DECAL, Latch Release
9 1727714 1 DECAL, Baron XL
10 1723317 1 DECAL, Hopper Pedal
11 1723296 2 DECAL, Protective, Clear
12 * 1 DECAL, Patent
13 * 1 DECAL, Serial Number, Tractor, (Not Serviced)
14 * 2 DECAL, Decible Power Mass, Export Only, (Not Serviced)
15 1720391 2 DECAL, Danger Operating W/O Catcher
16 1721141 1 DECAL, Drawbar Max Load
17 1725066 1 DECAL, Hood Stripe, Snapper, RH
18 1723425 1 DECAL, Transmission Release Valve
19 1720390 1 DECAL, Danger Catcher Open
20 1723175 1 DECAL, Warning/Danger Icons, Tunnel
21 1725072 1 DECAL, Touch Up Paint
22 1720389 2 DECAL, Danger Rotating Blade, Export Only
23 1723470 1 DECAL, Height Of Cut
24 1721107 1 DECAL, Danger, Discharge Tube
25 * 1 DECAL, Serial Number, Mower Deck, (Not Serviced)
tionItem Qt
Note
Footnotes:
* Not a Service Part
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
47
TP 400-5064-IR-TC-N
Electrical Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
48
SERIES 0
Electrical Group
p
y
Part No Descri
1 1721810 1 HEADLIGHT ASSEMBLY, 4 Bulb
2 1722669 1 HARNESS, Headlight
3 1722887 1 SWITCH, PTO Push/Pull w/Symbols
4 1921959 1 CAPSCREW, Hex Head, 1/4 x 5/8
5 1722739 1 SOLENOID
6 1726556 1 MODULE, RMO (Includes Ref. No. 7)
7 1726557 1 KEY, RMO Module Plastic
7 1727185 1 KEY, w/Hang Tag for RMO Module
8 1722611 1 PLUG, Hole Black
9 1665237 1 WIRE, 12GA 8 Long Red
10 2920426 3 LOCKWASHER, External Tooth 5/16
11 1665238 1 BREAKER, Circuit 12VOLT 20AMPS w/Tabs
12 2916622 3 NUT, Hex, 1/4-20 NC-2B
13 1716061 1 SWITCH ASSEMBLY, Ingition, 6 Pin Indak (Includes Ref. Nos. 1
14 2101025 1 WASHER, 5/8
15 1960547 1 LOCKWASHER, Internal Tooth, 5/8
16 1717549 1 NUT, Hex Flange, 5/8-32 Ignition Switch
17 1717550 1 COVER, Ignition Switch, Black
18 1717163 1 KEYS, Ignition Set of 2
19 1721830 1 CABLE, # 6 x 25 Long Red, 2 Ring Terminals
20 1725523 1 METER, Hour Digital w/Oil & Lube Alarms
21 1725524 1 PLUG, Dash, Hour Meter
21 1725698 1 PLUG, Dash, No Hour Meter Hole
22 1725835 1 CLIP, Hour Meter, Holds In Daash
23 1720117 1 BUZZER, Pulse, Grass Bag Full
24 1716951 1 SWITCH, Headlights, 2 Terminal
25 1726890 1 HARNESS, Wiring Upper
26 1677296 1 BOOT, Insulator, Battery Terminal
27 920263 2 NUT, Hex, 5/16-24 NF-2B
28 1727776 1 DEFLECTOR, Switch 14GA
29 1960685 2 NUT, Hex KEPS Conical Washer, 1/4-20
30 1723954 1 HARNESS, Wiring Rear
31 1720411 1 SWITCH, Push Button w/Boot, Bagger
32 1960252 3 CARRIAGE BOLT, 1/4-20 x 5/8 G5
33 1727428 1 PIVOT, Actuator 14GA, E-Coat
34 1960103 1 WASHER, 3/8
35 960293 1 NUT, Wing Lock, 1/4-20
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
49
TP 400-5064-IR-TC-N
Electrical Group
Manual No. 06457 YARD TRACTOR ELECTRIC CLUTCH
TP 400-5064-IR-TC-N
50
SERIES 0
Electrical Group
p
y
Part No Descri
36 1960607 1 PIN, Clevis
37 1960221 1 CLIP, Hair Pin
38 1727427 1 SUPPORT, Actuator 14GA, E-Coat
39 1960536 2 SCREW, Hex Washer Head Plastite, 1/4 x 1/2
40 1716368 1 SWITCH, Operator Presents, Seat
41 1929000 1 SCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
42 1726810 1 BRACKET, Switch Mounting, RMO
43 1704379 2 SWITCH, Push Button, Reverse Pedal
44 1723507 1 SWITCH, Push Button, Foot Pedal
45 1717050 1 SWITCH, Push Button, Cruise Control
46 1603618 1 CABLE, # 6 x 9 Long, 2 Ring Terminals
47 1685215 1 BATTERY, 12VOLT 6CELL 230AMPS CCA
48 1722009 1 STRAP, Battery 14 Long, Black Rubber
49 1713163 1 CABLE, # 6 x 26 Long Black, 2 Ring Terminals
50 2923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4 G5
51 2921319 2 WASHER, 1/4
52 2916964 2 LOCKWASHER, Spring 1/4
53 1713535 1 BOOT, Insulator Red, Cable Terminal
54 2925094 4 TIE, Self Locking, 7-5/16
55 1726889 1 HARNESS, Wiring Lower
tionItem Qt
Note
Footnotes:
Manual No. 06457YARD TRACTOR ELECTRIC CLUTCH
SERIES 0
51
TP 400-5064-IR-TC-N
Parts Manual fo
r
YARD TRACTOR ELECTRIC CLUTCH
HYDRO DRIVE REAR DISCHARGE RMO
SERIES 0
RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS
COPYRIGHT ©2005
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS
WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE
AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE
SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
McDonough, GA, 30253 U.S.A.
Revision IR,
6/7/2005
Manual No. 06457
TP 400-5064-IR-TC-N
Loading...
