Parts Manual fo
r
LARGE FRAME 26" & 28"
TWO-STAGE SNOWTHROWERS
2009
MODEL
L1226E (1695571)
L1428E (1695572)
Briggs & Stratton Yard Power Products Group
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
Manual No. 1737016
Revision A, TP 400-5408-A-LF-N9/26/2008
s
PAGE GROUP
4
8
12
14
16
18
20
24
26
30
32
Handle & Controls Group
Auger Housing & Chute Group
Auger Drive Group - 26" Model
Gear Box Assembly - 26" Model
Auger Drive Group - 28" Model
Gear Box Assembly - 28" Model
Engine & Frame Group
Traction Drive Group - Standard - 26" Model
Traction Drive Group - EZ Turn - 28" Model
Wheel & Tire Group
Decals Group
Table Of Content
LARGE FRAME 26" & 28"
2009
Manual No. 1737016
3
TP 400-5408-A-LF-N
Handle & Controls Group
TP 400-5408-A-LF-N
"82 & "62 EMARF EGRAL6107371.oN launaM
4
2009
Handle & Controls Group
p
y
Part No Descri
1 1923701 2 CAPSCREW, Hex Head 3/8-16 x 2 G5
2 1732470 1 KNOB, Interior Thread 3/8-16
3 1732427 1 ROD, 3/8 Diameter 5" Large, 3/8-16 x 1 Chute
4 1924356 1 WASHER, 3/8
5 724361 2 SPRING
6 1918266 2 WASHER, 3/8
7 1919439 2 NUT, Hex Lock ESNA Light 3/8-16
8 1722667 1 HANDLE, Clutch L.H.
9 1733192 1 KNOB, Slot Speed
10 1736836 1 ROD & PLATE ASSEMBLY, Speed Control
11 1923282 2 CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5
12 1921962 2 CAPSCREW, Hex Head 1/4-20 x 1-3/4 G5
13 1733045A 1 BRACKET, Trac & Deflector Control
14 1734354 1 ROD, Speed Control
15 1931277 3 NUT, Hex Flange 5/16-18, Whiz Lock, Small
16 1732971 1 CABLE, Deflector Control
17 2820263 2 NUT, Hex 5/16-24
18 1960608 1 NUT, Hex Flange 1/4-20 Centerlock Large
19 724360 1 BALLJOINT, Steel
20 1917356 1 LOCKWASHER, Spring 5/16
21 1732970 1 SPRING, Extension
22 1736706 1 TUBE & BRACKET ASSEMBLY, Cable Support
23 1924856 4 SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
25 1732364 1 SUPPORT, Chute Control 14GA
26 1927429 4 SCREW, Hex Washer Head Taptite 1/4-20 x 5/8
27 1732944 1 BOLT, Shoulder 1/4-20
28 1733142 1 BRACKET, Support Quick Turn
29 1732369 1 ROD, Chute
30 1920397 7/8 NUT, Hex Lock ESNA Light 1/4-20 Quantity 7 Used on 28" Model,
31 1917421 1 NUT, Hex Jam 3/8-16
32 723122 1 GRIP, Lever
33 1733777D 1 COVER, Panel
34 1960715 3 SCREW, Truss Head Torx Drive 1/4-20 x 3/4
35 1733204 1 BELLOWS, Black Rubber Quick Turn
36 1922837 2 CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5
37 1931333 3 CARRIAGE BOLT, 5/16-18 x 3/4 G5
39 1732064A 1 SUPPORT, Dash Panel Cover
tionItem Qt
Note
Quantity 8 Used on 26" Model
Footnotes:
Manual No. 1737016LARGE FRAME 26" & 28"
2009
5
TP 400-5408-A-LF-N
Handle & Controls Group
Manual No. 1737016 LARGE FRAME 26" & 28"
TP 400-5408-A-LF-N
6
2009
Handle & Controls Group
p
y
Part No Descri
40 1732471 1 CABLE & SPRING ASSEMBLY, Auger Drive R.H.
41 1722638 1 HANDLE, Clutch R.H.
42 1923358 2 NUT, Hex Centerlock 1/4-20
43 1726317 2 GRIP
44 1715655 2 SPACER
45 1678392 2 SPACER
47 1734587A 1 HANDLE, Upper R.H.
48 1734586A 1 HANDLE, Upper L.H.
49 1960273 2 CARRIAGE BOLT, 5/16-18 x 2-1/4 G5
50 1736301A 1 HANDLE, Lower
51 1960686 4 NUT, Hex Flange 5/16-18
52 1935048 2 NUT, Hex Flange 5/16-18 Two-Way Lock
53 1664847 2 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
54 723259 1 BRACKET, Cable Adjusting
55 72315 4 1 BOOT, Spring End Cover
56 727331 1 CABLE,
57 1921333 2 CAPSCREW, Hex Head 5/16-18 x 1 G5
58 1679166 1 SPACER, Powdered Metal
59 1733505A 1 BRACKET, Free Hand Control 12GA
60 1733095 1 SPACER, Powdered Metal
61 1733509 1 ROD & SPRING ASSEMBLY, w/Pin
62 1960027 4 WASHER, 1/2
63 2108360 1 SPRING, Compression
64 1960353 1 WASHER, 1/4
65 1722630 1 ROD, Hold Down E-Coat
66 1732322 1 HEADLIGHT ASSEMBLY, Oval, Clear Used on 28" Model
67 1704351 5 FASTENER, Panel
69 1725702 1 SCREW, Pan Head Torx #10 x 1/2 Thick Cut
70 724621 2 SPOOL CABLE, Auger Control
72 1960589 1 SCREW, Round Head Phillips #10-24 x 3/4
73 1933896 1 NUT, Hex Lock 10-24 w/Nylon Insert
74 1718791 1 CABLE & HANDLE ASSEMBLY Used on 28" Model
76 70917 76 1 CARRIAGE BOLT, 1/4-20 x 3/4
77 1923358 1 NUT, Center-Lock, 1/4-20
78 1931338 1 BOLT, Carriage, 5/16-18 x 1-3/4
tionItem Qt
Note
Footnotes:
Manual No. 1737016LARGE FRAME 26" & 28"
2009
7
TP 400-5408-A-LF-N
Auger Housing & Chute Group
Manual No. 1737016 LARGE FRAME 26" & 28"
TP 400-5408-A-LF-N
8
2009
Auger Housing & Chute Group
p
y
Part No Descri
1 1736708D 1 HOUSING ASSEMBLY, 26” (Used on 26" Models)
1 1734556D 1 HOUSING ASSEMBLY, 28" (Used on 28" Models)
2 1732384A 1 BLADE, Scraper 26”
2 1709947A 1 BLADE, Scraper 28”
3 1960699 5 CARRIAGE BOLT, 5/16-18 x 5/8 G5
4 1935048 5 NUT, Hex Flange 5/16-18 Two- Way Lock
5 1727854A 2 SKID, Shoe Reversible
6 1960711 4 CARRIAGE BOLT, 3/8-16 x 3/4 G5
7 1960687 4 NUT, Hex Flange 3/8-16 ESNA
8 1733103 2 BEARIN G, Flange (Used on 28" Models)
9 1665982 1 BEARING, Retainer
10 1930659 3 RETAINER, Nut, 5/16-18
11 1960738 3 SCREW, Hex Whiz Lock Flange 5/16-18 x 3/4
12 2108202 1 BEARING
16 1931277 1 NUT, Hex Flange 5/16-18, Whiz Lock
17 1736094 1 STICK, Cleanout w/Brush
18 722242 2 CLIP, Retainer
19 2860604 2 SCREW, Hex Washer Head
20 1933896 2 NUT, Hex Lock 10-24 w/Nylon Insert
21 724565 2 BLOCK, Universal Pivot
24 1732608 1 GEAR, 13 Tooth
25 1960684 2 NUT, Hex KEPS 5/16-18 Conical Washer
26 1732412 1 BOLT, Shoulder 5/16-18 x 3/5
27 1925003 6 SCREW, Hex Washer Head Taptite 1/4-20 x 1/2
28 1732607 1 GEAR, Sector 34 Tooth Powdered Metal
29 1732602A 1 SUPPORT, Driver Gear
30 1734414A 1 T UBE, Support
31 1732606A 1 BRACKET, Gear Support
33 1931353 2 CARRIAGE BOLT, 3/8-16 x 1-3/4
34 1733026 1 WASHER, Powdered Metal
35 1732238 1 CABLE, Chute Brake
37 1732837A 1 BRACKET, Brake
38 1732308 1 ARM & PAD ASSEMBLY, Brake
39 1679554 1 SPRING, Extension
40 1923282 1 CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5
41 1922127 2 CAPSCREW, Hex Head 5/16-18 x 1-3/4
42 1923358 1 NUT, Hex Centerlock 1/4-20
tionItem Qt
Note
Footnotes:
Manual No. 1737016LARGE FRAME 26" & 28"
2009
9
TP 400-5408-A-LF-N
Auger Housing & Chute Group
Manual No. 1737016 LARGE FRAME 26" & 28"
TP 400-5408-A-LF-N
10
2009
Auger Housing & Chute Group
p
y
Part No Descri
43 1736707 1 ROD, Hex Chute
44 1722460 3 PIN, Quick
45 1732241 1 COVER, Chute
46 1732506 1 CHUTE & DEFLECTOR ASSEMBLY
47 1732028 1 BRACKET, Chute Support
48 1960252 2 CARRIAGE BOLT, 1/4-20 x 5/8 G5
49 1960294 2 NUT, Hex Flange 1/4-20 Whiz Lock
50 1732172A 1 RING, Chute Base
55 1960686 3 NUT, Hex Flange 5/16-18 ESNA
56 1733455 1 SPRING, Extension
57 1733082A 1 BRACKET, Cable
58 696239 1 KNOB & SCREW ASSEMBLY
59 1931942 2 NUT, Push Pal 3/8
61 1960593 1 NUT, Retainer Speed #10-24 w/Extrusion
62 1960680 2 NUT, Hex Keps Conical Washer 3/8-16
63 1960756 2 SCREW, Truss Head Trox Drive 5/16-18 x 3/4
66 7091542 3 SCREW, Pan Head Self Tap Torx 5/16-18 x 1/2
67 1931202 6 SCREW, Hex Washer head Taptite 5/16-18 x 1-1/4 (Used on 28" Models)
68 1734932A 2 COVER, Bushing (Used on 28" Models)
71 1960086 1 SCREW, Truss Head Torx 5/16-18 x 7/8
72 720065 1 BOLT, Carriage, 1/4-20 x 1
73 1960694 1 NUT, Flange, Nyl ock, 1/4-20
74 724427 2 BEARING, Auger Shaft (Used on 26" Models)
75 722839 4 S CREW, 5/16-18 x 3/4 (Used on 26" Models)
tionItem Qt
Note
Footnotes:
Manual No. 1737016LARGE FRAME 26" & 28"
2009
11
TP 400-5408-A-LF-N
Auger Drive Group - 26" Model
Manual No. 1737016 LARGE FRAME 26" & 28"
TP 400-5408-A-LF-N
12
2009
Auger Drive Group - 26" Model
p
y
Part No Descri
1 1668344 2 PIN, SHEAR
2 7023590 2 C O TTER PIN, 1/ 4” S el f Lo c k i n g
5 1732185 1 P U LL E Y , w/Hub
6 1734674A 1 AUGER ASSEMBLY, 24” & 26” R.H.
7 1734673A 1 AUGER ASSEMBLY, 24” & 26” L.H.
8 1687429 1 GEAR BOX ASSEMBLY KIT
9 1928721 2 SCREW, Set, Square Head Cup Point 5/16-18 x 1/2 G8
13 2821133 2 FITTING, Lube, 1/4 Drive, No Check Ball
tionItem Qt
Note
Footnotes:
Manual No. 1737016LARGE FRAME 26" & 28"
2009
13
TP 400-5408-A-LF-N
Gear Box Assembly - 26" Model
Manual No. 1737016 LARGE FRAME 26" & 28"
TP 400-5408-A-LF-N
14
2009
Gear Box Assembly - 26" Model
p
y
Part No Descri
2 1736709A 1 IMPELLER ASSEMBLY
3 724366 1 KEY
4 724423 1 RING
5 724729 1 BEARING, Flange, 3/4 x 1-1/8
6 724079 2 WASHER, 3/4 x 1-1/4
7 724352 1 BEARING, Roller, 3/4 x 1-1/4
8 724421 1 ROLLED WORM CASE
9 724420 1 SLEEVE, Brearing, 3/4 x 7/8
11 724426 1 PLUG, Pipe, 1/4-18
12 725874 2 SEAL, Oil
13 725338 8 NUT, Hex-Flange, Locking, 5/16-24
14 725981 1 GEAR CASE, L.H.
15 724424 2 SLEEVE, Bearing
16 2168111 1 THRUST WASHER, 1 x 1.54
17 1736711 1 SHAFT, Auger Output
18 725433 1 KEY, Woodru ff, 1-3/4 x 1/4
19 724419 1 GEAR, Worm
20 725983 1 GASKET, Gearbox
21 725982 1 GEAR CASE, R.H.
22 725996 7 CAPSCREW. Hex, 5/16 - 24 x 1
tionItem Qt
Note
Footnotes:
Manual No. 1737016LARGE FRAME 26" & 28"
2009
15
TP 400-5408-A-LF-N
Auger Drive Group - 28" Model
Manual No. 1737016 LARGE FRAME 26" & 28"
TP 400-5408-A-LF-N
16
2009
Auger Drive Group - 28" Model
p
y
Part No Descri
1 1668344 2 PIN, SHEAR
2 7023590 2 C O TTER PIN, 1/ 4” S el f Lo c k i n g
3 1612187A 1 IMPELLER ASSEMBLY, Large Frame Snow
4 1960474 1 SCREW, Set, Square Head Cup Point 3/8-16 x 1/2 G8
5 1732185 1 P U LL E Y , w/Hub
6 1734676A 1 AUGER ASSEMBLY, 28” & 30” R.H.
7 1734675A 1 AUGER ASSEMBLY, 28” & 30” L.H.
8 1732303 1 GEAR BOX ASSEMBLY
9 1928721 2 SCREW, Set, Square Head Cup Point 5/16-18 x 1/2 G8
10 2818312 2 KEY, Woodruff
11 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4 G5
12 1931277 1 NUT, Hex Flange Whiz Lock, 5/16-18HEX FLANGE 5/16-18
13 2821133 1 FITTING, Lube, 1/4 Drive, No Check Ball
tionItem Qt
Note
Footnotes:
Manual No. 1737016LARGE FRAME 26" & 28"
2009
17
TP 400-5408-A-LF-N
Gear Box Assembly - 28" Model
Manual No. 1737016 LARGE FRAME 26" & 28"
TP 400-5408-A-LF-N
18
2009
Gear Box Assembly - 28" Model
p
y
Part No Descri
1 1926105 1 C APSCREW, 1/4-20 x 2-3/4
2 1960346 5 C APSCREW, 1/4-20 x 2-1/4
3 1734218 1 GEAR CASE, L.H.
4 1668971 1 TAPERED PIPE PLUG
5 1612124 1 GASKET
6 1732440 1 SH AFT, Auger Cu toff
7 1732182 1 SHAFT, Worm Cuto ff
8 1612093 1 SEAL, Oil
9 1612149 2 FLANGE BUSHING
10 2836098 1 PIN, Drive Lock
11 16121 27 1 THRUST COLLAR
12 1612142 1 ROLLED WORM CASE
13 2168111 1 THRUST WASHER
14 2118315 2 THRUST WASHER
15 1612141 1 GEAR, Worm
16 1734219 1 GEAR CASE, R.H.
17 1930642 6 NUT, Top Lock Fl ange, 1/4-20
18 2118118 1 SEAL
19 1732152 1 WIREFORM BRACKET
20 2818312 1 KEY, Woodruff, .18 x .62
21 1732991 2 BUSHING
22 1612111 1 TUBE
23 2830246 1 KEY, Woodruff, 1/4 x 3/4
24 1960294 1 NUT, Hex -Flange, 1/4-20
tionItem Qt
Note
Footnotes:
Manual No. 1737016LARGE FRAME 26" & 28"
2009
19
TP 400-5408-A-LF-N
Engine & Frame Group
Manual No. 1737016 LARGE FRAME 26" & 28"
TP 400-5408-A-LF-N
20
2009
Engine & Frame Group
p
y
Part No Descri
1 -- 1 * ENGINE, 11.5GT B&S Mod. #15C114-0117-E8
1 -- 1 * ENGINE, 13.5GT B&S Mod. #20M214-0117-E1
2 1724064 1 CORD, Electric Start
3 1734698 1 GUARD, Muffler (Used on 28" Models)
3 1734732 1 GUARD, Muffler (Used on 26" Models)
4 1736103 3 SCREW, Hex Washer Head Taptite, 10-24 x 3/8
5 720064 4 CARRIAGE BOLT, 5/16-18 x 1-1/2
6 720376 4 NUT, Speed
7 2831277 1 NUT, Hex Flange 5/16-18 Whiz Lock
7 1960686 3 NUT, Hex Flange 5/16-18 ESNA
8 722085 1 PULLEY, Engine
9 1922755 2 WASHER, 3/8 (Used on 28" Models)
9 1919381 1/3 WASHER, 5/16-1 (Quantity 1 Used on 28" Models,
10 1916965 1 LOCKWASHER, Spring 3/8 (Used on 28" Models)
11 1960428 1 CAPSCREW, Hex Head 3/8-24 x 1-1/4 G8 (Used on 28" Models)
11 1921982 1 CAPSCREW, Hex Head 3/16-24 x 1-1/4 G8 (Used on 26" Models)
12 1733324 1 V-BELT, Drive, 3L 33.13
13 1733051 1 V-BELT, Auger, 4L 36.50
14 1733014 1 STOP, Belt
15 1917356 3/4 LOCKWASHER, Spring 5/16 (Quantity 3 Used on 28" Models,
16 1921515 2 CAPSCREW, Hex Head 5/16-24 x 3/4 G5
17 722090 1 IDLER BRACKET ASSEMBLY, Drive Belt
18 722072 1 BUSHING, Idler Bracket
19 724418 1 SPRING, Extension Idler
20 722378 2 IDLER, Plastic Ball Bearing
21 1960251 2 NUT, Hex Centerlock Jam 3/8-16
22 724823 1 CARRIAGE BOLT, 3/8-16 x 1-1/4
23 1733055 1 IDLER, Auger
24 722118 1 SPACER/AUGER BRACKET
25 1960027 1 WASHER, 1/2
26 1733451 1 BRACKET & HUB ASSEMBLY, Spring
27 725367 1 PIN, Hair
28 1736381 1 PIN, Clevis
29 1740906A 1 PANEL, Bottom
30 1927429 12 SCREW, Hex Washer Head Taptite 1/4-20 x 5/8
31 722455 1 SPRING, Extension Auger Idler
32 1733154D 1 FRAME, EZ Turn Axle (Used on 28" Models)
tionItem Qt
Note
Quantity 3 Used on 26" Models)
Quantity 4 Used on 26" Models)
Footnotes:
Note* See your local Briggs & Strattion Distributor for Parts & Service.
Manual No. 1737016LARGE FRAME 26" & 28"
2009
21
TP 400-5408-A-LF-N
Engine & Frame Group
Manual No. 1737016 LARGE FRAME 26" & 28"
TP 400-5408-A-LF-N
22
2009
Engine & Frame Group
p
y
Part No Descri
32 1740572D 1 FRAME, EZ Turn Axle (Used on 26" Models)
33 1733583D 1 PLATE, Engine Mount
34 1924856 4 SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
35 1664847 6 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
36 1733923 1 COVER, Belt w/Toolbox B&S
39 722887 2 S CREW , 1/4-AB x 3/4 Hex
40 1733898 1 SHAFT, Seal
41 1733868A 1 SEAL, Plate
42 1733897 1 SEAL, Strip
43 1733924 1 CLIP, Pine Tree (Used on 28" Models)
44 725996 1 CAPSCREW, Hex Head 5/16-24 x 1 G8
45 7023590 1 PIN, Cotter, 1/4
tionItem Qt
Note
Footnotes:
Note* See your local Briggs & Strattion Distributor for Parts & Service.
Manual No. 1737016LARGE FRAME 26" & 28"
2009
23
TP 400-5408-A-LF-N
Traction Drive Group - Standard - 26" Model
Manual No. 1737016 LARGE FRAME 26" & 28"
TP 400-5408-A-LF-N
24
2009
Traction Drive Group - Standard - 26" Model
p
y
Part No Descri
1 724613 1 CHAIN, Roller
2 723655 4 RETAINER & BUSHING ASSEMBLY
3 724619 5 WASHER
4 1924856 8 SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
5 724627 1 CHAIN, Roller
6 721910 5 RETAINER, Ring 7/16
7 722377 1 SPRING LINK ASSEMBLY STANDARD
8 1736469 3 SPR ING, Extension
9 722081 1 SPROCKET, Set
10 1960027 2 WASHER, 1/2
11 722082 1 AXLE, Swing Plate
12 722211 1 AXLE, Bushing
13 720220 1 BOLT, Hex 1/4-20 x 1-3/4
16 722080 1 SPROCKET, Axle
17 722091 2 BEARIN G, Axle D-Hole
18 722083 1 HEX SHAFT & SPROCKET ASSEMBLY
19 723694 1 HUB, Friction Wheel & Bearing
20 722185 1 WHEEL, Friction
21 1921959 3 CAPSCREW, Hex Head 1/4-20 x 5/8 G5
22 1928372 3 NUT, Hex KEPS 1/4-20
23 1733326 1 RING, Retaining, Extension
24 722391 1 NUT, FlangeLock 38-24
25 722069 1 PLATE, Swinging
26 722110 1 SPACER, Friction Pulley
27 722092 1 FRICTION PULLEY ASSEMBLY
28 722087 1 SPEED SELECT ASSEMBLY
29 724636 1 BEARING, Flange
30 1920397 2 NUT, Hex Lock ESNA Light 1/4-20
31 1922837 1 CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5
32 724621 1 SPOOL CABLE, Auger Control
33 722070 1 BRACKET, Cable Spool
34 722095 1 CABLE, Front Drive Lower All
tionItem Qt
Note
Footnotes:
Manual No. 1737016LARGE FRAME 26" & 28"
2009
25
TP 400-5408-A-LF-N

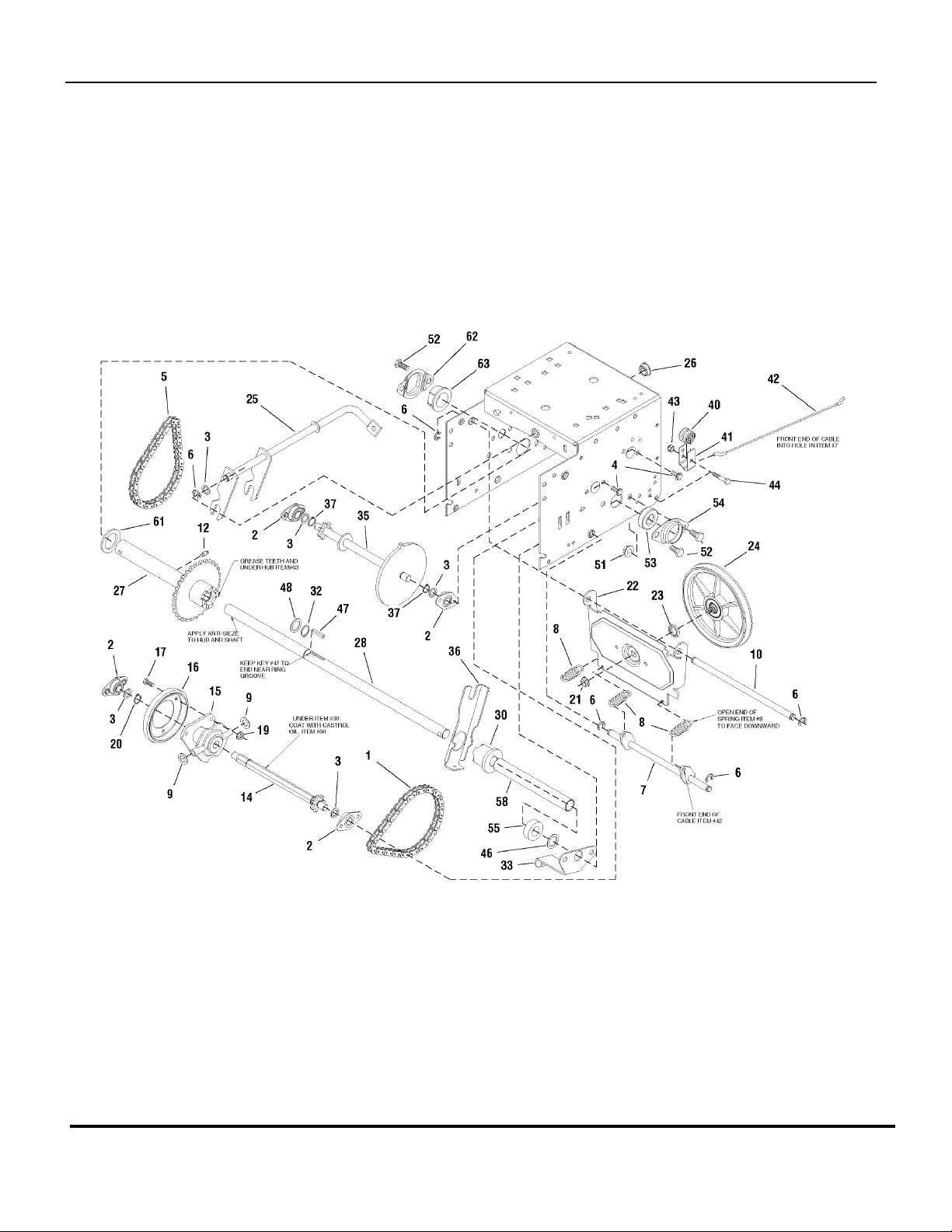

Traction Drive Group - EZ Turn - 28" Model
Manual No. 1737016 LARGE FRAME 26" & 28"
TP 400-5408-A-LF-N
26
2009
Traction Drive Group - EZ Turn - 28" Model
p
y
Part No Descri
1 724613 1 CHAIN, Roller
2 723655 4 RETAINER & BUSHING ASSEMBLY
3 724619 5 WASHER
4 1924856 8 SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
5 724627 1 CHAIN, Roller
6 721910 5 RETAINER, Ring 7/16
7 722377 1 SPRING LINK ASSEMBLY
8 722423 3 SPRING, Extens i o n
9 1960027 2 WASHER, 1/2
10 722082 1 AXLE, Swing Plate
12 2812808 1 FITTING, Lube
14 722083 1 HEX SHAFT & SPROCKET ASSEMBLY
15 723694 1 HUB, Friction Wheel & Bearing
16 722185 1 WHEEL, Friction
17 1921959 3 CAPSCREW, Hex Head 1/4-20 x 5/8 G5
19 1928372 3 NUT, Hex KEPS 1/4-20
20 1733326 1 RING, Retaining Extension
21 722391 1 NUT, 3/8-24 Flange Lock
22 722069 1 PLATE, Swinging
23 722110 1 SPACER, Friction Pulley
24 722092 1 FRICTION PULLEY ASSEMBLY
25 722087 1 SPEED SELECT ASSEMBLY
26 724636 1 BEARING, Flange
27 1733085 1 SPROCKET & HUB ASSEMBLY, W/Bushings
28 1732381 1 AXLE
30 1732382 1 GEAR, Clutching Powedered Metal
32 2827732 1 RING, Retaining Extension
33 1732948A 1 SUPPORT, Clutch Cable
35 1732389 1 SPROCKET & SHAFT ASSEMBLY
36 1732383A 1 ARM, Clutch
37 2860386 2 RING, Retaining Extension
40 724621 1 SPOOL CABLE, Auger Control
41 722070 1 BRACKET, Cable Spool
42 722095 1 CABLE, Front Drive Lower All
43 1920397 1 NUT, Hex Lock ESNA Light 1/4-20
44 1922837 1 CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5
46 725394 1 WASHER, Flat
tionItem Qt
Note
Footnotes:
Manual No. 1737016LARGE FRAME 26" & 28"
2009
27
TP 400-5408-A-LF-N
Traction Drive Group - EZ Turn - 28" Model
Manual No. 1737016 LARGE FRAME 26" & 28"
TP 400-5408-A-LF-N
28
2009
Traction Drive Group - EZ Turn - 28" Model
p
y
Part No Descri
47 1667622 1 KEY, Hi Pro
48 1960114 1 WASHER, 3/4
51 1928352 4 NUT, Hex Flange 3/8-16 Whiz Lock
52 1921965 4 CAPSCREW, Hex Head 3/8-16 x 3/4 G5
53 724409 1 BEARING, Ball
54 724347 1 RETAINER, Bearing
55 722228 1 COLLAR, Locking
58 1720298 1 SPRING, Compression
61 2860169 1 WASHER, 1-3/16
62 1733101 1 RETAINER, Bushing
63 1720305 1 BUSHING, Plastic
tionItem Qt
Note
Footnotes:
Manual No. 1737016LARGE FRAME 26" & 28"
2009
29
TP 400-5408-A-LF-N
Wheel & Tire Group
Manual No. 1737016 LARGE FRAME 26" & 28"
TP 400-5408-A-LF-N
30
2009
Wheel & Tire Group
p
y
Part No Descri
1 1731186 2 PIN, Klik .313 x 1.97 (Used on 28” Models)
1 1679697 2 PIN, Klik 1/ 4 x 1-3/4 (Used on 26” Models)
2 1723169 1 WHEEL & TIRE ASSEMBLY, 15 x 5 L.H. (Used on 28” Models)
2 1732935 1 WHEEL & TIRE ASSEMBLY, 15 x 5 L.H & R.H. (Used on 26” Models)
3 1733089 1 WHEEL & TIRE ASSEMBLY, 15 x 5 R.H. (Used on 28” Models)
3 1732935 1 WHEEL & TIRE ASSEMBLY, 15 x 5 L.H & R.H. (Used on 26” Models)
4 1664090 1 TUBE, Tire 4.10/3.50-6 L.H. (Used on 28” Models)
5 1723287 1 TIRE, 15 x 5.00-6, 2 PLY, KENDA L.H. (Used on 28” Models)
6 1657528 2 RETAINING RI NG, Extension, #75 3/4 Self Lock (Used on 26” Models)
7 2172353 1 VALVE STEM & CAP (Used on All Models)
8 725394 2 WASHER, Flat (Used on 26” Models)
9 1723286 1 HUB, Wheel L.H. (Used on 28" Models)
tionItem Qt
Note
Footnotes:
Manual No. 1737016LARGE FRAME 26" & 28"
2009
31
TP 400-5408-A-LF-N
Decals Group
Manual No. 1737016 LARGE FRAME 26" & 28"
TP 400-5408-A-LF-N
32
2009
Decals Group
p
y
Part No Descri
7 1736764 1 DECAL, Snapper 1428L, Stripe
7 1736763 1 DECAL, Snapper 1226L, Stripe
8 1733056 1 DECAL, Dashboard Standard Drive
8 1733033 1 DECAL, Dashboard EZ Turn
9 1733772 1 DECAL, Shift 1,2,3,4,5,6 R1 R2
10 1716532 1 DECAL, Danger Avoid Injury From Auger
11 1733057 1 DECAL, Danger Amputation Hazard
12 -- 1 * DECAL, OPEI Certified ANSI Note *Not a serviceable part.
13 5101445 1 DECAL, Snapper, w/o Turtle
27 728183 1 DECAL, Over Adjustment of Friction Disc
28 1733526 1 DECAL, Warning Lubrication
29 1720454 1 DECAL, Touch Up Paint Orange, Black, Red
30 1733443 1 DECAL, Chute Release Arrow
31 -- 1 * STICKER, Serial w/Bar Code Note *Not a serviceable part.
43 725432 1 DECAL, Belt Stretch & Adjustment
tionItem Qt
Note
Footnotes:
Manual No. 1737016LARGE FRAME 26" & 28"
2009
33
TP 400-5408-A-LF-N
Parts Manual fo
r
LARGE FRAME 26" & 28"
TWO-STAGE SNOWTHROWERS
2009
IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS
PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO.
WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD
IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY
OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS
Briggs & Stratton Yard Power Products Group
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
www.snapper.com
Copyright © 2008
Milwaukee, WI USA. All Rights Reserved
Briggs & Stratton Corporation
Manual No. 1737016
Revision A,
TP 400-5408-A-LF-N
9/26/2008
Loading...
