1 Introduction
10/100
Ethernet
Magnetics
SMSC
LAN8700
EVB8700
Ethernet
RJ45
MII
40-pin
Connector
MII Bus

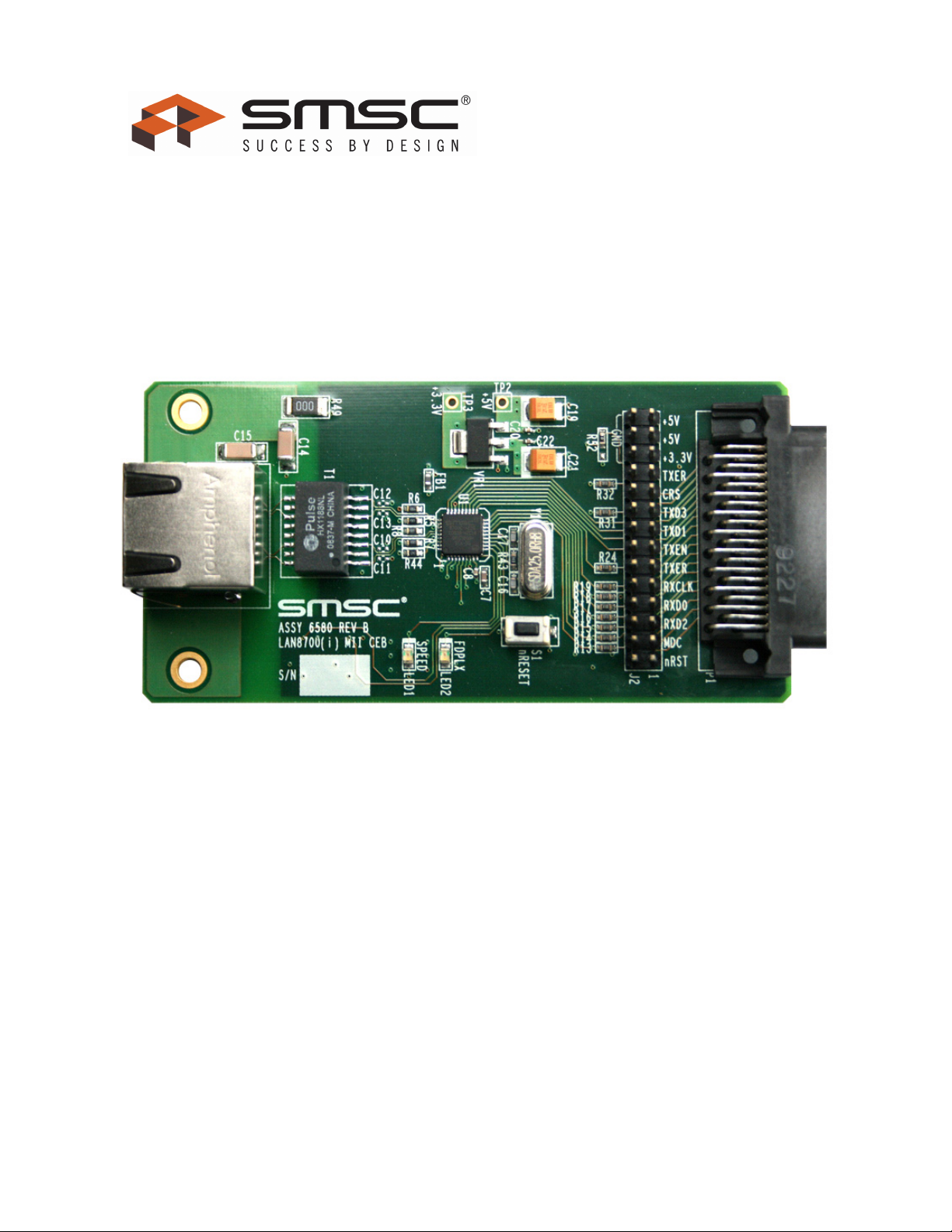

The SMSC LAN8700 is a low-power, variable I/O voltage, analog interface IC with HP Auto-MDIX
support for high-performance embedded Ethernet applications. The LAN8700 consists of an
encoder/decoder, scrambler/descrambler, wave-shaping transmitter, output driver, twisted-pair receiver
with adaptive equalizer and baseline wander (BLW) correction, and clock and data recovery functions.
The EVB8700 is an Evaluation Board (EVB) that interfaces a standard 40-pin female MII connector
from an existing MAC controller to the SMSC LAN8700 Ethernet PHY, and out to an RJ45 Ethernet
Jack for 10/100 connectivity.

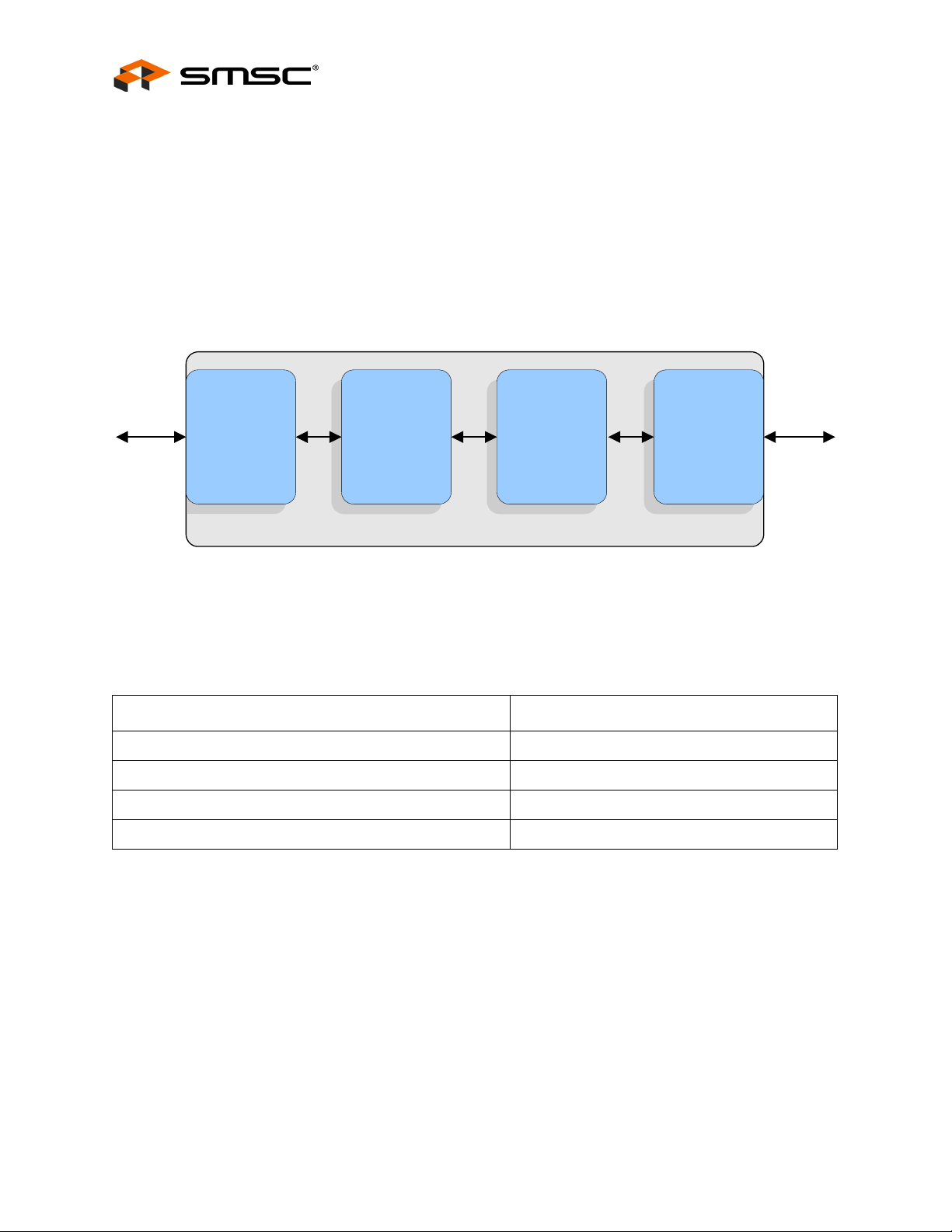

A simplified block diagram of the EVB8700 can be seen in Figure 1.1.
LAN8700 Evaluation Board User Manual
Figure 1.1 EVB8700 Block Diagram
1.1 References
Concepts and material available in the following documents may be helpful when using the EVB8700.
Table 1.1 References
DOCUMENT LOCATION
SMSC LAN8700 Datasheet http://www.smsc.com/lan8700
SMSC EVB8700 Evaluation Board Schematic http://www.smsc.com/lan8700
AN16-12 LAN8700 User Application and Configuration Guide http://www.smsc.com/lan8700
AN8-13 Suggested Magnetics http://www.smsc.com/lan8700
Revision 1.0 (02-23-10)
USER MANUAL SMSC LAN8700
2
Page 3
LAN8700 Evaluation Board User Manual
TP2
+5V
TP3
+3.3V
Female MII
Connector
Ethernet Port
(integrated LEDs)
LED1 LED2
Reset
Switch
MII
Testpoints
LAN8700
2 Board Details
This section includes the following EVB8700 board details:
Power
Configuration
Mechanicals
2.1 Power
Power is normally supplied to the EVB8700’s +3.3V regulator externally via the +5V power pins of the
MII connector. If desired, the EVB8700 can be powered without +5V present on the MII connector by
supplying +5V to the TP2 test point with ground connected to pin 20 of header J2.
Note: Before connecting an external power supply to TP2, ensure power is not present on the MII
connector’s +5V pins. Connecting +5V simultaneously via the MII connector and TP2 may
result in permanent damage to the board.
2.2 Configuration
The following sub-sections describe the various board features and configuration settings. A top view
of the EVB8700 is shown in Figure 2.1.
Note: Though the LAN8700 supports an RMII mode of operation and/or use of an external +1.8V
regulator, the EVB8700 does not support these modes.
SMSC LAN8700

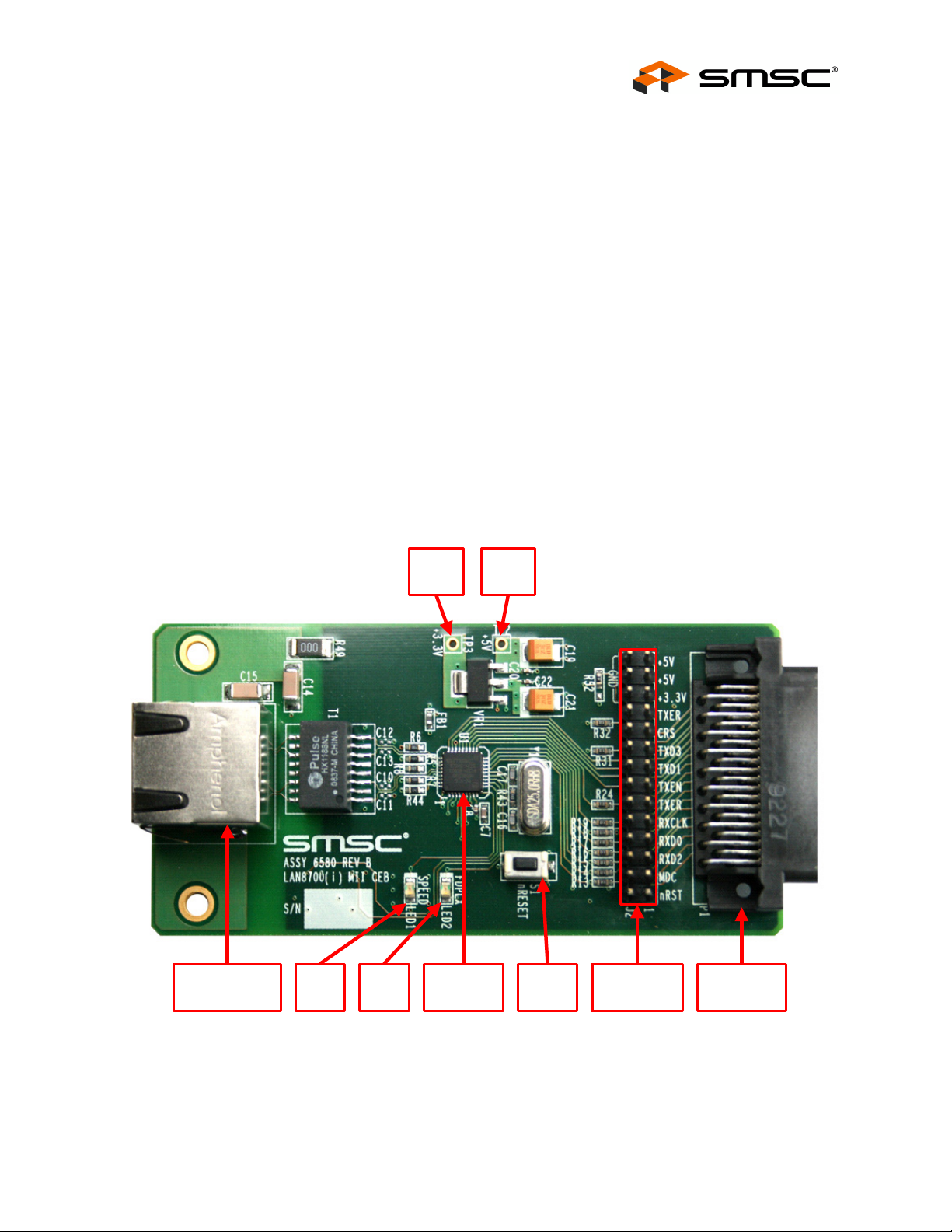

Figure 2.1 EVB8700 Top View
USER MANUAL Revision 1.0 (02-23-10)
3
Page 4
2.2.1 PHY Address and LED Configuration
The LAN8700 allows the user to configure the default PHY address at power-up via the PHYAD[4:0]
configuration straps. Because these straps share functionality with device LEDs, care must be taken
to properly configure these signals. Table 2.1 details the proper configuration required for each PHY
address value. By default, all EVB8700 PHY address straps are configured to a value of “1”.
Note: The PHYAD1 and PHYAD2 LEDs may function active-high or active-low depending on the
boards PHY address configuration. Refer to Tab le 2. 1 and the LAN8700 Datasheet for
additional information.
Table 2.1 PHY Address Configuration Settings
“0” “1” (DEFAULT)
LAN8700 Evaluation Board User Manual
PHYAD4
(MSB)
PHYAD3
PHYAD2
PHYAD1
PHYAD0
(LSB)
R11 populated R11 unpopulated
R46 unpopulated
R48 populated
R36 populated
LED2 anode connected to FDUPLEX pin (flipped)
R2 populated in position 2-3
R1 populated in position 2-3
R35 populated
Note: RJ45 Yellow LED will be active-high
R3 populated in position 2-3
R4 populated in position 2-3
R34 populated
Note: RJ45 Green LED will be active-high
R45 unpopulated
R47 populated
R33 populated
LED1 anode connected to SPEED100 pin (flipped)
LED reference designators and definitions are detailed in Ta b le 2 . 2.
Table 2.2 LEDs
R46 populated
R48 unpopulated
R36 unpopulated
LED2 cathode connected to FDUPLEX pin
R2 populated in position 1-2
R1 populated in position 1-2
R35 unpopulated
Note: RJ45 Yellow LED will be active-low
R3 populated in position 1-2
R4 populated in position 1-2
R34 unpopulated
Note: RJ45 Green LED will be active-low
R45 populated
R47 unpopulated
R33 unpopulated
LED1 cathode connected to SPEED100 pin
REFERENCE COLOR INDICATION
J1
LED1 Green Ethernet Speed
LED2 Green Ethernet Full-Duplex
Revision 1.0 (02-23-10)
Green Ethernet Link
Yellow Ethernet Activity
USER MANUAL SMSC LAN8700
4
Page 5
LAN8700 Evaluation Board User Manual
2.2.2 Boot Mode Configuration
The LAN8700 can be configured to boot into a specific mode of operation at power-up via the
MODE[2:0] configuration straps. By default, the MODE[2:0] configuration straps are pulled-up internally
to “1”. Unpopulated pull-down resistor pads are provided for each MODE[2:0] configuration strap.
These pull-down resistors should only be populated when the corresponding MODE[2:0] configuration
strap is desired to default to “0”. A list of the LAN8700 modes and their corresponding pull-down
resistor configurations are shown in Table 2.3.
Table 2.3 MODE[2:0] Resistor Configuration
MODE[2:0] MODE DEFINITIONS
MODE[2:0] PULL-DOWN RESISTORS
R40
(MODE2)
R41
(MODE1)
(MODE0)
R42
000 10BASE-T Half Duplex
Auto-negotiation disabled
001 10BASE-T Full Duplex
Auto-negotiation disabled.
010 100BASE-TX Half Duplex
Auto-negotiation disabled
CRS is active during Transmit & Receive
011 100BASE-TX Full Duplex
Auto-negotiation disabled
CRS is active during Receive
100 100BASE-TX Half Duplex is advertised
Auto-negotiation enabled.
CRS is active during Transmit & Receive.
101 Repeater mode (Note 2.1)
Auto-negotiation enabled
100BASE-TX Half Duplex is advertised
CRS is active during receive
110 Power Down mode (Note 2.2) Unpopulated Unpopulated Populated
111 All capable. Auto-negotiation enabled (Default) Unpopulated Unpopulated Unpopulated
Note 2.1 Refer to the LAN8700 Datasheet for additional information on Repeater mode.
Note 2.2 Refer to the LAN8700 Datasheet for additional information on Power-Down mode.
Populated Populated Populated
Populated Populated Unpopulated
Populated Unpopulated Populated
Populated Unpopulated Unpopulated
Unpopulated Populated Populated
Unpopulated Populated Unpopulated
SMSC LAN8700
USER MANUAL Revision 1.0 (02-23-10)
5
Page 6
2.2.3 nINT/TX_ER/TXD4 Pin Configuration
The nINT, TX_ER, and TXD4 functions share a common LAN8700 pin. This pin can operate in two
functional modes: nINT (Interrupt) Mode and TX_ER/TXD4 Mode. The RXD3/nINTSEL pin is used to
select one of these two modes. The EVB8700 must be properly configured for each mode as follows:
nINT Mode (Default EVB8700 Mode)
The nINTSEL configuration strap is pulled-up internally (by default) to select nINT mode.
(R39 unpopulated)
R52 must be in the 1-2 position, which routes nINT to pin 21 of the J2 MII header
TX_ER/TXD4 Mode
The nINTSEL configuration strap is pulled-down to select TX_ER/TXD4 mode.
(R39 populated)
R52 must be in the 2-3 position, which routes TX_ER/TXD4 to pin 11 of the J2 MII header
For additional information on the functionality of the nINT/TX_ER/TXD4 pin, refer to the LAN8700
Datasheet and EVB8700 schematics.
2.2.4 Test Points
LAN8700 Evaluation Board User Manual
Table 2.4 Test Points
TEST POINT DESCRIPTION CONNECTION
TP2
+5V Test Point (Unpopulated)
(Note 2.3)
+5V
TP3 +3.3V Test Point (Unpopulated) +3.3V
Note 2.3 Test point TP2 can be used as an alternative source of +5V to the EVB8700. Refer to
Section 2.1, "Power," on page 3 for additional information.
2.2.5 System Connections
Table 2.5 System Connections
PLUG/HEADER DESCRIPTION PART
J1 RJ45 with Integrated LEDs Amphenol RJSBE5381C1
J2
P1
2x14 MII Header
Note: Refer Table 2.6 to for a full pin list
40-pin Female MII Connector
Note: This connector follows the
standardized MII pinout. Refer to
the EVB8700 schematic for
additional information. (Note 2.4)
Adam Tech PH2-28-U-A
Tyco 5173278-2
Revision 1.0 (02-23-10)
USER MANUAL SMSC LAN8700
6
Page 7
LAN8700 Evaluation Board User Manual
Table 2.6 J2 - 2x14 MII Header Pinout
HEADER
PIN DESCRIPTION
1 Ground 15 TXD1
2MDIO (Note 2.4)16TXD2
3MDC 17TXD3
4 RXD3/nINTSEL 18 COL/MII/CRS_DV
5 RXD2/MODE2 19 CRS/PHYAD4
6 RXD1/MODE1 20 Ground
7RXD0/MODE0 21nINT (Note 2.5)
8RX_DV 22+3.3V
9 RX_CLK/REGOFF 23 +3.3V
10 RX_ER/RXD4 24 Ground
11 TX_ER/TXD4 (Note 2.5)25+5V
12 TX_CLK 26 Ground
13 TX_EN 27 +5V
14 TXD0 28 Ground
HEADER
PIN DESCRIPTION
Note 2.4 Resistor R12 acts as a pull-up on the MDIO pin. In most situations, the MAC circuitry
provides this pull-up and R12 is not required.
Note 2.5 Pins 11 and 21 of the J2 header both connect to resistor R52. This resistor must be
positioned correctly in order to divert the nINT/TX_ER/TXD4 pin of the LAN8700 to the
correct J2 location, as determined by the nINTSEL configuration strap value. Refer to
Section 2.2.3, "nINT/TX_ER/TXD4 Pin Configuration," on page 6 for additional information.
2.2.6 Switches
Table 2.7 Switches
SWITCH DESCRIPTION FUNCTION
S1 Reset switch When pressed, triggers a board reset
SMSC LAN8700
USER MANUAL Revision 1.0 (02-23-10)
7
Page 8
2.3 Mechanicals
1.750
3.530
Ø0.125
Ø0.125
TOP VIEW
0.175
0.255
0.175
0.255

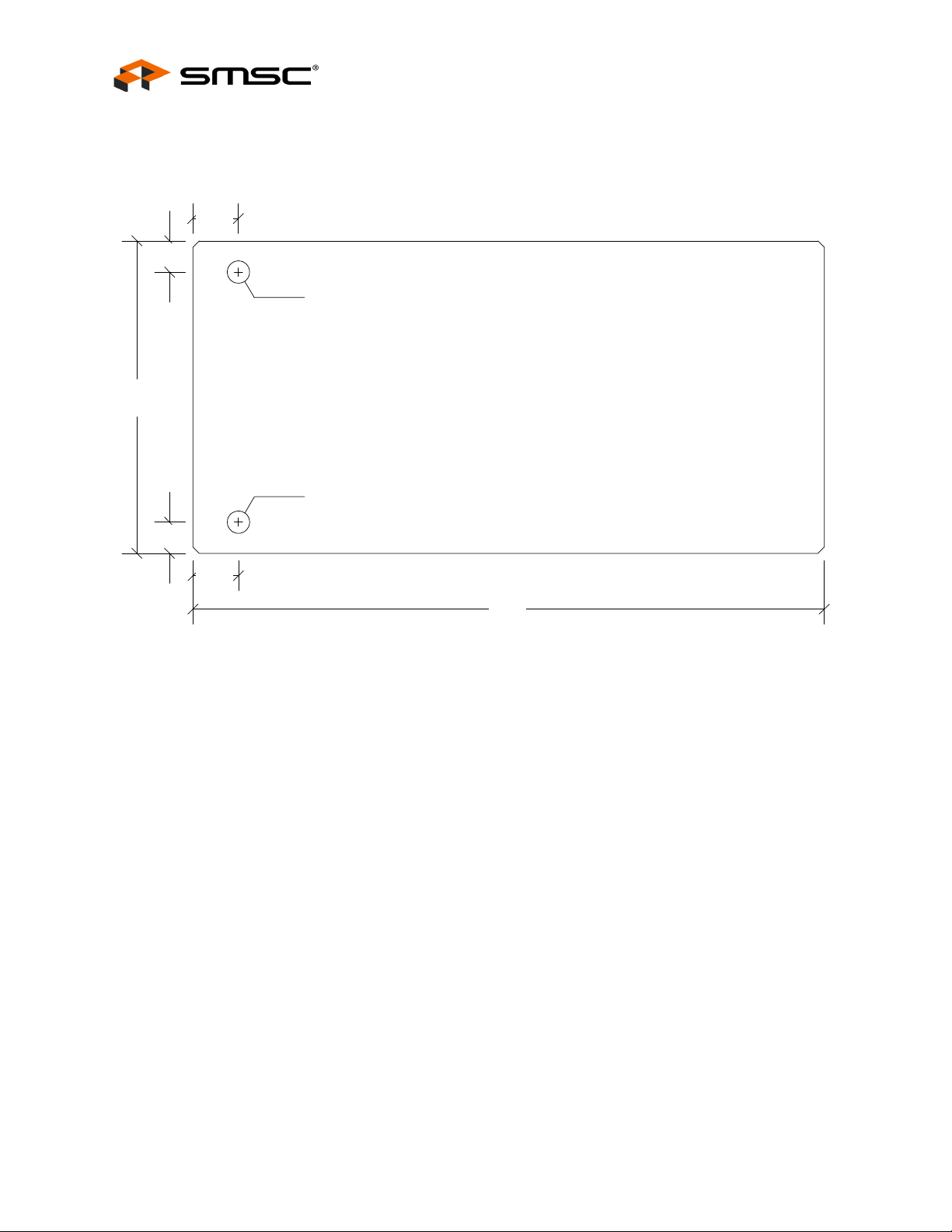

Figure 2.2 details the EVB8700 mechanical dimensions.
LAN8700 Evaluation Board User Manual
Figure 2.2 EVB8700 Mechanicals
Revision 1.0 (02-23-10)
USER MANUAL SMSC LAN8700
8
Page 9
LAN8700 Evaluation Board User Manual
3 User Manual Revision History
Table 3.1 Revision History
REVISION LEVEL & DATE SECTION/FIGURE/ENTRY CORRECTION
Rev. 1.0
(02-23-10)
Initial Release
SMSC LAN8700
USER MANUAL Revision 1.0 (02-23-10)
9
Page 10
