Smeg U3F082P User Manual

Gebruik‐

saanwijzing

User Manual

Notice d'utili‐

sation

Benutzerin‐

formation

Vriezer

Freezer

Congélateur

Gefriergerät

U3F082P

CONTENTS

Safety information 15
Safety instructions 16
Operation 18
First use 19
Daily use 19

Hints and tips 20
Care and cleaning 21
Troubleshooting 23
Installation 25
Technical information 26

Subject to change without notice.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and
damages. Always keep the instructions with the appliance for
future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.

• Do not let children play with the appliance.

• Cleaning and user maintenance shall not be made by

children without supervision.
Keep all packaging away from children.

•

15

General Safety

This appliance is intended to be used in household and

•

similar applications such as:

Farm houses; staff kitchen areas in shops, offices and

–

other working environments
By clients in hotels, motels, bed and breakfast and other

–

residential type environments

Keep ventilation openings, in the appliance enclosure or in

•

the built-in structure, clear of obstruction.

16

• Do not use mechanical devices or other means to accelerate

the defrosting process, other than those recommended by
the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage

compartments of the appliance, unless they are of the type
recommended by the manufacturer.

• Do not use water spray and steam to clean the appliance.

• Clean the appliance with a moist soft cloth. Only use neutral

detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.

• Do not store explosive substances such as aerosol cans

with a flammable propellant in this appliance.

• If the supply cord is damaged, it must be replaced by the

manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

Installation

WARNING! Only a qualified

person must install this
appliance.

• Remove all the packaging.

• Do not install or use a damaged
appliance.

• Obey the installation instruction supplied
with the appliance.

• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.

• Make sure the air can circulate around
the appliance.

• Wait at least 4 hours before connecting
the appliance to the power supply. This
is to allow the oil to flow back in the
compressor.

• Do not install the appliance close to
radiators or cookers, oven or hobs.

• The rear of the appliance must stand
against the wall.

• Do not install the appliance where there
is direct sunlight.

• Do not install this appliance in areas that
are too humid or too colds, such as the
construction appendices, garages or
wine cellars.

• When you move the appliance, lift it by
the front edge to avoid scratching the
floor.

Electrical connection

WARNING! Risk of fire and

electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.

• Always use a correctly installed
shockproof socket.

• Do not use multi-plug adapters and
extension cables.

• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Authorised Service Centre or an

17

electrician to change the electrical
components.

• The mains cable must stay below the
level of the mains plug.

• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.

• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.

Use

WARNING! Risk of injury,

burns, electrical shock or fire.

• Do not change the specification of this
appliance.

• Do not put electrical appliances (e.g. ice
cream makers) in the appliance unless
they are stated applicable by the
manufacturer.

• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level of
environmental compatibility. This gas is
flammable.

• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.

• Do not let hot items to touch the plastic
parts of the appliance.

• Do not put soft drinks in the freezer
compartment. This will create pressure
on the drink container.

• Do not store flammable gas and liquid in
the appliance.

• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.

• Do not touch the compressor or the
condenser. They are hot.

• Do not remove or touch items from the
freezer compartment if your hands are
wet or damp.

• Do not freeze again food that has been
thawed.

• Obey the storage instructions on the
packaging of frozen food.

Care and cleaning

WARNING! Risk of injury or

damage to the appliance.

• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.

• This appliance contains hydrocarbons in
the cooling unit. Only a qualified person
must do the maintenance and the
recharging of the unit.

• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.

Disposal

WARNING! Risk of injury or

suffocation.

• Disconnect the appliance from the mains
supply.

• Cut off the mains cable and discard it.

• Remove the door to prevent children
and pets to be closed inside of the
appliance.

• The refrigerant circuit and the insulation
materials of this appliance are ozone­friendly.

• The insulation foam contains flammable
gas. Contact your municipal authority for
information on how to discard the
appliance correctly.

• Do not cause damage to the part of the
cooling unit that is near the heat
exchanger.

1 2 3 4 5

18

OPERATION

Control panel

Power indicator light

1

Temperature regulator

2

Super light

3

Switching on

Connect the appliance to the main power
supply.

1. Turn the Temperature regulator
clockwise to a medium setting.

The power indicator light will light up and a
sound will signal for 2 seconds.

If the temperature inside the
appliance is too high, the Alarm
light will blink and the sound
signal alarm will turn on.

2. Push the Super switch and the sound
signal alarm will get off.

3.

Push the Super switch once again and
the Super light will light up. The
appliance will start to operate.

Switching off

Turn the Temperature regulator to the "O"
position and a sound is on only for 2
seconds .
The power indicator light will switch off.

Temperature regulation

The temperature is regulated automatically.

Super switch and alarm reset switch

4

Alarm light

5

A medium setting is generally
the most suitable.
However, the exact setting
should be chosen keeping in
mind that the temperature inside
the appliance depends on:

• room temperature,

• how often the door is
opened,

• the quantity of food stored,

• the location of the appliance.

1. Turn the Temperature regulator toward
lower settings to obtain the minimum
coldness.

2.

Turn the Temperature regulator toward
higher settings to obtain the maximum
coldness.

CAUTION! If the ambient
temperature is high or the
appliance is fully loaded, and the
appliance is set to the lowest
temperatures, it may run
continuously causing frost to
form on the rear wall. In this
case the dial must be set to a
higher temperature to allow
automatic defrosting and
therefore reduced energy
consumption.

19

Super function

Press the Super button.
The Super indicator appears.
To switch off the function before its
automatic end, press the Super button until
the Super indicator turns off

High temperature alarm

If the temperature inside the freezer has
risen to a point where the safe storage of
frozen food is no longer ensured (for
example due to an power failure), the Alarm
light will blink and an acoustic alarm will
sound.

FIRST USE

Cleaning the interior

Before using the appliance for the first time,
the interior and all internal accessories
should be washed with lukewarm water
and some neutral soap to remove the
typical smell of a brand-new product, then
dried thoroughly.

DAILY USE

WARNING! Refer to Safety
chapters.

Freezing fresh food

The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.

To freeze fresh food activate the Super
function at least 24 hours before placing the
food to be frozen in the freezer
compartment.

The maximum amount of food that can be
frozen in 24 hours is specified on the rating
plate, a label located on the inside of the
appliance.

The freezing process lasts 24 hours: during
this period do not add other food to be
frozen.

When the freezer is first
switched on, the Alarm light
blinks until the temperature has
dropped to a safe level for the
storage of frozen food.

1. Switch off the warning tone by pressing
the Super switch.

The Super indicator appears.
The Alarm light blinks until the required
temperature has been reached again.

2. Release theSuper switch as soon as the
Alarm light is off.

The Super indicator turns off.

CAUTION! Do not use
detergents or abrasive powders,
as these will damage the finish.

When the freezing process is completed,
return to the required temperature (see
"Super Function").

Storage of frozen food

When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours with the Super function turned on.

If large quantities of food are to be stored,
remove all drawers from appliance and
place food on glass shelf to obtain the best
performance.

20

In the event of accidental
defrosting, for example due to a
power failure, if the power has
been off for longer that the value
shown in the technical data
chart under "Rising time", the
defrosted food must be
consumed quickly or cooked
immediately and then re-frozen
(after cooling).

Frozen Food Calendar

The symbols show different types of frozen
goods.

HINTS AND TIPS

Normal operating sounds

The following sounds are normal during
operation:

• A faint gurgling and bubbling sound from
coils sound when refrigerant is pumped.

• A whirring and pulsating sound from the
compressor when refrigerant is pumped.

• A sudden cracking noise from inside
appliance caused by thermic dilatation (a
natural and not dangerous physical
phenomenon).

• A faint click noise from the temperature
regulator when the compressor switches
on or off.

Hints for energy saving

• Do not open the door frequently or leave
it open longer than absolutely necessary.

Hints for freezing

To help you make the most of the freezing
process, here are some important hints:

• the maximum quantity of food which can
be frozen in 24 hours is shown on the
rating plate;

• the freezing process takes 24 hours no
further food to be frozen should be
added during this period;

The numbers indicate storage times in
months for the appropriate types of frozen
goods. Whether the upper or lower value of
the indicated storage time is valid depends
on the quality of the foods and treating
before freezing.

Thawing

Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature,
depending on the time available for this
operation.

Small pieces may even be cooked still
frozen, directly from the freezer: in this
case, cooking will take longer.

• freeze only top quality, fresh and
thoroughly cleaned, foodstuffs;

• prepare food in small portions to enable
it to be rapidly and completely frozen
and to make it possible subsequently to
thaw only the quantity required;

• wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight;

• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the
latter;

• lean foods store better and longer than
fatty ones; salt reduces the storage life
of food;

• water ices, if consumed immediately
after removal from the freezer
compartment, can possibly cause the
skin to be freeze burnt;

• it is advisable to show the freezing in
date on each individual pack to enable
you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this
appliance, you should:

• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;

21

• be sure that frozen foodstuffs are
transferred from the foodstore to the
freezer in the shortest possible time;

• not open the door frequently or leave it
open longer than absolutely necessary;

CARE AND CLEANING

WARNING! Refer to Safety
chapters.

General warnings

CAUTION! Unplug the

appliance before carrying out
any maintenance operation.

This appliance contains
hydrocarbons in its cooling unit;
maintenance and recharging
must therefore only be carried
out by authorized technicians.

The accessories and parts of
the appliance are not suitable for
washing in a dishwasher.

Periodic cleaning

CAUTION! Do not pull, move or

damage any pipes and/or
cables inside the cabinet.

CAUTION! Take care of not to
damage the cooling system.

CAUTION! When moving the
cabinet, lift it by the front edge
to avoid scratching the floor.

The equipment has to be cleaned regularly:

1. Clean the inside and accessories with

lukewarm water and some neutral soap.

2. Regularly check the door seals and

wipe clean to ensure they are clean and
free from debris.

3. Rinse and dry thoroughly.

4. If accessible, clean the condenser and

the compressor at the back of the
appliance with a brush.

• once defrosted, food deteriorates rapidly
and cannot be refrozen;

• do not exceed the storage period
indicated by the food manufacturer.

This operation will improve the
performance of the appliance and save
electricity consumption.

Defrosting the freezer

CAUTION! Never use sharp

metal tools to scrape off frost
from the evaporator as you
could damage it. Do not use a
mechanical device or any
artificial means to speed up the
thawing process other than
those recommended by the
manufacturer. A temperature
rise of the frozen food packs,
during defrosting, may shorten
their safe storage life.

About 12 hours prior to
defrosting, set a lower
temperature, in order to build up
sufficient chill reserve for the
interruption in operation.

A certain amount of frost will always form
on the freezer shelves and around the top
compartment.

Defrost the freezer when the frost layer
reaches a thickness of about 3-5 mm.

1. Switch off the appliance, or pull out

electrical plug from the wall socket.

2. Remove any stored food, wrap it in

several layers of newspaper and put it in
a cool place.

WARNING! Do not touch
frozen goods with wet
hands. Hands can freeze to
the goods.

3. Leave the door open and insert the

plastic scraper in the appropriate
seating at the bottom centre, placing a

C AB

2

1

A

B

22

basin underneath to collect the defrost
water.

In order to speed up the defrosting
process, place a pot of warm water in
the freezer compartment. In addition,
remove pieces of ice that break away
before defrosting is complete.

4.

When defrosting is completed, dry the
interior thoroughly and keep the scraper
for future use.

5.

Switch on the appliance.
After three hours reload the previously
removed food into the freezer
compartment.

Cleaning the air channels

1.

Remove the plinth (A), then the

ventilation grid (B).

2. Clean the ventilation grid. (Refer to

"Cleaning the ventilation filter ". )

3. Carefully pull the air deflector out (C),

checking that there is no water left from

the defrosting.

4. Clean the lower part of the appliance
with a vacuum cleaner.

Cleaning the ventilation filter

The filter can be removed for washing.
The appliance is equipped with an air inlet

filter (1) and an air outlet duct (2) on the
ventilation grid.

1.

Pinch flaps (a) and (b) with fingers.

2. Pull the filter down.

3. Pull the filter out.

4. To replace the filter reverse the process.

Periods of non-operation

When the appliance is not in use for long
periods, take the following precautions:

1. Disconnect the appliance from
electricity supply.

2. Remove all food.

3. Defrost (if necessary) and clean the

appliance and all accessories.

4. Leave the door/doors open to prevent
unpleasant smells.

WARNING! If the cabinet will be
kept on, ask somebody to
check it once in a while to
prevent the food inside from
spoiling in case of a power
failure.

TROUBLESHOOTING

WARNING! Refer to Safety
chapters.

What to do if...

Problem Possible cause Solution

The appliance does not oper­ate.

The mains plug is not con-

There is no voltage in the

The appliance is noisy. The appliance is not suppor-

Audible or visual alarm is on. The cabinet has been recent-

Power indicator light is flash­ing.

The compressor operates
continually.

Many food products to be

The room temperature is too

The appliance is switched off. Switch on the appliance.

Connect the mains plug to
nected to the mains socket
correctly.

mains socket.

ted properly.

ly switched on or the temper­ature is still too high.

The temperature in the appli­ance is too high.

An error has occurred in
measuring the temperature.

The appliance is not working
properly.

The temperature in the appli­ance is too high.

Temperature is set incorrect­ly.

frozen were put in at the
same time.

high.

the mains socket correctly.

Connect a different electrical

appliance to the mains sock-

et. Contact a qualified electri-

cian.

Check if the appliance stands

stable.

Refer to "Door Open

Alarm"or "High Temperature

Alarm".

Refer to "Door Open

Alarm"or "High Temperature

Alarm".

Contact a qualified electrician

or contact the nearest Au-

thorized Service Centre.

Contact a qualified electrician

or contact the nearest Au-

thorized Service Centre.

Contact a qualified electrician

or contact the nearest Au-

thorized Service Centre.

Refer to "Operation" chapter.

Wait some hours and then

check the temperature again.

Refer to climate class chart

on the rating plate.

23

24

Problem Possible cause Solution

Food products placed in the

appliance were too warm.

The door is not closed cor­rectly.

The Super function is switch­ed on.

There is too much frost and
ice.

The compressor does not
start immediately after press­ing the Super, or after chang­ing the temperature.

Temperature cannot be set. The Super or function is

The temperature in the appli­ance is too low/too high.

The door is not closed cor­rectly or the gasket is de­formed/dirty.

The water drainage plug is
not correctly positioned.

Food products are not wrap­ped properly.

Temperature is set incorrect­ly.

This is normal, no error has
occurred.

switched on.

The temperature regulator is
not set correctly.

The door is not closed cor­rectly.

The food products' tempera­ture is too high.

Many food products are stor­ed at the same time.

The thickness of the frost is
greater than 4-5 mm.

The door has been opened
often.

Allow food products to cool

to room temperature before

storing.

Refer to "Closing the door".

Refer to "Super function".

Refer to "Closing the door".

Position the water drainage

plug in the correct way.

Wrap the food products bet-

ter.

Refer to "Operation" chapter.

The compressor starts after a

period of time.

Switch off Super or manually,

or wait until the function re-

sets automatically to set the

temperature. Refer to "Super

or function".

Set a higher/lower tempera-

ture.

Refer to "Closing the door".

Let the food products tem-

perature decrease to room

temperature before storage.

Store less food products at

the same time.

Defrost the appliance.

Open the door only if neces-

sary.

Problem Possible cause Solution

The Super function is switch­ed on.

There is no cold air circula­tion in the appliance.

Refer to "Super function".

Make sure that there is cold

air circulation in the appli-

ance.

25

If the advice does not lead to
the desired result, call the
nearest Authorized Service
Centre.

Closing the door

1. Clean the door gaskets.

INSTALLATION

WARNING! Refer to Safety
chapters.

Location

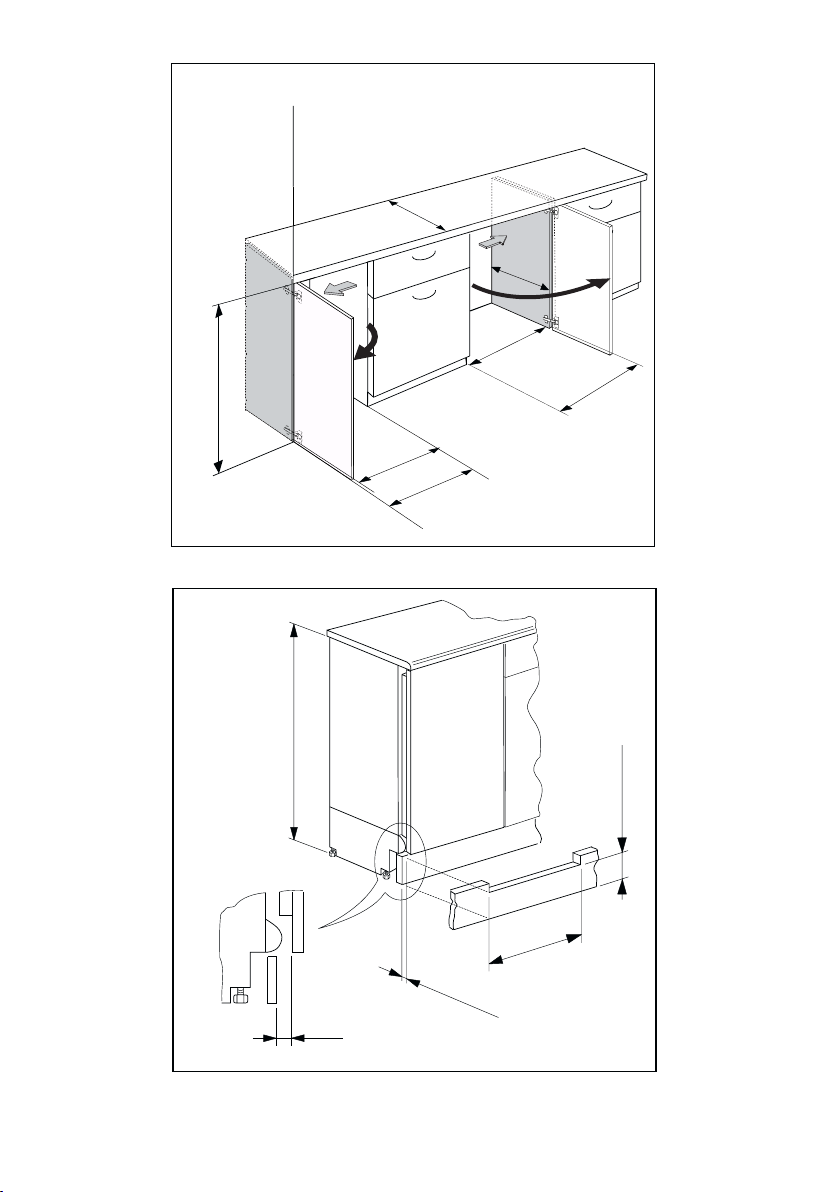

Refer to the assembly
instructions for the installation.

To ensure best performance, install the
appliance well away from sources of heat
such as radiators, boilers, direct sunlight
etc. Make sure that air can circulate freely
around the back of the cabinet.

Positioning

This appliance can be installed in a dry, well
ventilated indoor where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance:

Cli­mate
class

SN +10°C to + 32°C

N +16°C to + 32°C

ST +16°C to + 38°C

Ambient temperature

2. If necessary, adjust the door. Refer to

"Installation".

3. If necessary, replace the defective door
gaskets. Contact the Authorised
Service Centre.

Cli­mate
class

T +16°C to + 43°C

Ambient temperature

Some functional problems might
occur for some types of models
when operating outside of that
range. The correct operation
can only be guaranteed within
the specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer service
or to the nearest Authorised
Service Centre.

Electrical connection

• Before plugging in, ensure that the

voltage and frequency shown on the
rating plate correspond to your domestic
power supply.

• The appliance must be earthed. The

power supply cable plug is provided with
a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with

26

current regulations, consulting a qualified
electrician.

• The manufacturer declines all
responsibility if the above safety
precautions are not observed.

• This appliance complies with the E.E.C.
Directives.

TECHNICAL INFORMATION

Technical data

Height mm 815

Width mm 560

Depth mm 550

Rising time Hours 18

Voltage Volts 230 - 240

Frequency Hz 50

The technical information are situated in the
rating plate, on the external or internal side
of the appliance and in the energy label.

ENVIRONMENT CONCERNS

Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do not

dispose appliances marked with the symbol

with the household waste. Return the
product to your local recycling facility or
contact your municipal office.

Installation Instruction
Montageanweisung
Instructions d’installation
Istruzioni di installazione
Installationsvejledning
Instruções de instalação
Instrucciones de instalación
Installatie-instructies

Инструкции за инсталиране

Pokyny k instalaci

Οδηγίες εγκατάστασης

Paigaldusjuhis
Asennusohjeet
Upute za instalaciju

Üzembe helyezési útmutató

Įrengimo instrukcija
Uzstādīšanas norādījumi

Monteringsanvisning

Wskazówki dotyczące instalacji
Instrucţiuni de instalare
Указания по установке
Pokyny na inštaláciu

Navodila za namestitev
Udhëzime Instalimi

Упутство за инсталирање

Installationsanvisningar

Montaj Talimatları
Інструкція з установки

2

EN

Warning! Before proceeding with instal­lation, read the safety information in the
User Manual.

DE

Achtung! Lesen Sie vor Beginn der In­stallation die Sicherheitshinweise in der
Gebrauchsanweisung.

BG

Внимание! Преди да пристъпите
към инсталирането, прочетете
информацията за безопасност в
Ръководството за потребителя.

CS

Upozornění! Před začátkem instalace
si přečtěte bezpečnostní informace v
návodu k použití.

FR

Attention! Veuillez lire les consignes de
sécurité que contient la Notice d’utilisa­tion avant d’installer l’appareil.

IT

Attenzione! Prima di procedere all’instal-nzione! Prima di procedere all’instal­lazione, leggere le istruzioni di sicurezza
contenute nel Libretto Istruzioni.

DA

Vigtigt! L�s brugsanvisningens instruk-igt! L�s brugsanvisningens instruk­tioner vedrørende sikkerhed, før instal­lationen påbegyndes.

PT

Atenção! Antes de continuar a instalação,
leia as informações de segurança no Ma­nual de Utilizador.

ES

¡Atención! Antes de realizar la instala-nción! Antes de realizar la instala­ción, lea la información de seguridad del
Manual del usuario.

NL

Waarschuwing! Lees de veiligheidsinfor-aarschuwing! Lees de veiligheidsinfor­matie in de gebruikershandleiding voor­dat u met de installatie begint.

EL

Προειδοποίηση! Πριν συνεχίσετε με την
εγκατάσταση, διαβάστε τις πληροφορίες
ασφάλειας στο εγχειρίδιο χρήστη.

ET

Hoiatus! Enne paigaldamist lugege läbi
kasutusjuhendis olevad ohutusjuhised.

FI

Varoitus! Ennen kuin aloitat asennuksen,
lue käyttöohjeen sisältämät turvallisuuso­hjeet.

HR

Upozorenje! Prije instalacije pročitajte

sigurnosne informacije u Uputama za
uporabu.

HU

Vigyázat! Mielőtt továbblépne az üzembe
helyezéssel, olvassa el a biztonsági in­formációkat a felhasználói kéziköny-

vben.

DE

LT

Įspėjimas! Prieš montuodami perskait­ykite saugos informaciją naudojimo in-

strukcijoje.

3

LV

Brīdinājums! Pirms turpināt uzstādīšanu,
izlasiet lietotāja rokasgrāmatā ietverto
drošības informāciju.

DESRSL

Opozorilo! Pred nadaljevanjem z names­titvijo preberite varnostna navodila v na­vodilih za uporabo.

NO

Advarsel! Les sikkerhetsinformasjonene i
bruksanvisningen før du begynner instal­lasjonen.

PL

Ostrzeżenie! Przed rozpoczęciem in­stalacji należy przeczytać informacje
dotyczące bezpieczeństwa podane w In­strukcji obsługi.

RO

Atenţie! Înainte de a trece la instalare,
citiţi informaţiile privind siguranţa din

Manualul Utilizatorului.

RU

Внимание! Перед тем как приступать
к установке, прочтите информацию по
технике безопасности в руководстве
пользователя.

SK

Upozornenie! Pred inštaláciou si
prečítajte bezpečnostné pokyny v návode
na používanie.

SQ

Paralajmërim! Përpara se të kryeni instal­imin, lexoni të dhënat e sigurisë në Manu­alin e Përdorimit.

Упозорење! Пре него што приступите
инсталирању уређаја, прочитајте
информације о безбедности у Упутству
за употребу.

SV

Varning! Läs säkerhetsanvisningarna i
bruksanvisningen innan du fortsätter med
installationen.

TR

Uyarı! Montaj işlemine başlamadan önce,
kullanma kılavuzundaki güvenlik bilgiler-

ini okuyunuz.

UK

Увага! Перед початком встановлення
прочитайте інформацію щодо безпеки
у Посібнику користувача.

4

22x

2x

1x

2x

A

B

C

D

E

F

1x

4x

5

(600)

820 - 890

A = 820

580

(600)

580

550

600

B = 890

a = 100

b = 170

25

580

25 - 80

6

1.

7

2.

4.

1

2

3

4

5

8

8

7

9

6

10

9

180°

4.

3.

10

4.

C

C

C

D

C

11

5.

12

6.

42mm

B

B

13

8.

Ea

Eb

Ec

Ed

5

m

m

5

m

m

50 mm

90

°

90

°

50 mm

9.

PR33

Ec

Ea

10.

7.

Ea

8mm

Eb

Ed

Eb

11.

12.

Eb

90°

14

14.

F

100-170 mm

16.

15.

15

25

25

211620060-A-102009
