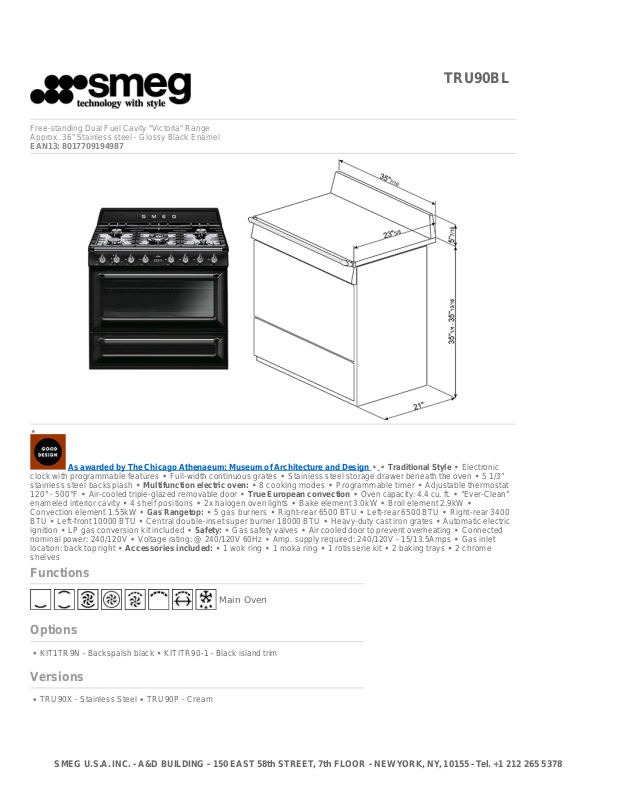

Smeg TRU90BL User Manual

TRU90BL

Free-standing Dual Fuel Cavity "Victoria" Range
Approx. 36" Stainless steel - Glossy Black Enamel
EAN13: 8017709194987

As awarded by The Chicago Athenaeum: Museum of Architecture and Design

Traditional Style

Electronic
clock with programmable features Full-width continuous grates Stainless steel storage drawer beneath the oven 5 1/3”
stainless steel backsplash

Multifunction electric oven:

8 cooking modes Programmable timer Adjustable thermostat
120° - 500°F Air-cooled triple-glazed removable door True European convection Oven capacity: 4.4 cu. ft. “Ever-Clean”
enameled interior cavity 4 shelf positions 2x halogen oven lights Bake element 3.0kW Broil element 2.9kW
Convection element 1.55kW

Gas Rangetop:

5 gas burners Right-rear 6500 BTU Left-rear 6500 BTU Right-rear 3400
BTU Left-front 10000 BTU Central double-inset super burner 18000 BTU Heavy-duty cast iron grates Automatic electric
ignition LP gas conversion kit included

Safety:

Gas safety valves Air cooled door to prevent overheating Connected
nominal power: 240/120V Voltage rating: @ 240/120V 60Hz Amp. supply required: 240/120V - 15/13.5Amps Gas inlet
location: back top right Accessories included: 1 wok ring 1 moka ring 1 rotisserie kit 2 baking trays 2 chrome
shelves

Functions

Main Oven

Options

KIT1TR9N - Backspalsh black KITITR90-1 - Black island trim

Versions

TRU90X - Stainless Steel TRU90P - Cream

SMEG U.S.A. INC. - A&D BUILDING - 150 EAST 58th STREET, 7th FLOOR - NEW YORK, NY, 10155 - Tel. [phone]
