Smeg TRU36GMDGM Product Information Sheet

TRU36GMDGM

Range, 36", Victoria, Divina Cucina, Decorated / Special Majolica, Main oven: Thermo-ventilated, Smeg & Dolce&Gabbana

TYPE

Product family: Range • Range size: 36" • Power source: Dual-fuel • Main oven: Thermo-ventilated • Cleaning system:

VaporClean • EAN code: 8017709280093

AESTHETIC

Color: Decorated / Special • Decoration / Special color: Majolica • Finishing: Glossy • Aesthetic: Victoria • Design: Victoria •

Series: Divina Cucina • Collaborations: SMEG & Dolce&Gabbana • Material: Painted metal • Door: With frame • Control panel

finish: Stainless steel • Cooktop color: Black enamel • Handle: Victoria • Controls color: Stainless steel • Upstand: Yes • Display:

Touch • Grates: Cast Iron • Handle color: Polished chrome • Control knobs: Victoria • Door glass type: Stopsol • No. of controls: 8

• Feet: none • Plinth: Anthracite • Storage compartment: Drawer

PROGRAMS / FUNCTIONS

Traditional cooking functions: Static, Fan-assisted, True European convection, Small grill, Large grill, Large grill + Fan, Bottom •

Other functions: Defrost by time

MAIN OVEN OPTIONS

Timer: Yes • End-of-cooking alarm: Yes • Minimum Temperature: 122 °F • Maximum temperature: 500 °F

COOKTOP TECHNICAL FEATURES

Total no. of cook zones: 5 • Zone 1 - Position: Front-left • Zone 2 - Position: Rear-left • Zone 3 - Position: Center • Zone 4 -

Position: Rear-right • Zone 5 - Position: Front-right • Zone 1 - Type: Gas - Rapid • Zone 2 - Type: Gas - Semi-rapid • Zone 3 -

Type: Gas - Dual ultra-rapid • Zone 4 - Type: Gas - Semi-rapid • Zone 5 - Type: Gas - AUX • Zone 1 - Power: 9500 BTU • Zone 2

- Power: 6000 BTU • Zone 3 - Power: 18000 BTU • Zone 4 - Power: 6000 BTU • Zone 5 - Power: 3500 BTU • Burners type:

Standard • Burner caps: Enameled matte black • Automatic gas ignition: Yes • Gas safety valves: Yes

MAIN OVEN TECHNICAL FEATURES

Net volume of the cavity: 119 cu. ft. • Cavity material: EverClean enamel • No. of shelves: 5 • Shelves type: Metal racks • No. of

lights: 2 • Light type: Halogen • Light Power: 40 W • Fan number: 3 • Time setting: Start and end • Door opening: Drop-down •

Light on when door is open: Yes • Removable door: Yes • Full-glass inner door: Yes • Removable inner door: Yes • Total no. of

door glasses: 3 • No.of thermo-reflective door glasses: 2 • Safety thermostat: Yes • Cooling system: Tangential • Grill type:

Electric • Grill power: 1700 W • Large grill - Power: 2900 W • Bottom heating element - Power: 1700 W • Upper heating

element - Power: 1200 W • Circular heating element - Power: 1550 W • Soft Close system: Yes • Temperature control: Electro-

mechanical

PERFORMANCE / ENERGY LABEL

ELECTRICAL CONNECTION

Electrical connection rating: 3300 W • Voltage: 120-240 V • Voltage (V): 120/208 V • Frequency: 60 Hz • Power cord length: 47

1/4 "

GAS CONNECTION

Gas Type: G20 Natural gas

LOGISTIC INFORMATION

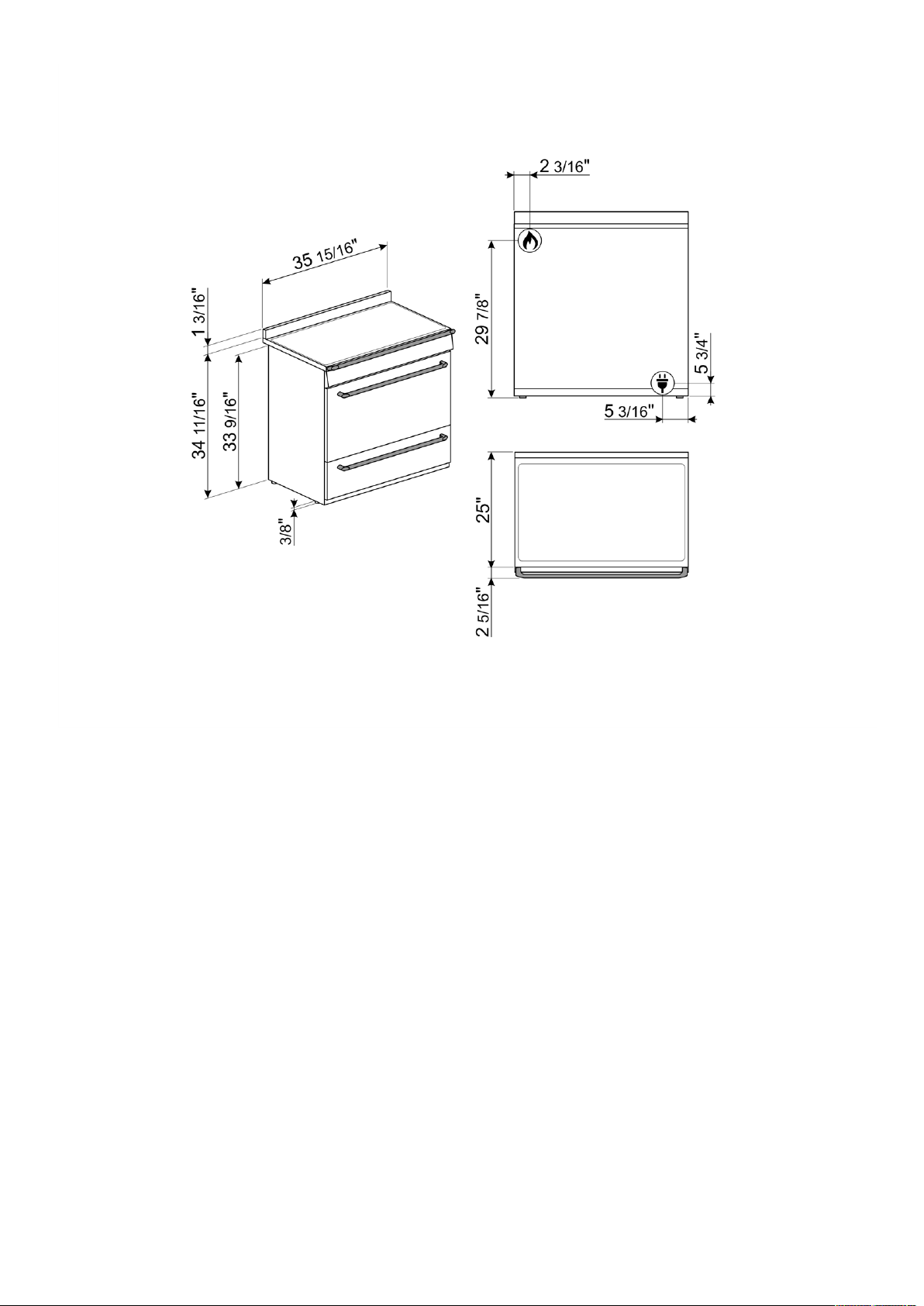

Width: 35 7/16 " • Height: 35 7/16 " • Depth: 23 5/8 " • Net weight: 240 lbs

ACCESSORIES INCLUDED

Other gas nozzles included: G30 LPG liquid gas

ACCESSORIES INCLUDED FOR MAIN OVEN AND COOKTOP

Cast iron wok support: 1TOP Oven grid with back stop: 2Moka cast-iron stand: Moka ring1.6"-deep tray: 1Telescopic Guide rails,

total Extraction: 1
