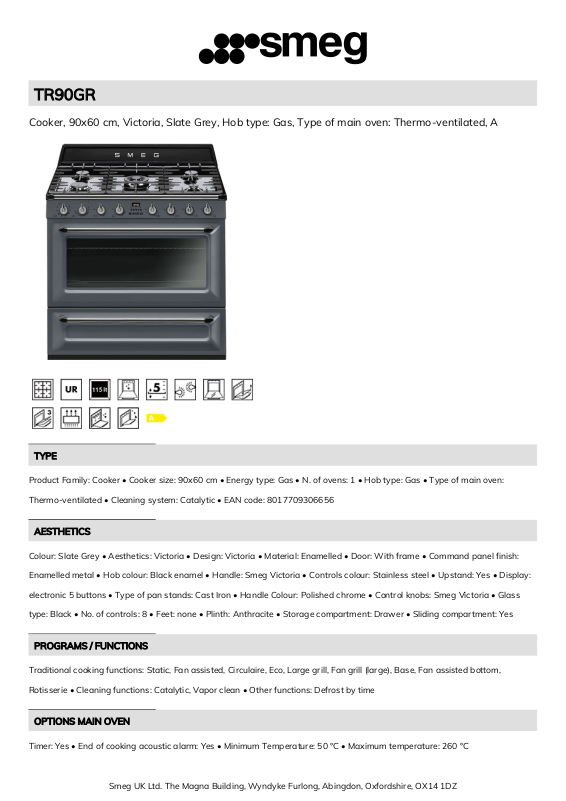

Smeg TR90GR Technical sheet

TR90GR

Cooker, 90x60 cm, Victoria, Slate Grey, Hob type: Gas, Type of main oven: Thermo-ventilated, A

TYPE

Product Family: Cooker • Cooker size: 90x60 cm • Energy type: Gas • N. of ovens: 1 • Hob type: Gas • Type of main oven:

Thermo-ventilated • Cleaning system: Catalytic • EAN code: 8017709306656

AESTHETICS

Colour: Slate Grey • Aesthetics: Victoria • Design: Victoria • Material: Enamelled • Door: With frame • Command panel finish:

Enamelled metal • Hob colour: Black enamel • Handle: Smeg Victoria • Controls colour: Stainless steel • Upstand: Yes • Display:

electronic 5 buttons • Type of pan stands: Cast Iron • Handle Colour: Polished chrome • Control knobs: Smeg Victoria • Glass

type: Black • No. of controls: 8 • Feet: none • Plinth: Anthracite • Storage compartment: Drawer • Sliding compartment: Yes

PROGRAMS / FUNCTIONS

Traditional cooking functions: Static, Fan assisted, Circulaire, Eco, Large grill, Fan grill (large), Base, Fan assisted bottom,

Rotisserie • Cleaning functions: Catalytic, Vapor clean • Other functions: Defrost by time

OPTIONS MAIN OVEN

Timer: Yes • End of cooking acoustic alarm: Yes • Minimum Temperature: 50 °C • Maximum temperature: 260 °C

Smeg UK Ltd. The Magna Building, Wyndyke Furlong, Abingdon, Oxfordshire, OX14 1DZ

HOB TECHNICAL FEATURES

Total no. of cook zones: 5 • 1st zone position: Front left • 2nd zone position: Rear left • 3rd zone position: Central • 4th zone

position: Rear right • 5th zone position: Front right • 1st zone type: Gas - Rapid • 2nd zone type: Gas - Semi Rapid • 3rd zone

type: Gas - 2UR (dual) • 4th zone type: Gas - Semi Rapid • 5th zone type: Gas - AUX • 1st zone power: 2.90 kW • 2nd zone

power: 1.80 kW • 3rd zone power: 5.00 kW • 4th zone power: 1.80 kW • 5th zone power: 1.00 kW • Type of gas burners:

Standard • Burner caps: Matt black enamelled • Automatic electronic ignition: Yes • Gas safety valves: Yes

MAIN OVEN TECHNICAL FEATURES

Net volume of the cavity: 115 l • Cavity material: Ever Clean enamel • No. of shelves: 5 • Type of shelves: Metal racks • No. of

lights: 2 • Light type: Halogen • Light Power: 40 W • Fan number: 2 • Cooking time setting: Start and Stop • Door opening: Flap

down • Light when oven door is open: Yes • Removable door: Yes • Full glass inner door: Yes • Removable inner door: Yes •

Total no. of door glasses: 3 • No.of thermo-reflective door glasses: 2 • Safety Thermostat: Yes • Cooling system: Tangential •

Grill type: Electric • Tilting grill: Yes • Grill elememt: 1700 W • Large grill - Power: 2900 W • Lower heating element power: 1700

W • Upper heating element - Power: 1200 W • Circular heating element - Power: 1550 W • Soft Close system: Yes •

Temperature control: Electro-mechanical

PERFORMANCE / ENERGY LABEL

Energy efficiency class: A • Energy consumption in forced air convection: 3.53 MJ • Energy consumption per cycle in fan-forced

convection: 0.98 KWh • Energy consumption in conventional mode: 4.36 MJ • Energy consumption per cycle in conventional

mode: 1.21 KWh

ELECTRICAL CONNECTION

Electrical connection rating: 3200 W • Voltage: 220-240 V • Frequency: 50/60 Hz • Power supply cable length: 120 cm

GAS CONNECTION

Gas connection rating (W): 12500 W • Gas Type: G20 Natural gas

LOGISTIC INFORMATION

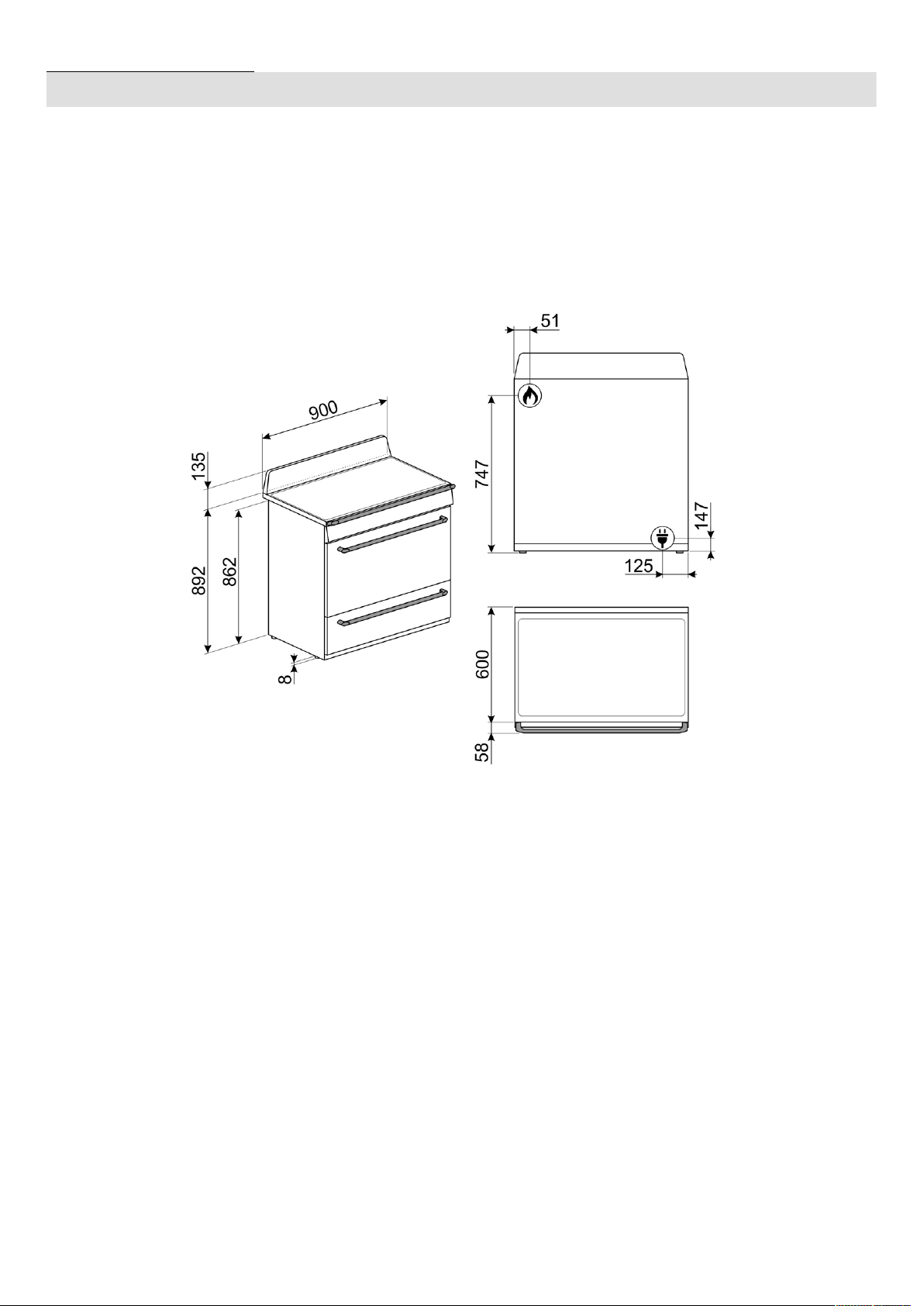

Width (mm): 900 mm • Product Height (mm): 900 mm • Depth (mm): 600 mm • Net weight (kg): 92.900 kg

ACCESSORIES INCLUDED

Other gas nozzles included: G30 LPG liquid gas

ACCESSORIES INCLUDED FOR MAIN OVEN & HOB

Grill mesh: 1Cast iron wok support: 1Catalityc panels: 3TOP Oven grid with back stop: 2Moka stand in cast iron: 1Rotisserie:

140mm deep tray: 2

Smeg UK Ltd. The Magna Building, Wyndyke Furlong, Abingdon, Oxfordshire, OX14 1DZ
