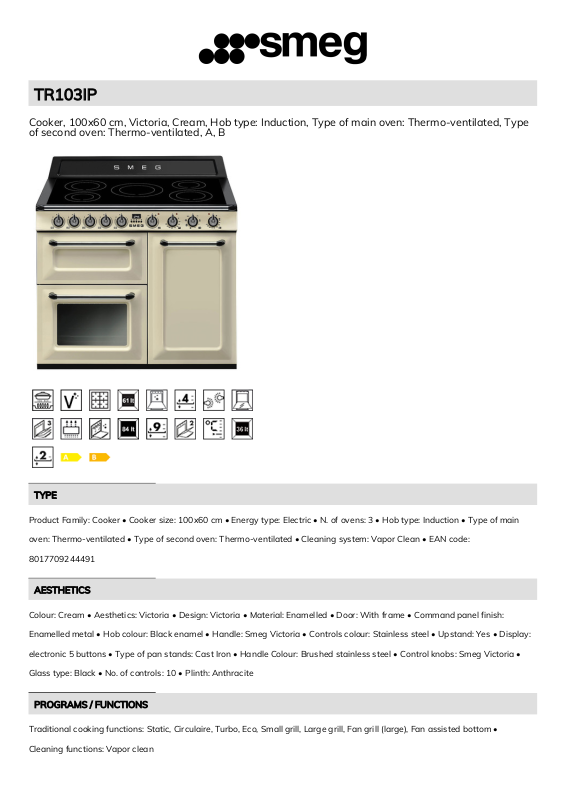

TR103IP
Cooker, 100x60 cm, Victoria, Cream, Hob type: Induction, Type of main oven: Thermo-ventilated, Type
of second oven: Thermo-ventilated, A, B
TYPE
Product Family: Cooker • Cooker size: 100x60 cm • Energy type: Electric • N. of ovens: 3 • Hob type: Induction • Type of main
oven: Thermo-ventilated • Type of second oven: Thermo-ventilated • Cleaning system: Vapor Clean • EAN code:
8017709244491
AESTHETICS
Colour: Cream • Aesthetics: Victoria • Design: Victoria • Material: Enamelled • Door: With frame • Command panel finish:
Enamelled metal • Hob colour: Black enamel • Handle: Smeg Victoria • Controls colour: Stainless steel • Upstand: Yes • Display:
electronic 5 buttons • Type of pan stands: Cast Iron • Handle Colour: Brushed stainless steel • Control knobs: Smeg Victoria •
Glass type: Black • No. of controls: 10 • Plinth: Anthracite
PROGRAMS / FUNCTIONS
Traditional cooking functions: Static, Circulaire, Turbo, Eco, Small grill, Large grill, Fan grill (large), Fan assisted bottom •
Cleaning functions: Vapor clean
PROGRAMS / FUNCTIONS AUXILIARY OVEN
Cooking functions cavity 2: 1 • Traditional cooking functions, cavity 2: Circulaire
PROGRAMS / FUNCTIONS THIRD OVEN
No. of functions third oven: 1
OPTIONS MAIN OVEN
Timer: Yes • End of cooking acoustic alarm: Yes • Minimum Temperature: 50 °C • Maximum temperature: 260 °C
OPTIONS AUXILIARY OVEN
Minimum Temperature: 50 °C • Maximum temperature: 245 °C
OPTIONS THIRD OVEN
Minimum Temperature: 50 °C • Maximum temperature: 260 °C
HOB TECHNICAL FEATURES
Total no. of cook zones: 5 • 1st zone position: Front left • 2nd zone position: Rear left • 3rd zone position: Central • 4th zone
position: Rear right • 5th zone position: Front right • 6th zone position: Rear right • 1st zone type: Induction - single • 2nd zone
type: Induction - single • 3rd zone type: Induction - single • 4th zone type: Induction - single • 5th zone type: Induction - single •
6th zone type: Gas - Rapid • 1st zone dimensions: Ø 18.0 cm • 2nd zone dimensions: Ø 21.0 cm • 3rd zone dimensions: Ø 27.0
cm • 4th zone dimensions: Ø 18.0 cm • 5th zone dimensions: Ø 21.0 cm • 1st zone power: 1.30 kW • 2nd zone power: 2.30 kW
• 3rd zone power: 2.30 kW • 4th zone power: 1.30 kW • 5th zone power: 2.30 kW • 6th zone power: 2.90 kW • 1st zone
booster power: 1.40 kW • 2nd zone booster power: 3.00 kW • 3rd zone booster power: 3.00 kW • 4th zone booster power: 1.40
kW • 5th zone booster power: 3.00 kW
MAIN OVEN TECHNICAL FEATURES
Net volume of the cavity: 61 l • Cavity material: Ever Clean enamel • No. of shelves: 4 • Type of shelves: Metal racks • No. of
lights: 1 • Light type: Halogen • Light Power: 40 W • Fan number: 1 • Cooking time setting: Start and Stop • Door opening: Side
opening • Side opening door: Yes • Removable door: Yes • Full glass inner door: Yes • Total no. of door glasses: 3 • No.of thermo-
reflective door glasses: 1 • Safety Thermostat: Yes • Cooling system: Tangential • Grill type: Electric • Tilting grill: Yes • Grill
elememt: 1700 W • Large grill - Power: 2700 W • Lower heating element power: 1200 W • Upper heating element - Power:
1000 W • Circular heating element - Power: 2000 W • Temperature control: Electro-mechanical
SECOND OVEN TECHNICAL FEATURES
Net volume of the second cavity: 84 l • Cavity material: Ever Clean enamel • No. of shelves: 9 • Type of shelves: Metal racks •
No. of lights: 1 • Light type: Halogen • Light Power: 40 W • Door opening: Side opening • Side opening door: Yes • Removable
door: Yes • Full glass inner door: Yes • Removable inner door: Yes • No. total door glasses: 2 • No. thermo-reflective door
glasses: 1 • Safety Thermostat: Yes • Cooling system: Tangential • Temperature control: Electro-mechanical
THIRD OVEN TECHNICAL FEATURES
Net volume, 3rd cavity: 36 l • Gross volume, 3rd cavity: 41 l • Cavity material: Ever Clean enamel • No. of shelves: 2 • Type of
shelves: Metal racks • No. of lights: 1 • Light type: Halogen • Light Power: 40 W • Door opening: Flap down • Removable door:
Yes • Full glass inner door: Yes • Removable inner door: Yes • No. total door glasses: 3 • No. of thermo-reflective door glasses: 1
• Safety Thermostat: Yes • Cooling system: Tangential • Grill type: Electric • Tilting grill: Yes • Large grill - Power: 2700 W •
Temperature control: Electro-mechanical
PERFORMANCE / ENERGY LABEL
Energy efficiency class: A • Energy consumption in forced air convection: 2.77 MJ • Energy consumption per cycle in fan-forced
convection: 0.77 KWh • Energy consumption in conventional mode: 3.42 MJ • Energy consumption per cycle in conventional
mode: 0.95 KWh • Energy consumption zone 2: 182.6 Wh/Kg • Energy consumption zone 3: 142 Wh/Kg • Energy consumption
zone 4: 176.7 Wh/Kg • Energy consumption zone 5: 182.6 Wh/Kg
PERFORMANCE /ENERGY LABEL - SECOND CAVITY
Energy efficiency class, second cavity: B • Energy consumption in forced air convection, cavity 2: 3.89 MJ • Energy consumption
per cycle in fan-forced convection: 1.08 KWh
ELECTRICAL CONNECTION
Electrical connection rating: 20000 W • Voltage: 220-240 V • Frequency: 50 Hz • Power supply cable length: 150 cm
LOGISTIC INFORMATION
Width (mm): 1000 mm • Product Height (mm): 900 mm • Depth (mm): 600 mm • Net weight (kg): 121.400 kg
ACCESSORIES INCLUDED FOR MAIN OVEN & HOB
Grill mesh: 1Telescopic Guide rails, partial Extraction: 1TOP Oven grid with back stop: 240mm deep tray: 1
ACCESSORIES INCLUDED FOR SECONDARY OVEN
Oven grid with back stop: 4Plate rack/warmer: 1
ACCESSORIES INCLUDED FOR THIRD OVEN
40mm deep tray: 1Oven grid with back and side stop: 1
OPTIONAL
SCRP: Scraper, Cookers, HobsGTT: Telescopic Guides, Ovens, CookersGTP: Telescopic Guides, Ovens, CookersTPK: Teppanyaki
grill, HobsSMOLD: Moulds Set, Ovens, Blast chillers
