Smeg STC700 User Manual

INSTRUCTION MANUAL

GGUUIIDDEE FFOORR UUSSIINNGG TTHHEE DDIISSHHWWAASSHHEERR AANNDD TTHHEE WWAASSHHIINNGG PPRROOGGRRAAMMSS

Contents

1.

Safety and operating instructions ___________________________2

2. Installation and hook-up___________________________________5

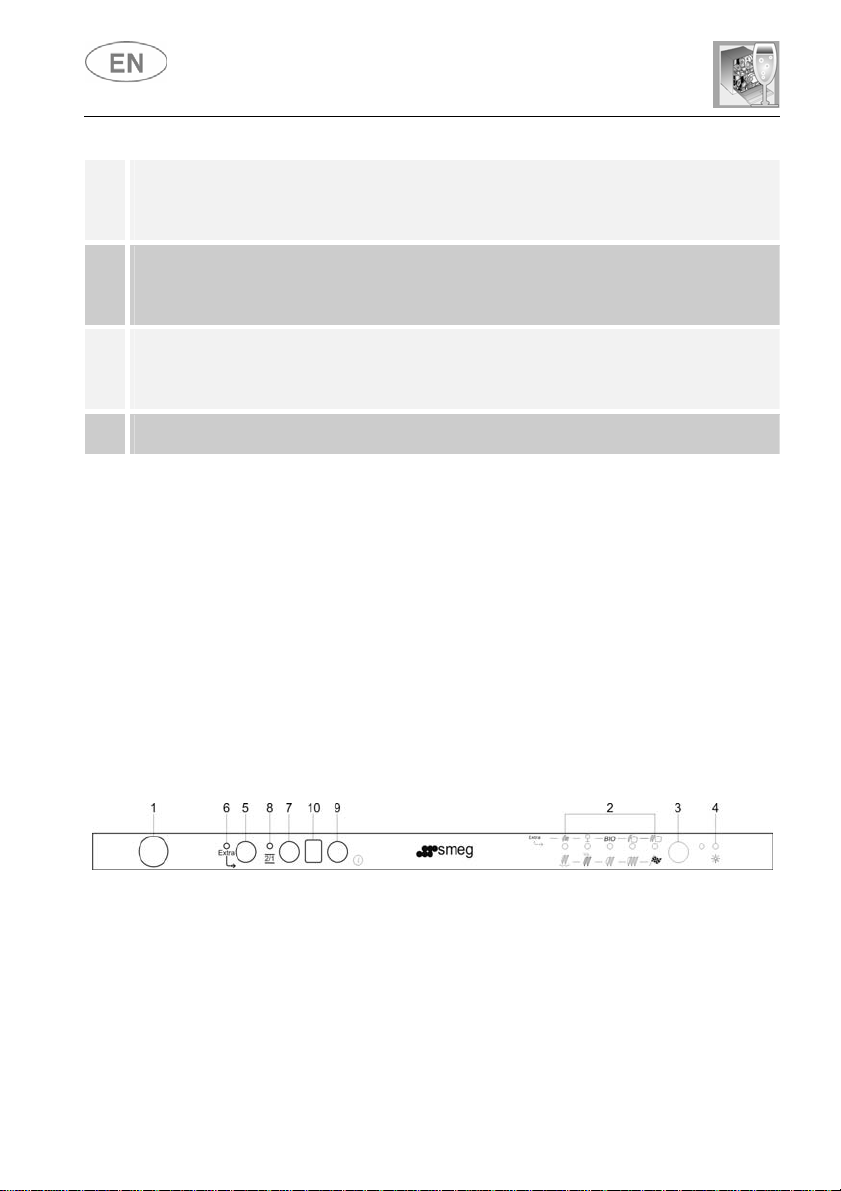

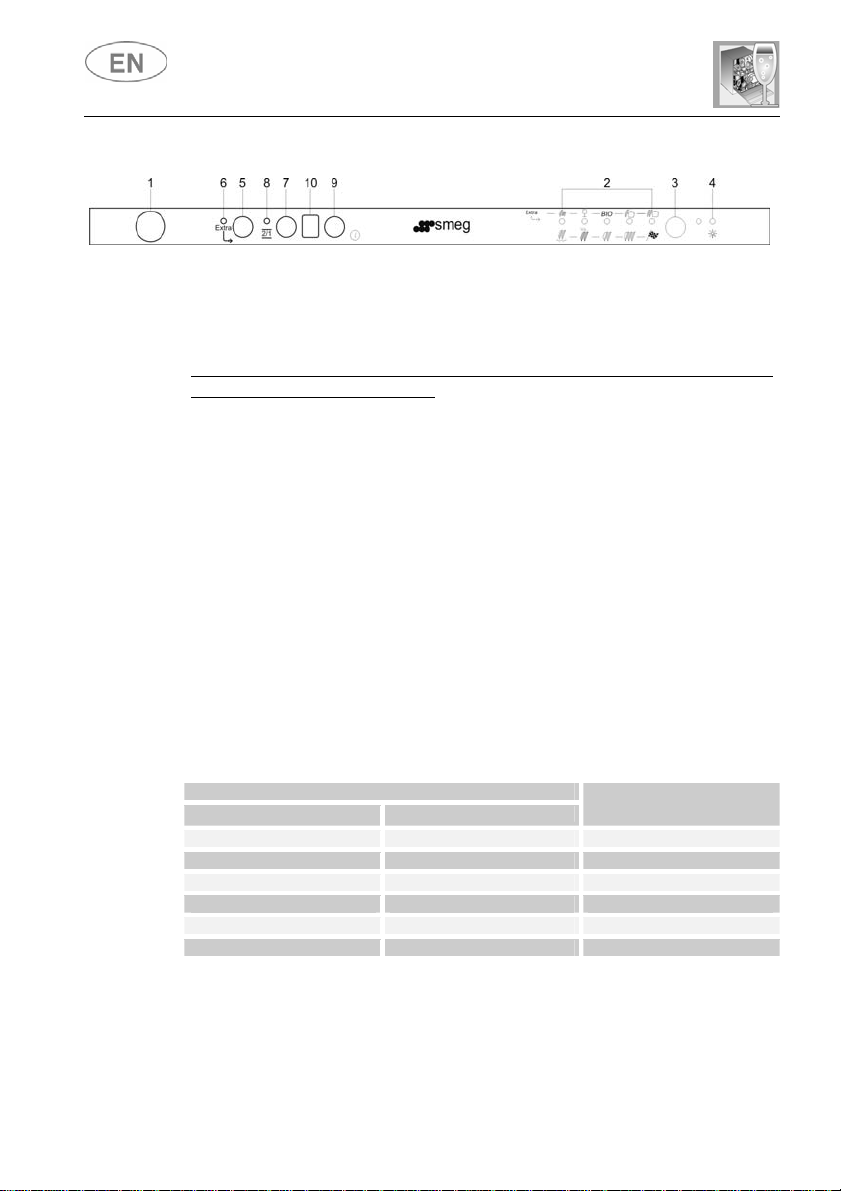

3. Description of the controls_________________________________9

4. Operating instructions ___________________________________18

5. Cleaning and maintenance _______________________________ 25

6. Troubleshooting________________________________________29

Thank you for choosing this product.
We advise you to carefully read all the instructions contained in this
manual, in order to understand how to operate your dishwasher safely and
correctly.
The manual is divided into paragraphs, which provide a step by step
description of the dishwasher functions, with clear instructions
accompanied by detailed illustrations.

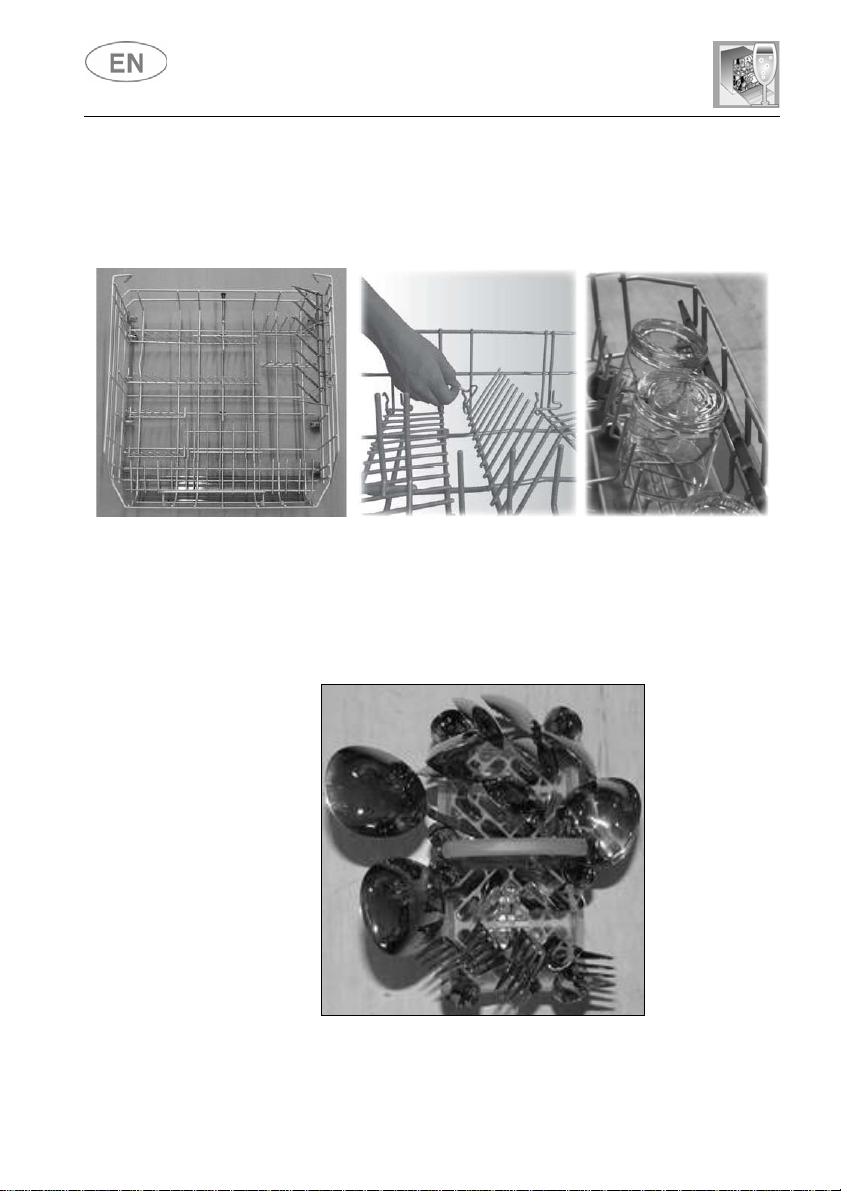

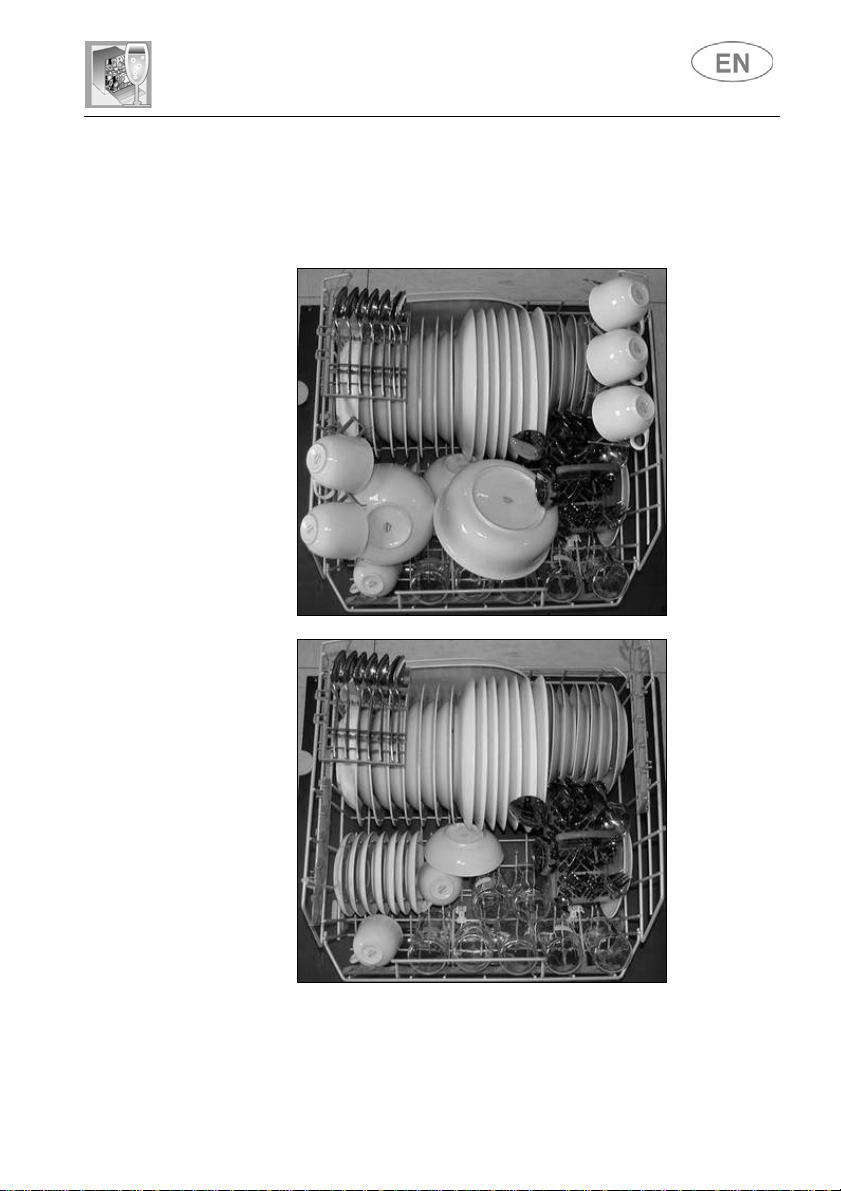

Recommendations are given for the correct use of the baskets, spray
arms, containers, filters, washing programs, and for operating the controls.
Follow the recommended cleaning procedures to ensure that your
dishwasher always remains in perfect working order.
This manual provides a quick and easy reference for answering all your
questions concerning the use of your new dishwasher.

INSTALLATION INSTRUCTIONS: installation must be carried out by
skilled, qualifi ed staff, working in strict accordance with the instructions
provided.

USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.

1

Safety instructions

1. Safety and operating instructions

THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST
ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE
USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A
QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN
FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USE, AND
COMPLIES WITH THE EEC DIRECTIVES 73/23, 89/336 (INCLUDING 92/31
AND 93/68) CURRENTLY IN FORCE, INCLUDING THE PREVENTION AND
ELIMINATION OF RADIO FREQUENCY INTERFERENCE.
THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: WASHING
AND DRYING OF DISHES; ANY OTHER USE SHALL BE CONSIDERED
IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
USES OTHER THAN THOSE DESCRIBED ABOVE.

THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER
AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE
DOOR. THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST
NEVER BE REMOVED.

DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED
WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE
UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE.

THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN
ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO
PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE
APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.

IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR,
ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT
OBSTRUCTED.

ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID

WASTING ELECTRICITY.

OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE
MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET,
AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR
CHILDREN (LOCKS, DOORS, ETC.).

2

Safety instructions

IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
(WEEE). BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY,
YOU WILL HELP PREVENT POTENTIAL NEGATIVE CONSEQUENCES FOR
THE ENVIRONMENT AND HUMAN HEALTH, WHICH COULD OTHERWISE BE
CAUSED BY INAPPROPRIATE WASTE HANDLING OF THIS PRODUCT.

THE SYMBOL ON THE PRODUCT, OR ON THE DOCUMENTS
ACCOMPANYING THE PRODUCT, INDICATES THAT THIS APPLIANCE MAY
NOT BE TREATED AS HOUSEHOLD WASTE. INSTEAD IT SHALL BE
HANDED OVER TO THE APPLICABLE COLLECTION POINT FOR THE
RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT.
DISPOSAL MUST BE CARRIED OUT IN ACCORDANCE WITH LOCAL
ENVIRONMENTAL REGULATIONS FOR WASTE DISPOSAL. FOR MORE
DETAILED INFORMATION ABOUT TREATMENT, RECOVERY AND
RECYCLING OF THIS PRODUCT, PLEASE CONTACT YOUR LOCAL CITY
OFFICE, YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP
WHERE YOU PURCHASED THE PRODUCT.

ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP.

DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING
TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A
QUALIFIED TECHNICIAN.

THIS DISHWASHER MUST BE USED BY ADULTS.
USE BY PERSONS WITH REDUCED MENTAL AND/OR PHYSICAL
CAPABILITIES IS ONLY PERMITTED UNDER THE SUPERVISION OF A
PERSON RESPONSIBLE FOR THEIR SAFETY.
KEEP CHILDREN AWAY FROM DETERGENTS AND PACKAGING MATERIALS
(PLASTIC BAGS, POLYSTYRENE, ETC.), AND NEVER ALLOW THEM TO
APPROACH OR PLAY WITH THE DISHWASHER, SINCE IT MIGHT CONTAIN
DETERGENT RESIDUES CAPABLE OF CAUSING PERMANENT DAMAGE TO
THE EYES, MOUTH AND THROAT, AND EVEN LEADING TO SUFFOCATION.

DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE
WHICH MAY CAUSE AN EXPLOSION.

DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.

LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY
CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK.
NEVER LEAVE THE DISHWASHER DOOR OPEN; PEOPLE MIGHT TRIP
OVER IT.

3

Safety instructions

DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE
THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM
AND BEFORE THE DRYING CYCLE.

KNIVES AND OTHER SHARP-POINTED KITCHEN UTENSILS MUST BE
PLACED IN THE CUTLERY BASKET WITH THEIR TIPS FACING DOWNWARD.

AQUASTOP MODELS

THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A
WATER LEAK. WHEN THE AQUASTOP DEVICE IS TRIPPED, CALL IN A
QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A
SOLENOID VALVE INSIDE THE WATER INTAKE HOSE. DO NOT CUT THE

HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO
WATER. IN THE EVENT OF DAMAGE TO THE WATER INTAKE HOSE,

DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY
AND FROM THE WATER SUPPLY.

IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK
TEST OF THE APPLIANCE FOLLOWING THE INSTRUCTIONS BELOW. IF
THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT
FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST
TECHNICAL SERVICE CENTRE. DO NOT ATTEMPT TO REPAIR THE
APPLIANCE.

THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE
REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL
EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED
EXCLUSIVELY BY A TRAINED AND AUTHORISED TECHNICIAN: REPAIRS

CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE

The manufacturer declines all responsibility for damage to persons or property
resulting from failure to observe the above precautions, from tamperin g with
even a single component of the appliance, or from the use of non original
spare parts.

WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.

4

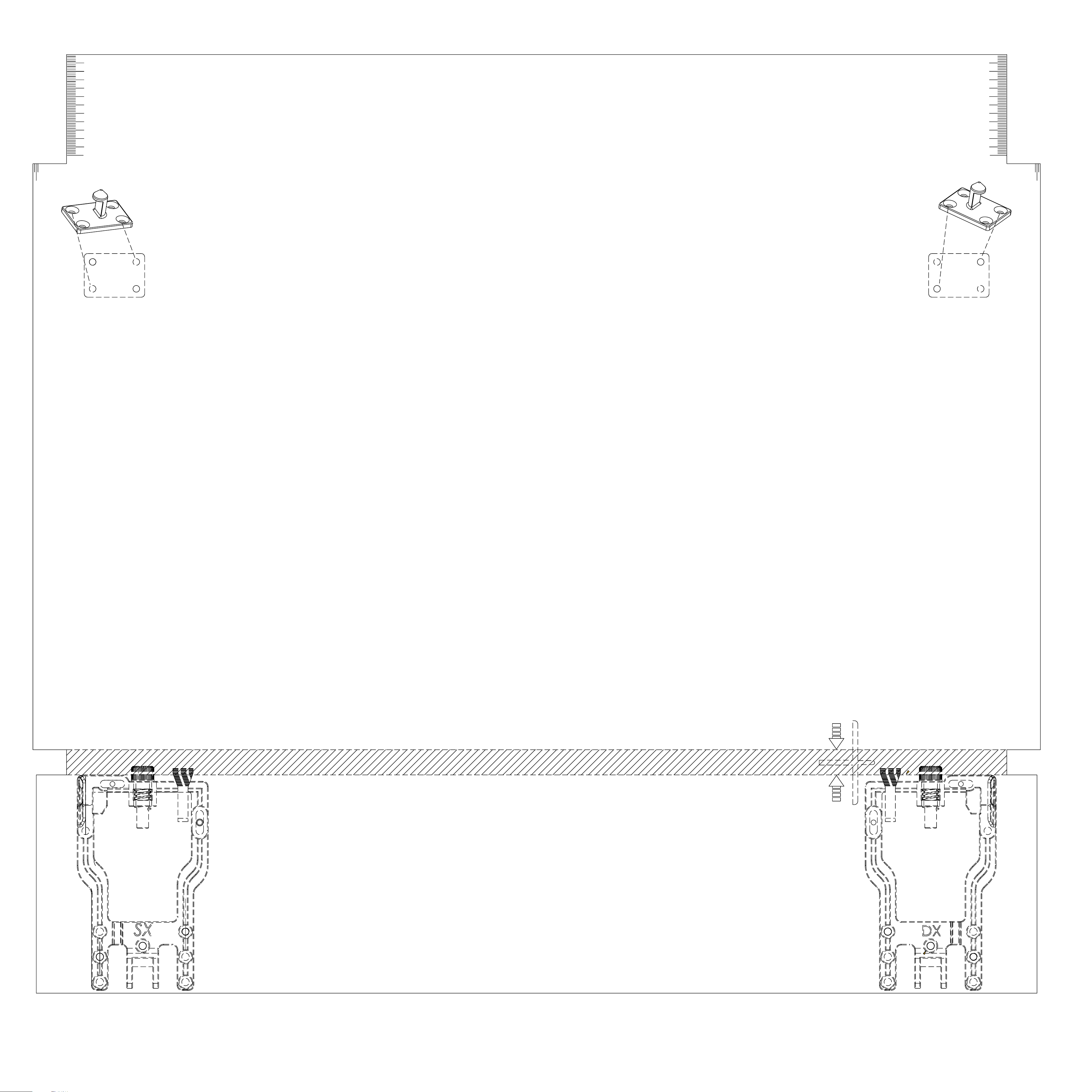

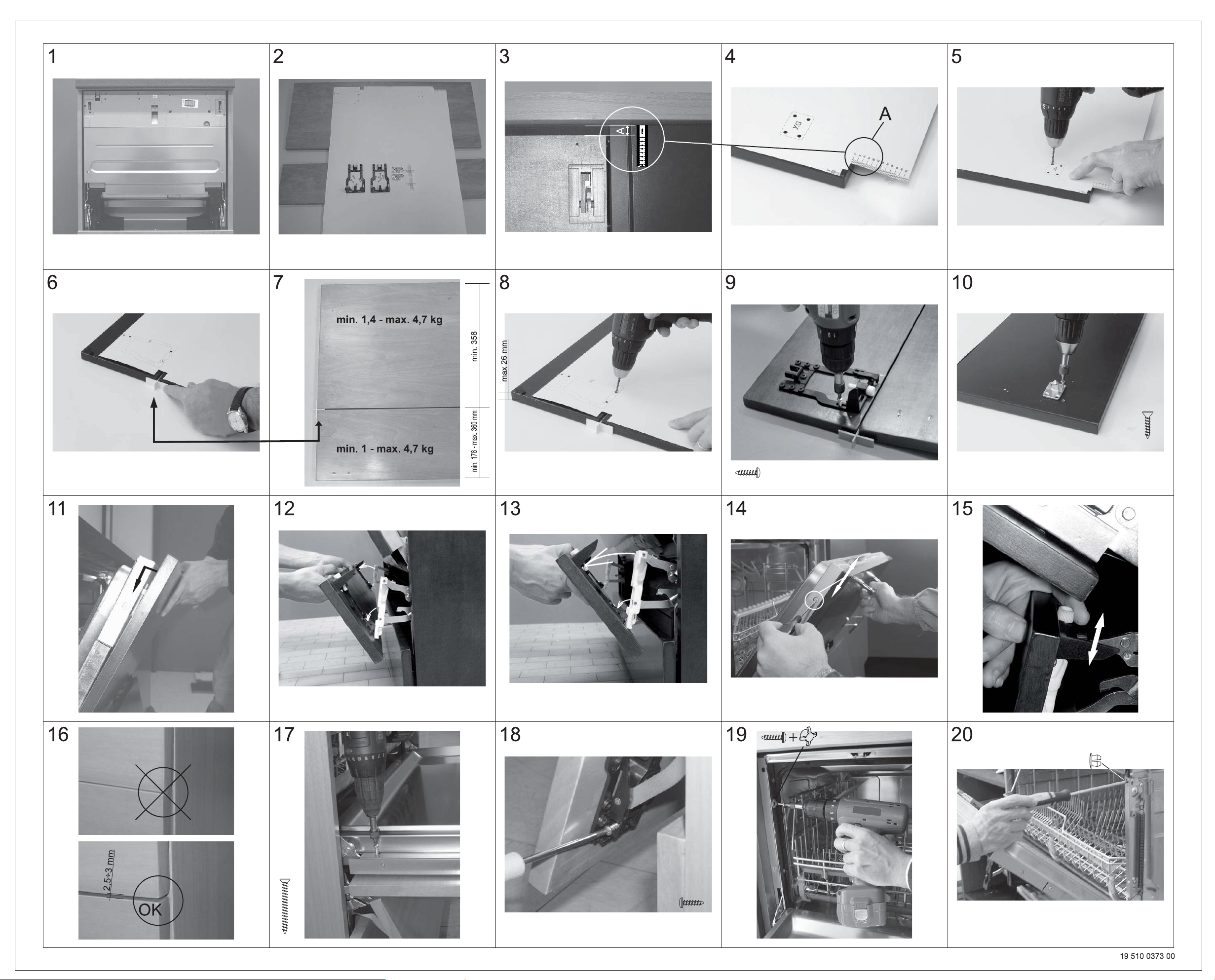

Installation instructions

2. Installation and hook-up

Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or sides
of the dishwasher may be placed up against walls or other furniture units. If
the dishwasher is installed near a heat source, fit the special insulating panel
to prevent overheating and malfunction of the appliance. To ensure stability,
install integrated or built-under dishwashers only under continuous worktops,
and screw them to the adjacent units. To facilitate the installation procedure,
the intake and drain hoses can be positioned in any direction; make sure that
the hoses are not kinked, crushed or pulled too tightly. Make sure to tighten
the locking ring-nut once the pipes have been placed in the direction
required. A hole at least 8 cm in diameter is required to allow the power
supply cable and pipes to pass.

Level the appliance on the floor using its adjustable feet. This operation is
essential for the ensuring correct operation of the dishwasher.

Building-in a dishwasher underneath a ceramic hob is absolutely forbidden.
A dishwasher can be built-in underneath a conventional hob provided there is

no break in the kitchen worktop, and the dishwasher and hob are installed
and secured correctly, so that no hazards are generated.

WARNING!

Some protective systems preventing access to the door opening and closing
mechanisms are not active until the appliance has been installed.
If the appliance is not built into a cabinet, or is built into a cabinet but without
one or both front panels, some mechanical parts which may cause serious
injury when the door is opened and closed are accessible.
In all cases, never insert your hands into openings at the side of the bottom
panel while the door is being opened or closed.

Never open the door of the appliance with the bottom drawer partially or
completely open - If the bottom of the cabinet in which the appliance is built-in
contains a drawer, make sure that it is completely closed before opening the
dishwasher door. Opening the door with the bottom drawer partially or
completely open may damage the bottom panel fixing devices.

5

2.1 Water supply connection

Installation instructions

Preventing the risk of clogging or damage: if the water pipe is new or has
not been used for a long time, before connecting to the water supply check
that the water is clear and free of impurities, to prevent damage to the
appliance. The dishwasher must always be connected to the water
system with new hoses; old or used hoses must never be reused.

CONNECTING TO THE WATER SUPPLY

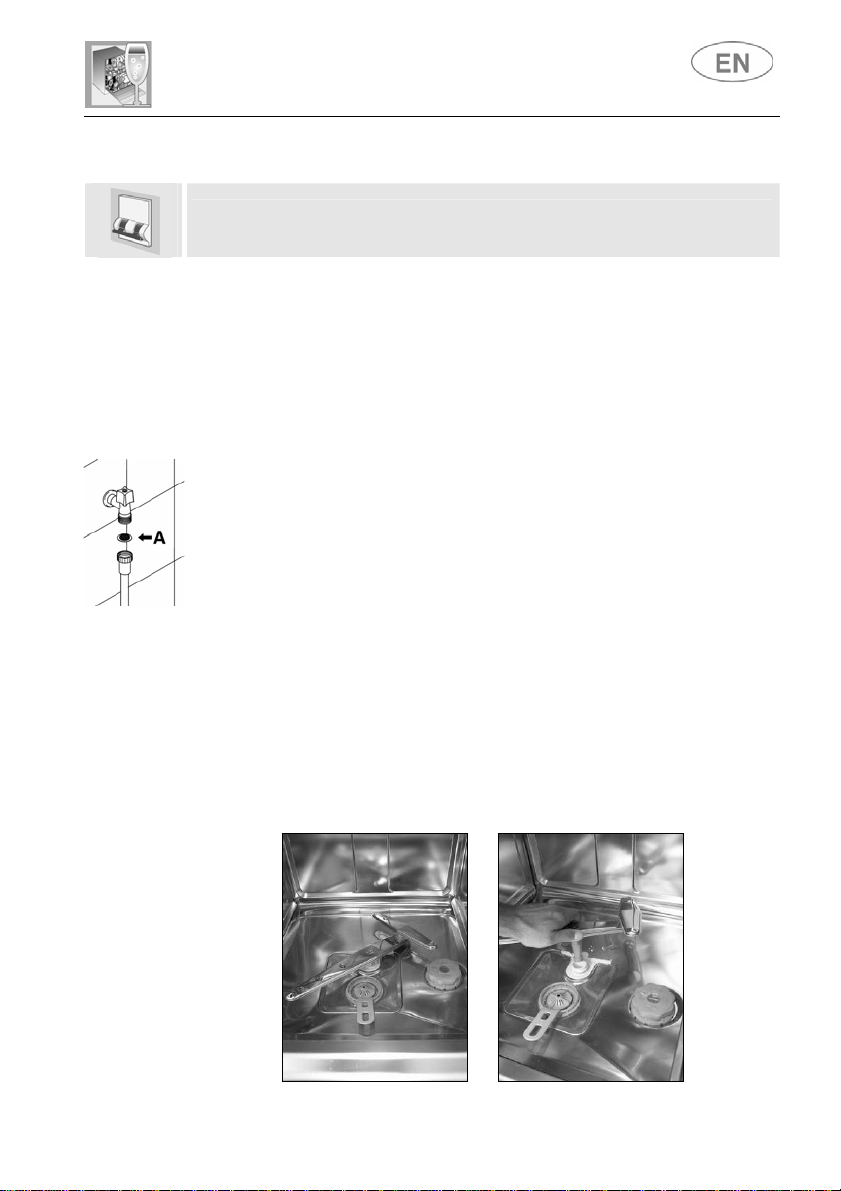

Connect the intake hose to a cold water supply with ¾” gas
thread, inserting the filter A supplied with the dishwasher.

Take care to screw the hose firmly into place with your
hands and then complete by tightening about ¼ of a turn
with pliers.

In dishwashers equipped with the ACQUASTOP device,
the filters is already fitted inside the threaded ring.

DRAIN CONNECTION

Fit the drain hose into a pipe having diameter of at least 4 cm; the
dishwasher is fitted with a special device which allows column installation,
even with the drain pipe below the level of the dishwasher.

2.2 Electrical connection and precautions

CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH
THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON
THE INNER EDGE OF THE DOOR.

THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET
OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN
FORCE.

THE PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.

NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY
LEAD.

IN THE EVENT OF DAMAGE TO THE SUPPLY CORD, HAVE IT REPLACED

BY THE MANUFACTURER OR AN AUTHORIZED TECHNICAL SERVICE
CENTRE.

DO NOT USE ADAPTORS OR SHUNT CONNECTIONS IN ORDER TO AVOID
THE POSSIBILITY OF OVERHEATING OR BURNING.

6

Installation instructions

IF THE APPLIANCE IS PROVIDED WITH A PLUGLESS SUPPLY CORD:

IT IS NECESSARY TO INSTALL IN THE FIXED WIRING AN ALL-POLE
DISCONNECTION DEVICE HAVING A GAP BETWEEN CONTACTS OF AT
LEAST 3.5MM. AFTER INSTALLATION THE DISCONNECTION DEVICE HAS
TO BE EASY TO REACH.

THE CONNECTION TO THE MAINS MUST BE CARRIED OUT BY A
QUALIFIED TECHNICIAN IN ACCORDANCE TO THE SCHEME SHOWN
BELOW AND THE REGULATIONS IN FORCE.

L = brown
N = blue

= yellow-green

In the event of damage to the supply cord, have it replaced by the an
Authorized Technical Service Centre in order to avoid any risk.

If this lamp needs changing, contact the manufacturer or an Authorised
Service Centre.
The lamp must be of the same type and have the same c haracteristics
as the one already installed (see dataplate next to the lamp holder).

WHEN CLEANING AND MAINTAINING THE APPLIANCE:

BEFORE CARRYING OUT ANY WORK, ALWAYS UNPLUG TH E APPLIANCE
FROM THE ELECTRICAL SUPPLY OR SWITCH OFF THE ALL-POLE
DISCONNECTION DEVICE.

WARNING!

Some components inside the appliance are inte ntionally electrically live
even with the ON/OFF switch turned to off.
Before any repair operation, disconnect the appliance from the electrical
mains.

7

FOR UK ONLY:

THIS APPLIANCE MUST BE EARTHED.

Fuse replacement

If the mains lead of this appliance is fitted
with a BS 1363A 13amp fused plug, to
change a fuse in this type of plug use an
A.S.T.A. approved fuse to BS 1362 type
and proceed as follows:

1. Remove the fuse cover A and fuse B.

2. Fit replacement 13A fuse into fuse

3. Refit both into plug.

The fuse cover must be refitted when changing a fuse and if the fuse
cover is lost the plug must not be used until a correct replacement is
fitted.

Correct replacement are identified by the colou r insert or th e colou r
embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical store.

Installation instructions

cover.

8

User instructions

3. Description of the controls

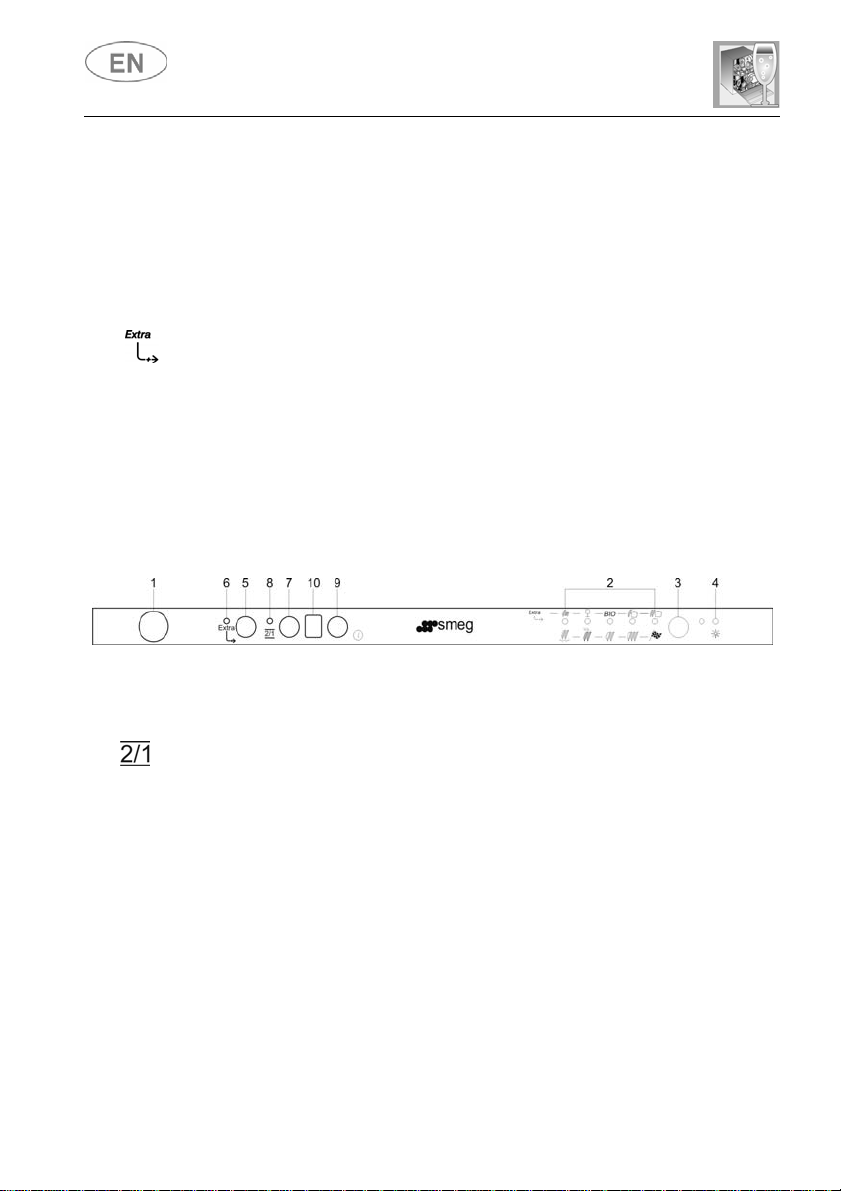

3.1 Upper panel

All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off etc. procedures are only possible when the door
is open.

ON/OFF BUTTON

1

Pressing this button energises the appliance.

SELECTED PROGRAM INDICATOR LIGHTS

2

Illumination of this light denotes the program selected and the occurrence of a
fault (troubleshooting).

PROGRAM SELECTION BUTTON

3

By pressing this button in sequence it is possible to select the desired program.

RINSE AID WARNING LIGHT

4

Illumination of this light signals that rinse aid dispenser is empty.

EXTRA PROGRAM BUTTON

5

This button gives access to the one of the five extra programs (see table).
EXTRA PROGRAM LIGHT

6

Illuminates to indicate that one of the five extra programs (see table) is going to
be executed.

9

User instructions

"2/1" OPTION BUTTON

7

Press this button to activate the option for use of 2/1 products.

"2/1" OPTION LIGHT

8

Illuminates to indicate that the function is activated.

PROGRAM DELAY BUTTON

9

Press this button to delay the start of the program by up to 9 hours.

10

INFORMATION DISPLAY

SETTING THE WASHING PROGRAM AND SWITCHING ON

To select the most suitable program for the dishes to be washed refer to
the table below, which indicates the most appropriate program acc ording
to dish type and degree of soiling.

10

User instructions

After using the table to identify the most appropriate washing program:

• press the ON/OFF button (1) and wait for the PROGRAM
INDICATOR LIGHT (2) to illuminate;

• keep pressing the PROGRAM SELECTION button (3) until the
indicator light corresponding to the desired program illuminates;

• close the door; after about 2" the program will start. While it is in
progress, the relative LIGHT will flash (indicating that t he program is
being executed).

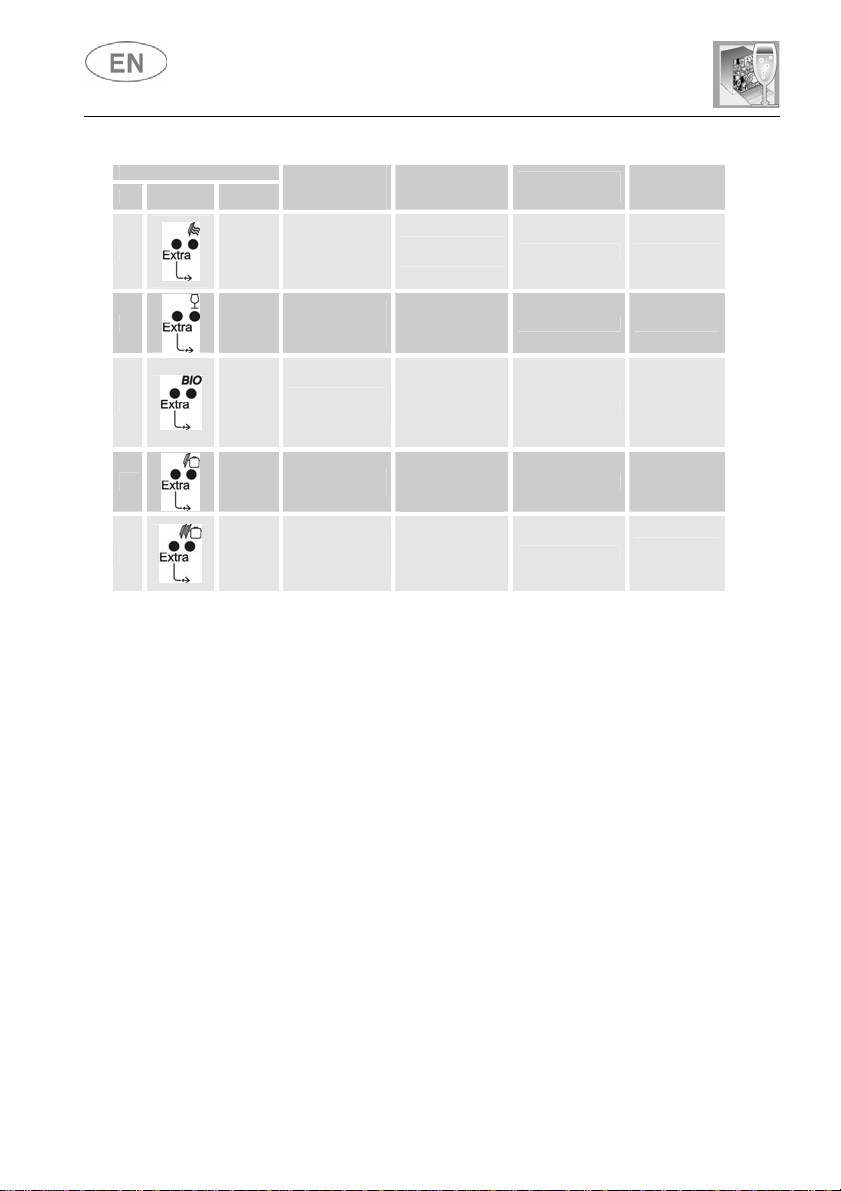

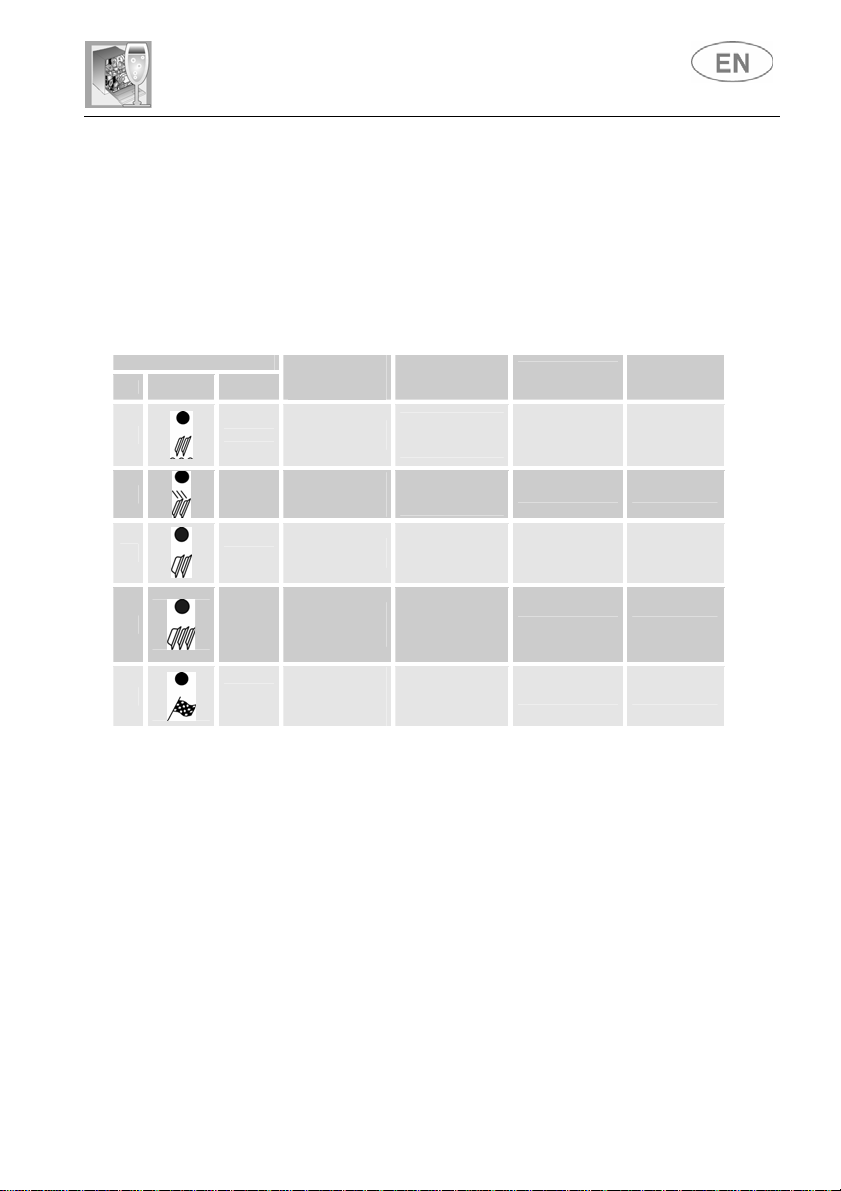

PROGRAMME

NR SYMBOL NAME

1

2

SOAK

QUICK

3

DAILY

4

5

NORMAL

65°C

QUICK &
INTENSE

TYPE OF

DISHES

AND DIRT

Mixed dishes

awaiting washing

Dishes and

glasses with

light dirt

Mixed dishes,

normal dirt

Mixed dishes

and pans,

normal dirt

Mixed dishes,

normal dirt

which has not

dried

PROGRAM

DESCRIPTION

Cold rinse (to
prevent dirt from
drying)

Wash at 38°C
Cold rinse
Rinse at 58°C

Wash at 65 ° C
Cold rinse
Rinse at 70°C
Dry

Cold prewash
Wash at 60°C
Cold rinse
Rinse at 70°C
Dry

Wash at 65°C
Cold rinse
Rinse at 70°C

CONSUMPTION

WATER (LITRES)

3 -

7 15

7 21

10 21

7 21

DETERGENT

Only run the soak program with half loads.

The 2/1 option (7) can be selected in all programs except the soak program.
(–) Not present.

GRAMS

11

User instructions

PROGRAMME

NR SYMBOL NAME

6

7

DISH

WARMER

CRYSTAL

8

BIO

9

STRONG

10

SUPER

Only run the soak program with half loads.
The 2/1 option (7) can be selected in all programs except the soak program.
To execute programs 6,7,8,9,10 users must first press the extra programs button (5).
(***) 20 grams in the detergent dispenser + 5 grams in the tank.
(–) Not present.

TYPE OF

DISHES

AND DIRT

Clean mixed

dishes requiring

rinsing and

warming before

taking to table

Crystal, porcelain

and mixed dishes,

light dirt

Mixed dishes,

normal dirt

Mixed dishes,

very dirty

Mixed dishes

and pans,

very dirty

PROGRAM

DESCRIPTION

Rinse at 70°C
Dry

Wash at 45°C
Cold rinse
Rinse at 70°C
Dry

Cold prewash
Extended wash at
52°C
Cold rinse
Rinse at 68°C
Extended drying

Wash at 70°C
2 cold rinses
Rinse at 70°C
Dry

Prewash at 45°C
Wash at 70°C
2 cold rinses
Rinse at 70°C
Dry

CONSUMPTION

WATER (LITRES)

3 -

7 15

10 21

10 21

12

DETERGENT

GRAMS

5 + 20

(***)

12

User instructions

The washing cycle will not take place if the dishwasher door is left open
or not properly closed.

3.2 Washing programs

Before starting a washing program make sure that:

• The water supply tap is open.

• The correct amount of detergent has been added to the

dispenser.

• The baskets have been co rrectly loaded.

• The spray arms are able to rotate freely and without

obstruction.

• The dishwash er door is securely closed.

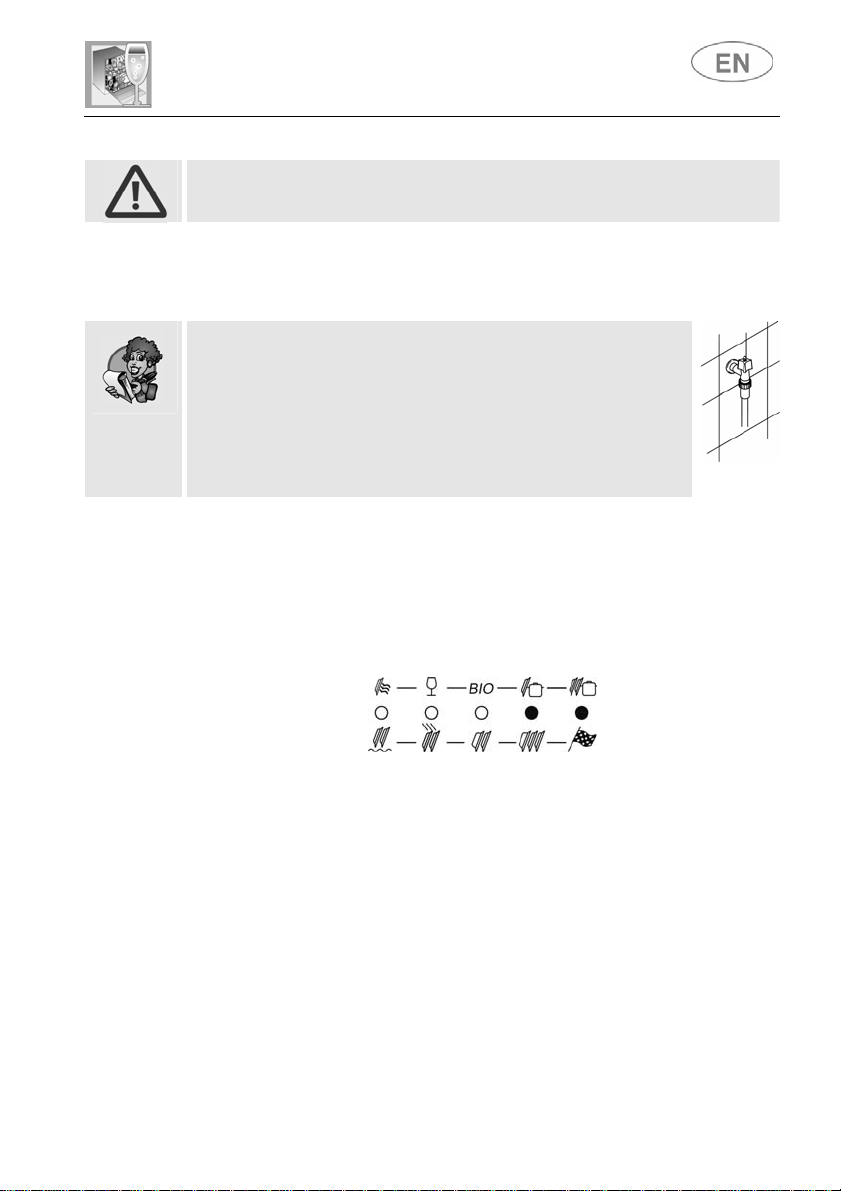

CANCELLING THE CURRENT PROGRAM

• To cancel the currently selected program, open the door and hold
down the PROGRAM SELECTION (3) button for a few seconds until
the indicator lights for programs 4 and 5 illuminate simultaneously.

• Close the door.

• After ap proximately 1 minute the dishwasher will advance to the end

of cycle.

13

User instructions

CHANGING THE PROGRAM

To change the program in progress, simply open the door and select a
new program. When the door is closed the dishwasher will automatically
select the new program.

EXTRA PROGRAMS

Button (5) gives access to five extra programs in addition to the ones
which can be selected directly using the program selector button.
This button must be pressed (the light comes on) after selection of the
"main" program (1, 2, 3, 4 or 5).
This function is retained in the memory, so the button has to be
pressed again (the light goes out) if the user wishes to execute one of
the 5 main programs at the next cycle.

14

"2/1" OPTION BUTTON (available in all programs except the soak
program)

By pressing the button (7) you activate the "2/1" option, confirmed when
the relative light comes on. This option has been studied for the use of
dishwashing powder or tablets with integrated substances in place of
rinse-aid known on the market as “2 in 1” or “double actio n” products; in
this case the dishwasher will use the product in an optimal way avoidin g
rinse-aid consumption, which could already be found in the dishwasher.

Note: When selecting the "2/1" button, it is normal that the rinse-aid light
remain on, if the container is empty.

User instructions

DELAYING THE PROGRAM (available in all programs except the
soak program)

The PROGRAM DELAY button (9) can be pressed to delay the start of
the program by up to 9 hours. This means that the dishwasher can be
operated at the time of day of your choice. Press the button several
times in succession and the display will show the delay with which the
appliance will start, beginning from 9 hours. The dishwasher will perform
a dish pre-washing, and when finish, the “delay program” will enter in
function as it was first set.

TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT

• Always try to run the dishwasher fully loaded.

• Do not wash the dishes in running water.

• Use t he washing progr am that is most appropriate for each type of

load.

• Do not carry out any preliminary rinsing.

• If available, connect the dishwasher to a hot water supply up to 60°C.

TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTEC T
THE ENVIRONMENT

The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:

• separate the more delicate items from dishes that are more resistant
to aggressive detergents and hi gh temperatures;

• do not pour the detergent directly on the dishes.

15

User instructions

ADJUSTING THE WATER SOFTENING SYSTEM
N.B.: for the setting below to be possible, a washing program other tha n

the soak program must be set.
Press the PROGRAM DELAY button (9) and keep it pressed until the

preset value appears followed by a full stop (normally 3.).
Release the button then press it again in succession to display the value
required, referring to the table.

The 6 setting levels available will appear in this order:

3., 4., 5., 0., 1., 2..

When the value required appears on the display, release the button;
after 5 seconds the system automatically returns to setting of the
program delay, and the setting will be made with the chosen value.

N.B.: the display shows the water hardness setting and the program
delay. The dot (.) after the number indicates that the water hardness
setting is being displayed. If the dot (.) does not appear, the program
delay is being displayed.

WATER HARDNESS TABLE

German Degrees (°dH) French Degrees (°dF)

WATER HARDNESS

0 - 5 0 - 9 0.

6 - 11 10 - 19 1.
12 - 21 20 - 36 2.
22 - 33 37 - 59 3.
34 - 45 60 - 79 4.
46 - 53 80 - 107 5.

SETTING

Contact your local water board for information on the hardness of your

water supply.

16

User instructions

If the door has to be opened while washing is in progress, the program
will be interrupted. The relative light will keep flashing and a bee per will
signal that the cycle has not been completed. When the door is closed
the program will continue from where it was interrupted. This operation
should only be carried out if strictly necessary, because it might
cause problems in execution of the program.

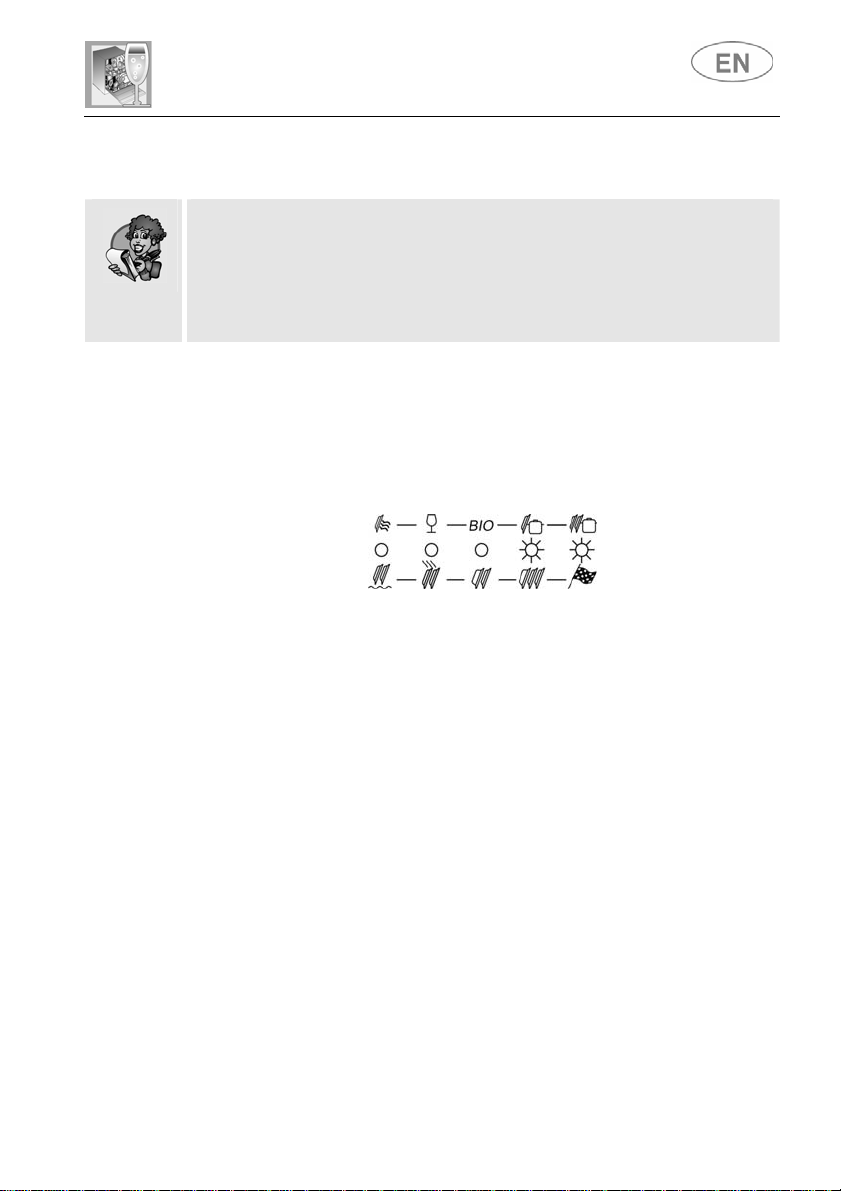

END OF CYCLE

At the end of the program the beeper sounds briefl y and the lights of
programs 4 and 5 flash.

To switch off the dishwasher, open the door and press the ON/OFF
button (1).

REMOVING THE DISHES

At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool down.

17

4. Operating instructions

User instructions

Once the dishwasher has been correctly installed, prepare for use as
follows:

• Add the rinse aid and detergent.

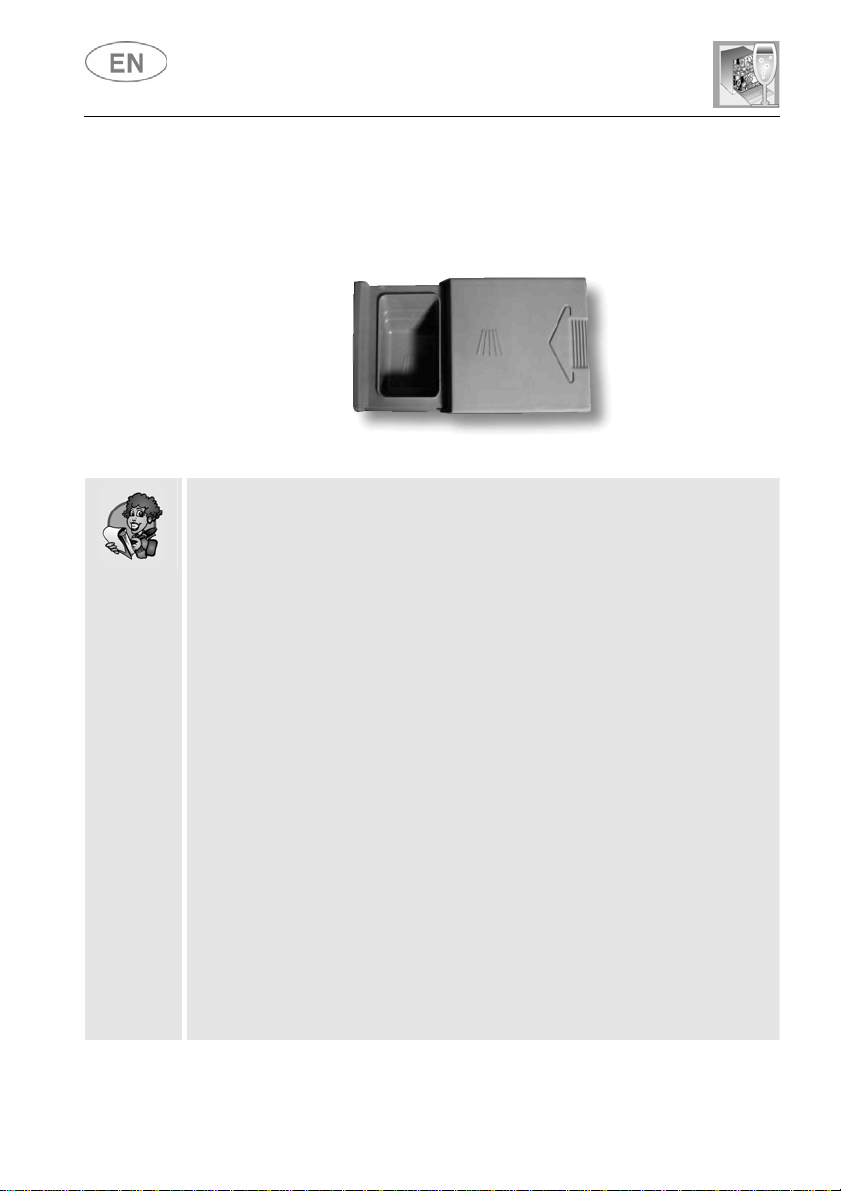

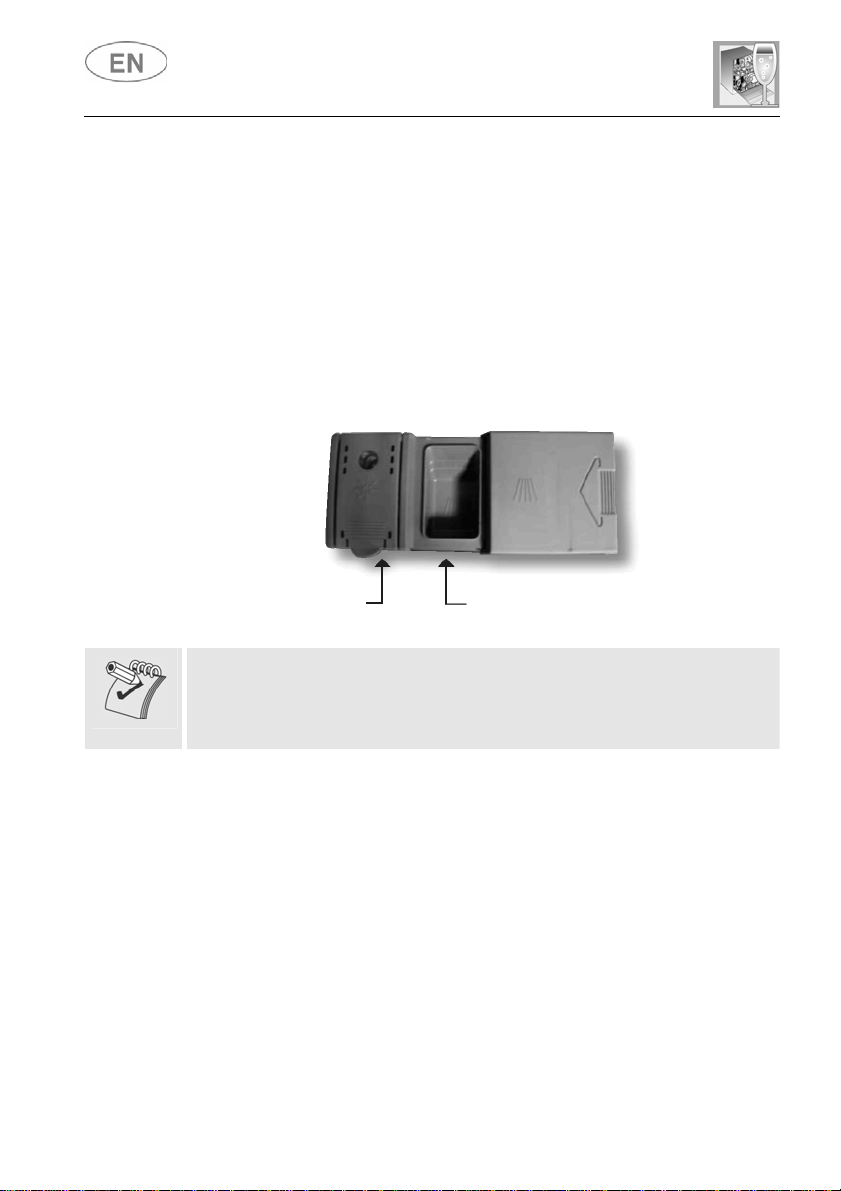

4.1 Using the rinse aid and detergent dispensers

The detergent and rinse aid dispensers are on the inside of the door;

rinse aid on the left and detergent on the right.

18

RINSE AID

DETERGENT

With the exception of the SOAK program, before every washing cycle it
is necessary to add the required amount of detergent t o the detergent
dispenser. The rinse aid, on the other hand, should only be added as
required.

User instructions

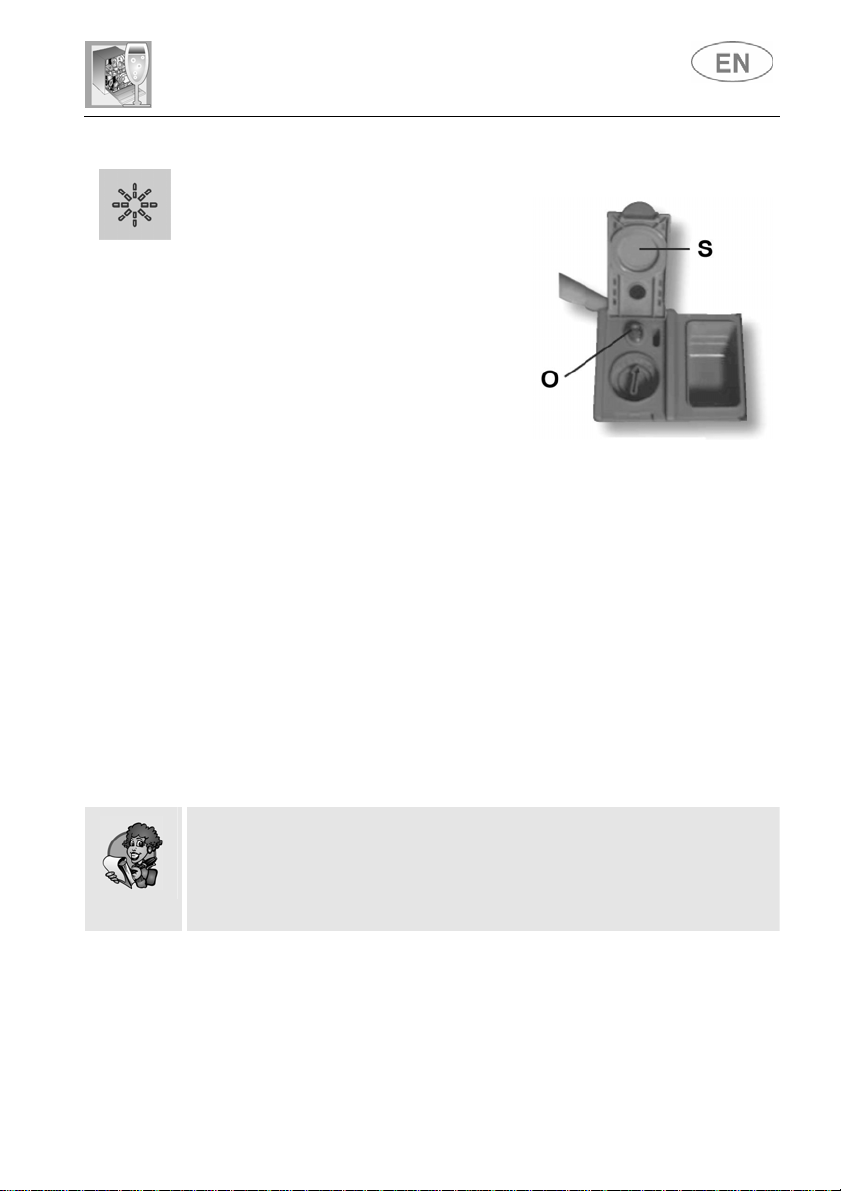

ADDING THE RINSE AID

The rinse aid helps the dishes dry faster
and prevents the formation of scale
deposits and staining; it is automatically
added to the water during the final rinse
cycle, from the container situated on the
inner side of the door.

To add rinse aid:

• Open the door.

• Open the door S.

• Add the ri nse aid until the container

is full (approximately 140 cc).

• The optical level indicator O on the side of the cap should be
completely obscured. Refill the rinse aid when the optical level
indicator becomes clear again, or when the rinse aid warning light
illuminates.

• Close the door S.

• Use a cloth to remove any spillage of rinse aid which might lead to

the formation of excess foam.

ADJUSTING THE RINSE AID DISPENSER SETTING

The dishwasher is factory set for medium water hardness. However it
possible to change the setting by turning the dispenser’s selector to the
desired position: the amount of rinse aid dispensed is proportion al to the
selector position.

• The amou nt of rinse aid must be increased if the washed dishes
appear dull or feature circular stains.

• If, on the other hand, the dishes are sticky or have white streaks, it
is necessary to reduce the rinse aid setting.

19

User instructions

ADDING THE DETERGENT

After adding the detergent, to close the lid slide it in the direction sho wn
by the arrow as far as it will go then press gently to lock. During washing,
the dispenser will be opened automatically.

• Use only detergents specially formulated for dishwashers. For
optimal washing results it is important to use a good quality
detergent.

• The detergent packs must be sealed and stored in a dry place to
prevent the formation of lumps which may negatively affect washing
results. Once opened the detergent packs should not be kept for too
long, otherwise the detergent loses its effectiveness.

• Do not use detergents formulated for washing dishes by hand,
because they produce a great deal of foam and may negatively
affect the operation of the dishwasher.

• Add the correct amount of detergent. An insufficient amount of
detergent will result in a partial removal of dirt from the dishes,
whereas an excessive amount is wasteful and does not improve the
washing results.

• The market offers liquid and powder detergents with differing
chemical compositions, which may contain phosphates, or be
phosphate-free but contain natural enzymes.

- Detergents containing phosphates are more effective against

grease and starch at temperatures above 60°C.

- Enzyme detergents, on the other hand, are also effective at lower
temperatures (from 40 to 55°C) and are more easily
biodegradable. With enzyme detergents it is possible to o btain at
low temperatures comparable results to those which can only be
achieved at 65°C using traditional detergents.

For the safeguarding of the environment we recommend the use of
phosphate- and chlorine free detergents.

20

User instructions

• "2/1" Products
If you wish to use detergents which already contain rinse aid, check
whether your dishwasher is fitted with the "2/1 option button" on
the "Controls description" page and then refer to the section whic h
explains how to use this function.
If the button is not provided, we recommend the use of conventional
products (separate detergent and rinse aid), because with
conventional washing cycles "2/1" products might create problems
such as a white deposit, poor drying results and residues left on
dishes.

The introduction of detergent into the rinse aid dispenser, even in
liquid form, will damage the dishwasher.

4.2 General warnings and recommendations

Before using the dishwasher for the first time, it is advisable to read t he
following recommendations concerning dish types to be washed and
their loading.
There are generally no constraints on the washing of do mestic dishes,
but in certain cases it is necessary to take their characteristics into
account.

Before loading the dishes into the baskets it is necessary to:

• remove coarse food remains: e.g. bones, fish-bones, etc. which
may clog the filter or damage the wash pump.

• soak pots and pans with burnt food residues in the bottom for
easier removal.

There is no need to pre-wash the dishes under running water before
loading them into the baskets since this only wastes water.

Correct loading of the dishes helps ensure optimal washing
results.

21

WARNING!

User instructions

• Make sure that the dishes are securely in place so that they cannot
tip over or obstruct the rotation of the spray arms during the
washing cycle.

• Do not place v ery small objects in the baskets as these could fall
and obstruct the spray arms or the wash pump.

• Containers such as cups, bo wls, glasses and pots should always
be loaded with the opening facing downwards and with any cavities
at an angle, to allow the water to drain out.

• Do not stack dishes or place them in suc h a way that they cover
one other.

• Do not place g lasses too close together because they may knock
against each other and break, or there might be staining at the
point where they touch.

• When usin g detergent tablet, take care not to place large pans or
dishes in the zone underneath the detergent dispenser, since the
tablet might fall onto the dishes and fail to dissolve completely.

MAKE SURE that the items being washed are dishwasher-safe.
Items which are not dishwasher-safe:

• Wooden dishes, pots or pans: these may be damaged by the
high washing temperatures.

• Handcrafted items: these are rarely suitable for washing in a
dishwasher. The relatively high water temperatures and the
detergents used may damage them.

• Plastic dishes: heat resistant plastic dishes must be washed in the
upper basket.

• Dishes and objects in copper, tin, zinc or brass: these tend to
stain.

• Aluminium dishes: items made from anodised aluminium may
lose their colour.

• Silverware: silver items may stain.

• Glass and crystal: in general, glass and crystal objects can be

washed in the dishwasher. However, certain types of glass and
crystal may become dull and lose their clearness after many
washings. Therefore, for these items we recommend using the
least aggressive program available.

• Decorated items: the decorated objects available on the market
are generally able to withstand washing in the dishwasher,
although the colours may fade after a great many washes. If in
doubt as to the fastness of the colours, it is advisable to wash just a
few items at a time for approximately one month.

22

User instructions

4.3 Using the baskets

The dishwasher has a capacity of 7 place-settings, including serving
dishes.

CAUTION: do not place items in positions where they prevent the
detergent dispenser hatch from opening properly.

23

User instructions

The basket is fitted with plate racks which can be stowed horizontal if
required.

CUTLERY BASKET
Cutlery must be placed with the tips facing downward.

24

User instructions

5. Cleaning and maintenance

Before carrying out any work, always disconnect the appliance
from the electrical power supply.

5.1 General warnings and recommendations

Avoid the use of acidic or abrasive detergents.

Clean the outer surfaces and door-lining of the dishwasher regularly
using a soft cloth moistened with water or with a normal detergent
suitable for painted surfaces. Clean the door gaskets with a damp
sponge. Periodically (once or twice a year) it is advis able to clean the
tank and gaskets, using a soft cloth and water to remove any deposits.

CLEANING THE WATER INTAKE FILTER

The water intake filter A located at the outlet of the water supply tap
needs to be cleaned periodically.
After having closed the water supply tap, unscrew the end of the water
intake hose, remove the filter A and clean it delicately under running
water. Reassemble filter A in its seat and carefully screw the water
intake hose back into position.

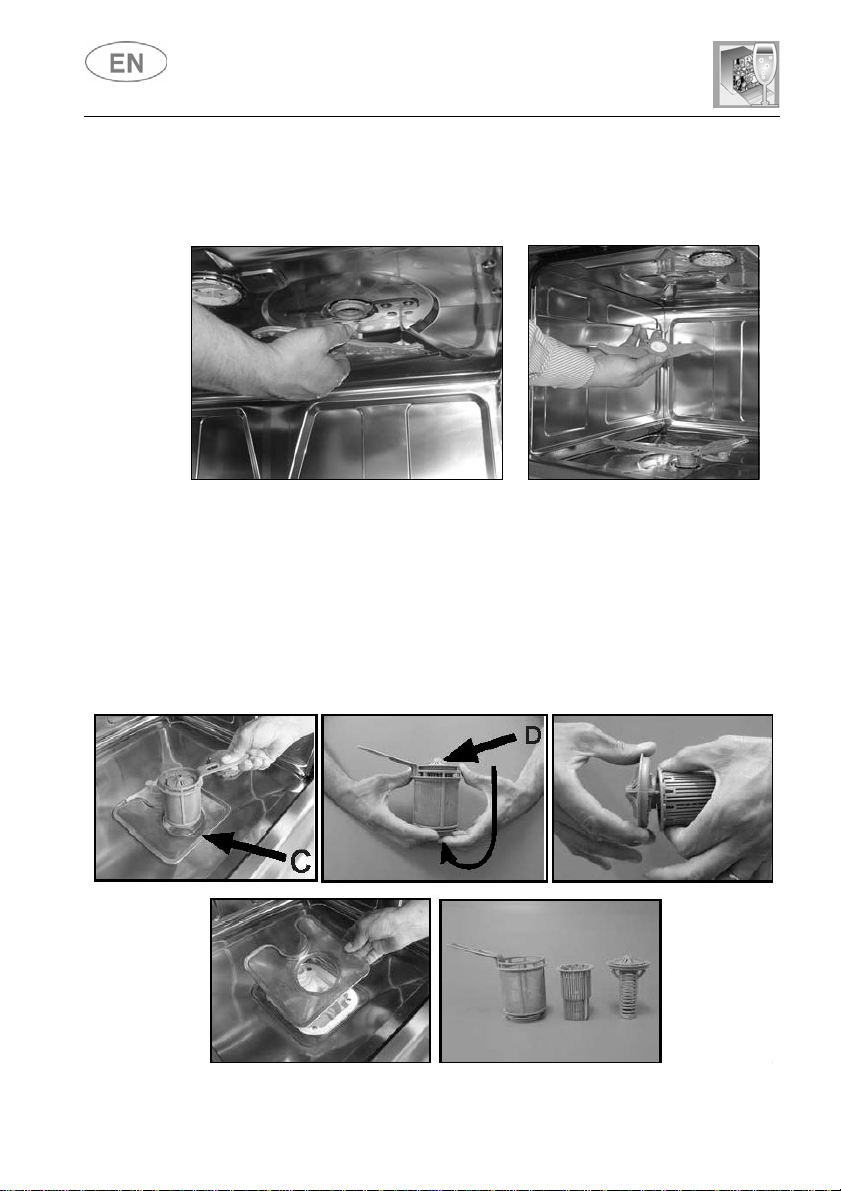

CLEANING THE SPRAY ARMS

The spray arms can be easily removed for periodic cleaning of the nozzles,
to prevent possible clogging. Wash them under running water and carefully
replace them in their seats, checking that their rotary movement is in no
way impeded.
To remove the orbital spray arm assembly, take hold of the longer arm and
pull the orbital unit upward. Wash the arms under a jet of running water and
return them carefully to their seat. After reassembly, check that the spray
arms turn freely. Otherwise, check that they have been installed corre ctly.

25

User instructions

To remove the top spray arm, take off the retainer ring-nut. Wash it in a
jet of water and fit it into place correctly, checking that there are no

impediments of any kind preventing it from turning freely.

CLEANING THE FILTER UNIT

• The central filter C should be inspected regularly and cleaned if
necessary.

• To remove it, turn anti-c lockwise and lift.

• Press the central filter D from belo w to extract it from the micro-filter.

• Separate the two parts of the plastic filter by pressing the body of

the filter in the zone shown by the arrows.

• Remove the central filter by lift ing it.

26

User instructions

GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT
MAINTENANCE:

• The filters should be cleaned under running water using a stiff
brush.

• When removing the filter, take care that there are no food residues
on it. If any residues fall into the washing pit they might block
hydraulic components, or foul the spray arm nozzles.

• It is es sential to thoroughly clean the filters according to the above
instructions: the dishwasher cannot function if the filters are clogged.

• Carefully replace the filters in their seats, to avoid damaging the
wash pump.

PROLONGED DISUSE:

• Run the soak program twice in succession.

• Unplug the power cord from the socket.

• Leave the door slightly open, in order to prevent the formation of

unpleasant odours inside the washing tank .

• Fill the rinse aid dispenser.

• Shut off the water supply tap.

BEFORE STARTING THE DISHWASHER AFTER PROLONGED
DISUSE:

• Check that there are no deposits of sludge or rust inside the water
pipe: if there are, allow the water to run from the water supply tap for a
few minutes.

• Plug the power cord back into the socket.

• Reconnect the water intake hose and open the tap again.

TROUBLESHOOTING MINOR PROBLEMS

In some cases it is possible to remedy minor problems by r eferring to the
following instructions:

If the program fails to start, check that:

• the dishwasher is connected to the electrical power supply;

• there is no power failure;

• the water tap is open;

• the dishwasher door is properly closed.

If water remains inside the dishwasher, check that:

• the drain hose is not kinked;

• the drain siphon is not obstructed;

• the dishwasher filters are not clogged.

27

If the dishes do not come out clean, check that:

User instructions

• the correct amount of detergent has been added;

• the dishes are being loaded correctly;

• the selected progra m is suitable for the dish types and their degree

of soiling;

• all the filters are clean and positioned correctly;

• the spray arm nozzles are not obstructed;

• there is no object obstructing the rotation of the spray arms;

• the detergent dispe nser hatch has not been p revented from opening

properly by an incorrectly positioned item.

If the dishes fail to dry or remain dull, check that:

• there is rinse ai d inside the special container;

• the rinse aid di spenser setting is correct;

• the detergent used is of good quality and has not lost its

effectiveness (for example, through incorrect storage, with the box
left open).

If the dishes show signs of streaking, staining, etc., check that:

• the rinse aid di spenser setting is not too high.

If there are visible traces of rust inside the tank:

• the tank is made of steel, and therefore any rust marks are due to
external elements (fragments of rust from the water pipes, pots,
cutlery, etc.). Special products are commercially available to remov e
such marks;

• check that the amount of detergent being used is correct. Certain
detergents can be more corrosive than others.

If after following the above troubleshooting instructions the problem
persists, call the nearest After-Sales Centre.

WARNING: any operations performed on the appliance by
unauthorised persons are not covered by the warranty and sh all be
paid for by the user.

28

E3

E4

E5

E6

E7

E9

User instructions

6. Troubleshooting

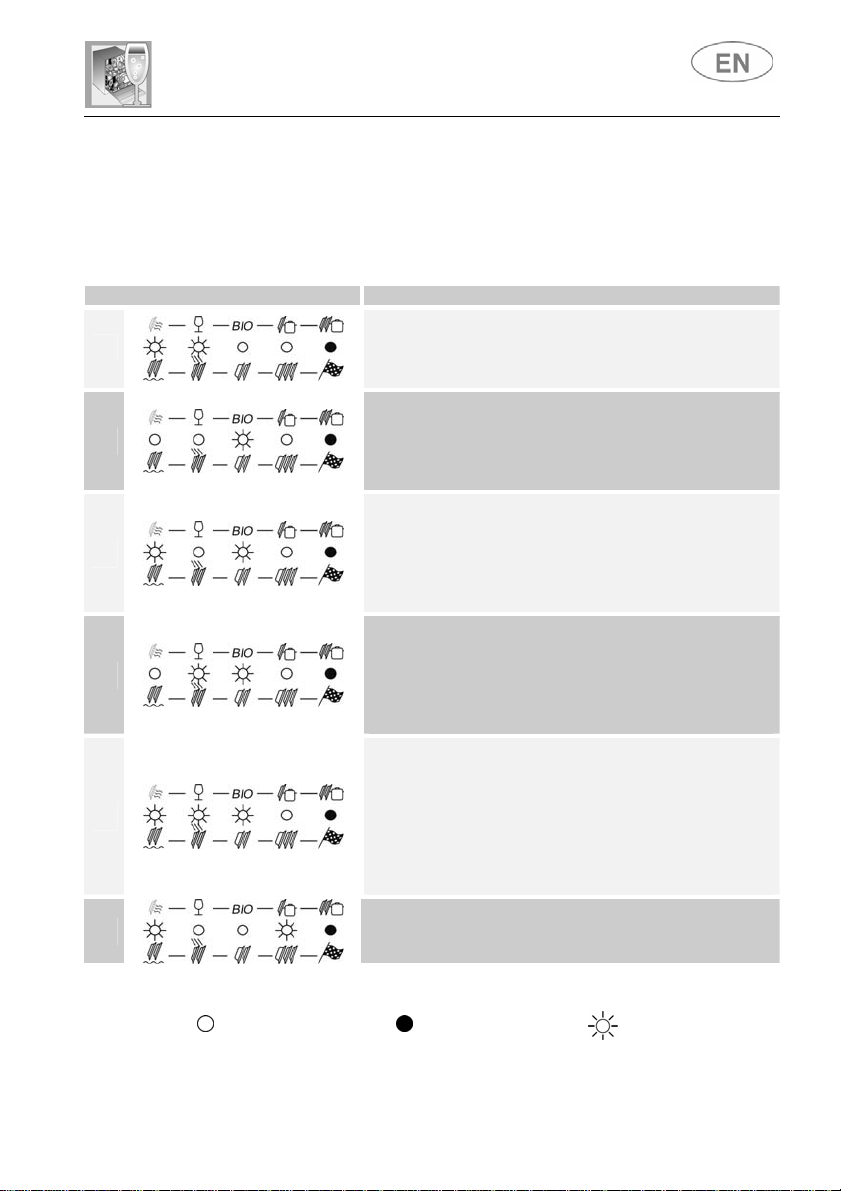

The dishwasher is capable of signalling a number of faults through the
simultaneous illumination of several indicator lights, with the following
meanings:

FAULT DESCRIPTION

Water heating malfunction

The water is not heated or the heating parameters
are not correct. Repeat the washing program; if the
problem persists, contact the after-sales service.

Water temperature monitoring malfunction

Interrupt the program and switch off the dishwasher.
Switch the dishwasher back on, program it again and
start the washing cycle. If the problem persists,
contact the after-sales service.

Water intake malfunction

The appliance does not take in water or does not do
so correctly. Check that the water connections are
correct, the water intake tap is turned on and the filter
is not fouled. If the problem persists, contact the
after-sales service.

Water pump-out malfunction

The appliance does not pump out the water or does
not do so correctly. Check that the drain hose is not
kinked or crushed and that the siphon and filter are
not fouled. If the problem persists, contact the after­sales service.

Turbine flow-regulator malfunction

(for the relevant models only)
The appliance is not able to "measure" the amount of
water loaded accurately. Interrupt the program and
switch off the dishwasher. Switch the dishwasher
back on, program it again and start the washing
cycle. If the problem persists, contact the after-sales
service.

Water intake system malfunction

Contact the after-sales service.

Light off

Light on

Light flashing

29

User instructions

If an alarm occurs the appliance interrupts the program in progress and
signals a fault.

• Alarms E3, E4 and E9 interrupt the current program immediately.

• The E5, E6 alarms interrupts the running program once the cause is

resolved, it will bring bach the execution of the program.

• The alarm E7 is visualized at the end of the cycle that comes, however,

brought to the end since the operation of the dishwasher is not harmed.

To “reset” an alarm is necessary:

• Open and close the door, or turn off and on the machine. At this point is

possible to program the dishwasher again.

If the malfunction persists, contact your authorised Service Centre.

TECHNICAL DATA

Width
Depth measured flush with the

outer edge of the control panel
Height
Capacity
Water supply pressure
Electrical characteristics

559 mm
550 mm
578 mm

7 Standard place settings
min. 0,05 - max. 0,9 MPa (min. 0.5 – max. 9 bar)
See rating plate

30

898

896

894

10

15

20

25

30

35

40

45

50

55

MAX

MIN

SX

DX

SX

DX

55

50

898

898

896

894

10

15

20

25

30

35

40

45

896

894

55

55

50

45

40

35

30

25

20

15

10

5

0

50

45

40

35

30

25

20

15

10

5

0

894

898

896

SX

DX

SX

MAX

MIN

DX
