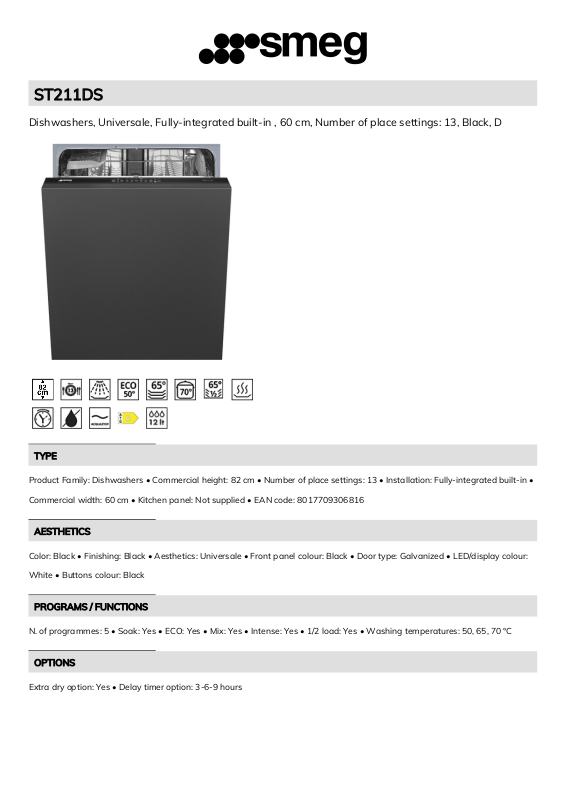

Smeg ST211DS Technical sheet

ST211DS

Dishwashers, Universale, Fully-integrated built-in , 60 cm, Number of place settings: 13, Black, D

TYPE

Product Family: Dishwashers • Commercial height: 82 cm • Number of place settings: 13 • Installation: Fully-integrated built-in •

Commercial width: 60 cm • Kitchen panel: Not supplied • EAN code: 8017709306816

AESTHETICS

Color: Black • Finishing: Black • Aesthetics: Universale • Front panel colour: Black • Door type: Galvanized • LED/display colour:

White • Buttons colour: Black

PROGRAMS / FUNCTIONS

N. of programmes: 5 • Soak: Yes • ECO: Yes • Mix: Yes • Intense: Yes • 1/2 load: Yes • Washing temperatures: 50, 65, 70 °C

OPTIONS

Extra dry option: Yes • Delay timer option: 3-6-9 hours

BASKETS

N° baskets: 2 • Basket colour: Grey • Basket components colour: Grey • Upper Basket: With central fixed racks • Glass holder:

Yes • Height adjustment of the upper basket: On three levels (5 cm) • Largest loadable dish in upper basket: 25,0 cm • Lower

Basket: With fixed racks • Lower basket with anti-drip inserts: Yes • Largest loadable dish in lower basket: 30,0 cm • Cutlery

basket: Yes • Colour Inner Components: Green

TECHNICAL FEATURES

Controls: Electronic • Door opening system: Yes • On/off indicator: Yes • Salt light indicator: Light • Rinse aid indicator: Light •

End of cycle indicator: Acoustic signal • Washing system: Standard • Drying system: Natural condenser drying, with Dry Assist +

automatic door opening system at the end of the cycle • Motor: Single phase • Third spray arm: Single • Water softener: With

electronic setting • Flood protection system: Single Acquastop • Water supply: Single; cold/hot water max. 60°C - energysave

with hot water up to 35% • Max water hardness: 100°fH;58°dH • Steam protection: In plastic • Tub material: Stainless steel •

Filter: Stainless steel • Concealed heating element: Yes • Min. and max plinth height: 100 - 228 mm • Min. and max. frontal panel

weight: 2 - 9 kg • Hinges: Self balancing with fixed hinges • Adjustable feet: 7cm, from 820 to 890 mm • Back feet adjustable

from front: Yes

PERFORMANCE / ENERGY LABEL - REG. 2019

Energy Efficiency Class: D • Energy consumption [per 100 cycles, based on the eco programme]: 84 KWh • Rated capacity (ps):

13 • Water consumption [per cycle]: 12.0 litres • Programme duration: 3:35 h:min • Airborne acoustical noise emissions: 51 dB

(A) re 1 pW • Airborne acoustical noise emission class: D • Energy efficiency Index (EEI): 49.9

ELECTRICAL CONNECTION

Connected power: 1900 W • Voltage: 220-230 V • Type of connection: Single-phase • Frequency (Hz): 50 Hz • Power supply

cable length: 140 cm

LOGISTIC INFORMATION

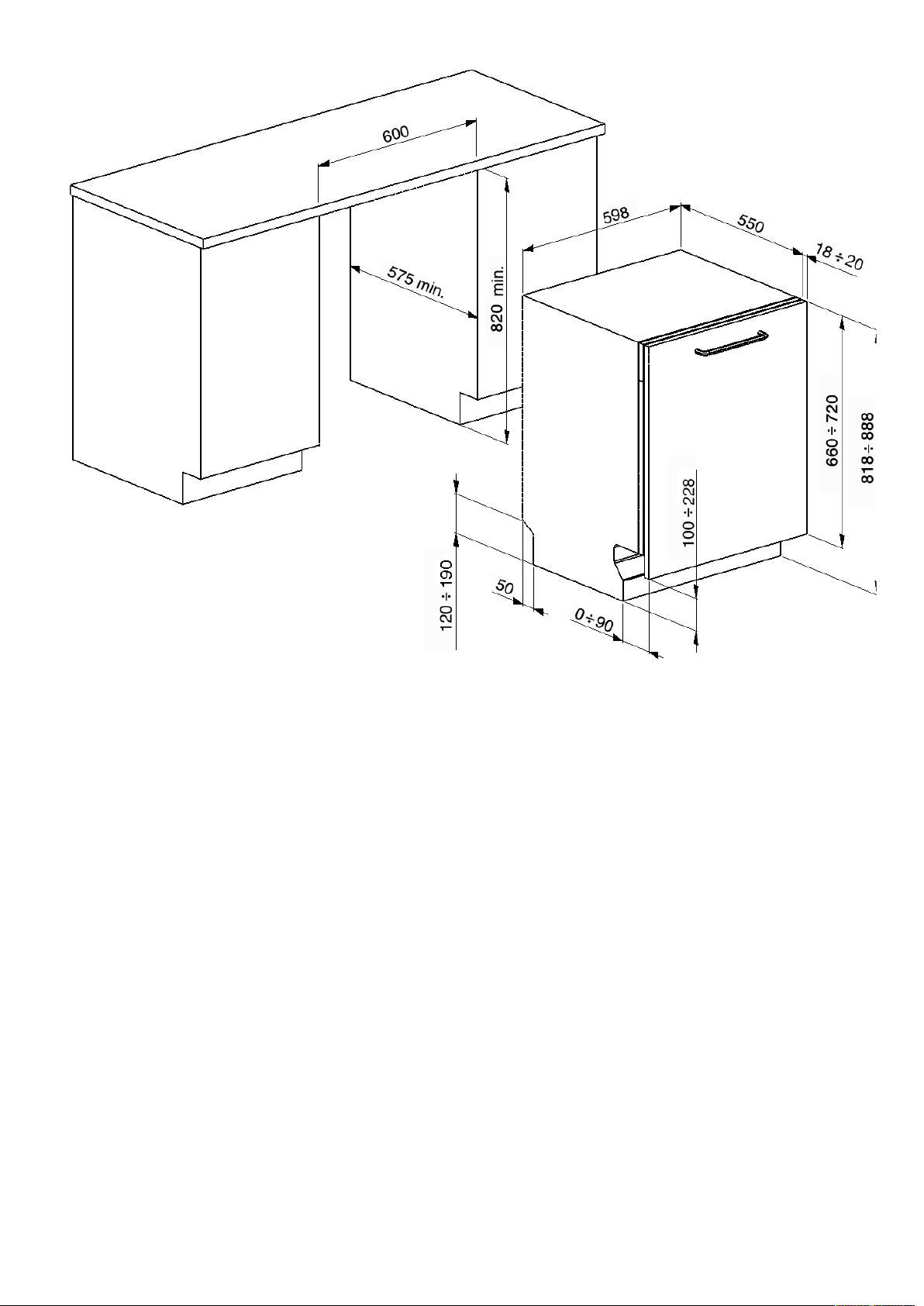

Dimensions of the product HxWxD (mm): 818x598x545

OPTIONAL

KITPLV2: Extension kit, DishwashersKITPL60FABB: Plinth Kit, DishwashersKITPL60FABN: Plinth Kit, DishwashersKITPL60FABX:

Plinth Kit, Dishwashers
