Smeg ST144 User Manual

INSTRUCTION MANUAL

DISHWASHER

Contents

1. Safety and operating instructions ___________________________ 26

2. Installation and hook-up __________________________________ 28

2.1 Water supply connection _____________________________________________________ 28

2.2 Electrical connection ________________________________________________________ 29

3. Description of the controls_________________________________ 30

3.1 Upper panel _______________________________________________________________ 30

3.2 Information display __________________________________________________________ 30

3.3 Washing programs __________________________________________________________ 31

4. Operating instructions ____________________________________ 34

4.1 Using the water softening system ______________________________________________ 34

4.2 Using the rinse aid and detergent dispensers _____________________________________ 36

4.3 General warnings and recommendations ________________________________________ 38

4.4 Using the baskets___________________________________________________________ 39

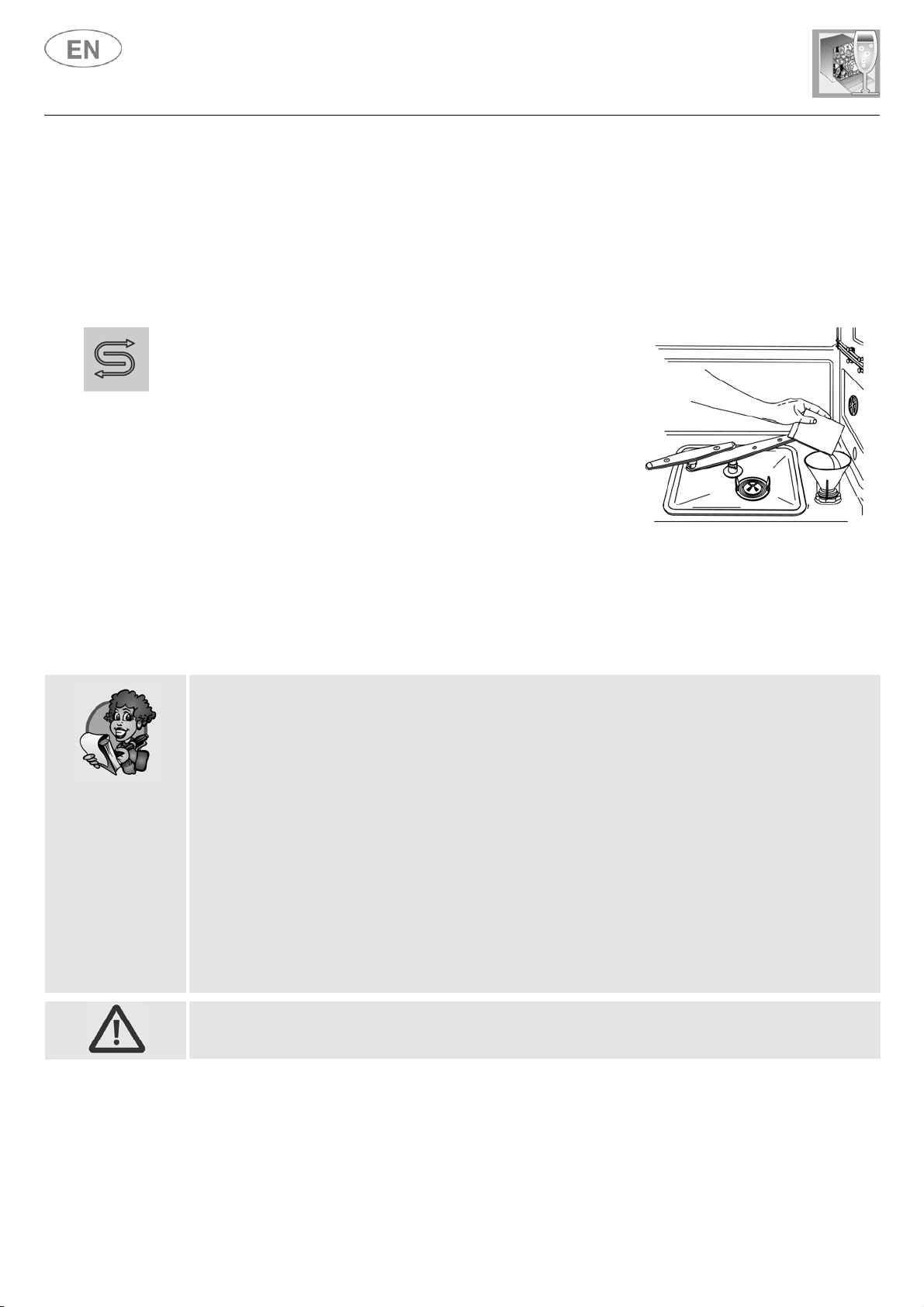

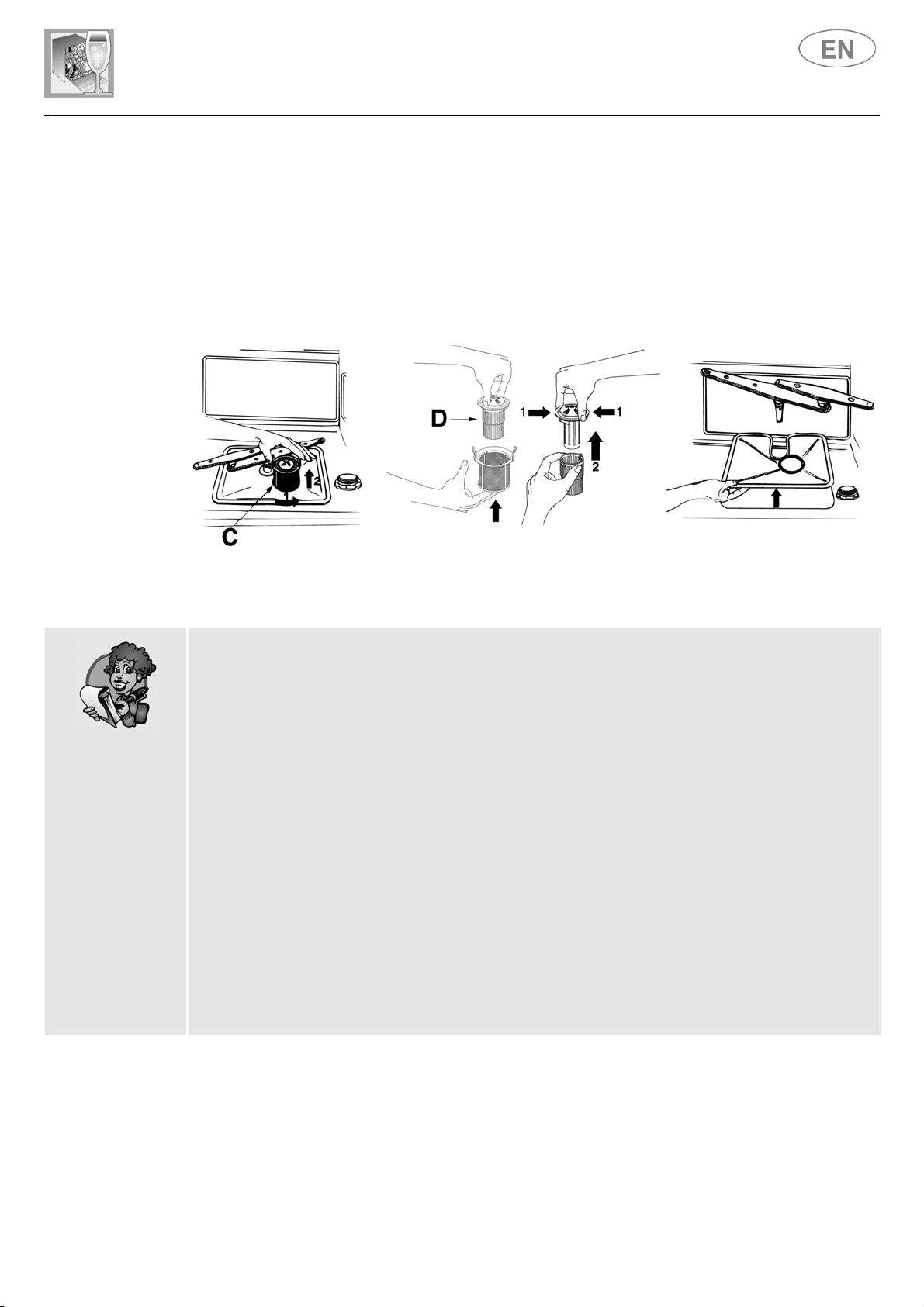

5. Cleaning and maintenance ________________________________ 42

5.1 General warnings and recommendations ________________________________________ 42

6. Troubleshooting ________________________________________ 45

Thank you for choosing this product. We advise you to carefully read all the instructions contained in this manual, in order to understand how to operate your dishwasher safely and correctly. The manual is divided into paragraphs, which provide a step by step description of the dishwasher functions, with clear instructions accompanied by detailed illustrations. Recommendations are given for the correct use of the baskets, spray arms, containers, filters, washing programs, and for operating the controls. Follow the recommended cleaning procedures to ensure that your dishwasher always remains in perfect working order. This manual provides a quick and easy reference for answering all your questions concerning the use of your new dishwasher.

INSTALLATION INSTRUCTIONS: these are intended for the out the installation, hook-up and testing of the appliance.

qualified technician

who must carry

USER INSTRUCTIONS: these consist of recommendations for using the appliance, a description of its controls and of the correct cleaning and maintenance procedures.

Safety instructions

1. Safety and operating instructions

THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USE, AND COMPLIES WITH THE PREVENTION AND ELIMINATION OF RADIO FREQUENCY INTERFERENCE. THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: IMPROPER.

DESCRIBED ABOVE.

THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE DOOR.

REMOVED.

DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE COLLECTION CENTRE.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR USES OTHER THAN THOSE

EEC DIRECTIVES 72/23, 897336 (INCLUDING 92/31)

WASHING AND DRYING OF DISHES

THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST NEVER BE

CURRENTLY IN FORCE, INCLUDING THE

; ANY OTHER USE SHALL BE CONSIDERED

THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.

IF THE APPLIANCE IS NOT CONNECTED TO THE ELECTRICAL POWER SUPPLY BY MEANS OF A PLUG, IT IS NECESSARY TO INSTALL AN ISOLATION SWITCH WITH A CONTACT OPENING GAP OF AT LEAST 3 MM.

THE PLUG ON THE POWER CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE, AND MUST CONFORM TO THE REGULATIONS IN FORCE. CHECK THAT THE VOLTAGE AND FREQUENCY OF THE ELECTRICAL POWER SUPPLY MATCH THE RATINGS ON THE NAME PLATE. AVOID USING ADAPTORS OR SHUNT CONNECTIONS.

NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER CORD.

• AFTER INSTALLATION, THE PLUG MUST REMAIN ACCESSIBLE.

• IN THE EVENT OF DAMAGE TO THE POWER CORD, HAVE IT REPLACED BY A QUALIFIED TECHNICIAN.

IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR, ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT OBSTRUCTED.

ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID WASTING ELECTRICITY.

OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET, AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR CHILDREN (LOCKS, DOORS, ETC.). THE APPLIANCE MUST THEN BE TAKEN TO A SORTED WASTE COLLECTION CENTRE.

IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP. THEN CALL IN A QUALIFIED TECHNICIAN.

Safety instructions

DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER. THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A QUALIFIED TECHNICIAN.

THE APPLIANCE IS INTENDED FOR USE BY ADULTS.

THE DISHWASHER. KEEP CHILDREN AWAY FROM DETERGENTS AND FROM THE OPEN DISHWASHER DOOR. THE PACKAGING MATERIALS (PLASTIC BAGS, POLYSTYRENE, METAL BARS, ETC.) MUST NOT BE LEFT WITHIN THE REACH OF CHILDREN. KEEP CHILDREN AWAY FROM THE OPEN DISHWASHER. THE APPLIANCE MAY CONTAIN RESIDUES OF DETERGENT WHICH CAN CAUSE IRREVERSIBLE DAMAGE TO THE EYES, MOUTH, AND THROAT, AS WELL AS POSSIBLE DEATH BY SUFFOCATION.

DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE WHICH MAY CAUSE AN EXPLOSION.

DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.

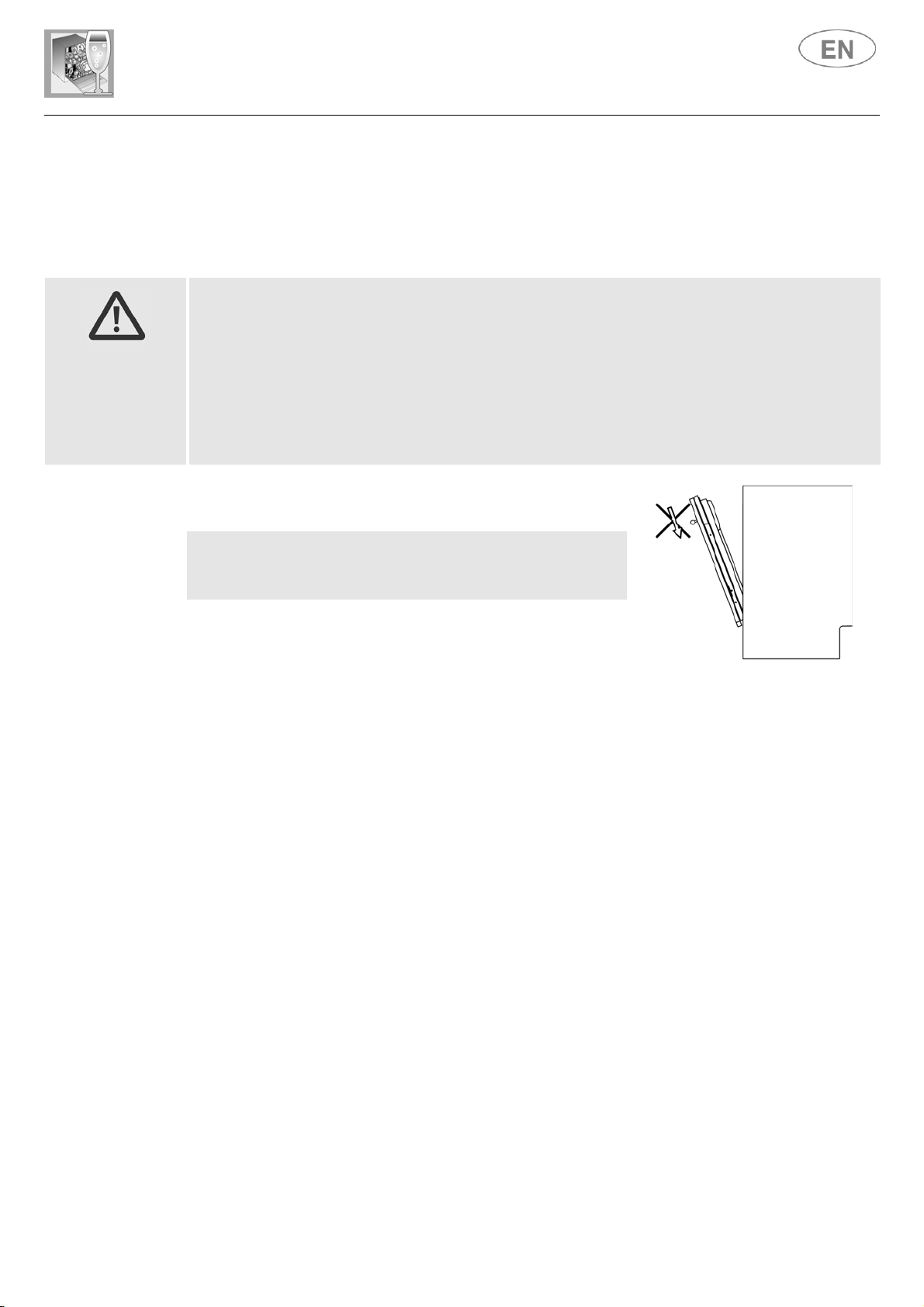

LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK.

DO NOT UNDER ANY CIRCUMSTANCES TOUCH THE HEATING ELEMENT IMMEDIATELY AFTER THE END OF A WASHING PROGRAM.

OVER TIME, THE DISHWASHER HEATING ELEMENTS MAY CHANGE COLOUR, IN PART OR OVERALL. THIS IS PERFECTLY NORMAL AND DOES NOT IN ANY WAY AFFECT THE OPERATION OF THE APPLIANCE.

DO NOT ALLOW CHILDREN TO COME NEAR OR PLAY WITH

DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE.

AQUASTOP M ODE LS

THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A WATER LEAK. WHEN THE AQUASTOP DEVICE IS TRIPPED, CALL IN A QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT. IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A SOLENOID VALVE INSIDE THE WATER INTAKE HOSE.

DO NOT CUT THE HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO WATER.

EVENT OF DAMAGE TO THE WATER INTAKE HOSE, DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY AND FROM THE WATER SUPPLY.

IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK TEST OF THE APPLIANCE FOLLOWING THE INSTRUCTIONS BELOW. IF THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST TECHNICAL SERVICE CENTRE.

DO NOT ATTEMPT TO REPAIR THE APPLIANCE.

THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED EXCLUSIVELY BY A TRAINED AND AUTHORISED TECHNICIAN:

INVALIDATE THE WARRANTY, AS WELL AS POSING A POTENTI AL HAZARD TO THE USER.

The manufacturer declines all responsibility

REPAIRS CARRIED OUT BY UNAUTHORISED PERSONS WILL

for damage to persons or property resulting from failure to

IN THE

observe the above precautions, from tampering with even a single component of the appliance, or from the use of non original spare parts.

Installation instructions

2. Installation and hook-up

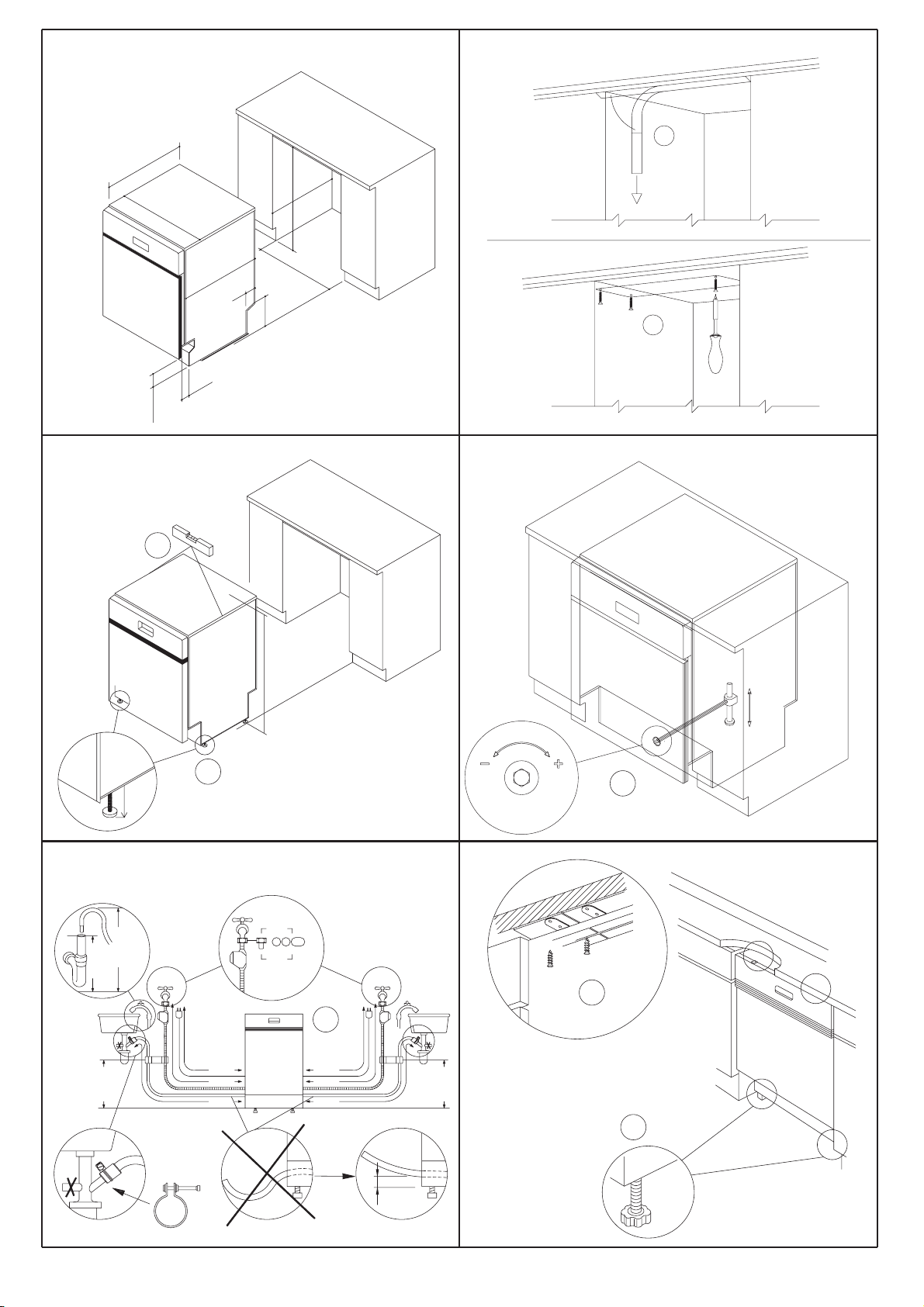

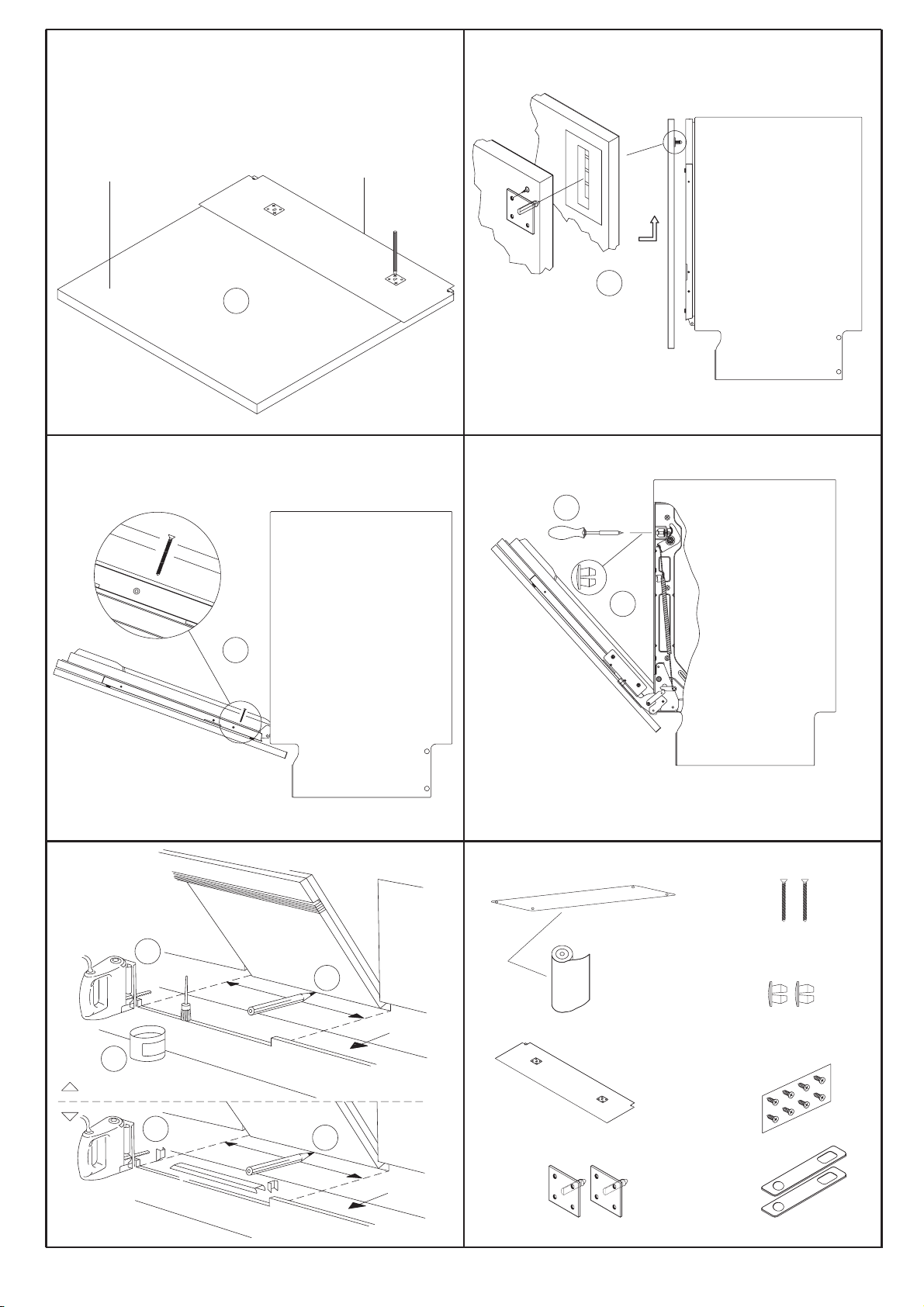

Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance. To ensure stability, install integrated or built-under dishwashers only under continuous worktops, and screw them to the adjacent units. To facilitate the installation procedure, the intake and drain hoses can be positioned in any direction; make sure that the hoses are not kinked, crushed or pulled too tightly.

Level the appliance on the floor using its adjustable feet. This operation is essential for ensuring correct operation of the dishwasher.

Some models are equipped with only one adjustable foot at the rear, which can be adjusted by turning the screw on the lower front part of the appliance.

2.1 Water supply connection

Preventing the risk of clogging or damage:

long time, before connecting to the water supply check that the water is clear and free of impurities, to prevent damage to the appliance. The dishwasher must always be connected to the water system with new hoses; old or used hoses must never be reused.

CONNECTING TO THE WATER SUPPLY

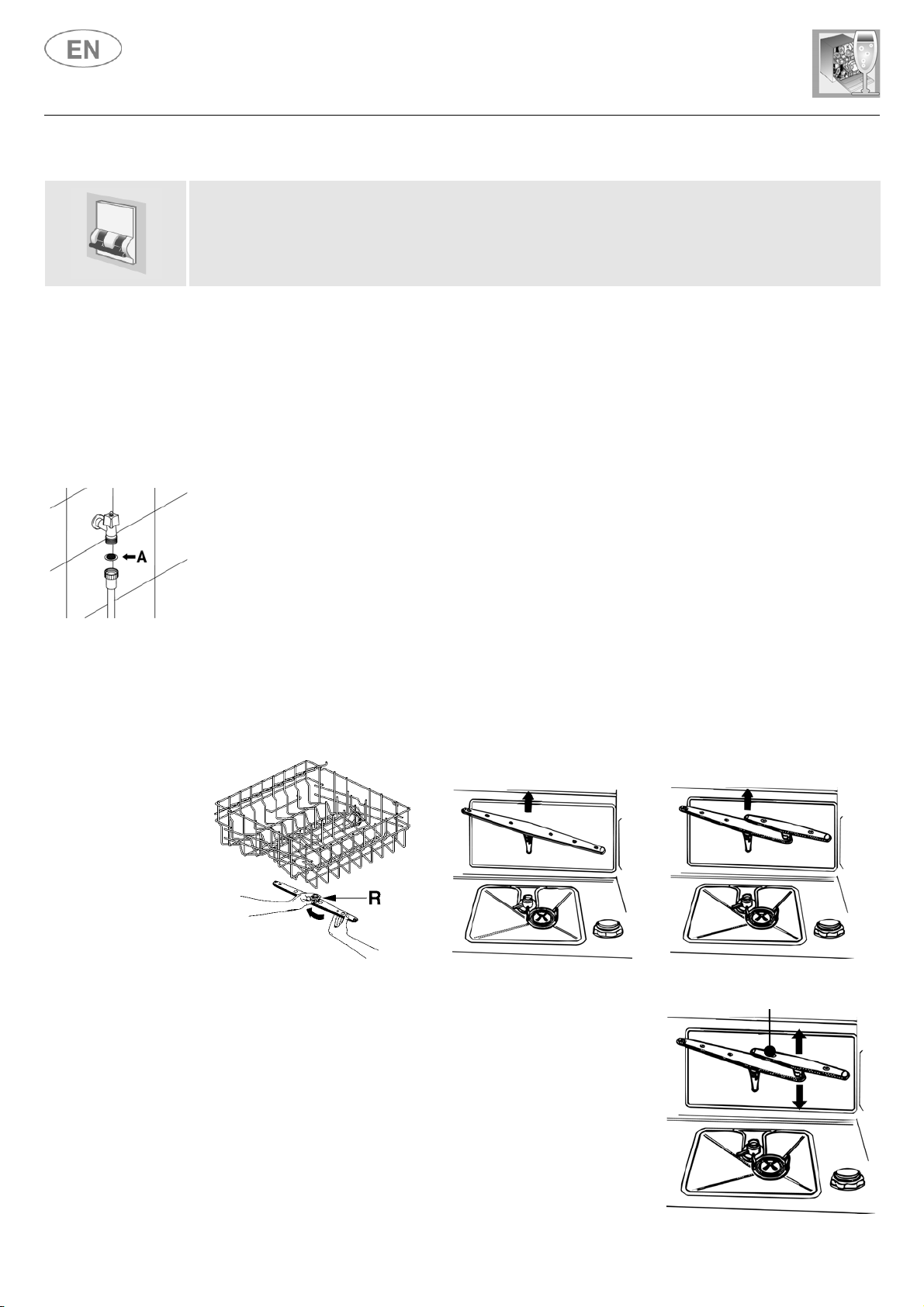

Connect the intake hose to a cold water supply with 3/4” gas thread, inserting the filter A supplied with the dishwasher.

Take care to screw the hose firmly into place with your hands and then complete by tightening about 1/4 of a turn with pliers. In dishwashers equipped with the ACQUASTOP device, the filters is already fitted inside the threaded ring.

if the water pipe is new or has not been used for a

The dishwasher can also be connected to a hot water supply appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly reduces its effectiveness. Make the connection to the domestic hot water supply using the same procedure described for connecting to the cold water supply.

not exceeding 60°C

. Supplying the

Installation instructions

DRAIN CONNECTION

Insert the dishwasher’s drain hose into a drain pipe having a diameter of at least place it inside the kitchen sink using the plastic support provided, taking care not to crush or excessively bend the hose. It is important to prevent the hose from coming loose and falling. For this purpose, the plastic support is equipped with a hole for tying it to the wall or water tap. The free end should be positioned at a height of between submerged in water. If a horizontal drain extension hose is used (for a maximum of 3 m) the drain hose can be placed at a maximum height of

30 and 100 cm

85 cm

4 cm

, or alternatively,

, and should never be

from the ground.

2.2 Electrical connection

Plug the power cord into a suitable electrical outlet, according to the instructions given in chapter "1. Safety and operating instructions".

User instructions

3. Description of the controls

3.1 Upper panel

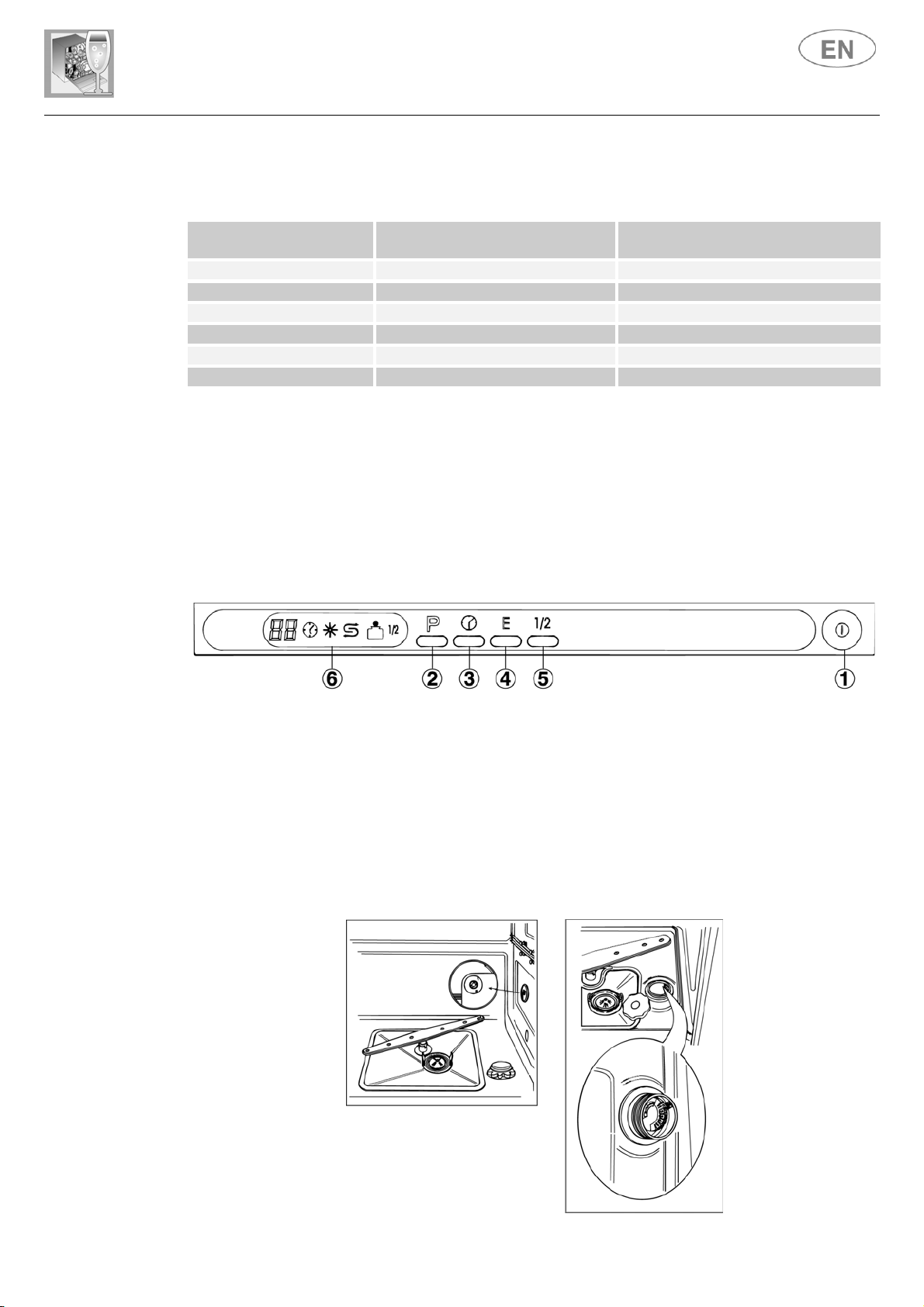

All the dishwasher controls are grouped on the upper panel.

ON/OFF

PROGRAM SELECTION

DELAYED START

ECONOMY PROGRAM SELECTION

½ LOAD WASH SELECTION

INFORMATION DISPLAY

BUTTON

BUTTON (on some models only)

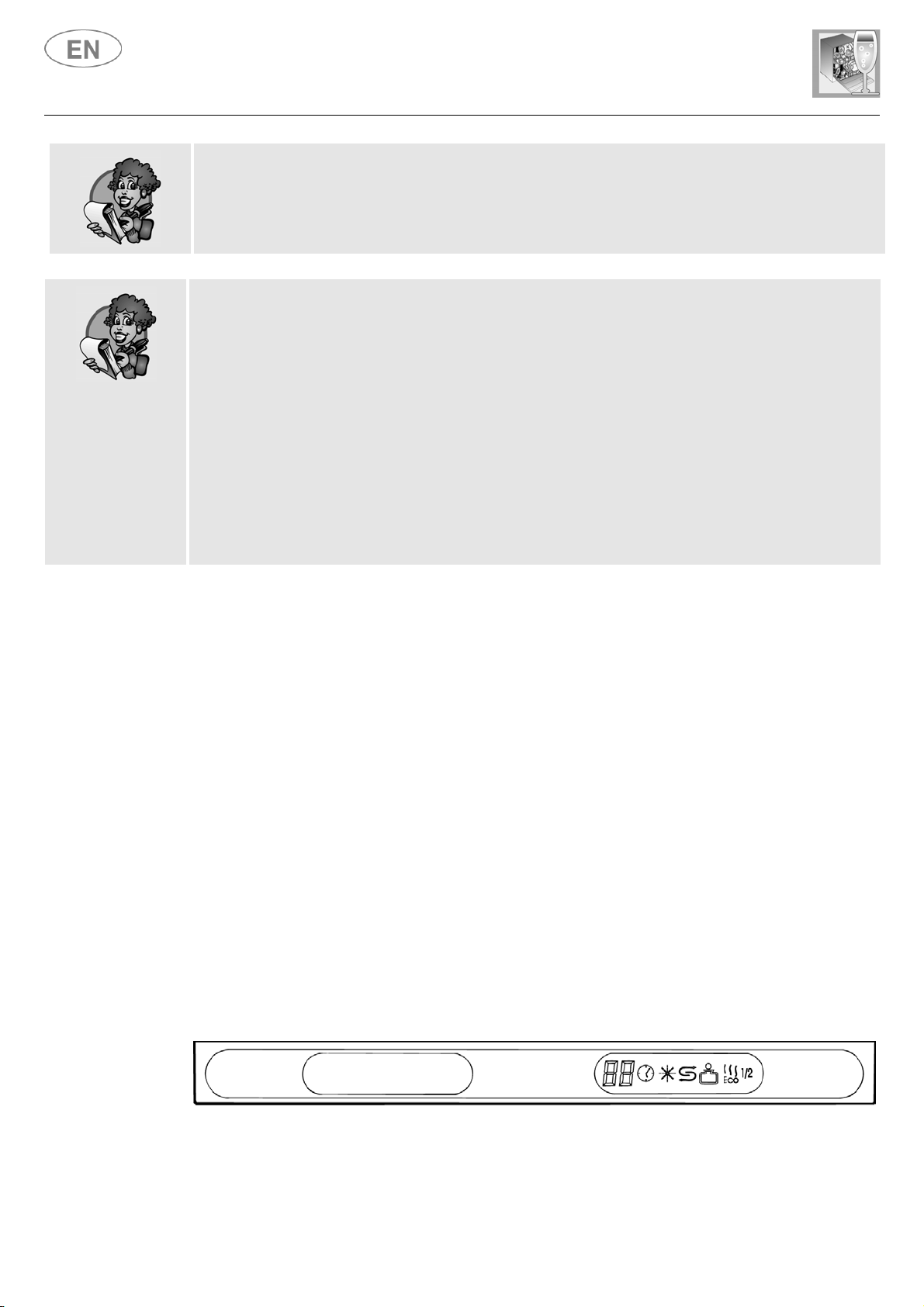

3.2 Information display

The dishwasher is equipped with a practical dishwasher functions.

CURRENT PROGRAM INFORMATION (remaining time indication and warnings for the most common problems)

DELAYED START INDICATOR LIGHT

RINSE AID WARNING LIGHT

REGENERATING SALT WARNING LIGHT

ECONOMY PROGRAM SELECTION LIGHT

HALF-LOAD INDICATOR LIGHT (on some models only)

DISPLAY

which provides information on the programmed

SWITCHING OFF

The end of the washing program is signalled by a short intermittent beep and the appearance of “P0” on the DISPLAY.

TABLE FOR CERTIFICATION BODIES

Reference standard EN 50242

Reference program

(*) ECO BIO program (5) Load 14 place-settings Type of detergent B Amount of detergent 30 g Rinse aid setting Depending on the model 3/4 or 4/6

ANNULLING THE PROGRAM IN PROGRESS

To annul the program being carried out, after opening the door select program "P0". When the door is closed the dishwasher will skip to the end of the program.

MODIFYING THE PROGRAM

To modify the current program, after opening the door select the new program. When the door is closed the dishwasher will start the new program automatically.

DELAYING THE PROGRAM The start of the washing program can be delayed from a minimum of 1 hour to a maximum of 9 hours; this allows you to operate the dishwasher at the time of day of

your choice. When the DELAYED START button (3) is pressed, the DISPLAY (6) will show first the duration of the program set and then the number of hours (9,8, …1) of delay with which it is to be started.

The

symbol will remain until the start of the washing cycle, while the number of hours will disappear automatically if the keypad is not used for 5 seconds or if any other button except the DELAYED START button (3) is pressed. When the door is closed the dishwasher will perform a pre-wash, after which the “program delay” set previously will start. To check the time left before the program starts, simply press the corresponding button once.

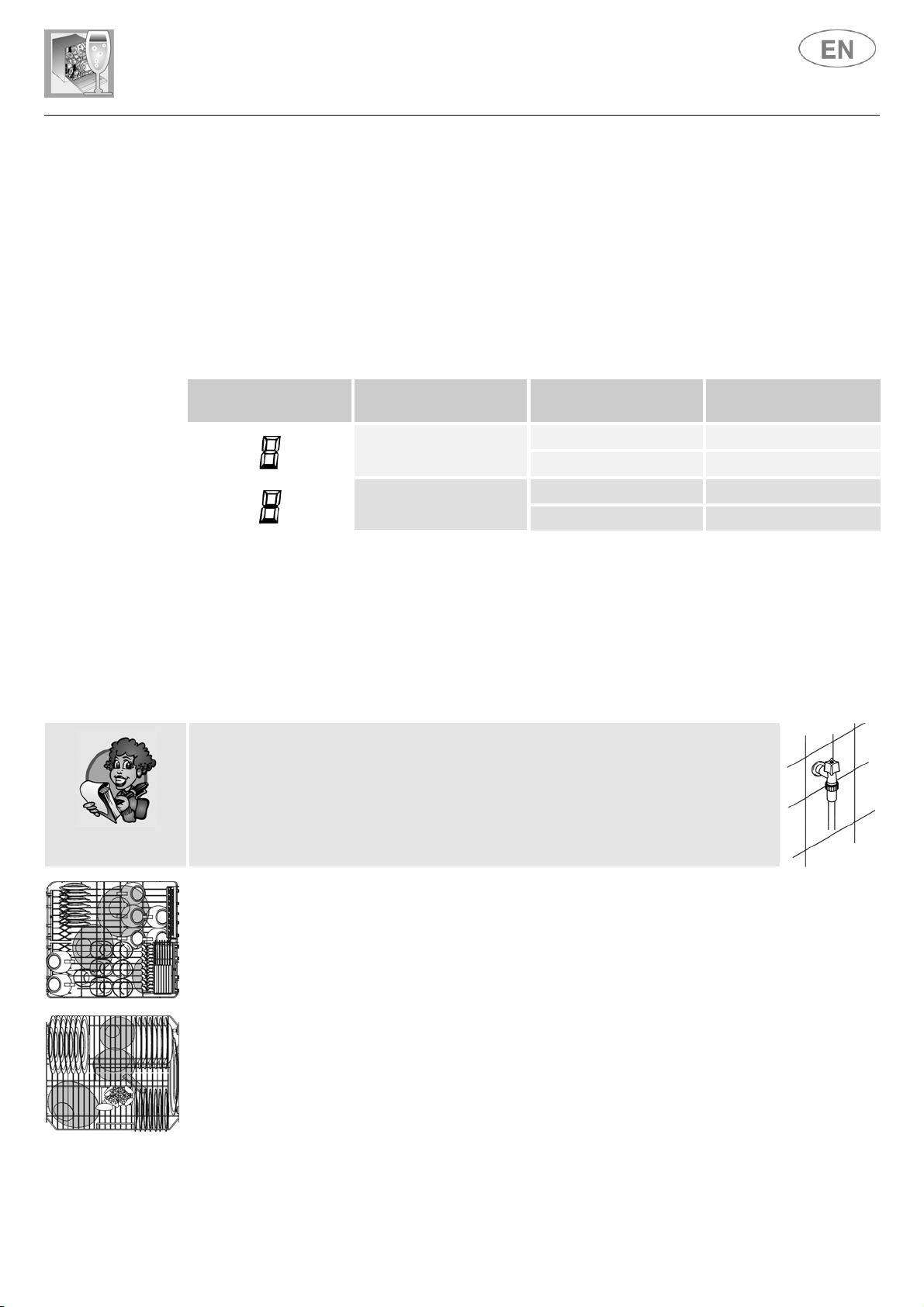

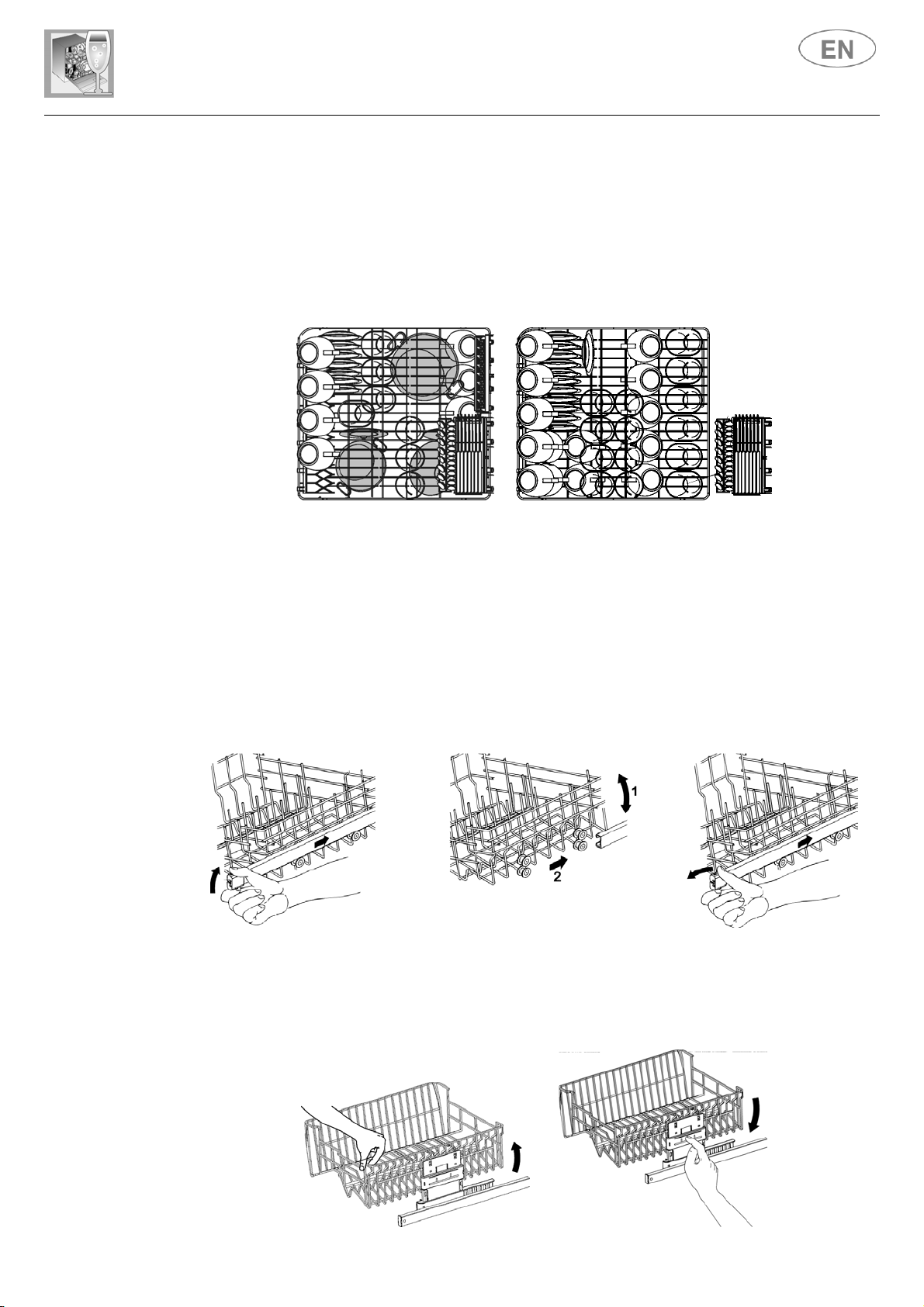

EN 50242 STANDARD LOADS

LOWER BASKET UPPER BASKET

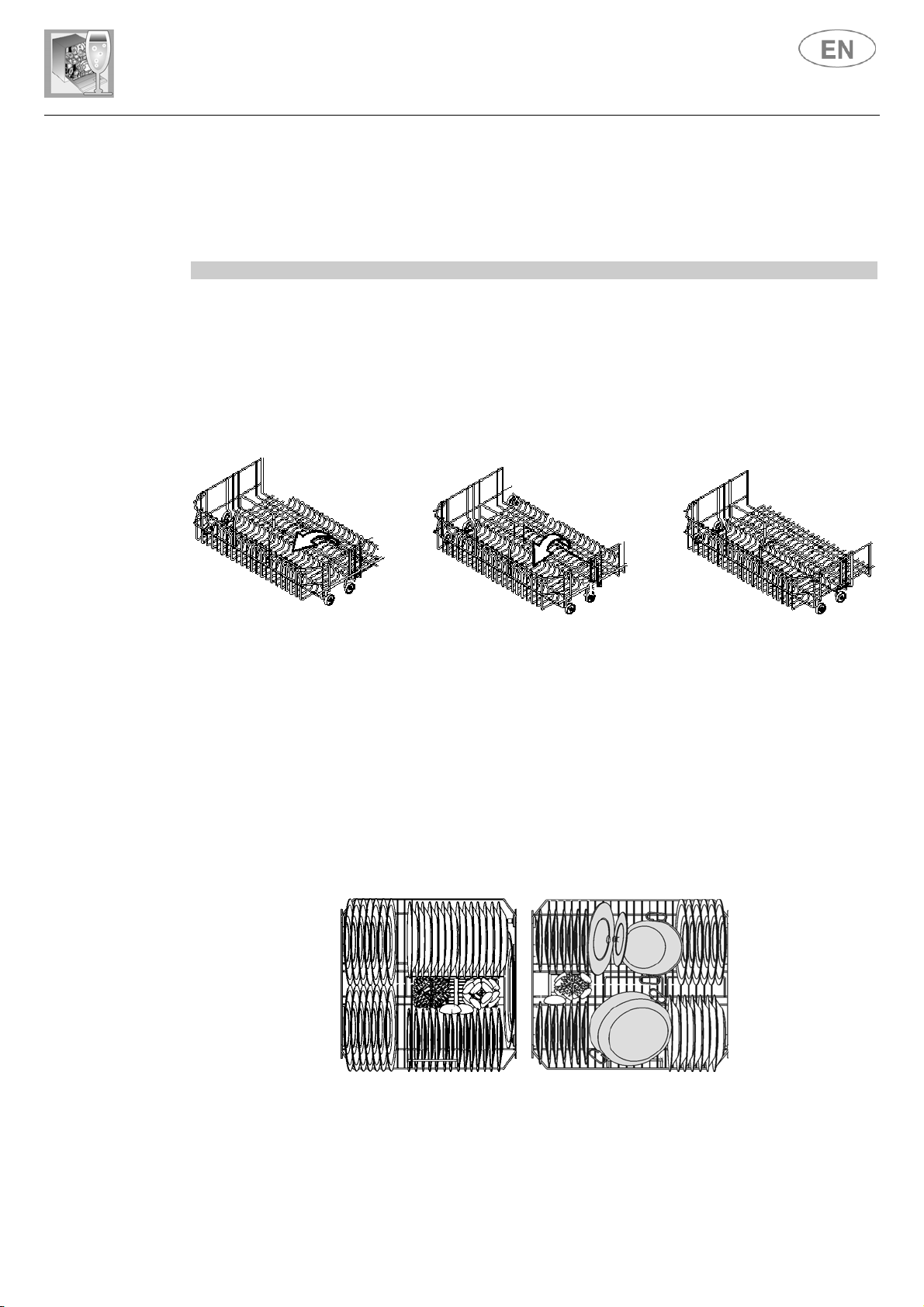

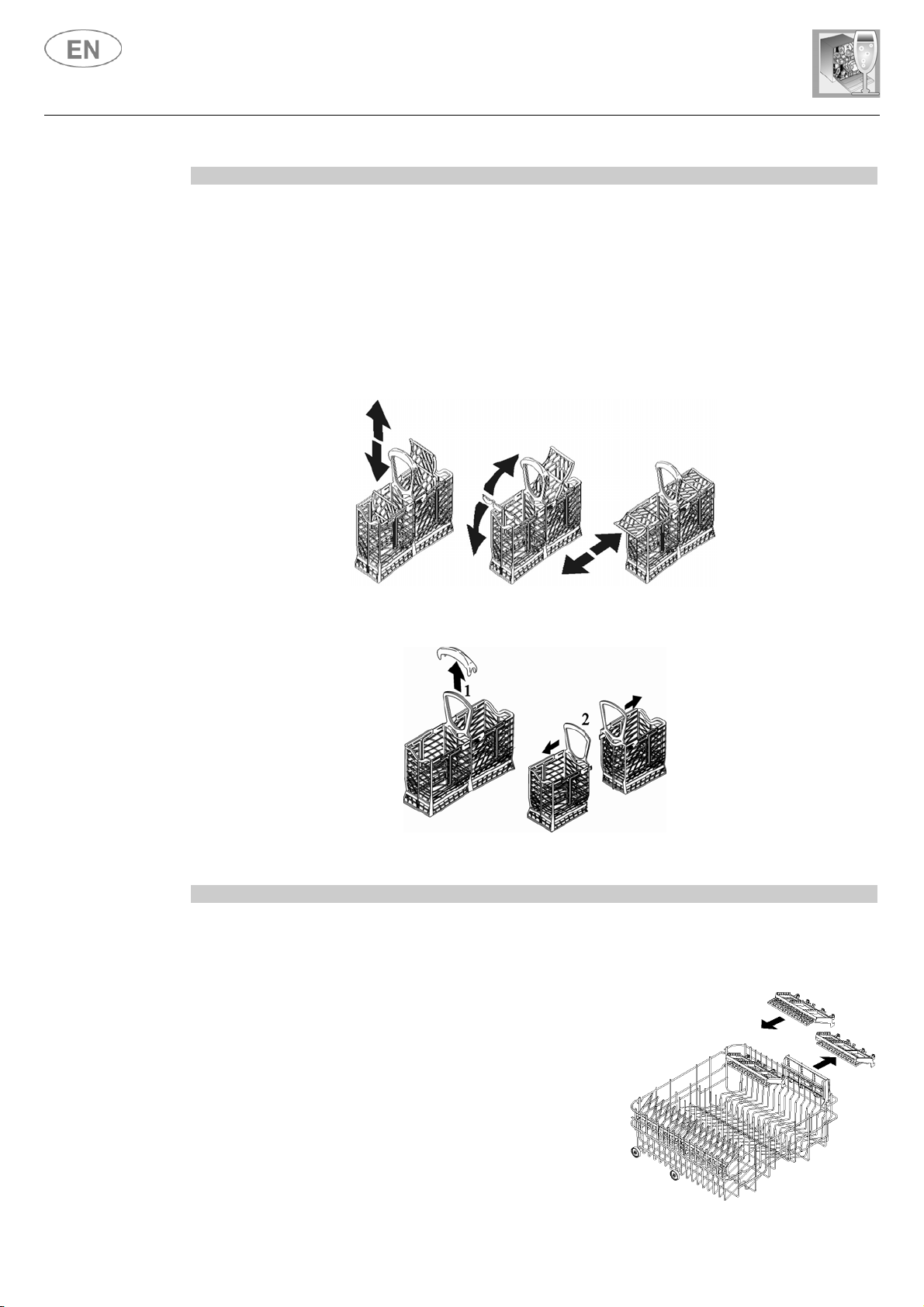

The cutlery basket disposes of an exclusive system of indipendent sliding flap inserts; some combinations permit to make the best of the available space.

Movement required

to extract the inserts

Horizontal

insert closed

If it is necessary to open dishwasher door during the washing cycle, there will be a 1-minute delay before the program can be resumed. After correctly closing the door, the washing program will start again from where it was interrupted. This operation may negatively affective the progress of the washing cycle.

Vertical

inserts

Horizontal

insert

open

TABLE OF PROGRAMS

SETTING THE WASHING PROGRAM AND SWITCHING ON

To select the most suitable program for the dishes to be washed refer to the table below, which indicates the most appropriate program according to dish type and degree of soiling.

After choosing the most suitable washing program using the table provided:

press the

•

press the

ON/OFF PROGRAM SELECTION

of choice; close the door, the machine will automatically begin the washing program after the sounding of the acoustic device.

"P0" on the

DISPLAY

at this point the number of the last program used will appear. Each time the button is pressed again, the program numbers will move on from that point forward.

All programming operations are accompanied by a short confirmatory beep; if you do not hear anything when you press a button, the function concerned is not available in the program selected.

CYCLE N. ECO

SOAK

DELICATE

GLASSWARE

RAPID

NORMAL

DAILY

BIO

ECO BIO

(*) EN 50242

INTENSIVE

(WITHO UT

PRE-WASH)

SUPER

RINSE

(**)

key

and wait for the

(1)

INFORMATION DISPLAY (6)

button

several times, until the

(2)

to come on;

INFORMATION DISPLAY (6)

means that no washing program has been selected. This message remains until the

AMOUNT OF

BUTTON

TYPE AND DEGREE

OF DIRT ON DISHES

PANS AND DISHES PENDING COMPLETION OF THE LOAD

DISHES WITH LIGHT DIRT

SLIGHTLY SOILED DELICATE ITEMS

DISHES WITH LIGHT DIRT

NORMALLY SOILED PANS AND DISHES

NORMALLY SOILED DISHES

NORMALLY SOILED PANS AND DISHES, INCLUDING DRIED-ON RESIDUE

SLIGHTLY SOILED DISHES W ITH DRIED-ON RESIDUE

VERY DIRTY PANS AND DISHES, EVEN WITH DRIED-ON DIRT

NORMALLY SOILED PANS AND DISHES WITH DRIED-ON STARCH DEPOSITS

HEAVILY SOILED PANS AND DISH ES WITH DRIED-ON STARCH DEPOSITS

DISHES THAT NEED “FRESHENING UP”

DETERGENT

GRAMS PREWASH WASH COLD RINSE HOT RINSE DRYING MINUTES

COLD

HOT

_ _ _

PROG RAM SEQUE NCE DURATION CONSUMPTION

_ _ _ _

45°C 1 1 YES 68' 10 1,05

45°C 1 1 YES 65' 10 0,98

45°C 2

65°C 1 1 YES 95' 14 1,35

65°C 1 1 YES 90' 11 1,32

55°C 1 1 YES 160' 14 1,05

55°C 1 1 YES 100' 11 1,25

66°C 2 1 YES 110' 17 1,45

68°C 2 1 YES 100' 14 1,42

70°C 2 1 YES 115' 17 1,6

1 1 YES 40' 7 0,8

shows the number corresponding to the program

PROGRAM SELECTION

(2)

18' 4

_ _

32' 10 0,4

button

WATER

LITRES (1)

is pressed;

(2)

POWER Kwh (2)

Only

run the soak program with half loads.

HALF LOAD

The programs

HALF-LOAD (5)

The

except the soak program

(6)

option

is available for all

functions is only

present on some models.

(*) Reference program as EN 50242 standard

(program recommended when using “new generation” detergents containing enzymes).

(**) Before starting program 8 check that the

door of the detergent dispenser is open.

(-) Not present.

(1) Average power consumption with the

softener set on

level 2

(2) The cycle duration and power consumption

may vary according to the water and room temperatures, and the type and amount of dishes.

If the dishwasher door is left open or is not properly closed, the

INFORMATION DISPLAY (6)

will signal that the washing program cannot be started.

For any other information about use and maintenance of the dishwasher, read the enclosed manual carefully.

19 592 0000 01
