Smeg ST143 User Manual
INSTRUCTION MANUAL
DISHWASHER
Contents
1. Safety and operating instructions __________________________ 26
2. Installation and hook-up _________________________________ 28
2.1 Water supply connection _____________________________________________________ 28
2.2 Electrical connection ________________________________________________________ 29
3. Description of the controls _______________________________ 30
3.1 Upper panel _______________________________________________________________ 30
3.2 Washing programs__________________________________________________________ 32
4. Operating instructions___________________________________ 34

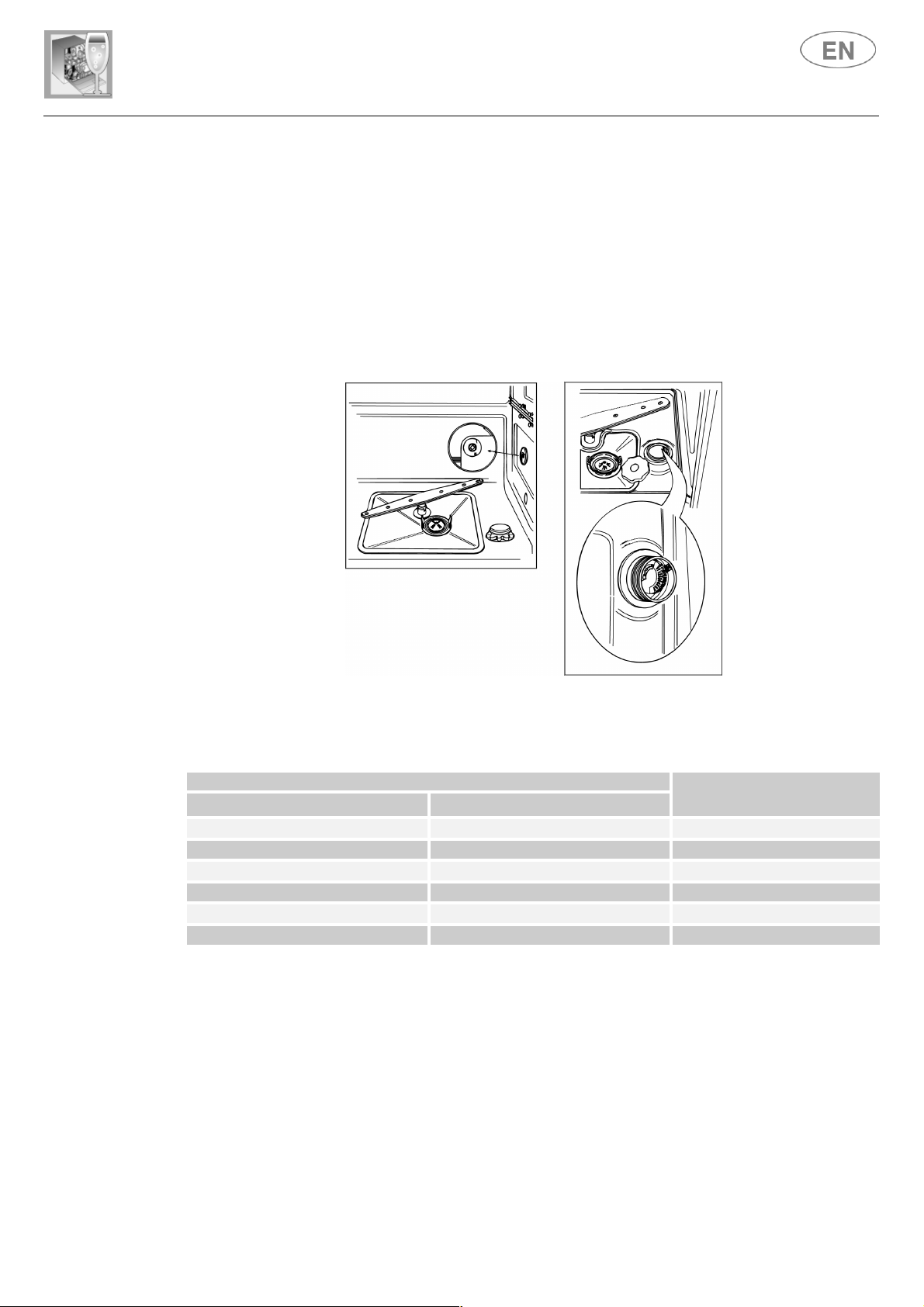

4.1 Using the water softening system ______________________________________________ 34

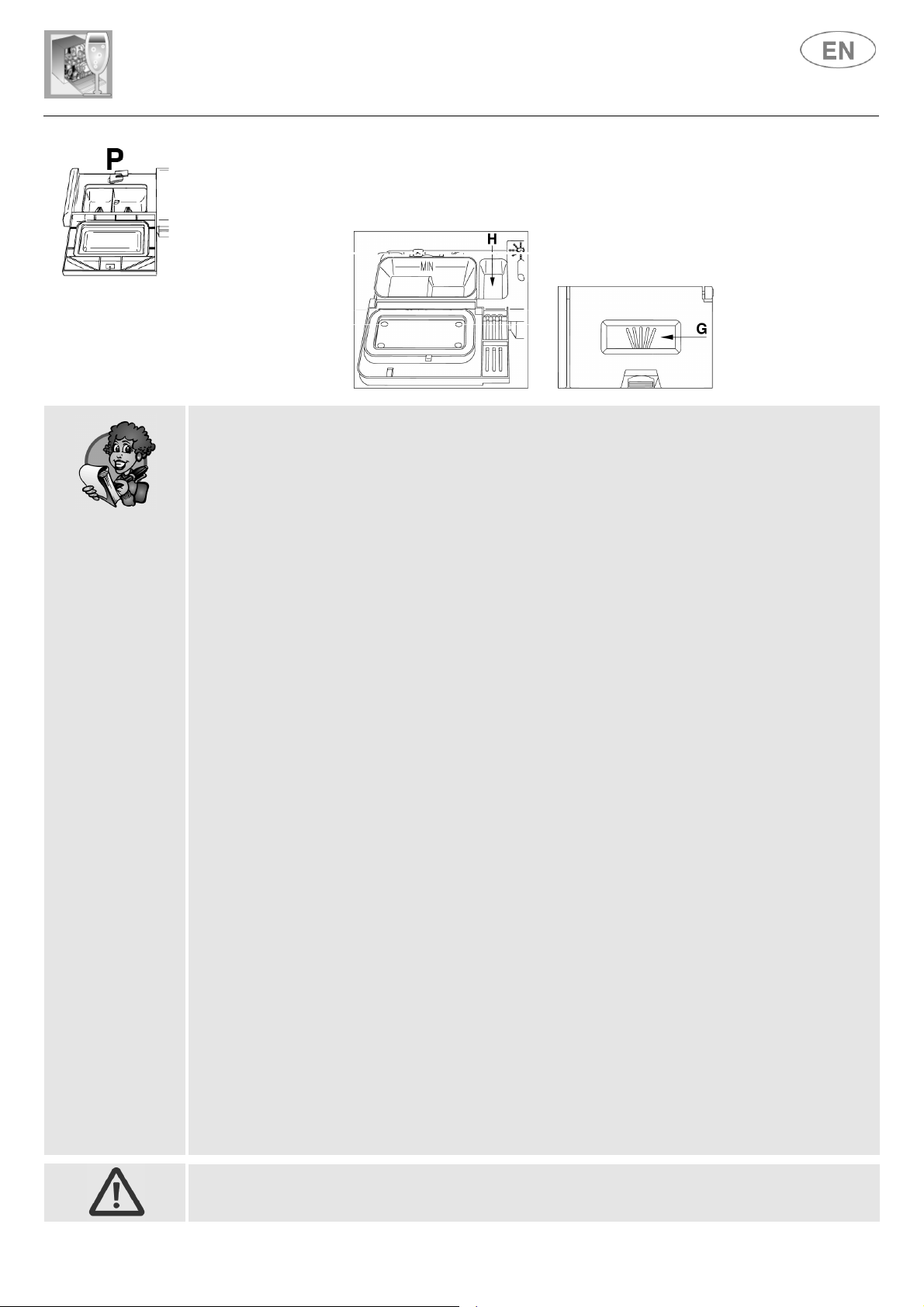

4.2 Using the rinse aid and detergent dispensers _____________________________________ 36
4.3 General warnings and recommendations ________________________________________ 38

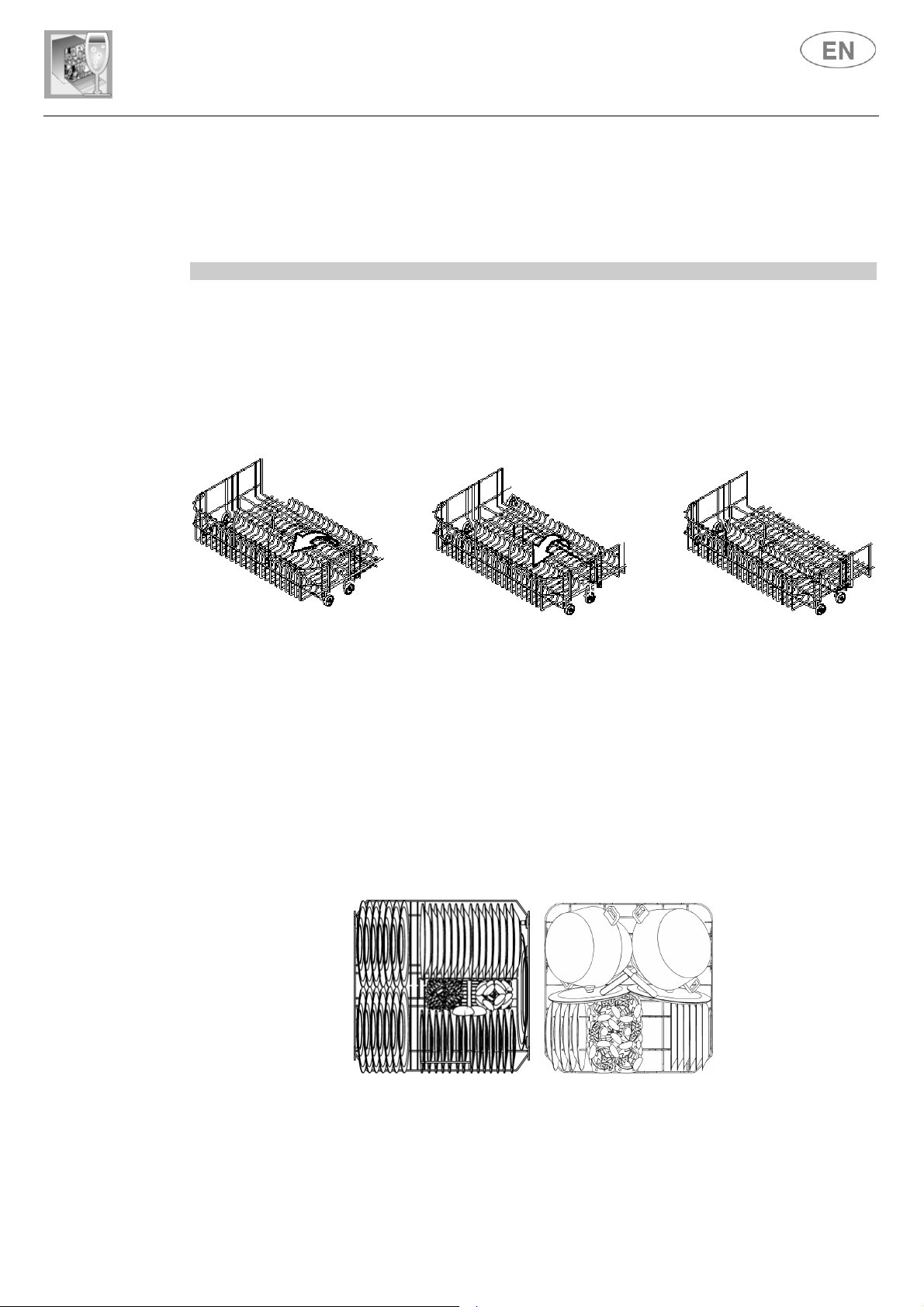

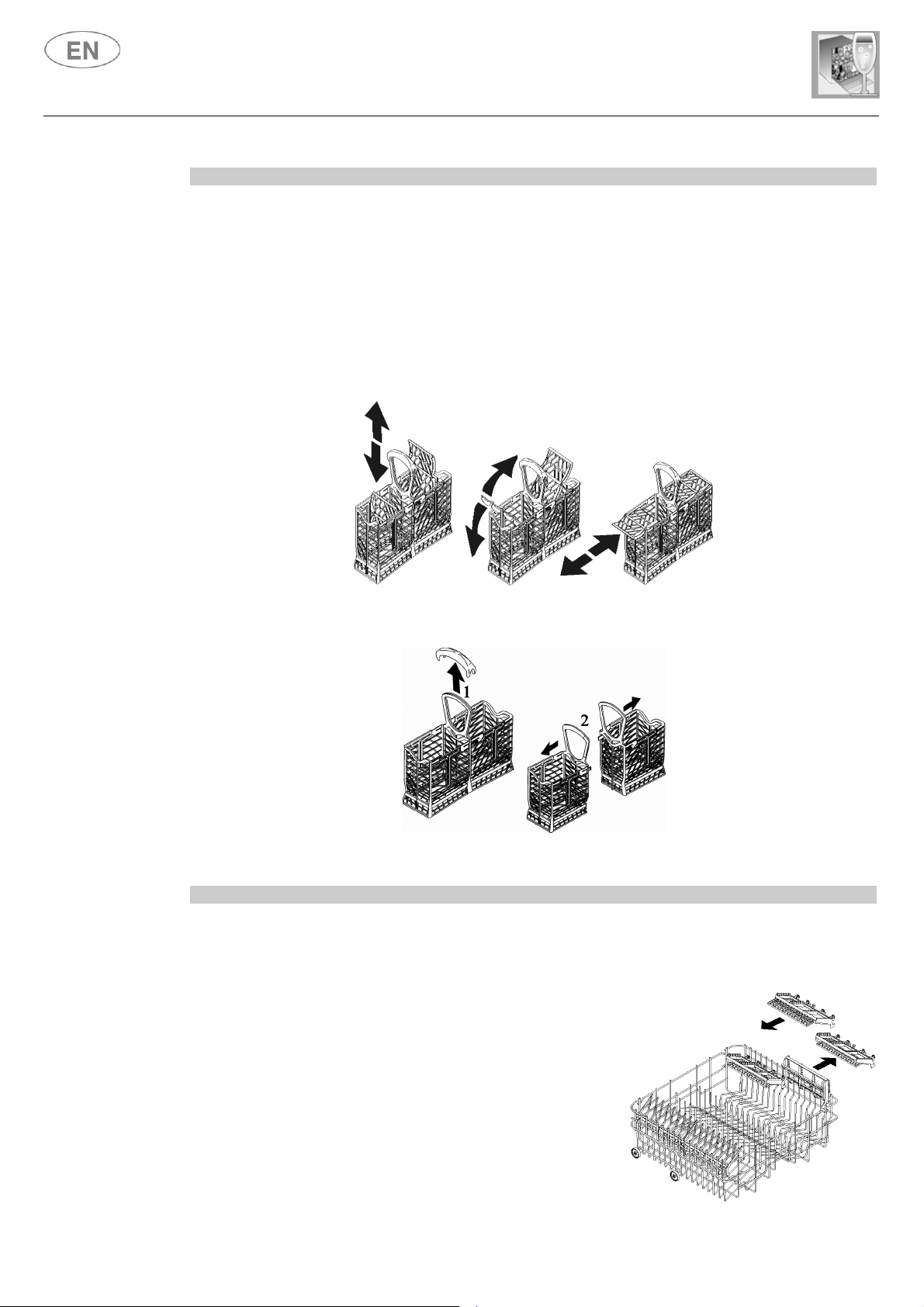

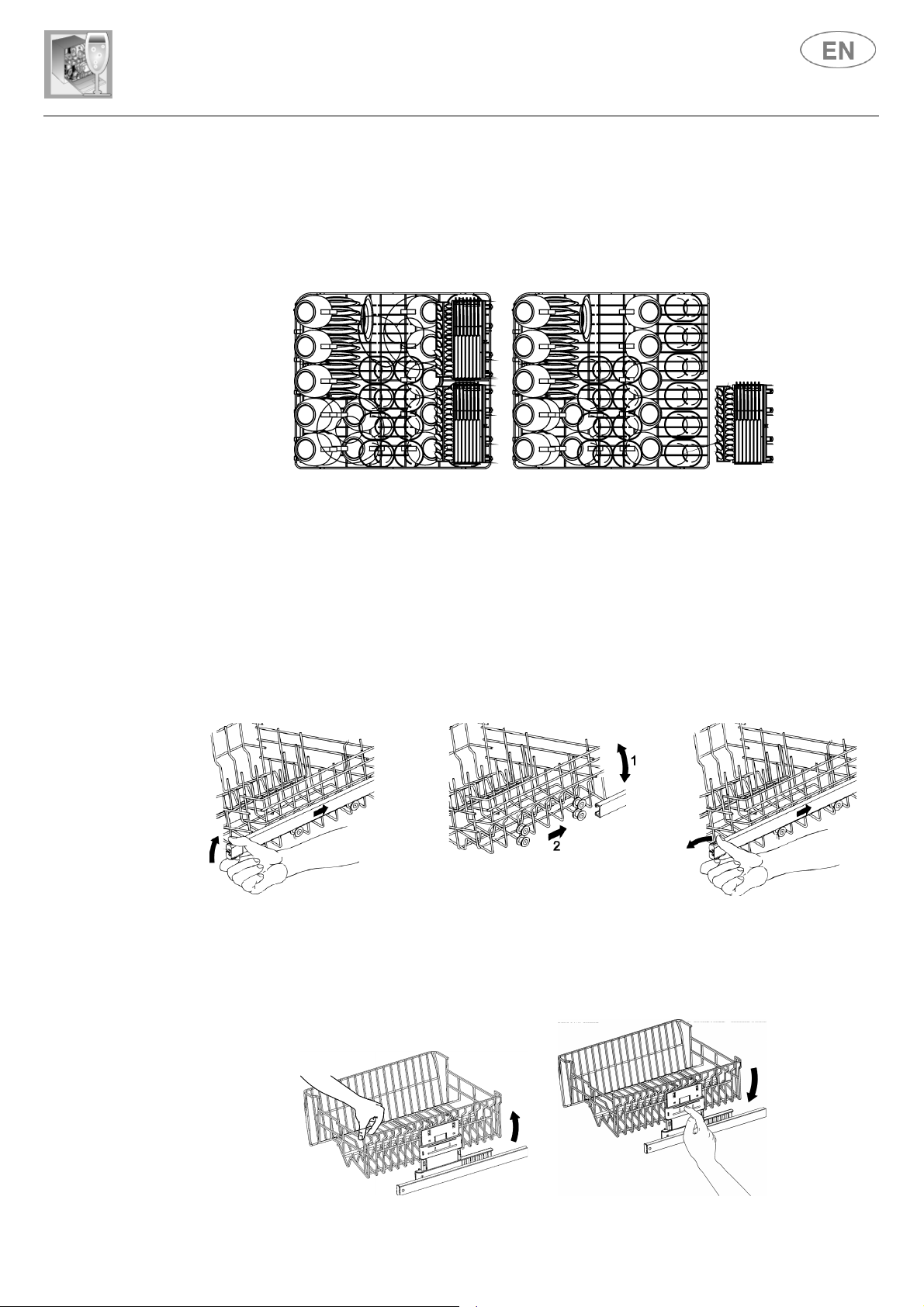

4.4 Using the baskets___________________________________________________________ 39

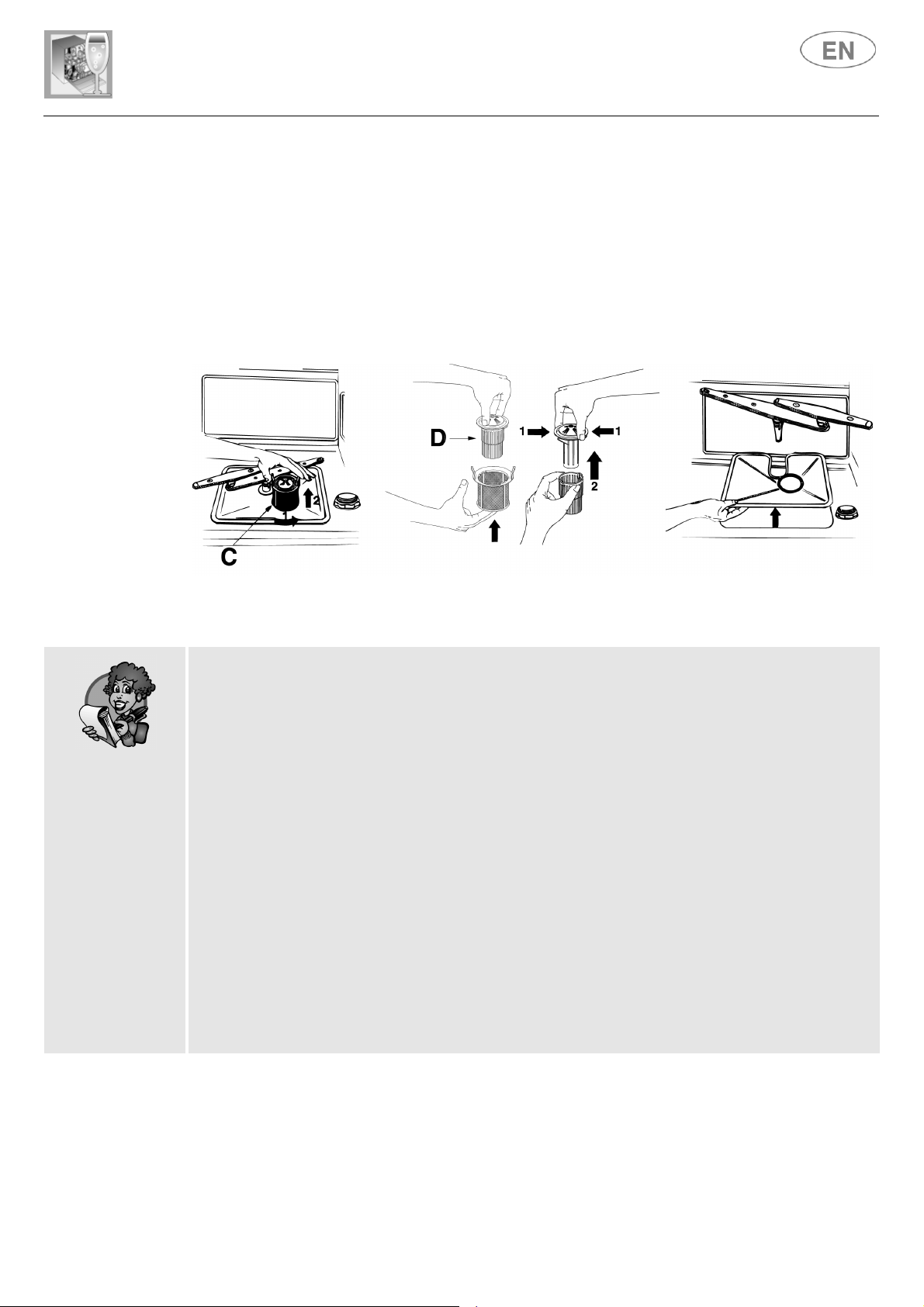

5. Cleaning and maintenance _______________________________ 42
5.1 General warnings and recommendations ________________________________________ 42
6. Troubleshooting _______________________________________ 45
Thank you for choosing this product.
We advise you to carefully read all the instructions contained in this manual, in order to understand
how to operate your dishwasher safely and correctly.
The manual is divided into paragraphs, which provide a step by step description of the dishwasher
functions, with clear instructions accompanied by detailed illustrations.
Recommendations are given for the correct use of the baskets, spray arms, containers, filters,
washing programs, and for operating the controls.
Follow the recommended cleaning procedures to ensure that your dishwasher always remains in
perfect working order.
This manual provides a quick and easy reference for answering all your questions concerning the
use of your new dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the
out the installation, hook-up and testing of the appliance.
qualified technician
who must carry
USER INSTRUCTIONS: these consist of recommendations for using the appliance, a description of
its controls and of the correct cleaning and maintenance procedures.
25
Safety instructions
1. Safety and operating instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER
WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN
COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USE, AND
COMPLIES WITH THE
PREVENTION AND ELIMINATION OF RADIO FREQUENCY INTERFERENCE. THE APPLIANCE IS DESIGNED FOR
THE FOLLOWING PURPOSE:
IMPROPER.
DESCRIBED ABOVE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND MARKINGS IS VISIBLY POSITIONED
ON THE INNE R EDGE OF THE DOOR.
REMOVED.
DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED WITHIN THE HOME. SEPARATE THE
VARIOUS MATERIALS WHICH MAKE UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR USES OTHER THAN THOSE
EEC DIRECTIVES 72/23, 89/336 (INCLUDING 92/31)
WASHING AND DRYING OF DISHE S
THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST NEVER BE
CURRENTLY IN FORCE, INCLUDING THE
; ANY OTHER USE SHALL BE CONSIDERED
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN ACCORDANCE WITH THE ELECTRICAL
SAFETY REGULATIONS IN FORCE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO PERSONS OR PROPERTY RESULTING
FROM THE FAILURE TO EARTH THE APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.
IF THE APPLIANCE IS NOT CONNECTED TO THE ELECTRICAL POWER SUPPLY BY MEANS OF A PLUG, IT IS
NECESSARY TO INSTALL AN ISOLATION SWITCH WITH A CONTACT OPENING GAP OF AT LEAST 3 MM.
THE PLUG ON THE POWER CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE,
AND MUST CONFORM TO THE REGULATIONS IN FORCE. CHECK THAT THE VOLTAGE AND FREQUENCY OF THE
ELECTRICAL POWER SUPPLY MATCH THE RATINGS ON THE NAME PLATE. AVOID USING ADAPTORS OR SHUNT
CONNE CTIO NS.
NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER CORD.
•
AFTER INSTALLATION, THE PLUG MUST REMAIN ACCESSIBLE.
•
IN THE EVENT OF DAMAGE TO THE POWER CORD, HAVE IT REPLACED BY A QUALIFIED TECHNICIAN.
IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR, ENSURE THAT THE OPENINGS ON ITS
UNDERSIDE ARE NOT OBSTRUCTED.
26
ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID WASTING ELECTRICITY.
OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE MAINS POWER CORD AFTER
UNPLUGGING IT FROM THE WALL OUTLET, AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS
FOR CHILDREN (LOCKS, DOORS, ETC.). THE APPLIANCE MUST THEN BE TAKEN TO A SORTED WASTE
COLLECTION CENTRE.
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND
SHUT OFF THE WATER TAP. THEN CALL IN A QUALIFIED TECHNICIAN.
Safety instructions
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT! IF IN DOUBT, CONSULT YOUR
DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE WITH THE INSTRUCTIONS PROVIDED
BY THE MANUFACTURER OR BY A QUALIFIED TECHNICIAN.
THE APPLIANC E IS INTENDE D FOR USE BY ADULTS.
THE DISHWASHER. KEEP CHILDREN AWAY FROM DETERGENTS AND FROM THE OPEN DISHWASHER DOOR.
THE PACKAGING MATERIALS (PLASTIC BAGS, POLYSTYRENE, METAL BARS, ETC.) MUST NOT BE LEFT WITHIN
THE REACH OF CHILDREN.
KEEP CHILDREN AWAY FROM THE OPEN DISHWASHER. THE APPLIANCE MAY CONTAIN RESIDUES OF
DETERGENT WHICH CAN CAUSE IRREVERSIBLE DAMAGE TO THE EYES, MOUTH, AND THROAT, AS WELL AS
POSSIBLE DEATH BY SUFFOCATION.
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE WHICH MAY CAUSE AN EXPLOSION.
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY CAUSE THE APPLIANCE TO OVERTURN,
PUTING PEOPLE AT RISK.
DO NOT UNDER ANY CIRCUMSTANCES TOUCH THE HEATING ELEMENT IMMEDIATELY AFTER THE END OF A
WASHING PROGRAM.
OVER TIME, THE DISHWASHER HEATING ELEMENTS MAY CHANGE COLOUR, IN PART OR OVERALL. THIS IS
PERFECTLY NORMAL AND DOES NOT IN ANY WAY AFFECT THE OPERATION OF THE APPLIANCE.
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE
END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE.
DO NOT ALLOW CHILDREN TO COME NEAR OR PLAY WITH
KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED IN THE CUTLERY BASKET BLADEDOWN, OR LAID HORIZONTAL IN THE TOP BASKET. TAKE CARE NOT TO CUT YOURSELF AND ENSURE THAT
THEY DO NOT PROJECT FROM THE BASKET.
AQUASTOP MODELS
THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A WATER LEAK. WHEN THE AQUASTOP
DEVICE IS TRIPPED, CALL IN A QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A SOLENOID VALVE INSIDE THE WATER INTAKE
HOSE.
DO NOT CUT THE HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO WATER.
EVENT OF DAMAGE TO THE WATER INTAKE HOSE, DISCONNECT THE APPLIANCE FROM THE ELECTRICAL
POWER SUPPLY AND FROM THE WATER SUPPLY.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK TEST OF THE APPLIANCE FOLLOWING
THE INSTRUCTIONS BELOW. IF THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT FROM THE
ELECTRICAL POWER SUPPLY AND CALL THE NEAREST TECHNICAL SERVICE CENTRE.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE REGULATIONS IN FORCE CONCERNING
SAFETY AND ELECTRICAL EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUC TED EXCLUSIVELY BY A
TRAINED AND AUTHORISED TECHNICIA N:
INVALIDATE THE WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
The manufacturer declines all responsibility
REPAIRS CARRIED OUT BY UNAUTHORISED PERSONS WILL
for damage to persons or property resulting from failure to
IN THE
observe the above precautions, from tampering with even a single component of the appliance, or from the use
of non original spare parts.
27
Installation instructions

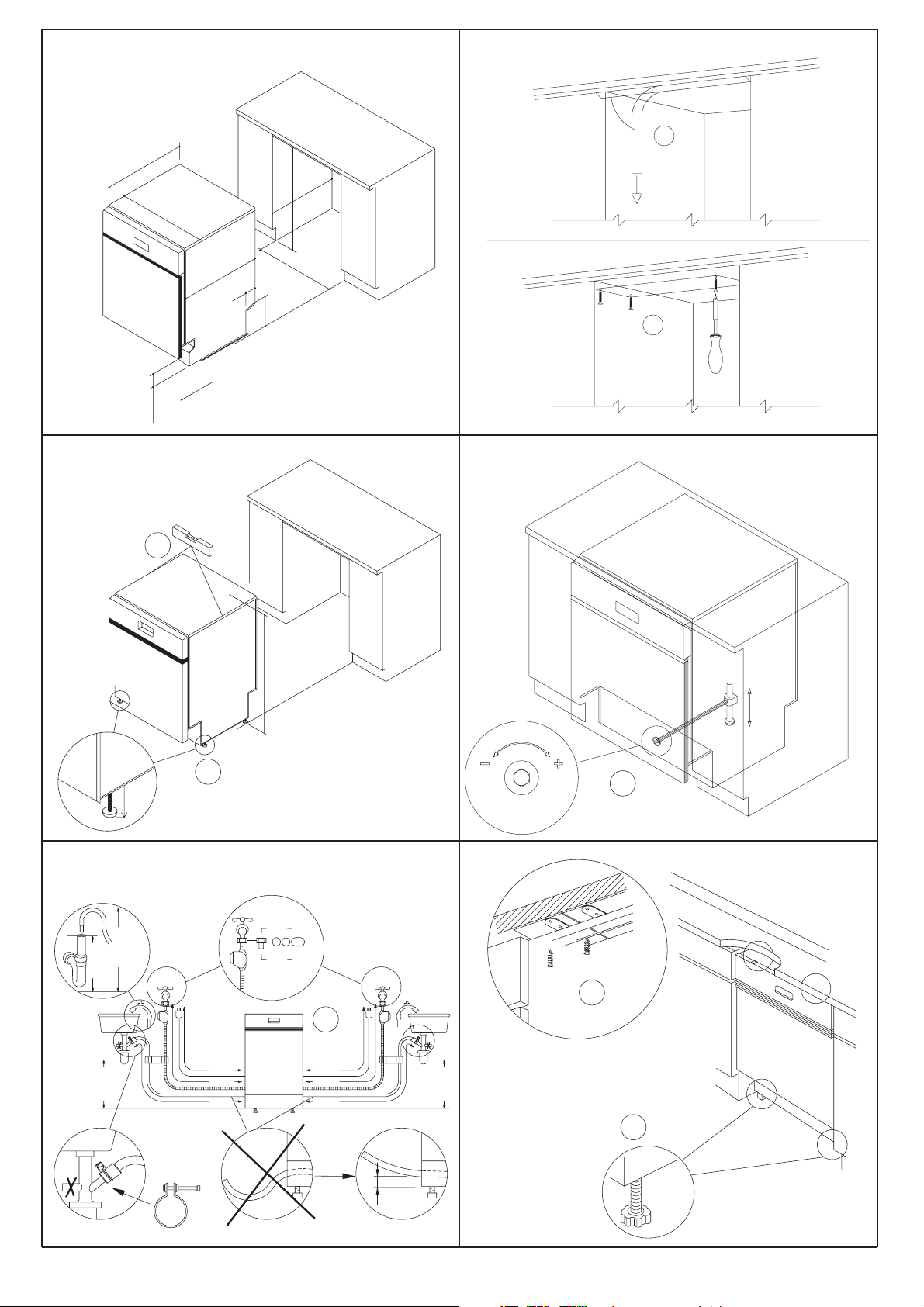

2. Installation and hook-up
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or sides of the dishwasher may
be placed up against walls or other furniture units.
If the dishwasher is installed near a heat source, fit the special insulating panel to prevent
overheating and malfunction of the appliance.
To ensure stability, install integrated or built-under dishwashers only under continuous worktops,
and screw them to the adjacent units.
To facilitate the installation procedure, the intake and drain hoses can be positioned in any
direction; make sure that the hoses are not kinked, crushed or pulled too tightly. A hole at least
8 cm in diameter is required to allow the power supply cable and pipes to pass.
Level the appliance on the floor using its adjustable feet. This operation is essential for ensuring
correct operation of the dishwasher.
Some models are equipped with only one adjustable foot at the rear, which can be adjusted by
turning the screw on the lower front part of the appliance.
2.1 Water supply connection
Preventing the risk of clogging or damage:
long time, before connecting to the water supply check that the water is clear and free of impurities,
to prevent damage to the appliance.
The dishwasher must always be connected to the water system with new hoses; old or used
ho ses must ne ver be reu sed.
CONNECTING T O THE WATER SUPPLY
Connect the intake hose to a cold water supply with ¾” gas thread, inserting the filter A supplied
with the dishwasher.
Take care to screw the hose firmly into place with your hands and then complete by
tightening about ¼ of a turn with pliers. In dishwashers equipped with the ACQUASTOP
device, the filters is already fitted inside the threaded ring.
if the water pipe is new or has not been used for a
28
The dishwasher can also be connected to a hot water supply
appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly
reduces its effectiveness. Make the connection to the domestic hot water supply using the same
procedure described for connecting to the cold water supply.
not exceeding 60°C
. Supplying the
Installation instructions
DRAIN CONNECT ION
Insert the dishwasher’s drain hose into a drain pipe
having a diameter of at least
place it inside the kitchen sink using the plastic support
provided, taking care not to crush or excessively bend
the hose. It is important to prevent the hose from
coming loose and falling. For this purpose, the plastic
support is equipped with a hole for tying it to the wall or
water tap.
The free end should be positioned at a height of
between
submerged in water.
If a horizo nt al drain e xte nsion hose is used ( for a
maximum of 3 m) the drain hose can be placed at a
maximum heig ht of
30 and 100 cm,
from the ground.
85 cm
, or alternatively,
4 cm
and should never be
2.2 Electrical connection
Plug the power cord into a suitable electrical outlet, according to the instr uctions given in chapter
"1. Safety and operating instructions".
29
User instructions
3. Description of the controls

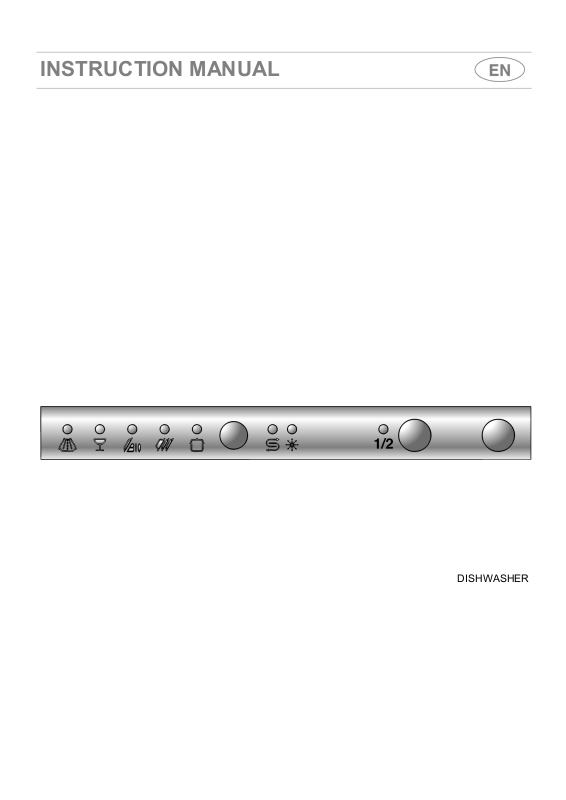

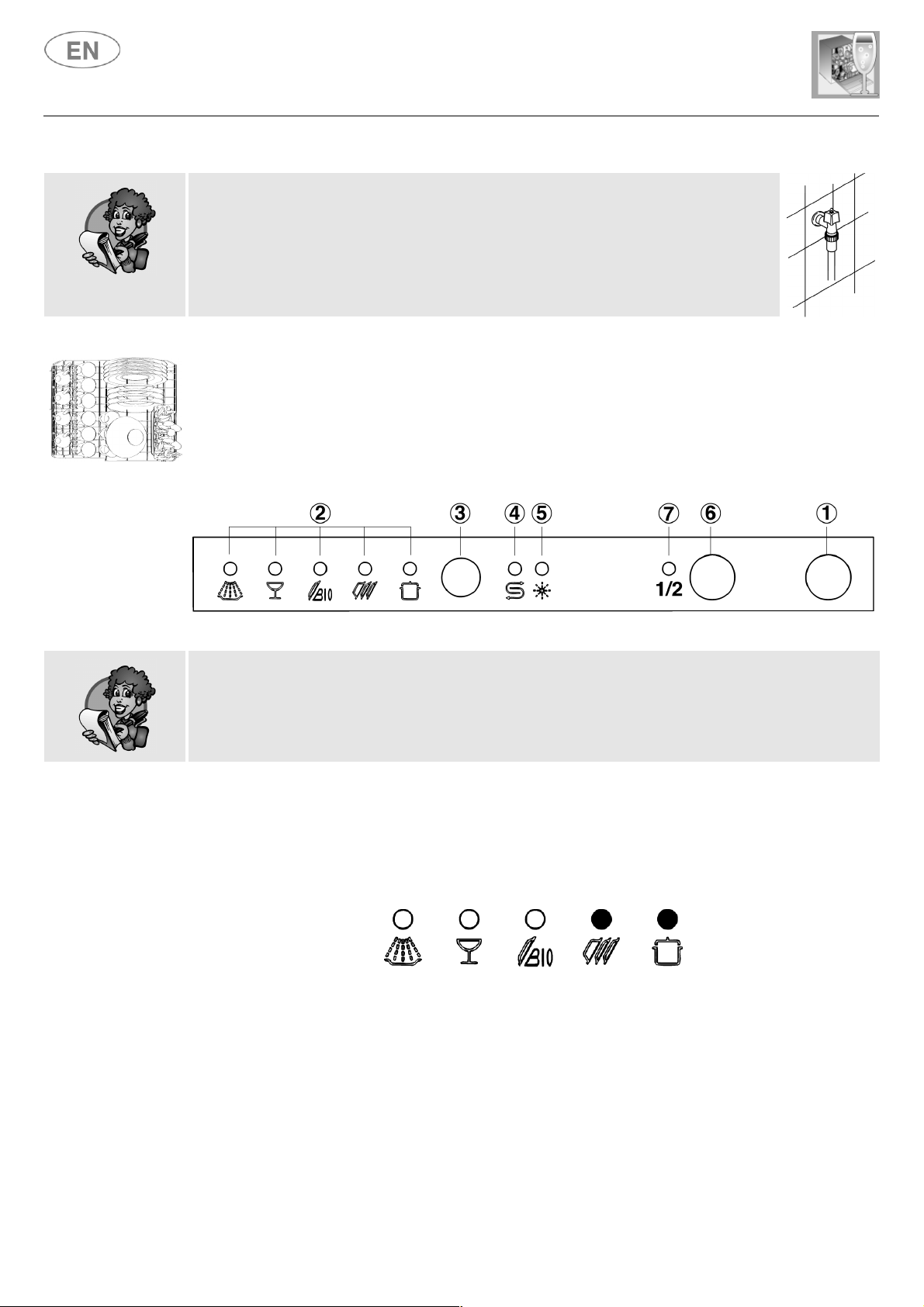

3.1 Upper panel
All the dishwasher controls are grouped on the upper panel.
ON/OFF
1
Pressing this button energises the appliance.

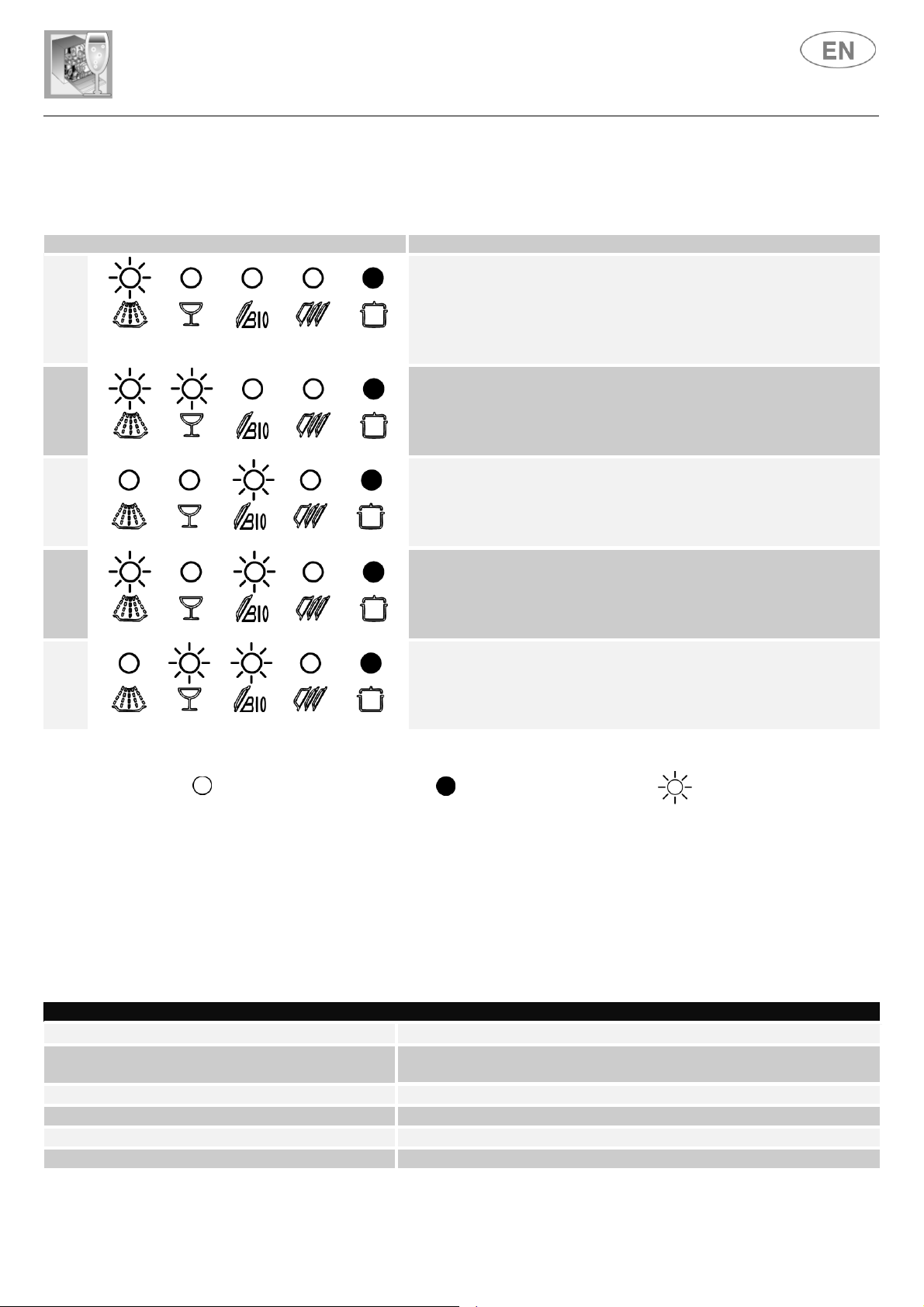

SELECTED PROGRAM
Illumination of this light denotes the program selected and the occurrence of a fault
2
(troubleshooting).
PROGRAM SELECTION
3
By pressing this button in sequence it is possible to select the desired program.
SALT WARNING LIGHT
4
Illumination of this light signals that salt container is empty.
RINSE AID WARNING LIGHT
5
Illumination of this light signals that rinse aid dispenser is empty.
HALF LOAD BUTTON
6
Pressing this button selects the
HALF LO AD INDICATOR LIGHT
7
Illumination of the light indicates selection of the
SETTING THE WASHING PROGRAM AND SW ITCHING ON
To select the most suitable program for the dishes to be washed refer to the table below, which
indicates the most appropriate program according to dish type and degree of soiling.
button
indicator lights
button
(certain models o nly)
(certain models o nly)
(certain models only)
HALF-LOAD
function.
HALF-LOAD
function.
30
After using the table to identify the most appropriate washing program:
press the
•
keep pressing the
•
the desired program illuminates;
close the door; the machine will a utomatically beg in the washing program after the sounding of
•
the acoustic device.
ON/OFF
button
PROGRAM SELECTION
and wait for the
(1)
PROGRAM INDICATOR LIGHT (2)
button
until t he indicator light corresponding to
(3)
to illuminate;
PROGRAMME,
NUMBER & SYMBOL
User instructions
LOAD
CROCKERY AND CUTLERY
PROGRAM
PROGRESS
DURATION CONSUMPTION
MINUTES
(2)
WATER
LITRES (1)
POWER
KWh (2)
1
2
3
4
5
run the soak program with half loads.
Only
The
HALF LOAD
SOAK
DELICATE
BIO (*)
EN 5024 2
NORMAL Dishes with normal dirt
INTENSIVE
option
is available for all programs
(6)
Pans an d dishes awaiting a further
wash
Wash immedi ately after us e for
dishes with light dirt
Wash immedi ately after us e for
dishes with nor mal dirt
Very dir ty pans and dish es (except
delicate items)
except the soak program
Cold prewash
Wash at 45°C
Cold rinse
Rinse at 67°C
Dry
Wash at 55°C
Cold rinse
Rinse at 67°C
Dry
Cold prewash
Wash at 65°C
Cold rinse
Rinse at 67°C
Dry
Prewash at 45°C
Wash at 67°C
2 cold rinses
Rinse at 70°C
Dry
8' 4
60' 13 1,1
110' 15 1,24
100' 18 1,40
110' 22 1,65
.
_
(*) Reference program as per EN 50242 standard.
(–) Not present.
(1) Average power consumption with the softener set on
level 2
.
(2) The cycle duration and power consumption may vary according to the water and room temperatures, and the type
and amount of dishes.
The washing cycle will not take place if the dishwasher door is left open or not properly closed.
TABLE FOR CERTIF ICATION BODIES
Reference standard EN 50242
Reference program BIO
Load 14 place-settings
Type of detergent B
Amount of detergent 35 g
Rinse aid setting Depending on the model 3/4 or 4/6
EN 50242
31
Loading...
