Smeg SSA92MAA9 Technical sheet

SSA92MAA9

Cooker, 90x60 cm, Classica, Concerto, Anthracite, Hob type: Mixed, Type of main oven: Thermo­ventilated, A

TYPE

Product Family: Cooker • Cooker size: 90x60 cm • Energy type: Mista • N. of ovens: 1 • Hob type: Mixed • Type of main oven:

Thermo-ventilated • Cleaning system: Vapor Clean • EAN code: 8017709221003

AESTHETICS

Colour: Anthracite • Aesthetics: Classica • Design: Standard • Serie: Concerto • Material: Stainless steel • Door: With 2

horizontal strips • Command panel finish: Enamelled metal • Hob colour: Stainless steel • Handle: Smeg Classic • Controls

colour: Stainless steel • Upstand: Yes • Type of pan stands: Cast Iron • Handle Colour: Brushed stainless steel • Control knobs:

Smeg Classic • Glass type: Stopsol • No. of controls: 7 • Feet: Stainless steel • Storage compartment: Door

PROGRAMS / FUNCTIONS

Traditional cooking functions: Static, Fan assisted, Circulaire, Eco, Small grill, Large grill, Fan grill (large), Fan assisted bottom •

Cleaning functions: Vapor clean

OPTIONS MAIN OVEN

Timer: Yes • End of cooking acoustic alarm: Yes • Minimum Temperature: 50 °C • Maximum temperature: 260 °C

Smeg UK Ltd. The Magna Building, Wyndyke Furlong, Abingdon, Oxfordshire, OX14 1DZ

HOB TECHNICAL FEATURES

Total no. of cook zones: 6 • 1st zone position: Front left • 2nd zone position: Rear left • 3rd zone position: Front centre • 4th zone

position: Rear centre • 5th zone position: Front right • 6th zone position: Front right • 1st zone type: Gas - UR • 2nd zone type:

Gas - Semi Rapid • 3rd zone type: Piastre metalliche • 4th zone type: Piastre metalliche • 5th zone type: Gas - Semi Rapid • 6th

zone type: Gas - AUX • 3rd zone dimensions: Ø 14.5 cm • 4th zone dimensions: Ø 18.0 cm • 1st zone power: 3.50 kW • 2nd

zone power: 1.80 kW • 3rd zone power: 1.00 kW • 4th zone power: 1.50 kW • 5th zone power: 1.80 kW • 6th zone power: 1.00

kW • Type of gas burners: Standard • Burner caps: Matt black enamelled • Automatic electronic ignition: Yes • Gas safety

valves: Yes

MAIN OVEN TECHNICAL FEATURES

Net volume of the cavity: 115 l • Cavity material: Ever Clean enamel • No. of shelves: 5 • Type of shelves: Metal racks • Light

type: Halogen • Light Power: 40 W • Cooking time setting: Start and Stop • Door opening: Flap down • Light when oven door is

open: Yes • Removable door: Yes • Full glass inner door: Yes • Removable inner door: Yes • Total no. of door glasses: 3 • No.of

thermo-reflective door glasses: 2 • Safety Thermostat: Yes • Cooling system: Tangential • Grill type: Electric • Grill elememt:

1700 W • Large grill - Power: 2900 W • Lower heating element power: 1700 W • Upper heating element - Power: 1200 W •

Circular heating element - Power: 1550 W • Temperature control: Electro-mechanical

PERFORMANCE / ENERGY LABEL

Energy efficiency class: A • Energy consumption in forced air convection: 4.28 MJ • Energy consumption per cycle in fan-forced

convection: 1.19 KWh • Energy consumption in conventional mode: 3.96 MJ • Energy consumption per cycle in conventional

mode: 1.10 KWh • Energy consumption zone 3: 200 Wh/Kg • Energy consumption zone 4: 200 Wh/Kg

ELECTRICAL CONNECTION

Electrical connection rating: 5700 W • Voltage: 220-240 V • Frequency: 50/60 Hz

GAS CONNECTION

Gas connection rating (W): 8000 W • Gas Type: G30 LPG Liquid gas

LOGISTIC INFORMATION

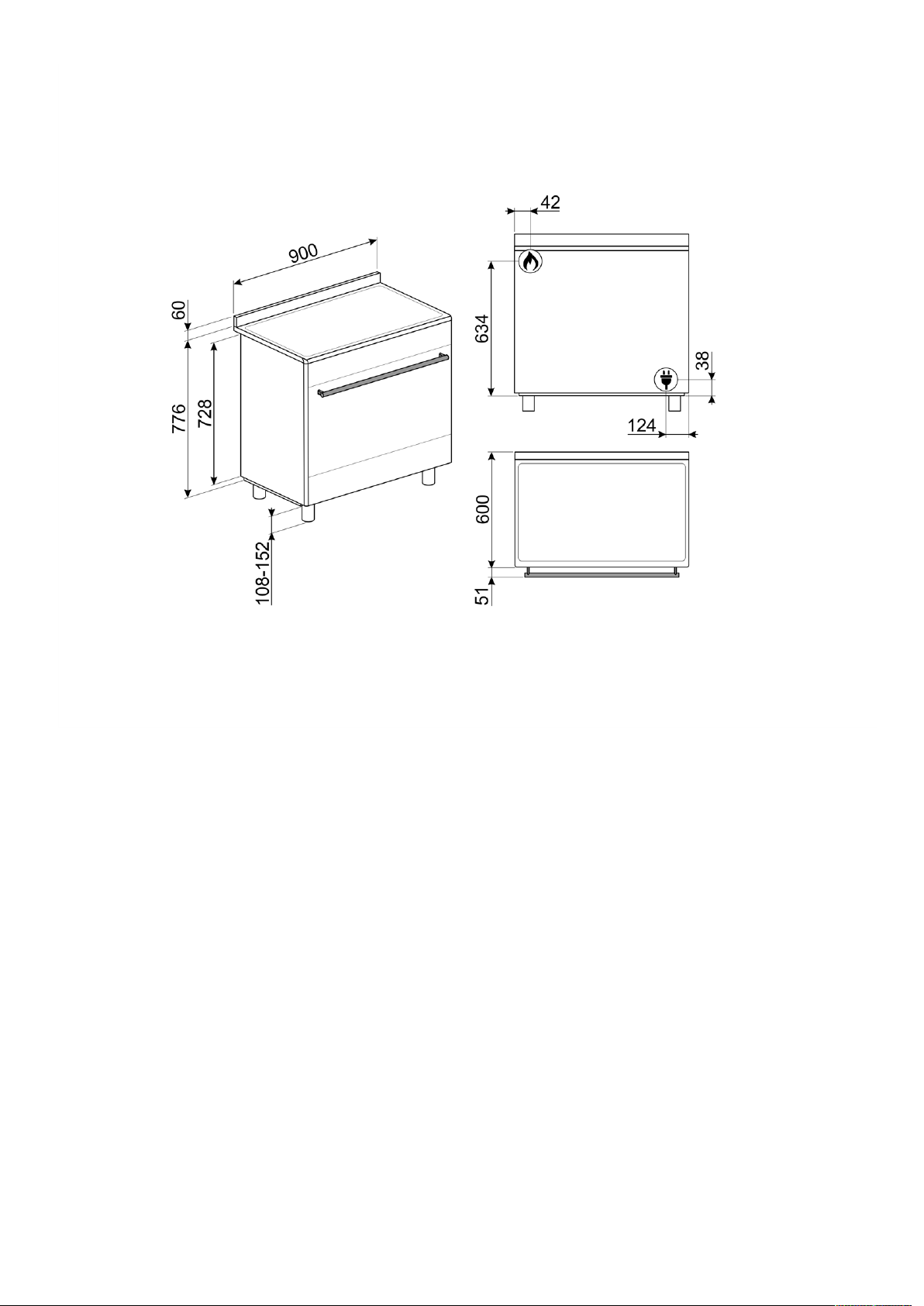

Width (mm): 900 mm • Product Height (mm): 900 mm • Depth (mm): 600 mm • Net weight (kg): 70.400 kg

ACCESSORIES INCLUDED FOR MAIN OVEN & HOB

Grill mesh: 1Cast iron wok support: 1Oven grid with back stop: 1Moka stand: 140mm deep tray: 1

OPTIONAL

SMOLD: Moulds Set, Ovens, Blast chillersPPR9: Pizza stone, Ovens, CookersGTT: Telescopic Guides, Ovens, CookersGTP:

Telescopic Guides, Ovens, Cookers
