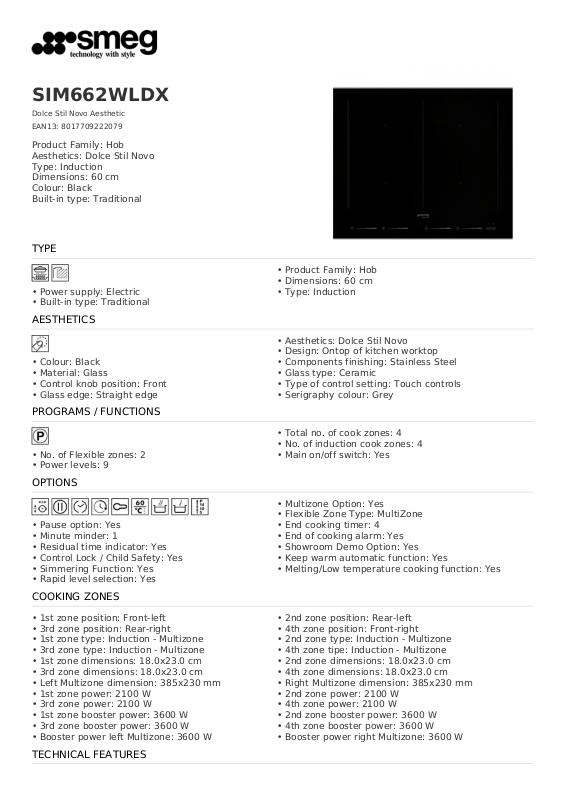

Smeg SIM662WLDX Datasheet

SIM662WLDX

Dolce Stil Novo Aesthetic

EAN13: 8017709222079

Product Family: Hob
Aesthetics: Dolce Stil Novo
Type: Induction
Dimensions: 60 cm
Colour: Black
Built-in type: Traditional

• Product Family: Hob

• Dimensions: 60 cm

• Power supply: Electric • Type: Induction

• Built-in type: Traditional

TYPE

• Aesthetics: Dolce Stil Novo

• Design: Ontop of kitchen worktop

• Colour: Black • Components finishing: Stainless Steel

• Material: Glass • Glass type: Ceramic

• Control knob position: Front • Type of control setting: Touch controls

• Glass edge: Straight edge • Serigraphy colour: Grey

AESTHETICS

• Total no. of cook zones: 4

• No. of induction cook zones: 4

• No. of Flexible zones: 2 • Main on/off switch: Yes

• Power levels: 9

PROGRAMS / FUNCTIONS

• Multizone Option: Yes

• Flexible Zone Type: MultiZone

• Pause option: Yes • End cooking timer: 4

• Minute minder: 1 • End of cooking alarm: Yes

• Residual time indicator: Yes • Showroom Demo Option: Yes

• Control Lock / Child Safety: Yes • Keep warm automatic function: Yes

• Simmering Function: Yes • Melting/Low temperature cooking function: Yes

• Rapid level selection: Yes

OPTIONS

• 1st zone position: Front-left • 2nd zone position: Rear-left

• 3rd zone position: Rear-right • 4th zone position: Front-right

• 1st zone type: Induction - Multizone • 2nd zone type: Induction - Multizone

• 3rd zone type: Induction - Multizone • 4th zone tipe: Induction - Multizone

• 1st zone dimensions: 18.0x23.0 cm • 2nd zone dimensions: 18.0x23.0 cm

• 3rd zone dimensions: 18.0x23.0 cm • 4th zone dimensions: 18.0x23.0 cm

• Left Multizone dimension: 385x230 mm • Right Multizone dimension: 385x230 mm

• 1st zone power: 2100 W • 2nd zone power: 2100 W

• 3rd zone power: 2100 W • 4th zone power: 2100 W

• 1st zone booster power: 3600 W • 2nd zone booster power: 3600 W

• 3rd zone booster power: 3600 W • 4th zone booster power: 3600 W

• Booster power left Multizone: 3600 W • Booster power right Multizone: 3600 W

COOKING ZONES

TECHNICAL FEATURES

For availability in specific countries please contact your local agent .

• Automatic setting according to pan dimension:
Yes

• Automatic pan detection: Yes • Automatic switch off when overheat: Yes

• Automatic switch off when overflow: Yes • Residual heat indicator: Yes

• Protection against accidental start up: Yes

• Hob energy consumption: 195 Wh/Kg • 1st zone energy consumption: 195 Wh/Kg

• 2nd zone energy consumption: 195 Wh/Kg • Energy consumption zone 3: 195 Wh/Kg

• Energy consumption zone 4: 195 Wh/Kg

PERFORMANCE / ENERGY LABEL

• Electrical connection rating (W): 7400 W • Current: 33 Amp

• Voltage (V): 220-240 V • Frequency (Hz): 50/60 Hz

• Type of electric cable: Single and Double phase

ELECTRICAL CONNECTION

• Dimensions of the product (mm): 53x600x510

LOGISTIC INFORMATION

• Stainless steel grill plate to cook Teppanyaki
dishes : TPK

OPTIONAL
