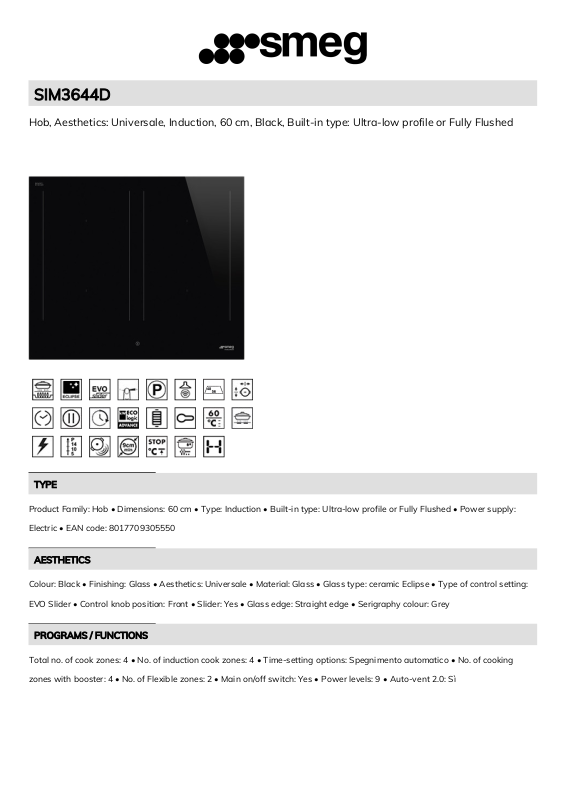

Smeg SIM3644D Technical sheet

SIM3644D

Hob, Aesthetics: Universale, Induction, 60 cm, Black, Built-in type: Ultra-low profile or Fully Flushed

TYPE

Product Family: Hob • Dimensions: 60 cm • Type: Induction • Built-in type: Ultra-low profile or Fully Flushed • Power supply:

Electric • EAN code: 8017709305550

AESTHETICS

Colour: Black • Finishing: Glass • Aesthetics: Universale • Material: Glass • Glass type: ceramic Eclipse • Type of control setting:

EVO Slider • Control knob position: Front • Slider: Yes • Glass edge: Straight edge • Serigraphy colour: Grey

PROGRAMS / FUNCTIONS

Total no. of cook zones: 4 • No. of induction cook zones: 4 • Time-setting options: Spegnimento automatico • No. of cooking

zones with booster: 4 • No. of Flexible zones: 2 • Main on/off switch: Yes • Power levels: 9 • Auto-vent 2.0: Sì

OPTIONS

Worktop Cut-Out: 478-482x555-560 mm • Multizone Option: Yes • Flexible Zone Type: MultiZone • End cooking timer: 4 •

Pause option: Yes • Minute minder: 1 • End of cooking alarm: Yes • Residual time indicator: Yes • Limited Power Consumption

Mode: Si Advance • Limited Power Consumption Mode in W: 2400 a 7400 - step 100 W • Showroom Demo Option: Yes • Grill

function: Yes • Control Lock / Child Safety: Yes • Keep warm automatic function: Yes • Bridge option: Yes • Quick start: Yes •

Rapid level selection: Yes

COOKING ZONES

1st zone position: Rear-left • 2nd zone position: Front-left • 3rd zone position: Rear-right • 4th zone position: Front-right • 1st

zone type: Induction - Multizone • 2nd zone type: Induction - Multizone • 3rd zone type: Induction - Multizone • 4th zone tipe:

Induction - Multizone • 1st zone dimensions: 21.8x18.0 cm • 2nd zone dimensions: 21.8x18.0 cm • 3rd zone dimensions: 21.8

x18.0 cm • 4th zone dimensions: 21.8x18.0 cm • Left Multizone dimension: 38.5x23.0 cm • Right Multizone dimension: 38.5x23.0

cm • 1st zone power: 2.30 kW • 2nd zone power: 2.30 kW • 3rd zone power: 2.30 kW • 4th zone power: 2.30 kW • Power

double booster 1° zone: 3.00 kW • Power double booster 2° zone: 3.00 kW • Power double booster 3° zone: 3.00 kW • 1st zone

booster power: 2.5 kW • Power double booster 4° zone: 3.00 kW • 2nd zone booster power: 2.5 kW • 3rd zone booster power:

2.5 kW • 4th zone booster power: 2.5 kW • Booster power left Multizone: 3.70 kW • Booster power right Multizone: 3.70 kW

TECHNICAL FEATURES

Automatic setting according to pan dimension: Yes • Permanent Automatic Pot Detection with indication of the relative control:

Yes • pan detection: Yes, min 9 cm • Automatic switch off when overheat: Yes • Automatic switch off when overflow: Yes •

Residual heat indicator: Yes • Protection against accidental start up: Yes

PERFORMANCE / ENERGY LABEL

2nd zone energy consumption: 191 Wh/Kg • Energy consumption zone 3: 191 Wh/Kg • Energy consumption zone 4: 189 Wh/Kg

ELECTRICAL CONNECTION

Electrical connection rating (W): 7400 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60 Hz • Type of electric cable: Single

and Double phase • Power supply cable length: 120 cm

LOGISTIC INFORMATION

Dimensions of the product (mm): 53x600x510 • Depth: 510 mm • Width: 600 mm • Product Height: 53 mm

OPTIONAL

SCRP: Scraper, Cookers, HobsTPK: Teppanyaki grill, HobsGRIDDLE: Grill, Cookers, Hobs
