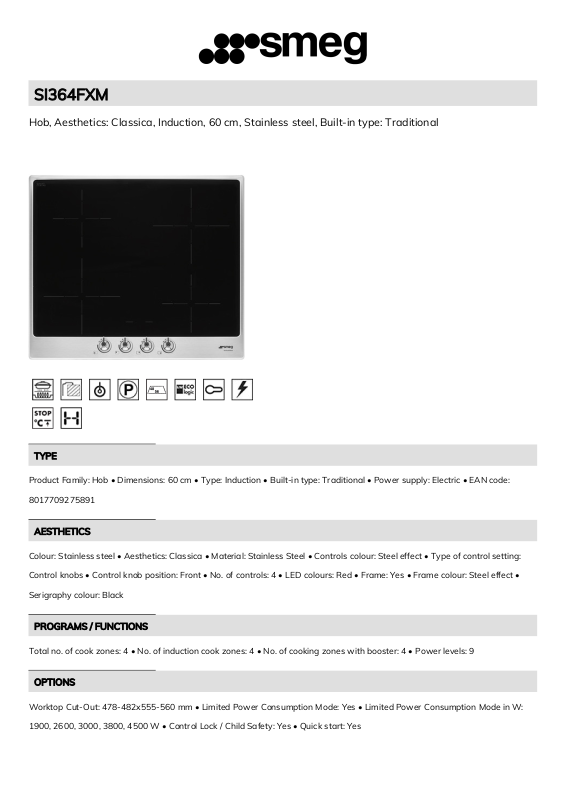

Smeg SI364FXM Technical sheet

SI364FXM

Hob, Aesthetics: Classica, Induction, 60 cm, Stainless steel, Built-in type: Traditional

TYPE

Product Family: Hob • Dimensions: 60 cm • Type: Induction • Built-in type: Traditional • Power supply: Electric • EAN code:

8017709275891

AESTHETICS

Colour: Stainless steel • Aesthetics: Classica • Material: Stainless Steel • Controls colour: Steel effect • Type of control setting:

Control knobs • Control knob position: Front • No. of controls: 4 • LED colours: Red • Frame: Yes • Frame colour: Steel effect •

Serigraphy colour: Black

PROGRAMS / FUNCTIONS

Total no. of cook zones: 4 • No. of induction cook zones: 4 • No. of cooking zones with booster: 4 • Power levels: 9

OPTIONS

Worktop Cut-Out: 478-482x555-560 mm • Limited Power Consumption Mode: Yes • Limited Power Consumption Mode in W:

1900, 2600, 3000, 3800, 4500 W • Control Lock / Child Safety: Yes • Quick start: Yes

COOKING ZONES

1st zone position: Front-left • 2nd zone position: Rear-left • 3rd zone position: Rear-right • 4th zone position: Front-right • 1st

zone type: Induction - Single • 2nd zone type: Induction - Single • 3rd zone type: Induction - Single • 4th zone tipe: Induction -

Single • 1st zone dimensions: Ø 21.0 cm • 2nd zone dimensions: Ø 16.0 cm • 3rd zone dimensions: Ø 21.0 cm • 4th zone

dimensions: Ø 16.0 cm • 1st zone power: 2.30 kW • 2nd zone power: 1.30 kW • 3rd zone power: 2.30 kW • 4th zone power:

1.30 kW • 1st zone booster power: 3.00 kW • 2nd zone booster power: 1.40 kW • 3rd zone booster power: 3.00 kW • 4th zone

booster power: 1.40 kW

TECHNICAL FEATURES

Automatic setting according to pan dimension: Yes • pan detection: Yes • Minimum pan diameter indication: Yes • Automatic

switch off when overheat: Yes • Residual heat indicator: Yes • Protection against accidental start up: Yes

PERFORMANCE / ENERGY LABEL

2nd zone energy consumption: 166.3 Wh/Kg • Energy consumption zone 3: 166.1 Wh/Kg • Energy consumption zone 4: 166.3

Wh/Kg

ELECTRICAL CONNECTION

Electrical connection rating (W): 7400 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60 Hz • Type of electric cable: Single

and Double phase

LOGISTIC INFORMATION

Dimensions of the product (mm): 60x596x510 • Depth: 510 mm • Width: 596 mm • Product Height: 60 mm

OPTIONAL

SCRP: Scraper, Cookers, HobsLGCN: Connecting Strip, Hobs
