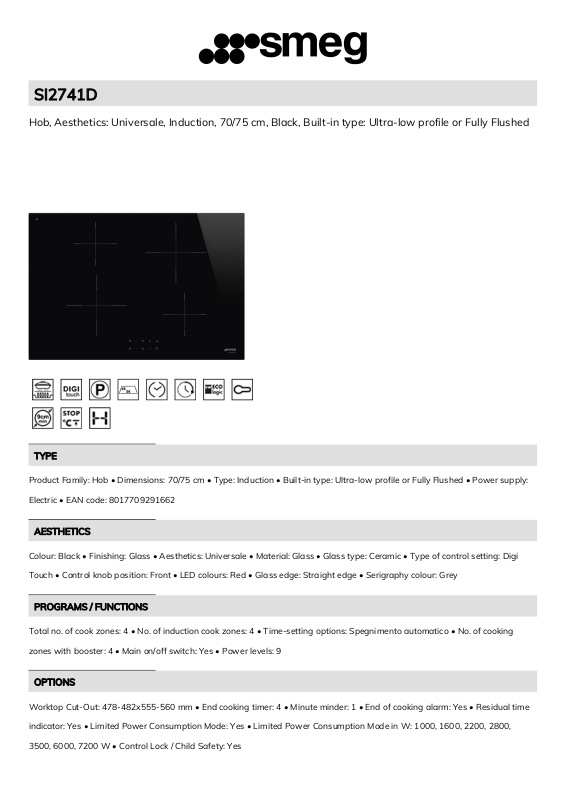

Smeg SI2741D Technical sheet

SI2741D

Hob, Aesthetics: Universale, Induction, 70/75 cm, Black, Built-in type: Ultra-low profile or Fully Flushed

TYPE

Product Family: Hob • Dimensions: 70/75 cm • Type: Induction • Built-in type: Ultra-low profile or Fully Flushed • Power supply:

Electric • EAN code: 8017709291662

AESTHETICS

Colour: Black • Finishing: Glass • Aesthetics: Universale • Material: Glass • Glass type: Ceramic • Type of control setting: Digi

Touch • Control knob position: Front • LED colours: Red • Glass edge: Straight edge • Serigraphy colour: Grey

PROGRAMS / FUNCTIONS

Total no. of cook zones: 4 • No. of induction cook zones: 4 • Time-setting options: Spegnimento automatico • No. of cooking

zones with booster: 4 • Main on/off switch: Yes • Power levels: 9

OPTIONS

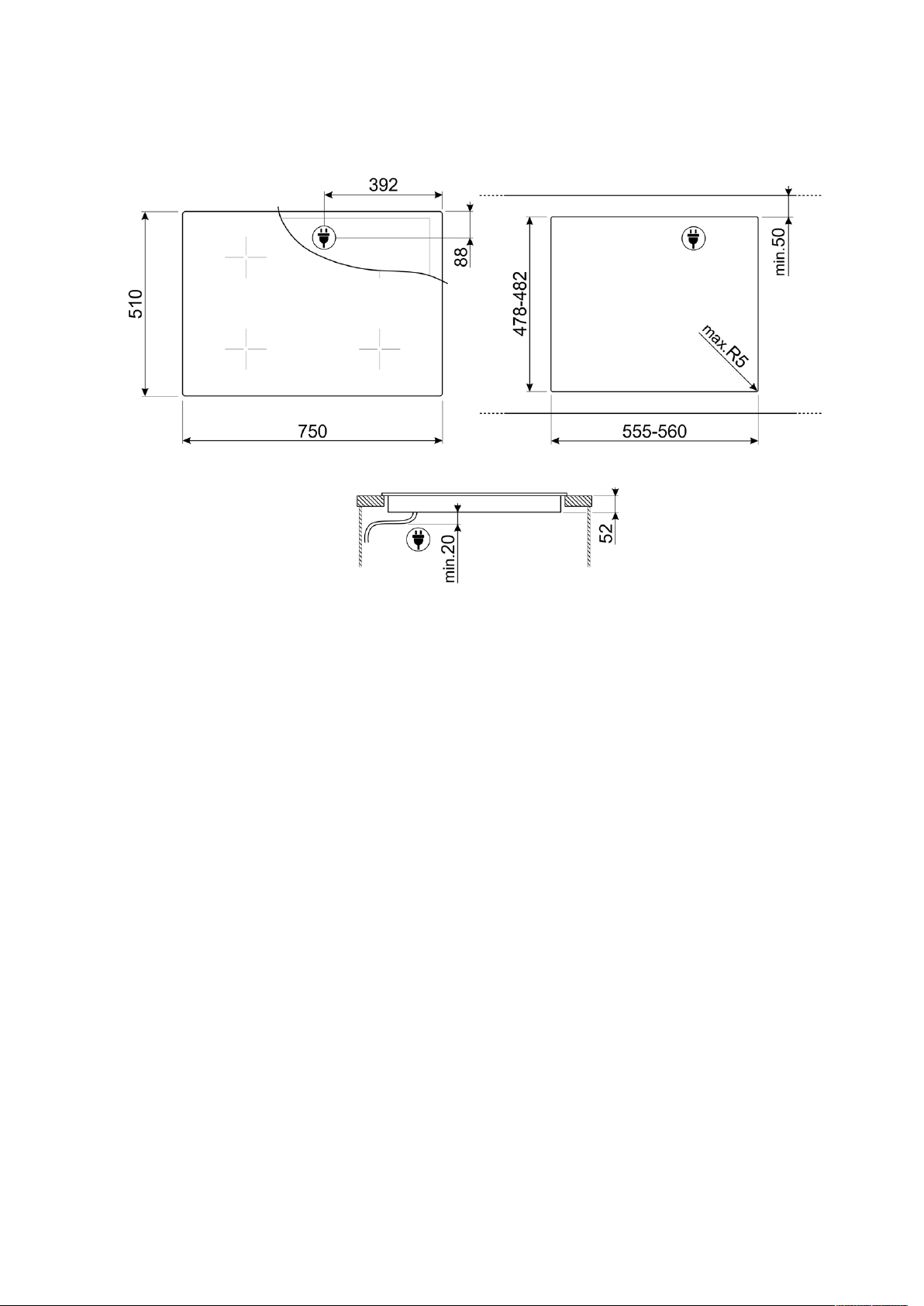

Worktop Cut-Out: 478-482x555-560 mm • End cooking timer: 4 • Minute minder: 1 • End of cooking alarm: Yes • Residual time

indicator: Yes • Limited Power Consumption Mode: Yes • Limited Power Consumption Mode in W: 1000, 1600, 2200, 2800,

3500, 6000, 7200 W • Control Lock / Child Safety: Yes

COOKING ZONES

1st zone position: Front-left • 2nd zone position: Rear-left • 3rd zone position: Rear-right • 4th zone position: Front-right • 1st

zone type: Induction - Single • 2nd zone type: Induction - Single • 3rd zone type: Induction - Single • 4th zone tipe: Induction -

Single • 1st zone dimensions: Ø 21.0 cm • 2nd zone dimensions: Ø 15.0 cm • 3rd zone dimensions: Ø 21.0 cm • 4th zone

dimensions: Ø 15.0 cm • 1st zone power: 1.85 kW • 2nd zone power: 1.40 kW • 3rd zone power: 1.85 kW • 4th zone power:

1.40 kW • 1st zone booster power: 2.10 kW • 3rd zone booster power: 2.10 kW

TECHNICAL FEATURES

Automatic setting according to pan dimension: Yes • pan detection: Yes, min 9 cm • Minimum pan diameter indication: Yes •

Automatic switch off when overheat: Yes • Residual heat indicator: Yes • Protection against accidental start up: Yes

PERFORMANCE / ENERGY LABEL

2nd zone energy consumption: 220 Wh/Kg • Energy consumption zone 3: 180 Wh/Kg • Energy consumption zone 4: 190 Wh/Kg

ELECTRICAL CONNECTION

Electrical connection rating (W): 7200 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60 Hz • Type of electric cable: Single

and Double phase • Power supply cable length: 120 cm

LOGISTIC INFORMATION

Dimensions of the product (mm): 56x750x510 • Depth: 510 mm • Width: 750 mm • Product Height: 56 mm

OPTIONAL

SCRP: Scraper, Cookers, Hobs
