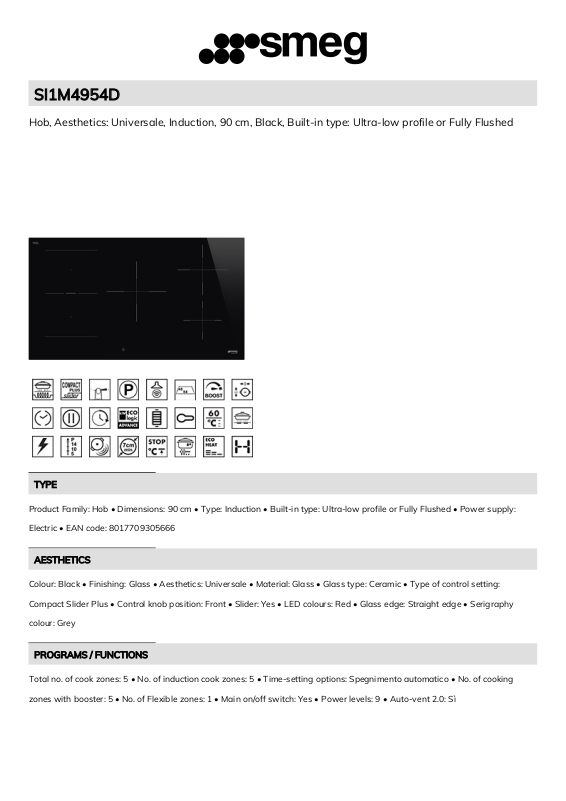

Smeg SI1M4954D Technical sheet

SI1M4954D

Hob, Aesthetics: Universale, Induction, 90 cm, Black, Built-in type: Ultra-low profile or Fully Flushed

TYPE

Product Family: Hob • Dimensions: 90 cm • Type: Induction • Built-in type: Ultra-low profile or Fully Flushed • Power supply:

Electric • EAN code: 8017709305666

AESTHETICS

Colour: Black • Finishing: Glass • Aesthetics: Universale • Material: Glass • Glass type: Ceramic • Type of control setting:

Compact Slider Plus • Control knob position: Front • Slider: Yes • LED colours: Red • Glass edge: Straight edge • Serigraphy

colour: Grey

PROGRAMS / FUNCTIONS

Total no. of cook zones: 5 • No. of induction cook zones: 5 • Time-setting options: Spegnimento automatico • No. of cooking

zones with booster: 5 • No. of Flexible zones: 1 • Main on/off switch: Yes • Power levels: 9 • Auto-vent 2.0: Sì

OPTIONS

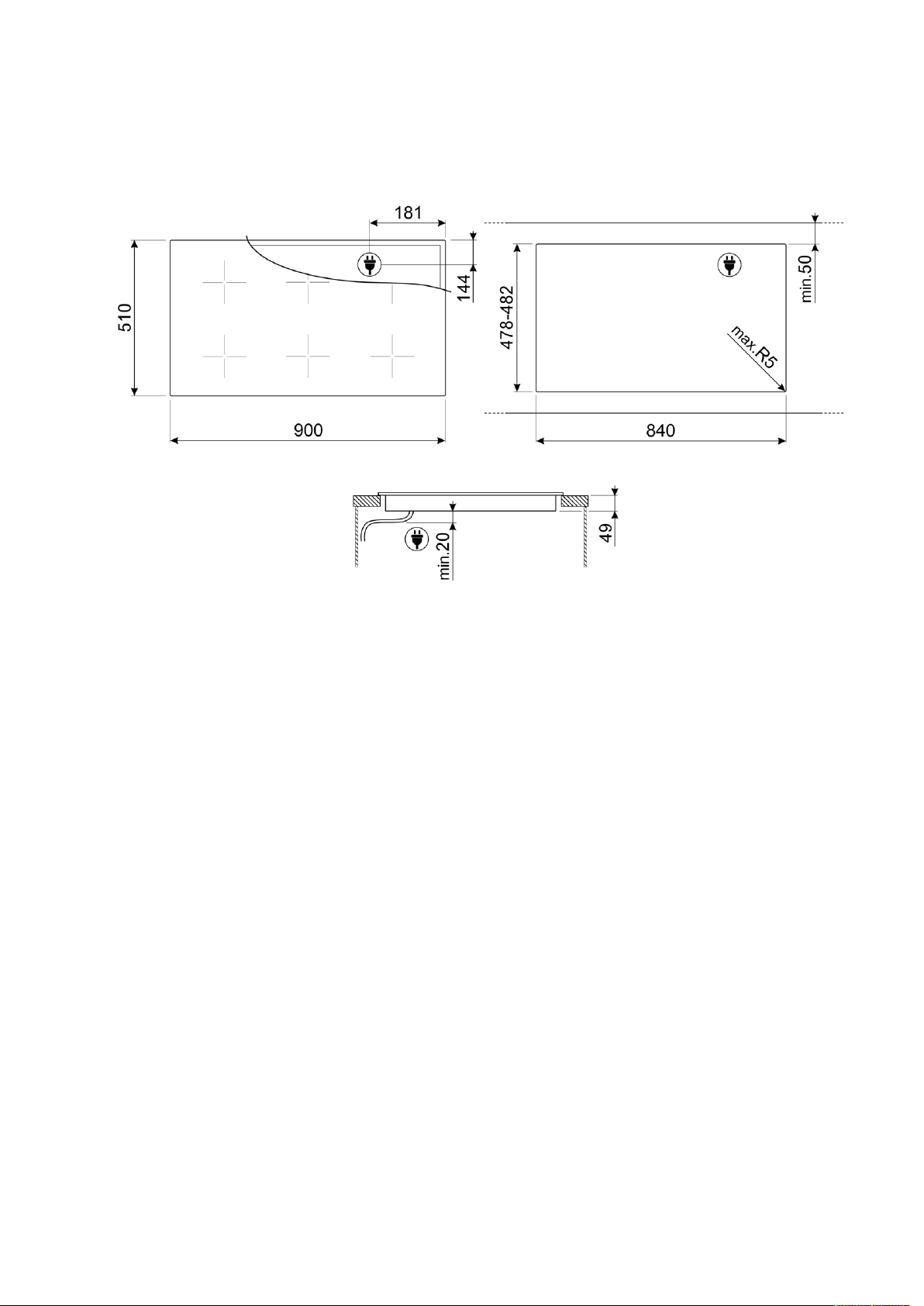

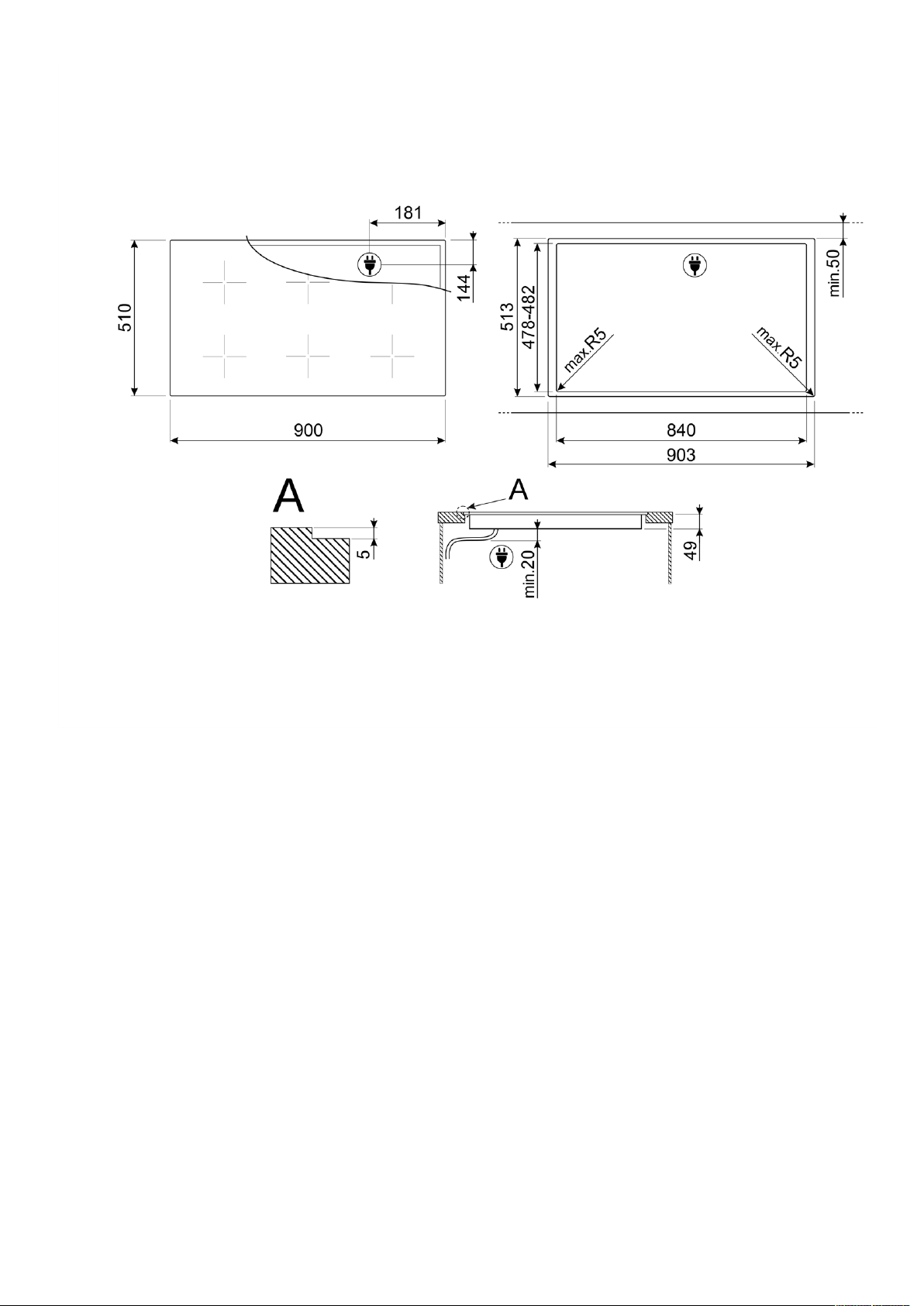

Worktop Cut-Out: 482-486x844-848 mm • Double Booster: Yes • Multizone Option: Yes • Auto Multizone: Yes • Flexible Zone

Type: MultiZone • End cooking timer: 5 • Pause option: Yes • Minute minder: 1 • End of cooking alarm: Yes • Residual time

indicator: Yes • Limited Power Consumption Mode: Si Advance • Limited Power Consumption Mode in W: 2400 a 7400 - step

100 W • Showroom Demo Option: Yes • Grill function: Yes • Control Lock / Child Safety: Yes • Keep warm automatic function:

Yes • Bridge option: Yes • Cleaning option: Yes • Quick start: Yes • Rapid level selection: Yes

COOKING ZONES

1st zone position: Front-left • 2nd zone position: Rear-left • 3rd zone position: Central • 5th zone position: Front-right • 6th zone

position: Rear-right • 1st zone type: Induction - Multizone • 2nd zone type: Induction - Multizone • 3rd zone type: Induction -

Single • 5th zone type: Induction - Single • 6th zone type: Induction - Single • 1st zone dimensions: 24.0x18.0 cm • 2nd zone

dimensions: 24.0x18.0 cm • 3rd zone dimensions: 25 cm • 5th zone dimensions: 16 cm • 6th zone dimensions: 20 cm • Left

Multizone dimension: 38.5x23.0 cm • 1st zone power: 2.10 kW • 2nd zone power: 2.10 kW • 3rd zone power: 2.30 kW • 5th

zone power: 1.40 kW • 5th zone power: 2.30 kW • Power double booster 1° zone: 3.00 kW • Power double booster 2° zone:

3.00 kW • 1st zone booster power: 2.50 kW • 2nd zone booster power: 2.50 kW • 3rd zone booster power: 3.00 kW • 5th zone

booster power: 2.10 kW • 6th zone booster power: 3.00 kW • Booster power left Multizone: 3.70 kW

TECHNICAL FEATURES

Automatic setting according to pan dimension: Yes • Permanent Automatic Pot Detection with indication of the relative control:

Yes • pan detection: Yes, min 7 cm • Automatic switch off when overheat: Yes • Automatic switch off when overflow: Yes • Eco-

Heat: Yes • Residual heat indicator: Yes • Protection against accidental start up: Yes

PERFORMANCE / ENERGY LABEL

2nd zone energy consumption: 195 Wh/Kg • Energy consumption zone 3: 195 Wh/Kg • Energy consumption zone 4: 198 Wh/Kg

• Energy consumption zone 5: 195 Wh/Kg • Energy consumption zone 6: 191 Wh/Kg

ELECTRICAL CONNECTION

Electrical connection rating (W): 7400 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60 Hz • Type of electric cable: Three-

phase • Power supply cable length: 120 cm

LOGISTIC INFORMATION

Dimensions of the product (mm): 53x900x510 • Depth: 510 mm • Width: 900 mm • Product Height: 53 mm

OPTIONAL

SCRP: Scraper, Cookers, HobsGRIDDLE: Grill, Cookers, Hobs
