Smeg SF425X, SF521N, SF521X User Manual

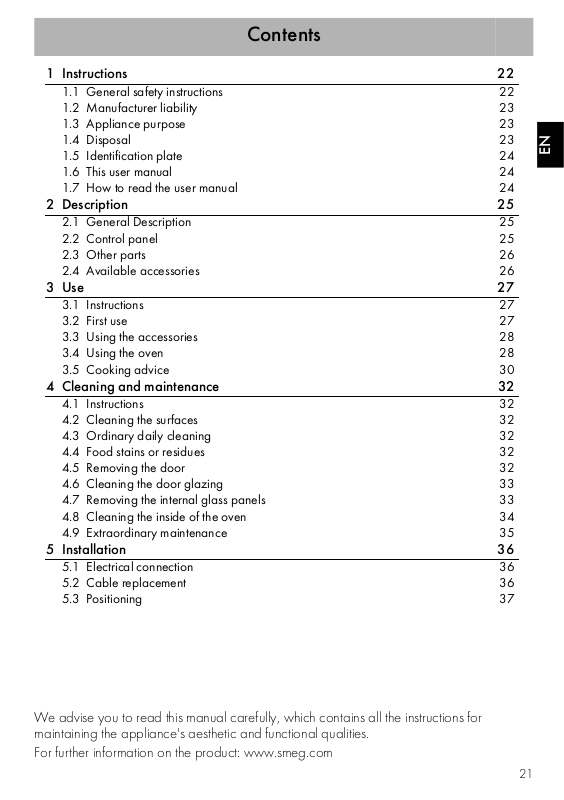

Contents

1 Instructions 22

1.1 General safety instructions 22

1.2 Manufacturer liability 23

1.3 Appliance purpose 23

1.4 Disposal 23

1.5 Identification plate 24

1.6 This user manual 24

1.7 How to read the user manual 24

2 Description 25

2.1 General Description 25

2.2 Control panel 25

2.3 Other parts 26

2.4 Available accessories 26

3 Use 27

3.1 Instructions 27

3.2 First use 27

3.3 Using the accessories 28

3.4 Using the oven 28

3.5 Cooking advice 30

4 Cleaning and maintenance 32

4.1 Instructions 32

4.2 Cleaning the surfaces 32

4.3 Ordinary daily cleaning 32

4.4 Food stains or residues 32

4.5 Removing the door 32

4.6 Cleaning the door glazing 33

4.7 Removing the internal glass panels 33

4.8 Cleaning the inside of the oven 34

4.9 Extraordinary maintenance 35

5 Installation 36

5.1 Electrical connection 36

5.2 Cable replacement 36

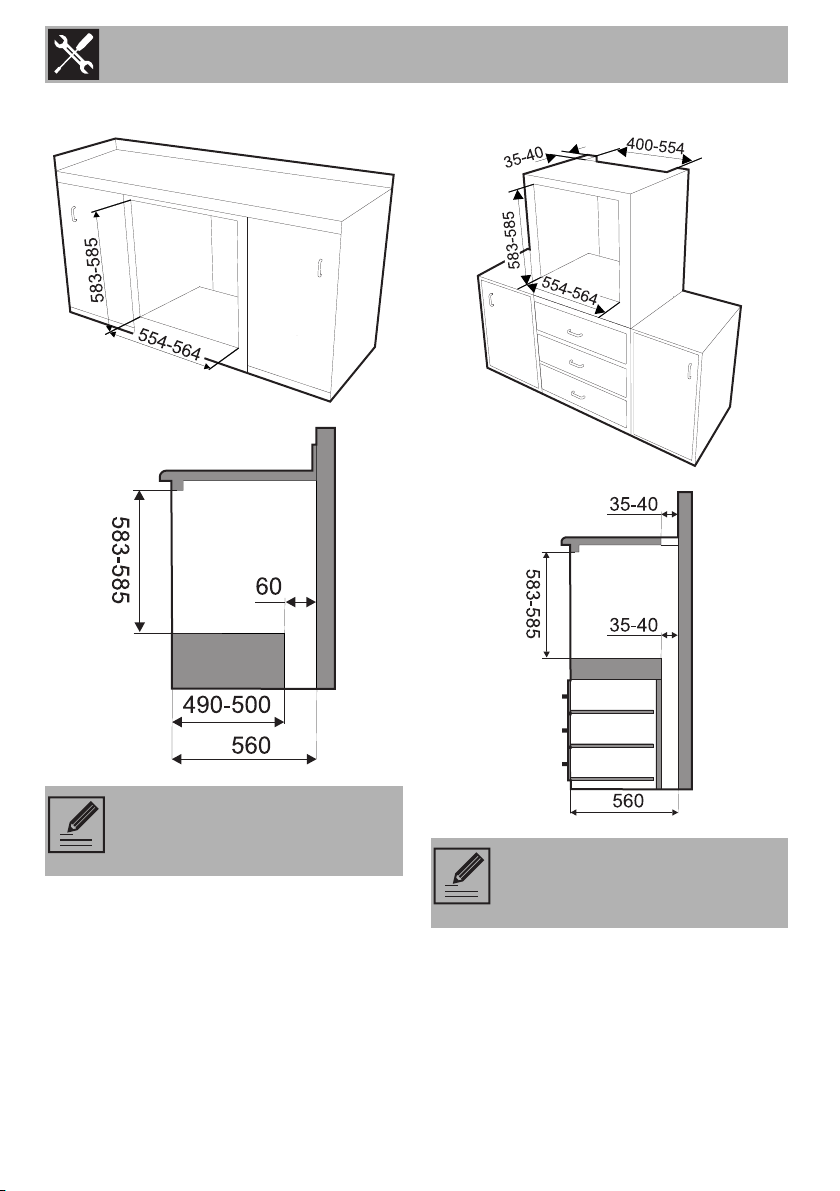

5.3 Positioning 37

EN

We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.

For further information on the product: www.smeg.com

21

Instructions

1 Instructions

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its
accessible parts become very hot.

• Never touch the heating elements
during use.

• Keep children under eight years of
age at a safe distance if they are not
constantly supervised.

• Children must never play with the
appliance.

• Never rest metallic objects such as
knives, forks, spoons and lids on the
appliance during use.

• Switch the appliance off immediately
after use.

• Never try to put out a fire or flames
with water: turn off the appliance and
smother the flames with a fire blanket
or other appropriate cover.

• The appliance must never be cleaned
by unsupervised children.

• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.

• Do not modify this appliance.

• Do not insert pointed metal objects
(cutlery or utensils) into the slots in the
appliance.

• Do not try to repair the appliance
yourself or without the intervention of
a qualified technician.

• If the power supply cable is
damaged, contact technical support
immediately and they will replace it.

Risk of damaging the appliance

• Do not use abrasive or corrosive
detergents on glass parts (e.g.
powder products, stain removers and
metallic sponges).

• Use wooden or plastic utensils.

• Do not seat on the appliance.

• Do not use steam jets for cleaning the
appliance.

• Do not obstruct ventilation openings
and heat dispersal slots.

• Never leave the appliance
unattended during cooking
operations where fats or oils could be
released.

• Never leave objects on the cooking
surface.

• Do not use the appliance to heat
rooms for any reason.

22

Instructions

For this appliance

• Ensure that the appliance is switched off
before replacing the bulb.

• Do not rest any weight or sit on the open
door of the appliance.

• Take care that no objects are stuck in the
doors.

1.2 Manufacturer liability

The manufacturer declines all liability for
damage to persons or property caused by:

• use of the appliance other than the one
envisaged;

• non-observance of the user manual
provisions;

• tampering with any part of the
appliance;

• use of non-original spare parts.

1.3 Appliance purpose

• This appliance is intended for cooking
food in the home environment. Every
other use is considered improper.

• This appliance may be used by children
aged at least 8 and by people of
reduced physical and mental capacity,
or lacking in experience in the use of
electrical appliances, as long they are
supervised or instructed by adults who
are responsible for their safety.

• The appliance is not designed to
operate with external timers or with
remote-control systems.

1.4 Disposal

This appliance must be disposed of
separately from other waste

(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.

To dispose of the appliance:

• Cut the power supply cable and remove

it along with the plug.

Power voltage

Danger of electrocution

• Disconnect the main power supply.

• Disconnect the power cable from the

electrical system.

• Consign the appliance to the

appropriate selective collection centres
for electrical and electronic equipment
waste, or deliver it back to the retailer
when purchasing an equivalent product,
on a one for one basis.

EN

23

Instructions

Our appliances are packed in non­polluting and recyclable materials.

• Consign the packing materials to the
appropriate selective collection centres.

Plastic packaging

Danger of suffocation

• Do not leave the packaging or any part
of it unattended.

• Do not let children play with the
packaging plastic bags.

1.5 Identification plate

The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.

1.6 This user manual

This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and in an accessible place for the
whole working life of the appliance.

Read this user manual carefully before using
the appliance.

1.7 How to read the user manual

This user manual uses the following reading
conventions:

Instructions

General information on this user
manual, on safety and final
disposal.

Description

Description of the appliance and its
accessories.

Use

Information on the use of the
appliance and its accessories,
cooking advice.

Cleaning and maintenance

Information for proper cleaning and
maintenance of the appliance.

Installation

Information for the qualified
technician: installation, operation
and inspection.

Safety instructions

24

Information

Advice

1. Use instruction sequence.

• Single use instruction.

2 Description

2.1 General Description

Description

EN

1 Control panel
2 Oven light
3 Seal

2.2 Control panel

Minute minder knob (1)

It allows you to use the minute minder timer
or to perform manual cooking.

4 Door
5 Rack/tray support frames

Frame shelf

Thermostat indicator light (2)

The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.

25

Description

Function knob (3)

It allows you to turn on the light inside the
oven, set a static cooking temperature of
between 60°C and 240°C, or select one
of the other functions at maximum
temperature.

To start cooking, it is necessary to
set a minute minder timer (up to 90

minutes) or manual cooking
using the minute minder knob.

2.3 Other parts

Shelves

The appliance features shelves for
positioning trays and racks at different
heights. The insertion heights are indicated
from the bottom upwards (see 2.1 General
Description).

Cooling fan

2.4 Available accessories

Rack

Useful for supporting containers with food
during cooking.

Deep tray

The fan cools the oven and comes into
operation during cooking.

The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.

26

Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.

The oven accessories intended to
come into contact with food are
made of materials that comply with
the provisions of current legislation.

Original supplied and optional
accessories can be requested to
Authorised Assistance Centres.
Use only original accessories
supplied by the manufacturer.
