Contents
1. INSTRUCTIONS FOR USE ..........................................................4
2. INSTRUCTIONS FOR DISPOSAL – OUR ENVIRONMENTAL
CARE ............................................................................................5
3. SAFETY INSTRUCTIONS ............................................................6
4. GET TO KNOW YOUR OVEN......................................................7
5. BEFORE INSTALLATION.............................................................8
6. DESCRIPTION OF THE CONTROLS ON THE FRONT PANEL . 9
7. ELECTRONIC PROGRAMMER (ON SOME MODELS ONLY) . 11
8. USE OF THE OVEN ................................................................... 14
9. AVAILABLE ACCESSORIES...................................................... 15
10. COOKING HINTS ....................................................................... 16
11. CLEANING AND MAINTENANCE..............................................21
12. EXTRAORDINARY MAINTENANCE..........................................26

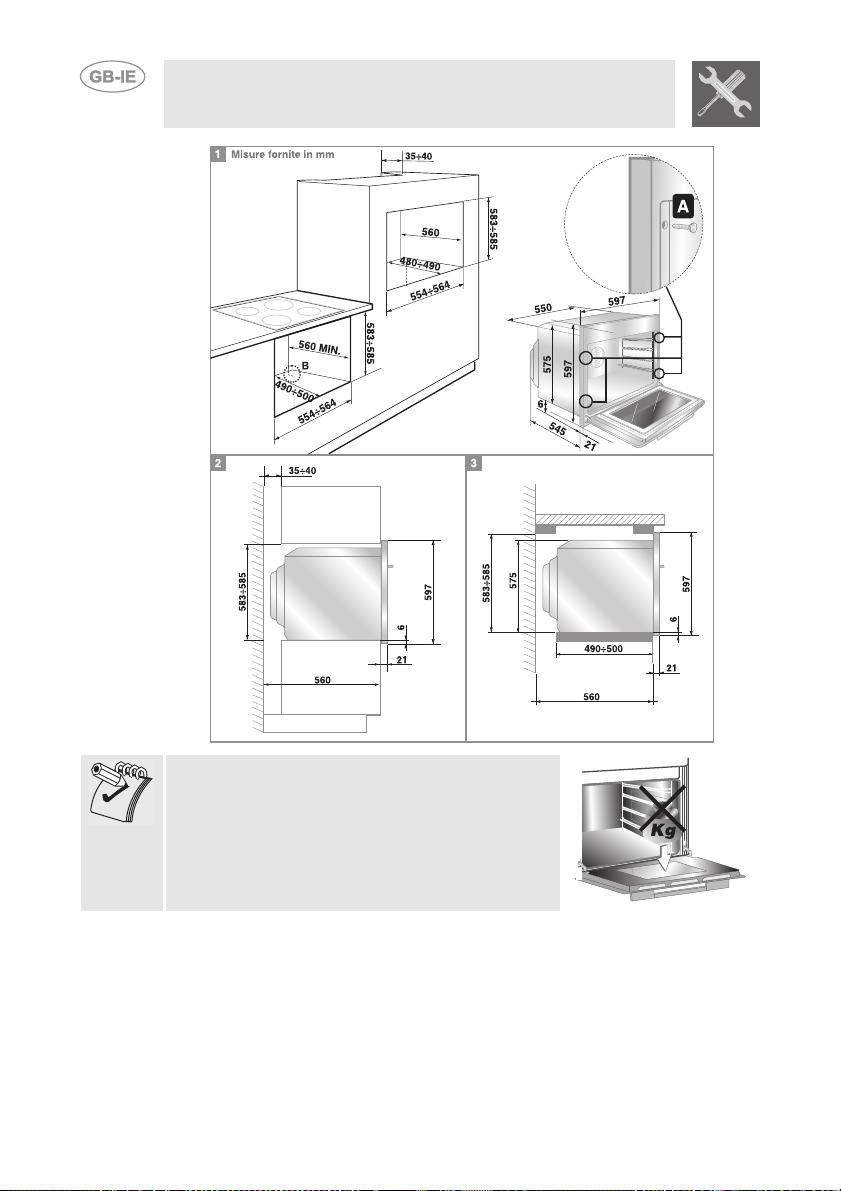

13. INSTALLING THE APPLIANCE..................................................27
INSTRUCTIONS FOR THE USER: these contain user advice, description
of the commands and the correct procedures for cleaning and maintenance
of the appliance.
INSTRUCTIONS FOR THE INSTALLER: these instructions are intended
for the qualified technician who must perform the installation, put it into
operation and test the appliance.
3
Precautions for use
1. INSTRUCTIONS FOR USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE. IT MUST BE
KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE
WORKING LIFE OF THE OVEN.
WE ADVISE TO CAREFULLY READ THIS MANUAL AND ALL THE
INSTRUCTIONS THEREIN BEFORE USING THE APPLIANCE. INSTALLATION
MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH
THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR
DOMESTIC USES AND CONFORMS TO THE EEC DIRECTIVES CURRENTLY IN
FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING
FUNCTIONS: COOKING AND HEATING-UP OF FOOD; ALL OTHER USES ARE
CONSIDERED IMPROPER. THE MANUFACTURER DECLINES ALL
RESPONSIBILITY FOR IMPROPER USE.
DO NOT USE THIS APPLIANCE FOR HEATING ROOMS.
DO NOT DISCARD PACKING IN THE HOME ENVIRONMENT. SEPARATE THE
VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST
SELECTIVE WASTE COLLECTION CENTRE.
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT –
(WEEE).
THIS DIRECTIVE SETS OUT THE RULES FOR COLLECTION AND RECYCLING
OF WASTE APPLIANCES APPLICABLE THROUGHOUT THE EUROPEAN
UNION.
DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT DISPERSAL SLITS.
THE I.D. PLATE WITH TECHNICAL DATA, SERIAL NUMBER AND BRAND NAME
IS POSITIONED VISIBLY ON THE OVEN DOOR FRAME.
THE PLATE MUST NOT BE REMOVED.
DO NOT USE METALLIC SPONGES OR SHARP SCRAPERS: THEY
WILL DAMAGE THE SURFACE. USE NORMAL NON-ABRASIVE
PRODUCTS AND A WOODEN OR PLASTIC TOOL IF NECESSARY.
RINSE THOROUGHLY AND DRY WITH A SOFT CLOTH OR
DEERSKIN. DO NOT ALLOW RESIDUES OF SUGARY FOODS (SUCH
AS JAM) TO SET INSIDE THE OVEN. IF LEFT TO SET FOR TOO
LONG, THEY MIGHT DAMAGE THE ENAMEL LINING OF THE OVEN.
4
Instructions for disposal
2. INSTRUCTIONS FOR DISPOSAL – OUR
ENVIRONMENTAL CARE
Our product's packing is made of non-polluting materials, therefore
compatible with the environment and recyclable. Please help by disposing
of the packing correctly. Find the addresses of collection, recycling and
disposal centres from your retailer or from the competent local
organisations.
Do not throw the packing or any part of it away. They can constitute a
suffocation hazard for children, especially the plastic bags.
Your old appliance also needs to be disposed of correctly.
Important: hand over your appliance to the local agency authorised for
the collection of household appliances no longer in use. Correct disposal
means intelligent recycling of valuable materials.
Before disposing of your old appliance remove the door and leave the
racks in their normal working positions so that children cannot get stuck in
the oven compartment whilst playing. It is also necessary to cut the
interconnecting cable to the power supply network, removing it along with
the plug.
5
Safety instructions
3. SAFETY INSTRUCTIONS
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY
REGULATIONS FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION
FUNCTIONS.
IN YOUR INTERESTS AND FOR YOUR SAFETY IT HAS BEEN ESTABLISHED
BY LAW THAT THE INSTALLATION AND SERVICING OF ALL ELECTRICAL
APPLIANCES IS TO BE CARRIED OUT BY QUALIFIED PERSONNEL IN
ACCORDANCE WITH THE REGULATIONS IN FORCE.
OUR REGULAR INSTALLERS GUARANTEE A SATISFACTORY JOB.
GAS OR ELECTRIC APPLIANCES MUST ALWAYS BE DISCONNECTED BY
SUITABLY SKILLED PEOPLE.
THE PLUG TO BE CONNECTED TO THE POWER SUPPLY CABLE AND ITS
SOCKET MUST BE OF THE SAME TYPE AND CONFORM TO THE
REGULATIONS IN FORCE.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE IS BUILT IN.
NEVER UNPLUG BY PULLING ON THE CABLE.
IT IS OBLIGATORY FOR ALL ELECTRICAL SYSTEMS TO BE GROUNDED
ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION TEST,
FOLLOWING THE INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT
FUNCTION, DISCONNECT IT FROM THE POWER SUPPLY AND CALL THE
NEAREST TECHNICAL ASSISTANCE CENTRE. NEVER ATTEMPT TO REPAIR
THE APPLIANCE.
NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE
ACCIDENTALLY LIGHTED AND CAUSE FIRES.
DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO
TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.
THE USE OF THIS APPLIANCE IS NOT PERMITTED TO PEOPLE (INCLUDING
CHILDREN) OF REDUCED PHYSICAL AND MENTAL ABILITY, OR LACKING IN
EXPERIENCE IN THE USE OF ELECTRICAL APPLIANCES, UNLESS THEY ARE
SUPERVISED OR INSTRUCTED BY ADULTS OR PEOPLE RESPONSIBLE FOR
THEIR SAFETY.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL LABELS AND
PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE 0 (OFF) POSITION
WHEN YOU FINISH USING THE APPLIANCE.
The manufacturer declines all responsibility for damage to persons or things caused by
the non-observance of the above prescriptions or deriving from tampering with any part
of the appliance or by the use of non-original spares.
6
Instructions for the User
4. GET TO KNOW YOUR OVEN
CONTROL PANEL
OVEN LIGHT
OVEN FAN (ONLY ON SOME
MODELS)
PANS AND RACKS
RUNN ERS
7
Instructions for the User
5. BEFORE INSTALLATION
Do not discard packing in the home environment. Separate the various
waste materials and take them to the nearest special garbage collection
centre.
In order to remove all manufacturing residues, it is recommended to clean
the inside of the appliance. For further information on cleaning see point
"11. CLEANING AND MAINTENANCE".
Before using the oven and the grill for the first time, pre-heat to maximum
temperature long enough to burn any manufacturing oily residues which
could give the food a bad smell.
8
Instructions for the User
6. DESCRIPTION OF THE CONTROLS ON THE FRONT PANEL
All the cooker controls are grouped together on the front panel. The
symbols used are described in the table below.
THERMOSTAT KNOB
Cooking temperature is selected by turning the
knob clockwise to the desired setting, between
50° and 250°C.
THERMOSTAT LIGHT
The light comes on to indicate that the oven is heating up.
When it goes out, the preset heating temperature has been
reached. When the light flashes regularly it means that the
temperature inside the oven is kept steady on the set level.
9
Instructions for the User
FUNCTION SWITCH KNOB
Turn the knob in either direction to select a function among the
following:
NO FUNCTION SET LOWER HEATING ELEMENT +
VENTILATION
UPPER + LOWER HEATING
ELEMENTS
GRILL ELEMENT GRILL ELEMENT + VENTILATION
LOWER HEATING ELEMENT FAN-ASSISTED HEATING
THAWING UPPER + LOWER HEATING
UPPER + LOWER HEATING
ELEMENTS + VENTILATION
ELEMENT
ELEMENTS + FAN-ASSITED
HEATING ELEMENT
TIMER KNOB (on some models only)
This knob allows to select manual cooking or
the timer: the oven switches off automatically
at the end of cooking.
If no selection of a cooking duration is made,
the timer knob must be positioned on the
symbol
To set the cooking time, turn the knob clockwise until it reaches the “90”
position and then set the desired cooking time. The numbers from 5 to
90 correspond to minutes. Adjustment is progressive so that the time
can also be set to any intermediate value between these numbers.
At the end of the programmed cooking, a buzzer will sound and switch
automatically off after 4-5 seconds.
10
Instructions for the User
7. ELECTRONIC PROGRAMMER (ON SOME MODELS ONLY)
LIST OF FUNCTIONS
TIMER BUTTON
COOKING DURATION BUTTON
END OF COOKING BUTTON
VALUE DECREASE BUTTON
VALUE INCREASE BUTTON
MANUAL MODE BUTTON
7.1 Setting the time
When the oven is used for the first time, or after an electricity supply
failure, the display flashes at regular intervals, showing . Press the
key to stop the display flashing. Press the value modification keys
or within 5 seconds to increase or decrease the setting by one minute
for each pressure.
Press one of the two value modification keys until the current time
appears.
Before each programmer setting, activate the desired function and
temperature.
11
Instructions for the User

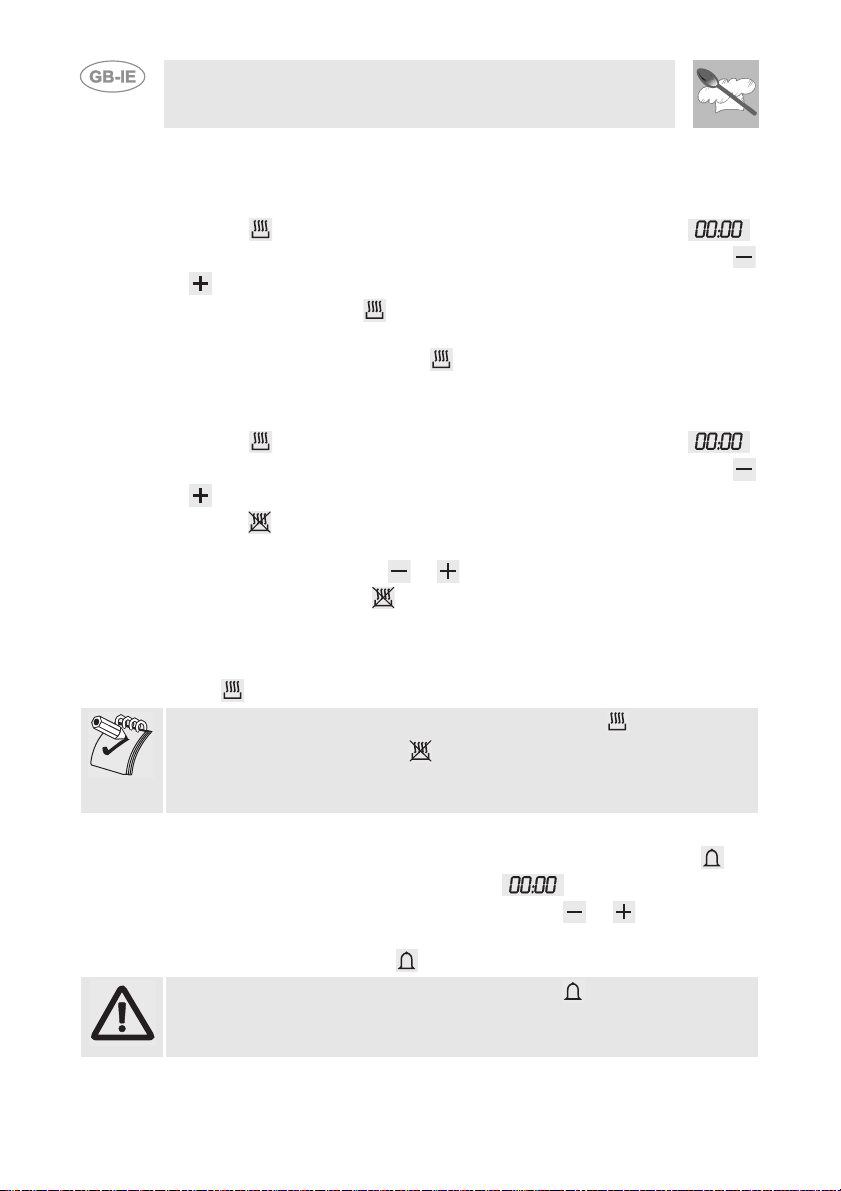

7.2 Semiautomatic cooking
This function only switches the oven off automatically at the end of the
cooking time.
Press the key and the display will light up showing the figures ;
keep it pressed, and at the same time use the value modification keys
or to set the cooking duration.
A few seconds after the key is released, the count of the programmed
cooking duration will start and the display will show the current time
together with the symbols A and .
7.3 Automatic cooking
This function switches the oven on and off in fully automatic mode.
Press the key and the display will light up showing the figures ;
keep it pressed, and at the same time use the value modification keys
or to set the cooking duration.
Press the key and the display will show the sum of the current time plus
the cooking duration just set: keep it pressed, and at the same time use
the value modification keys or to adjust the cooking end time.
A few seconds after the key is released, the programmed count will
start and the display will show the current time together with the symbol A.
When the cooking start time calculated automatically by the programmer
on the basis of the data entered is reached, the display will show both the
A and symbols.
After the setting, to view the cooking time left press the key; to view the
cooking end time press the key. The logic prevents the setting of
incompatible values (e.g. the programmer will not accept a cooking end
time with a duration which is too long for this value).
7.4 Timer
The programmer can also be used as an ordinary timer. Press the key
and the display will show the figures ; keep it pressed and
simultaneously press the value modification keys or . When the key
is released the programmed count will start and the display will show the
current time and the symbol .
After the setting, to display the time left press the key.
In timer mode, the system will not cut out operation of the oven at the end
of the set time.
12
Instructions for the User
7.5 End of cooking
At the end of the cooking time the oven will switch off automatically and
simultaneously a buzzer will start to sound in on-off mode.
After the buzzer has stopped, the display will return to show the current
time together with the symbol, indicating that the oven is again ready
for use in manual mode.
7.6 Adjusting the buzzer volume
The buzzer volume can be varied (3 settings) while it is operating by
pressing the key .
7.7 Stopping the buzzer
The buzzer stops automatically after seven minutes. It can be stopped
manually by pressing the and keys together. To switch off the oven,
return all the knobs to the 0 setting in sequence.
7.8 Deleting the data set
With the program set, keep the key of the function to be deleted ( or )
pressed, while at the same time the value is obtained by pressing
the value modification keys or . The programmer will interpret
deletion of the duration as the end of cooking.
7.9 Modifying the data set
The cooking data set can be modified at any moment by keeping the key
of the function to be modified ( or ) pressed and at the same time
pressing the value modification keys or .
13
Instructions for the User
8. USE OF THE OVEN
8.1 Warnings and general advice
Before using the oven and the grill for the first time, pre-heat to maximum
temperature long enough to burn any manufacturing oily residues which
could give the food a bad smell.
During cooking, do not cover the bottom of the oven with aluminium or tin
foil and do not place pans or oven plates on it as this may damage the
enamel coating. If you wish to use greaseproof paper, position it so that it
does not interfere with the hot air circulation inside the oven.
The oven accessories intended to come into contact with food are made of
materials that comply with the provisions of Directive 89/109/EEC, dated
21/12/88 and of Decree Law 108, dated 25/01/92.
To prevent any steam in the oven from creating
problems, open the door in two stages: half
open (5 cm approx.) for 4-5 seconds and then fully
open. To access food, always leave the door open
as short a time as possible to prevent the
temperature in the oven from falling and ruining the
food. When the door is opened oven ventilation is
automatically switched off; it then resumes as soon
as the door is closed (on some models only).
8.2 Cooling system
The oven is equipped with a cooling system
which automatically comes on when the
oven is being turned on. The fans cause a
steady outflow of air from above the door
which may continue for a brief period of time
even after the oven has been turned off.
14
8.3 Oven light
The oven light comes on when the function switch knob is turned to any
symbol.
On some models it comes on also when opening the oven door.
Instructions for the User
9. AVAILABLE ACCESSORIES
The oven features 4 runners for positioning
pans and racks at different heights.
Rack: useful for holding cooking containers.
Plate rack: for placing on top of a tray for
cooking foods which may drip.
Oven plate: useful for collecting fat from
foods placed on the rack above.
Pastry plate: for baking cakes, pizza and
oven desserts.
Roof liner: remove it to simplify cleaning
inside the oven.
Chromium-plated gripper: useful for
removing hot racks and pans.
Not all accessories are provided on some models.
Accessories available on request
Original accessories may be ordered from any Authorised Service Centre.
15
Instructions for the User
10. COOKING HINTS
In fan-assisted mode preheating should be carried out at 30/40°C above
the cooking temperature. This considerably shortens cooking times and
reduces power consumption, as well as giving better cooking results.
Keep the oven door closed during cooking.
10.1 Traditional cooking
FUNCTION SWITCH
THERMOSTAT
This traditional cooking method, in which heat comes from above and
below, is suitable for cooking food on a single level. You have to pre-heat
the oven until the set temperature is reached. Place the food in the oven
only after the thermostat indicator light has turned off. Put frozen meat in
immediately, without waiting for it to thaw. The only precaution you need to
take is to set the temperature about 20°C lower and cooking time about 1/
4 longer than you would for fresh meat.
50 ÷ 250 °C
10.2 Hot-air cooking
FUNCTION SWITCH
THERMOSTAT
This system is suitable for cooking on several levels, including different
types of food (fish, meat etc.), without tastes and smells mingling. Air
circulation in the oven ensures a uniform heating.
Multiple cooking is possible as long as the cooking temperature of the
different foods is the same.
50 ÷ 250 °C
16
Instructions for the User
10.3 Delicate cooking
FUNCTION SWITCH
THERMOSTAT
50 ÷ 250 °C
This type of cooking, for which it is extremely important to preheat the
oven in fan-assisted mode, is particularly suitable for finishing cooking of
foods on the base or for cooking procedures that require heating
especially in the lower part. The pan should be placed on the bottom
runner.
10.4 Grill cooking
FUNCTION SWITCH
THERMOSTAT
Permits rapid browning of foods. For short-term cooking of small
quantities, place the rack in the fourth runner from the bottom. For longterm cooking and grills, put the rack in the lowest runner in accordance
with the size of the pieces.
Keep the oven door closed during cooking. Grilling with the door
open can permanently damage the oven and jeopardise safety whilst
the grill is on.
17
Instructions for the User
10.5 Hot-air grilling
FUNCTION SWITCH
THERMOSTAT
Ensures uniform heating with greater heat penetration into the food. Food
will be lightly browned on the outside and remain tender inside.
Keep the oven door closed during cooking. Heating up time must not
exceed 60 minutes.
Keep the oven door closed during grilling. Grilling with the door
open can permanently damage the oven and jeopardise safety whilst
the grill is on.
200 °C
10.6 Thawing
FUNCTION SWITCH
THERMOSTAT
The movement of air ensured by the fan causes faster thawing of foods.
The air circulating inside the oven is at room temperature.
Thawing at room temperature has the advantage of not altering the taste
and appearance of the food.
0
18
Instructions for the User
10.7 Table of recommended cooking settings
Cooking times, especially for meat, vary according to the thickness, quality
of the food and to consumer's taste. Cooking times are given for a preheated oven.
TRADITIONAL COOKING
RUNNER POSITION FROM
BOTTOM
FIRST COURSES
LASAGNE
OVEN-BAKED PASTA
MEAT
ROAST VEAL
ROAST BEEF
ROAST PORK
CHICKEN
DUCK
GOOSE-TURKEY
RABBIT
LEG OF LAMB
FISH 1 - 2 170 - 200 According to the size
PIZZA 1 - 2 210 - 240 40 - 45
DESSERTS
SHORT PASTRY
DOUGHNUT
CROISSANTS
FRUIT CAKE
PARADISE CAKE
APPLE PIE
RICE PUDDING
2 - 3
2 - 3
2
2
2
2
2
2
2
2
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
TEMPERATURE°CTIME IN MINUTES
210 - 230
210 - 230
170 - 200
210 - 240
170 - 200
170 - 200
170 - 200
140 - 170
170 - 200
170 - 200
170 - 200
165
170 - 200
170 - 200
170
190
180
30
40
30 - 40 X Kg.
30 - 40 X Kg.
30 - 40 X Kg.
45 - 60
45 - 60
45 - 60
50 - 60
40 - 50
15 - 20
35 - 45
40 - 45
20 - 30
60
60
60
PORK CHOPS
FILLET OF PORK
FILLET OF BEEF
LIVER
VEAL ESCALOPES
HALF CHICKEN
SAUSAGES
MEAT-BALLS
FISH FILLETS
TOAST
GRILL COOKING
RUNNER POSITION FROM
BOTTOM
4
3
3
4
4
3
4
4
4
4
TIME IN MINUTES
1ST SURFACE 2ND SURFACE
7 - 9
9 - 11
9 - 11
2 - 3
7 - 9
9 - 14
7 - 9
7 - 9
5 - 6
2 - 4
5 - 7
5 - 9
9 - 11
2 - 3
5 - 7
9 - 11
5 - 6
5 - 6
3 - 4
2 - 3
19
Instructions for the User
HOT-AIR COOKING
RUNNER POSITION FROM
BOTTOM
FIRST COURSES
LASAGNE
OVEN-BAKED PASTA
CREOLE RICE
MEAT
ROAST VEAL
ROAST PORK
ROAST BEEF
FILLET OF BEEF
ROAST LAMB
ROAST-BEEF
ROAST CHICKEN
ROAST DUCK
ROAST TURKEY
ROAST RABBIT
ROAST HARE
ROAST PIGEON
FISH 2 - 3 150 - 170 According to the size
PIZZA
BREAD
TOAST
DESSERTS (PASTRY)
DOUGHNUT
FRUIT CAKE
CROISSANTS
SHORT PASTRY
RICE PUDDING
APPLE PIE
PARADISE CAKE
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2 - 3
2 - 3
1 - 2
2 - 3
2 - 3
2 - 3
2 - 3
2 - 3
2 - 3
2 - 3
TEMPERATURE°CTIME IN MINUTES
190 - 210
190 - 210
190 - 210
150 - 170
150 - 160
160 - 170
160 - 180
130 - 150
170 - 180
170
160 - 170
150 - 160
150 - 160
160 - 170
140 - 170
210 - 240
190 - 210
220 - 240
150 - 160
150 - 160
150 - 160
150 - 160
150 - 160
150 - 160
150 - 160
20 - 25
25 - 30
20 - 25
65 - 90
70 - 100
65 - 90
35 - 45
100 - 130
40 - 45
70 - 90
100 - 160
160 - 240
80 - 100
30 - 50
15 - 25
30 - 50
40
7
35 - 45
40 - 50
40 - 60
25
65
65
65
20
Instructions for the User
11. CLEANING AND MAINTENANCE
Before performing any operations requiring access to powered parts,
switch off the power supply to the appliance.
Do not use a steam jet for cleaning the inside of the oven.
11.1 Cleaning stainless steel
To keep stainless steel in good condition it should be cleaned regularly
after use. Let it cool first.
11.2 Ordinary daily cleaning
To clean and preserve the stainless steel surfaces, always use only
specific products that do not contain abrasives or chlorine-based acids.
How to use: pour the product on a damp cloth and wipe the surface, rinse
thoroughly and dry with a soft cloth or deerskin.
11.3 Food stains or residues
Do not use metallic sponges or sharp scrapers: they will damage
the surface.
Use normal non-abrasive products and a wooden or plastic tool if
necessary. Rinse thoroughly and dry with a soft cloth or
deerskin.
Do not allow residues of sugary foods (such as jam) to set inside
the oven. If left to set for too long, they might damage the enamel
lining of the oven.
21
Instructions for the User
11.4 Cleaning the oven
For best oven upkeep clean regularly after having allowed to cool.
Take out all removable parts.
• Clean the oven racks with hot water and non-abrasive detergent. Rinse
and dry.

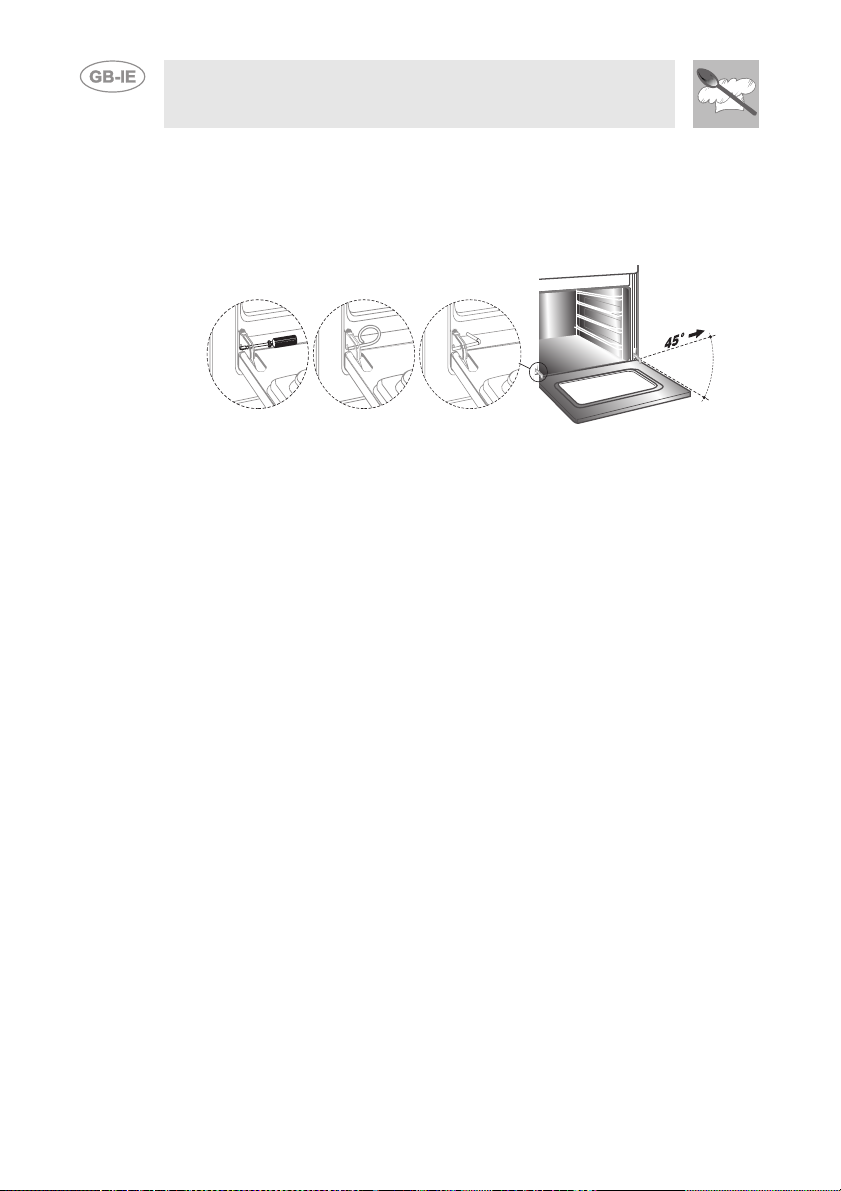

• For easier cleaning, the door can be removed (see point “11.6
Removing the door”)
11.5 Cleaning the oven with self-cleaning panels (on some
models only)
The oven is equipped with panels made of continuous self-cleaning
enamel. These panels make the oven easier to clean and ensure that it
remains efficient over time.
11.5.1 Use of self-cleaning panels
To keep the inside of the oven clean and free from food residues and
unpleasant smells, it should periodically be operated empty at a
temperature of at least 200° C for a time varying between 30 and 60
minutes. This allows the self-cleaning panels to oxidise any deposits
present, which can then be wiped away with a damp sponge once the
oven has cooled.
11.5.2 Maintenance of self-cleaning panels
The panels should not be cleaned using abrasive creams and ordinary
cleaners. Simply wipe with a damp sponge to avoid damaging the special
enamel coating of the panels.
22
Instructions for the User
11.5.3 Removing the self-cleaning panels
Remove all the accessories from the oven compartment and carry out the
following operations:
1 Remove the side guides (fig.1);
2 Slide out the side panels “F” and “G” (fig. 2); 3 Extract the rear panel “A” after first unscrewing the threaded ring “C”
(fig. 2);
4 Reassemble the panels by returning them to their original conditions.
1) 2)
11.6 Removing the door
11.6.1 Removing the door with mobile hinges
With the door completely open, lift the levers A until they touch the hinges
B and take hold of the two sides of the door with both hands close to the
hinges. Raise the door to an angle of about 45° and remove it. If the
hinges have not locked, repeat the operation, raising the levers A and
keeping the door slightly raised. To reassemble, fit the hinges B into their
grooves, then lower the door into place, ensuring that it remains fitted into
the grooves C, and lower the levers A.
23
Instructions for the User
11.6.2 Removing the door with pins
Open the door completely and insert the pins (supplied) into the holes
from the inside. Close the door to an angle of about 45° and lift it off. To
reassemble, fit the hinges into their grooves, then lower the door into place
and extract the pins.
11.7 Removing the glass panels
The glass in the door should always be kept thoroughly clean. For easier
cleaning, the door glazing can be fully removed by proceeding as
described below. After opening the door and locking it in place as
described in point “11.6 Removing the door”, remove the internal glass
pane levering it as illustrated in figure 1, and detach the 4 pins that fix the
glass to the door. If your oven also has a middle glass panel (figure 2) this
can be extracted simply by lifting it upwards. After having carried out the
cleaning, first of all replace the middle glass panel (if your oven has one),
and then position the internal glass hinging it, as shown in figure 3, on the
grooves of the oven door (see part A in figure 3). When the glazing has
been positioned on the door, exert a slight pressure on the four fixing pins.
If the door should close during these operations, simply relock one of the
hinges as described in point “11.6 Removing the door”. The glass panels
can now be washed separately.
24
1)
Instructions for the User
2)
3)
Use absorbent kitchen roll; in case of stubborn dirt remove with a
damp sponge and an ordinary detergent.
Warning: before removing the glass panels, make sure that the door has
been locked in an open position as described in points "11.6 Removing the
door". This operation might also have to be repeated during the glass
removal process if the door is accidentally freed.
To reassemble the door glazing, follow the provided instructions in reverse
order.
WARNING Do not use the appliance without the glass panels mounted:
the outside surface of the door will overheat
25
Instructions for the User
12. EXTRAORDINARY MAINTENANCE
The oven may require extraordinary maintenance or replacement of parts
subject to wear such as seals, bulbs, and so on. The following instructions
describe how to carry out these minor maintenance operations.
Before any intervention that requires access to live parts, disconnect the
power supply of the appliance.

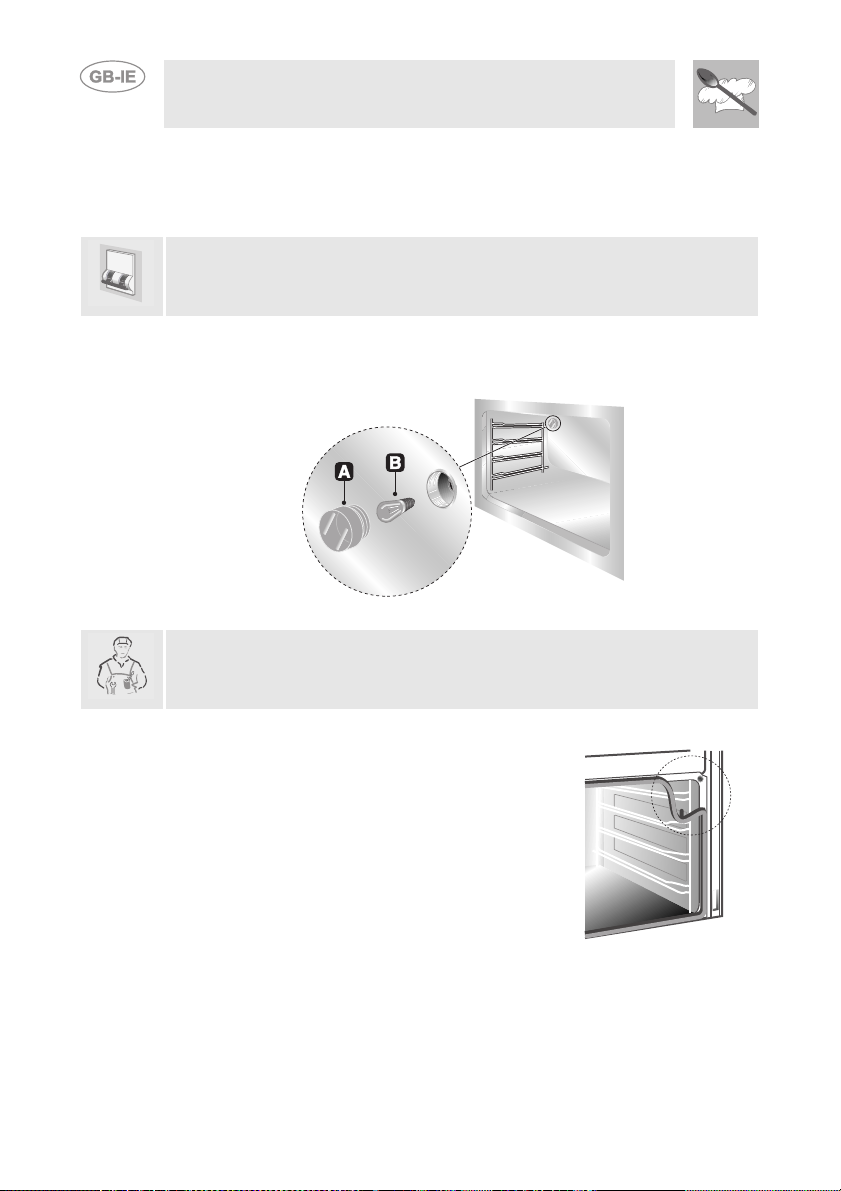

12.1 Changing the light bulb
Remove the bulb protector A by turning it counterclockwise and change
bulb B with a similar one (25 W). Re-fit the bulb protector A.
Use only oven bulbs (T 300°C).
26
12.2 Removing the door seal
To permit thorough cleaning of the oven, the
seal may be removed.
Before removing the seal, take off the door
as described above. Once the door has been
taken off, lift the tabs at the corners as
shown in the figure.
Instructions for the installer
13. INSTALLING THE APPLIANCE
13.1 Electrical connection
The I.D. plate with technical data, serial number and brand name is
positioned visibly on the oven door frame.
The plate must not be removed.
The appliance must be connected to earth in compliance with electrical
system safety regulations.
If a fixed connection is being used, fit the power line with an omnipolar
circuit breaker with a contact opening gap equal to or greater than 3 mm,
in an easily accessible position close to the appliance.
If a plug and socket connection is being used make sure that the plug and
socket are compatible. Avoid use of adapters and shunts as these could
cause overheating and burns.
Operation at 220-240 V~: use
an H05RR-F type three-core
cable (3 x 1.5 mm
The end to be connected to the
appliance must be an earth wire
(yellow-green) at least 20 mm
longer.
13.2 Positioning the oven
The oven is designed for mounting into any piece of furniture as long as it
is heat-resistant. Proceed according to the dimensions shown in Figures
1, 2 and 3. For installing under a work top, follow the dimensions given in
Figure 1-3. For installing under a work top with combined cooking hobs,
ensure a minimum clearance from any side walls of at least 110 mm as
shown in Figure 1. When installing in tall units, comply with the dimensions
shown in figure 1-2, bearing in mind that the top/rear of the unit must have
an opening 80-90 mm deep. Tighten the 4 screws A inside the frame (fig.
1). For installing beneath a countertop hob, allow for a rear and bottom
clearance as shown in Figure 1 (ref. B). See the relevant instructions for
fitting and securing the hob.
2
).
27
Instructions for the installer
28
Never use the oven door to lever the oven into
place when fitting. Avoid exerting too much
pressure on the oven door when open.
Loading...
