Page 1

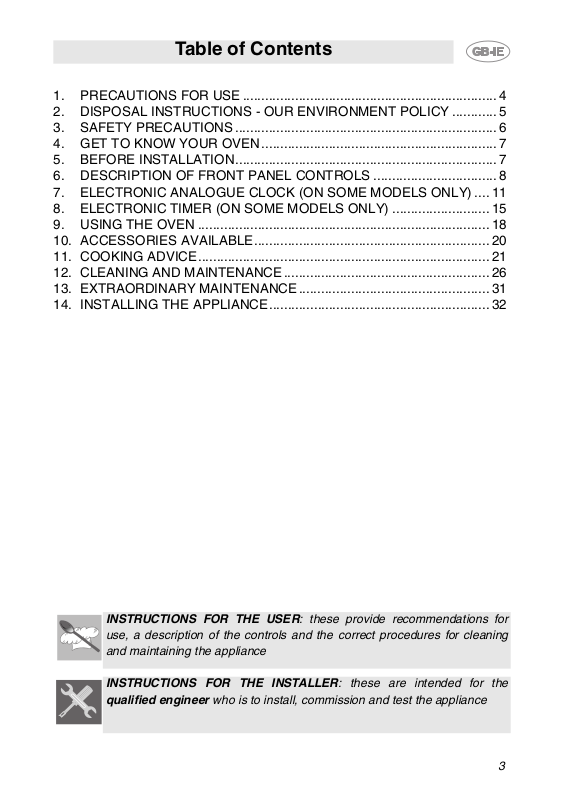

Table of Contents
1. PRECAUTIONS FOR USE .................................................................... 4
2. DISPOSAL INSTRUCTIONS - OUR ENVIRONMENT POLICY ............ 5
3. SAFETY PRECAUTIONS ...................................................................... 6
4. GET TO KNOW YOUR OVEN ............................................................... 7
5. BEFORE INSTALLATION...................................................................... 7
6. DESCRIPTION OF FRONT PANEL CONTROLS ................................. 8
7. ELECTRONIC ANALOGUE CLOCK (ON SOME MODELS ONLY) .... 11
8. ELECTRONIC TIMER (ON SOME MODELS ONLY) .......................... 15
9. USING THE OVEN .............................................................................. 18

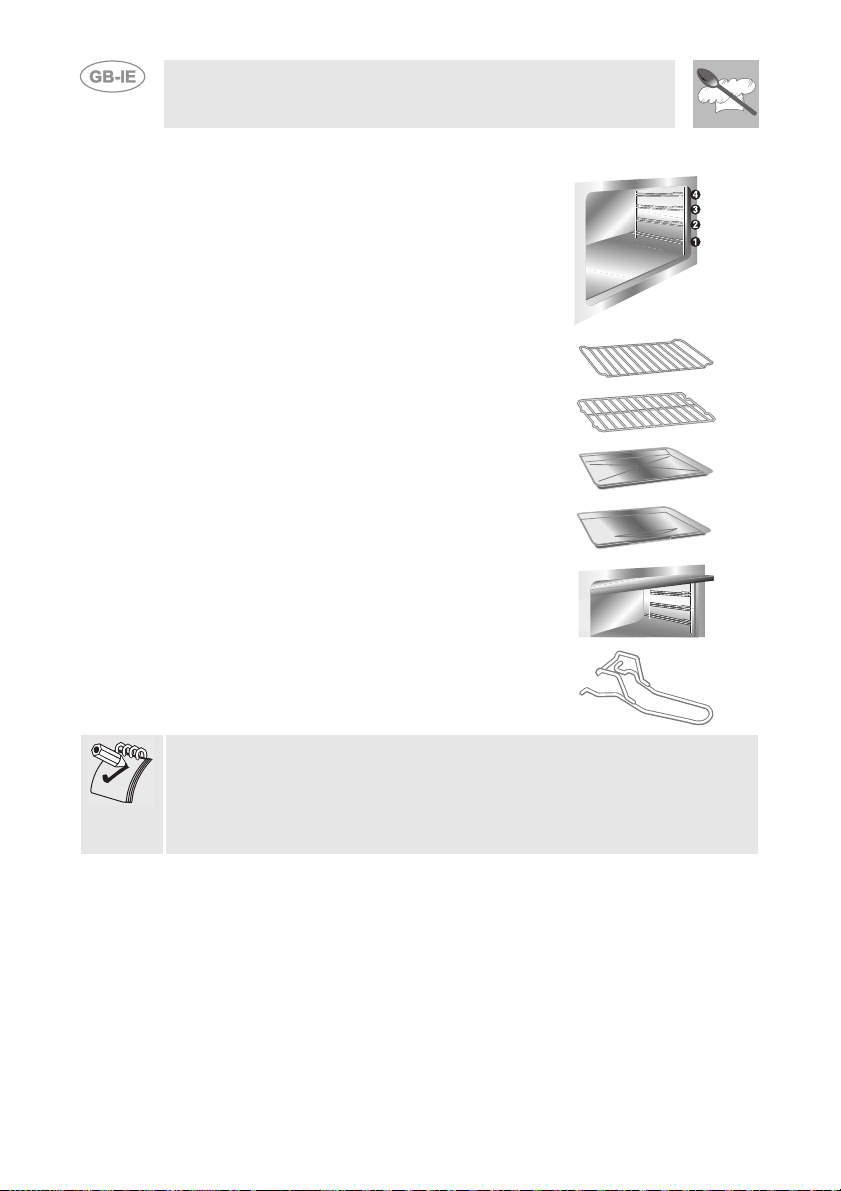

10. ACCESSORIES AVAILABLE............................................................... 20
11. COOKING ADVICE.............................................................................. 21
12. CLEANING AND MAINTENANCE ....................................................... 26

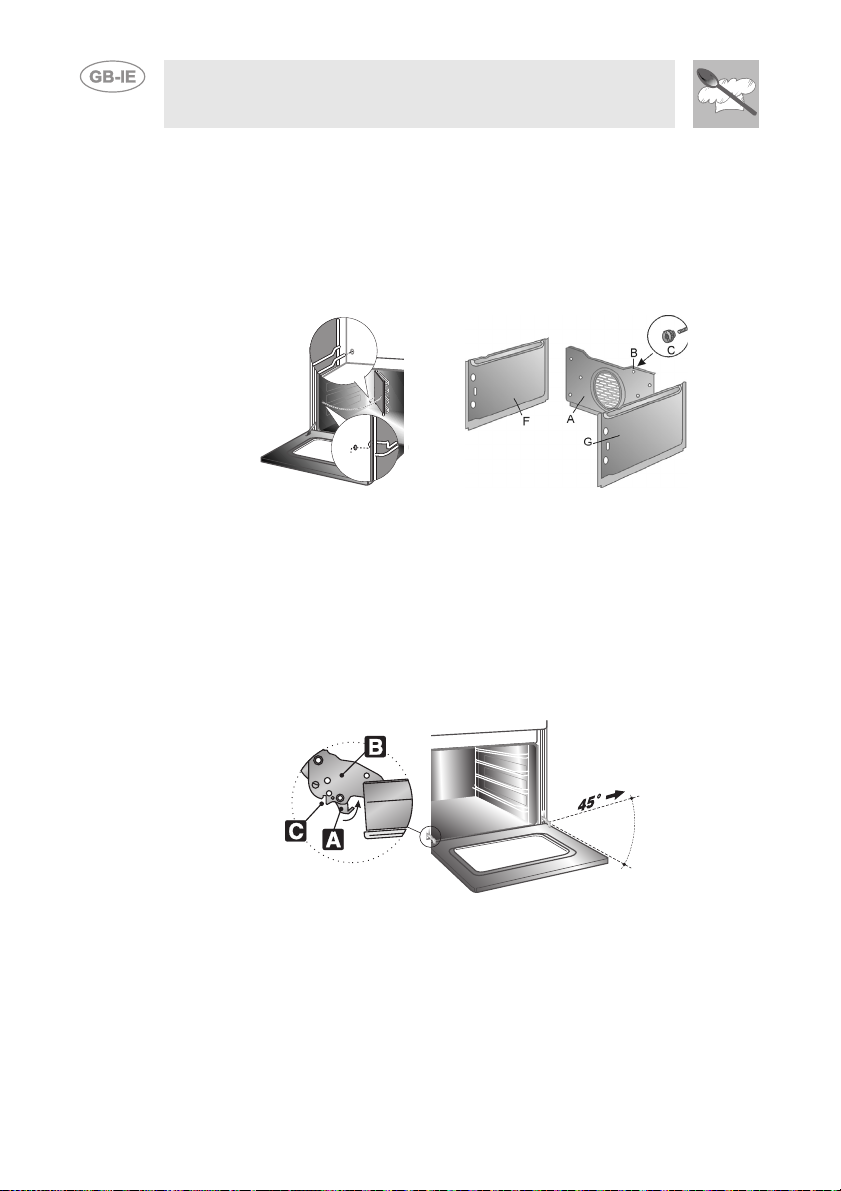

13. EXTRAORDINARY MAINTENANCE ................................................... 31

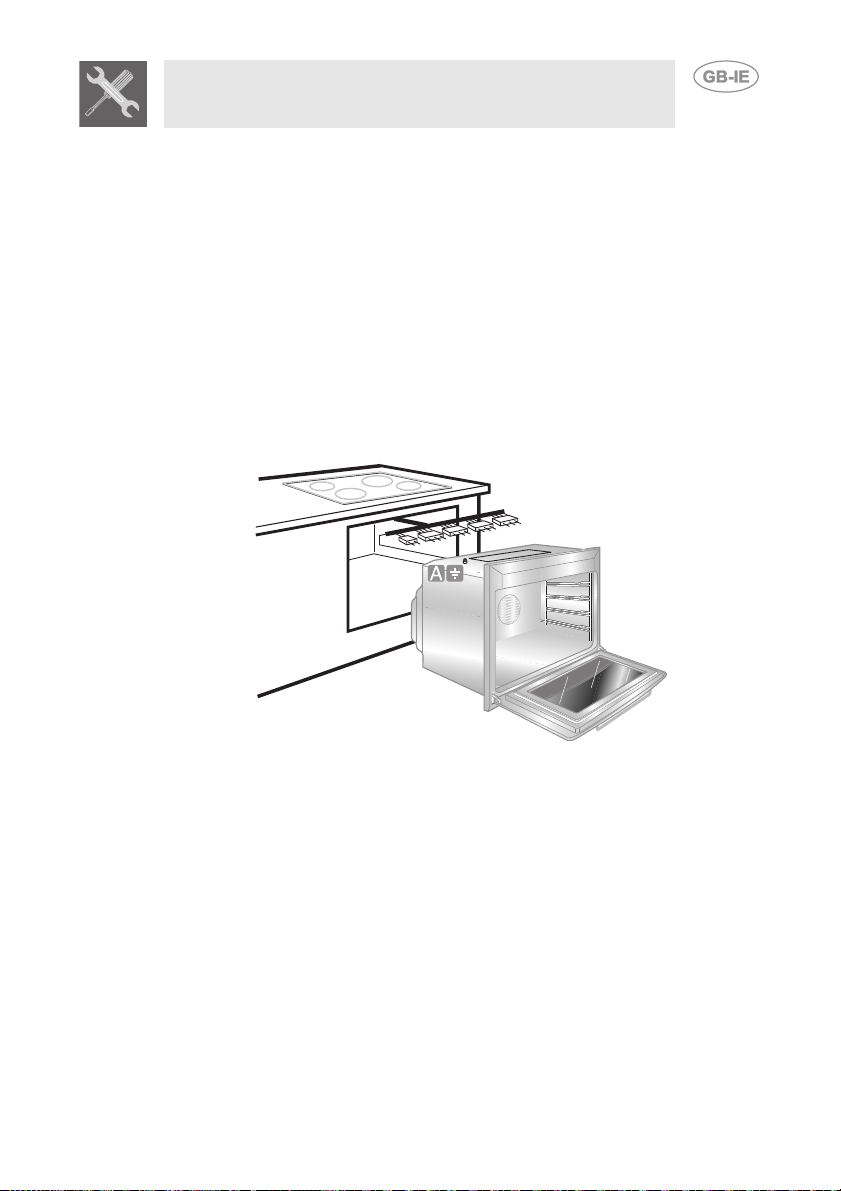

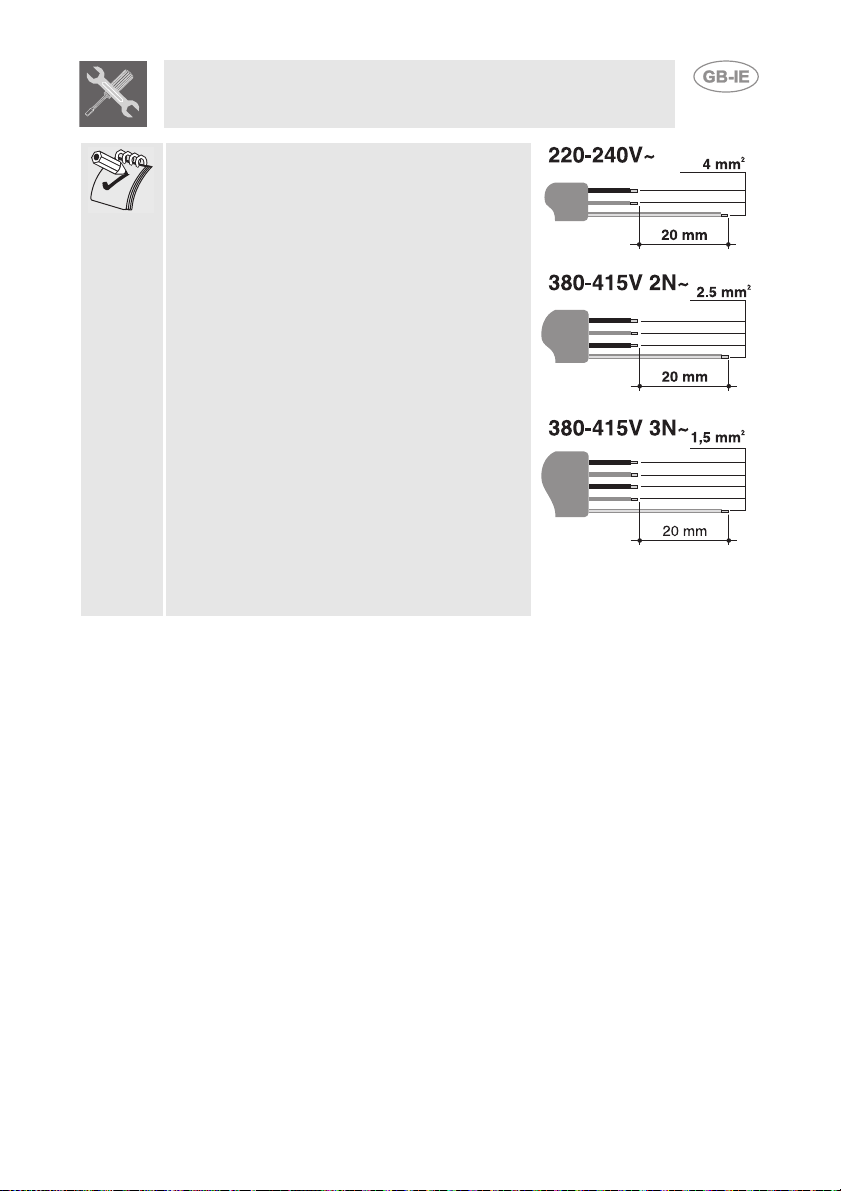

14. INSTALLING THE APPLIANCE........................................................... 32
INSTRUCTIONS FOR THE USER: these provide recommendations for
use, a description of the controls and the correct procedures for cleaning
and maintaining the appliance
INSTRUCTIONS FOR THE INSTALLER: these are intended for the
qualified engineer who is to install, commission and test the appliance
3
Page 2
Precautions for use
1. PRECAUTIONS FOR USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE. TAKE GOOD CARE
OF IT AND KEEP IT TO HAND THROUGHOUT THE OVEN'S LIFE CYCLE.
WE URGE YOU TO READ THIS MANUAL AND ALL THE INFORMATION IT
CONTAINS CAREFULLY BEFORE USING THE APPLIANCE. INSTALLATION
MUST BE CARRIED OUT BY QUALIFIED STAFF IN COMPLIANCE WITH THE
RELEVANT REGULATIONS. THIS APPLIANCE IS INTENDED FOR HOUSEHOLD
USE AND COMPLIES WITH THE EEC DIRECTIVES CURRENTLY IN FORCE.
THE APPLIANCE IS BUILT TO PROVIDE THE FOLLOWING FUNCTION:
COOKING AND HEATING FOODS; ALL OTHER USES ARE TO BE
CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL LIABILITY FOR USES OTHER THAN
THOSE STATED ABOVE.
NEVER USE THIS APPLIANCE FOR HEATING ROOMS.
NEVER USE PACKAGING RESIDUES UNATTENDED IN THE HOME.
SEPARATE THE VARIOUS PACKAGING MATERIALS BY TYPE AND CONSIGN
THEM TO THE NEAREST SEPARATE DISPOSAL CENTRE.
THIS APPLIANCE IS TAGGED UNDER EUROPEAN DIRECTIVE 2002/96/EC ON
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THIS DIRECTIVE CONTAINS THE REGULATIONS GOVERNING THE
COLLECTION AND RECYCLING OF DECOMMISSIONED APPLIANCES
THROUGHOUT THE EUROPEAN UNION.
NEVER OBSTRUCT THE OPENINGS AND SLITS PROVIDED FOR
VENTILATION AND HEAT DISPERSAL.
THE NAMEPLATE WITH THE TECHNICAL DATA, SERIAL NUMBER AND MARK
IS IN A VISIBLE POSITION ON THE OVEN DOOR FRAME.
THE NAMEPLATE MUST NEVER BE REMOVED.
NEVER USE METAL SCOURING PADS OR SHARP SCRAPERS;
THEY WILL DAMAGE SURFACES.
USE ORDINARY NON-ABRASIVE PRODUCTS WITH THE AID OF
WOODEN OR PLASTIC UTENSILS IF NECESSARY. RINSE
THOROUGHLY AND DRY WITH A SOFT CLOTH OR CHAMOIS
LEATHER.
DO NOT ALLOW SPILLS OF FOODS WITH HIGH SUGAR CONTENT
(E.G. JAM) TO DRY INSIDE THE OVEN. IF THEY DRY FOR TOO
LONG, THEY MIGHT DAMAGE THE ENAMEL COATING OF THE
INSIDE OF THE OVEN.
4
Page 3
Disposal instructions
2. DISPOSAL INSTRUCTIONS - OUR ENVIRONMENT POLICY
Our products are only packaged using non-pollutant, environment-friendly,
recyclable materials. We urge you to cooperate by disposing of the
packaging properly. Contact your local dealer or the competent local
organisations for the addresses of collection, recycling and disposal
facilities.
Never leave all or part of the packaging lying around. Packaging parts, and
especially plastic bags, may represent a suffocation hazard for children.
Your old appliance must also be disposed of properly.
Important: deliver the appliance to your local organisation authorised to
collect scrapped appliances. Proper disposal allows the intelligent
recovery of valuable materials.
Before scrapping your appliance it is important to remove doors and leave
shelves in position as for use, to ensure that children cannot accidentally
become trapped inside the oven during play. Also, cut the power supply
lead and remove it and the plug.
5
Page 4
Safety precautions
3. SAFETY PRECAUTIONS
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY
REGULATIONS FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION
FUNCTIONS. IN YOUR INTEREST AND TO ENSURE YOUR SAFETY, BY LAW
ALL ELECTRIC APPLIANCES MUST ONLY BE INSTALLED AND SERVICED BY
QUALIFIED STAFF, IN ACCORDANCE WITH THE RELEVANT REGULATIONS.
OUR APPROVED INSTALLATION ENGINEERS GUARANTEE YOU A JOB WELL
DONE. GAS OR ELECTRIC APPLIANCES MUST ALWAYS BE DISCONNECTED
BY SUITABLY SKILLED PEOPLE.
THE PLUG TO BE CONNECTED TO THE POWER SUPPLY LEAD AND THE
RELATIVE SOCKET MUST BE OF THE SAME TYPE AND COMPLY WITH THE
RELEVANT REGULATIONS.
THE POWER SUPPLY SOCKET MUST BE ACCESSIBLE EVEN AFTER THE
APPLIANCE HAS BEEN BUILT-IN.
NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY
LEAD.
THE APPLIANCE MUST BE CONNECTED TO EARTH IN COMPLIANCE WITH
ELECTRICAL SYSTEM SAFETY REGULATIONS.
IMMEDIATELY AFTER INSTALLATION, CARRY OUT A QUICK TEST ON THE
APPLIANCE FOLLOWING THE INSTRUCTIONS PROVIDED LATER IN THIS
MANUAL. IF THE APPLIANCE FAILS TO OPERATE, DISCONNECT IT FROM
THE ELECTRICAL MAINS AND CONTACT YOUR NEAREST SERVICE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
NEVER PLACE INFLAMMABLE OBJECTS IN THE OVEN: IF IT SHOULD
ACCIDENTALLY BE SWITCHED ON, THIS MIGHT CAUSE A FIRE.
THE APPLIANCE BECOMES VERY HOT DURING USE. TAKE CARE NOT TO
TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.
THIS APPLIANCE MUST NOT BE USED BY ANYONE (INCLUDING CHILDREN)
WITH IMPAIRED PHYSICAL AND MENTAL CAPABILITIES OR INEXPERIENCED
IN THE USE OF ELECTRICAL APPLIANCES, UNLESS SUPERVISED OR
INSTRUCTED BY ADULTS RESPONSIBLE FOR THEIR SAFETY.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND
PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
AFTER EACH USE, ALWAYS CHECK THAT THE CONTROL KNOBS ARE
TURNED TO 0 (OFF).
The manufacturer declines all responsibility for injury or damage caused
by failure to comply with the above regulations or deriving from tampering
with even just one part of the appliance and the use of non-original spare
parts.
6
Page 5
Instructions for the user
4. GET TO KNOW YOUR OVEN
CONTROL PANEL
OVEN LIGHT
OVEN FAN (ON SOME
MODELS ONLY)
SHELF AND TRAY RUNNERS
5. BEFORE INSTALLATION
Never leave packaging residues unattended in the home. Separate waste
packaging materials by type and consign them to the nearest separate
disposal centre.
The inside of the appliance should be cleaned to remove all manufacturing
residues. For further information about cleaning, see point "12.
CLEANING AND MAINTENANCE".
When the oven and grill are used for the first time, they should be heated
to the maximum temperature for long enough to burn off any oily residues
left by the manufacturing process, which might contaminate foods with
unpleasant smells. After an electricity supply failure, for instructions for
setting the time, see points "7. Electronic Analogue Clock (on some
models only)" and "8. Electronic timer (on some models only)".
7
Page 6
Instructions for the user
6. DESCRIPTION OF FRONT PANEL CONTROLS
All the cooker's control and monitoring devices are placed together on the
front panel. The table below provides the key to the symbols used.
THERMOSTAT KNOB (on some models only)
The cooking temperature is selected by turning the knob
clockwise to the required setting, between 50° and
250°C.
THERMOSTAT LIGHT
Lights up to indicate that the oven is
heating up. Goes out when the set
temperature is reached; flashes at
regular intervals to indicate that the
temperature inside the oven is being
kept constantly at the set level.
8
Page 7
Instructions for the user
THERMOSTAT KNOB (on some models only)
The cooking temperature is selected by turning the knob
clockwise to the required setting, between 50° and
250°C.
To switch the oven on, turn the knob clockwise to any of
the following functions, except the oven light function:
NO FUNCTION SET SMALL GRILL ELEMENT
LIGHT WIDE GRILL ELEMENT
BOTTOM HEATING ELEMENT
FUNCTION SELECTOR KNOB
Turn the knob either way to select one of the following functions:
NO FUNCTION SET TOP + BOTTOM HEATING
ELEMENTS+FAN
DEFROSTING GRILL ELEMENT + FAN
TOP + BOTTOM HEATING
ELEMENTS
GRILL ELEMENT BOTTOM HEATING ELEMENT +
BOTTOM HEATING ELEMENT GRILL ELEMENT + BOTTOM
FAN HEATING ELEMENT
FAN
HEATING ELEMENT + FAN
9
Page 8
Instructions for the user
HOB CONTROL KNOB
Used to regulate heating of the hob by turning the knob
clockwise to the required setting, between 2 and 12.
DUAL HEATING HOB CONTROL KNOB
Used to regulate heating of the hob in
dual heating zones. Turning the knob
clockwise to between 2 and 12 heats
only the smaller diameter area. Turning
the knob
releasing it (it returns to 12) heats both the larger and smaller diameter
areas. To regulate the heating level, turn the knob anti-clockwise to the
setting required. To return to heating of the smaller diameter area only,
turn the knob to 0 and then to between 2 and 12.
Setting is on a gradual scale and intermediate positions
between the numbers can be used. The end of cooking
buzzer does not turn off the oven.
to the or symbol and
MINUTE MINDER KNOB
10
Page 9
Instructions for the user
7. ELECTRONIC ANALOGUE CLOCK (ON SOME MODELS ONLY)

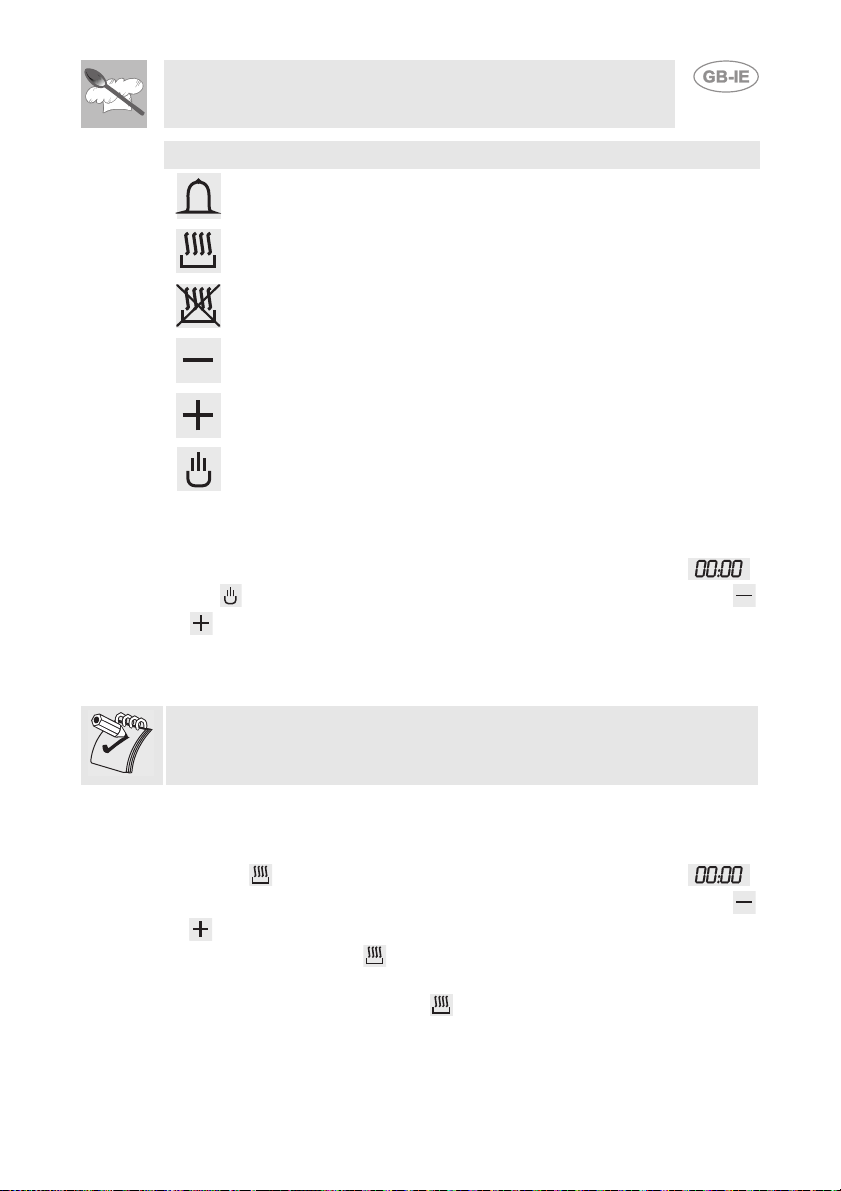

LIST OF FUNCTIONS
MINUTE-MINDER BUTTON
END OF COOKING BUTTON
CLOCK TIME ADJUSTMENT AND RESET
VALUE DECREASE BUTTON
VALUE INCREASE BUTTON
7.0.1 "DEMO" Function
Models with analogue/digital programmer feature a "DEMO" function
which deactivates the heating elements while leaving the other functions
unchanged. To activate it, simply press the , , and keys for 3/4
seconds. A confirmation beep will inform the user that the function is
active. To deactivate it, simply repeat the same procedure.
11
Page 10
Instructions for the user
7.0.2 Setting the time
When the oven is used for the first time, or after an interruption in the
electricity supply, the display flashes at regular intervals.
Press for 1 / 2 seconds to stop the display flashing and start the
procedure for setting the correct time. Press the value modification keys
or to increase or decrease the setting by one minute for each
pressure.
Press one of the two value modification keys until the current time
appears. 6/7 seconds after the last key is pressed, the clock will start from
the time set.
At the end of each programmed operation 8 beeps will sound 3/4 times at
intervals of about 1 and a half minutes. This sequence can be stopped at
any time by pressing any key.

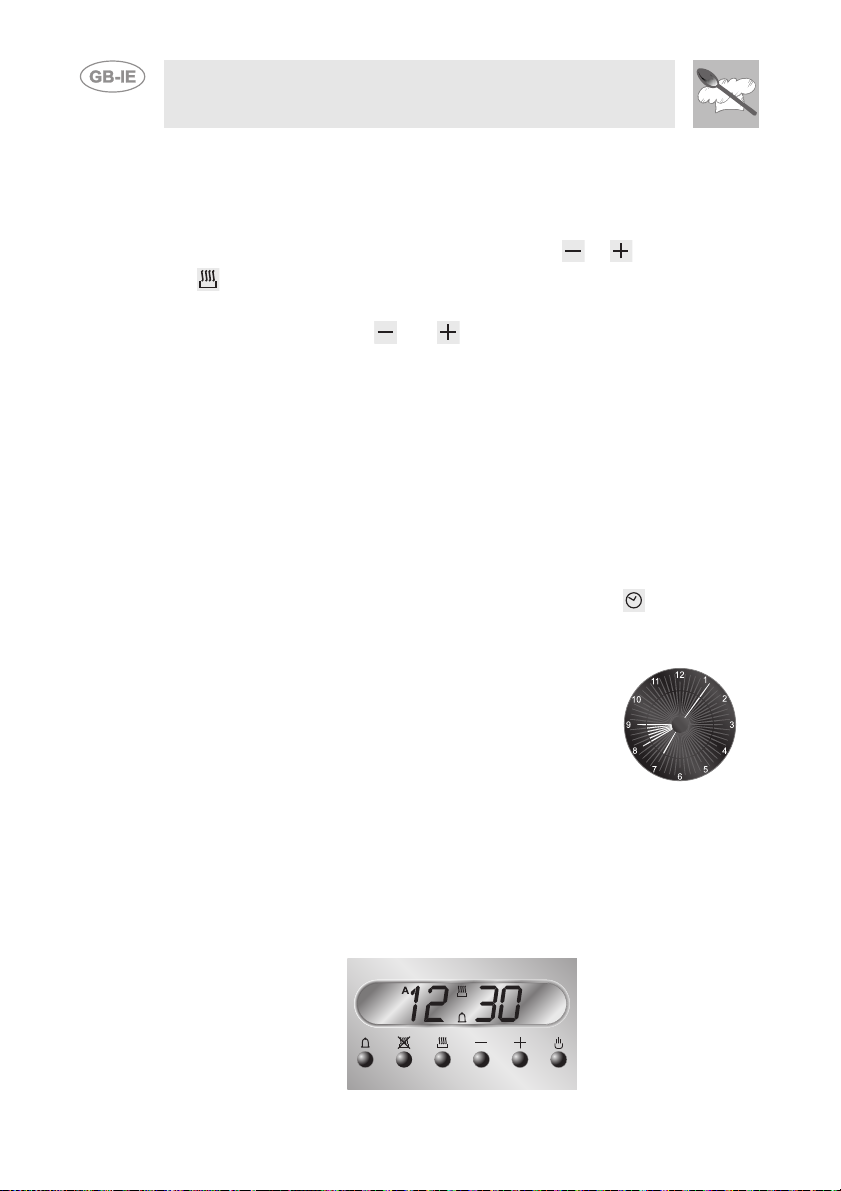

7.0.3 Minute-Minder
This function does not stop cooking; it simply activates the buzzer.

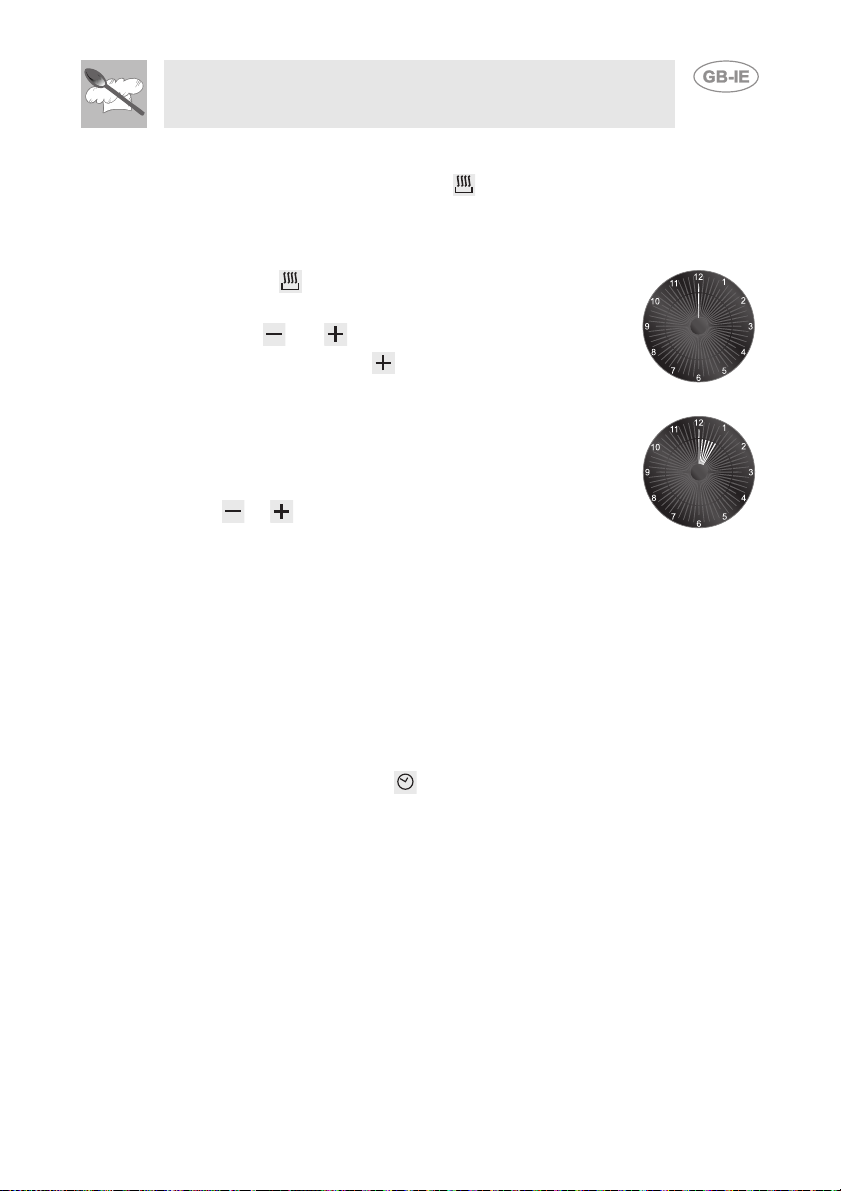

• Press and the display will light up as shown in
figure 1.
• Within 6/7 seconds, press the or keys to set
the timer. Each time a key is pressed, 1 outside
segment, representing 1 minute of cooking time,
will light up or go out. (figure 2 shows a cooking
time of 10 minutes).
• 6/7 seconds after the last key is pressed, the
countdown will start; when it finishes, the buzzer
will sound.
• During the countdown, the current time can be
viewed by pressing the key once; press it again
to return to the timer display.
• At the end of the countdown, the oven must be
switched off manually by turning the
thermostat and function selector knob to 0.
1)
2)
12
Page 11
Instructions for the user
7.0.4 Programming
Cooking duration: the 2nd button can be pressed to set the cooking
duration. Before it can be set, the thermostat must be turned to the
cooking temperature required and the function selector knob to any
setting. To set the cooking duration, proceed as follows:
• Press the key for 1 / 2 seconds; the pointer will
locate on 12 (Fig. 1).
• Use the and key to set the cooking duration:
each pressure on the key adds 1 minute to the
cooking duration, and every 12 minutes a new
inside segment will light up (figure 2 shows a
cooking duration of 1 hour).
• Once the duration required is obtained, cooking
will start about 6 seconds after the last pressure
on or .
• Once cooking has started the display will show the
current time, represented by the constantly
illuminated segments, and the minutes left to the
end of the cooking time, represented by the
flashing segments (each flashing segment means
12 minutes of cooking time left).
• At the end of the cooking time the timer will switch the oven heating
elements off, the beeps will start to sound and the numbers on the dial
will flash.
• The duration can also be reset by resetting the program selected:
pressing the central key for 1 or 2 seconds will delete the duration
set and the oven will have to be switched off in manual mode.
Warning: it is not possible to set cooking durations of more than 6
hours.
1)
2)
13
Page 12
Instructions for the user
Starting cooking: as well as setting a cooking duration, the cooking start
time can also be set (with a maximum delay of 12 hours in relation to the
current time). To set the cooking start/end time, proceed as follows:
• Set the cooking duration as described in the previous point.
• Within 6/7 seconds of the last pressure on the or keys, press the
key again to set the cooking start time. The current time will appear
on the display with internal segments illuminated to show the end of
cooking time. Use the and keys to set the cooking start time.
• 6/7 seconds after the last key is pressed, the display will show the
current time and the cooking start and end times, which will be
represented by the illuminated inside segments. The display segments
will be constantly illuminated as long as the current time is not the
same as the cooking start time; as soon as the current time reaches
the set starting time, all the inside segments will start to flash,
indicating that the oven has started cooking.
• At the end of the cooking time the timer will switch the oven heating
elements off, the beeps will start to sound and the numbers on the dial
will flash.
• To reset the whole program set, keep the central key pressed for 1
or 2 seconds: if cooking has already started, the oven will have to be
switched off by hand.
• Here we can see a programming example: the
current time is 7:06 and cooking is programmed to
start at 8:00 and end at 9:00.
• At 8 o'clock the inside segments between 8 and 9
will start to flash, while the hours hand will remain
still.
Warning: for the oven to start cooking operations after the
programming procedures just described, the thermostat and
function selector knob must correctly set on the temperature and
function required.
14
8. ELECTRONIC TIMER (ON SOME MODELS ONLY)
Page 13
Instructions for the user
LIST OF FUNCTIONS
MINUTE-MINDER BUTTON
COOKING DURATION BUTTON
END OF COOKING BUTTON
VALUE DECREASE BUTTON
VALUE INCREASE BUTTON
MANUAL MODE BUTTON
8.1 Setting the time
When the oven is used for the first time, or after an interruption in the
electricity supply, the display flashes at regular intervals, showing .
Press to stop the display flashing. Press the value modification keys
or within 5 seconds to increase or decrease the setting by one minute
for each pressure.
Press one of the two value modification keys until the current time
appears.
Before each programmer setting, switch on the function and set the
temperature required.
8.2 Semiautomatic cooking
This function only switches the oven off automatically at the end of the
cooking time.
Press the key and the display will light up showing the figures ;
keep it pressed, and at the same time use the value modification keys
or to set the cooking duration.
A few seconds after the key is released, the count of the programmed
cooking duration will start and the display will show the current time
together with the symbols A and .
8.3 Automatic cooking
15
Page 14
Instructions for the user
This function switches the oven on and off in fully automatic mode.
Press the key and the display will light up showing the figures ;
keep it pressed, and at the same time use the value modification keys
or to set the cooking duration.
Press the key and the display will show the sum of the current time plus
the cooking duration just set: keep it pressed, and at the same time use
the value modification keys or to adjust the cooking end time.
A few seconds after the key is released, the programmed count will
start and the display will show the current time together with the symbol A.
When the cooking start time calculated automatically by the timer on the
basis of the data entered is reached, the display will show the A and
symbols together
After the setting, to view the cooking time left press the key; to view the
cooking end time press the key. The logic prevents the setting of
incompatible values (e.g. the timer will not accept a cooking end time with
a duration which is too long for this value).
8.4 Minute-Minder
The programmer can also be used as an ordinary timer. Press the key
and the display will show the figures ; keep it pressed and
simultaneously press the value modification keys or . When the key
is released the programmed count will start and the display will show the
current time and the symbol .
16
After the setting, to display the time left press the key.
In timer mode, the system will not cut out operation of the oven at the end
of the set time.
8.5 End of cooking
At the end of the cooking time the oven will switch off automatically and
simultaneously a buzzer will start to sound in on-off mode.
After the buzzer is stopped, the display will return to showing the current
time together with the symbol, indicating that the oven is again ready
for use in manual mode.
8.6 Adjusting the buzzer volume
The buzzer volume can be varied (3 settings) while it is in operation by
pressing .
Page 15
Instructions for the user
8.7 Stopping the buzzer
The buzzer stops automatically after seven minutes. It can be stopped in
manual mode by pressing the and keys together. To switch off the
appliance, return all the knobs to the 0 setting in sequence.
8.8 Deleting the data set
With the program set, keep the key of the function for deletion ( or )
pressed, while at the same time setting the value by pressing the
value modification keys or . The timer will interpret deletion of the
duration as the end of cooking.
8.9 Modifying the data set
The cooking data set can be modified at any moment by keeping the key
of the function for modification ( or ) pressed and at the same time
pressing the value modification keys or .
17
Page 16
Instructions for the user
9. USING THE OVEN
Before using the oven, check that the display is showing the symbol
(see point "8.1 Setting the time").

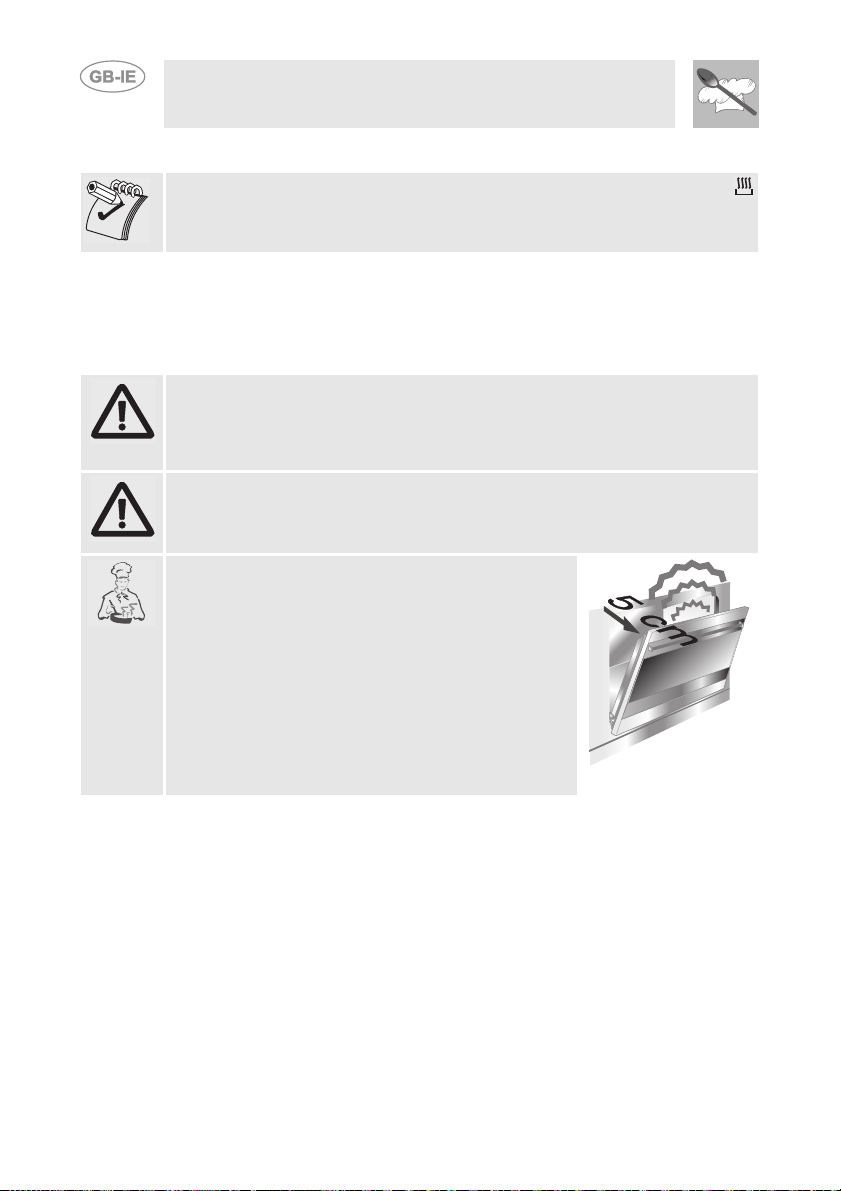

9.1 Precautions and General Advice
When the oven and grill are used for the first time, they should be heated
to the maximum temperature for long enough to burn off any oily residues
left by the manufacturing process, which might contaminate foods with
unpleasant smells.
During cooking, do not cover the bottom of the oven with aluminium or tin
foil, and do not place pans or trays on it; this may damage the enamel
coating. If you wish to use greaseproof paper, position it so that it does not
interfere with the hot air circulation inside the oven.
Oven accessories which may come into contact with foods are made from
materials compliant with directive 89/109/EEC of 21/12/88 and relevant
national regulations.
To avoid unpleasant contact with any steam inside
the oven, open the door in two stages: hold it halfopen (about 5 cm) for 4-5 seconds, then open it
completely. If you have to carry out any procedures
on foods, leave the door open for as short a time as
possible to prevent a drop in the oven temperature
which will impair the cooking results. When the
door is opened the oven's internal fan cuts out
automatically; it starts up again when the door is
closed.
18
Page 17
Instructions for the user
9.2 Cooling fan system (on some models only)
The appliance is equipped with a cooling system which comes into
operation when the oven is switched on. Operation of fans generates a
normal air flow which comes out above the door and may continue for a
short time even after the oven is switched off.

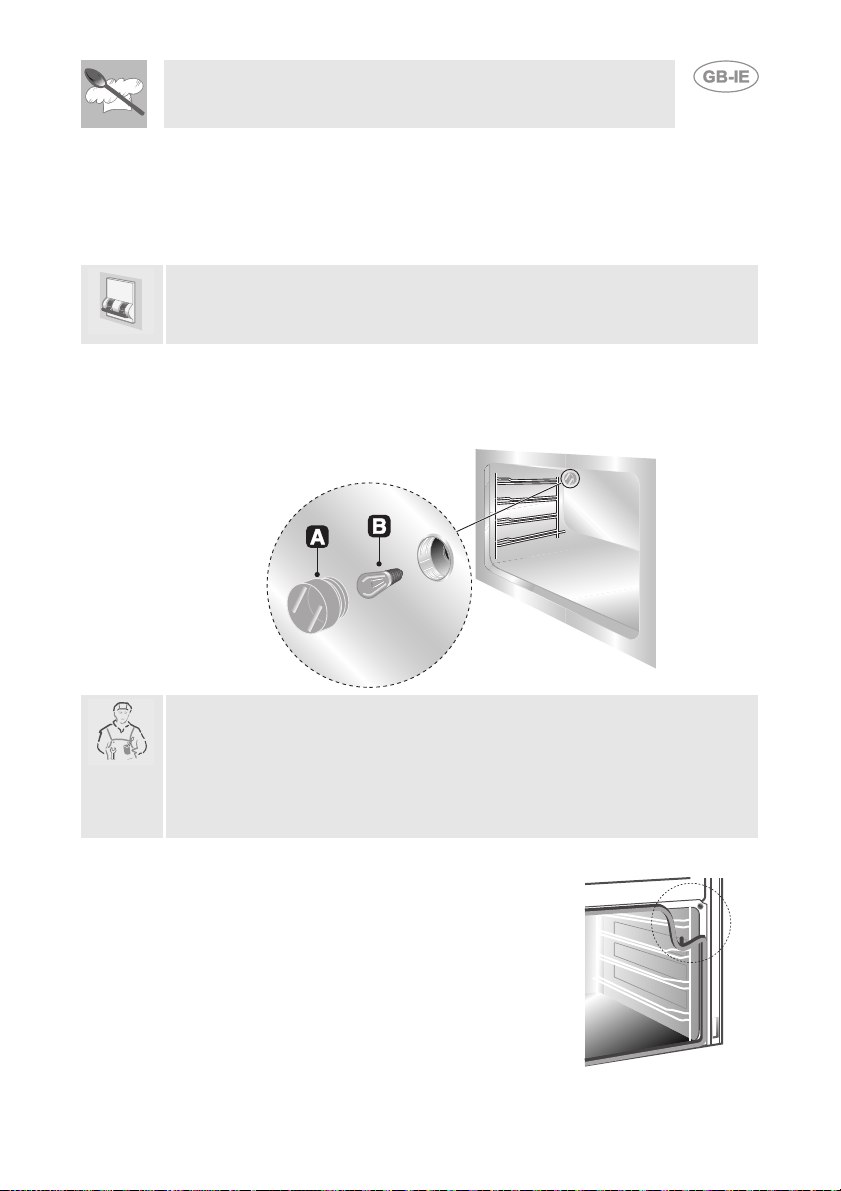

9.3 Inside light (Depending on model)
Depending on the model, the oven light switches on:
• when the oven door is opened, or
• when the function knob is turned to any function.
19
Page 18
Instructions for the user

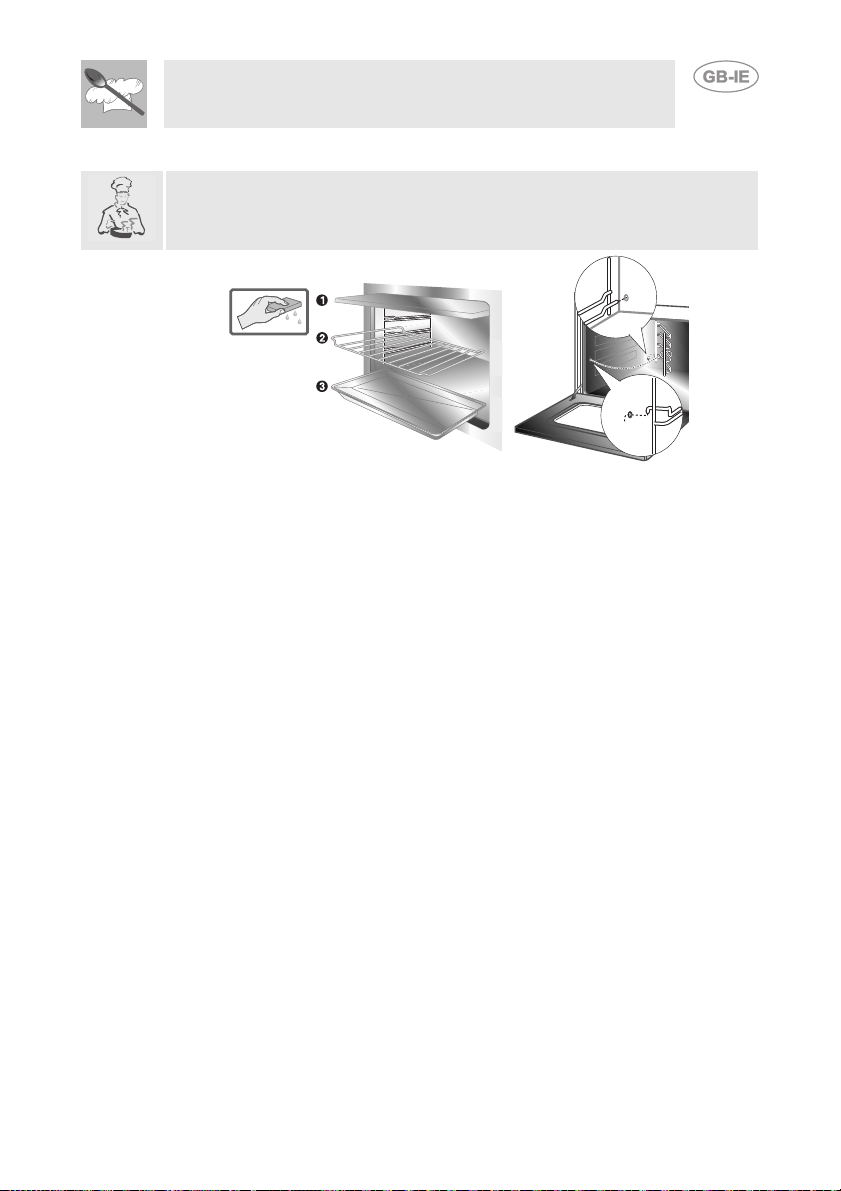

10. ACCESSORIES AVAILABLE
The oven is fitted with 4 runners for placing
trays and shelves at different heights.
Shelf: useful to support pans containing the
food for cooking.
Tray g r i d : for placing on top of a tray for
cooking foods which may drip.
Oven tray: useful for collecting fat from foods
placed on the grid above.
Baking tray: useful for cooking cakes, pizza
and confectionery.
Roof liner: remove it to simplify cleaning
inside the oven.
Chromium-plated gripper: useful for
removing hot shelves and trays.
20
Not all accessories are provided on some models.
Optional accessories
Original accessories can be ordered through our Authorised Service
Centres.
Page 19
Instructions for the user
11. COOKING ADVICE
The oven should always be preheated in fan mode to 30/40°C above the
cooking temperature. This considerably shortens cooking times and
reduces electricity consumption, as well as giving better results.
The oven door must be closed during cooking operations.
11.1 Conventional cooking
FUNCTION SELECTOR
THERMOSTAT
This conventional cooking method, with heat from above and below, is
suitable for cooking food on just one shelf. The oven must be preheated to
the chosen temperature. Do not place the food in the oven until the
thermostat light goes out. Place frozen meat in the oven directly, without
thawing. The only precaution required is to set temperatures about 20°C
lower and cooking times about 1/4 longer than for fresh meat.
50 ÷ 250 °C
11.2 Hot air cooking
FUNCTION SELECTOR
THERMOSTAT
This system is suitable for cooking on several shelves, even with foods of
different kinds (fish, meat, etc.) without cross-contamination of flavours or
smells. The air circulation inside the oven ensures uniform heat
distribution.
Multiple cooking is possible provided that all foods require the same
temperature.
50 ÷ 250 °C
21
Page 20
Instructions for the user

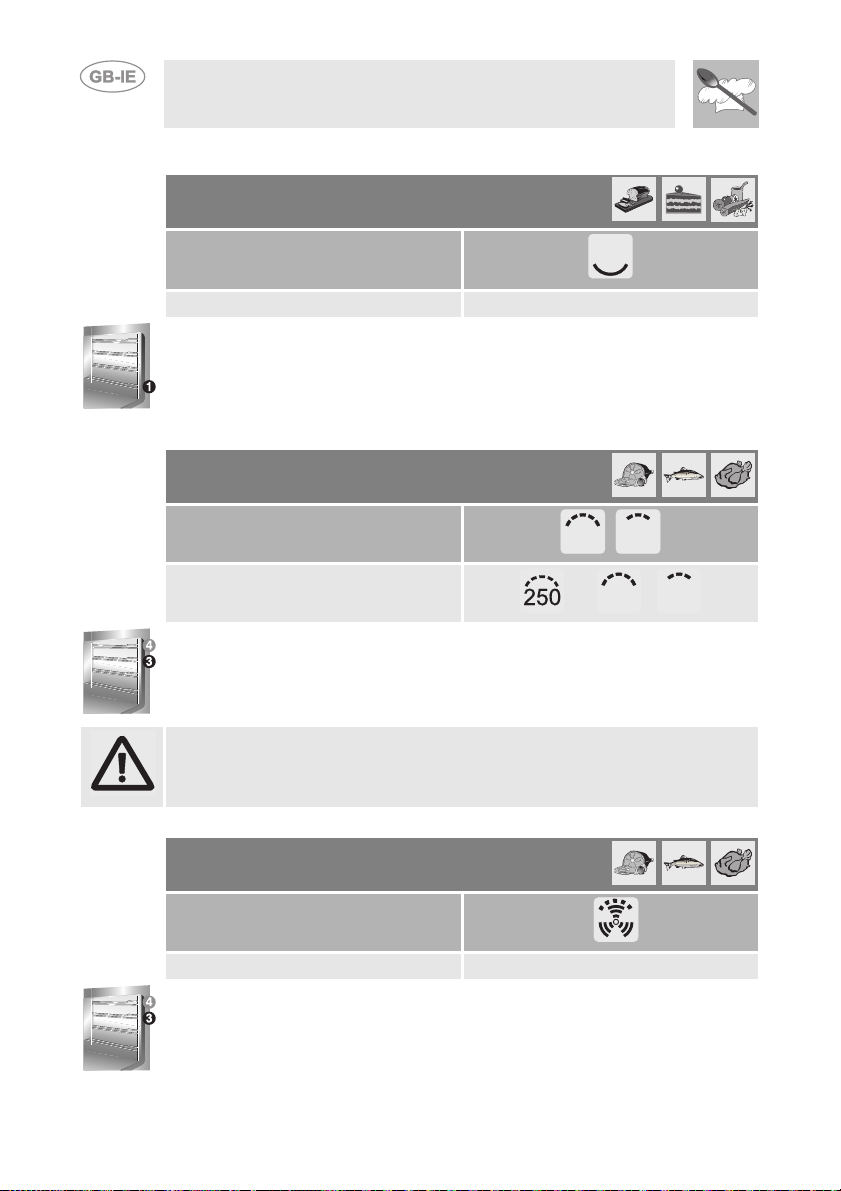

11.3 Delicate cooking
FUNCTION SELECTOR
THERMOSTAT
50 ÷ 250 °C
This type of cooking, for which it is extremely important to preheat the
oven in fan mode, is particularly suitable for finishing cooking of foods
underneath, or for processes which require heat mainly from below. The
tray should be placed on the bottom runner.
11.4 Grilling
FUNCTION SELECTOR
THERMOSTAT
O /
Used for quick browning of foods. For short processes and small amounts,
place the shelf on the fourth runner from the bottom. For longer cooking
times and grilling, place the shelf on lower runners, depending on the size
of the food.
Keep the door closed when grilling is in progress. Grilling with the
door open may permanently damage the oven and reduce operating
safety.
11.5 Hot air grilling
22
FUNCTION SELECTOR
THERMOSTAT
Allows uniform heat distribution with better penetration to the core of
foods. Foods are lightly browned on the outside but still soft on the inside.
200 °C
During cooking the oven door must be closed, and the maximum
heating time must not exceed 60 minutes
.
Page 21
Instructions for the user
Keep the door closed when grilling is in progress. Grilling with the
door open may permanently damage the oven and reduce operating
safety.

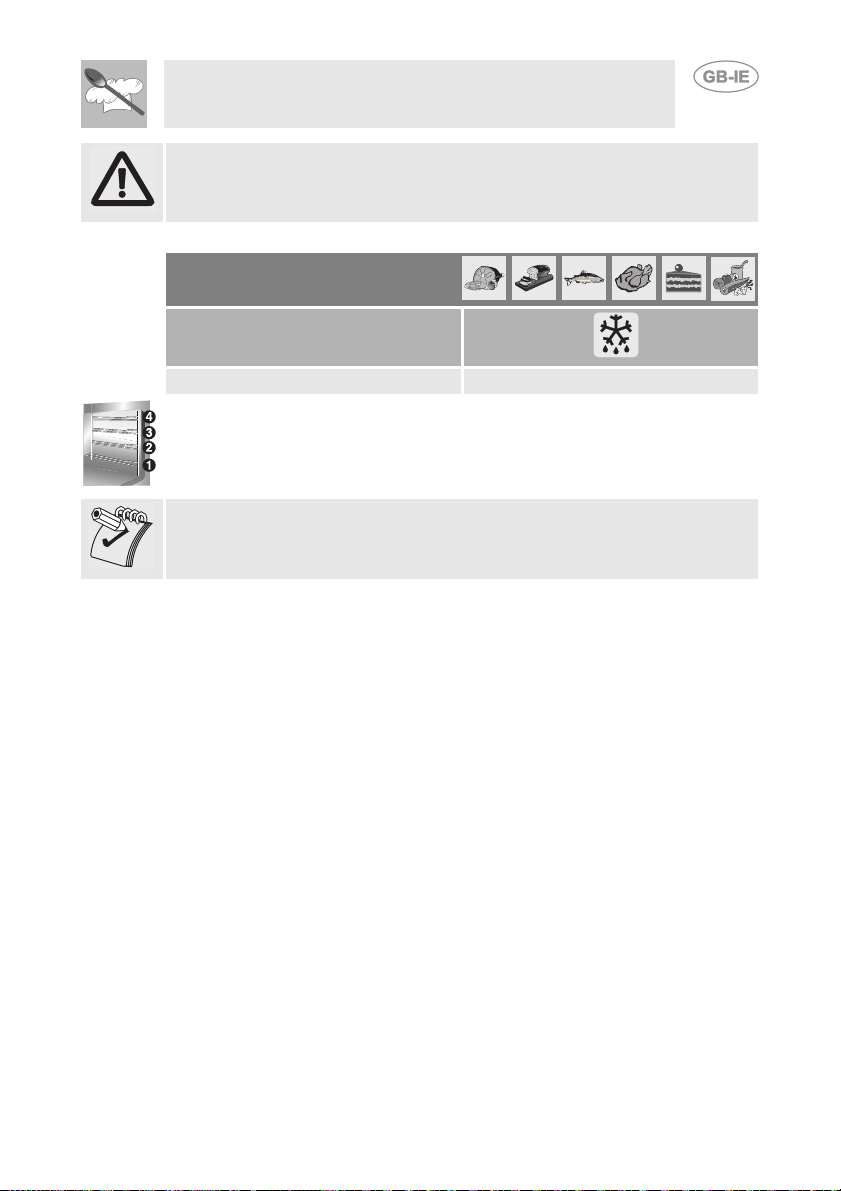

11.6 Defrosting
FUNCTION SELECTOR
THERMOSTAT
The air movement provided by the fan alone thaws foods more quickly.
The air circulating inside the oven is at room temperature.
Defrosting at room temperature has the advantage that the food's flavour
and appearance are retained intact.
0
23
Page 22
Instructions for the user
11.7 Recommended cooking tables
Cooking times, for meat in particular, vary depending on the food's
thickness and quality and personal preference. All times are calculated
with the oven preheated.
CONVENTIONAL COOKING
RUNNER POSITION FROM
THE BOTTOM
PA STA
LASAGNE
PASTA BAKES
MEAT
ROAST VEAL
ROAST BEEF
ROAST PORK
CHICKEN
DUCK
GOOSE-TURKEY
RABBIT
LEG OF LAMB
FISH 1 - 2 170 - 200 Depending on size
PIZZA 1 - 2 210 - 240 40 - 45
CONFECTIONERY
PASTRY
SPONGE CAKE
CROISSANTS
FRUIT CAKE
ANGEL CAKE
APPLE CAKE
RICE CAKE
2 - 3
2 - 3
2
2
2
2
2
2
2
2
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
TEMPERATURE
°C.
210 - 230
210 - 230
170 - 200
210 - 240
170 - 200
170 - 200
170 - 200
140 - 170
170 - 200
170 - 200
170 - 200
165
170 - 200
170 - 200
170
190
180
TIME IN MINUTES
30
40
30 - 40 PER Kg.
30 - 40 PER Kg.
30 - 40 PER Kg.
45 - 60
45 - 60
45 - 60
50 - 60
40 - 50
15 - 20
35 - 45
40 - 45
20 - 30
60
60
60
PORK CHOP
PORK FILLET
FILLET STEAK
SLICED LIVER
VEAL ESCALOPES
HALF CHICKEN
SAUSAGE
MEATBALLS
FISH FILLET
TOASTED SANDWICHES
24
GRILLING
RUNNER POSITION
FROM THE BOTTOM
4
3
3
4
4
3
4
4
4
4
TIME IN MINUTES
1ST SIDE 2ND SIDE
7 - 9
9 - 11
9 - 11
2 - 3
7 - 9
9 - 14
7 - 9
7 - 9
5 - 6
2 - 4
5 - 7
5 - 9
9 - 11
2 - 3
5 - 7
9 - 11
5 - 6
5 - 6
3 - 4
2 - 3
Page 23
Instructions for the user
HOT AIR COOKING
RUNNER POSITION FROM
THE BOTTOM
PASTA
LASAGNE
PASTA BAKES
CREOLE RICE
MEAT
ROAST VEAL
ROAST PORK
ROAST BEEF
FILLET STEAK
ROAST LAMB
RARE ROAST BEEF
ROAST CHICKEN
ROAST DUCK
ROAST TURKEY
ROAST RABBIT
ROAST HARE
ROAST PIGEON
FISH 2 - 3 150 - 170 Depending on size
PIZZA
BREAD
TOASTED SANDWICHES
CONFECTIONERY
SPONGE CAKE
FRUIT CAKE
CROISSANTS
PASTRY
RICE CAKE
APPLE CAKE
ANGEL CAKE
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2 - 3
2 - 3
1 - 2
2 - 3
2 - 3
2 - 3
2 - 3
2 - 3
2 - 3
2 - 3
TEMPERATURE°CTIME IN MINUTES
190 - 210
190 - 210
190 - 210
150 - 170
150 - 160
160 - 170
160 - 180
130 - 150
170 - 180
170
160 - 170
150 - 160
150 - 160
160 - 170
140 - 170
210 - 240
190 - 210
220 - 240
150 - 160
150 - 160
150 - 160
150 - 160
150 - 160
150 - 160
150 - 160
20 - 25
25 - 30
20 - 25
65 - 90
70 - 100
65 - 90
35 - 45
100 - 130
40 - 45
70 - 90
100 - 160
160 - 240
80 - 100
30 - 50
15 - 25
30 - 50
40
7
35 - 45
40 - 50
40 - 60
25
65
65
65
25
Page 24
Instructions for the user
12. CLEANING AND MAINTENANCE
Before carrying out any operations, disconnect the appliance from the
electricity supply.
Never use a jet of steam for cleaning the inside of the oven.
12.1 Cleaning stainless steel
To keep stainless steel in good condition, it must be cleaned regularly,
after each use of the oven, after allowing it to cool.
12.2 Routine daily cleaning
When cleaning and caring for stainless steel surfaces, always use only
specific products which do not contain abrasives or chlorine-based acids.
Instructions for use: pour the product onto a damp cloth and wipe over
the surface, then rinse thoroughly and dry with a soft cloth or chamois
leather.
12.3 Food stains or spills
Never use metal scouring pads or sharp scrapers; they will
damage surfaces.
Use ordinary non-abrasive products with the aid of wooden or
plastic utensils if necessary. Rinse thoroughly and dry with a soft
cloth or chamois leather.
Do not allow spills of foods with high sugar content (e.g. jam) to
dry inside the oven. If they dry for too long, they might damage
the enamel coating of the inside of the oven.
26
Page 25
Instructions for the user
12.4 Cleaning the oven
To keep the oven in good condition, it must be cleaned regularly,
after allowing it to cool down.
Remove all removable parts.
• Clean the oven shelves with hot water and non-abrasive detergents,
rinse and dry.
• For easier cleaning, the door can be removed (see point “12.6
Removing the door”).
12.5 Cleaning the oven with self-cleaning liners (on some
models only)
The oven is fitted with enamelled liners that are continuously self-cleaning.
These liners simplify cleaning of the oven and ensure it continues to
perform well over time.
12.5.1 Using the self-cleaning liners
To keep the inside of the oven clean and free from food residues and
unpleasant smells, it should periodically be operated empty at a
temperature of at least 200° C for a time varying between 30 and 60
minutes. This allows the self-cleaning liners to oxidise any deposits
present, which can then be wiped away with a damp sponge once the
oven has cooled.
12.5.2 Maintenance of self-cleaning liners
The liners should not be cleaned using abrasive creams and ordinary
cleaners. Simply wipe with a damp sponge to avoid damaging the special
enamel coating.
27
Page 26
Instructions for the user
12.5.3 Removing the self-cleaning liners
Remove all accessories from the inside of the oven and proceed as
follows:
1 Remove the side runners (fig.1);
2 Extract the side liners “F” and “G” (fig. 2); 3 Extract the back liner “A” after undoing the threaded ring-nut “C” (fig. 2); 4 Replace the liners in their original positions.
1) 2)
12.6 Removing the door
12.6.1 Removing doors with mobile hinges
With the door completely open, lift the levers A of the two hinges until they
touch the hinges B and take hold of the two sides of the door with both
hands close to the hinges themselves. Raise the door to an angle of about
45° and remove it. If the hinges have not locked, repeat the operation,
raising the levers A and keeping the door slightly raised. To reassemble, fit
the hinges B into their grooves, then lower the door into place, ensuring
that it remains fitted into the grooves C, then lower the levers A.
28
Page 27
Instructions for the user

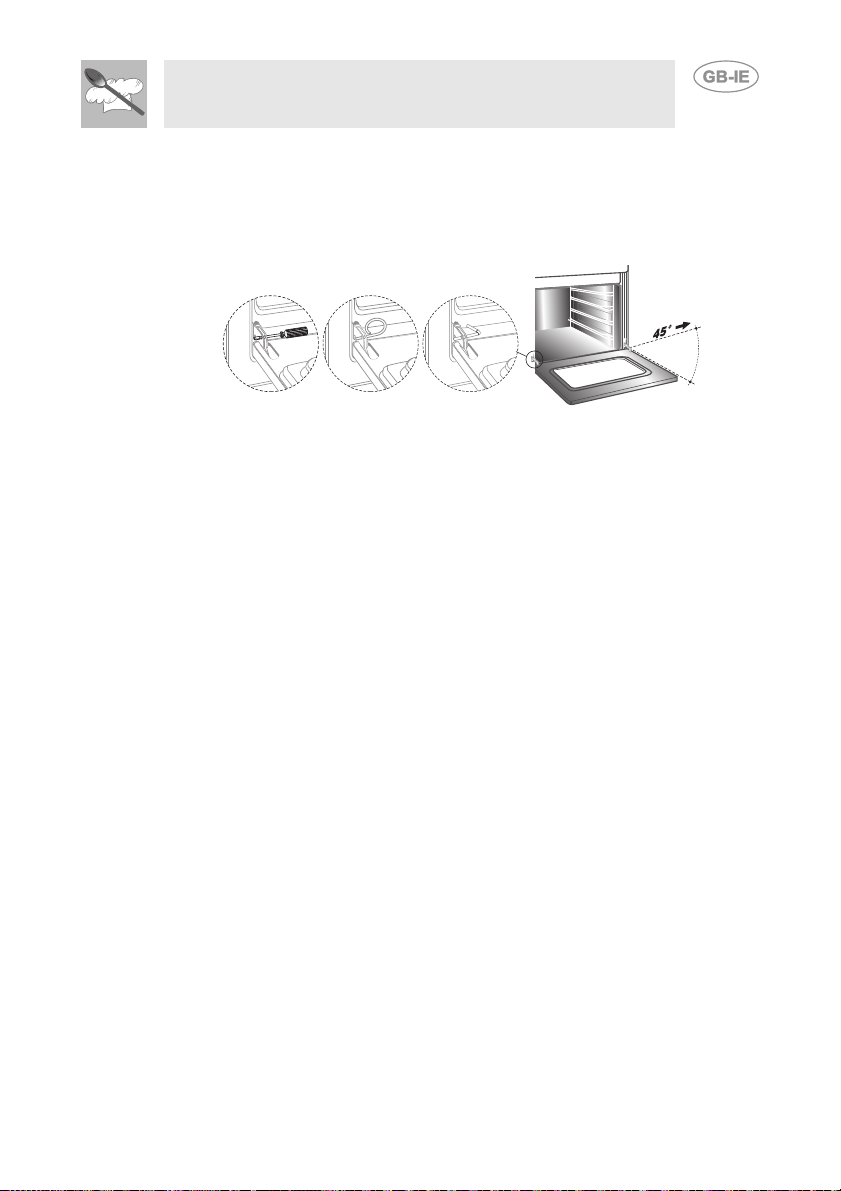

12.6.2 Removing doors with pins
Open the door completely and insert the pins (supplied) into the holes
from the inside. Close the door to an angle of about 45° and lift it off. To
reassemble, fit the hinges into their grooves, then lower the door into place
and extract the pins.

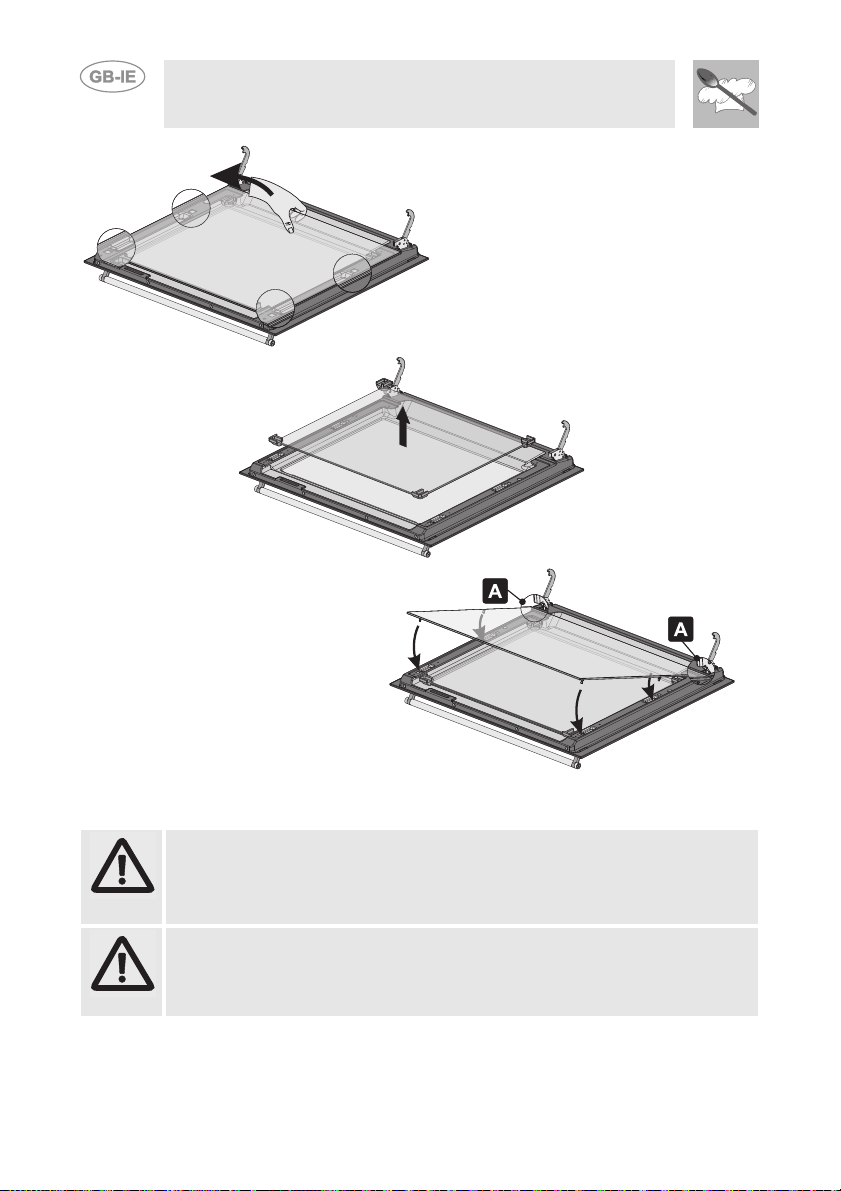

12.7 Removing the door glazing
The glass in the door should always be kept thoroughly clean. For easier
cleaning, the door glazing can be fully removed by proceeding as
described below. After blocking the door in position as described in point
"12.6 Removing the door", remove the inner glass using leverage as
shown in figure 1, and release the 4 pins which fix the glass to the door. If
your oven also has the middle glass (figure 2) this can simply be lifted out.
After cleaning, first fit the middle glass (if featured on your oven) and then
replace the inner glass, using the oven door supports as a fulcrum as
shown in figure 3 (see detail A in figure 3. Once the glass has been fitted
on the door, apply a little pressure against the 4 fixing pins.
If the door should close during these operations, simply relock one of the
hinges as described in point "12.6 Removing the door". The panes of
glass can now be washed separately.
29
Page 28
Instructions for the user
1)
2)
30
3)
Use absorbent kitchen roll; remove stubborn dirt with a damp sponge and
ordinary detergent.
Warning: before removing the panes of glass, make sure that the door has
been locked in open position as described in points "12.6 Removing the
door". This operation might have to be repeated during the removal
process if the door is accidentally freed.
To replace the panes of glass in the oven door, follow the instructions
provided in reverse order.
WARNING. Never use the oven without the glass fitted: the outside
surface of the door overheads
Page 29
Instructions for the user
13. EXTRAORDINARY MAINTENANCE
Occasionally, the oven will require minor servicing procedures or the
replacement of parts subject to wear and tear, such as gaskets, light
bulbs, etc. The specific operations for each procedure of this kind are
provided below.
Before carrying out any operation involving access to live parts,
disconnect the appliance from the electricity supply.
13.1 Changing the light bulb
Remove the protective cover A by unscrewing it anti-clockwise and
replace the bulb B with another of the same type (25 W). Replace the
protective cover A.
Use only light bulbs approved for ovens (T 300°C).
8-function model with glass front panel. The standard light bulbs are of
halogen type: do not touch them with your fingers, wrap them in an
insulating material. Use only light bulbs available from our authorised
service centres.
13.2 Removing the gasket
To allow thorough cleaning of the oven, the door
gasket can be removed.
Before removing the gasket, remove the oven
door as described above. Once the door has
been removed, lift the tangs at the corners as
shown on the right.
31
Page 30
Instructions for the installer
14. INSTALLING THE APPLIANCE

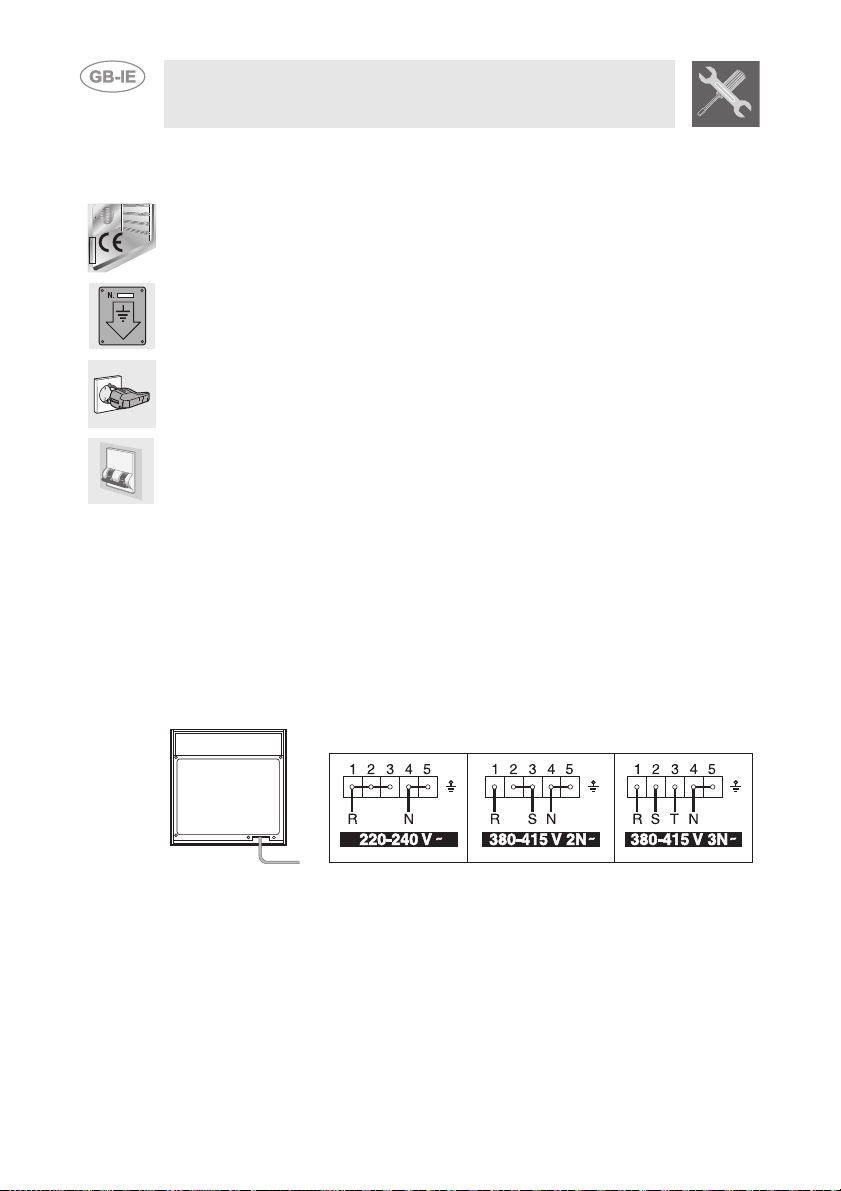

14.1 Electrical connection
The nameplate with the technical data, serial number and mark is in a
visible position on the oven door surround.
The nameplate must never be removed.
The appliance must be connected to earth in compliance with electrical
system safety regulations.
If a permanent connection is used, the appliance's power supply line must
be fitted with an omnipolar breaking device with contact gap of at least
3mm, located in an easily accessible position close to the appliance itself.
If a socket and plug connection is used, check that they are of the same
type. Do not use reducers, adapters or junctions since they may cause
overheating or burns.
14.1.1 Ovens with hob controls
On ovens with hob controls the power supply lead is not supplied. Use
a H05RR-F or H05RN-F rubber cable and when positioning it ensure that
it does not touch the metal parts of the appliance's external casing.
To access the terminal board, remove the appliance's back cover by
unscrewing the relative screws. If necessary, change the positions of the
jumpers on the terminal board as shown, then connect the wires, making
sure that the earth wire is at least 20 mm longer. Fix the power supply lead
to the appliance using the cable clamp provided.
32
Page 31
Instructions for the installer
Operation at 220-240 V~: use a
H05RR-F / H05RN-F three-wire cable
(cable of 3 x 4 mm
Operation at 380-415V2N~: use a type
H05RR-F / H05RN-F four-wire cable
(cable of 4 x 2.5 mm
Operation at 380-415V3N~: use a type
H05RR-F / H05RN-F five-wire cable
(cable of 5 x 1.5 mm
The earth wire (yellow-green) must be at
least 20 mm longer than the other wires
at the end for connection to the
appliance.

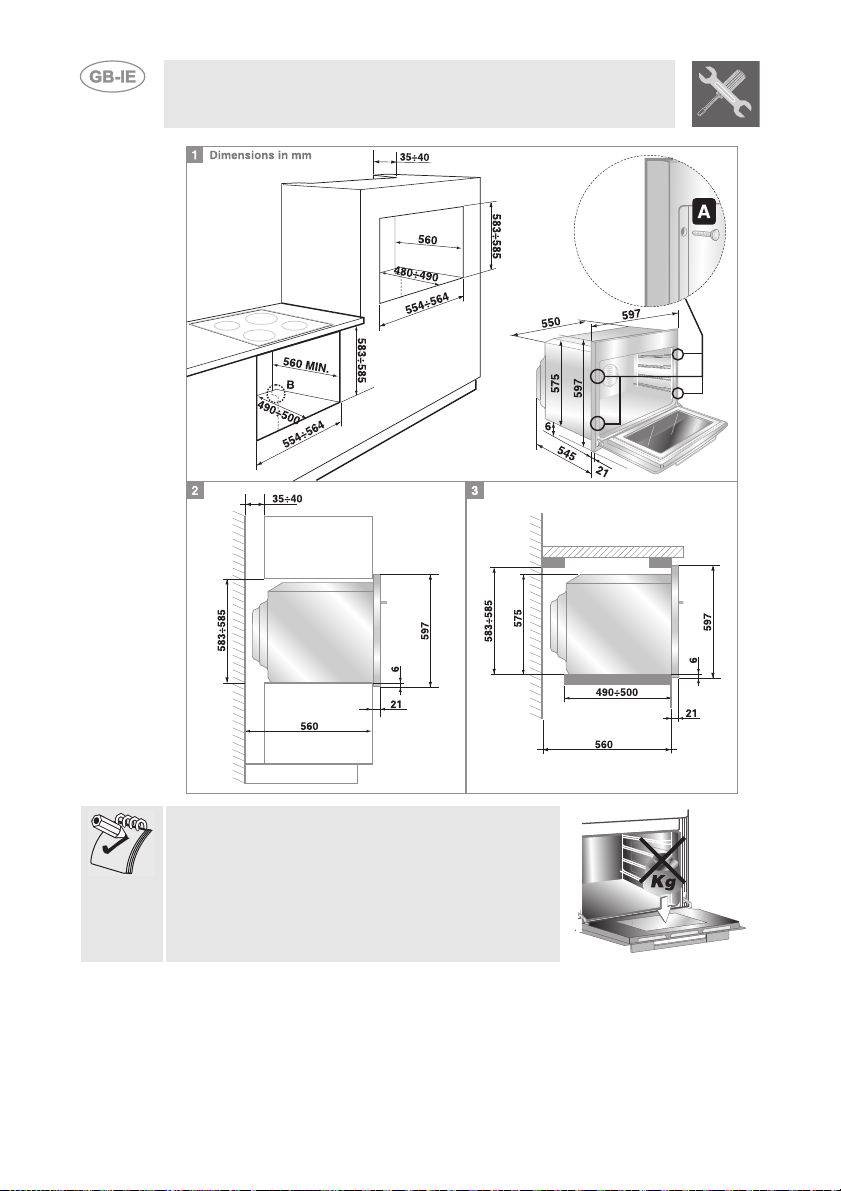

14.2 Positioning the oven
The appliance is designed for building-in to cabinets made from any heatresistant material. Comply with the dimensions shown in figures 1, 2, and
3. When installing under worktops, comply with the dimensions shown in
figure 1-3. When installing under worktops incorporating combined hobs, a
gap of at least 110 mm must be left from any side wall, as shown in figure
1. When installing in tall units, comply with the dimensions shown in figure
1-2, bearing in mind that the top/rear of the unit must have an opening 80-
90 mm deep. Screw the 4 screws A into the inside of the frame (fig. 1). For
installation under counter-top hobs, make sure that the rear/bottom of the
unit has an opening similar to that shown in figure 1 (ref. B). See the
instructions supplied with the hob for the relative positioning and fixing
procedures.
2
).
2
).
2
).
33
Page 32
Instructions for the installer
34
Never use the door for leverage when inserting
the oven in the cabinet. Never apply excessive
pressure to the open door.
Page 33
Instructions for the installer
14.3 Hob-oven connection
Once installed, the combined hob must be connected to the oven. Fit the
oven into the built-in installation opening, leaving enough room to carry out
the operations described below:
connect the yellow-green earth wire of the hob to the oven's earth terminal
A (see figure);
connect the hob connectors to the sockets provided on the top casing of
the oven. The colours and symbols of the connectors must correspond to
those on the oven sockets;
if the hob has a residual heat warning device connector, connect it to the
unused socket on the right-hand side.
At this point the oven can be completely built-into the cabinet, taking care
to place the power supply lead along the best possible route and ensuring
that it is not touching hot parts.
35
Loading...
