Washing Machine
SAWS 8160-1
User’s Manual
Document Number
2820525311/ 22-01-16.(10:35)
1 Important instructions for safety and environment
This section contains safety instructions that will help protect from risk of
personal injury or property damage. Failure to follow these instructions shall
void any warranty.
1.1 General safety
• This product can be used by children at and above 8 years old and by persons
whose physical, sensory or mental capabilities were not fully developed or
who lack experience and knowledge provided that they are supervised or
trained on the safe usage of the product and the risks it brings out. Children
must not play with the product. Cleaning and maintenance works should not
be performed by children unless they are supervised by someone. Children of
less than 3 years should be kept away unless continuously supervised.
• Never place the product on a carpet-covered floor. Otherwise, lack of airflow
beneath the machine will cause electrical parts to overheat. This will cause
problems with your product.
• If the product has a failure, it should not be operated unless it is repaired by
the Authorized Service Agent. There is the risk of electric shock!
• This product is designed to resume operating in the event of powering on after
a power interruption. If you wish to cancel the programme, see "Cancelling
the programme" section.
• Connect the product to a grounded outlet protected by a 16 A fuse. Do not
neglect to have the grounding installation made by a qualified electrician. Our
company shall not be liable for any damages that will arise when the product
is used without grounding in accordance with the local regulations.
• The water supply and draining hoses must be securely fastened and remain
undamaged. Otherwise, there is the risk of water leakage.
• Never open the loading door or remove the filter while there is still water in the
drum. Otherwise, risk of flooding and injury from hot water will occur.
• Do not force open the locked loading door. The loading door will be ready to
open just a few minutes after the washing cycle comes to an end. In case of
forcing the loading door to open, the door and the lock mechanism may get
damaged.
• Unplug the product when not in use.
• Never wash the product by spreading or pouring water onto it! There is the
risk of electric shock!
2 / EN
Washing Machine /User’s Manual
Important instructions for safety and environment
• Never touch the plug with wet hands! Never unplug by pulling on the cable,
always pull out by grabbing the plug.
• Use detergents, softeners and supplements suitable for automatic washing
machines only.
• Follow the instructions on the textile tags and on the detergent package.
• The product must be unplugged during installation, maintenance, cleaning
and repairing procedures.
• Always have the installation and repairing procedures carried out by the
Authorized Service Agent. Manufacturer shall not be held liable
for damages that may arise from procedures carried out by unauthorized
persons.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similary qualified persons in order to avoid a hazard.
• If the power cable is damaged, it must be replaced by the manufacturer,
after sales service or a similarly qualified person (preferably an electrician) or
someone designated by the importer in order to avoid possible risks.
• Place the product on a rigid, flat and level surface.
• Do not place it on a long-pile rug or similar surfaces.
• Do not place the product on a high platform or near the edge on a cascaded
surface.
• Do not place the product on the power cable.
• Never use sponge or scrub materials. These will damage the painted, chrome
plated and plastic surfaces.
1.2 Intended use
• This product has been designed for domestic use. It is not suitable for
commercial use and it must not be used out of its intended use.
• The product must only be used for washing and rinsing of laundry that are
marked accordingly.
• The manufacturer waives any responsibility arisen from incorrect usage or
transportation.
Washing Machine /User’s Manual
3 / EN
Important instructions for safety and environment
1.3 Children's safety
• Packaging materials are dangerous to children. Keep packaging materials in a
safe place away from reach of the children.
• Electrical products are dangerous for the children. Keep children away from
the product when it is in use. Do not let them to tamper with the product. Use
child lock to prevent children from intervening with the product.
• Do not forget to close the loading door when leaving the room where the
product is located.
• Store all detergents and additives in a safe place away from the reach of
the children by closing the cover of the detergent container or sealing the
detergent package.
While washing the laundry at high temperatures, the loading
door glass becomes hot. Therefore, keep especially the
children away from the loading door of the machine while the
washing operation is in progress.
1.4 Package information
• Packaging materials of the product are manufactured from recyclable
materials in accordance with our National Environment Regulations. Do
not dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated by
the local authorities.
1.5 Disposing of the waste product
• This product has been manufactured with high quality parts and materials
which can be reused and are suitable for recycling. Therefore, do not dispose
the product with normal domestic waste at the end of its service life. Take it
to a collection point for the recycling of electrical and electronic equipment.
Please consult your local authorities to learn the nearest collection point. Help
protect the environment and natural resources by recycling used products. For
children's safety, cut the power cable and break the locking mechanism of the
loading door so that it will be non-functional before disposing of the product.
4 / EN
Washing Machine /User’s Manual
Important instructions for safety and environment
1.6 Compliance with WEEE Directive
This product complies with EU WEEE Directive (2012/19/EU).
This product bears a classification symbol for waste electrical
and electronic equipment (WEEE).
This product has been manufactured with high quality parts
and materials which can be reused and are suitable for
recycling. Do not dispose of the waste product with normal
domestic and other wastes at the end of its service life. Take
it to the collection center for the recycling of electrical and
electronic equipment. Please consult your local authorities to
learn about these collection centers.
Compliance with RoHS Directive:
The product you have purchased complies with EU RoHS Directive (2011/65/
EU). It does not contain harmful and prohibited materials specified in the
Directive.
Washing Machine /User’s Manual
5 / EN
2 Your washing machine
2.1 Overview
1
2
8
1- Power cable
2- Top panel
3- Control panel
4- Drain hose
3
4
5
6
7
5- Loading door
6- Filter cap
7- Adjustable feet
8- Detergent drawer
6 / EN
Washing Machine /User’s Manual
Your washing machine
2.2 Package Contents
2
1
3 4
a
b
6
c
8
7
5
1- Power cable
2- Drain hose
3- Transportation safety bolts *
4- Mains water inlet hose (One of the following filter types is used for the mains hose connection.)
a- Electronic water shut-off
b- Mechanical water shut-off
c- Standard
5- Liquid detergent container**
6- User Manual
7- Blind plug***
8- Plastic plug assembly
* Number of transportation safety bolts may change depending on the model of your machine.
** This may be supplied with the machine depending on the model of your machine.
*** This is supplied if your machine is equipped with double water inlet.
Washing Machine /User’s Manual
7 / EN
Your washing machine
2.3 Technical specifications
Models (EN)
Maximum dry laundry capacity (kg)
Height (cm)
Width (cm)
Depth (cm)
Net weight (±4 kg.)
Electrical input (V/Hz)
Total current (A)
Total power (W)
Spin speed (rpm/ min., max.)
Stand-by mode power (W)
Off-mode power (W)
Main model code
Single Water inlet / Double Water inlet
Woolmark No:
• Available
SAWS 8160-1
8
84
60
60
76
220-240 V / 50Hz
10
2000-2350
1600
0.64
0.44
978
- / •
M13985
C
C
C
8 / EN
“The wool wash cycle of this machine has been approved by The Woolmark
Company for the washing of machine washable wool products provided that the
products are washed according to the instructions on the garment label and those
issued by the manufacturer of this washing machine. M13985.”
“In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade
mark.”
Technical specifications may be changed without prior notice to improve the quality of the product.
Figures in this manual are schematic and may not match the product exactly.
Values stated on the product labels or in the documentation accompanying it are obtained in laboratory
conditions in accordance with the relevant standards. Depending on operational and environmental
conditions of the product, these values may vary.
Washing Machine /User’s Manual
3 Installation
Refer to the nearest Authorised Service Agent for
installation of the product. To make the product
ready for use, review the information in the user
manual and make sure that the electricity, tap
water supply and water drainage systems are
appropriate before calling the Authorized Service
Agent. If they are not, call a qualified technician
and plumber to have any necessary arrangements
carried out.
Preparation of the location and electrical,
tap water and waste water installations
C
B
A
C
at the place of installation is under
customer's responsibility.
WARNING: Installation and electrical
connections of the product must be
carried out by the Authorized Service
Agent. Manufacturer shall not be held
liable for damages that may arise from
procedures carried out by unauthorized
persons.
WARNING: Prior to installation, visually
check if the product has any defects on
it. If so, do not have it installed. Damaged
products cause risks for your safety.
Make sure that the water inlet and
discharge hoses as well as the power
cable are not folded, pinched or crushed
while pushing the product into its place
after installation or cleaning procedures.
3.1 Appropriate installation location
• Place the machine on a rigid floor. Do not place
it on a long pile rug or similar surfaces.
• Total weight of the washing machine and the
dryer -with full load- when they are placed
on top of each other reaches to approx. 180
kilograms. Place the product on a solid and flat
floor that has sufficient load carrying capacity!
• Do not place the product on the power cable.
• Do not install the product at places where
temperature may fall below 0ºC.
• Place the product at least 1 cm away from the
edges of other furniture.
3.2 Removing packaging
reinforcement
Tilt the machine backwards to remove the
packaging reinforcement. Remove the packaging
reinforcement by pulling the ribbon.
3.3 Removing the
transportation locks
WARNING: Do not remove the
A
A
1. Loosen all the bolts with a suitable spanner until
they rotate freely (C).
2. Remove transportation safety bolts by turning
them gently.
transportation locks before taking out the
packaging reinforcement.
WARNING: Remove the transportation
safety bolts before operating the washing
machine! Otherwise, the product will be
damaged.
Washing Machine /User’s Manual
9 / EN
Installation
3. Attach the plastic covers supplied in the User
Manual bag into the holes on the rear panel. (P)
Keep the transportation safety bolts in
a safe place to reuse when the washing
C
C
3.4 Connecting water supply
C
C
A
A
machine needs to be moved again in the
future.
Never move the product without the
transportation safety bolts properly fixed
in place!
The water supply pressure required to run
the product is between 1 to 10 bars (0.1
– 1 MPa). It is necessary to have 10 – 80
liters of water flowing from the fully open
tap in one minute to have your machine
run smoothly. Attach a pressure reducing
valve if water pressure is higher.
If you are going to use the double waterinlet product as a single
unit, you must install the supplied stopper
to the hot water valve before operating the
product. (Applies for the products supplied
with a blind stopper group.)
WARNING: Models with a single water
inlet should not be connected to the hot
water tap. In such a case the laundry will
get damaged or the product will switch to
protection mode and will not operate.
WARNING: Do not use old or used water
inlet hoses on the new product. It may
cause stains on your laundry.
(cold) water-inlet
hose (left) (max. 90 ºC) is for hot water inlet,
blue hose (right) (max. 25 ºC) is for cold water
inlet.
WARNING: Ensure that the cold and
A
2. Tighten all hose nuts by hand. Never use a tool
when tightening the nuts.
3. Open the taps completely after making the
hose connection to check for water leaks at
the connection points. If any leaks occur, turn
off the tap and remove the nut. Retighten the
nut carefully after checking the seal. To prevent
water leakages and damages caused by them,
keep the taps closed when the machine is not
in use.
hot water connections are made correctly
when installing the product. Otherwise,
your laundry will come out hot at the end
of the washing process and wear out.
1. Connect the special hoses supplied with the
product to the water inlets on the product. Red
10 / EN
Washing Machine /User’s Manual
Installation
3.5 Connecting to the drain
• The end of the drain hose must be directly
connected to the wastewater drain or to the
washbasin.
WARNING: Your house will be flooded
A
• The hose should be attached to a height of at
least 60 cm, and 90 cm at most.
• In case the hose is elevated after laying it on
the floor level or close to the ground (less than
60 cm above the ground), water discharge
becomes more difficult and the laundry may
come out excessively wet. Therefore, follow the
heights described in the figure.
if the hose comes out of its housing
during water discharge. Moreover, there
is risk of scalding due to high washing
temperatures! To prevent such situations
and to ensure smooth water intake and
discharge of the machine, fix the end
of the discharge hose tightly so that it
cannot come out.
3.6 Adjusting the feet
WARNING: In order to ensure that
A
1. Loosen the lock nuts on the feet by hand.
the product operates more silently
and vibration-free, it must stand level
and balanced on its feet. Balance the
machine by adjusting the feet. Otherwise,
the product may move from its place and
cause crushing and vibration problems.
• To prevent flowing of dirty water back into the
machine and to allow for easy discharge, do not
immerse the hose end into the dirty water or do
not drive it in the drain more than 15 cm. If it is
too long, cut it short.
• The end of the hose should not be bent, it
should not be stepped on and the hose must
not be pinched between the drain and the
machine.
• If the length of the hose is too short, use it by
adding an original extension hose. Length of the
hose may not be longer than 3.2 m. To avoid
water leak failures, the connection between
the extension hose and the drain hose of the
product must be fitted well with an appropriate
clamp as not to come off and leak.
Washing Machine /User’s Manual
2. Adjust the feet until the product stands level
and balanced.
3. Tighten all lock nuts again by hand.
WARNING: Do not use any tools to
A
loosen the lock nuts. Otherwise, they will
get damaged.
11 / EN
Installation
3.7 Electrical connection
Connect the product to a grounded outlet
protected by a 16 A fuse. Our company shall not
be liable for any damages that will arise when the
product is used without grounding in accordance
with the local regulations.
• Connection must comply with national
regulations.
• Power cable plug must be within easy reach
after installation.
• If the current value of the fuse or breaker in the
house is less than 16 Amps, have a qualified
electrician install a 16 Amp fuse.
• The voltage specified in the "Technical
specifications" section must be equal to your
mains voltage.
• Do not make connections via extension cables
or multi-plugs.
WARNING: Damaged power cables
B
Transportation of the product
1. Unplug the product before transporting it.
2. Remove water drain and water supply
connections.
3. Drain all water that has remained in the
product. See 6.5
4. Install transportation safety bolts in the reverse
order of removal procedure; see 3.3.
C
A
must be replaced by the Authorized
Service Agents.
Never move the product without the
transportation safety bolts properly fixed
in place!
WARNING: Packaging materials are
dangerous to children. Keep packaging
materials in a safe place away from
reach of the children.
12 / EN
Washing Machine /User’s Manual
4 Preparation
4.1 Sorting the laundry
• Sort laundry according to type of fabric, colour, and degree of soiling and allowable water
temperature.
• Always obey the instructions given on the garment tags.
LAUNDRY WASH SYMBOLS
WASH
DRYING
IRON
Machine
Wash
Symbols
Water
Temperatures
Drying
Symbols
Drying
Settings
Iron -
Dry or Steam
Normal wash
Maximum
Symbol(s)
Suitable for
dryer
At any temperature
No Iron
950C 700C 600C 500C 400C 300C
lll
lll
lll
l l llll
No Iron
At high temperature
At medium
temperature
Iron at high
temperature
Delicate dry
At low temperature
Iron at medium
temperature
Sensitive-
Delicate
wash
lll l l l
Sensitive /
Without heating
Hand wash
Do not dry
with dryer
Hang to dry
Iron at low
temperature
Lay to dry
Not washable
Do not dry
Hang wet to dry
No Spin
Do not dry-
clean
Lay in shadow
to dry
Dry-cleanable
Maximum temperature
BLEACH
Washing Machine /User’s Manual
All bleaches are allowed
200 0C 150 0C 110 0C
Bleach (sodium
hypochlorite)
can be used
Bleach is not
allowed
Do not iron
Only bleaches without
chlorine are allowed
Iron without
13 / EN
steam
Preparation
4.2 Preparing laundry for washing
• Laundry items with metal attachments such as,
underwired bras, belt buckles or metal buttons
will damage the machine. Remove the metal
pieces or wash the clothes by putting them in a
laundry bag or pillow case.
• Take out all substances in the pockets such as
coins, pens and paper clips, and turn pockets
inside out and brush. Such objects may damage
the product especially the glass door or cause
noise problem.
• Put small size clothes such as infant's socks
and nylon stockings in a laundry bag or pillow
case.
• Place curtains in without compressing them.
Remove curtain attachment items.
• Fasten zippers, sew loose buttons and mend
rips and tears.
• Wash “machine washable” or “hand washable”
labelled products only with an appropriate
programme.
• Do not wash colours and whites together. New,
dark coloured cottons release a lot of dye. Wash
them separately.
• Tough stains must be treated properly before
washing. If unsure, check with a dry cleaner.
• Use only dyes/colour changers and limescale
removers suitable for machine wash. Always
follow the instructions on the package.
• Wash trousers and delicate laundry turned
inside out.
• Keep laundry items made of Angora wool in the
freezer for a few hours before washing. This will
reduce pilling.
• Laundry that are subjected to materials such as
flour, lime dust, milk powder, etc. intensely must
be shaken off before placing into the machine.
Such dusts and powders on the laundry may
build up on the inner parts of the machine in
time and can cause damage.
4.3 Things to be done
for energy saving
Following information will help you use the
product in an ecological and energy-efficient
manner.
• Operate the product in the highest capacity
allowed by the programme you have selected,
but do not overload; see, "Programme and
consumption table".
• Always follow the instructions on the detergent
packaging.
• Wash slightly soiled laundry at low
temperatures.
• Use faster programmes for small quantities of
lightly soiled laundry.
• Do not use prewash and high temperatures for
laundry that is not heavily soiled or stained.
• If you plan to dry your laundry in a dryer, select
the highest spin speed recommended during
washing process.
• Do not use detergent in excess of the amount
recommended on the detergent package.
14 / EN
Washing Machine /User’s Manual
Preparation
4.4 Initial use
Before starting to use the product, make sure
that all preparations are made in accordance
with the instructions in sections “Important safety
instructions” and “Installation”.
To prepare the product for washing laundry,
perform first operation in Drum Cleaning
programme. If your product is not equipped with
Drum Cleaning programme, perform the Initial
Use procedure in accordance with the methods
described under “7.2 Cleaning the loading door
and the drum” section of the user manual.
Use an anti-limescale suitable for the
C
C
washing machines.
Some water might have remained in
the product due to the quality control
processes in the production. It is not
harmful for the product.
4.5 Correct load capacity
The maximum load capacity depends on the type
of laundry, the degree of soiling and the washing
programme desired.
The machine automatically adjusts the amount
of water according to the weight of the loaded
laundry.
WARNING: Follow the information in the
A
“Programme and consumption table”.
When overloaded, machine's washing
performance will drop. Moreover, noise
and vibration problems may occur.
Laundry type Weight (g)
Bathrobe
Napkin
Duvet cover
Bed Sheet
Pillowcase
Tablecloth
Towel
Hand towel
Evening gown
Underclothing
Men’s overalls
Men’s shirt
Men’s pyjamas
Blouses
1200
100
700
500
200
250
200
100
200
100
600
200
500
100
4.6 Loading the laundry
1. Open the loading door.
2. Place laundry items loosely into the machine.
3. Push the loading door to close until you hear a
locking sound. Ensure that no items are caught
in the door.
The loading door is locked while a
programme is running. The door can only
C
A
be opened a while after the programme
comes to an end.
WARNING: In case of misplacing the
laundry, noise and vibration problems may
occur in the machine.
Washing Machine /User’s Manual
15 / EN
Preparation
4.7 Using detergent and softener
When using detergent, softener, starch,
fabric dye, bleach or limescale remover
C
Detergent Drawer
The detergent drawer is composed of three
compartments:
– (1) for prewash
– (2) for main wash
– (3) for softener
– (*) in addition, there is siphon piece in the
softener compartment.
Detergent, softener and other cleaning agents
• Add detergent and softener before starting the
washing programme.
• Never leave the detergent drawer open while
the washing programme is running!
• When using a programme without prewash,
do not put any detergent into the prewash
compartment (compartment nr. "1").
• In a programme with prewash, do not put
liquid detergent into the prewash compartment
(compartment nr. "1").
• Do not select a programme with prewash if you
are using a detergent bag or dispensing ball.
Place the detergent bag or the dispensing ball
directly among the laundry in the machine.
• If you are using liquid detergent, do not forget
to place the liquid detergent cup into the main
wash compartment (compartment nr. "2").
read the manufacturer's instructions
on the package carefully and follow the
suggested dosage values. Use measuring
cup if available.
3
2
1
Choosing the detergent type
The type of detergent to be used depends on the
type and colour of the fabric.
• Use different detergents for coloured and white
laundry.
• Wash your delicate clothes only with special
detergents (liquid detergent, wool shampoo,
etc.) used solely for delicate clothes.
• When washing dark coloured clothes and quilts,
it is recommended to use liquid detergent.
• Wash woollens with special detergent made
specifically for woollens.
WARNING: Use only detergents
A
manufactured specifically for washing
machines.
WARNING: Do not use Powdered Soap.
A
Adjusting detergent amount
The amount of washing detergent to be used
depends on the amount of laundry, the degree of
soiling and water hardness.
• Do not use amounts exceeding the dosage
quantities recommended on the detergent
package to avoid problems of excessive foam,
poor rinsing, financial savings and finally,
environmental protection.
• Use lesser detergent for small amounts or
lightly soiled clothes.
Using softeners
Pour the softener into the softener compartment
of the detergent drawer.
• Do not exceed the (>max<) level marking in the
softener compartment.
• If the softener has lost its fluidity, dilute it with
water before putting it in the detergent drawer.
Using liquid detergents
If the product contains a liquid detergent cup:
• Make sure that you have placed the liquid
detergent cup in compartment nr. "2".
• If the liquid detergent has lost its fluidity, dilute
it with water before putting in the detergent
cup.
16 / EN
Washing Machine /User’s Manual
Preparation
If the product does not contain a liquid
detergent cup:
• Do not use liquid detergent for the prewash in a
programme with prewash.
• Liquid detergent stains your clothes when used
with Delayed Start function. If you are going to
use the Delayed Start function, do not use liquid
detergent.
Using gel and tablet detergent
Apply the following instructions when using tablet,
gel and similar detergents.
• If the gel detergent thickness is fluidal and
your machine does not contain a special liquid
detergent cup, put the gel detergent into the
main wash detergent compartment during first
water intake. If your machine contains a liquid
detergent cup, fill the detergent into this cup
before starting the programme.
• If the gel detergent thickness is not fluidal or in
the shape of capsule liquid tablet, put it directly
into the drum before washing.
• Put tablet detergents into the main wash
compartment (compartment nr. "2") or directly
into the drum before washing.
Tablet detergents may leave residues
in the detergent compartment. If you
C
encounter such a case, place the tablet
detergent between the laundry, close
to the lower part of the drum in future
washings.
Using starch
• Add liquid starch, powder starch or the fabric
dye into the softener compartment.
• Do not use softener and starch together in a
washing cycle.
• Wipe the inside of the machine with a damp
and clean cloth after using starch.
Using bleaches
• Select a programme with prewash and add
the bleaching agent at the beginning of the
prewash. Do not put detergent in the prewash
compartment. As an alternative application,
select a programme with extra rinse and add
the bleaching agent while the machine is taking
water from the detergent compartment during
first rinsing step.
• Do not use bleaching agent and detergent by
mixing them.
• Use just a little amount (approx. 50 ml) of
bleaching agent and rinse the clothes very
well as it causes skin irritation. Do not pour the
bleaching agent onto the clothes and do not
use it for coloured clothes.
• When using oxygen based bleaches, select
a programme that washes at a lower
temperature.
• Oxygen based bleaches can be used together
with detergents; however, if its thickness
is not the same with the detergent, put the
detergent first into the compartment nr. "2"
in the detergent drawer and wait until the
detergent flows while the machine is taking in
water. Add the bleaching agent from the same
compartment while the machine is still taking in
water.
Using limescale remover
• When required, use limescale removers
manufactured specifically for washing machines
only.
Use the tablet or gel detergent without
C
Washing Machine /User’s Manual
selecting the prewash function.
17 / EN
Preparation
4.8 Tips for efficient washing
Light colours and
whites
Clothes
Colours Dark colours
Delicates/Woolens/
Silks
Heavily Soiled
(difficult stains
such as grass,
coffee, fruits and
blood.)
Normally Soiled
Soiling Level
(For example,
stains caused by
body on collars
and cuffs)
Lightly Soiled
(No visible stains
exist.)
(Recommended
temperature range
based on soiling level:
40-90ºC)
It may be necessary
to pre-treat the
stains or perform
prewash. Powder
and liquid detergents
recommended
for whites can be
used at dosages
recommended for
heavily soiled clothes.
It is recommended to
use powder detergents
to clean clay and soil
stains and the stains
that are sensitive to
bleaches.
Powder and
liquid detergents
recommended for
whites can be used at
dosages recommended
for normally soiled
clothes.
Powder and
liquid detergents
recommended for
whites can be used at
dosages recommended
for lightly soiled
clothes.
(Recommended
temperature range
based on soiling level:
cold-40ºC)
Powder and
liquid detergents
recommended for
colours can be used at
dosages recommended
for heavily soiled clothes.
It is recommended to
use powder detergents
to clean clay and soil
stains and the stains
that are sensitive to
bleaches. Use detergents
without bleach.
Powder and
liquid detergents
recommended for
colours can be used at
dosages recommended
for normally soiled
clothes. Use detergents
without bleach.
Powder and
liquid detergents
recommended for
colours can be used at
dosages recommended
for lightly soiled clothes.
Use detergents without
bleach.
(Recommended
temperature range
based on soiling
level: cold-40ºC)
Liquid detergents
suitable for
colours and dark
colours can be
used at dosages
recommended
for heavily soiled
clothes.
Liquid detergents
suitable for
colours and dark
colours can be
used at dosages
recommended for
normally soiled
clothes.
Liquid detergents
suitable for
colours and dark
colours can be
used at dosages
recommended
for lightly soiled
clothes.
(Recommended
temperature range
based on soiling
level: cold-30ºC)
Prefer liquid
detergents produced
for delicate clothes.
Woollen and silk
clothes must be
washed with special
woollen detergents.
Prefer liquid
detergents produced
for delicate clothes.
Woollen and silk
clothes must be
washed with special
woollen detergents.
Prefer liquid
detergents produced
for delicate clothes.
Woollen and silk
clothes must be
washed with special
woollen detergents.
18 / EN
Washing Machine /User’s Manual
5 Operating the product
5.1 Control panel
1 2 3 4 5
1. Programme selection knob
2 - Spin Speed Adjustment button
3 - Temperature adjustment button
4 - Display
5 - Programme follow-up indicator
6 - On / Off button
7 - Start / Pause button
8 - End Time Adjustment button
9 - Auxiliary Function buttons
10 - Programme Selection lights
6
7
8910
The visuals used for machine description in this section are schematic and may not match exactly will
C
Washing Machine /User’s Manual
the features of your machine.
19 / EN
Operating the product
5.2 Display symbols
a b c d e f g
0
C
88
h
1888
a - Temperature indicator
b - Electrical connection
c - Steam indicator
d - Audio Warning indicator
e - No Water indicator
f - Detergent indicator
5.3 Preparing the machine
1 Check if the hoses are connected tightly.
2 Plug in your machine.
3 Turn the tap on completely.
4 Place the laundry in the machine.
5 Add detergent and fabric softener.
5.4 Programme selection
1 Determine the programme suitable for the
type, quantity and soiling level of the laundry
in accordance with the "Programme and
consumption table" and the temperature table
below.
90˚C
60˚C
40˚C30˚CCold
Heavily soiled white cottons and linens.
(coffee table covers, tableclothes, towels,
bed sheets, etc.)
Normally soiled, coloured, fade proof
linens, cottons or synthetic clothes (shirt,
nightgown, pajamas, etc.) and lightly soiled
white linens (underwear, etc.)
Blended laundry including delicate textile
(veil curtains, etc.), synthetics and woolens.
88:88
g - Start / Pause indicator
h - Program Follow-up indicator
i - End Time indicator
j - Duration Information Line
k - Auxiliary Function indicators
l - Lock indicator
m - Spin Speed indicator
2 Select the desired programme with the
“Programme Selection” knob.
Programmes are limited with the highest
spin speed appropriate for that particular
C
C
C
type of fabric.
When selecting a programme, always
consider the type of fabric, colour,
degree of soiling and permissible water
temperature.
Always select the lowest required
temperature. Higher temperature means
higher power consumption.
ijklm
88
1888
0
C
88:88
20 / EN
Washing Machine /User’s Manual
Operating the product
5.5 Programmes
Depending on the type of fabric, use the following
main programmes.
• Cottons
Use this programme for your durable whites and
colourfast cotton clothes. This programme is
suggested for washing heavily soiled items.
• Synthetics
Use to wash your synthetic clothes (shirts,
blouses, synthetic/cotton blends, etc.). It washes
with a gentle action and has a shorter washing
cycle compared to the Cottons programme.
For curtains and tulle, use the Synthetic 40˚C
programme with prewash and anti-creasing
functions selected. As their meshed texture
causes excessive foaming, wash the veils/tulle by
putting little amount of detergent into the main
wash compartment. Do not put detergent in the
prewash compartment.
• Wool
Use to wash your woolen clothes. Select the
appropriate temperature complying with the tags
of your clothes. Use appropriate detergents for
woolens.
“The wool wash cycle of this machine has
been approved by The Woolmark Company
for the washing of machine washable wool
products provided that the products are
washed according to the instructions on
the garment label and those issued by the
manufacturer of this washing machine.
M13985.”
“In UK, Eire, Hong Kong and India the
Woolmark trade mark is a Certification
trade mark.”
• Auto Program
Use to wash your frequently washable cotton,
synthetic or blended (cotton+synthetic) clothes.
Programme detects the type and quantity of the
laundry to automatically adjust water consumption
and programme time.
CAUTION: Do not wash your woolen and
A
The maximum washing temperature in Automatic
programme depending on the soiling level and
laundry type is 60ºC. Washing performance may
not be at the desired level for heavily soiled whites
and stubborn stains (collar, sock soil, perspiration
stain, etc.). In this case, it is recommended to
select Cottons programme with prewash and set
the temperature to 50-60°C.
Many types of clothing are correctly detected and
safely washed in Automatic programme.
Suitable clothes and the appropriate Automatic
programme settings for washing them are shown
in the table below.
delicate clothes in this programme.
Select a suitable temperature if the
temperature shown on the temperature
display is not compatible with the
warnings on the garment label.
Washing Machine /User’s Manual
21 / EN
Operating the product
Selectable
Type of laundry Laundry content
temperature
levels
Home textiles (duvet cover, bed sheet, pillowcase,
coverlet, towel, bathrobe, table cloth, hand cloth,
napkin, couch cover, beach towel, etc.).
Underwear (undershirts, panties/slips, boxers,
etc.), socks, pajamas
Shirts Cotton, polyester, linen
Knitted garments* (T-shirt, body, dress, lingerie,
tights)
Sportswear (Sweatshirt, track suit, shorts, etc.)
Jeans (trousers, jackets, vests, etc.) Cotton, lycra
Corduroy and canvas clothes (trousers, shirts,
etc.)
Dark coloured clothes
* Knitted clothes can easily shrink or stretch, crooked or pilled due to their elastic fabrics. Deformations on knitted
fabrics are related with the quality of the cloth, and do not arise from washing programmes (Automatic or other
washing programmes). Use "Sportswear" washing programme for knitted clothes.
Cotton, lycra
Cotton, lycra
Cotton, polyamide (nylon),
polyester, lycra
Cotton, polyamide (nylon),
polyester, microfiber, lycra
Cotton, lycra
Cotton, polyester,
polyamide (nylon)
Cold - 60
Cold - 60
Cold - 60
Cold - 40
Cold - 40
Cold - 40
Cold - 40
Cold - 40
˚C
˚C
˚C
˚C
˚C
˚C
˚C
˚C
Max.
laundry
amount
Full capacity
Full capacity
1/2 capacity
1/2 capacity
1/2 capacity
1/2 capacity
1/2 capacity
1/2 capacity
Following table includes cloth types to be washed gently and some washing programmes suitable for
some special clothes.
Special laundry type Laundry content
Blouse, dress, skirt, foulard
Knitted, dress Wool, acrylic Woolens
Pullover, cardigan, vest, scarf, beret, socks,
etc.
Blouse, dress, scarf, foulard Silk, cashmere Lingerie
Satin lingerie, lace clothing, bra Silk, polyester, polyamide Lingerie
Fabric trousers, skirt, dress Polyester Hand Wash
Featured sportswear (water and windproof
clothes)
Tulle curtain Polyester, polyamide Curtain
Fiber duvet Fiber Bedding
Heavily soiled clothes (aprons, children's
wear)
Baby dresses Cottons Hygiene
Viscose, modal, rayon, tencel,
lyocell, angora
Wool, acrylic, cashmere Woolens
Polyester, polyamide Sportswear
Cotton, polyester
Recommended washing
programme
Hand Wash
Hygiene + Prewash (with high
temperature selection)
22 / EN
Washing Machine /User’s Manual
Operating the product
• Cottons Eco
Use to wash your normally soiled, durable cotton
and linen laundry. Although it washes longer than
all other programmes, it provides high energy
and water savings. Actual water temperature may
be different from the stated wash temperature.
When you load the machine with less laundry
(e.g. ½ capacity or less), programme time may
automatically get shorter. In this case, energy and
water consumption will decrease more, providing
a more economic wash. This programme is
available in the models with the remaining time
indicator.
• Anti-Allergy +
Use to wash baby laundry, and the laundry that
belongs to allergic persons. Longer heating time
and an additional rinsing step provide a higher
level of hygiene.
• Anti-Allergy + 60°C programme is tested and
approved by “The British Allergy Foundation”
(Allergy UK) in United Kingdom.
• Delicates
Use to wash your delicate clothes. It washes with
more gentle washing action compared to the
Synthetics programme.
• Hand Wash
Use to wash your woolen/delicate clothes that
bear “not machine-washable” tags and for which
hand wash is recommended. It washes laundry
with a very gentle washing action to not to
damage clothes.
• Daily/Quick
Use to wash your lightly soiled and unstained
cotton laundry in a short time.
• Quick 14
Use to wash your lightly soiled and unstained
cotton laundry in a short time.
• Steam Therapy
Reduces creasing in dry garments and shortens
ironing duration with its anti-wrinkle effect.
Load only half of the capacity stated for
the selected programme.
C
• Shirts
Use to wash the shirts made of cotton, synthetic
and synthetic blended fabrics together.
• Sports+Outdoor
Use this programme to wash your garments that
are worn for a short time such as sportswear. It is
suitable to wash little amount of cotton / synthetic
blended garments.
• Bedding+Blanket
Use this programme to wash your fiber duvets
that bear "machine washable" tag. Make sure that
you have loaded the duvet correctly in order not
to damage the machine and the duvet. Remove
the duvet cover before loading the duvet into the
machine. Fold the duvet into two and load it into
the machine. Load the duvet into the machine
paying attention to place it in a way that it will not
contact the bellow.
C
C
A
When this programme is selected, it is
normal to hear boiling noises since the
steam generator boils water to produce
steam.
Do not load more than 1 double fibre duvet
(200 x 200 cm).
Do not wash your duvets, pillows and etc.
that contain cotton in the machine.
CAUTION: Do not wash the items apart
from duvets such as carpets, rugs and etc.
in the machine. Permanent damage occurs
in the machine.
Washing Machine /User’s Manual
• Rinse
Use when you want to rinse or starch separately.
• Spin+Drain
Use to drain the water in the machine.
23 / EN
Operating the product
5.8 Temperature selection
Whenever a new programme is selected, the
recommended temperature for the programme
appears on the temperature indicator. It is possible
that the recommended temperature value is not
the maximum temperature that can be selected
for the current programme.
0
C
88
1888
88:88
Press the Temperature Adjustment button
to change the temperature. Temperature will
decrease by steps of 10 °C.
Temperature Adjustment button only
C
Finally, “-” symbol indicating the cold wash option
appears on the display.
C
You can also change the temperature after the
washing starts. This change can be made if the
washing steps allow it. Changes cannot be made
if the steps do not allow it.
C
serves for decreasing the temperature.
0
C
-
1888
88:88
No change can be made in programmes
where temperature adjustment is not
allowed.
If you scroll to cold wash option and press
Temperature Adjustment button again, the
recommended maximum temperature for
the selected programme appears on the
display. Press the Temperature Adjustment
button again to decrease the temperature.
5.9 Spin speed selection
Whenever a new programme is selected, the
recommended spin speed of the selected
programme is displayed on the Spin Speed
indicator.
It is possible that the recommended spin
speed value is not the maximum spin
C
Press the Spin Speed Adjustment button to
change the spin speed. Spin speed decreases
gradually.
Then, depending on the model of the product,
"Rinse Hold" and "No Spin" options appear on the
display.
C
C
If you are not going to unload your laundry
immediately after the programme completes, you
can use Rinse Hold function in order to prevent
them from getting wrinkled when there is no water
in the machine.
This function holds the laundry in the final rinsing
water.
If you want to spin your laundry after the Rinse
Hold function:
- Adjust the Spin Speed.
- Press Start / Pause / Cancel button. The
programme resumes. Machine discharges the
water and spins the laundry.
speed that can be selected for the current
programme.
0
C
88
1888
88:88
Spin Speed Adjustment button only
serves for decreasing the spin speed.
Rinse Hold option is indicated with “ı_ı”
symbol and No Spin option is indicated
with “_” symbol.
0
C
88
88:88
24 / EN
Washing Machine /User’s Manual
Operating the product
If you want to discharge the water at the end of
the programme without spinning, use No Spin
function.
0
C
88
88:88
No change can be made in programmes
where spin speed adjustment is not
C
You can change the spin speed after the washing
starts if the washing steps allow it. Changes
cannot be made if the steps do not allow it.
Rinse Hold
If you are not going to unload your clothes
immediately after the programme completes, you
can use rinse hold function to keep your laundry
in the final rinsing water in order to prevent them
from getting wrinkled when there is no water in
the machine. Press Start / Pause button after this
process if you want to drain the water without
spinning your laundry. Programme will resume
and complete after draining the water.
If you want to spin the laundry held in water,
adjust the Spin Speed and press Start / Pause
button.
The programme resumes. Water is drained,
laundry is spun and the programme is completed.
allowed.
Washing Machine /User’s Manual
25 / EN
Operating the product
5.10 Programme and consumption table
EN
2
Programme
Max. Load (kg)
Water
Consumption
(l)
Energy
Consumption
(kWh)
Max. Speed***
Quick
90 8 58 2.60 1600 • • • 90-Cold
Cottons
Cottons Eco 40** 8 58 1.00 1600 40-Cold
Bedding&Blanket 40 - 67 0.82 1000 • • 60-Cold
Anti-Allergy+ 90 8 100 2.25 1600 * 90-30
Auto Program 40 8 **** **** 1600 • • • 60-Cold
Quick 14’ 30 2 34 0.16 1400 • 30-Cold
Daily/Quick
Synthetics
Sports&Outdoor 40 4 60 0.60 1000 • • 40-Cold
Shirts 60 4 85 1.29 800 • • • 60-Cold
Delicates 40 3 54 0.44 1000 • • • 40-Cold
Wool 40 2 45 0.35 1000 • • 40-Cold
Hand Wash 30 1.5 40 0.22 600 30-Cold
SteamTherapy - 1 1 0.17 - -
• : Selectable.
* : Automatically selected, no canceling.
** : Energy Label programme (AS/NZS 2040)
*** : If maximum spin speed of the machine is lower then this value, you can only select up to the maximum spin speed.
**** : Programme detects the type and quantity of the laundry to automatically adjust water and energy consumption and
programme time.
- : See the programme description for maximum load.
60 8 58 1.78 1600 • • • 90-Cold
40 8 58 1.00 1600 • • • 90-Cold
90 8 64 2.04 1400 • 90-Cold
60 8 64 1.04 1400 • 90-Cold
30 8 57 0.81 1400 • 90-Cold
60 4 65 1.13 1200 • • • 60-Cold
40 4 65 0.90 1200 • • • 60-Cold
Selectable temperature
Prewash
Extra Rinse
range °C
C
26 / EN
The auxiliary functions in the table may vary according to the model of your machine.
Water and power consumption may vary subject to the changes in water pressure, water
hardness and temperature, ambient temperature, type and amount of laundry, selection of
auxiliary functions and spin speed, and changes in electric voltage.
You can see the washing time of the programme you have selected on the display of the
machine. It is normal that small differences may occur between the time shown on the display
and the real washing time.
“Selection patterns for auxiliary functions can be changed by the manufacturer company. New
selection patterns can be added or removed.”
“The spin speed of your machine may vary according to the programme; this spin speed cannot
exceed the max. spin speed of your machine.”
Washing Machine /User’s Manual
Operating the product
5.11 Auxiliary function selection
Select the desired auxiliary functions before
starting the programme. Whenever a programme
is selected, frames of the auxiliary function symbol
that can be selected together with it illuminates.
And when you select an auxiliary function, the
interior area of the auxiliary function symbol also
starts to illuminate.
0
C
88
1888
88:88
Frame of the auxiliary function symbol
that cannot be selected with the current
C
Also the frames of the auxiliary function suitable
for the current programme after the washing has
started remains illuminated. You can select or
cancel the auxiliary functions whose frames are
illuminated. If the wash cycle has reached a point
where you cannot select the auxiliary function, the
function's frame turns off.
C
C
C
programme does not illuminate.
Some functions cannot be selected
together. If a second auxiliary function
conflicting with the first one is selected
before starting the machine, the function
selected first will be canceled and the
second auxiliary function selection will
remain active. For example, if you want to
select Quick Wash after you have selected
the Additional Water, Additional Water will
be canceled and Quick Wash will remain
active.
An auxiliary function that is not compatible
with the programme cannot be selected.
(See, “Programme and consumption table")
Some programmes have auxiliary functions
that must be operated simultaneously.
Those functions cannot be cancelled.
The frame of the auxiliary function will
not be illuminated, only inner area will be
illuminated.
• Prewash
A Prewash is only worthwhile for heavily soiled
laundry. Not using the Prewash will save energy,
water, detergent and time.
• Quick
This function can be used in Cottons and
Synthetics programmes. It decreases the washing
times and also the number of rinsing steps for
lightly soiled laundry.
When you select this function, load your
machine with half of the maximum laundry
C
• Extra Rinse
This function enables the machine to make
another rinsing in addition to the one already
made after the main wash. Thus, the risk for
sensitive skins (babies, allergic skins, etc.) to be
effected by the minimal detergent remnants on
the laundry can be reduced.
Time display
Remaining time for the completion of the
programme while it is running is displayed as
“01:30” in hours and minutes format.
C
specified in the programme table.
Programme time may differ from
the values in the "Programme and
consumption table" depending on the
water pressure, water hardness and
temperature, ambient temperature,
amount and the type of laundry, auxiliary
functions selected and the changes at the
mains voltage.
Washing Machine /User’s Manual
27 / EN
Operating the product
5.12 End Time
With the End Time function, the startup of the
programme may be delayed up to 24 hours.After
pressing End Time button, the programme's
estimated ending time is displayed.If the
End Time is adjusted, End Time indicator is
illuminated.
0
C
88
1888
88:88
In order for the End Time function is activated
and the programme is completed at the end of
the specified time, you must press Start / Pause
button after adjusting the time.
0
C
88
1888
88:88
If you want to cancel End Time function, press On
/ Off button to turn off and on the machine.
Do not use liquid detergents when you
activate End Time function! There is the
C
1 Open the loading door, place the laundry and
put detergent, etc.
2 Select the washing programme, temperature,
spin speed and, if required, the auxiliary
functions.
3 Set the end time of your choice by pressing
the End Time button. End Time indicator
illuminates.
4 Press Start / Pause button. Time countdown
starts. “:” sign in the middle of the end time on
the display starts flashing.
C
risk of staining of the clothes.
Additional laundry may be loaded
during the End Time countdown period.
At the end of the countdown, End Time
indicator turns off, washing cycle starts
and the time of the selected programme
appears on the display.
When the End Time selection is
completed, the time appears on the screen
C
consists of end time plus the duration of
the selected programme.
5.13 Starting the programme
1 Press Start / Pause button to start the
programme.
2 The Start / Pause button which was off before
starts to illuminate steadily now, indicating that
the programme has started.
0
C
88
1888
88:88
3 Loading door is locked. The door lock symbol
appears on the display after the loading door is
locked.
0
C
88
1888
88:88
4 Programme follow-up indicator lights on the
display will show the current programme step.
5.14 Loading door lock
There is a locking system on the loading door of
the machine that prevents opening of the door in
cases when the water level is unsuitable.
"Door Locked" symbol appears on the display
when the loading door is locked.
28 / EN
Washing Machine /User’s Manual
Operating the product
5.15 Changing the selections after
the programme has started
Adding laundry after the programme has
started:
If the water level in the machine is suitable when
you press Start / Pause button, loading door
symbol will flash on the display until the loading
door is opened and will disappear when the
loading door is opened.
0
C
88
1888
88:88
If the water level in the machine is not suitable
when you press Start / Pause button, the loading
door symbol remain lit on the display.
0
C
88
1888
88:88
Switching the machine to pause mode:
Press the Start / Pause button to switch the
machine to pause mode. Pause symbol will flash
on the display.
0
C
88
1888
88:88
Changing the programme selection after
programme has started:
The programme change is not allowed when the
current programme is running.
You can select the new programme after
switching the current programme to standby.
The selected program starts anew.
C
Changing the auxiliary function, speed and
temperature
Depending on the step the programme has
reached, you can cancel or activate the auxiliary
functions. See, "Auxiliary function selection".
You can also change the speed and temperature
settings. See, "Spin speed selection" and
"Temperature selection"
The loading door will not open if the
water temperature in the machine is
C
high or the water level is above the door
opening.
5.16 Child Lock
Use Child Lock function to prevent children from
tampering with the machine. Thus you can avoid
any changes in a running programme.
You can switch on and off the machine
with
On / Off button when the Child
C
C
To activate the Child Lock:
Press and hold Auxiliary Function button 2
for 3 seconds. After the countdown as “CL 3-21" on the display is over, "Child Lock Enabled"
appears on the display. You can release Auxiliary
Function button 1 when this warning is
displayed.
To deactivate the childproof lock:
Press and hold Auxiliary Function button 2
for 3 seconds. After the countdown as “CL 3-21” on the display is over, "Child Lock Enabled"
disappears from the display.
Lock is active. When you switch on the
machine again, programme will resume
from where it has stopped.
When the child lock is enabled, an audio
warning will be given if the buttons are
pressed. Audio warning will be canceled
if the buttons are pressed 5 times
consecutively.
Washing Machine /User’s Manual
29 / EN
Operating the product
5.17 Canceling the programme
The programme is cancelled when the machine is
turned off and on again. Press and hold On / Off
button for 3 seconds. After the countdown as "32-1" on the display is over, the machine turns off.
If you press On / Off button when the
Child Lock is enabled, the programme
C
C
will not be cancelled. You should cancel
the Child Lock first.
If you want to open the loading door after
you have cancelled the programme but it
is not possible to open the loading door
since the water level in the machine is
above the loading door opening, then
turn the
Programme Selection
knob to
Pump+Spin programme and
discharge the water in the machine.
5.18 End of programme
End symbol appears on the display when the
programme is completed.
If you do not press any button for 10 minutes, the
machine will switch to OFF mode. Display and all
indicators are turned off.
Completed programme steps will be displayed if
you press On / Off button.
5.20 Memory program setting
You can create a favourite programme by saving
frequently used programme and other settings.
Use this function when you want to select quickly
the same settings you use for the laundry that you
wash regularly.
Memory programme will remain at the factory
set programme until you make a new favourite
programme setting.
To store a new Memory programme:
1 Select the desired programme, temperature,
spin speed, soiling degree and auxiliary
function.
2 Keep the Memory button pressed for 3
seconds.
3 Countdown as "3-2-1" appears on the display.
To select a Memory programme:
1 Press Memory button. The “Memory” selection
field will be activated on the display.
2 Programme and other settings saved as Memory
appear on the display.
3 Press Start / Pause button to start the Memory
programme.
5.19 Adjusting the VOLUME level
Low volume and high volume
Press and hold Auxiliary Function button 3 for
3 seconds to adjust the volume level. After the
countdown as "3-2-1" on the display is over,
the volume level symbol will appear and the new
volume level will be displayed.
30 / EN
Washing Machine /User’s Manual
6 Maintenance and cleaning
Service life of product extends and frequently
experienced problems will be reduced if it is
cleaned at regular intervals.
6.1 Cleaning the detergent drawer
Clean the detergent drawer at regular intervals
(every 4-5 washing cycles) as shown below
in order to prevent accumulation of powder
detergent in time.
Lift the rear part of the siphon to remove it as
illustrated.
If water and softener more than a normal
amount start to accumulate on the
C
2. Wash the detergent drawer and the siphon with
plenty of lukewarm water in a washbasin. In
order to prevent the residues to contact your
skin, clean it with an appropriate brush by
wearing a pair of gloves.
3 After cleaning, replace the siphon back to its
seating and push its front section downwards to
make sure that the locking tab engages.
softener compartment, perform siphon
cleaning.
6.2 Cleaning the loading
door and the drum
For products with drum cleaning programme,
please see Operating the product - Programmes.
For products without drum cleaning, follow the
below steps to clean the drum:
Select Additional Water or Extra Rinse auxiliary
functions. Use a Cottons programme without
pre-wash. Set the temperature to the level
recommended on the drum cleaning agent
which can be provided from authorized
services. Apply this procedure without any
laundry in the product. Before starting the
programme, put 1 pouch of special drum cleaning
agent (if the special agent could not be supplied,
put max. 100 g of powder anti-limescale) into the
main wash detergent compartment (compartment
no. „2“). If the anti-limescale is in tablet form, put
only one tablet into the main wash compartment
no. „2“. Dry the inside of the bellow with a clean
piece of cloth after the programme has come to
an end.
Repeat the drum cleaning work at every
2 months.
C
Check and make sure that there is not any foreign
bodies left inside the drum after each wash.
If the holes in the bellows shown in the Figure are
clogged, open the holes by means of a toothpick.
C
A
Use an anti-limescale suitable for the
washing machines.
Rust stains may form inside the drum
due to the metal objects. Clean the stains
on the surface of the boiler with stainless
steel cleaning agents. Never use steel
wool or wire wool.
CAUTION: Never use sponge or scrub
materials. These will damage the painted
and plastic surfaces.
6.3 Cleaning the body
and control panel
Wipe the body of the machine with soapy water or
non-corrosive mild gel detergents as necessary,
and dry with a soft cloth.
Use only a soft and damp cloth to clean the
control panel.
6.4 Cleaning the water intake filters
There is a filter at the end of each water intake
valve at the rear of the machine and also at the
end of each water intake hose where they are
connected to the tap. These filters prevent the
foreign substances and dirt in the supply water to
Washing Machine /User’s Manual
31 / EN
Maintenance and cleaning
enter into the machine. Filters should be cleaned
when they become dirty.
1. Close the taps.
2. Remove the nuts of the water intake hoses to
access the filters on the water intake valves.
Clean them with an appropriate brush. If the
filters are too dirty, remove them from their
places with a pliers and clean in this way.
3. Take out the filters on the flat ends of the water
intake hoses together with the gaskets and
clean thoroughly under running water.
4. Replace the seals and filters carefully and
tighten their nuts by hand.
6.5 Draining remaining water
and cleaning the pump filter
The filter system in your machine prevents solid
items such as buttons, coins and fabric fibers
clogging the pump impeller during discharge
of washing water. Therefore the waste water is
discharged without any problems and the service
life of the pump is increased.
If the machine does not drain the water, pump
filter may have been clogged. Filter should be
cleaned when clogged or once in 3 months.
In order to clean the pump filter, first the water
should be drained.
Also, before transporting the machine (for
example when moving to new house) and when
the water has the risk of freezing, water may have
to be fully drained.
CAUTION: Foreign objects which stay
A
In order to clean the dirty filter and discharge
the water:
1 Unplug the machine to cut off the supply power.
A
2. Open the filter cover.
3. While some of our products are equipped with
an emergency water drain hose, some are not.
Follow the below procedures in order to drain
water.
If the product has an emergency water
draining hose, in order to drain the water:
inside the pump filter may damage your
machine or cause noise problem.
CAUTION: If the product is not being
used, shut the tap shut, remove mains
pipe and drain the water inside the
machine against any likely freezing.
CAUTION: Shut the tap which the mains
pipe of the product is connected to after
each use.
CAUTION: Temperature of the water
inside the machine may rise up to 90 ºC.
To avoid the burning risk, clean the filter
after the water inside the machine is
cooled down.
32 / EN
Washing Machine /User’s Manual
Maintenance and cleaning
a Pull away the emergency water draining hose
from its housing.
b Put the larger end of the hose into a large
vessel. Pull and remove the plug at the end
of the hose and drain the water into a vessel.
When the vessel is full, shut the nozzle of the
hose by inserting the plug into it. After you
empty the vessel, repeat above procedures and
drain the water inside the machine fully.
c When the water drainage is complete, block its
nozzle again with the plug and secure the hose
into its place.

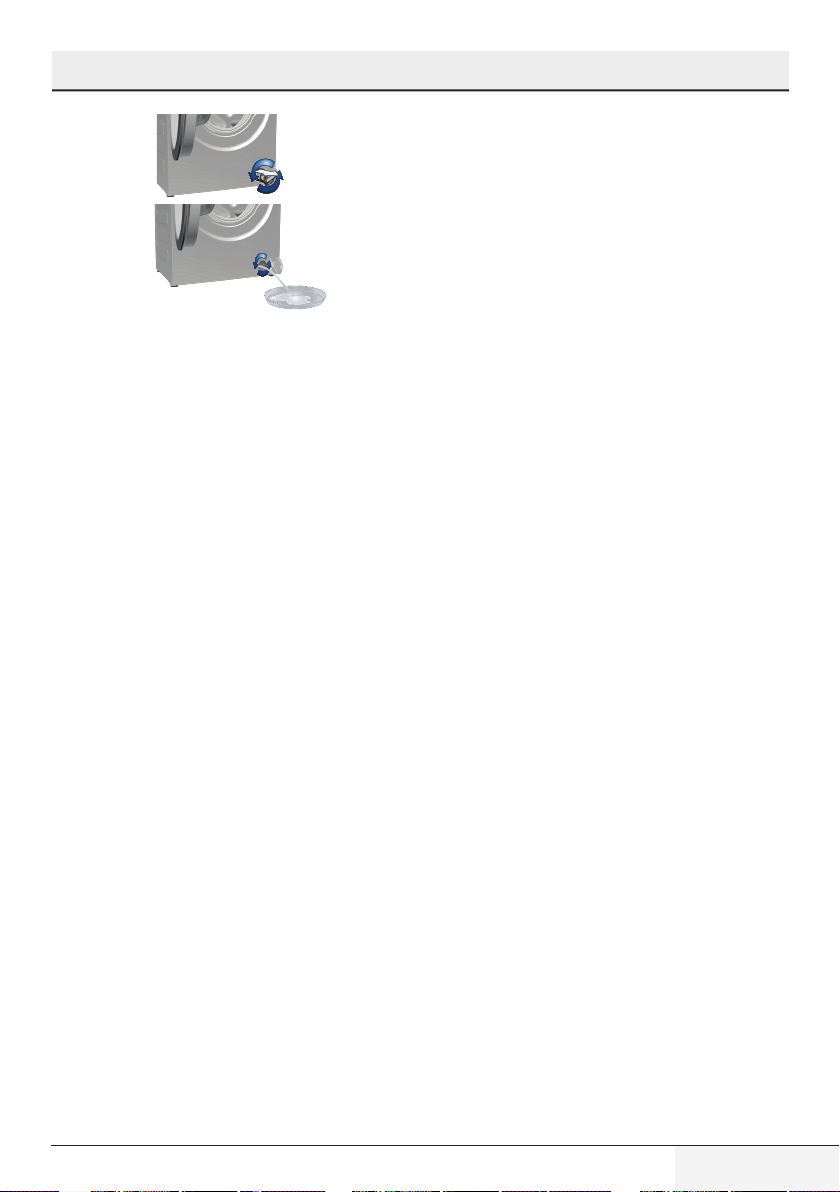

d Turn and remove the pump filter.
Clean any residues inside the filter as well as
fibers, if any, around the pump impeller region.
5. Replace the filter.
6. If the filter cap is composed of two pieces, close
the filter cap by pressing on the tab. If it is one
piece, seat the tabs in the lower part into their
places first, and then press the upper part to
close.
Washing Machine /User’s Manual
33 / EN
7 Troubleshooting
Problem Reason Solution
Program does not
start after closing the
door.
Start / Pause / Cancel button was not
pressed.
*Press the Start / Pause / Cancel
button.
Programme cannot
be started or
selected.
Water in the
machine.
Machine does not fill
with water.
Machine does not
drain water.
Machine vibrates or
makes noise.
There is water
leaking from the
bottom of the
washing machine.
Machine stopped
shortly after the
programme started.
Machine directly
discharges the water
it takes in.
No water can be
seen in the machine
during washing.
Washing machine has switched to self
protection mode due to a supply problem (line
voltage, water pressure, etc.).
Some water might have remained in the
product due to the quality control processes in
the production.
Tap is turned off.
Water inlet hose is bent.
Water inlet filter is clogged.
Loading door may be open.
Water drain hose might be clogged or twisted.
Pump filter is clogged.
Machine might be standing unbalanced.
A hard substance might have entered into the
pump filter.
Transportation safety bolts are not removed.
Laundry quantity in the machine might be
too little.
Machine might be overloaded with laundry.
Machine might be leaning on a rigid item.
Water drain hose might be clogged or twisted.
Pump filter is clogged.
Machine might have stopped temporarily due
to low voltage.
Draining hose might not be at adequate
height.
The water level is not visible from outside of
the washing machine.
Press and hold On/Off button for
3 seconds to reset the machine to
factory settings. (see. "Cancellation of
program")
This is not a failure; water is not
harmful to the machine.
Turn on the taps.
Flatten the hose.
Clean the filter.
Close the door.
Clean or flatten the hose.
Clean the pump filter.
Adjust the feet to level the machine.
Clean the pump filter.
Remove the transportation safety
bolts.
Add more laundry to the machine.
Take out some of the laundry from
the machine or distribute the load by
hand to balance it homogenously in
the machine.
Make sure that the machine is not
leaning on anything.
Clean or flatten the hose.
Clean the pump filter.
It will resume running when the
voltage restores to the normal level.
Connect the water draining hose as
described in the operation manual.
This is not a failure.
34 / EN
Washing Machine /User’s Manual
Troubleshooting
Problem Reason Solution
Loading door cannot
be opened.
Washing takes longer
time than specified
in the manual.(*)
Programme time
does not countdown.
(On models with
display) (*)
Programme time
does not countdown.
(*)
Door lock is activated because of the water
level in the machine.
Machine is heating up the water or it is at the
spinning cycle.
Child lock is engaged. Door lock will be
deactivated a couple of minutes after the
programme has come to an end.
Water pressure is low.
Voltage might be low.
Input temperature of water might be low.
Number of rinses and/or amount of rinse
water might have increased.
Excessive foam might have occurred and
automatic foam absorption system might
have been activated due to too much
detergent usage.
Timer may stop during water intake.
Timer may stop during heating step.
Timer may stop during spinning step.
There might be unbalanced load in the
machine.
Drain the water by running the Pump
or Spin programme.
Wait until the programme completes.
Wait for a couple of minutes for
deactivation of the door lock.
Machine waits until taking in
adequate amount of water to
prevent poor washing quality due
to the decreased amount of water.
Therefore, the washing time extends.
Washing time is prolonged to avoid
poor washing results when the supply
voltage is low.
Required time to heat up the water
extends in cold seasons. Also,
washing time can be lengthened to
avoid poor washing results.
Machine increases the amount of
rinse water when good rinsing is
needed and adds an extra rinsing
step if necessary.
Use recommended amount of
detergent.
Timer indicator will not countdown
until the machine takes in adequate
amount of water. The machine will
wait until there is sufficient amount of
water to avoid poor washing results
due to lack of water. Timer indicator
will resume countdown after this.
Timer indicator will not countdown
until the machine reaches the
selected temperature.
Automatic unbalanced load detection
system might be activated due to the
unbalanced distribution of the laundry
in the drum.
Automatic unbalanced load detection
system might be activated due to the
unbalanced distribution of the laundry
in the drum.
Washing Machine /User’s Manual
35 / EN
Troubleshooting
Problem Reason Solution
Machine does not
switch to spinning
step. (*)
Washing
performance is poor:
Laundry turns gray.
(**)
Washing
performance is poor:
Stains persist or
the laundry is not
whitened. (**)
Washing
performance is poor:
Oily stains appeared
on the laundry. (**)
There might be unbalanced load in the
machine.
The machine will not spin if water is not
drained completely.
Excessive foam might have occurred and
automatic foam absorption system might
have been activated due to too much
detergent usage.
Insufficient amount of detergent has been
used over a long period of time.
Washing was made at low temperatures for
a long time.
Insufficient amount of detergent is used with
hard water.
Too much detergent is used.
Insufficient amount of detergent is used.
Excessive laundry was loaded in.
Wrong programme and temperature were
selected.
Wrong type of detergent is used.
Too much detergent is used.
Regular drum cleaning is not applied.
Automatic unbalanced load detection
system might be activated due to the
unbalanced distribution of the laundry
in the drum.
Check the filter and the draining hose.
Use recommended amount of
detergent.
Use the recommended amount of
detergent appropriate for water
hardness and the laundry.
Select the proper temperature for the
laundry to be washed.
Using insufficient amount of detergent
with hard water causes the soil to
stick on the cloth and this turns the
cloth into gray in time. It is difficult to
eliminate graying once it happens.
Use the recommended amount of
detergent appropriate for water
hardness and the laundry.
Use the recommended amount of
detergent appropriate for water
hardness and the laundry.
Use the recommended amount of
detergent appropriate for water
hardness and the laundry.
Do not load the machine in excess.
Load with amounts recommended in
the "Programme and consumption
table".
Select the proper programme and
temperature for the laundry to be
washed.
Use original detergent appropriate for
the machine.
Put the detergent in the correct
compartment. Do not mix the
bleaching agent and the detergent
with each other.
Clean the drum regularly. For this,
please see 6.2.
36 / EN
Washing Machine /User’s Manual
Troubleshooting
Problem Reason Solution
Washing
performance is
poor: Clothes smell
unpleasantly. (**)
Colour of the clothes
faded. (**)
It does not rinse well.
Laundry became stiff
after washing. (**)
Odours and bacteria layers are formed on
the drum as a result of continuous washing
at lower temperatures and/or in short
programmes.
Excessive laundry was loaded in.
Detergent in use is damp.
A higher temperature is selected.
The amount, brand and storage conditions of
the detergent used are inappropriate.
Detergent is put in the wrong compartment.
Pump filter is clogged.
Drain hose is folded.
Insufficient amount of detergent is used.
Detergent is put in the wrong compartment.
Detergent might be mixed with the softener.
Leave the detergent drawer as well as
the loading door of the machine ajar
after each washing. Thus, a humid
environment favorable for bacteria
cannot occur in the machine.
Do not load the machine in excess.
Keep detergents closed in an
environment free of humidity and
do not expose them to excessive
temperatures.
Select the proper programme and
temperature according to the type
and soiling degree of the laundry.
Use a detergent appropriate for
the washing machine and your
laundry. Keep detergents closed in
an environment free of humidity and
do not expose them to excessive
temperatures.
If detergent is put in the prewash
compartment although prewash cycle
is not selected, machine can take this
detergent during rinsing or softener
step. Put the detergent in the correct
compartment.
Check the filter.
Check the drain hose.
Using insufficient amount of detergent
for the water hardness can cause
the laundry to become stiff in time.
Use appropriate amount of detergent
according to the water hardness.
If detergent is put in the prewash
compartment although prewash cycle
is not selected, machine can take this
detergent during rinsing or softener
step. Put the detergent in the correct
compartment.
Do not mix the softener with
detergent. Wash and clean the
dispenser with hot water.
Washing Machine /User’s Manual
37 / EN
Troubleshooting
Problem Reason Solution
Laundry does
not smell like the
softener. (**)
Detergent residue in
the detergent drawer.
(**)
Too much foam
forms in the
machine. (**)
Detergent is put in the wrong compartment.
Detergent might be mixed with the softener.
Detergent is put in wet drawer.
Detergent has gotten damp.
Water pressure is low.
The detergent in the main wash compartment
got wet while taking in the prewash water.
Holes of the detergent compartment are
blocked.
There is a problem with the detergent drawer
valves.
Detergent might be mixed with the softener.
Regular drum cleaning is not applied.
Improper detergents for the washing machine
are being used.
Excessive amount of detergent is used.
Detergent was stored under improper
conditions.
Some meshed laundry such as tulle may
foam too much because of their texture.
Detergent is put in the wrong compartment.
Softener is being taken early.
If detergent is put in the prewash
compartment although prewash cycle
is not selected, machine can take this
detergent during rinsing or softener
step. Wash and clean the dispenser
with hot water. Put the detergent in
the correct compartment.
Do not mix the softener with
detergent. Wash and clean the
dispenser with hot water.
Dry the detergent drawer before
putting in detergent.
Keep detergents closed in an
environment free of humidity and
do not expose them to excessive
temperatures.
Check the water pressure.
Check the holes and clean if they are
clogged.
Call the Authorized Service Agent.
Do not mix the softener with
detergent. Wash and clean the
dispenser with hot water.
Clean the drum regularly. For this,
please see 6.2.
Use detergents appropriate for the
washing machine.
Use only sufficient amount of
detergent.
Store detergent in a closed and dry
location. Do not store in excessively
hot places.
Use smaller amounts of detergent for
this type of item.
Put the detergent in the correct
compartment.
There may be problem in the valves
or in the detergent dispenser. Call the
Authorized Service Agent.
38 / EN
Washing Machine /User’s Manual
Troubleshooting
Problem Reason Solution
Foam is overflowing
Too much detergent is used.
from the detergent
drawer.
Laundry remains
wet at the end of the
programme. (*)
Excessive foam might have occurred and
automatic foam absorption system might
have been activated due to too much
detergent usage.
(*) Machine does not switch to spinning step when the laundry is not evenly distributed
in the drum to prevent any damage to the machine and to its surrounding environment.
Laundry should be rearranged and re-spun.
(**) Regular drum cleaning is not applied. Clean the drum regularly. See 6.2
CAUTION: If you cannot eliminate the problem although you follow the
A
instructions in this section, consult your dealer or the Authorized Service Agent.
Never try to repair a nonfunctional product yourself.
Mix 1 tablespoonful softener and ½
l water and pour into the main wash
compartment of the detergent drawer.
Put detergent into the machine
suitable for the programmes and
maximum loads indicated in the
“Programme and consumption table”.
When you use additional chemicals
(stain removers, bleachs and etc),
reduce the amount of detergent.
Use recommended amount of
detergent.
Washing Machine /User’s Manual
39 / EN
www.beko.com
Loading...
