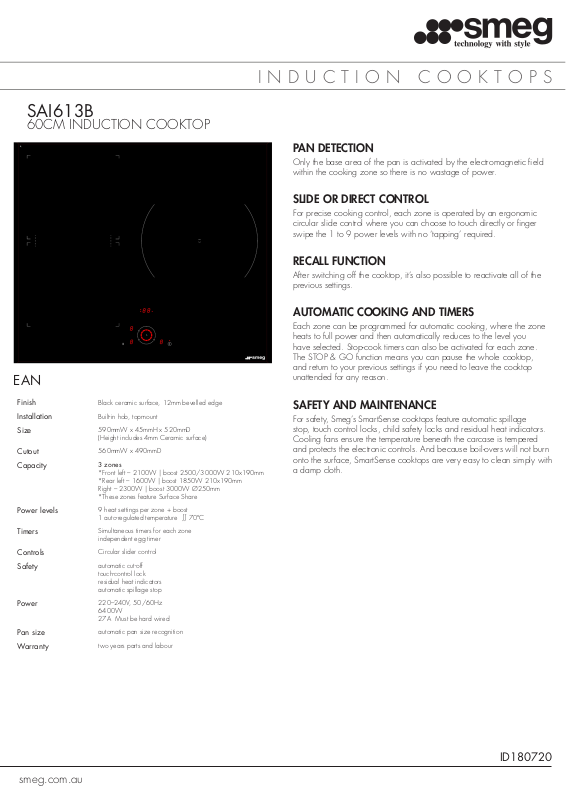

Smeg SAI613B Specifications Sheet
SAI613B
60CM INDUCTION COOKTOP
EAN
INDUCTION COOKTOPS
PAN DETECTION
Only the base area of the pan is activated by the electromagnetic eld
within the cooking zone so there is no wastage of power.
SLIDE OR DIRECT CONTROL
For precise cooking control, each zone is operated by an ergonomic
circular slide control where you can choose to touch directly or nger
swipe the 1 to 9 power levels with no ‘tapping’ required.
RECALL FUNCTION
After switching off the cooktop, it’s also possible to reactivate all of the
previous settings.
AUTOMATIC COOKING AND TIMERS
Each zone can be programmed for automatic cooking, where the zone
heats to full power and then automatically reduces to the level you
have selected. Stop-cook timers can also be activated for each zone.
The STOP & GO function means you can pause the whole cooktop,
and return to your previous settings if you need to leave the cooktop
unattended for any reason.
Finish
Installation
Size
Cutout
Capacity
Power levels
Timers
Controls
Safety
Power
Pan size
Warranty
Black ceramic surface, 12mm bevelled edge
Built-in hob, topmount
590mmW x 45mmH x 520mmD
(Height includes 4mm Ceramic surface)
560mmW x 490mmD
3 zones
*Front left – 2100W | boost 2500/3000W 210x190mm
*Rear left – 1600W | boost 1850W 210x190mm
Right – 2300W | boost 3000W Ø250mm
*These zones feature Surface Share
9 heat settings per zone + boost
1 auto-regulated temperature ∫∫ 70ºC
Simultaneous timers for each zone
independent egg timer
Circular slider control
automatic cut-off
touch-control lock
residual heat indicators
automatic spillage stop
220–240V, 50/60Hz
6400W
27A Must be hard wired
automatic pan size recognition
two years parts and labour
SAFETY AND MAINTENANCE
For safety, Smeg’s SmartSense cooktops feature automatic spillage
stop, touch control locks, child safety locks and residual heat indicators.
Cooling fans ensure the temperature beneath the carcase is tempered
and protects the electronic controls. And because boil-overs will not burn
onto the surface, SmartSense cooktops are very easy to clean simply with
a damp cloth.
smeg.com.au
ID180720
SAI613B
60CM INDUCTION COOKTOP
INDUCTION COOKTOPS
PLEASE NOTE: drawings are not to scale. They are to assist only.
WARNING: technical specications and product sizes can be varied by the manufacturer without notice.
Cutouts for appliances should only be by physical product measurements. The above information is indicative only.
