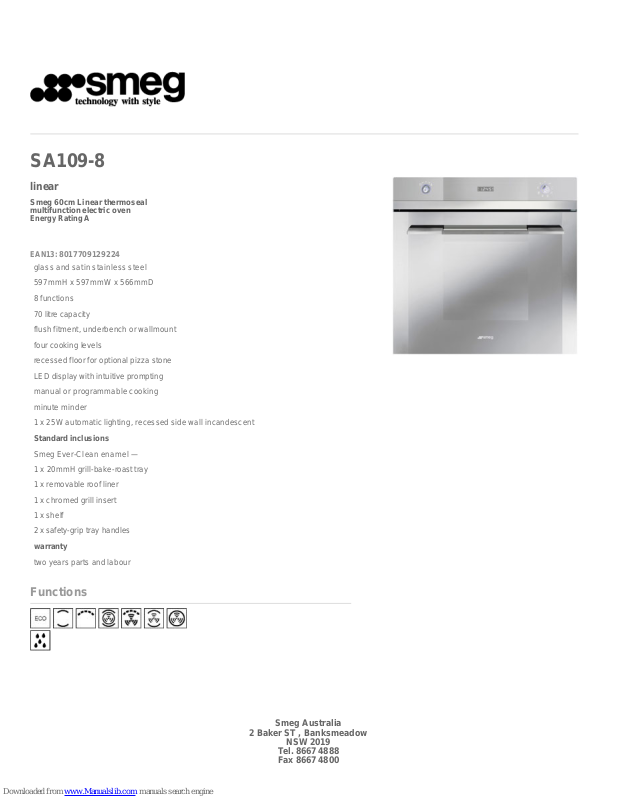

Page 1
SA109-8
linear
Smeg 60cm Linear thermoseal
multifunction electric oven
Energy Rating A
EAN13:
8017709129224
glass and satin stainless steel
597mmH x 597mmW x 566mmD
8 functions
70 litre capacity
flush fitment, underbench or wallmount
four cooking levels
recessed floor for optional pizza stone
LED display with intuitive prompting
manual or programmable cooking
minute minder
1 x 25W automatic lighting, recessed side wall incandescent
Standard inclusions
Smeg Ever-Clean enamel —
1 x 20mmH grill-bake-roast tray
1 x removable roof liner
1 x chromed grill insert
1 x shelf
2 x safety-grip tray handles
warranty
two years parts and labour
Functions
Smeg Australia
2 Baker ST , Banksmeadow
NSW 2019
Tel. 8667 4888
Fax 8667 4800
Page 2
SA109-8
linear
single oven
60 cm
silver glass
ECO (fan + perimeter roof element):
Using the grill and lower heating element in combination is particularly suitable for cooking on a single shelf only, as it provides low
energy consumption.
Convection (perimeter roof element+ floor element):
A gentle heat for long slow cooking of fruit cakes, casseroles & slow roasts. Single level cook using the middle zone of the oven to
achieve perfect results.
Static Grill (perimeter roof element + inner roof element) :
Radiant heat is directed straight onto the top of your food. Use this function for toast, cheese melts, focaccia etc. Turn to this function
toward the end of cooking if the food requires additional top browning. Oven door must be closed while grilling.
Supercook (fan+perimeter roof element+floor element+circular rear element):
Faster preheating. Perfect for roasting; after the meat is removed from the oven to rest, turn the temperature up to 220˚C for the best
roast potatoes.
Fan Grill (fan+perimeter roof element+inner roof element):
High power full width grilling producing succulent grilled meat, chicken or fish, while at the same time baking vegetables & dessert
below. Also great for chips. With this function both top elements are being used. The oven door must be closed while grilling.
Fan Assisted (fan+perimeter roof element+floor element):
Excellent general cooking function for roasts, cakes and desserts. Provides very even cooking throughout the middle zones of the
oven. The highest and lowest levels will provide additional top or bottom browning and crisping.
Fan Forced (fan + circular rear element):
This versatile function is ideal for baking and roasting large quantities of food. It allows you to use every shelf position, including the
oven floor, because the heat source is from the back of the oven.
Vapour Clean (concealed floor element only):
Regularly add a little water to the oven cavity floor and spray some water and detergent over the oven cavity walls. Select Vapour Clean and allow
the vapour to soften any residue for easy wipe-
over.
Smeg Australia
2 Baker ST , Banksmeadow
NSW 2019
Tel. 8667 4888
Fax 8667 4800
Page 3
SA109-8
linear
single oven
60 cm
silver glass
Smeg Australia
2 Baker ST , Banksmeadow
NSW 2019
Tel. 8667 4888
Fax 8667 4800
