Smeg PGFA95F User Manual

Contents

1. INSTRUCTIONS FOR SAFE AND PROPER USE________________ 4

2. INSTALLATION OF THE APPLIANCE_________________________ 6

3. GAS CONNECTION______________________________________ 12

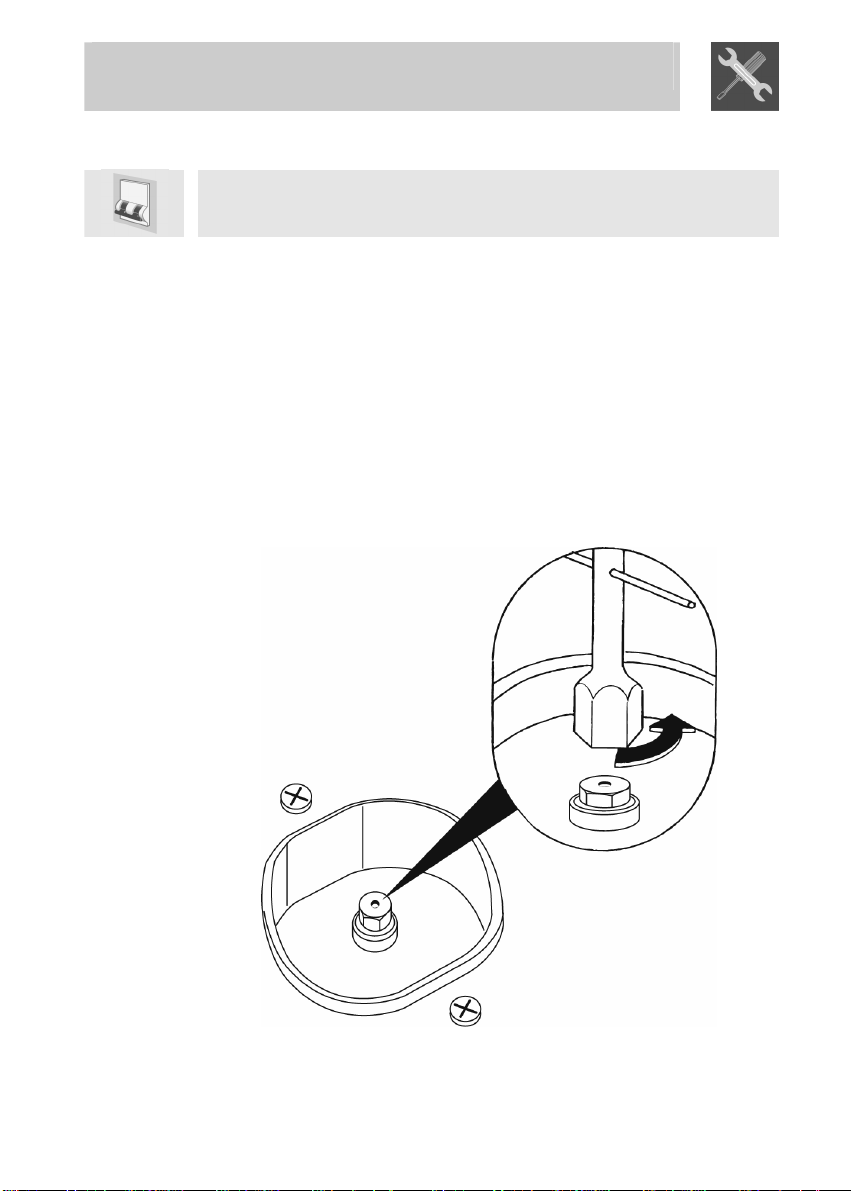

4. ADAPTATION TO DIFFERENT TYPES OF GAS _______________ 14

5. FINAL OPERATIONS_____________________________________ 16

6. USE OF THE COOKING HOB ______________________________ 17

7. CLEANING AND MAINTENANCE ___________________________ 19

8. PROBLEMS AND CAUSES ________________________________ 20

INSTRUCTIONS FOR THE INSTALLER: these are for the authorised persons who must carry out a suitable check of the gas system, install the appliance, set it functioning and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice, description of the commands and the correct procedures for cleaning and maintenance of the appliance.

Introduction

1. INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE COOKING HOB. WE ADVISE READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE USING THE COOKING HOB. ALSO KEEP THE SERIES OF NOZZLES SUPPLIED. INSTALLATION MUST BE CARRIED OUT BY AUTHORISED PERSONS IN ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USES AND CONFORMS TO CURRENT REGULATIONS IN FORCE. THE APPLIANCE HAS B EEN BUILT TO CARRY OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING-UP

OF FOOD. ALL OTHER USES ARE CONSIDERED IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.

THE PLUG TO BE CONNECTED TO THE POWER CABLE AND THE SOCKET MUST BE THE SAME TYPE AND MUST CONFORM TO CURRENT REGULATIONS. THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN BUILT IN.

NEVER UNPLUG BY PULLING ON THE CABLE.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION TEST OF THE COOKING HOB, FOLLOWING THE INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE SUPPLY AND CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE. NEVER ATTEMPT TO REPAIR THE APPLIANCE.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE POSITION

(OFF) WHEN YOU FINISH USING THE HOB.

THE IDENTIFICATION PLATE, WITH TECHNICAL DATA, SERIAL NUMBER AND MARKING IS CLEARLY VISIBLE UNDER THE CASING.

THE PLATE ON THE CASING MUST NOT BE REMOVED.

Introduction

DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS

ON THE COOKING HOB GRIDS.

DO NOT USE RECIPIENTS OR GRIDDLE PLATES THAT EXTEND BEYOND THE EXTERNAL PERIMETER OF THE HOB.

THE HOB IS TO BE USED BY ADULTS ONLY. DO NOT LET UNSUPERVISED CHILDREN PLAY WITH THE HOB.

REPLACED APPLIANCES MUST BE TAKEN TO A SPECIAL GARBAGE COLLECTION CENTRE.

THIS APPLIANCE IS DESIGNED FOR COOKING FOOD AND IT SHALL NOT BE USED AS A SPACE HEATER.

DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.

The manufacturer declines all responsibility for damage to persons or things caused by non-observance of the above prescriptions or by interference with any part of the appliance or by the use of non-origina l spares.

Instructions for the installer

2. INSTALLATION OF THE APPLIANCE

The following operation requires building and/or carpentry work so must be carried out by a competent tradesman. Installation can be carried out on various materials such as masonry, metal, solid wood or plastic laminated wood as long as they are heat

Create an opening with the

figure, to avoid damage from overheating. Make sure there is a minimum of

resistant (T 90°C).

2.1 Attachment to support structure, traditional built-in model (fig. 1)

dimensions shown in the figure in the work surface, observing minimum distance of 50 mm from the rear edge. This appliance can be installed next to walls that are highe than the work surface, as long as the distance "X" is kep between the appliance and the wall, as shown in the

750 mm between the gas rings and any shelf that may be installed directly above them. Carefully position the gasket provided all around the outer edge of the hole in the work surface as shown in figure 2, press ing it down lightly to ensure it adheres properly. The front and rear sides of the gasket must skim the hole. Having done this, place the hob on top of the gasket and using the screws and fixing brackets “C” or “D” (depending on the depth of the worktop – Fig.4) secure the hob to th e support structure, ensuring it is level. The brackets “C” secure the hob to a structure having a depth of 20 to 30 mm. The brackets “D” on the other hand, are for use with worktops having a depth of 30 to 50 mm. Carefully trim any excess from edge C (Fig.3) of the gasket. The distances in figure 2 refer to the hole on the inner side of the gasket.

Instructions for the installer

2.2 Attachment to support structure, flush-mounting model

Create an opening with the dimensions shown in the figure in the work surface, observing a minimum distance of 50 mm from the rear edge. The lower part of the protective cover must be fully accessible when the appliance is installed. This appliance can be installed next to walls that are higher than the work surface, as long as the distance "X" is kept, as shown in the figure, to avoid damage from overheating. Make sure there is a minimum of 750 mm (Fig. 1) between the gas rings and any shelf that may be installed directly above them. This type of appliance r equires t he w orktop, the dimensions of which are shown shown in figure 2, to be milled to a de pth of 2.5 mm. Before positioning the hob, position the adhesive s ponge material “E” supplied over the milled surface (fig. 3). Having done this, place the hob on the milled surface and using the screws and fixing brackets “C” or “D” (depending on the depth o f the worktop) secure the hob to the support structure, ensuring it is level. The br ackets “C” secure the hob to a structure having a depth of 20 to 30 mm. The brackets “D” on the other hand, are for use with worktops having a depth of 30 to 50 mm.

Mill to this depth for laminated worktops of less than 3mm thickness.

Apply a layer of “waterproof primer” to the milled surface.

Important: Other types of installation will only be possible under the manufacturer's supervision.
