Smeg PGF96K-4 Technical sheet

PGF96K-4

Hob, Aesthetics: Classica, Gas, 90 cm, Stainless steel, Built-in type: Ultra-low profile

TYPE

Product Family: Hob • Dimensions: 90 cm • Type: Gas • Built-in type: Ultra-low profile • Power supply: Gas • EAN code:

8017709266998

AESTHETICS

Colour: Stainless steel • Finishing: Satin • Aesthetics: Classica • Type of steel: Brushed • Material: Stainless Steel • Controls

colour: Steel effect • Type of control setting: Control knobs • Control knob position: Front • No. of controls: 6 • Pan stands: Cast

iron • Burners: Standard • Burners Material: Alluminium • Serigraphy colour: Black

PROGRAMS / FUNCTIONS

Total no. of cook zones: 6 • No. of gas cook zones: 6

OPTIONS

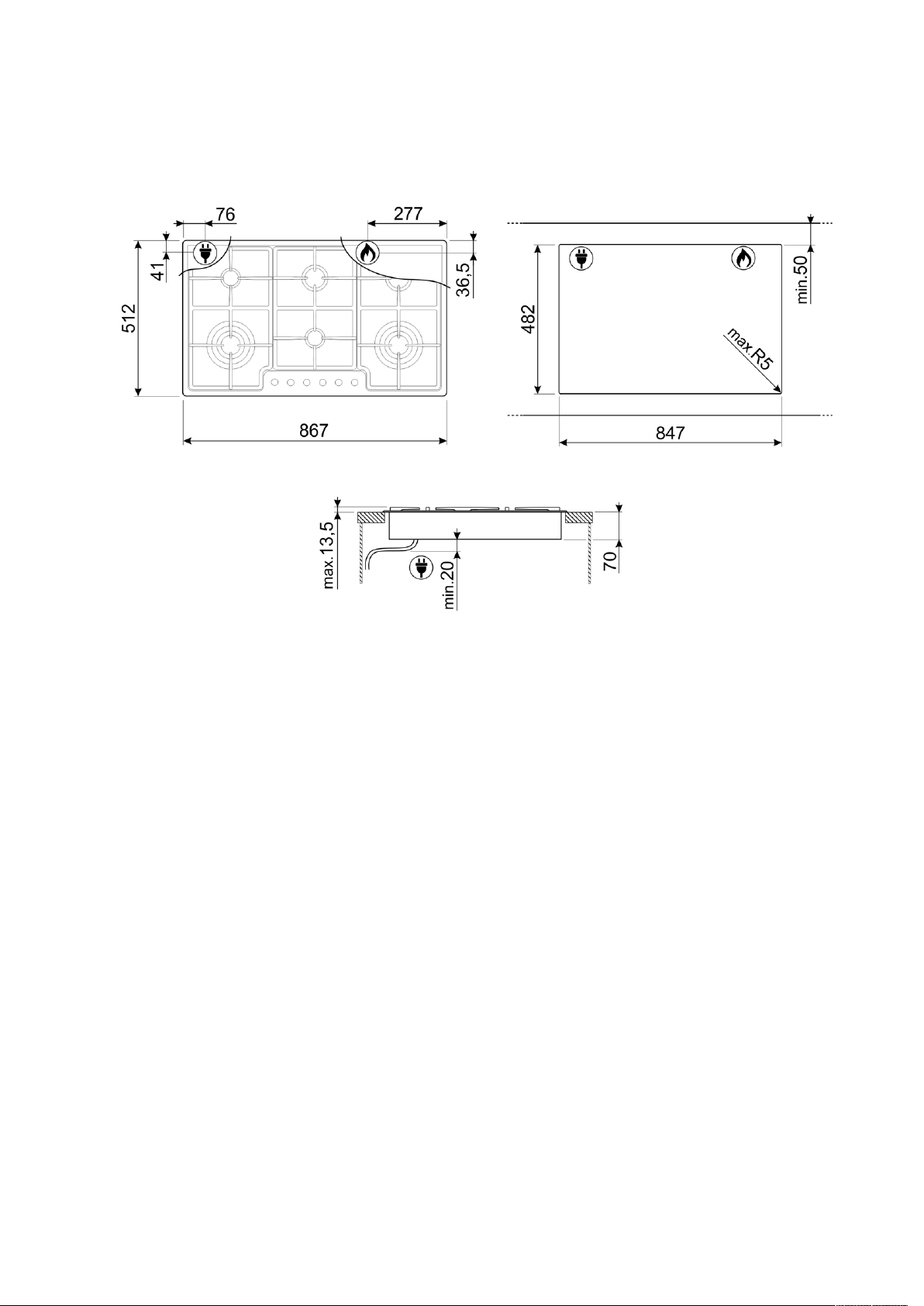

Worktop Cut-Out: 482x847 mm

COOKING ZONES

1st zone position: Front-left • 2nd zone position: Rear-left • 3rd zone position: Front-centre • 4th zone position: Rear-centre •

5th zone position: Front-right • 6th zone position: Rear-right • 1st zone type: Gas - UR • 2nd zone type: Gas - AUX • 3rd zone

type: Gas - AUX • 4th zone tipe: Gas - Semi Rapid • 5th zone type: Gas - UR • 6th zone type: Gas - Semi Rapid • 1st zone

power: 4.20 kW • 2nd zone power: 1.05 kW • 3rd zone power: 1.05 kW • 4th zone power: 1.75 kW • 5th zone power: 4.20 kW

• 5th zone power: 1.75 kW

TECHNICAL FEATURES

Gas Type: G30 GPL Liquid gas • Gas safety valves: Yes • Automatic Ignition: Yes

PERFORMANCE / ENERGY LABEL

ELECTRICAL CONNECTION

Gas connection rating (W): 14000 W • Electrical connection rating (W): 1 W • Voltage (V): 120 V • Frequency (Hz): 60 Hz • Type

of electric cable: Single phase • Power supply cable length: 120 cm

LOGISTIC INFORMATION

Dimensions of the product (mm): 78x867x512 • Depth: 512 mm • Width: 867 mm • Product Height: 78 mm

ACCESSORIES INCLUDED

Cast iron wok support: 2Other gas nozzles included: G110 City gas, G20 Natural gas
