Smeg PGF96 Technical sheet

PGF96

Hob, Aesthetics: Classic, Gas, 90 cm, Built-in: Ultra-low profile

TYPE

Product Family: Hob • Dimensions: 90 cm • Type: Gas • Built-in: Ultra-low profile • Power supply: Gas • EAN code:

8017709153663

AESTHETICS

Colour: Stainless steel • Finishing: Brushed • Aesthetics: Classic • Type of steel: Brushed • Material: Stainless Steel • Controls

colour: Steel effect • Type of control setting: Control knobs • Control knobs position: Front • No. of controls: 6 • Pan stands: Cast

iron • Burners: Standard • Burners Material: Alluminium • Serigraphy colour: Black

PROGRAMME / FUNCTIONS

Total no. of cook zones: 6 • No. of gas cook zones: 6

OPTIONS

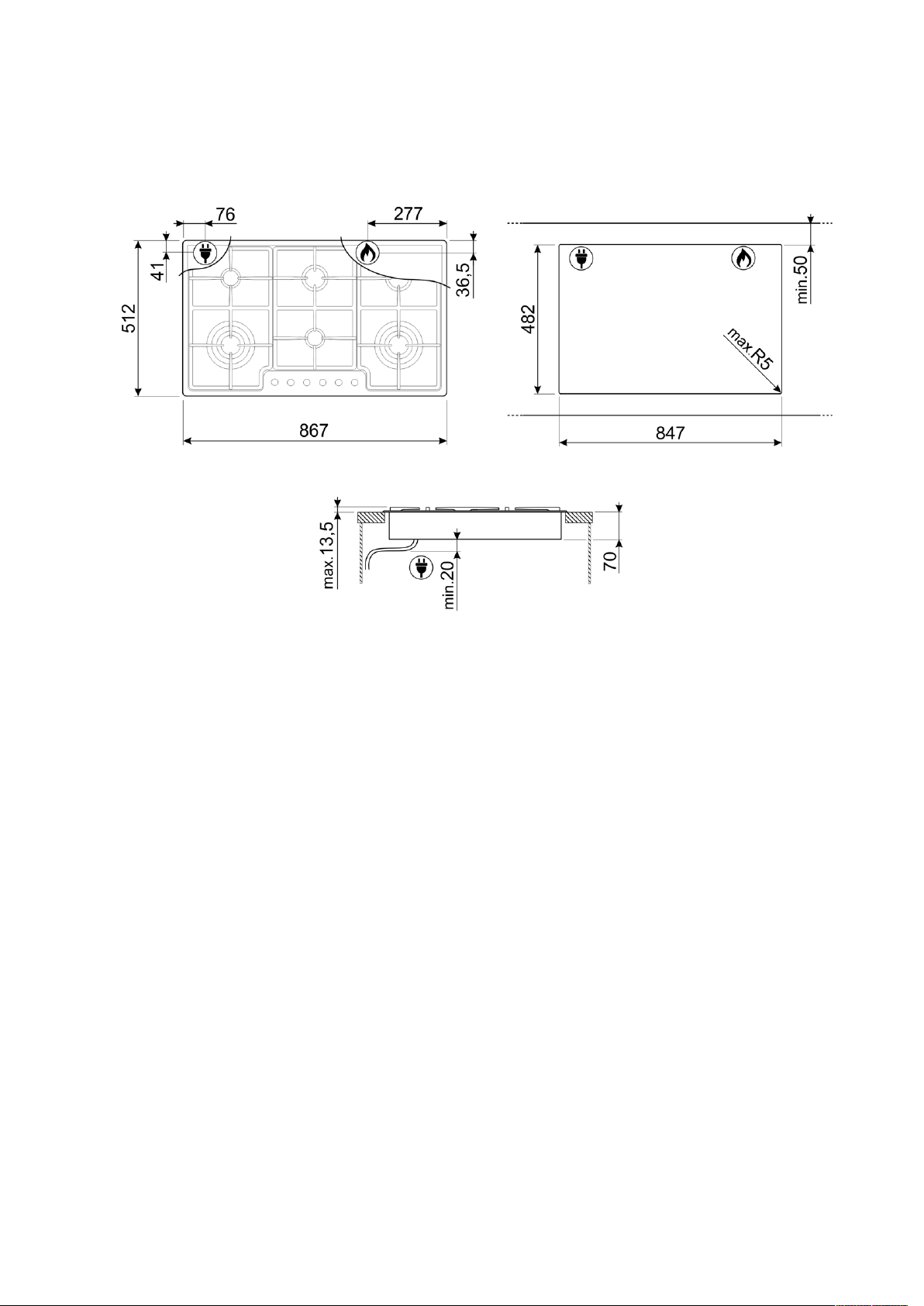

Standard cut out: 482x847 mm

COOKING ZONES

1st zone position: Front left • 2nd zone position: Rear left • 3rd zone position: Front centre • 4th zone position: Rear centre • 5th

zone position: Front right • 6th zone position: Rear right • 1st zone type: Gas - UR • 2nd zone type: Gas - AUX • 3rd zone type:

Gas - AUX • 4th zone tipe: Gas - Semi Rapid • 5th zone type: Gas - UR • 6th zone type: Gas - Semi Rapid • 1st zone power:

4.20 kW • 2nd zone power: 1.05 kW • 3rd zone power: 1.05 kW • 4th zone power: 1.75 kW • 5th zone power: 4.20 kW • 5th

zone power: 1.75 kW

TECHNICAL FEATURES

Gas Type: G20 Natural gas • Gas safety valves: Yes • Automatic Ignition: Yes

PERFORMANCE / ENERGY LABEL

ELECTRICAL CONNECTION

Gas connection rating (W): 14000 W • Nominal power (W): 1 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60 Hz • Power

supply cable length: 120 cm

LOGISTIC INFORMATION

Dimensions of the product (mm): 78x867x512 • Depth (mm): 512 mm • Width (mm): 867 mm • Product Height (mm): 78 mm

ACCESSORIES INCLUDED

Cast iron wok support: 2Other gas nozzles included: G30 GPL Liquid gasOther gas connections provided: Conical

OPTIONAL

WOKGHU: Wok support, Cookers, Hobs6MP1PGF: Knob sets, Hobs
