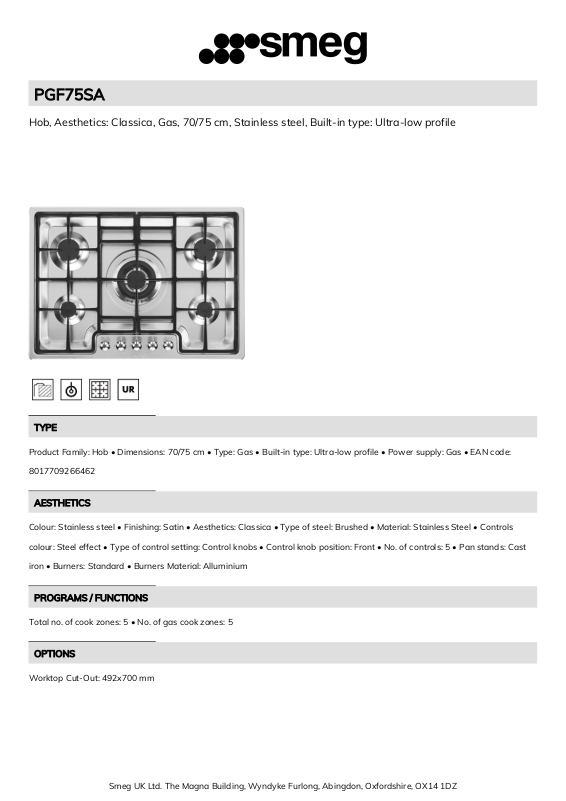

Smeg PGF75SA Technical sheet

PGF75SA

Hob, Aesthetics: Classica, Gas, 70/75 cm, Stainless steel, Built-in type: Ultra-low profile

TYPE

Product Family: Hob • Dimensions: 70/75 cm • Type: Gas • Built-in type: Ultra-low profile • Power supply: Gas • EAN code:

8017709266462

AESTHETICS

Colour: Stainless steel • Finishing: Satin • Aesthetics: Classica • Type of steel: Brushed • Material: Stainless Steel • Controls

colour: Steel effect • Type of control setting: Control knobs • Control knob position: Front • No. of controls: 5 • Pan stands: Cast

iron • Burners: Standard • Burners Material: Alluminium

PROGRAMS / FUNCTIONS

Total no. of cook zones: 5 • No. of gas cook zones: 5

OPTIONS

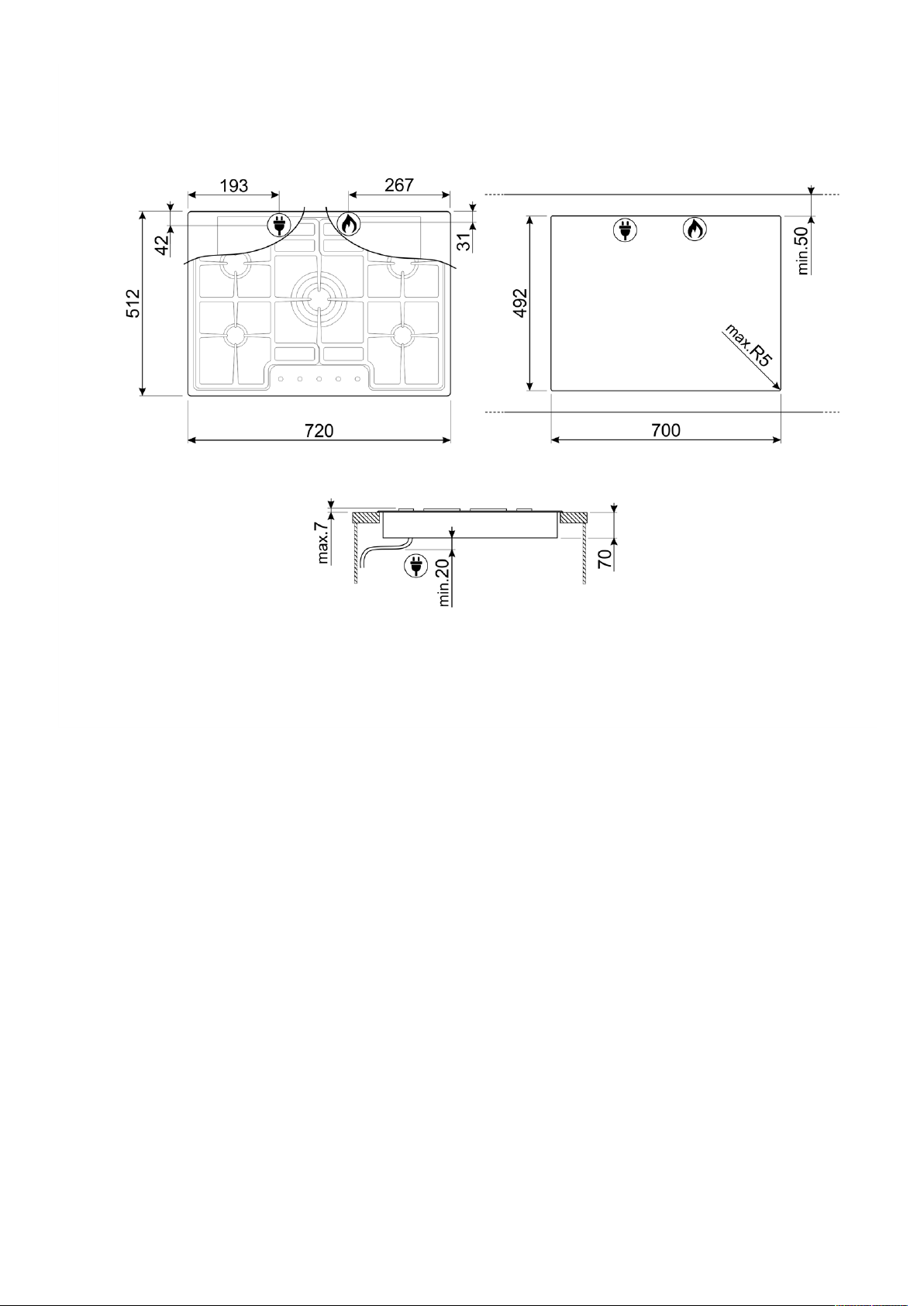

Worktop Cut-Out: 492x700 mm

Smeg UK Ltd. The Magna Building, Wyndyke Furlong, Abingdon, Oxfordshire, OX14 1DZ

COOKING ZONES

1st zone position: Front-left • 2nd zone position: Rear-left • 3rd zone position: Central • 4th zone position: Rear-right • 5th zone

position: Front-right • 1st zone type: Gas - AUX • 2nd zone type: Gas - Semi Rapid • 3rd zone type: Gas - UR • 4th zone tipe:

Gas - Semi Rapid • 5th zone type: Gas - AUX • 1st zone power: 1.05 kW • 2nd zone power: 1.75 kW • 3rd zone power: 3.90 kW

• 4th zone power: 1.75 kW • 5th zone power: 1.05 kW

TECHNICAL FEATURES

Gas Type: G30 GPL Liquid gas • Gas safety valves: Yes • Automatic Ignition: Yes

PERFORMANCE / ENERGY LABEL

ELECTRICAL CONNECTION

Gas connection rating (W): 9500 W • Electrical connection rating (W): 1 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60 Hz

• Type of electric cable: Single phase • Power supply cable length: 120 cm

LOGISTIC INFORMATION

Dimensions of the product (mm): 78x720x511 • Depth: 511 mm • Width: 720 mm • Product Height: 78 mm

ACCESSORIES INCLUDED

Cast iron wok support: 1Other gas nozzles included: G110 City gasOther gas connections provided: Conical
