Smeg PGF75BE3, PGF75-3 User Manual

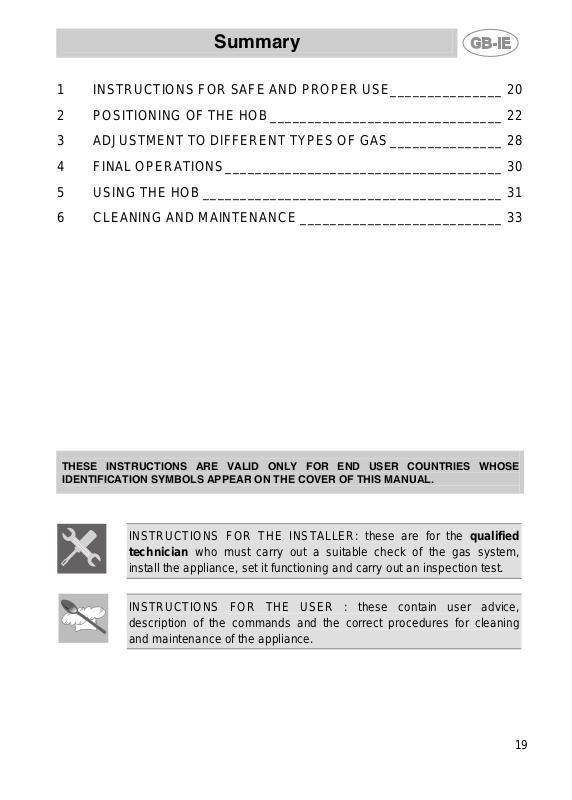

Summary

1 INSTRUCTIONS FOR SAFE AND PROPER USE_______________ 20
2 POSITIONING OF THE HOB_______________________________ 22

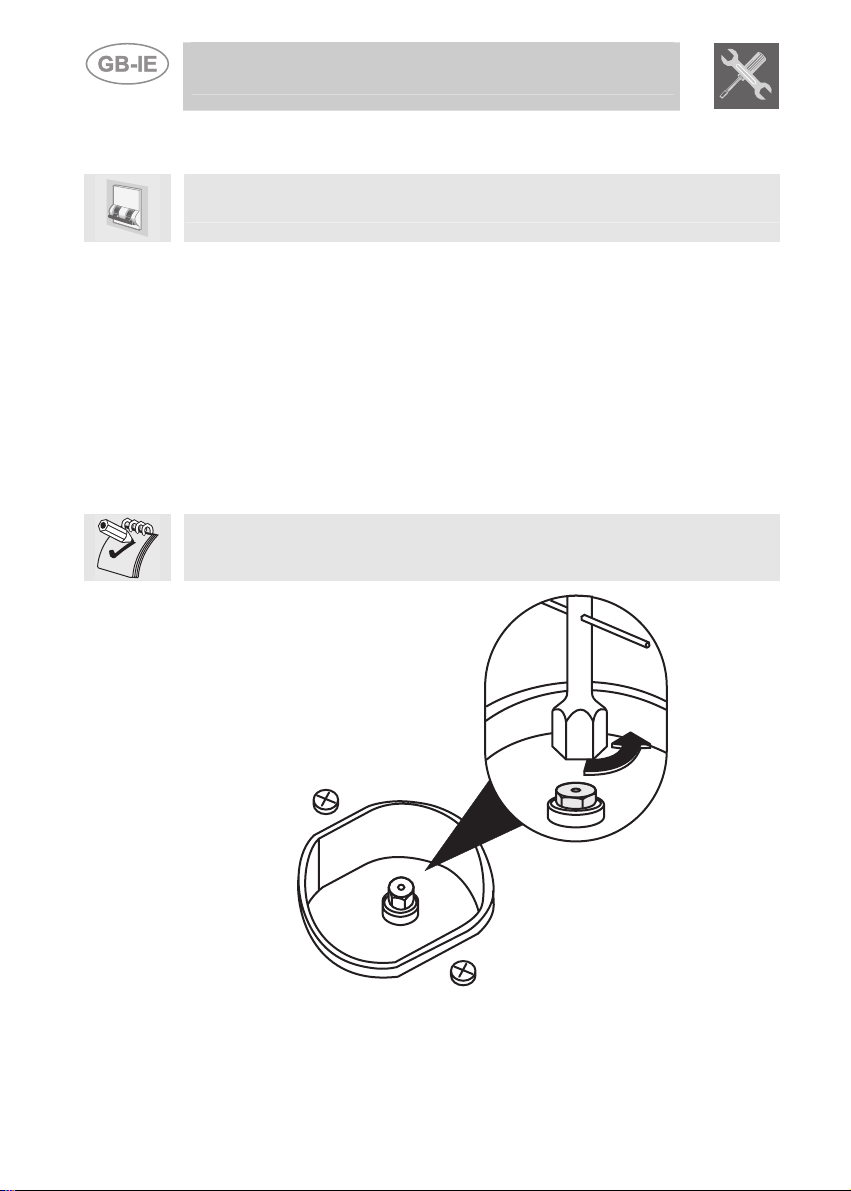

3 ADJUSTMENT TO DIFFERENT TYPES OF GAS_______________ 28
4 FINAL OPERATIONS_____________________________________ 30

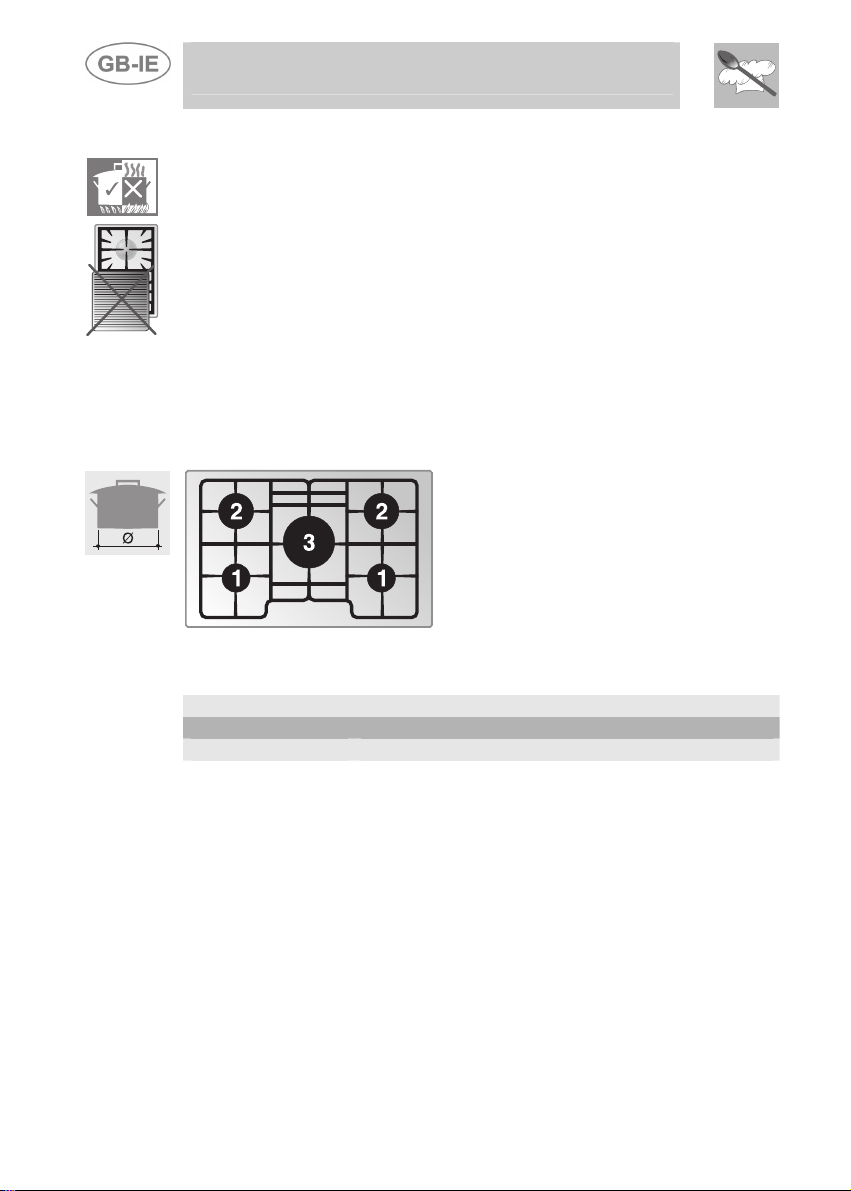

5 USING THE HOB________________________________________ 31
6 CLEANING AND MAINTENANCE ___________________________ 33

THESE INSTRUCTIONS ARE VALID ONLY FOR END USER COUNTRIES WHOSE
IDENTIFICATION SYMBOLS APPEAR ON THE COVER OF THIS MANUAL.

INSTRUCTIONS FOR THE INSTALLER: these are for the qualified
technician who must carry out a suitable check of the gas system,

install the appliance, set it functioning and carry out an inspection test.

INSTRUCTIONS FOR THE USER : these contain user advice,
description of the commands and the correct procedures for cleaning
and maintenance of the appliance.

19

Introduction

1 INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND
THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE
PLACE FOR THE WHOLE WORKING LIFE OF THE HOB. WE ADVISE
READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE
USING THE HOB. ALSO KEEP THE SERIES OF NOZZLES SUPPLIED.
INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN
ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR FOR DOMESTIC USES AND CONFORMS TO EEC
DIRECTIVES CURRENTLY IN FORCE. THE APPLIANCE IS DESIGNED TO
CARRY OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING

FOOD; ALL OTHER USES ARE TO BE CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL LIABILITY FOR IMPROPER USE .

DO NOT LEAVE THE PACKAGING MATERIALS UNATTENDED IN THE HOME
ENVIRONMENT. SEPARATE THE DIFFERENT WASTE MATERIALS FROM
THE PACKAGING AND DELIVER THEM TO THE NEAREST COLLECTION
CENTRE FOR RECYCLABLE WASTE.

REGULATIONS REQUIRE THAT THE APPLIANCE IS EARTHED IN
ACCORDANCE WITH ELECTRICAL SAFETY REGULATIONS.

THE PLUG TO BE CONNECTED TO THE POWER SUPPLY CABLE AND THE
SOCKET MUST BE OF THE SAME TYPE AND MUST CONFORM TO
CURRENT REGULATIONS.
THE POWER SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS
BEEN BUILT IN.

NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER SUPPLY
CABLE.

IMMEDIATELY AFTER INSTALLATION, CARRY OUT A BRIEF INSPECTION
TEST OF THE APPLIANCE, FOLLOWING THE INSTRUCTIONS BELOW.
SHOULD THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE
POWER SUPPLY AND CONTACT YOUR NEAREST TECHNICAL ASSISTANCE
CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE POSITION
(OFF) WHEN YOU FINISH USING THE HOB.

20

Introduction

THE APPLIANCE DATA PLATE, WITH TECHNICAL DATA, REGISTRATION
NUMBER AND BRAND NAME, IS POSITIONED AT A VISIBLE POINT UNDER
THE SAFETY COVER.

THE DATA PLATE ON THE PROTECTIVE COVER MUST NEVER BE
REMOVED.

DO NOT PUT PANS WITHOUT PERFECTLY PERFECTLY SMOOTH AND FLAT

BOTTOMS ON THE HOB PANSTAND GRIDS.

DO NOT USE COOKING RECEPTACLES THAT EXTEND BEYOND THE
OUTSIDE PERIMETER OF THE HOB.

THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW
CHILDREN TO GO NEAR OR PLAY WITH IT.

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
(WEEE).
THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF
RETURN AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT.

The manufacturer declines all liability for injury to persons or animals
and for damage to property resulting from non-observance of the above
prescriptions or from tampering with any part of the appliance or for the
use of non-original spare parts.

21

n

Instructions for the installer

2 POSITIONING OF THE HOB

The following operation requires building and/or carpentry work so must
be carried out by a competent tradesman.
Installation can be carried out on various materials such as masonry,
metal, solid wood or plastic laminated wood, as long as they are heat­resistant (T 90°C).

2.1 Attachment to support structure, traditional built-i

Create an opening with the dimensions shown
in the figure in the work surface, observing a
minimum distance of 50 mm from the rear
edge.
This appliance can be installed next to walls
that are higher than the work surface, as long
as the distance "X" is kept between the
appliance and the wall, as shown in the figure,
to avoid damage from overheating.
Make sure there is a minimum of 750 mm
between the gas rings and any shelf that
may be installed directly above them.

Carefully position the gasket provided all around the outer edge of the hole in the work
surface as shown in figure 2, pressing it down lightly to ensure it adheres properly. The
front and rear sides of the gasket must skim the hole. Now place the hob on the
insulating gasket and use the screws and fixing brackets (fig. 4) to secure the hob to
the supporting structure, adjusting it until perfectly horizontal.
Carefully trim off the excess edge of the gasket C (Fig.3). The dimensions in figure 2
below refer to the distance between the hole and the inside edge of the gasket. Do
not fit the brackets shown in fig. 4 until the hob has been set in place.

model

1)

2) 3)

4)

22

Instructions for the installer

Create an opening with the dimensions
shown in the figure in the work surface,
observing a minimum distance of 50 mm
from the rear edge.
The lower part of the protective cover
must be fully accessible when the
appliance is installed. This appliance can
be installed next to walls that are higher
than the work surface, as long as the
distance "X" is kept, as shown in the
figure, to avoid damage from overheating.
Make sure there is a minimum of 750 mm (Fig. 1) between the gas rings and any shelf
that may be installed directly above them. This type of appliance also requires a cut 3
mm deep in the work-top with the dimensions shown in figure 4 (detail A, figure 2).
Before positioning the hob, position the adhesive sponge material “E” supplied over
the milled surface (fig. 2). Now place the hob on the cut in the work-top and use the
screws and fixing brackets (sequence shown in Fig. 3) to secure the hob to the
supporting structure, adjusting it until perfectly horizontal. Do not fit the brackets
shown in fig. 3 until the hob has been set in place.

2.2 Attachment to support structure, flush-mounting model

1)

2)
Mill to this depth for laminated worktops of less
than 3mm thickness.

4)

Apply a layer of “waterproof primer” to the milled surface.

3)

23
