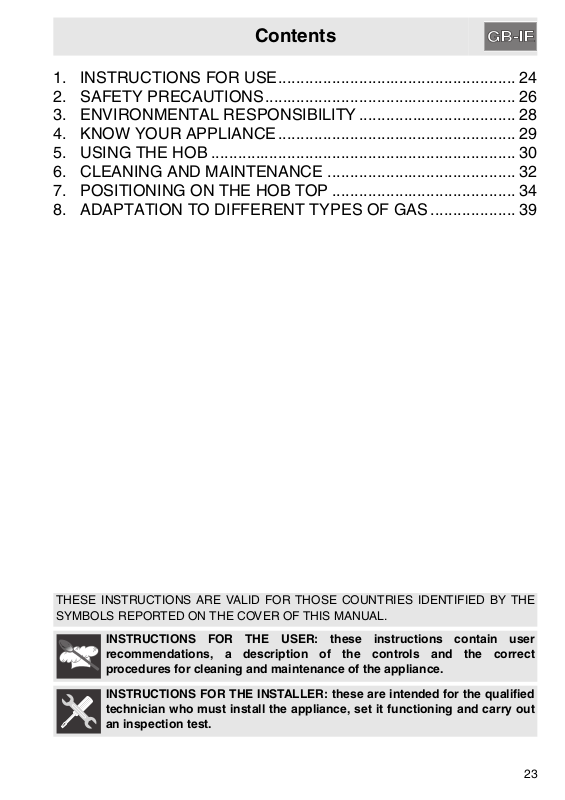

Contents
1. INSTRUCTIONS FOR USE..................................................... 24
2. SAFETY PRECAUTIONS........................................................ 26
3. ENVIRONMENTAL RESPONSIBILITY ................................... 28
4. KNOW YOUR APPLIANCE..................................................... 29
5. USING THE HOB .................................................................... 30
6. CLEANING AND MAINTENANCE .......................................... 32
7. POSITIONING ON THE HOB TOP ......................................... 34
8. ADAPTATION TO DIFFERENT TYPES OF GAS ................... 39
THESE INSTRUCTIONS ARE VALID FOR THOSE COUNTRIES IDENTIFIED BY THE
SYMBOLS REPORTED ON THE COVER OF THIS MANUAL.
INSTRUCTIONS FOR THE USER: these instructions contain user
recommendations, a description of the controls and the correct
procedures for cleaning and maintenance of the appliance.
INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified
technician who must install the appliance, set it functioning and carry out
an inspection test.
23
General instructions
1. INSTRUCTIONS FOR USE
THIS MANUAL CONSTITUTES AN INTEGRAL PART OF THE APPLIANCE. THIS
MANUAL CONSTITUTES AN INTEGRAL PART OF THE APPLIANCE. IT SHOULD BE
KEPT INTACT AND AT HAND FOR THE APPLIANCE’S ENTIRE LIFE CYCLE.
IT IS IMPORTANT TO CAREFULLY READ THIS MANUAL AND ALL THE
INSTRUCTIONS CONTAINED HEREIN BEFORE USING THE APPLIANCE.
INSTALLATION MUST BE CARRIED OUT BY COMPETENT PERSONS IN
ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR HOUSEHOLD USE AND COMPLIES WITH THE EEC DIRECTIVES
CURRENTLY IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY OUT THE
FOLLOWING FUNCTIONS: COOKING FOOD; IT IS CONSIDERED UNSUITABLE FOR
ANY OTHER USE.
THE MANUFACTURER CANNOT BE HELD LIABLE FOR USE OTHER THAN AS
INDICATED.
IF THE APPLIANCE IS INSTALLED ON BOATS OR IN CARAVANS, DO NOT USE IT AS
A ROOM HEATER.
DO NOT USE THIS APPLIANCE FOR HEATING ROOMS.
THIS APPLIANCE IS MARKED ACCORDING TO EUROPEAN DIRECTIVE 2002/96/EC
ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THIS DIRECTIVE DEFINES THE STANDARDS FOR THE COLLECTION AND
RECYCLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT APPLICABLE
THROUGHOUT THE EUROPEAN UNION.
THE IDENTIFICATION PLATE WITH THE TECHNICAL DATA, SERIAL NUMBER AND
BRAND NAME HAS BEEN VISIBLY AFFIXED TO THE APPLIANCE.
DO NOT REMOVE THIS PLATE FOR ANY REASON.
24
BEFORE OPERATING THE APPLIANCE ALL PROTECTIVE COVERS MUST BE
REMOVED.
SUITABLE HEAT-PROOF GLOVES SHOULD BE WORN FOR ALL OPERATIONS.
DO NOT USE STEEL SPONGES AND SHARP SCRAPERS AS THEY WILL
DAMAGE THE SURFACE.
USE NORMAL NON-ABRASIVE PRODUCTS, INCLUDING WOODEN OR
PLASTIC UTENSILS IF NECESSARY. RINSE THOROUGHLY AND DRY
USING A SOFT CLOTH OR A MICROFIBRE CLOTH.
DO NOT LEAVE THE APPLIANCE UNATTENDED DURING COOKING PROCESSES
WHERE FATS OR OILS COULD BE RELEASED.
FATS AND OILS MAY CATCH FIRE.
General instructions
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE O (OFF) POSITION
WHEN YOU FINISH USING THE APPLIANCE
NEVER PLACE PANS WITH BOTTOMS WHICH ARE NOT PERFECTLY FLAT AND
SMOOTH ON THE COOKING HOB PAN STANDS.
NEVER USE PANS WHICH PROJECT BEYOND THE OUTSIDE EDGE OF THE HOB.
25
General instructions
2. SAFETY PRECAUTIONS
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY REGULATIONS
FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION FUNCTIONS.
IN YOUR INTERESTS AND FOR YOUR SAFETY THE LAW REQUIRES THAT THE
INSTALLATION AND SERVICING OF ALL ELECTRICAL APPLIANCES IS CARRIED
OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN
FORCE.
OUR APPROVED INSTALLERS GUARANTEE A SATISFACTORY JOB.
GAS OR ELECTRICAL APPLIANCES MUST ALWAYS BE DISCONNECTED BY
SUITABLY SKILLED PEOPLE.
BEFORE CONNECTING THE APPLIANCE TO THE POWER GRID, CHECK THE DATA
ON THE PLATE AGAINST THE DATA FOR THE GRID ITSELF.
THE IDENTIFICATION PLATE CONTAINING THE TECHNICAL DATA, SERIAL NUMBER
AND
BRAND NAME IS IN A VISIBLE POSITION UNDER THE CASING.
DO NOT REMOVE THIS PLATE ON THE CASING FOR ANY REASON.
BEFORE CONNECTING THE APPLIANCE, MAKE SURE THAT IT HAS BEEN SET UP
FOR THE
TYPE OF GAS THAT WILL BE USED. THIS CAN BE CHECKED BY REFERRING TO
THE LABEL APPLIED
UNDERNEATH THE CASING
BEFORE CARRYING OUT INSTALLATION/MAINTENANCE WORK, MAKE SURE THAT
THE APPLIANCE IS NOT CONNECTED TO THE POWER GRID.
26
THE PLUG TO BE CONNECTED TO THE POWER SUPPLY CABLE AND ITS SOCKET
MUST BE OF THE SAME TYPE AND CONFORM TO THE REGULATIONS IN FORCE.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN BUILT IN.
NEVER DISCONNECT THE PLUG BY PULLING ON THE CABLE.
IF THE POWER SUPPLY CABLE IS DAMAGED, CONTACT THE TECHNICAL SUPPORT
SERVICE IMMEDIATELY AND THEY WILL REPLACE IT.
IT IS OBLIGATORY FOR ALL ELECTRICAL EQUIPMENT TO BE EARTHED
ACCORDING TO THE METHODS LAID DOWN BY SAFETY REGULATIONS.
IMMEDIATELY AFTER INSTALLATION, CARRY OUT A BRIEF INSPECTION TEST,
FOLLOWING THE INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT
FUNCTION, DISCONNECT IT FROM THE ELECTRICITY SUPPLY AND CALL THE
NEAREST TECHNICAL SUPPORT CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
DURING USE THE APPLIANCE BECOMES VERY HOT. BE CAREFUL NOT TO TOUCH
THE HEATING ELEMENTS.
General instructions
THIS APPLIANCE MAY NOT BE USED BY PEOPLE (INCLUDING CHILDREN) OF
REDUCED PHYSICAL AND MENTAL CAPACITY, OR LACKING IN EXPERIENCE IN
THE USE OF ELECTRICAL APPLIANCES, UNLESS THEY ARE SUPERVISED OR
INSTRUCTED BY ADULTS RESPONSIBLE FOR THEIR SAFETY.
DO NOT LET CHILDREN GO NEAR THE APPLIANCE WHEN IT IS IN OPERATION OR
PLAY WITH IT AT ANY TIME.
DO NOT INSERT POINTED METAL OBJECTS (CUTLERY OR UTENSILS) INTO THE
SLITS IN THE APPLIANCE.
DO NOT USE STEAM JETS FOR CLEANING THE APPLIANCE.
THE STEAM COULD REACH THE ELECTRONICS, DAMAGING THEM AND CAUSING
SHORT-CIRCUITS.
DO NOT MODIFY THIS APPLIANCE.
DO NOT SPRAY ANY SPRAY PRODUCTS NEAR THE ELECTRICAL APPLIANCE
WHILE IT IS IN OPERATION.
DO NOT USE SPRAY PRODUCTS WHILE THE PRODUCT IS STILL HOT.
The manufacturer cannot be held liable for damage to persons or things caused
by failure to observe the above instructions, by interference with any part of the
appliance or by the use of non-original spare parts.
27
Instructions for disposal
3. ENVIRONMENTAL RESPONSIBILITY
3.1 Our environmental responsibility
Pursuant to Directives 2002/95/EC, 2002/96/EC and 2003/108/EC relating to
the reduction of the use of hazardous substances in electrical and electronic
appliances, as well as to the disposal of refuse, the crossed out bin symbol on
the appliance indicates that at the end of the useful life of the product, it must be
collected separately from other refuse. Therefore, at the end of the products
working life, the user must deliverit to the appropriate differentiated collection
centres for electrical and electronic waste, or deliverit back to the retailer when
purchasing an equivalent product, on a one-for-one basis. Adequate
differentiated collection for the subsequent forwarding of the decommissioned
product to recycling, processing and ecologically compatible disposal
contributes to avoiding possible negative effects on the environment and on
health, and promotes recycling of the appliances constituent materials. Illicit
disposal of the product by the user will lead to the application of administrative
sanctions.
The product does not contain substances in quantities sufficient to be
considered hazardous to health and the environment, in accordance with
current European directives.
3.2 Your environmental responsibility
28
Our productspackingismadeofnon-polluting materials, which are therefore
compatible with the environment and recyclable. Please help by disposing of the
packaging correctly. You can obtain the addresses of collection, recycling and
disposal centres from your retailer or from the competent local organisations.
Do not discard the packaging or any part of it, or leave it unattended. It can
constitute a suffocation hazard for children, especially the plastic bags.
Your old appliance also needs to be disposed of correctly.
Important: hand over your appliance to the local agency authorised for the
collection of electrical appliances no longer in use. Correct disposal enables
intelligent recovery of valuable materials.
Before disposing of your appliance it is important to remove doors and leave
shelves in the same position as for use, to ensure that children cannot
accidentally become trapped inside during play. It is also necessary to cut the
connecting cable to the power grid, removing it along with the plug.
Instructions for the user
1
2
3
1
2
3
4. KNOW YOUR APPLIANCE
Auxiliary Burner (AUX)
Rapid Burner (R)
Dual Crown Burner (UR2)
29
Instructions for the user
A
C
F
G
D
B
H
5. USING THE HOB
5.1 Lighting the hob burners
Before lighting the hob burners, check that the flame-spreader crowns are
correctly in place with their respective burner caps, making sure that the holes A
in the flame-spreaders are aligned with the igniters and thermocouples.
For dual burner UR2, place and lock caps G and F perfectly on burner D. This
latter, in turn, must be placed and locked into the base B (use pins C as a
reference). Rack H is for use with woks.
The burner controlled by each knob is shown next to the
knob. The appliance is equipped with an electrical ignition
device. Simply press the knob and turn it anti-clockwise to
the maximum flame symbol , until the burner lights.
On valved models, once the burner is lit, keep the knob pressed for a few
seconds to give the thermocouple time to heat up. The burner may go out when
the knob is released: in this case, the thermocouple has not heated up
sufficiently.
Wait a few moments and repeat the operation, keeping the knob pressed for
longer. This is not necessary on burners that are not equipped with a
thermocouple.
Once the burner is lit, the flame can be adjusted as required.
Always check that the control knobs are in the O (off) position when you finish
using the hob.
If the burners should go out accidentally, after about 20 seconds a safety device
will be tripped, cutting off the gas supply, even if the gas tap is open.
30
Instructions for the user
1
2
3
5.2 Practical tips for using the burners
For better burner efficiency and to minimise gas consumption, use pans with a flat,
smooth base and a lid that have a suitable size for the burner, thus preventing the
flames reaching the sides of the pan (see point “5.3 Pan diameters”). Once the
contents come to the boil, turn down the flame far enough to prevent the liquid from
boiling over.
To prevent burns or damage to the hob during cooking, all pans or griddles must be
placed inside the perimeter of the hob.
Take the greatest care when using fats or oils since they may catch fire if
overheated.
If the burner flame accidentally goes out, turn off the control knob and wait at least 1
minute before trying to re-light the burner.
To prevent burns or damage to the hob or top during cooking, all pans or
griddles must be placed inside the perimeter of the hob.
5.3 Pan diameters
HOB BURNER
1 Auxiliary
2 Rapid
Dual crown
3
The wok support rack supplied can be used as a raised
pan support on burners 1 and 2 ONLY, and for “woks”
on burners 2 and 3 ONLY.
Ø min. and
max.
(in cm)
12-16
18-24
22-26
31
Instructions for the user
6. CLEANING AND MAINTENANCE
Before performing any operations requiring access to powered parts, switch off
the power supply to the appliance
NEVER USE A STEAM JET FOR CLEANING THE APPLIANCE.
6.1 Cleaning stainless steel
To keep stainless steel in good condition it should be cleaned regularly after
use. Let it cool first.
6.1.1 Ordinary daily cleaning
To clean and preserve the stainless steel surfaces, use only specific products
that do not contain abrasives or chlorine-based acids.
How to use: pour the product onto a damp cloth and wipe the surface, rinse
thoroughly and dry with a soft cloth or chamois leather.
6.1.2 Food stains or residues
Do not use metallic sponges or sharp scrapers as they will damage
the surface.
Use ordinary non-abrasive products for steel, with the aid of wooden
or plastic utensils if necessary.
Rinse thoroughly and dry with a soft cloth or chamois leather.
32
Instructions for the user
A
C
F
G
D
B
6.2 Cleaning the cooking hob parts
For easier cleaning the pan stands, burner caps,
flame spreader crowns and burners can all be
removed; wash them with warm water and a nonabrasive detergent making sure to remove any
encrustation, then wait until they are completely
dry. Replace caps on the relative crowns, making
sure that the flame spreader crowns are correctly
in place with their respective burner caps and
ensuring that the holes A in the flame-spreaders
are aligned with the igniters and thermocouples.
For dual burner UR2, place and lock caps G and F
perfectly on burner D. This latter, in turn, must be
placed and locked into the base B (use pins C as
a reference).
For correct operation, the igniters and
thermocouples must always be perfectly clean.
Check them frequently and clean them with a
damp cloth if necessary. Remove any dry
residues with a wooden toothpick or a needle.
33
Instructions for the installer
A
B
D
C
E
H
D
7. POSITIONING ON THE HOB TOP
This is a cat. 3 appliance (built-in).
The following operation requires building and/or carpentry work and must
therefore be carried out by a competent tradesman.
Installation can be carried out on various materials such as masonry, metal,
solid wood or plastic laminated wood as long as they are heat-resistant (T
90°C).
7.1 Built-in dimensions
34
DISTANCES A B C D E H
MINIMUM 292 mm. 494 mm. 20 mm. 110 mm. 50 mm. 750 mm.
MAXIMUM 292 mm. 494 mm. 70 mm. - - -
Instructions for the installer
3-4 mm
7.2 Fixing to the supporting structure
Carefully position the supplied insulating seal
on the outer edge of the hole on the top hob,
as indicated in the figure alongside. Try and
make it stick to the whole surface by applying
light hand pressure.
The seal must be placed at a distance of 3-4
mm from the edge of the hole in the top.
Carry out this operation by supporting the hob
on the isolating seal and using screws and
clamping brackets to fix the hob to the
support structure, in order to obtain the
complete flatness.
Carefully trim the surplus away from edge
beyond the seal.
35
Instructions for the installer
Max
150 mm
Max
100 mm
Min. 20 mm
IMPORTANT: if the appliance is mounted on a unit, make sure that a separating
shelf is installed, as shown in the figure.
However, if the appliance is on an oven installed under the hob, there is no need
to install a separating shelf.
If installed on top of an oven, the latter must be equipped with a cooling fan.
7.3 Electrical connection
Make sure that the voltage and capacity of the power line conform to the data
shown on the plate located under the casing. Do not remove this plate for any
reason.
The plug at the end of the supply cable and the wall socket must be of the same
type and must conform to the applicable legislation on electrical installations.
Make sure that the supply line is suitably earthed.
Fit power line with an omnipolar circuit breaker with a contact opening gap equal
to or greater than 3 mm in an easily accessible position close to the hob.
36
Avoid the use of adapters and shunts.
Instructions for the installer
If the power cable is replaced, the crosssection of wires in the new cable must be
no less than 0.75 mm2 (3 x 0.75 cable),
remembering that the end for connection to
the appliance must have an earth wire
(yellow/green) which is
at least 20 mm longer. Only use a H05V2V2-F or similar resistance cable to the
maximum temperature of 90°C. Its replacement must be carried out be a
specialised technician who must carry out the network connection following the
diagram below.
L = brown
N = blue
= yellow/green
The manufacturer cannot be held liable for damage to persons or things caused
by non-observance of the above directions or by interference with any part of
the appliance.
7.4 Ventilation in the room containing the appliance
The room containing the appliance should have a permanent air supply in
accordance with the standards in force. The room where the appliance is
installed must have enough air flow needed for the regular combustion of gas
and the necessary air change in the room itself. The air vents, protected by
grills, must be the right size to comply with current regulations and positioned so
that no part of them is obstructed, not even partially.
The room must be kept adequately ventilated in order to eliminate the heat and
humidity produced by cooking: in particular, after prolonged use, you are
recommended to open a window or to increase the speed of any fans.
7.5 Extraction of the combustion products
The combustion products can be extracted by means of hoods connected to a
natural draught chimney whose efficiency is certain or via forced extraction. An
efficient extraction system requires precision planning by a specialist qualified in
this area and must comply with the positions and distances indicated by the
applicable standards. When the job is complete, the installer must issue a
certificate of conformity.
37
Instructions for the installer
7.6 Gas connection
Connection to the gas supply network can be made using a rigid copper hose or
a flexible steel hose with a continuous wall and in compliance with the guidelines
established by the applicable standard.
Once the operation is complete, check the hose fittings for leaks using a soapy
solution; never use a flame.
The hob is preset for natural gas G20 (2H) at a pressure of 20 mbar. For
supplying it with other types of gas, see chapter “8. ADAPTATION TO
DIFFERENT TYPES OF GAS”. The gas inlet connection is threaded ½” external
gas (ISO 228-1).
Connection with a rigid copper
hose:The connection to the gas supply
network must be made in such a way that it
does not cause stresses of any type on the
appliance.
The connection can be made using the
adapter unit D with double cone, always
inserting gasket C (provided) in between.
Connection with a flexible steel
hose:Use only continuous wall stainless
steel hoses that comply with current
legislation, making sure to always insert
the supplied gasket C between the
connection A and the flexible hose B.
Installation with the flexible hose must be carried out so that the length of the
piping does not exceed 2 metres when fully extended; make sure that the hoses
do not come into contact with moving parts and that they are not crushed in any
way.
38
7.7 Connection to liquid gas
Use a pressure regulator and make the connection on the gas cylinder following
the guidelines set out in the regulations in force.
Make sure that the feed pressure complies with the values indicated in the table
at point “8.2 Burner and nozzle characteristics table”.
Instructions for the installer
8. ADAPTATION TO DIFFERENT TYPES OF GAS
Before carrying out the following operations, disconnect the appliance from the
power supply
The appliance is preset for natural gas G20 at a pressure of 20 mbar. In the
case of operation with other types of gas, the burner nozzles must be changed
and the minimum flame adjusted on the gas taps. To change the nozzles,
proceed as described in the following paragraphs.
8.1 Replacement of nozzles on the hob
1 Extract the pan racks and remove all the caps and flame-spreader crowns; 2 Unscrew the burner nozzles with a 7 mm socket spanner; 3 Replace the burner nozzles according to the type of gas to be used (see “8.2
Burner and nozzle characteristics table”).
4 Replace the burners in the correct position.
The nozzles for using city gas (G110 – 8 mbar) are available from authorised
service centres.
39
Instructions for the installer
1
2
3
8.2 Burner and nozzle characteristics table
Rated heating
Burner
Auxiliary (1) 1.05 50 30 400 76 75
Rapid (2) 2.50 79 42 800 182 179
Dual crown (3) INT
Dual crown (3) EXT
Burner
Auxiliary (1) 1.05 72 400
Rapid (2) 2.50 108 800
Dual crown (3) INT
Dual crown (3) EXT
8.3 Arrangement of the burners on the cooking hob
capacity
(kW)
Nozzle
diameter
1/100 mm
0.90 46 30 400 65 64
3.60 68 + 68 63 1600 262 257
Rated heating
capacity
(kW)
0.90 70 400
3.60 102 + 102 1600
Liquid gas - G30/G31 28/37 mbar
By-pass
mm
1/100
Natural gas - G20 20 mbar
Nozzle diameter
1/100 mm
Rated
capacity
(W)
Rated
g/h G30
Reduced capacity
(W)
Rated
g/h G31
I
40
HOB BURNER
1 Auxiliary
2 Rapid
Dual crown
3
After making the adjustments described above, reassemble the appliance by
following the instructions in point “8.1 Replacement of nozzles on the hob” in
reverse order.
After adjustment with a gas other than the preset one, replace the label on the
bottom of the casing with the label corresponding to the new gas. This label is
supplied with the appliance (when applicable) or can be obtained from the
nearest Authorised Service Centre.
Instructions for the installer
8.4 Adjusting the minimum for town and natural gas
Light the burner and turn it to the
minimum position. Extract the gas tap
knob and turn the adjustment screw
on the left side of the tap (indicated in
the figure) until the correct minimum
flame is achieved.
Refit the knob and verify that the
burner flame is stable (when turning
the knob rapidly from the maximum to
the minimum position the flame must
not go out).
Repeat the operation on all the gas
taps.
8.5 Adjusting the minimum setting for liquid gas
To adjust the minimum setting with liquid gas, you must tighten the screw inside
or next to the tap rod (depending on the model) fully in a clockwise direction.
The bypass diameters for each individual burner are shown in table “8.2 Burner
and nozzle characteristics table”.
8.6 Lubrication of gas taps
Over time the gas taps may become difficult to turn and get blocked. Clean them
internally and replace the lubrication grease. This procedure must be carried
out by a specialised technician.
41
Loading...
