Smeg PNL705ES, PD106ES, PNL64ES, P705ESBE, PD705ES User Manual

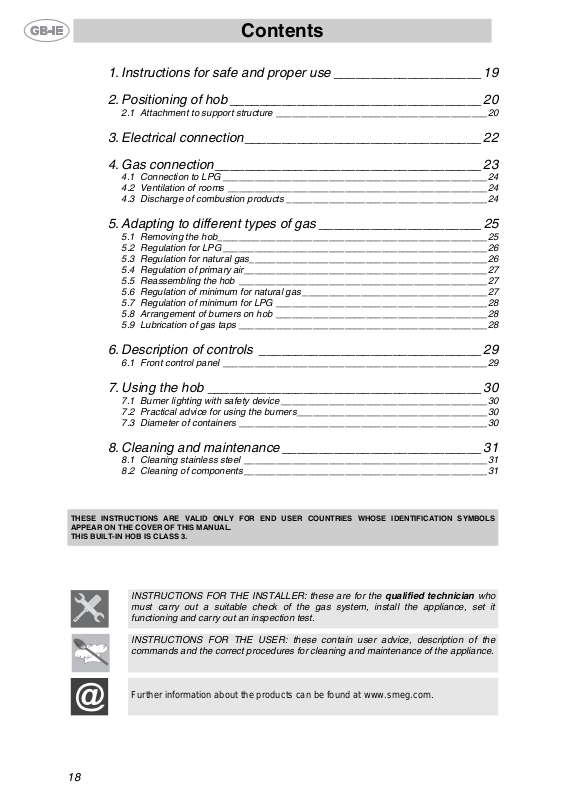

Contents

1. Instructions for safe and proper use ____________________ 19

2. Positioning of hob __________________________________ 20

2.1 Attachment to support structure ________________________________________ 20

3. Electrical connection ________________________________ 22

4. Gas connection ____________________________________ 23

4.1 Connection to LPG __________________________________________________ 24

4.2 Ventilation of rooms _________________________________________________ 24

4.3 Discharge of combustion products ______________________________________ 24

5. Adapting to different types of gas ______________________ 25

5.1 Removing the hob ___________________________________________________ 25

5.2 Regulation for LPG __________________________________________________ 26

5.3 Regulation for natural gas _____________________________________________ 26

5.4 Regulation of primary air ______________________________________________ 27

5.5 Reassembling the hob _______________________________________________ 27

5.6 Regulation of minimum for natural gas ___________________________________ 27

5.7 Regulation of minimum for LPG ________________________________________ 28

5.8 Arrangement of burners on hob ________________________________________ 28

5.9 Lubrication of gas taps _______________________________________________ 28

6. Description of controls ______________________________ 29

6.1 Front control panel __________________________________________________ 29

7. Using the hob _____________________________________ 30

7.1 Burner lighting with safety device _______________________________________ 30

7.2 Practical advice for using the burners ____________________________________ 30

7.3 Diameter of containers _______________________________________________ 30

8. Cleaning and maintenance ___________________________ 31

8.1 Cleaning stainless steel ______________________________________________ 31

8.2 Cleaning of components ______________________________________________ 31

THESE INSTRUCTIONS ARE VALID ONLY FOR END USER COUNTRIES WHOSE IDENTIFICATION SYMBOLS
APPEAR ON THE COVER OF THIS MANUAL.
THIS BUILT-IN HOB IS CLASS 3.

INSTRUCTIONS FOR THE INSTALLER: these are for the qualified technician who
must carry out a suitable check of the gas system, install the appliance, set it
functioning and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice, description of the
commands and the correct procedures for cleaning and maintenance of the appliance.

@

18

Further information about the products can be found at www.smeg.com.

Instructions for safe and proper use

1. Instructions for safe and proper use

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND THEREFORE MUST BE KEPT IN ITS
ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE COOKING
HOB. WE ADVISE READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE USING
THE COOKING HOB. ALSO KEEP THE SERIES OF NOZZLES SUPPLIED. INSTALLATION MUST BE
CARRIED OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN FORCE.
THIS APPLIANCE IS INTENDED FOR DOMESTIC USES AND CONFORMS TO CURRENT
REGULATIONS IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING
FUNCTIONS: COOKING AND HEATING-UP OF FOOD. ALL OTHER USES ARE CONSIDERED
IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE THE VARIOUS WASTE
MATERIALS AND TAKE THEM TO THE NEAREST SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED ACCORDING TO THE
METHODS REQUIRED BY SAFETY RULES.

THE PLUG TO BE CONNECTED TO THE POWER CABLE AND THE SOCKET MUST BE THE SAME
TYPE AND MUST CONFORM TO CURRENT REGULATIONS.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN BUILT IN.
NEVER UNPLUG BY PULLING ON THE CABLE.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION TEST OF THE COOKING
HOB, FOLLOWING THE INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT FUNCTION,
DISCONNECT IT FROM THE SUPPLY AND CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE “ZERO” (OFF) POSITION WHEN YOU
FINISH USING THE HOB.

DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS ON THE COOKING HOB
GRIDS.

DO NOT USE RECIPIENTS OR GRIDDLE PLATES THAT EXTEND BEYOND THE EXTERNAL
PERIMETER OF THE HOB.

THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND BRAND NAME IS
POSITIONED VISIBLY UNDER THE CASING, ATTACHED TO THIS MANUAL AND APPLIED TO THE
QUALITY CERTIFICATE.

THE PLATE ON THE CASING MUST NOT BE REMOVED.

THE HOB IS TO BE USED BY ADULTS ONLY. DO NOT LET UNSUPERVISED CHILDREN PLAY WITH

THE HOB.

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE 2002/96/EC ON WASTE
ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF RETURN AND RECYCLING ON
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT.

The manufacturer declines all responsibility for damage to persons or things caused
by non-observance of the above prescriptions or by interference with any part of the
appliance or by the use of non-original spares.

19

Instructions for the installer

2. Positioning of hob

The following operation requires building and/or carpentry work so must be carried out
by a competent tradesman.
Installation can be carried out on various materials such as masonry, metal, solid
wood or plastic laminated wood as long as they are heat resistant (T 90°C).

2.1 Attachment to support structure

Create an opening with the dimensions shown in the figure in the top surface of the
counter, keeping a minimum distance of 50 mm from the rear border. This unit may be
set against walls that are higher than the hob as long as distance “X” (see figure) is
maintained to prevent damage to the walls due to overheating. Make sure there is a
minimum of 750 mm between the hot plate flames and any shelf that may be installed
directly above them. In case of installation on a hollow compartment with doors, a
separating panel has to be placed under the hob. Keep a minimum distance of 10 mm
between the bottom of the unit and the panel surface. The panel has to be easily
removable to allow access in the event of technical service.

Whenever a cooker hood is to be installed above the hob, refer to the instruction
manual to ensure it is installed at the correct distance.

20

Instructions for the installer

Carefully position the insulation gasket (supplied) on the external perimeter of the hole
made in the top surface (see figures below) and try to make it stick to the entire surface
by applying light pressure with your hands. Refer to the distances shown in the figure
for the model to be installed, keeping in mind that for both models the long front side
has to skim the hole. Secure the hob to the counter with brackets A (supplied).
Carefully trim any excess from border B of the gasket. The distances in the following
drawing refer to the hole on the inner side of the gasket.

The diagram below shows the exact positions of the holes to be used for clamping the
hob to the top correctly.

21

Instructions for the installer

3. Electrical connection

Make sure that the voltage and capacity of the power line conform to the data shown
on the plate located under the casing. Do not remove this plate for any reason.

The plug on the end of the supply cable and the wall socket must be the same type
and conform to the current electrical system regulations. Check that the power line is
adequately grounded.

Pass the power supply cable through the back of the unit, taking care that it does not
touch the bottom casing of the hob or the oven (if any) installed underneath it.

On the power line, install an omnipolar cut-off device with contact cut-off distance
greater than or equal to 3 mm, located in an easily accessible position near the unit.

Do not use reducers, adapters or shunts.

If the power cable is replaced, the wire section on the new cable must not be less than

0.75 mm2 (3 x 0.75 cable), keeping in mind that the end to be connected to the hob
must have the ground wire (yellow-green) longer by at least 20 mm. Use only
H05V2V2-F cable or similar which has a maximum temperature of 90°C. Any replacement
needed should be carried out by a specialised technician who should make the mains
connections according to the following diagram.

L = brown
N = blue

= yellow-green

The power lead must be changed by the manufacturer or by an authorised service
centre to prevent any risks.

The manufacturer will not be liable for any damage to persons or property caused by
non-observance of the above instructions or deriving from the tampering of even a
single part of the hob.

22
