PC73GNO
Hob, Aesthetics: Classica, Gas, 70/75 cm, Black, Built-in type: Ultra-low profile
TYPE
Product Family: Hob • Dimensions: 70/75 cm • Type: Gas • Built-in type: Ultra-low profile • Power supply: Gas • EAN code: 8017709194659
AESTHETICS
Colour: Black • Finishing: Glass • Aesthetics: Classica • Components finishing: Black • Material: Glass • Controls colour: Brass • Type of control setting: Control knobs • Control knob position: Front • No. of controls: 3 • Glass on Steel: Yes • Pan stands: Cast iron • Serigraphy colour: White
PROGRAMS / FUNCTIONS
Total no. of cook zones: 3 • No. of gas cook zones: 3
OPTIONS

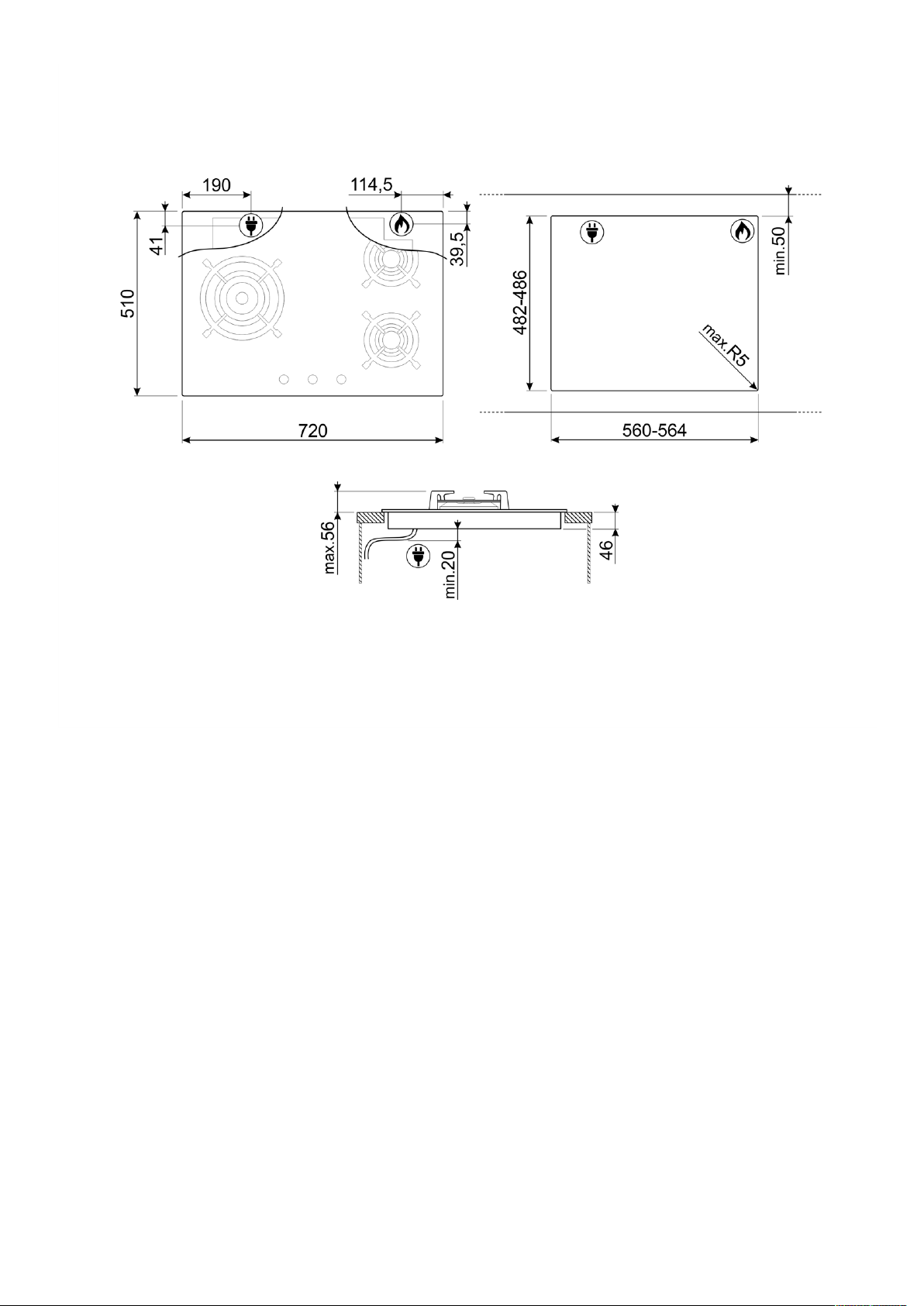

Worktop Cut-Out: 482-486x560-564 mm
COOKING ZONES
1st zone position: Left • 2nd zone position: Rear-right • 3rd zone position: Front-right • 1st zone type: Gas - UR • 2nd zone type: Gas - Rapid • 3rd zone type: Gas - Semi Rapid • 1st zone power: 6.20 kW • 2nd zone power: 3.00 kW • 3rd zone power: 1.80 kW
TECHNICAL FEATURES
Gas Type: G30 GPL Liquid gas • Gas safety valves: Yes • Automatic Ignition: Yes
ELECTRICAL CONNECTION
Gas connection rating (W): 11000 W • Electrical connection rating (W): 1 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60 Hz • Power supply cable length: 120 cm
LOGISTIC INFORMATION
Dimensions of the product (mm): 102x720x510 • Depth: 510 mm • Width: 720 mm • Product Height: 102 mm
ACCESSORIES INCLUDED
Other gas nozzles included: G110 City gas, G20 Natural gasOther accessories: Linea control knobs kit
OPTIONAL
GRM: Reduction Grid, Cookers, HobsGRW: Reduction Grid, HobsWOKGHU: Reduction Grid, Cookers, Hobs
